Fudasi Technology FKT05ZI Users Manual

Phottix Strato Multi Instructions
PHOTTIX Strato Multi Transmitter

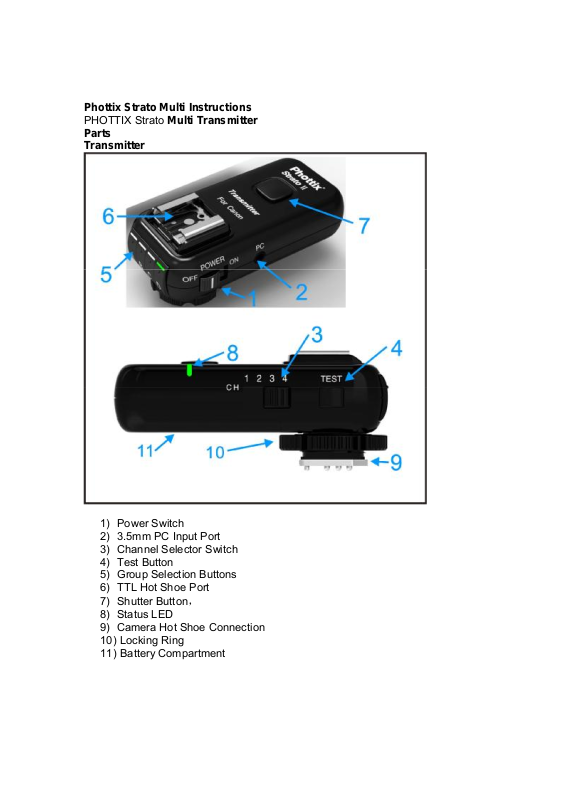

Parts
Transmitter

1) Power Switch

2) 3.5mm PC Input Port

3) Channel Selector Switch

4) Test Button

5) Group Selection Buttons

6) TTL Hot Shoe Port

7) Shutter Button，

8) Status LED

9) Camera Hot Shoe Connection

10) Locking Ring

11) Battery Compartment

Please Note: Strato Multi receivers are designed to work in Manual Exposure

mode and have no TTL functions.
Only use flashes designed for Digital SLR cameras (5V) on the Strato Multi
transmitter hot shoe when on the camera.

Tip: Turn off all devices – flashes/strobes, cameras, and Phottix Strato Multi

transmitters and receivers - when connecting and disconnecting devices.

Keep in mind: The Strato Multi will trigger Strato 4-in-1 wireless triggers. When

shooting in public bear in mind other photographers using the same products.

Inserting batteries

1. Press the battery cover in while pushing it away from the Strato Multi
transmitter r. The battery cover will snap open and slide open.

2. Remove the battery cover from the Strato Multi.

3. Insert AAA batteries.

4. Replace the battery cover and push back into the locked position.

Turning transmitter on/off

To turn on the Phottix Strato Multi transmitter or receiver– move the power switch
to the “ON” position.

1. To turn off the Phottix Strato Multi transmitter move the power switch to
the “OFF” position.

Test Button

1. The Test Button will test fire flashes/strobes.

2. To Test: Press the transmitter Test Button. Flashes connected to Phottix
Strato Multi receivers on the same channel and selected groups will fire
when the transmitter test button is pressed.

3.Pressing the receiver Test Button will test fire flashes or strobes connected to
that receiver.

For Wireless Shutter Release: See Using the Strato Multi as a wireless

shutter release below
Status LED

1. The Status LED on the Phottix Strato Multi transmitter will turn solid green
upon a half-press of the shutter button (on camera or the Strato Multi
transmitter being used as a wireless shutter release) and turn red when
sending a signal

2. The Status LED on the Phottix Strato Multi receiver will flash green while
the power is on and idle. The LED will turn red when a signal is received
from the transmitter and the flash / camera is fired.

Groups and Channels The Phottix Strato Multi System has 4 groups: A, B, C,

and D. Each group contains 4 channels: 1, 2, 3, 4.

1. Receivers can be assigned both group and channel designations.
