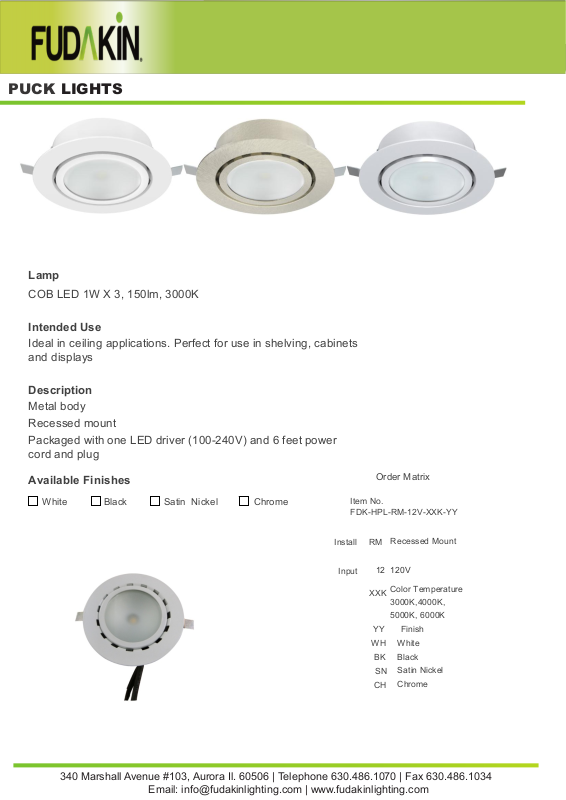

Page 1
PUCK LIGHTS
Lamp
COB LED 1W X 3, 150lm, 3000K
.
Intended Use
Ideal in ceiling applications. Perfect for use in shelving, cabinets
and displays
Description
Metal body
Recessed mount
Packaged with one LED driver (100-240V) and 6 feet power
cord and plug
Available Finishes
White Black Satin Nickel Chrome
Item No.
FDK-HPL-RM-12V-XXK-YY
Install RM
Input
Order Matrix
Recessed Mount
12 120V
Color Temperature
XXK
3000K,4000K,
5000K, 6000K
Finish
YY
White
WH
Black
BK
Satin Nickel
SN
Chrome
CH
340 Marshall Avenue #103, Aurora Il. 60506 | Telephone 630.486.1070 | Fax 630.486.1034
Email: [email protected] | www.fudakinlighting.com
Page 2
PUCK LIGHTS
Installation
Locate desired position for the puck light.
Drill a 2 1/2” hole in the desired location (Fig1).
Feed the wires through the hole and push the lamp housing into the hole (Fig2).
CAUTION: If the hole is too big or small, puck light cannot be installed. Maximum
3 puck lights can be connected to provided LED driver (Fig3).
.
340 Marshall Avenue #103, Aurora Il. 60506 | Telephone 630.486.1070 | Fax 630.486.1034
Email: [email protected] | www.fudakinlighting.com
