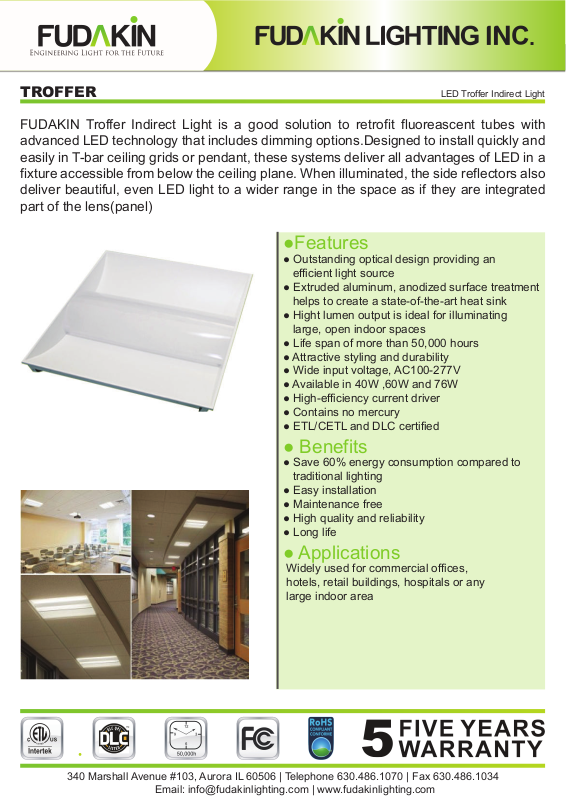

TROFFER LED Troffer Indirect Light
.
●Features
● Outstanding optical design providing an
efficient light source
● Extruded aluminum, anodized surface treatment
helps to create a state-of-the-art heat sink
● Hight lumen output is ideal for illuminating
large, open indoor spaces
● Life span of more than 50,000 hours
● Attractive styling and durability
● Wide input voltage, AC100-277V
● Available in 40W ,60W and 76W
● High-efficiency current driver
● Contains no mercury
● ETL/CETL and DLC certified
● Benefits
● Save 60% energy consumption compared to
traditional lighting
● Easy installation
● Maintenance free
● High quality and reliability
● Long life
● Applications
Widely used for commercial offices,
hotels, retail buildings, hospitals or any
large indoor area
FUDAKIN Troffer Indirect Light is a good solution to retrofit fluoreascent tubes with
advanced LED technology that includes dimming options.Designed to install quickly and
easily in T-bar ceiling grids or pendant, these systems deliver all advantages of LED in a
fixture accessible from below the ceiling plane. When illuminated, the side reflectors also
deliver beautiful, even LED light to a wider range in the space as if they are integrated
part of the lens(panel)
Email: [email protected] | www.fudakinlighting.com
340 Marshall Avenue #103, Aurora IL 60506 | Telephone 630.486.1070 | Fax 630.486.1034
Page 2
LED Troffer Indirect LightTROFFER
.
Mo del
FDK-RT-22-27-40-XXK
FDK-RT-24-27-60-XXK
FDK-RT-24-27-70-XXK
40
60
70
AC100-277VAC
3000 K
3500 K
4000 K
5000 K
2X4 FT
2X2 FT ฺ4000 LM
ฺ6000 LM
ฺ7000 LM
Watt
In put
Voltage
Size CCT
L ight
Ou tp ut
CRI
Beam An gle
Finish & Colo r Dimmable
ฺ80
90°
Powder Coa!ng
- White
No
Pro duct Series
Inpu t Voltag e
Size Watt CCT Dimmable
27 - AC100-277VAC
22 - 2X2 FT
24 - 2X4 FT
40 - 40W
60 - 60W
70 - 70W
30K - 3000 K
35K - 3500 K
40K - 4000 K
50K - 5000 K
RT - Troffers Series
No
FDK-RT- -YY- -XXK
A
B
C
FDK-RT-22-27-40-XXK
FDK-RT-24-27-60-XXK
FDK-RT-24-27-70-XXK
603mm/23.74” 603mm/23.74”
1213mm/47.76”
1213mm/47.76”
603mm/23.74”
603mm/23.74”
138mm/5.43”
138mm/5.43”
138mm/5.43”
Model A B C
Email: [email protected] | www.fudakinlighting.com
340 Marshall Avenue #103, Aurora IL 60506 | Telephone 630.486.1070 | Fax 630.486.1034
Product Parameter
Product Ordering code
Outline Drawing & Overall Size
