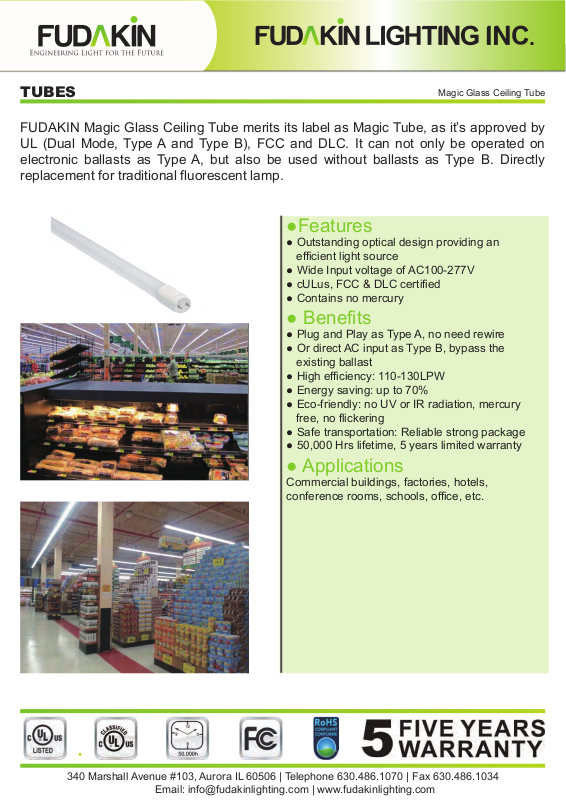

FUDAKIN FDKN1021 Specifications

TUBES

Magic Glass Ceiling Tube

●Features

● Outstanding optical design providing an
efficient light source

● Wide Input voltage of AC100-277V

● cULus, FCC & DLC certified

● Contains no mercury

● Benefits

● Plug and Play as Type A, no need rewire

● Or direct AC input as Type B, bypass the

existing ballast

● High efficiency: 110-130LPW

● Energy saving: up to 70%

● Eco-friendly: no UV or IR radiation, mercury

free, no flickering

● Safe transportation: Reliable strong package

● 50,000 Hrs lifetime, 5 years limited warranty

● Applications

Commercial buildings, factories, hotels,
co

nference rooms, schools, office, etc.

.

Email: [e-mail] | www.fudakinlighting.com

340 Marshall Avenue #103, Aurora IL 60506 | Telephone [phone] | Fax [phone]

FUDAKIN Magic Glass Ceiling Tube merits its label as Magic Tube, as it’s approved by
UL (Dual Mode, Type A and Type B), FCC and DLC. It can not only be operated on
electronic ballasts as Type A, but also be used without ballasts as Type B. Directly
replacement for traditional fluorescent lamp.

Magic Glass Ceiling Tube

TUBES

.

FDK-LT8G- - XYZ

Pro d uct Series Size

2 - 2FT
4 - 4FT

Watt

06 - 6W
10 - 10W
15 - 15W
18 - 18W
20 - 20W

Lens

C - Clear Lens
F - Frosted Lens

UL Type

A - UL Type A
B - UL Type B
AB - UL Type A + B

CCT

30K - 3000 K
40K - 4000 K

50K - 5000 K

LT8G - Magic Glass

Ceiling Tube

Email: [e-mail] | www.fudakinlighting.com

340 Marshall Avenue #103, Aurora IL 60506 | Telephone [phone] | Fax [phone]

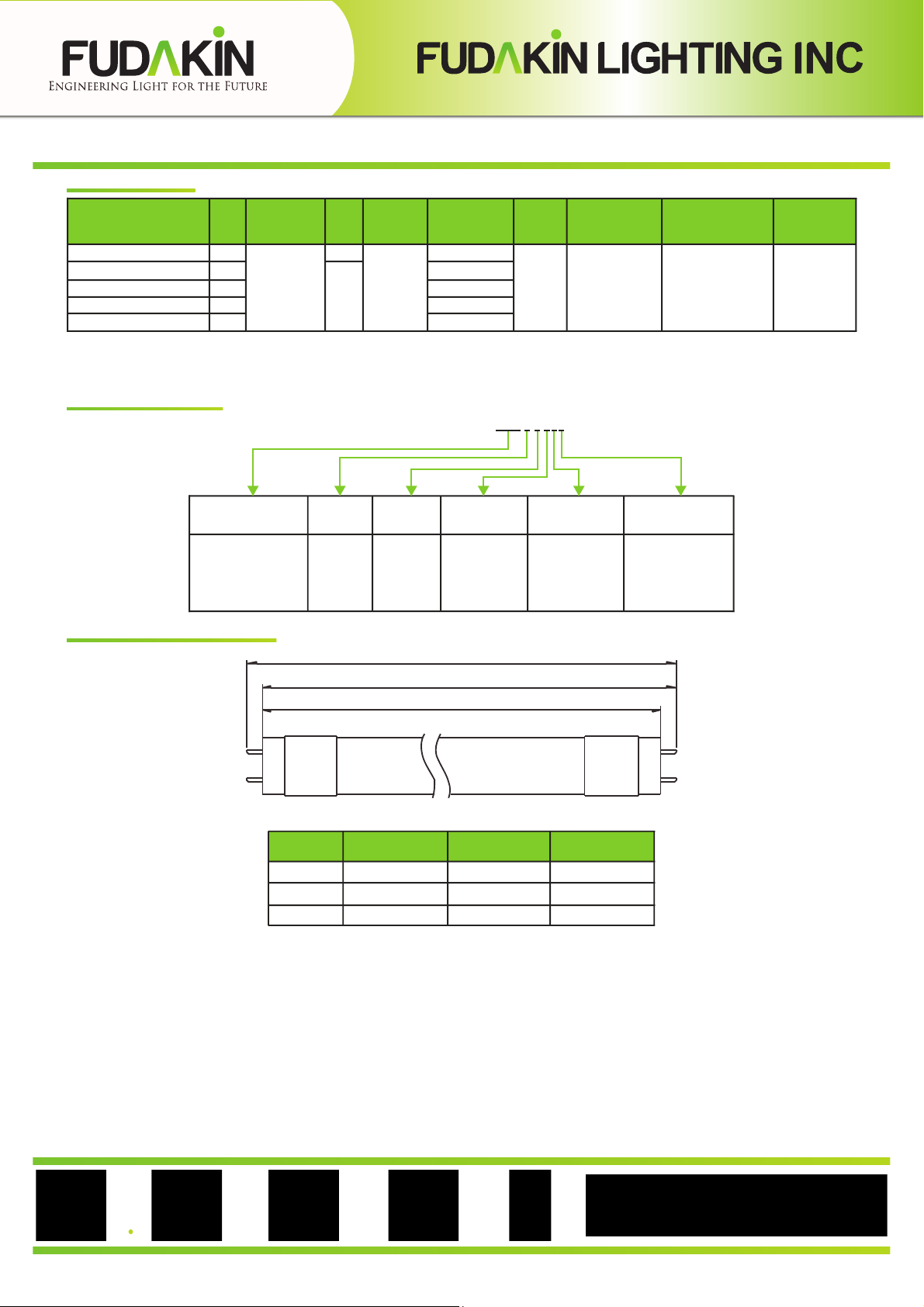

Product Parameter

Product Ordering code

Outline Drawing & Overall Size

Model A B C

4FT 1198.4mm/47.18” 1205.4mm/47.46” 1212.6mm/47.74”

893.6mm/35.18” 900.7mm/35.46” 907.8mm/35.74”

588.8mm/23.18” 595.9mm/23.46” 603mm/23.74”

3FT

2FT

C-Pin to Pin

B-Base face to Pin

A-Base face to faceBase

Mo d el

10 2 FT

4 FT

12

15

18
20

AC120-277V

3000 K
4000 K
5000 K

ฺ1400 LM

ฺ1700 LM
ฺ2100 LM
ฺ2400 LM
ฺ2700 LM

Watt

In p u t

Voltag e

CCTSize

Lig h t

Ou tput*

CRI

Beam An g le

Warranty Material

ฺ80 220° 5 Years Glass

*The Lumen Output number stated here is based on Tested Data listed in DLC; Wattage listed in DLC

may be higher than nominal wattage of Tube as ballast was used for testing and the power dissipation
for ballast is approx. 3 or 4 wattage.

FDK-LT8G-F1-2-10XYZ

FDK-LT8G-F1-4-12XYZ

FDK-LT8G-F1-4-15XYZ

FDK-LT8G-F1-4-18XYZ
FDK-LT8G-F1-4-20XYZ

TUBES

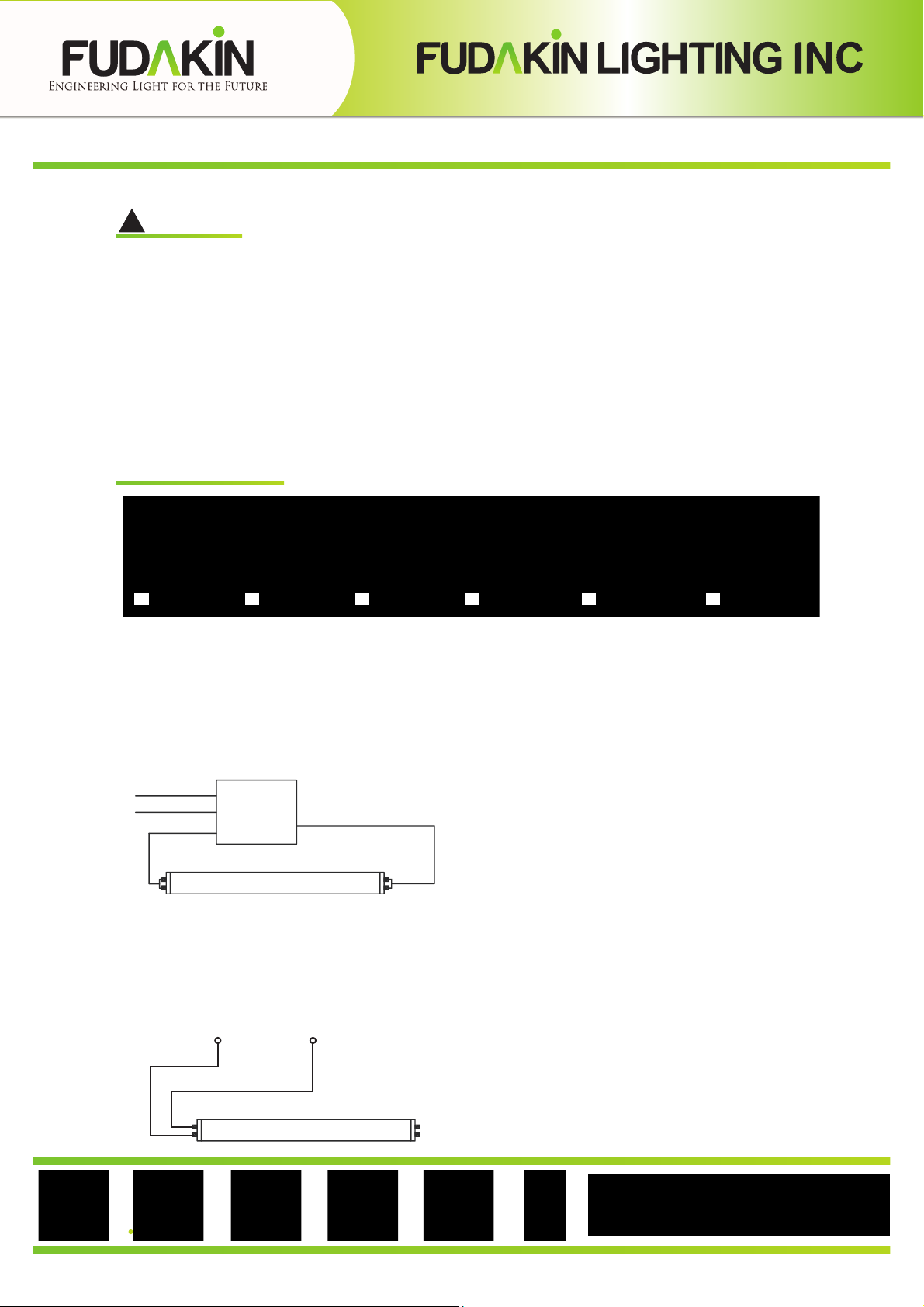

INSTALLATION INSTRUCTIONS

Magic Glass Ceiling Tube

.

Email: [e-mail] | www.fudakinlighting.com

340 Marshall Avenue #103, Aurora IL 60506 | Telephone [phone] | Fax [phone]

3. fluorescent2. fluorescent 4. LED T8 tube 6.

on1. off 5. LED T8 tube

!

WARNING!

Installation Diagram

●Risk of electric shock. Switch off the power before replacement.

●Suitable for dry locations. Do not use where directly expose to water.

●Do not use with dimmers. This device is not intended for use with emergency exits.

●This lamp only operates on electronic ballasts.

●Or be used as Type B lamps, and may be operated directly from the branch circuit(mains)
without the need for a fluorescent ballast.

●Caution - risk of fire. Use only in place of fluorescent lamps specified on label or in
accordance with its electrical ratings. Do not install this lamp in a pre-heat luminaire.

●Caution - if the lamp or luminaire exhibits undesirable operation (buzzing, flickering, etc.),
immediately turn off power, remove lamp from luminaire and contact manufacturer or
qualified electrician.

LNWHT

T8 LED Tube

BLK

T8 LED Tube

L N

AC120-277V

1.Swich of the power before replacement.

2.Remove diffuser (if needed).

3.Remove the existing fluorescent lamp.

4.Verify the existing ballast is on our ballast list or not.

· If led tube can be compatible with existing ballast:

Plug T8 LED tube into lamp holders of existing fixture.
Put on diffuser (if removed in step 2)
Turn on power and check the light distribution.

· If LED tube can’t work with existing ballast or the ballast doesn't work:

A qualified electrician is needed and,
Remove the existing ballast and rewire as AC 100-277V input
Put on LED tube into the lamp holders of existing fixture.
Put on the cover diffuser (if needed)
Turn on the power and check the light distribution.
