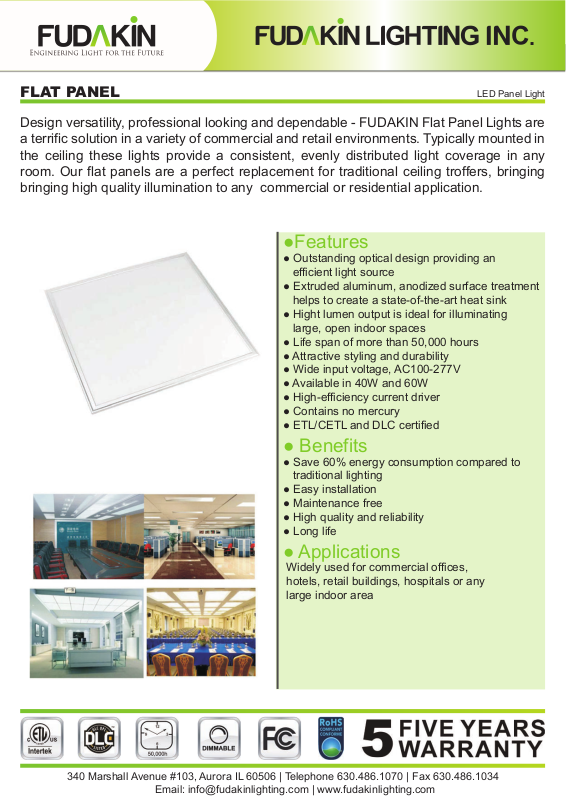

FUDAKIN FDKN1017 Specifications

FLAT PANEL LED Panel Light

.

Design versatility, professional looking and dependable - FUDAKIN Flat Panel Lights are
a terrific solution in a variety of commercial and retail environments. Typically mounted in
the ceiling these lights provide a consistent, evenly distributed light coverage in any
room. Our flat panels are a perfect replacement for traditional ceiling troffers, bringing
bringing high quality illumination to any commercial or residential application.

●Features

● Outstanding optical design providing an
efficient light source

● Extruded aluminum, anodized surface treatment
helps to create a state-of-the-art heat sink

● Hight lumen output is ideal for illuminating
large, open indoor spaces

● Life span of more than 50,000 hours

● Attractive styling and durability

● Wide input voltage, AC100-277V

● Available in 40W and 60W

● High-efficiency current driver

● Contains no mercury

● ETL/CETL and DLC certified

● Benefits

● Save 60% energy consumption compared to
traditional lighting

● Easy installation

● Maintenance free

● High quality and reliability

● Long life

● Applications

Widely used for commercial offices,
hotels, retail buildings, hospitals or any
large indoor area

Email: [email protected] | www.fudakinlighting.com

340 Marshall Avenue #103, Aurora IL 60506 | Telephone [phone] | Fax [phone]

LED Panel LightFLAT PANEL

.

Mo del

40

40

40

60
20

AC100-277VAC

3000 K
3500 K
4000 K

5000 K

1X2 FT

2X4 FT

1X4 FT

2X4 FT

2X2 FT

ฺ4200 LM

ฺ6300 LM
ฺ2100 LM

Watt

In put

Voltage

Size CCT

Light

Ou tp ut

CRI

Beam An gle

Finish & Co lo r Dimmable

ฺ80 120°

Powder Coa!ng

- White

Yes

No

Pro duct Series Inpu t Vo ltageSize Watt CCT Dimmable

27 - AC100-277VAC

12 - 1X2 FT
22 - 2X2 FT
14 - 1X4 FT
24 - 2X4 FT

20 - 20W

40 - 40W

60 - 60W

D - Dimmable

N - Non-dimmable

30K - 3000 K
35K - 3500 K
40K - 4000 K
50K - 5000 K

FP - Flat Panel Series

FDK-FP- -YY- -XXK-Z

FDK-FP-22-27-40-XXK-Z 603mm/23.75” 603mm/23.75” 10mm/0.39”

303mm/11.93” 1213mm/47.76” 10mm/0.39”

603mm/23.75” 1213mm/47.76” 10mm/0.39”

303mm/11.93” 603mm/23.75” 10mm/0.39”

FDK-FP-14-27-40-XXK-Z

FDK-FP-24-27-40-XXK-Z
FDK-FP-24-27-60-XXK-Z

FDK-FP-12-27-20-XXK-Z

Model

A B C

A

B

C

Email: [email protected] | www.fudakinlighting.com

340 Marshall Avenue #103, Aurora IL 60506 | Telephone [phone] | Fax [phone]

Product Parameter

Product Ordering code

Outline Drawing & Overall Size

FDK-FP-22-27-40W-XXK-Z

FDK-FP-14-27-40W-XXK-Z

FDK-FP-24-27-40W-XXK-Z
FDK-FP-24-27-60W-XXK-Z
FDK-FP-12-27-20W-XXK-Z
