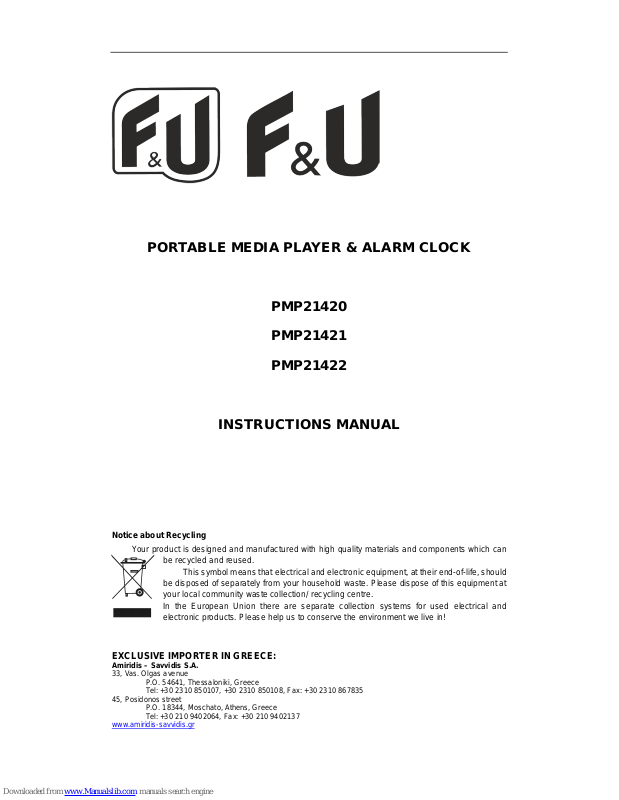

F&U PMP21420, PMP21421, PMP21422 Instruction Manual

PORTABLE MEDIA PLAYER & ALARM CLOCK

PMP21420
PMP21421
PMP21422

INSTRUCTIONS MANUAL

Notice about Recycling

Your product is designed and manufactured with high quality materials and components which can

be recycled and reused.

This symbol means t hat e le ctr i cal an d ele ctronic equipment, at their end-of-life, should
be disposed of separately from your household waste. Please dispose of this equipment at
your local community waste collection/ recycling centre.
In the European Union there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!

EXCLUSIVE IMPORTER IN GREECE:

Amiridis – Savvidis S.A.

33, Vas. Olgas avenue

P.O. 54641, Thessaloniki, Greece
Tel: [phone], Fax: [phone]

45, Posidonos street

P.O. 18344, Moschato, Athens, Greece
Tel: [phone], Fax: [phone]

www.amiridis-savvidis.gr

SPECIFICATIONS:

Effective power:2x3W

Diatonic scale trumpet: Φ45,4Ω ,3W

FM Frequency:87.5~108Hz

Frequency Response:80Hz-15KHz

S/N ratio: ≥ 70dB

The power voltage: USB/DC 5V

How to charge

Use the cable we offer, Micro 5 pin USB Cable , USB port connect a USB wall charger or computer.

Although It doesn’t matter it is ON or OFF while charging, it is better to protect your battery if

you can power off the unit. Charging time would be 4-6hours.

Aux in

with the provided data cable, you can connect the device with the external multimedia audio

sources through the port “AUX” on the rear panel. After connection, just set the mode to AUX by

pressing the key Mode on the device. At this time, the indicator AUX is illuminated, suggesting

the device can play the audio files from multimedia sources like PC, mobile phone,MP3 and MP4

etc.

A. Calendar time and clock control

Moving the button to AUTO, LCD screen will display the calendar and the current time, including

alarm. Using alarm to automatically control power on and play music from USB /SD card or

program from FM radio.

Setting

1.Date and time

In the mode of calendar, time and clock, pressing >II button to select the

year/month/date/hour/minute you want, pressing I<< or >>I buttons to change the

digits you need. After setting, press >II button after minute setting to finish the setting.

2.Alarm

In the mode of calendar, time and clock, long press >II key.

icon will be displayed and digit

blinks in hour position. Adjust the digit by using I<< or >>I . Then press >II button to

move it to minute position, use the same way as hour setting. When alarm is on, it will not be

stop until it sounds three times, and every time last 20 seconds.

3. Clocked power on function

In the mode of calendar, time and clock, in condition of alarm clock

, icon will be

appeared once you press V+ button. When it arrives the alarm time, the product will play the

music from the SD/USB (if inserted) or available FM radio frequency automatically. But the alarm

sound will not be activated .In the status of calendar time and clock, time system of the product

is acquiescent in 24 hours. If you want to transform it to 12 hours, press M button. The AM or PM

icon will be showed on the right corner .

B. USB/SD card and FM radio

Moving the button to ON, this product can play Mp3 music from SD/USB, or play FM radio if no

card or USB inserted.

Operation

1.FM radio scan and save

When power on the product, if no USB or SD card inserted, it will go to the FM radio mode

automatically. Press the button >II , it can scan and saved the available frequency

automatically. After searching, you can select the saved channel by I<< or >>I button.

If you don’t want to auto search the frequency, don’t press >II the button, long press

I<< or >>I button can help to search the previous or next available FM frequency.

2. USB/SD card playing

When power on the product, if USB or SD card inserted, it can play the MP3 format music from

the USB/SD. And there is music time and No. shower on the LCD. Press I<< or >>I button

to select the song you want.

3.Press M button to change the mode among FM, MUSIC,AUX.

4. Press V+/V- can adjust the volume.

5.No matter which mode the product is in, long press >II button can help you check with the

current calendar and time. Several seconds later, it will go back the mode the product is in.

DECLARATION OF CONFORMITY

This product complies with the requirement of the below directives:
EMC-Directive: 2004 / 108 / EC
Low Voltage Directive: 2006 / 95 / EC
CE Mar king: 93 / 68 / EEC
The above directives declare that the DIGITAL MULTIMEDIA PLAYERS, are in compliance with following
norms:
EN 55022:2006+A1:2007
EN 55024:1998+A2:2003
EN 61000-3-2:2006+A2:2009
EN 61000-3-3:2008
EN 61000-4-2:2009
EN 61000-4-3:2006+A1:2008
EN 61000-4-4:2004
EN 61000-4-5:2006
EN 61000-4-6:2009
EN 61000-4-8:2010
EN 61000-4-11:2004
EN 60950-1:2006+A11:2009
