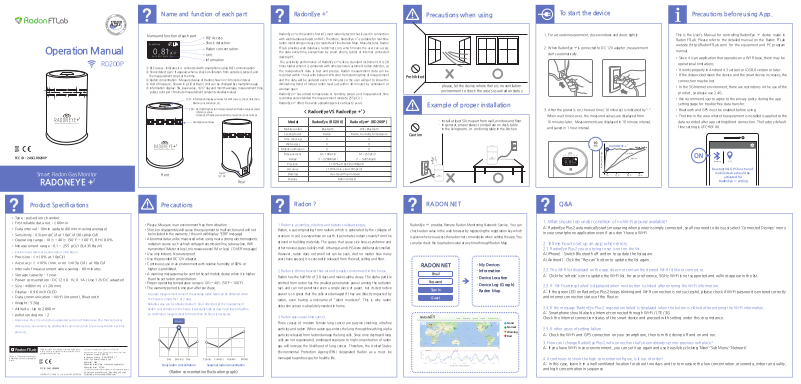

FTLAB RD200P User Manual

Name and function of each part

RadonEye +

2

Precautions when using

To start the device

Precautions before using App.

Operation Manual

FCC ID : 2ASCLRD200P

Smart Radon Gas Monitor

RADONEYE +

Name and function of each part

RadonFTLab

BLE Access

Shock detection

Radon concentration

0. 81

SN : RD21705010123

pCi/l

Unit

Information

RD200P

2

2

① BLE access : Indicates it is connected with smartphone using BLE communication
② Shock detect sign : It appears when a shock or vibration from outside is sensed, and

the measurement stops at the time

③ Radon concentration : Measured value of Radon shown in 10 minute interval
④ Unit of measure : Shown in pCi/l or Bq/㎥. Unit can be changed by smartphone app.
⑤ Information display : SN, peak value, 1/2/7 day and month average, measurement time,

pulse count per 10 minute measurement (present value/last value)

LCD : Information display window for Wi-Fi access, shock detection,
Radon concentration, etc.

LED : Red LED flashes for 30 seconds when Radon value exceeds

reference value.

Green LED flashes when Wi-Fi connection is not normal.

Ventilation window

2

Front

Power

12V DC

Rear

RadonEye + is the world's first IoT smart radon detector that is used in connection
with web database based on WiFi. Therefore, RadonEye + is suitable for real-time
radon monitoring and easy to create Real-Time Radon Map. Manufacturer, Radon
FTLab provides web database, radon-net.com, which means the user can access
the data every time, everywhere by smart phone, tablet or internet connected
desktop PC.

The sensitivity performance of RadonEye + is like a standard instrument. It is 20
times higher when it is compared with other general customer’s radon detector, so

the measurement data is fast and precise. Radon measurement data can be
recorded within 1 hour with below

and the data will be updated every 10 minutes so the user will get to know the

diminishing trend of indoor radon level just within 30 minutes by ventilation or
window open.

RadonEye + has added temperature & humidity sensor and measurement time

recording and extended the measurement range to 255pCi / l.

RadonEye + offers free web uploading service at least 2 years.

Mobile notification

2

2

2

Model

Mobile control

Sensing factor

Time checking

Web access

Measurement

Range

Precision

Accuracy

Data log

Display

2

2

±

10% error from starting time of measurement

< RadonEye VS RadonEye + >

RadonEye (RD200)

Bluetooth

Radon

X

X

X

0.1~100 pCi/l

(1 ~ 3,700 Bq/㎥)

< ±10% at 10pCi/l (370Bq/㎥)

< ±10% (min. error <±0.5pCi/l)

max 1year(1hour interval)

RadonEye+ (RD200P)

WiFi, Bluetooth

Radon, Humidity, Temperature

0.1~255 pCi/l

(1 ~ 9,435 Bq/㎥)

0.96 inch OLED

1. For accurate measurement, close windows and doors tightly.

This is the User's Manual for controlling RadonEye + device made in
Radon FTLab. Please refer to the detailed manual on the Radon FTLab

2. When RadonEye + is connected to DC 12V adaptor, measurement

2

starts automatically.

website (http://RadonFTLab.com) for the equipment and PC program

manual.

• Since it is an application that operates on a Wi-Fi base, there may be

operational limitations.

Prohibited

• It works properly in Android 4.3 version or iOS 8.0 version or later

• If the distance between the device and the smart device increases, the

connection may be lost.

· please, let the device where there is no ventilation
environment to check the area's usual radon status.

• In the 5G Internet environment, there are restrictions in the use of the

product, so please use 2.4G.

• We recommend user to agree to the privacy policy during the app

2

Example of proper installation

3. After the power is on, the wait time (10 minutes) is indicated by ‘- -’.

When wait time is over, the measured values are displayed from

2

· Install at least 50cm apart from wall, window and floor.

· In general, proper places to install are on desk, table
in the living room, or on dining table in the kitchen.

10 minutes later. Measurements are displayed in 10 minute interval,

and saved in 1 hour interval.

setting stage for trouble-free data transfer.

• Bluetooth and GPS must be enabled before using

• The time in the area where the equipment is installed is applied to the

data recorded after app setting/direct connection. The factory default

time setting is UTC+09:00.

Caution

O

O

O

0. 81

SN : RD21705010123

2

pCi/l

2

2

RadonFTLab

RADONEYE +

Measured value

1h

12h

2

C_device

P_device

24h

Actual value

36h

Bluetooth

Bluetooth & GPS function of

GPS

mobile device should be

activated for

RadonEye + setting

2

2

Product Specifications

•Type : pulsed ion chamber

•First reliable data out : < 60min

•Data interval : 10min update (60min moving average)

•Sensitivity : 0.5cpm/pCi/l at 10pCi/l (30cph/pCi/l)

•Operating range : 10℃ ~ 40℃ (50°F ~ 100°F), RH < 80%

•Measurement range : 0.1 ~ 255 pCi/l (9,435 Bq/㎥)

* Environment reference value 4pCi/l (148 Bq/㎥)

•Precision : < ±10% at 10pCi/l

•Accuracy : < ±10% (min. error <±0.5pCi/l ) at 10pCi/l

•Interval of measurement value saving : 60 minutes

•Storage capacity : 1 year

•Power consumption : DC12 ± 0.1V, 0.1A ( Use 12V DC adapter)

•Size : Φ80(mm) x 120(mm)

•Display : 0.96 inch OLED

•Data communication : Wi-Fi (internet), Bluetooth

•Weight : 520g

•Altitude : Up to 2000 m

•pollution degree : 2

* Radon Eye Plus 2 is a function upgraded version of Radon Eye Plus that enhances

Wi-Fi setup convenience by adding BLE communication to previous Radon Eye Plus

products.

503ho, 8, 330beon-gil, Haebong-ro,
Danwon-gu, Ansan-si, Gyeonggi-do,

Korea

FTLAB succeeded in developing a real-time Radon sensor
in 2015, and also succeeded in mass production in 2016,
we launched RADON FTLAB.

FCC ID : 2ASCLRD200P

COPYRIGHT (C)FTLAB Co., Ltd ALL RIGHT RESREVED.

Descriptive labeling in accordance with Quality
Management and Safety Control Act for Industrial Goods.

Instrument type: RD200P
Instrument name : RADONEYE +
Kind : For home(indoor) use

Material : ABS

Manufactured date : Indicated separately

Manufacturer : FTLab

* Only the manufacturer or agency will inspect and supply

Country of manufacture : Republic of Korea
Questions : www.radonftlab.com

Precautions

•Please, Measure in an environment free from vibration.

•Shock or disassembly will cause the equipment to malfunction and will not

be included in the warranty. (the unit will display “ERR” message)

•Abnormal data can be measured when using near a strong electromagnetic

radiation source such as high voltage transmission line, subway line, Wifi
transmitter(1Meter or less), microwave oven(1M or less) ('OVER' message)

•Use only indoors. No waterproof.

•Use the provided DC 12V adapter.

•Continuous use in an environment with relative humidity of 80% or

higher is prohibited.

•A warning message may be sent to the set mobile device when it is higher
than the set radon concentration.

•Proper operating temperature range is 10℃ ~ 40℃ (50°F ~ 100°F)

•The warranty period is one year after purchase.

- Accurate measurement value of the average radon level can be obtained when

the house is empty for 1 or 2 days.

- Reliable value can be obtained about 1 hour after start of the measurement.

- Radon concentration in the house is generally high at dawn and low at daytime,

so continuous measurement for more than 24 hours is necessary.

Dawn

Radon ?

1. Radon is a colorless, odorless and tasteless radioactive gas.

Radon, a gas originating from radium which is generated by the collapse of

uranium in soil, is everywhere on earth. It penetrates indoors mainly from the

ground or building materials. The gases that cause sick house syndrome and

other noxious gases luckily smell. Urban gas and LPG were deliberately smelled.

However, radon does not smell nor can be seen. And no matter how many

years have passed, it is constantly released from the wall, ceiling and floor.

2. Radon is 8 times heavier than air and is easily concentrated in the house.

Radon has the half-life of 3.8 days and makes alpha decay. The alpha particle

emitted from radon has the smallest penetration power among the radiation

rays and can not penetrate even a single piece of paper, but its destructive

power is so great that the cells are damaged if they are directly impacted by

radon, even having a nickname of "silent murderer". This is why radon

detection sensor is absolutely needed in home.

3. Radon gas causes lung cancer.

Three causes of modern female lung cancer are passive smoking, ultrafine

particles and radon. When radon gas enters the lung through breathing, alpha

particles released from radon damage the lung cells. Since once destroyed lung

cells are not regenerated, prolonged exposure to high concentration of radon

gas will increase the likelihood of lung cancer. Therefore, the United States

RadonEye + provides Remote Radon Monitoring Network Service. You can

check radon value in the web browser by registering the registration key which

is given when you access the radon-net.com website when setting the app. You

can also check the local radon value at any time through Radon Map.

RADON NET

2

RADON NET

Email

Password

Sign In

Guest

· My Devices

· Information

· Device Location

· Device Log (Graph)

· Radon Map

Good

Normal

Warning

Bad

Q&A

1. What should I do under condition of no Wi-Fi around available?

A : RadonEye Plus2 automatically starts measuring when power is simply connected, so all you need to do is just select 'Connected Devices' menu
in your smartphone application even if you don't have a Wi-Fi

2. Tell me how to set up an app. when errors.

2.1. RadonEye Plus2 you are trying to set is not on the list.

A (iPhone) : Switch Bluetooth off and on to update the list again.
A (Android) : Click the "Rescan" button to update the list again.

2.2. The Wi-Fi list displayed on the app. does not contain the desired Wi-Fi I’d like to connect to.

A : Click the ‘refresh’ icon to update the Wi-Fi list. for your reference, 5GHz Wi-Fi is not supported and will not appear in the list.

2.3. If 'Wi-Fi settings failed' is displayed when next button is clicked after entering the Wi-Fi information.

A : If the green LED on RadonEye Plus2 keeps blinking and Wi-Fi connection is not successful, please check if Wi-Fi password is entered correctly

and internet connection status of the Router.

2.4. If the message 'RadonEye Plus2 registration failed' is displayed when the button is clicked after entering the Wi-Fi information,

A : Smartphone should also be Internet-connected through Wi-Fi / LTE / 3G
Check the Internet connection status of the smart device and proceed with setting under this circumstance.

2.5. If other cases of setting failure

A : Check the Wi-Fi and GPS connection on your smartphone, then turn the device off and on and run.

3. How can I change RadonEye Plus2 wifi connection that’s been already set into previous wifi place?

A : If you have Wi-Fi in your environment, you can set it up again and use it easily by clicking ‘Main’-‘Sub Menu’-‘Network’

Environmental Protection Agency(EPA) designated Radon as a must be

2

Day Evening Day

Daily radon concentration

Seasonal radon concentration

WinterAutumnSummerSpring

<Radon concentration fluctuation graph>

managed hazardous gas for healthy life.

4. It continues to show the high concentration figure, Is it out of order?

A : In this case, leave it in a well ventilated location for about two days and try to measure the low concentration at veranda, indoor air quality,
and high concentration in sequence

1. App Installation & Wi-Fi Setting

Please check if Wi-Fi is connected alright.

Search ‘Radoneye plus2’ App

(Note : This is not ‘Radoneye plus’ App)

DEVICE CONNECTION

App Execution Screen

① ADD NEW DEVICE : To set up

RadonEye + to connect with Wi-Fi

The set up RadonEye + will be

registered in the smart device.

② DEVICE CONNECTON : Directly connect

to RadonEye + having no network

setting and check data

Email

Password

Log in

Sign up

New Members Screen

Log in

Add New Device

① Need to activate GPS and Bluetooth

Select Device

① Check the serial number

shown in the bottom of the device

② Select device from the list.

(If the WiFi connection is not possible, the equipment data

Agree to all

Privacy protection

Reveal device location,

radon value

Accepting Privacy Policy Statement

① Privacy protection (required)

Setting Installed Location and Number

① Device Name : Enter directly within

② Reveal device location,

radon value (select)

Users who do not agree the agreement

it is shown as the set information

can't use Radon Monitoring Network Service.

can be directly managed by communication with BLE)

Device Name

20 characters

② In case of push alarm,

Wi-Fi Setting

① Wi-Fi to be connected to RadonEye +

② Enter Wi-Fi password

RadonEye + does not

support 5GHz Wi-Fi

Wi-Fi setting successful

Alexa

Close

Wi-Fi Setting Successful

2. Sub-menu Setting in App Main Menu

DEVICE CONNECTION

Main Screen

① Activate sub-menu by clicking arrow button
② Network : To reset network
③ Alarm : To set Daily Alarm and Warning Alarm
④ Cloud : Real time data can be checked from outside
⑤ Delete : To delete selected device from the list

③ Push Alarm Setting

•Daily Enable : Measured value
is sent by Alarm message

at the set time everyday

•Warning Enable : When
measured value is higher

than the set value,

Alarm message is sent

④ To Use Cloud

• Real time data can be

checked remotely without

connecting RadonEye +

Do you want to delete the
selected device from the list?

DEVICE CONNECTION

⑤ Delete

• To delete selected device from the list

RadonEye +

2

Radon Net

Log in

File Load

What is Radon?

Radon Net(RMNS)

AI Speaker

⑥

⑥ AI Speaker

• With the success of Wi-fi setup,

RadonEye + can use the

affiliated AI voice service

3. App Features and the Use

③ Temperature & humidity

RadonEye +

OPERATION

2

SETTING

① ② ③

⑤

④

0.51

⑥

⑦ ⑧ ⑨

Data Reload Save As

Clear

Features of ‘OPERATION’ Screen

① Displays the measurement time

② Peak Value / 1day Average / 2day Average / 7day Average / 1Month Average

- Peak Value : The maximum value of the measured radon value
(The value is displayed after 1 hour from the device plugged in)

- 1/2/7 day Average : Average value of radon data measured for 1/2/7 day
(From the time 1/2/7 day after the measurement time, it is displayed alternately with Value)

- 1Month Average : Average value of radon data measured for 1month

(From the time 1month after the measurement time, it is displayed alternately with Peak Value, 1/2/7day Average)

④ Status Display Window

-Icon at the top : Smartphone <-> RadonEye + Device connection status

-Icon at middle : Wi-Fi Connection Status on RadonEye +

-Icon at bottom : Showing status when the instrument is unstable or not in proper condition

⑤ Measured Radon Value Display Window

-The radon value measured by RadonEye + is updated in 10 minute interval

⑥ Measured Radon Value Graph

-The values measured by 1 hour interval in the device is saved in log value

and shown in graph(maximum 24 values)

-When checking the whole data, Detailed analysis is possible through MORE DATA

in the upper right corner

⑦ Clear button : To initialize the data saved in RadonEye + device

⑧ Data Reload button : To retrieve the data saved in RadonEye + device

-Possible to output in pCi/l or Bq/㎥ values through Radio button

-Zoom In, Zoom Out are possible

-Possible to set display period using buttons in the bottom

⑨ Sava As button : To save the data in the device retrieved through Data Reload
as a txt file in smartphone

※ The location of the file to be saved in smartphone

· Android smart devices : File Manager -> \Radon FTLab folder

· iPhone PC connection : iTunes -> File sharing-> App -> RadonEye Plus2 - Document

‘SETTING’ Screen

① Selecting Unit

Unit

ON

Alarm

Temperature unit

③

Centigrade (°C) Fahrenheit (°F)

Buzzer sounds

APPLY

2

2

To disconnect Wi-Fi

- To change the unit of the radon value

in RadonEye +

② To select Alarm Use/Not-use

- Display in LED of RadonEye +

- Interval : The interval of LED display

when alarm status is maintained

③ To select temperature unit

- To select Centigrade(°C) or Fahrenheit(°F)

Buzzer sounds

- Mute during connection and setting

To disconnect Wi-Fi

- To disconnect Wi-Fi from RadonEye +

- Cloud and Radon Net cannot be used,

and data can be checked only through

direct connection

FCC Part 15.19

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

FCC Part 15.21

Any changes or modifications (including the antennas) to this device that are not expressly approved by the
manufacturer may void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the

radiator and your body.
