FTE MAX T21 Instruction Manual
PAG.
2
rev 1.0
ENGLISH

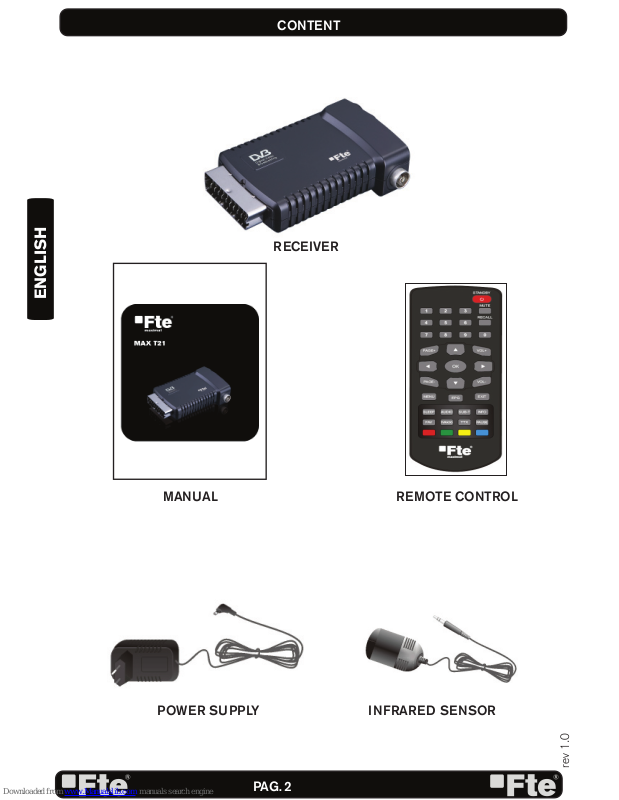

MANUAL REMOTE CONTROL
POWER SUPPLY INFRARED SENSOR
RECEIVER
CONTENT
PAG.
3
rev 1.0
ENGLISH
SAFETY PRECAUTION
The lightning flash with
arrowhead symbol, within
an equilateral triangle, is
intended to alert the user
to “dangerous voltage”
and to prevent from a
risk of electric shock.
Warning:
To reduce the risk of electric shock,
don’t open the cabinet. Refer servicing
to qualified personnel only.
The exclamation point
within an equilateral
triangle is intended
to alert the user to
important operating and
maintenance (servicing).
Please read the manual carefully before installing the receiver.
Caution: Never open the device by yourself. Dangerously high voltages are present inside the unit. Refer
servicing to qualified staff only.
When installing the receiver, always unplug the receiver from the mains voltage.
Unplug the receiver from the mains in case of long periods without operating the receiver (for example,
during holidays!).
To prevent shock hazard, do not touch the power plug with wet hands.
Always unplug the receiver before cleaning it or working on the connections.
Do not install the receiver close to strong heat sources, and ensure a good aeration if you plan to install
the receiver in a small cabinet.
Before you start operating the receiver, make sure that the satellite antenna is properly built up, optimally
connected and aligned.
The correct place to install the receiver is, of course, near your TV set and any other A/V signal sources
(DVD, VCR, CD, game console, etc.).
Choose a stable support, in which you can easily lay the necessary connecting cables without stumblingdanger.
The receiver should be installed near an easily accessible outlet.
Do not install the receiver in a place where it can be reached by liquid spills.
Do not put any heavy objects as, for example, a TV-device over the receiver; the receiver could be
damaged.
DO NOT INSTALL THE RECEIVER:
- On an unstable surface
- Subject to direct sunlight
- In high humidity environment
- Outside the receiver’s temperature range (+5°...+40°C)
If the receiver is subject to severe temperature changes, it can suffer from water condensation inside.
Switch off the receiver in these cases for at least 2 hours before resuming operation.
PAG.
4
rev 1.0
ENGLISH

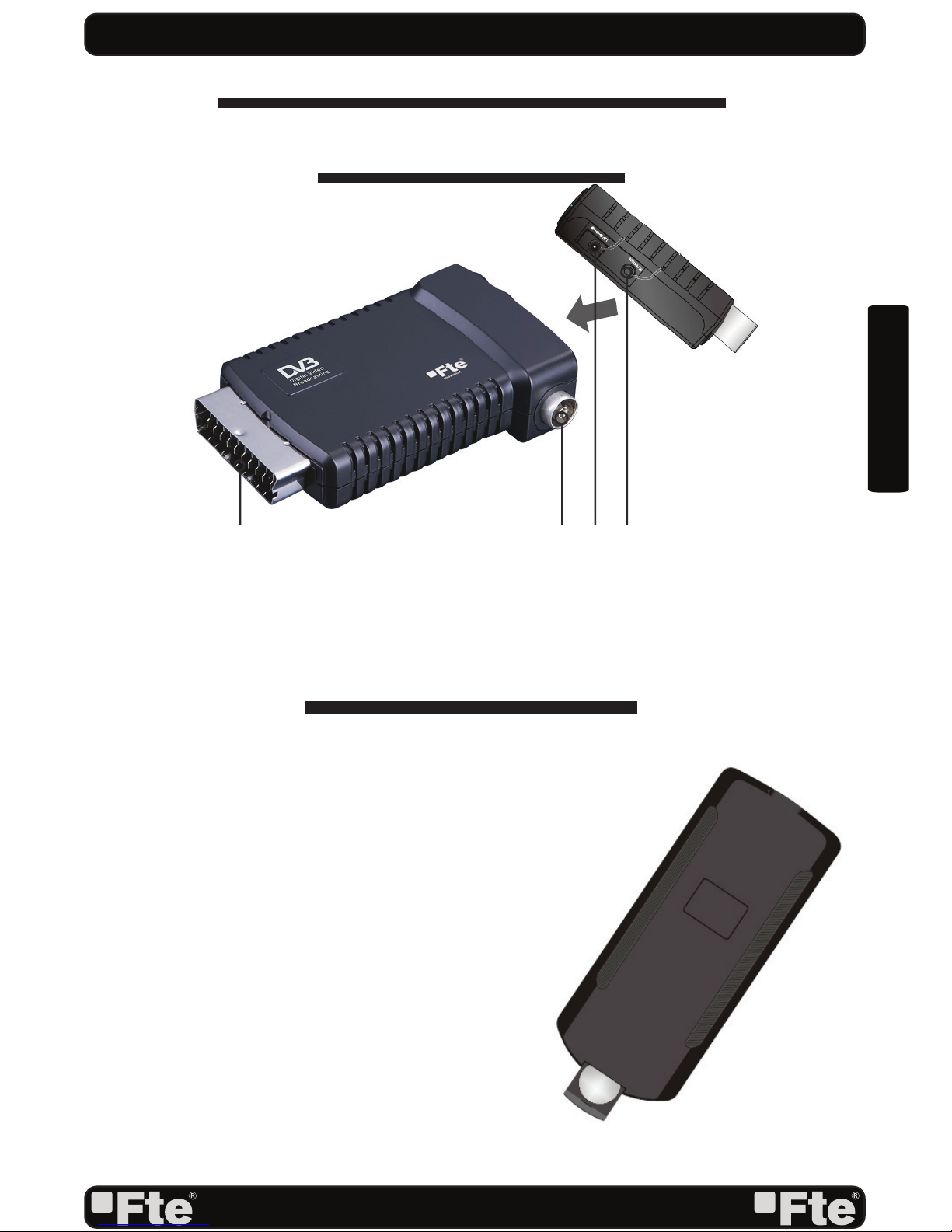

QUICK INSTALLATION GUIDE
Follow next steps for the correct installation of this receiver.
STEP 1: CONNECTIONS
QUICK INSTALLATION GUIDE
The remote control transmits a directional infrared beam. Be
sure to aim the remote control directly at the infrared sensor
of the receiver during operation.
If the sensor has been covered or there is a large object
between the remote control and the sensor, the sensor will
not respond.
The sensor may not able to receive the remote signal when it is
exposed to direct sunlight or a strong artificial light (fluorescent
or strobe light). In this case, change the direction of the light
or reposition the sensor to avoid direct lighting.
Within approximately 6 meter
PAG.
5
rev 1.0
ENGLISH
STEP 2: BASIC CONFIGURATION OF THE
RECEIVER
The receiver includes an installation assistant that will help you
to setup the different parameters.
When the receiver is turned on at first time (using the button
at the rear panel of the receiver), the next menu is shown on
the TV:
In order to move through the different options of this menu,
please use the keysof the remote control. If an “Overloading!
Tuner Power is Off” message is shown on the TV, please
disconnect the “Antenna Input” cable and change the “Tuner
Power” option into “Off”
Region: select your country using keys.
OSD Language: select the language of the menu and other
information of the receiver. To choose between the different
languages, use keys of the remote control.
Auto Scan: before making an auto scan be sure that the data
of the Region option (Image 1) is correct, in other case the
search of channels will be made wrongly. Once the Region
option is confirmed, please press [OK].
Don’t make any action with the receiver until the Auto scan
has finished. For more information about this option, please
read point 4.1 of the complete manual.
IMAGE 1
IMAGE 2
QUICK INSTALLATION GUIDE
PAG.
6
rev 1.0
ENGLISH
STEP 3: TIME CONFIGURATION
It is recommended to setup the clock before starting to enjoy
the receiver, because correct time maybe is required by some
applications. Please complete following options:
Press the [Menu] key of the remote control for appearing
the main menu. Select the “System Configuration” option and
confirm pressing [OK].

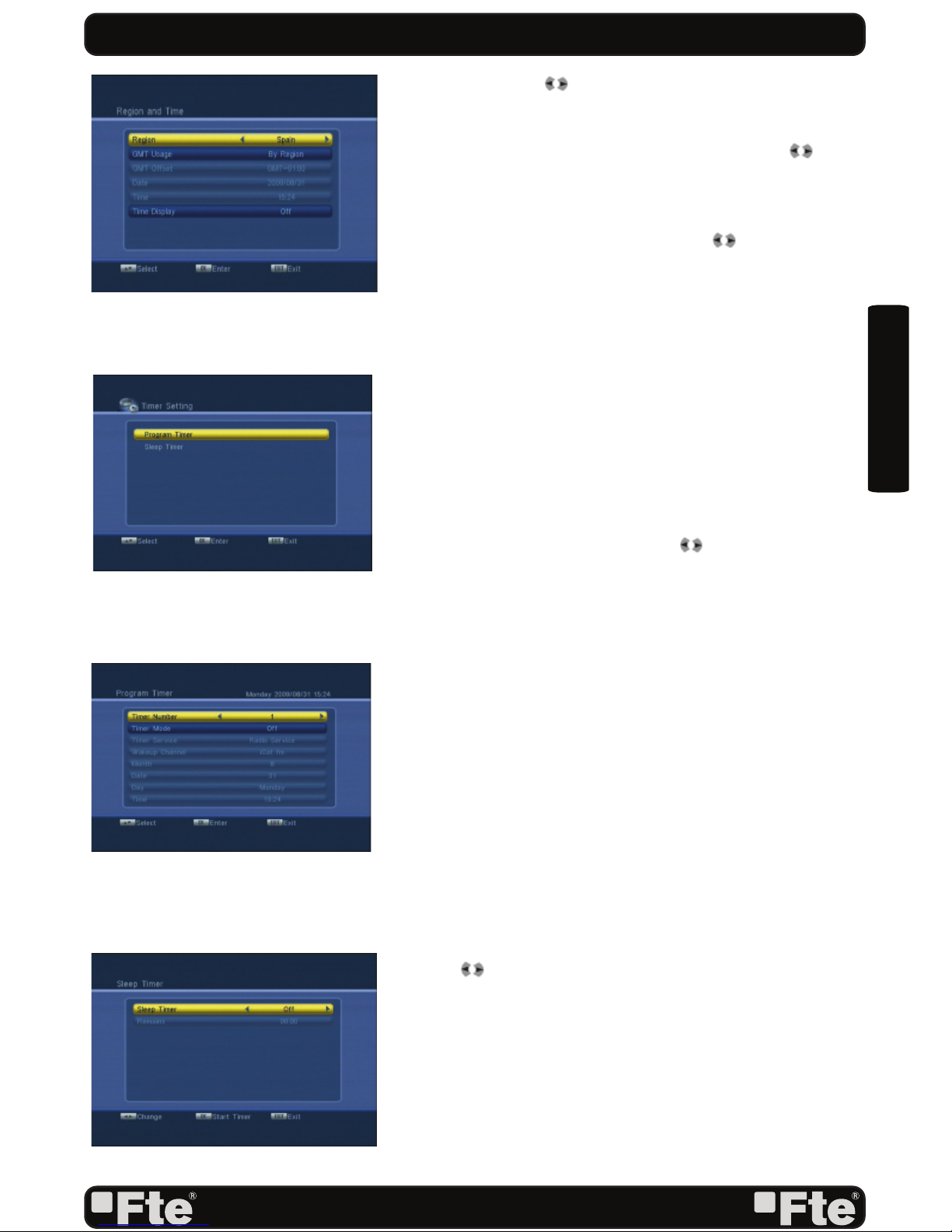

Once in the “System Configuration” option, please select
“Region and Time” option and press [OK]. Image 3 is watched
on the TV. For setting up the time, please complete:
1.Region: Confirm that the correct country has been selected
during the quick installation.
2.GMT Usage: this option will allow you to select if the date
and time will be introduced manually (Use GMT: Off), if you
prefer that it will be automatic by country (Use GMT: By
Region) or if you wish to introduce the offset respect GMT
manually (Use GMT: Defined by user).
3.GMT Offset: If Use GMT defined by user has been chose,
the offset respect GMT has to be configured depending on
your region or country. Use the keys to choose the offset.
Remember that the offset values are between -12:00 and
+12:00
4.Date / Time: In order to introduce manually the time and
date. Before these values can be modified, the automatic
control of GMT has to be turned Off.
5.Time Display: Selecting “On” this option, the time will be
shown in the screen.
6.Press [Exit] to exit the menu “Region and Time”.
IMAGE 3
QUICK INSTALLATION GUIDE
PAG.
7
rev 1.0
ENGLISH

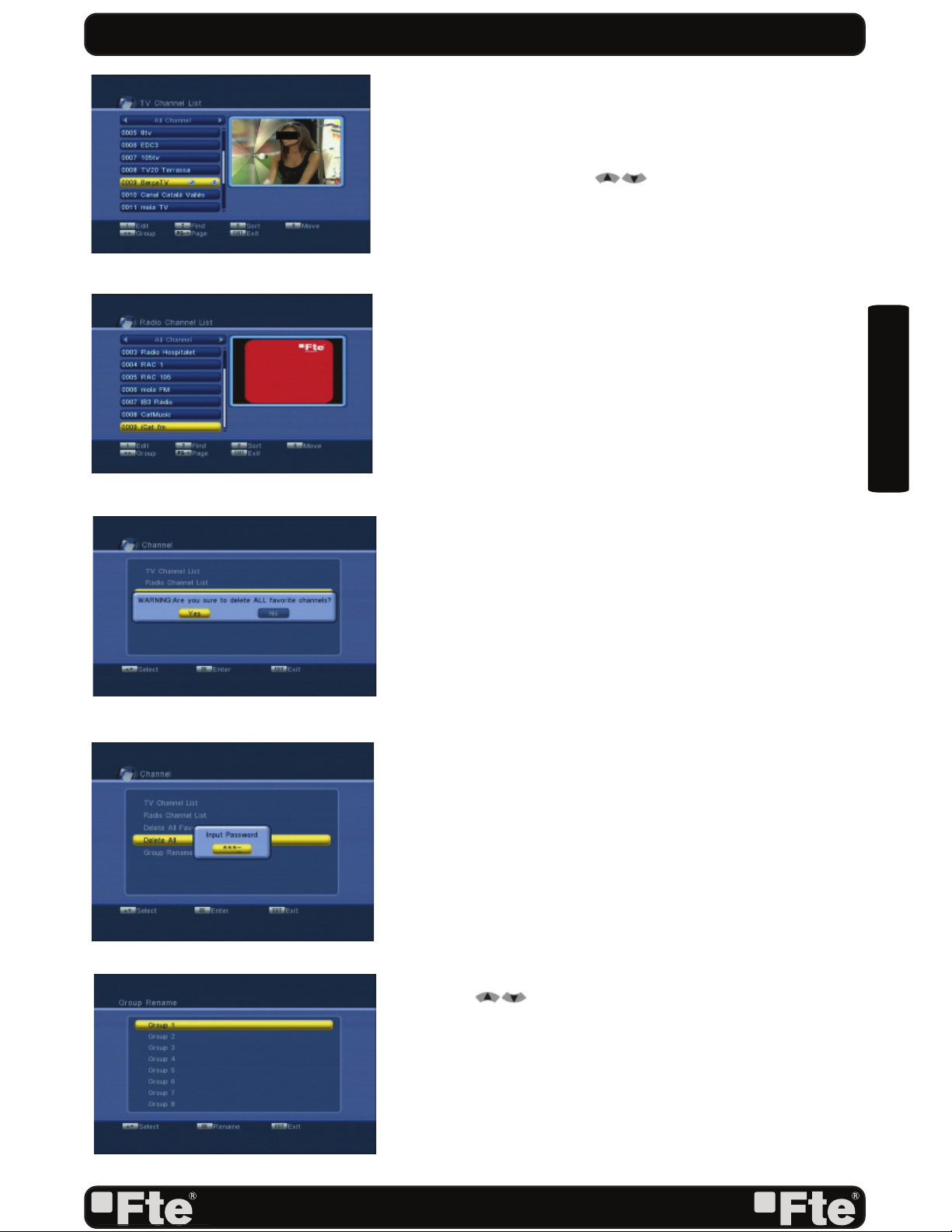

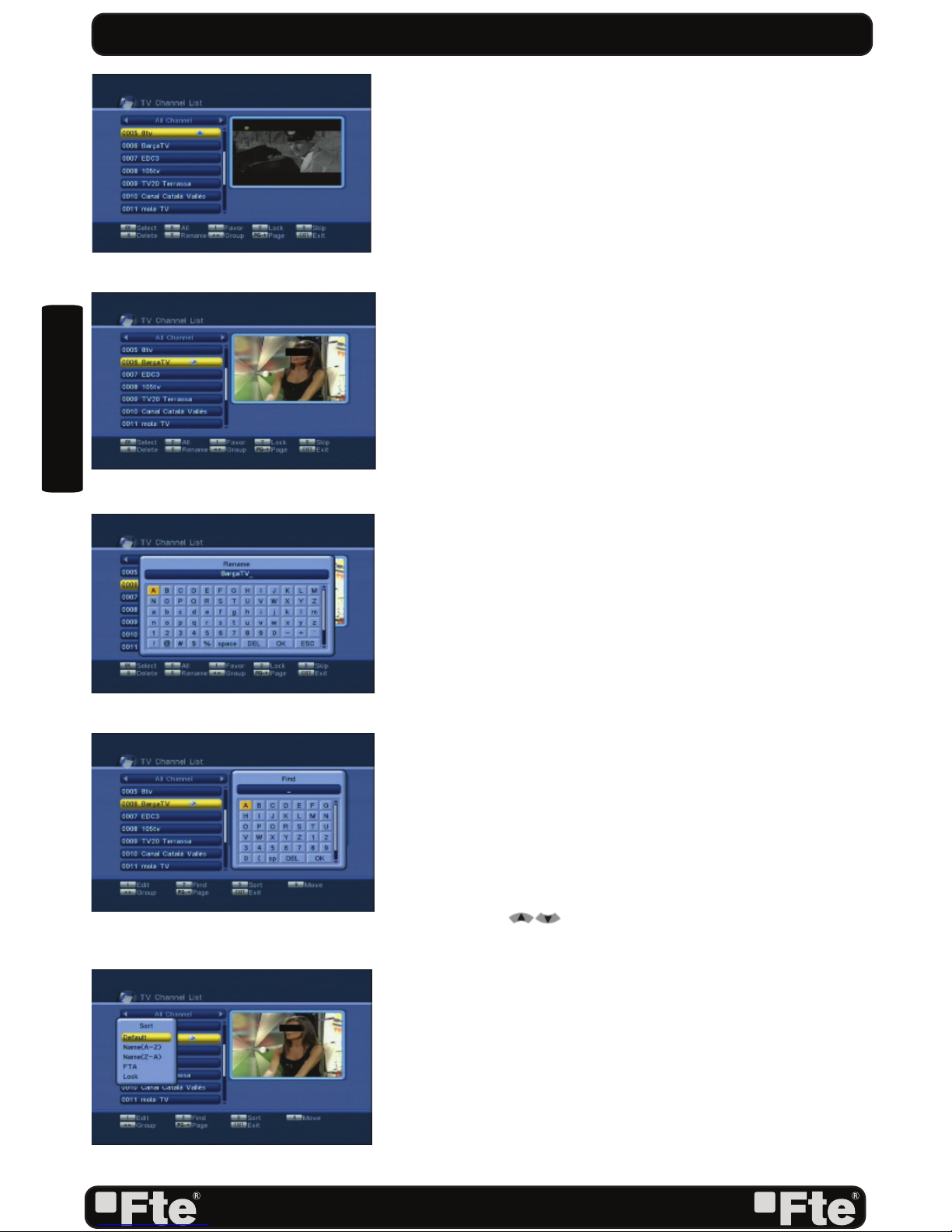

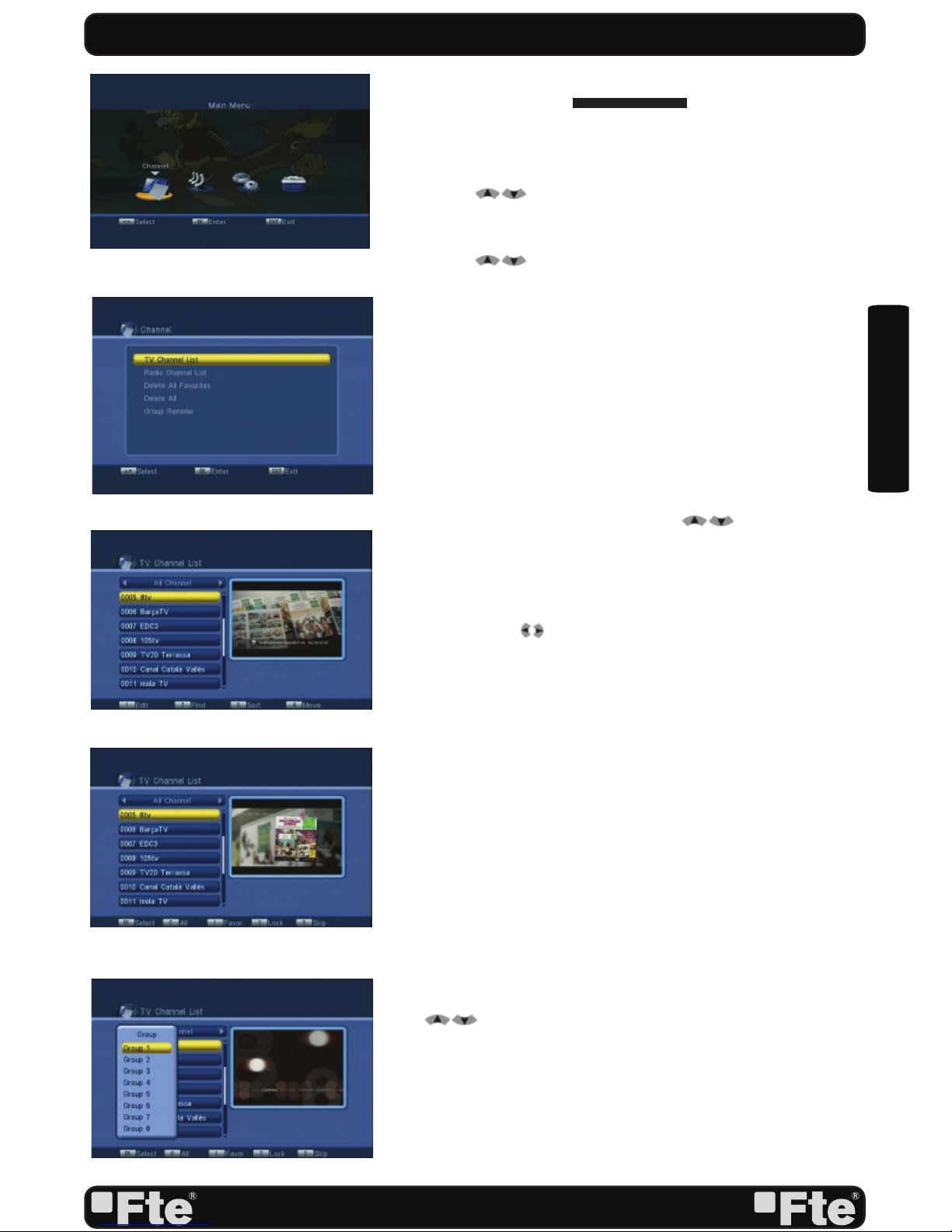

TV Channel List: This option shows the list of TV stored channels.
Radio Channel List: This option shows the list of Radio stored channels.
Delete All Favourites: This option deletes all the favourite lists created.
Delete All Channels: This option deletes all TV and Radio stored channels.
Group Rename: It allows changing the name of the favourite groups.

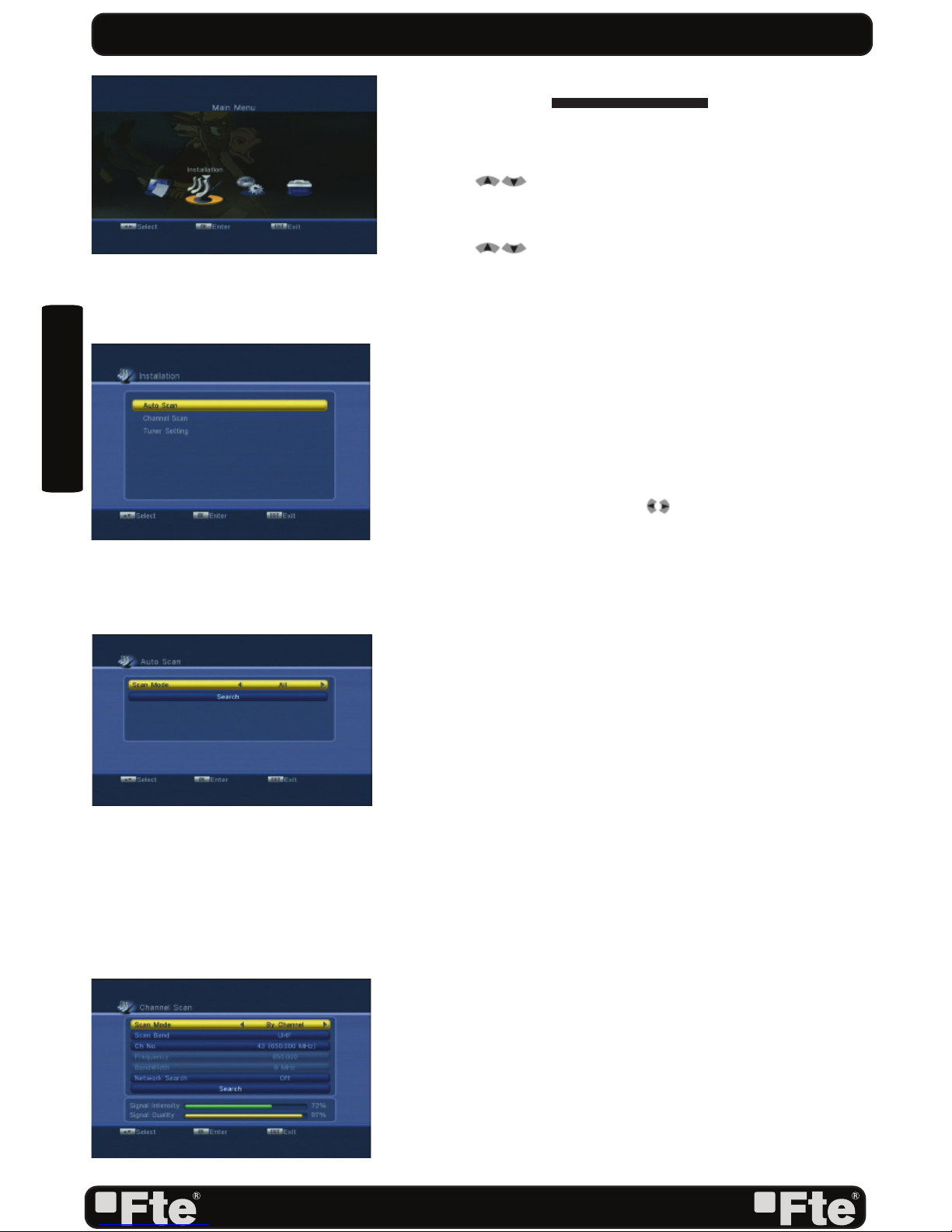

Auto Scan: This option make a full scan of all TV and Radio channels received.
Channel Scan: This option make a compete scan of only one Multiplex.

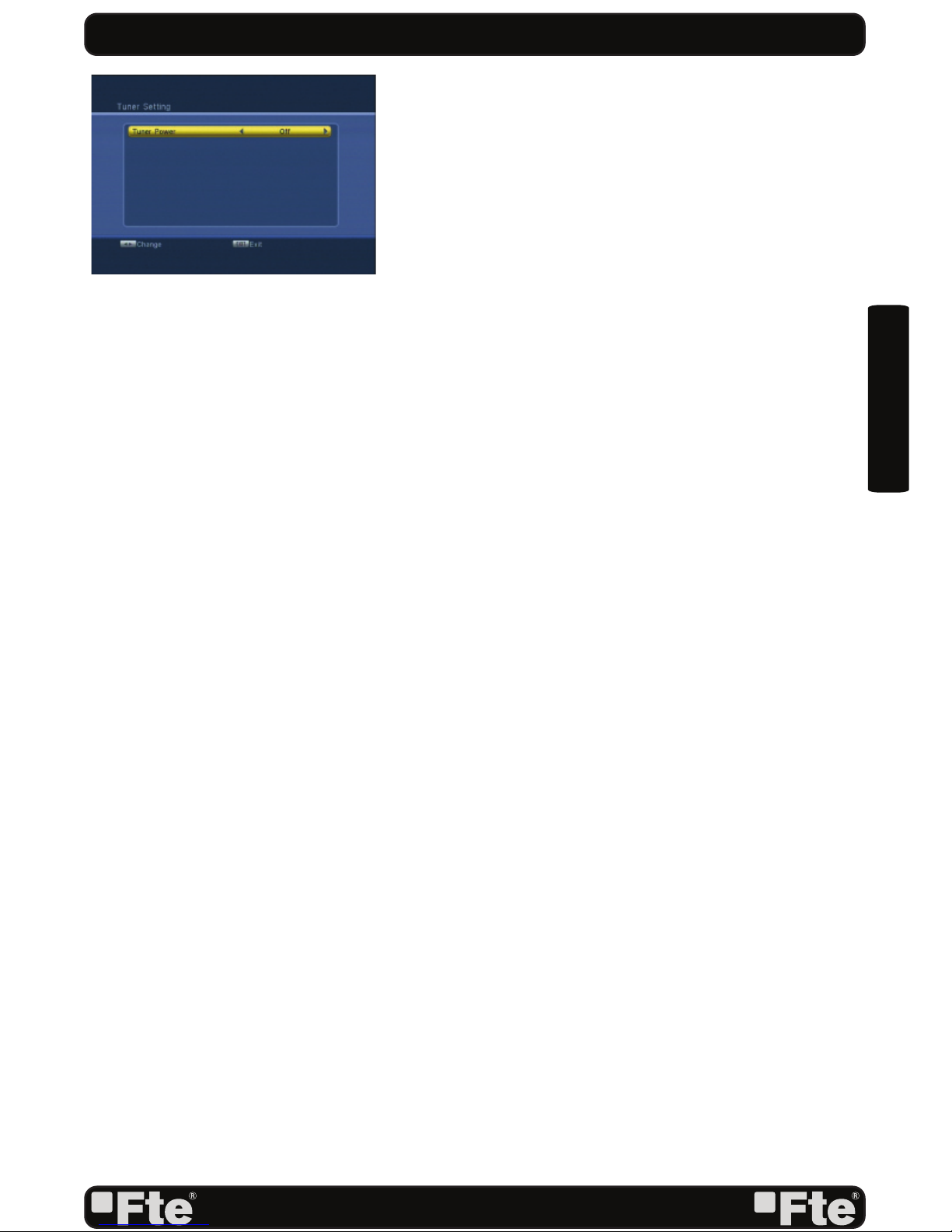

Tunner Setting: This option allows turns on or off 5V feeding throughcoaxial cable.
QUICK INSTALLATION GUIDE
CHANNEL
INSTALLATION
PAG.
8
rev 1.0
ENGLISH

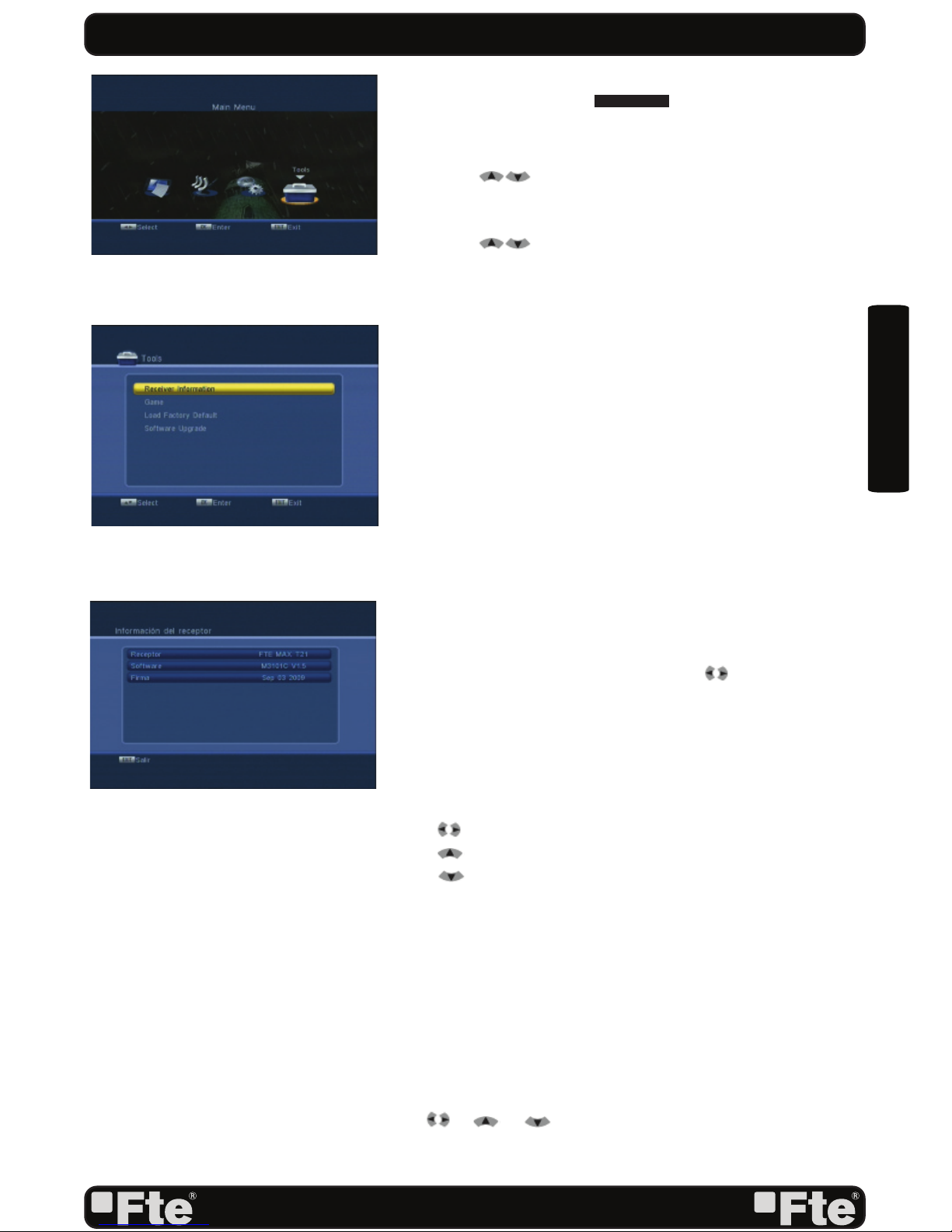

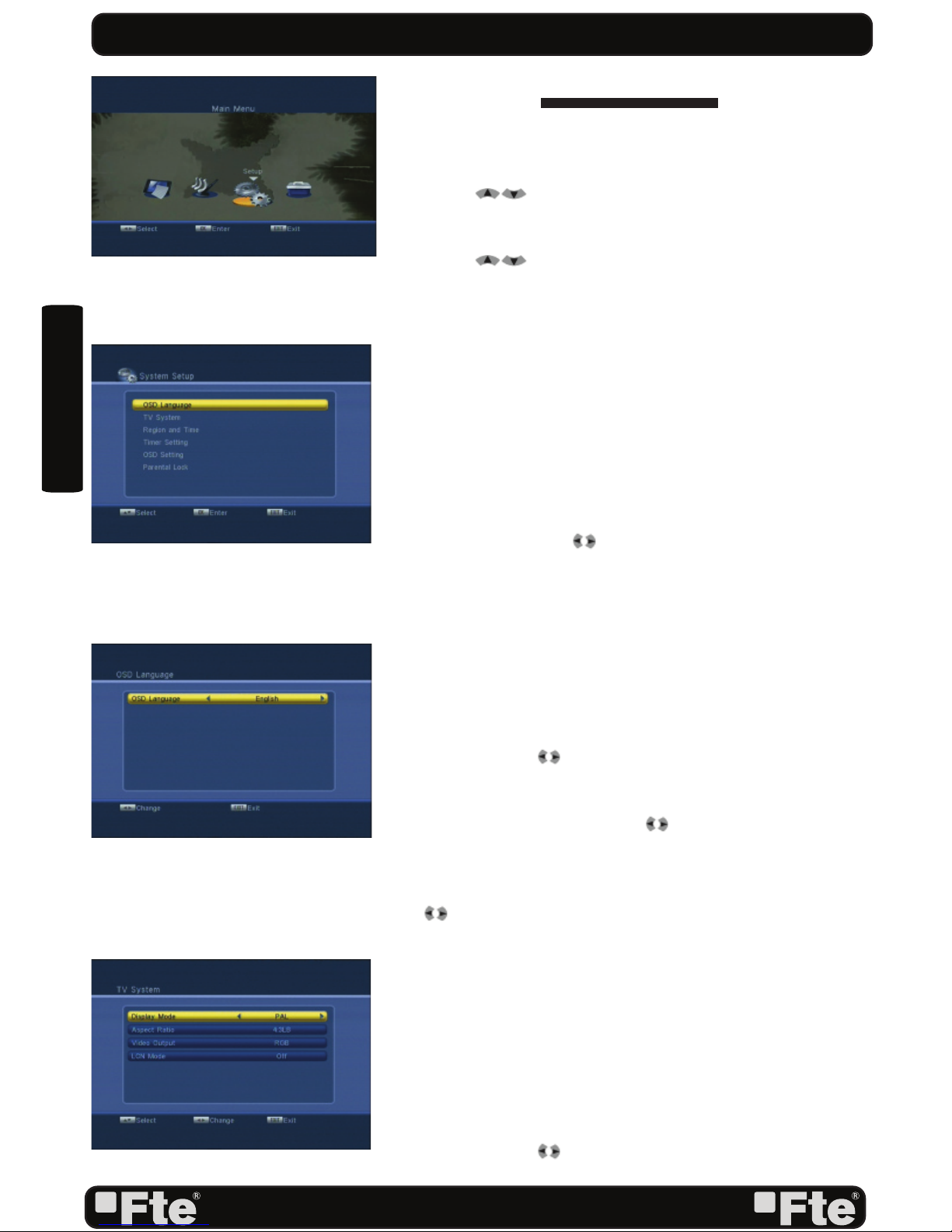

OSD Language: This option allows selecting different menu and options languages.
TV System: This option allows choosing the video Standard and other parameters of the
screen.
Region and Time: In this option, the time of the receiver and user region or country can
be configured.
Timer Setting: Timer setting menu.

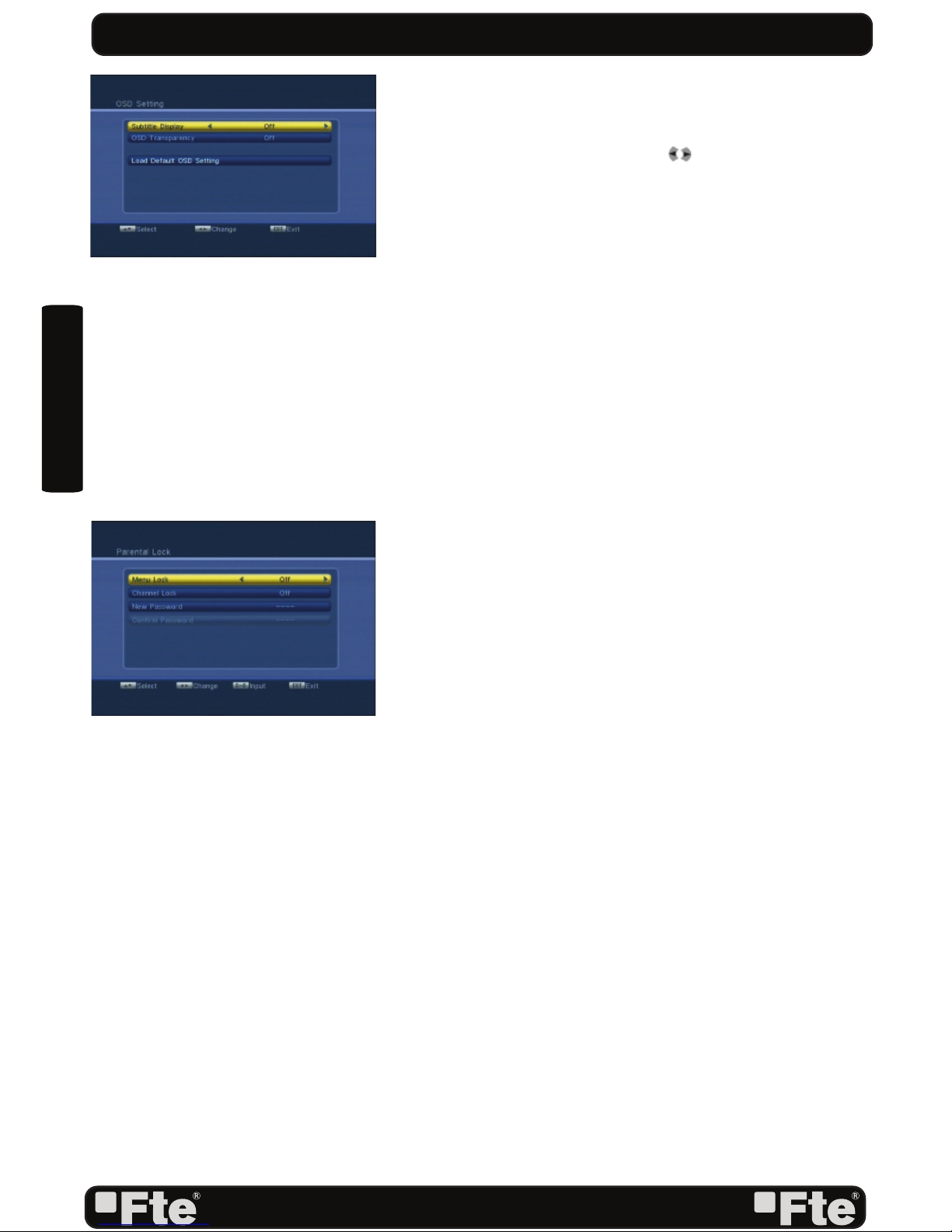

OSD Setting: In this option, the subtitles of the channel information can be configured.
Parental Lock: In this option, user can lock the access to the menu and change the
password of the receiver.
Information: This option shows all the technical information for the receiver
Game: In this option user can find some games like TETRIS, SNAKE …

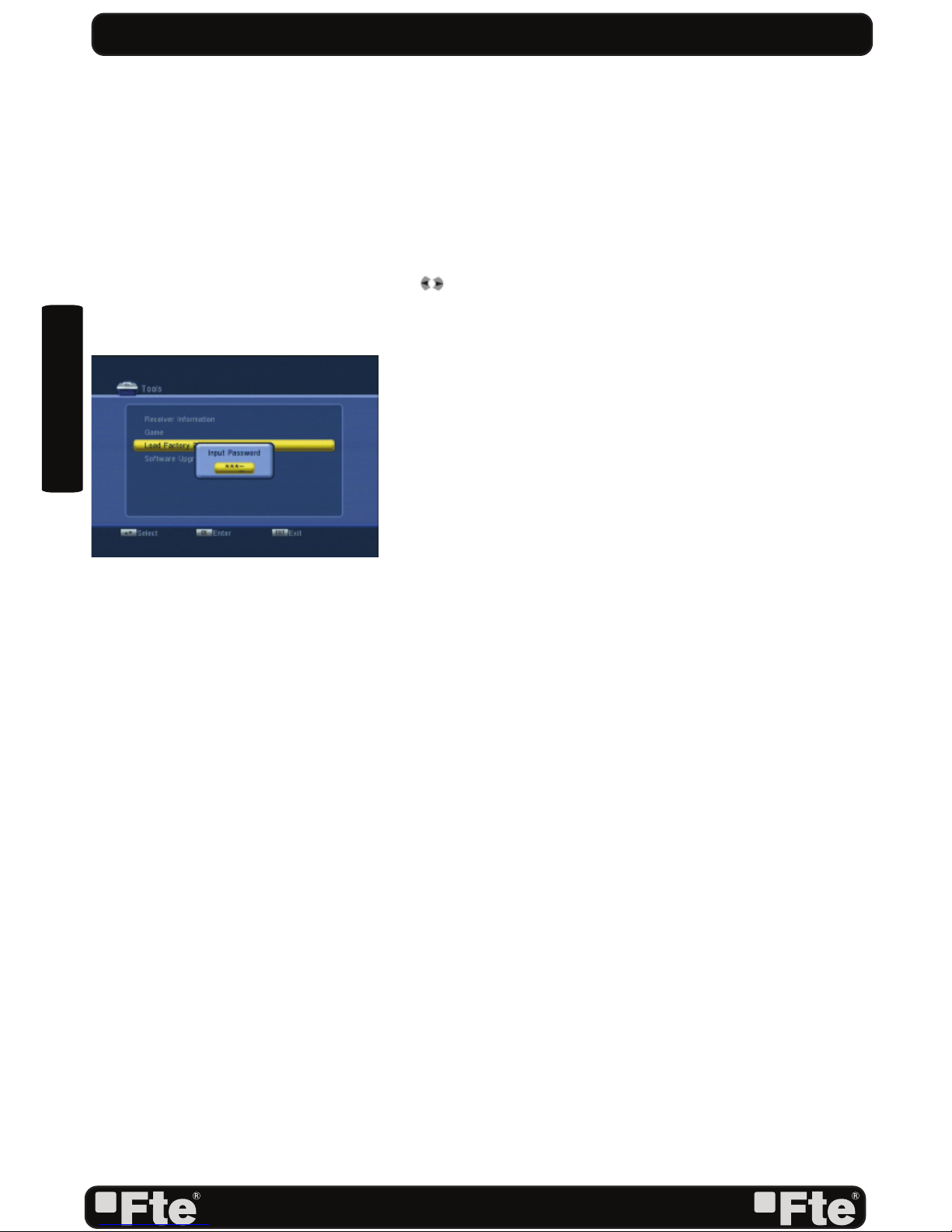

Load Factory Default: If this option is selected, a reset of the receiver will be done and it
will load the factory default values.
Software upgrade: To update the receiver by OTA.
QUICK INSTALLATION GUIDE
SETUP
TOOLS
PAG.
9
rev 1.0
ENGLISH
1. Remote control & panel description
1.1.Front panel description.................................................................................11
1.2.Rear panel description.................................................................................11

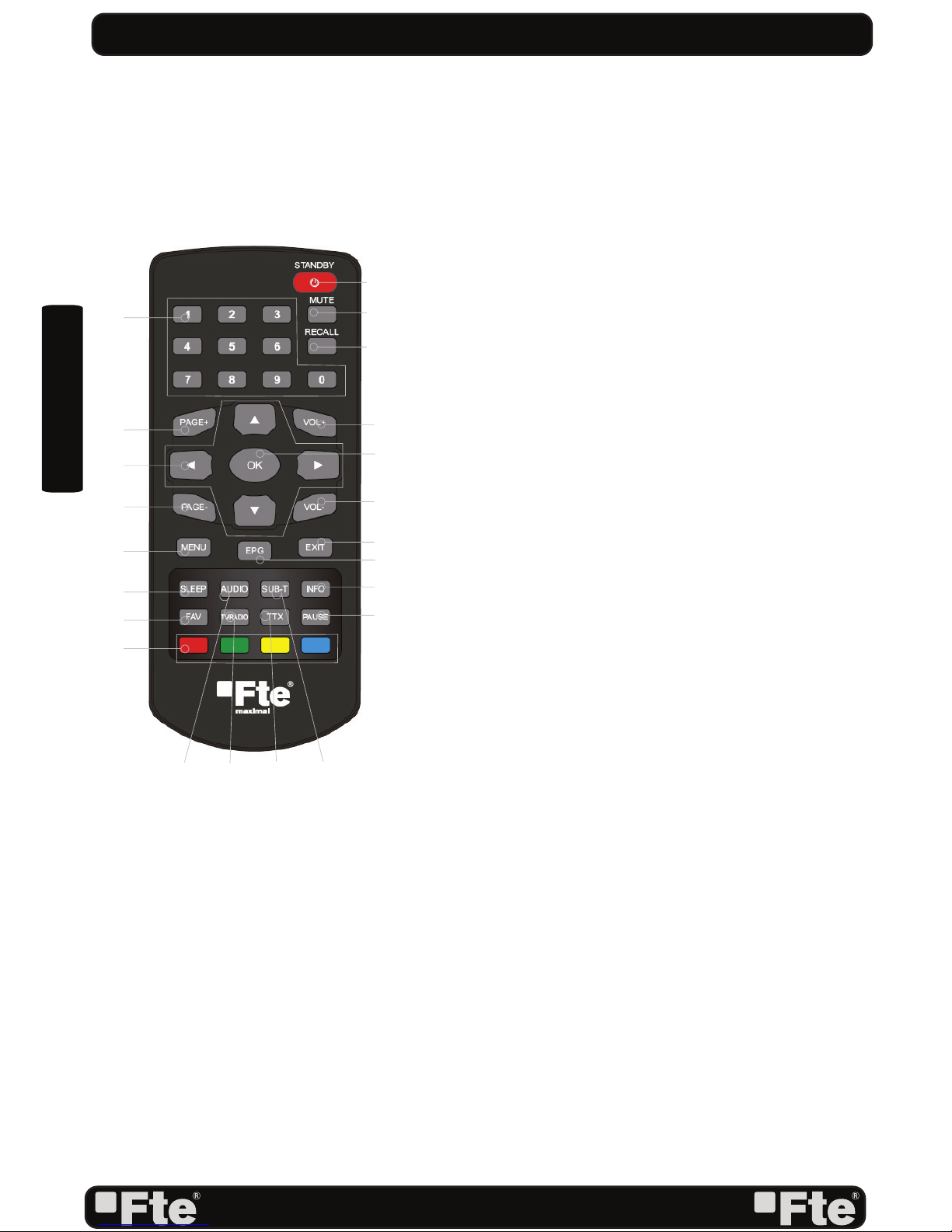

1.3.Remote control description........................................................................12
2. Hotkey
2.1.Standby.........................................................................................................13
2.2.CH+/CH-.......................................................................................................13
2.3.Vol+/Vol-......................................................................................................13
2.4.Number........................................................................................................13
2.5.TV/Radio...........................................................................................................13
2.6.Channel List................................................................................................................13
2.7.Audio............................................................................................................13
2.8.EPG...............................................................................................................13
2.9. Subtitles........................................................................................................14
2.10.Exit..............................................................................................................14
2.11.Menu............................................................................................................14
2.12.Mute..........................................................................................................14
2.13.Recall............................................................................................................14
2.14.Information...................................................................................................14
2.15.Pup+/Pdown-...............................................................................................14
2.16.TTX...........................................................................................................14
2.17.Fav..............................................................................................................14
3. Channel
3.TV Channel List....................................................................................................15
3.1.1.TV Channel list edit..........................................................................15
3.1.1.1.Favorite............................................................................15
3.1.1.2. Lock...............................................................................15
3.1.1.3. Skip................................................................................16
3.1.1.4. Delete..................................................................................16
3.1.1.5.Rename...............................................................................16
3.1.2.Find.................................................................................................16
3.1.3.Sort...............................................................................................16
3.1.4.Move.............................................................................................17
3.2.Radio Channel list........................................................................17
3.3.Delete all favorites...........................................................................17
3.4.Delete all.............................................................................17
3.5.Group Rename............................................................................17
INDEX
