I-PVR T152 CI HDMI
User Manual
38 pgs1.54 Mb0

FTE I-PVR T152 CI HDMI User Manual

Download
Page 1
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 1 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

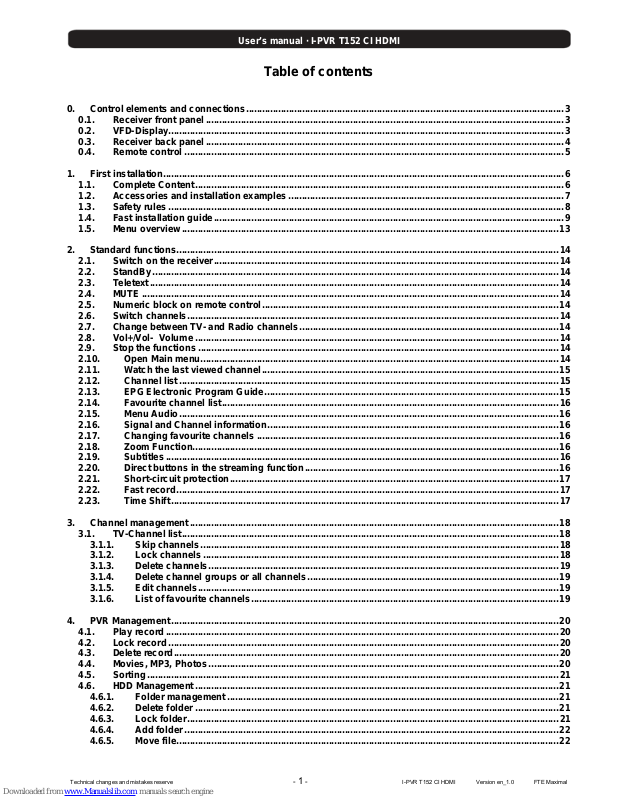

Table of contents
0. Control elements and connection s.......................................................................................................................3
0.2. VFD-Display.................................................................................... ................................................................3
1. First installation......................................................................................................................................................6
1.3. Safety rules.................................................................................................................. ...................... ............8
2. Standard functions................................................................................. ..............................................................14
2.2. StandBy........................................................................................................................................................14
2.7. Change between TV- and Radio channels.................................................................................................14

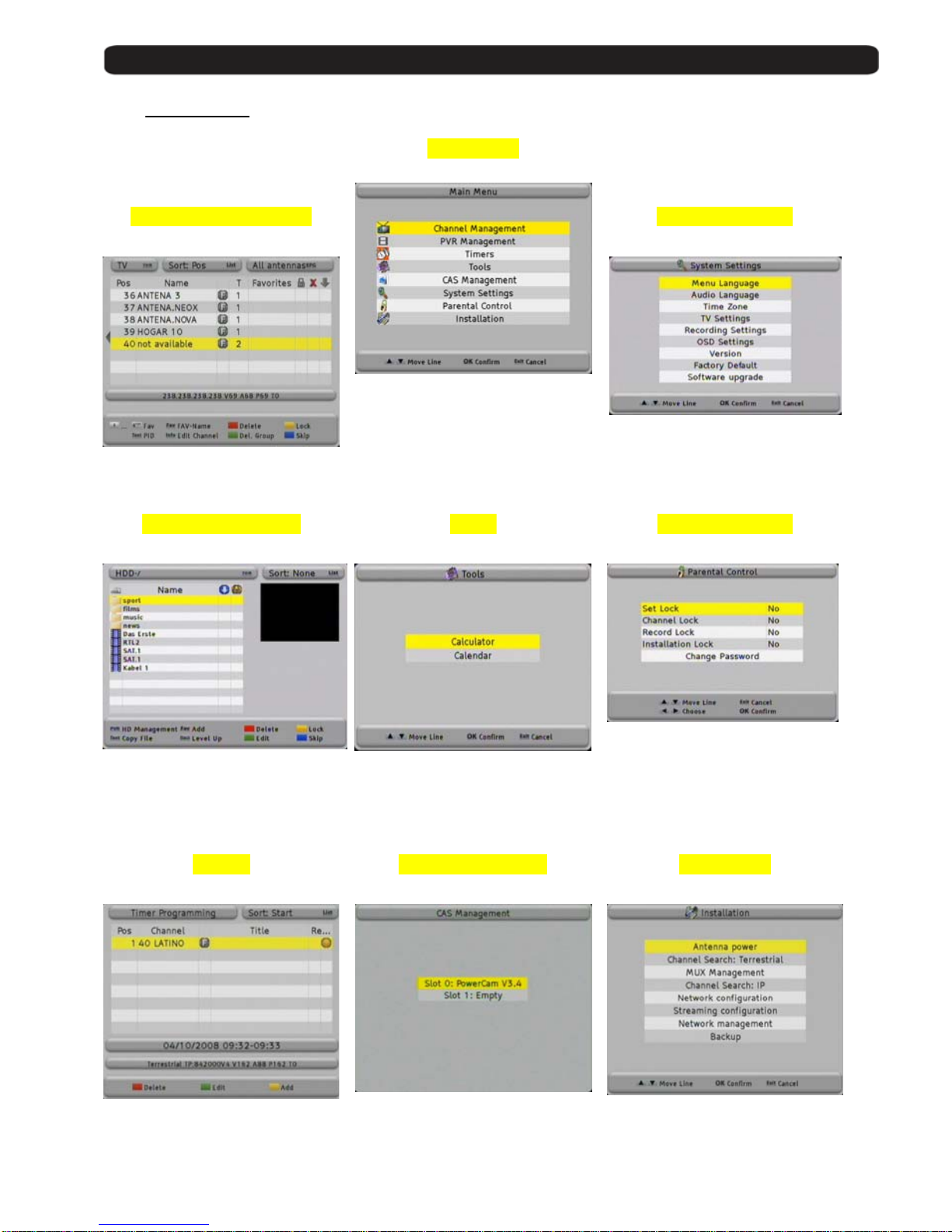

2.10. Open Main menu....................................................................................... ...............................................14

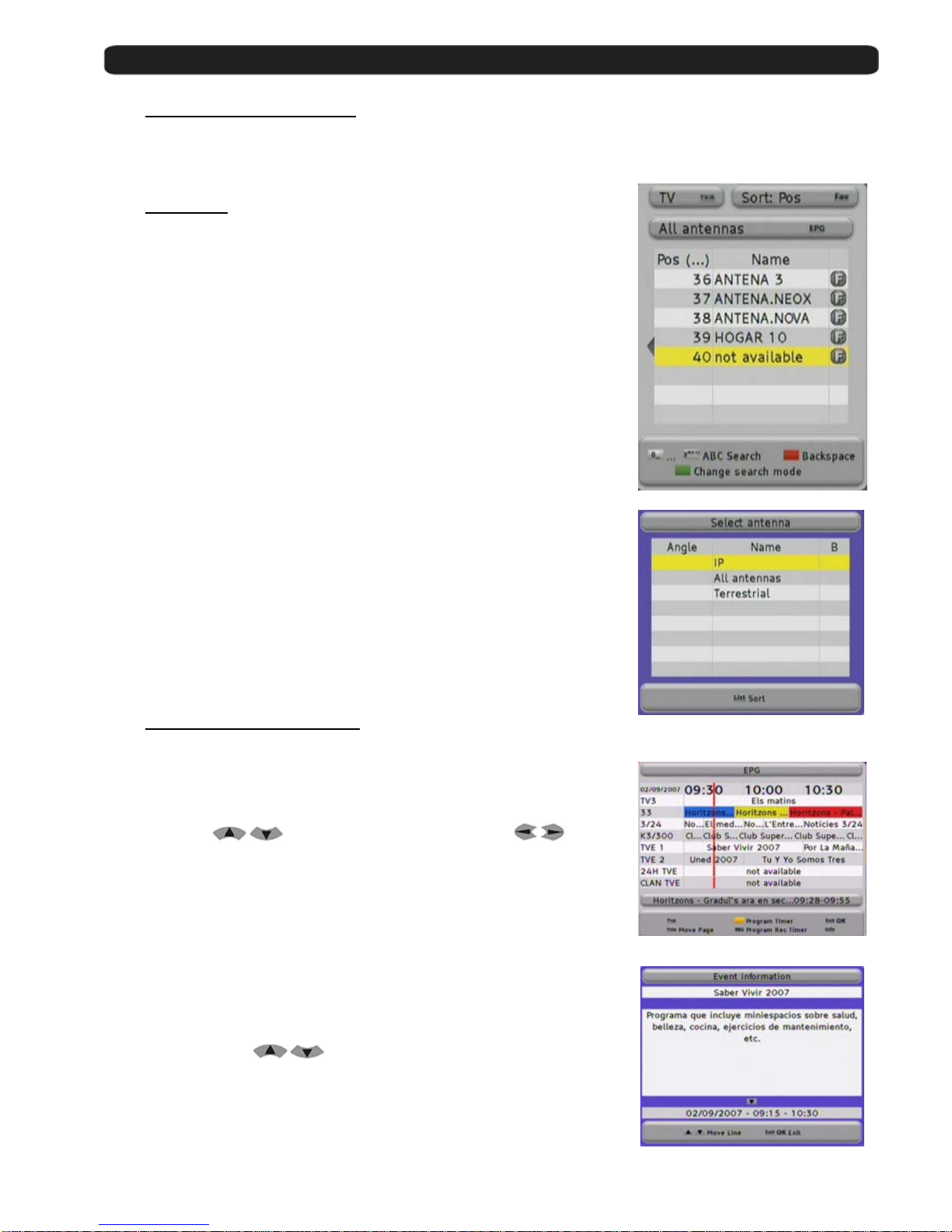

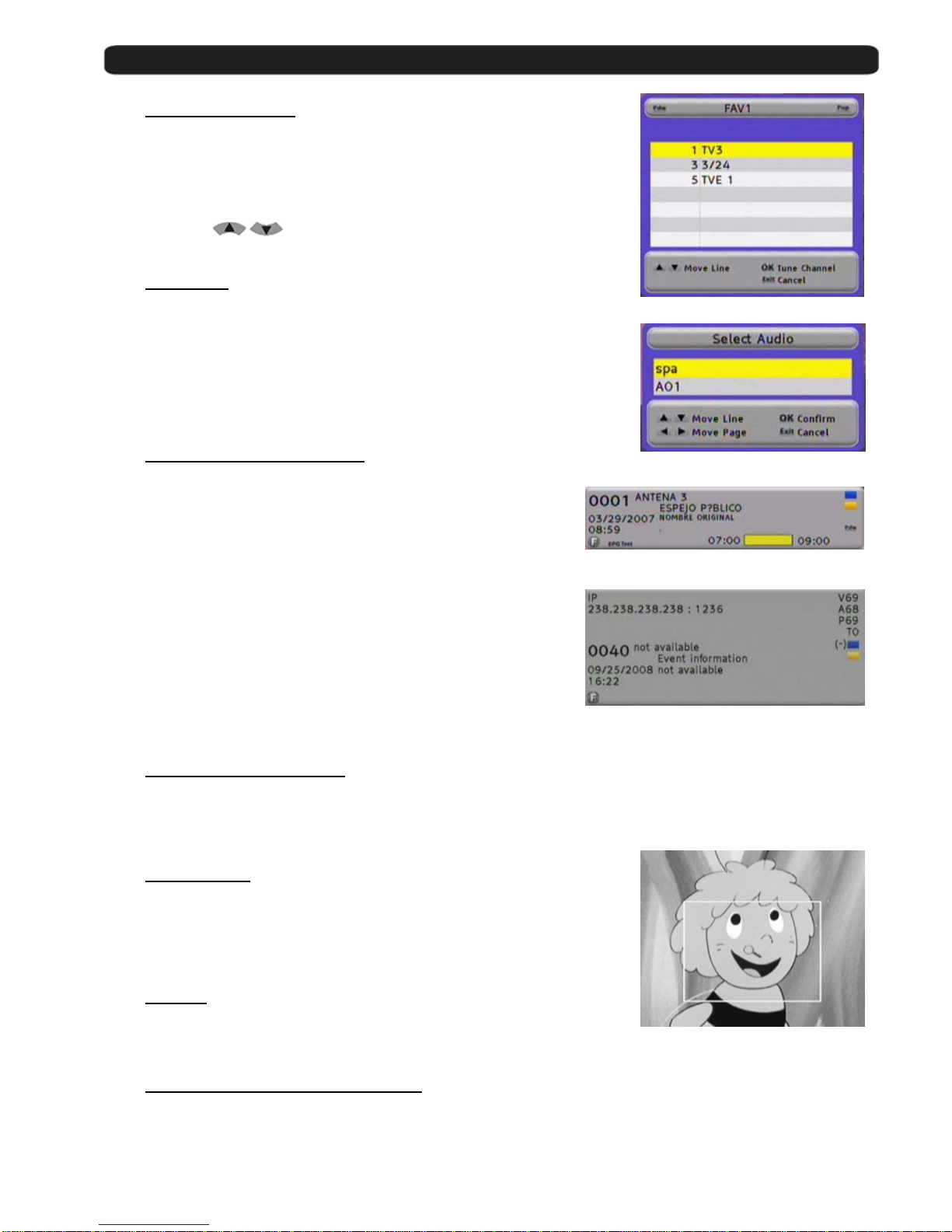

2.14. Favourite channel list..............................................................................................................................16
2.20. Direct buttons in the streaming function................................. ..............................................................16
2.21. Short-circuit protection...........................................................................................................................17
3. Channel management..........................................................................................................................................18
3.1.1. Skip channels......................................................................................................................................18
3.1.2. Lock channels.....................................................................................................................................18
3.1.3. Delete channels.......... .........................................................................................................................19

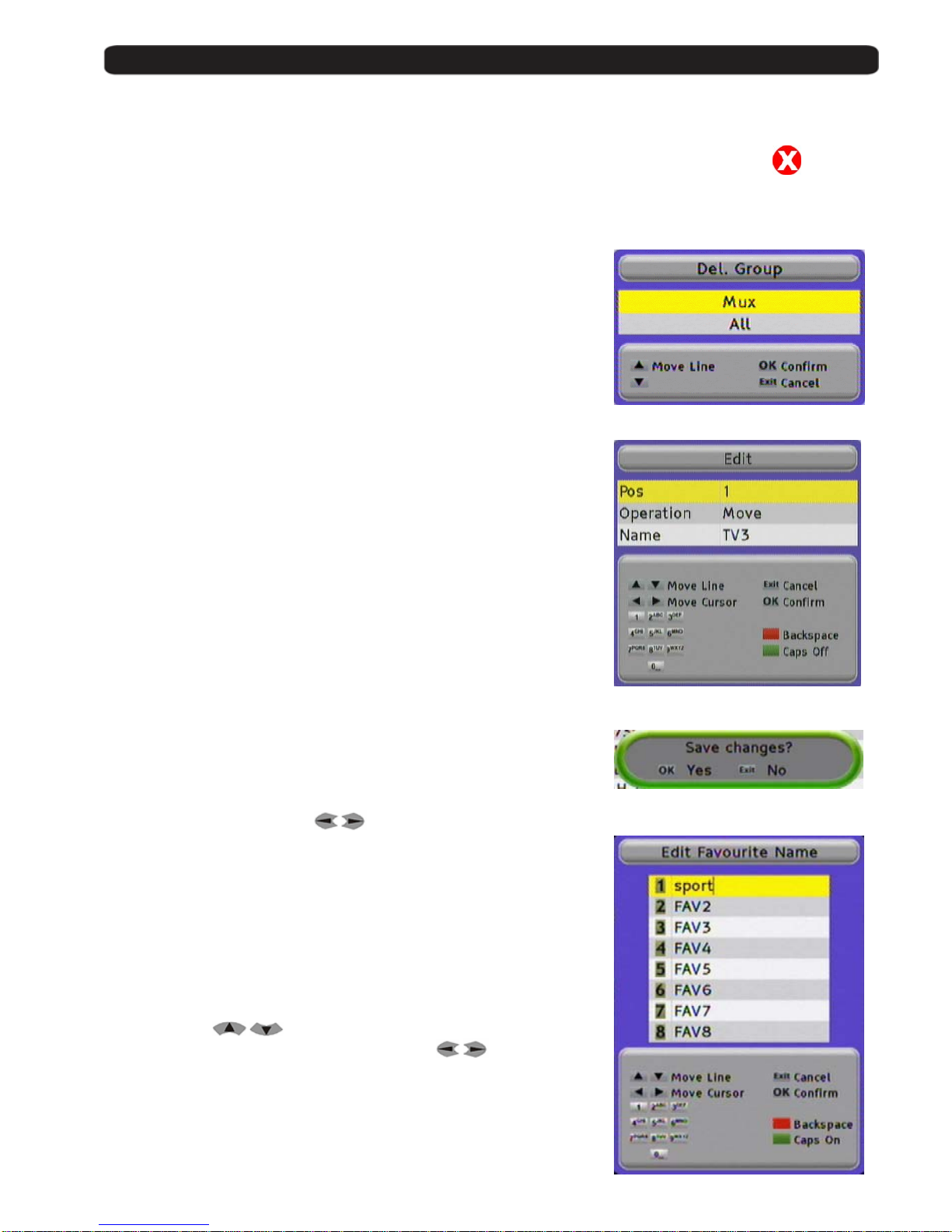

3.1.4. Delete channel groups or all channels..............................................................................................19

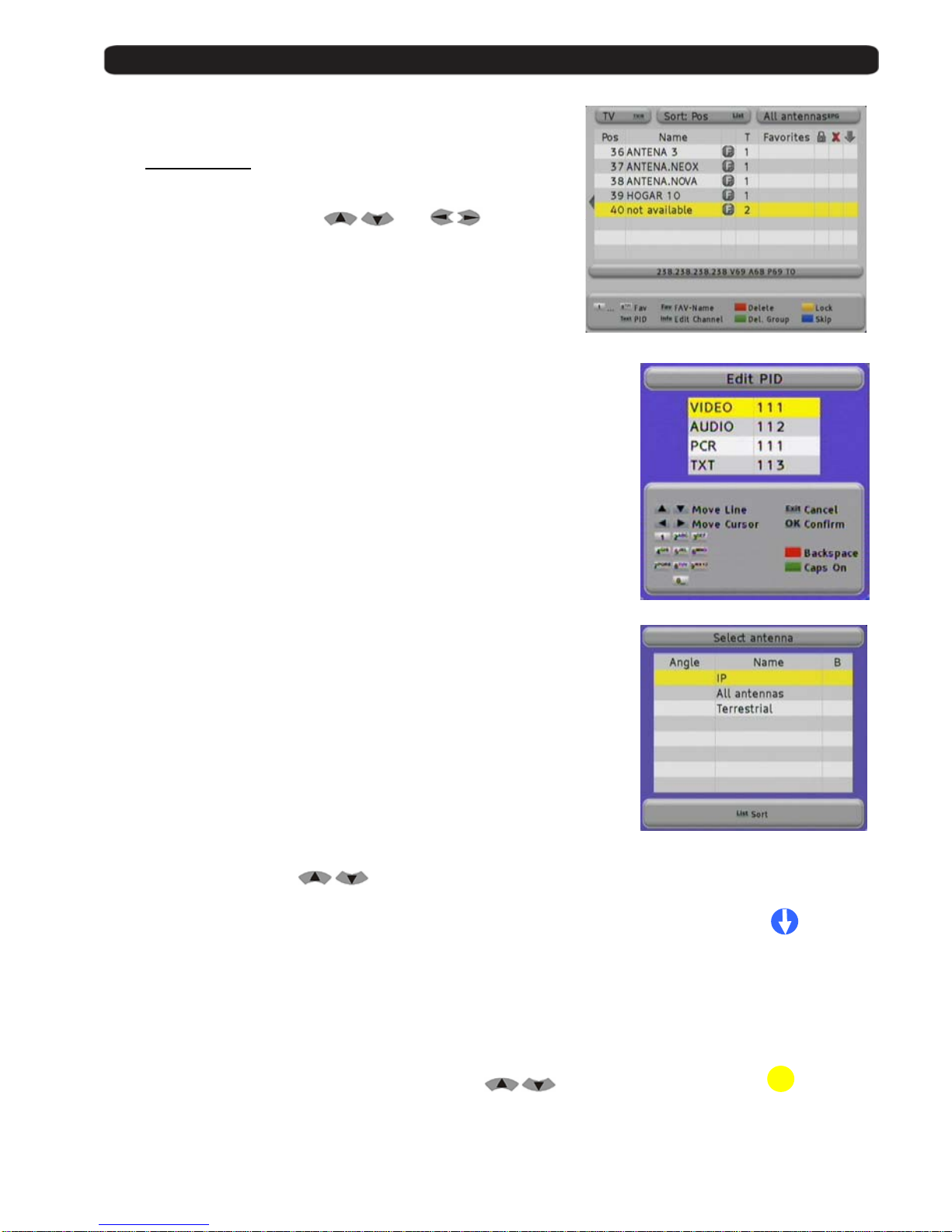

3.1.5. Edit channels.......................................................................................................................................19
3.1.6. List of favourite channels...................................................................................................................19

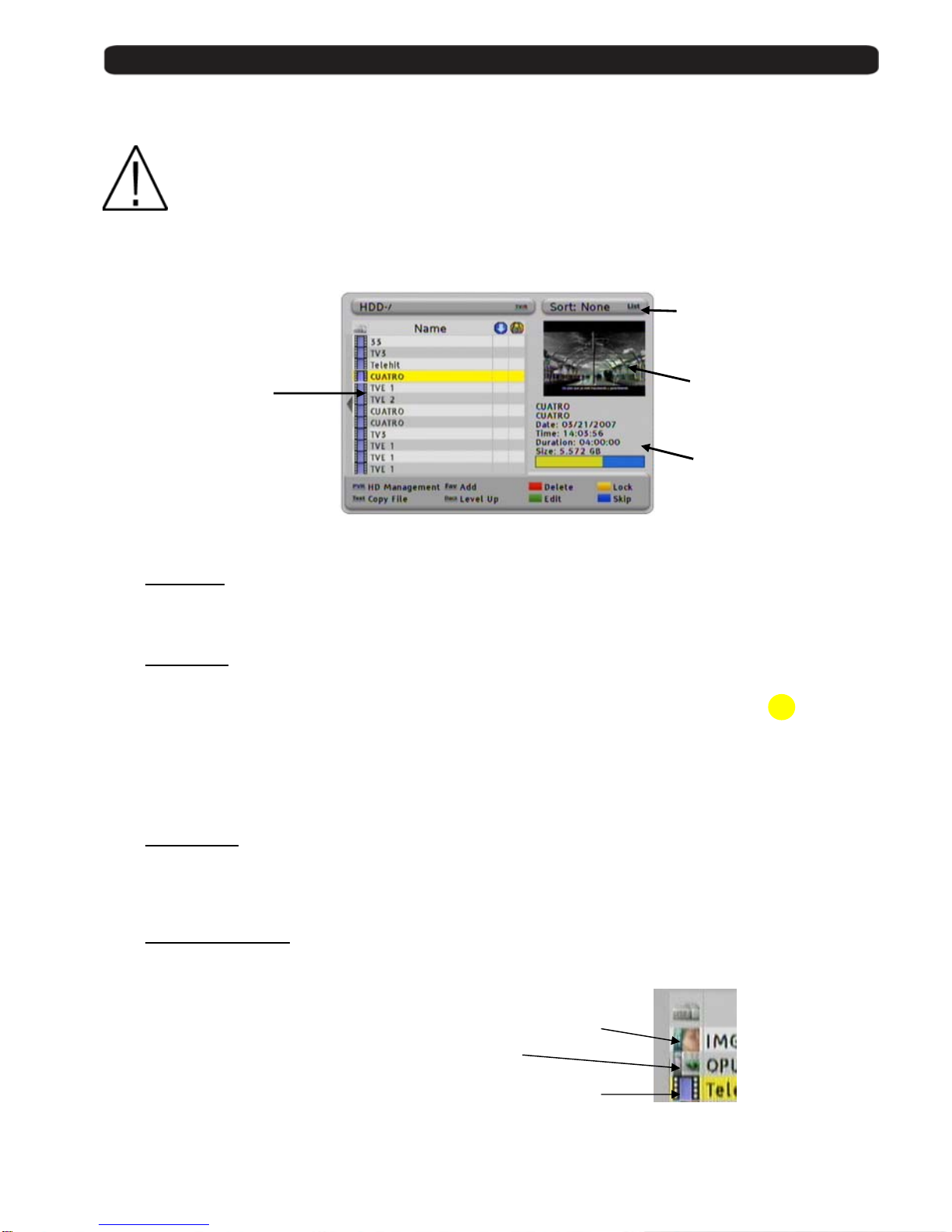

4. PVR Management.................................................................................................................................................20
4.1. Play record................... ................................................................................................................................20
4.2. Lock record.................. ................................................................................................................................20
4.3. Delete record................................................................................................................................................20

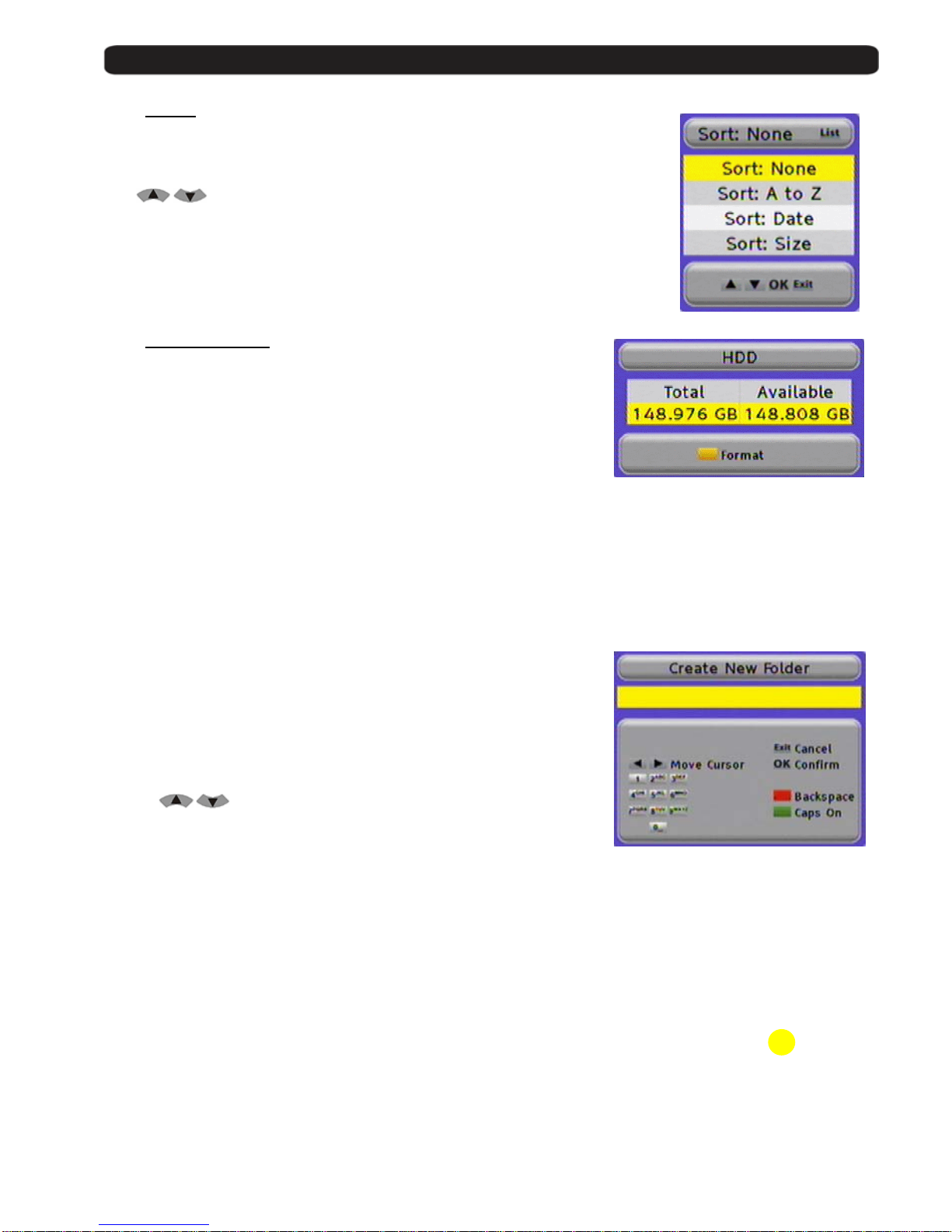

4.6.1. Folder management............................................................................................................................21
4.6.2. Delete folder ........................................................................................................................................21
4.6.3. Lock folder...........................................................................................................................................21

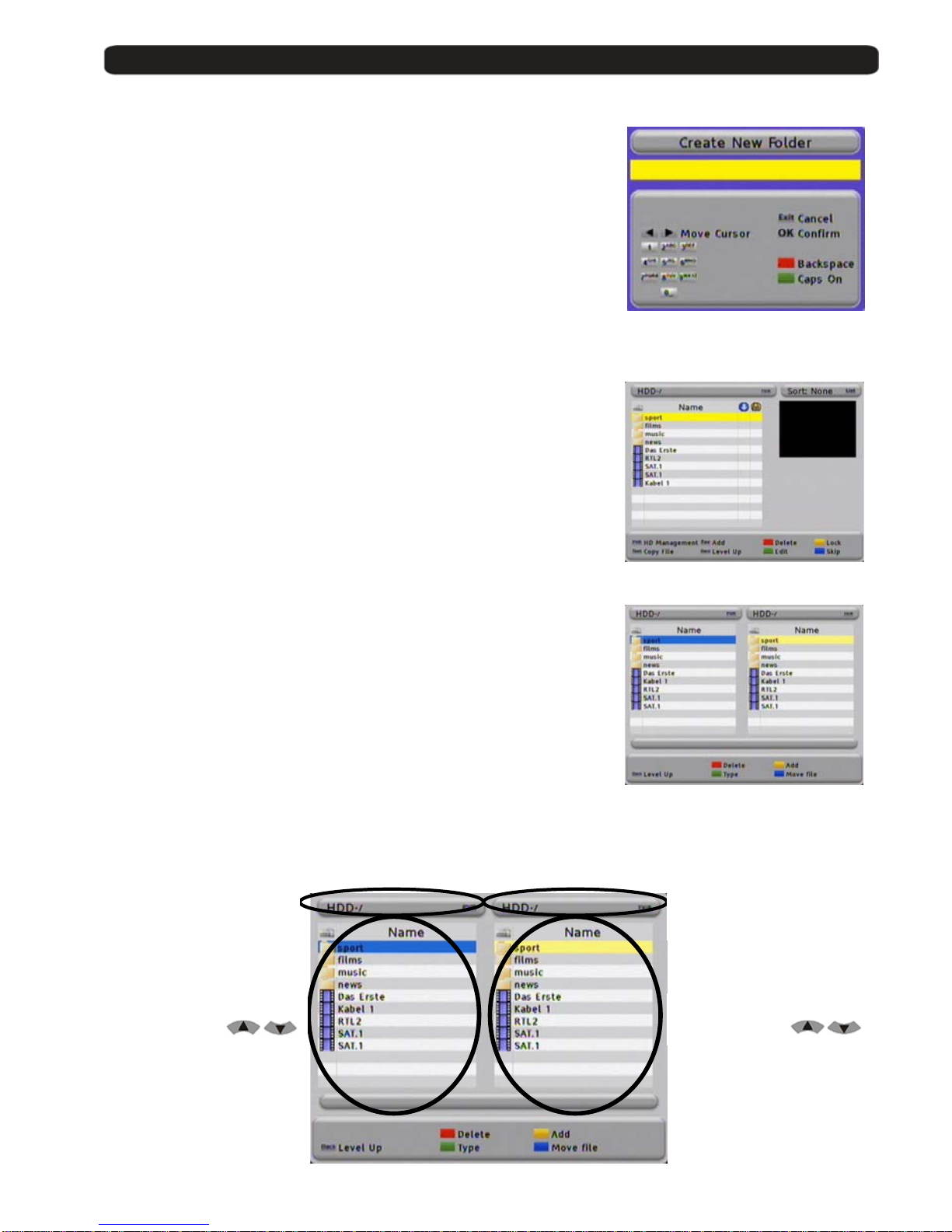

4.6.4. Add folder.... ........ ....... ............... ....... ....... ........ ............... ....... ........ .............. ........ ....... .........................22
4.6.5. Move file...............................................................................................................................................22
Page 2
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 2 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

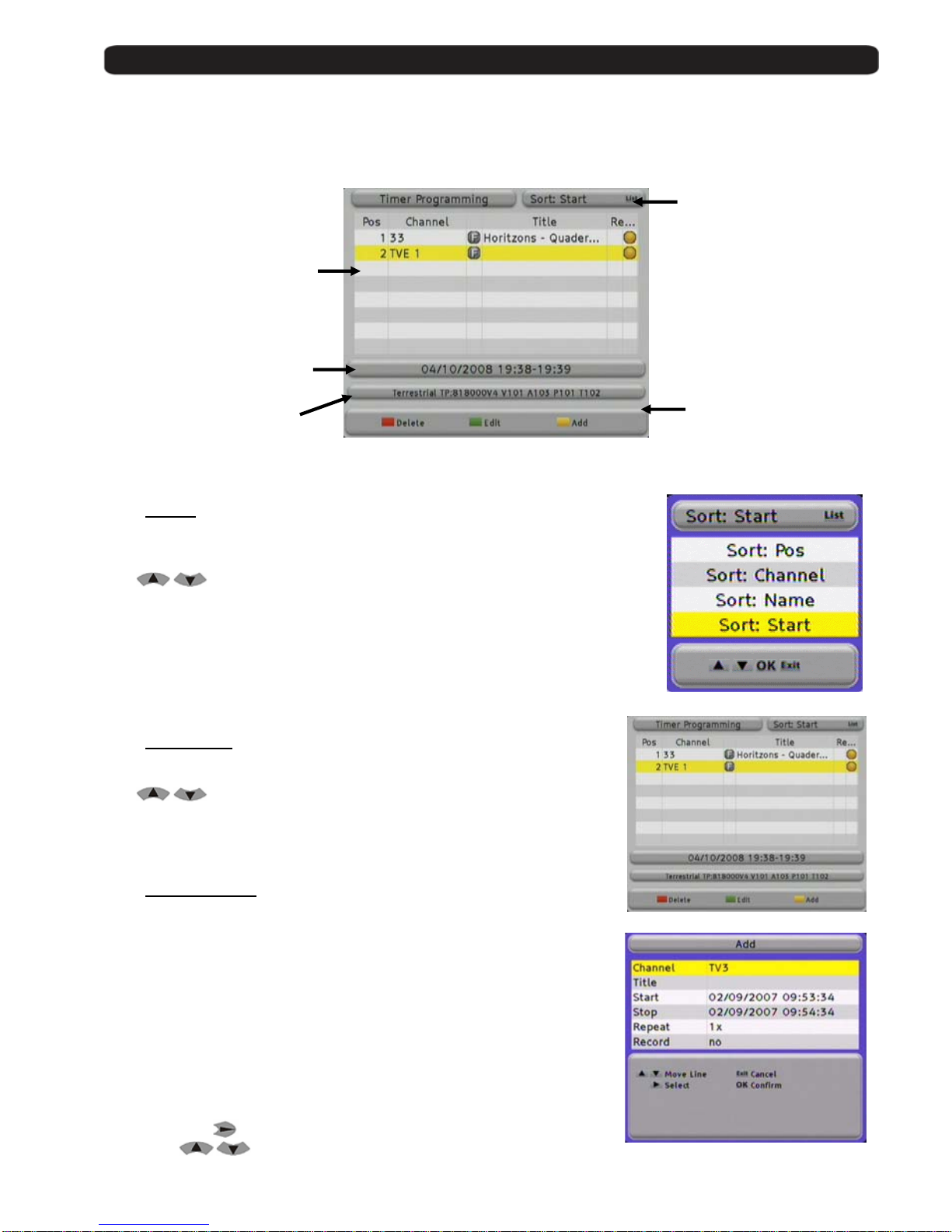

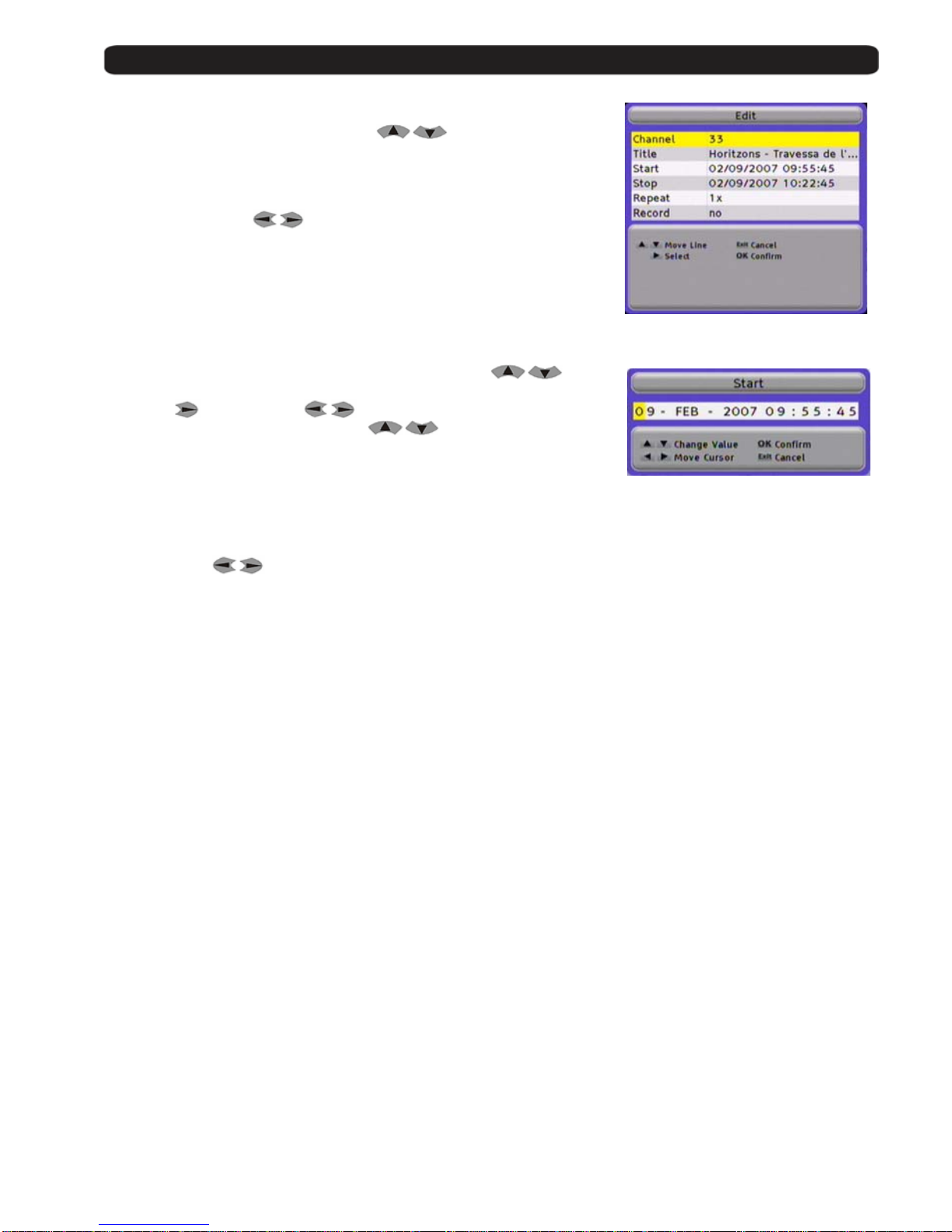

5. Timers...................................................................................................................................................................23
5.2. Delete Timer.................................................................................................................................................23

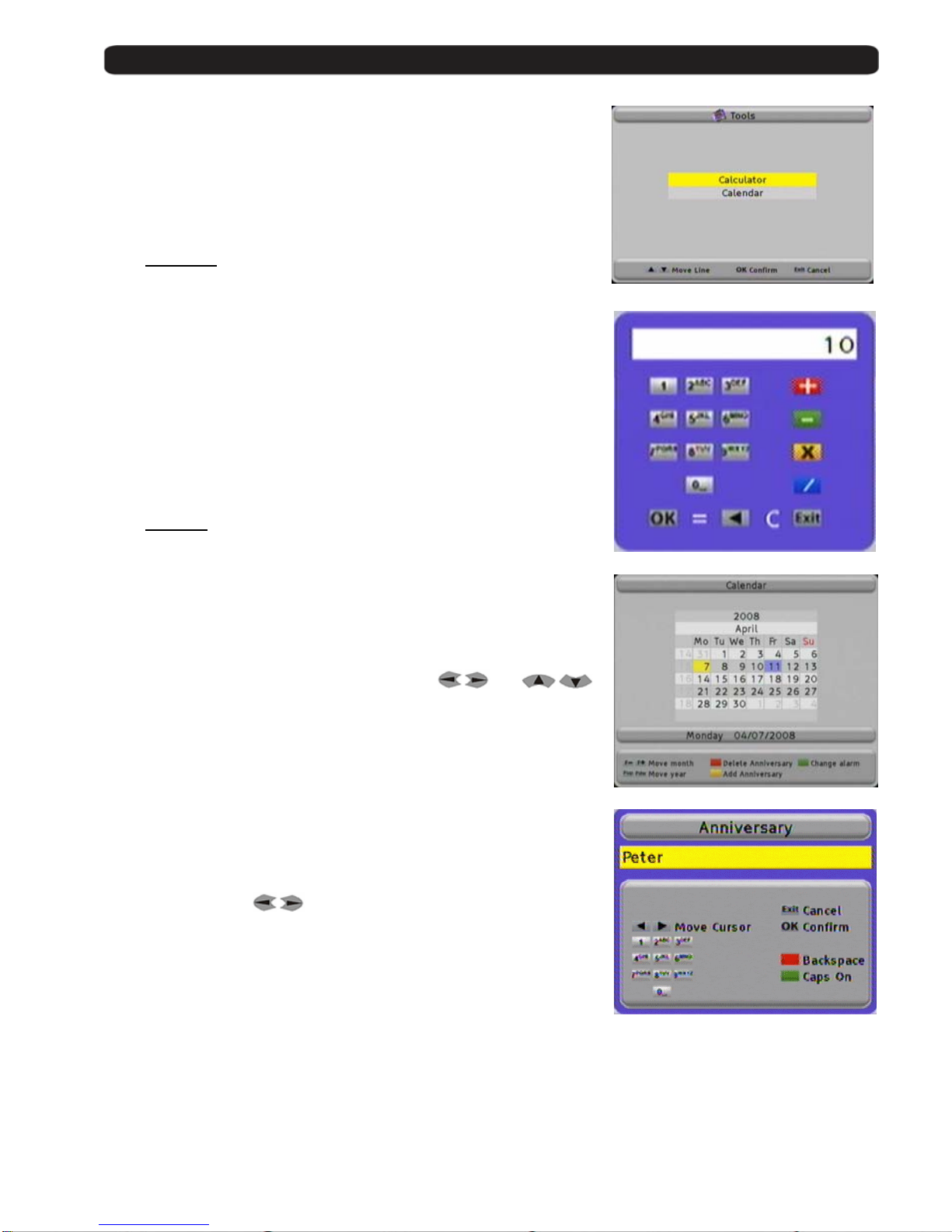

6. Tools .................................................................. ...................................................................................................25
6.1. Calculator.....................................................................................................................................................25
6.2. Calendar............................................................................................................................................. ..........25

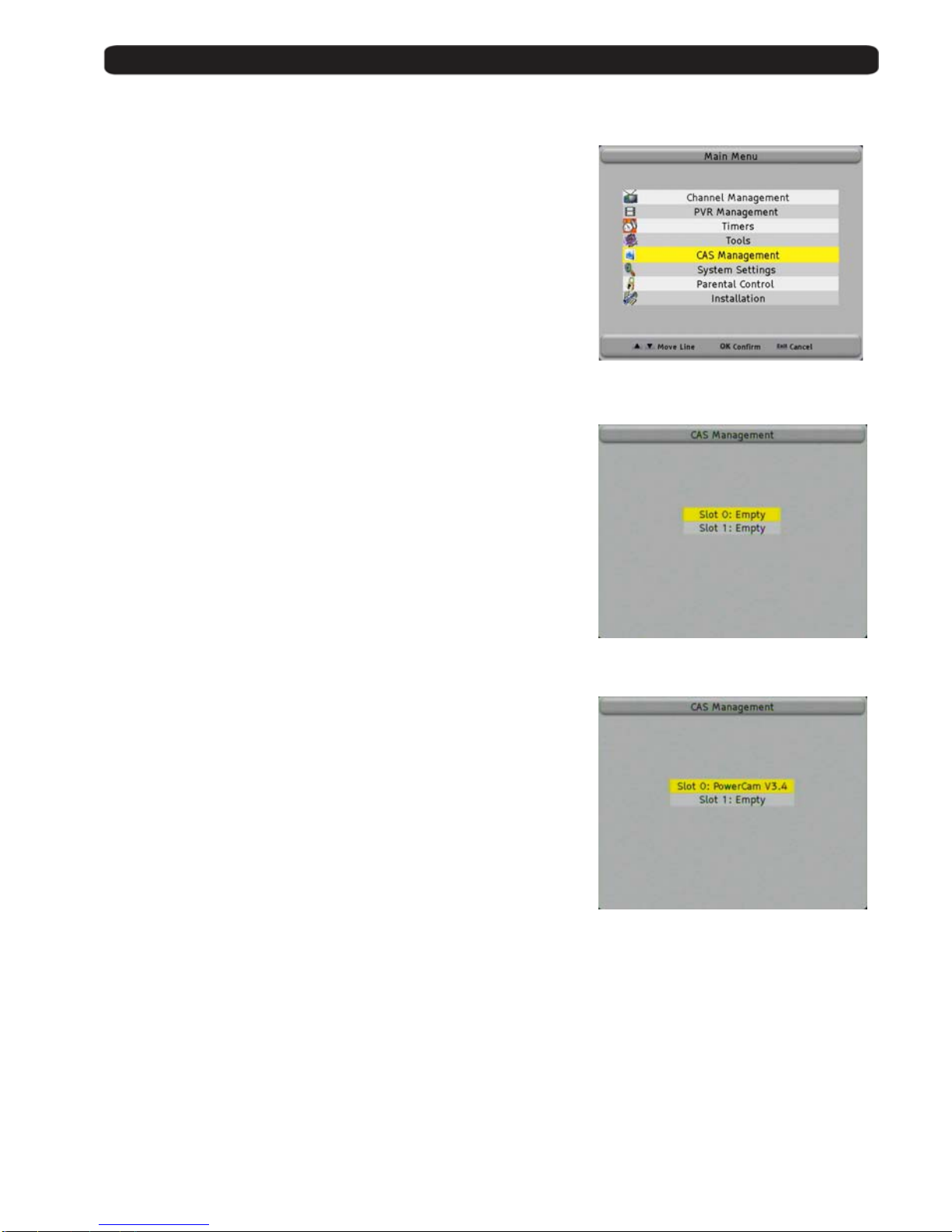

7. CAS Configuration (Conditional Access System).............................................................................................26

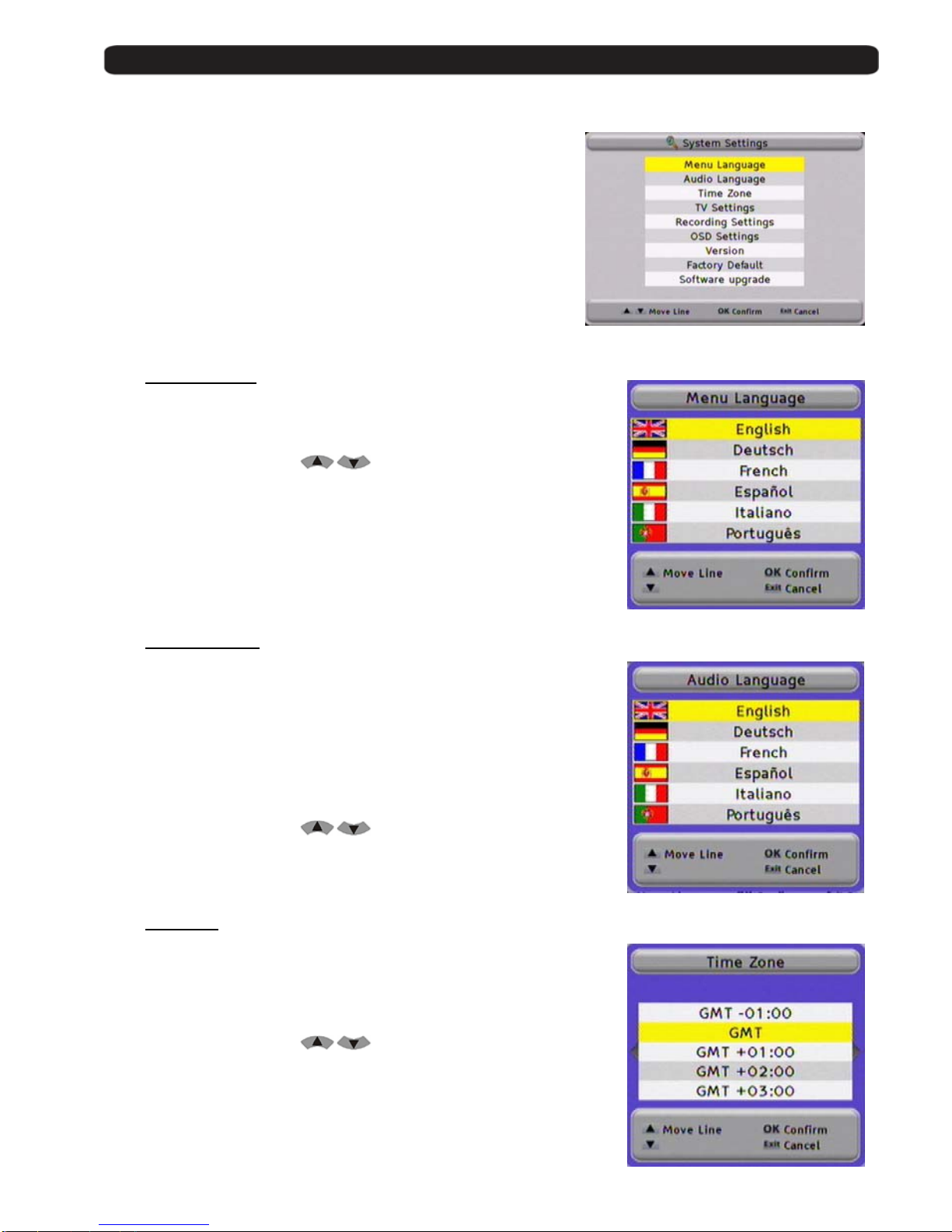

8. System Settings.................................................................................................................................. .................27
8.3. Time Zone.....................................................................................................................................................27

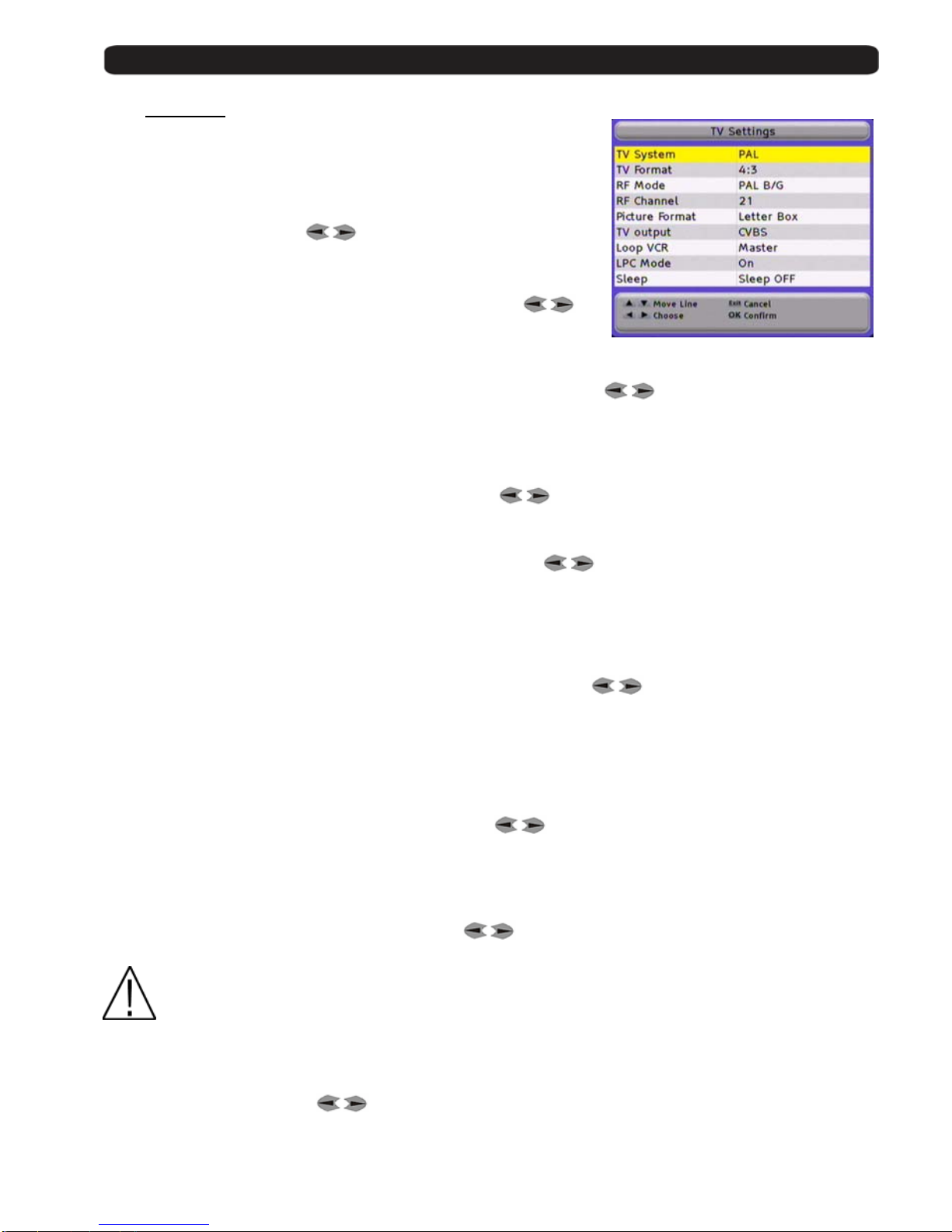

8.4. TV Settings........................................................ ........................................................................................ ...28

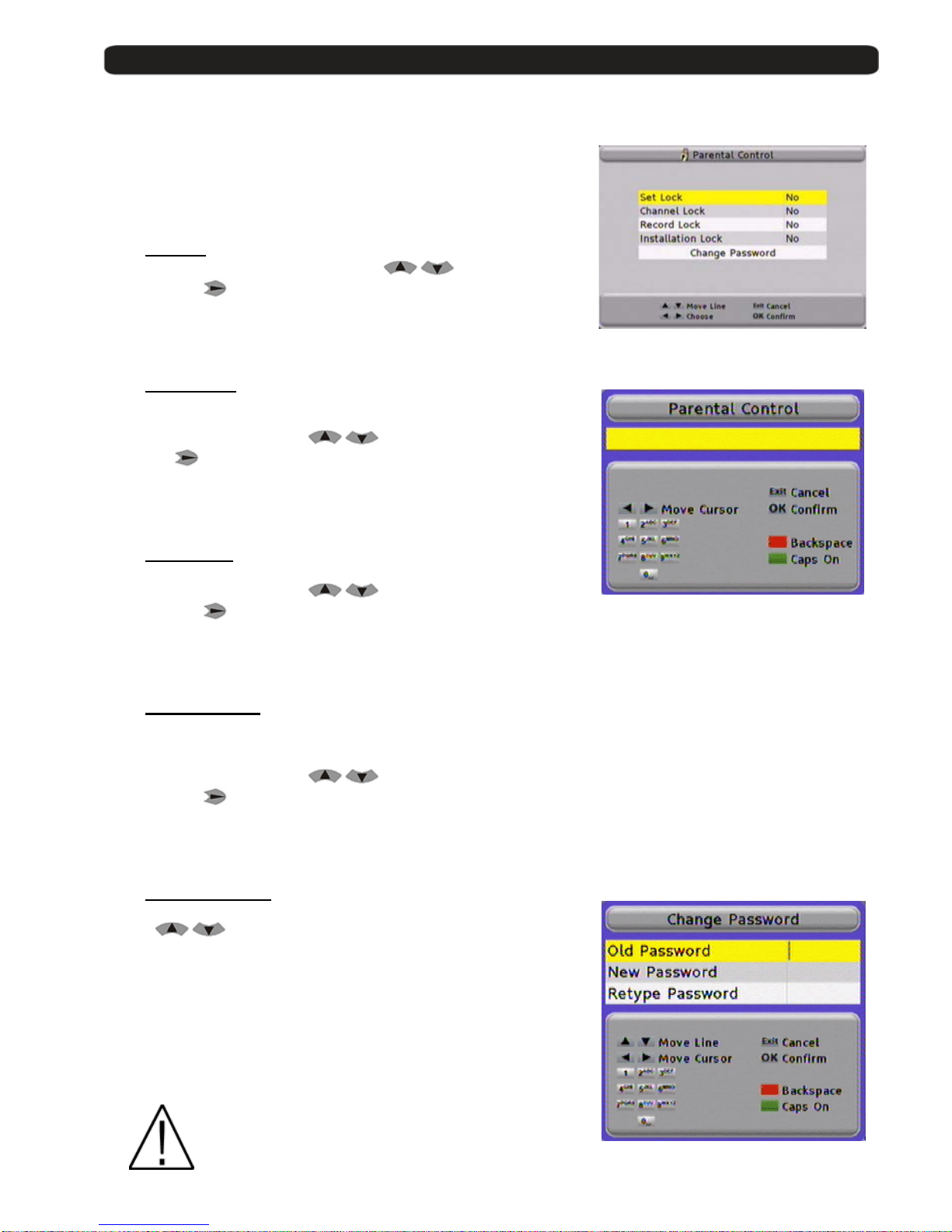

9. Parental Control...................................................................................................................................................32
9.1. Set Lock.......................................................................................................................
.................................32

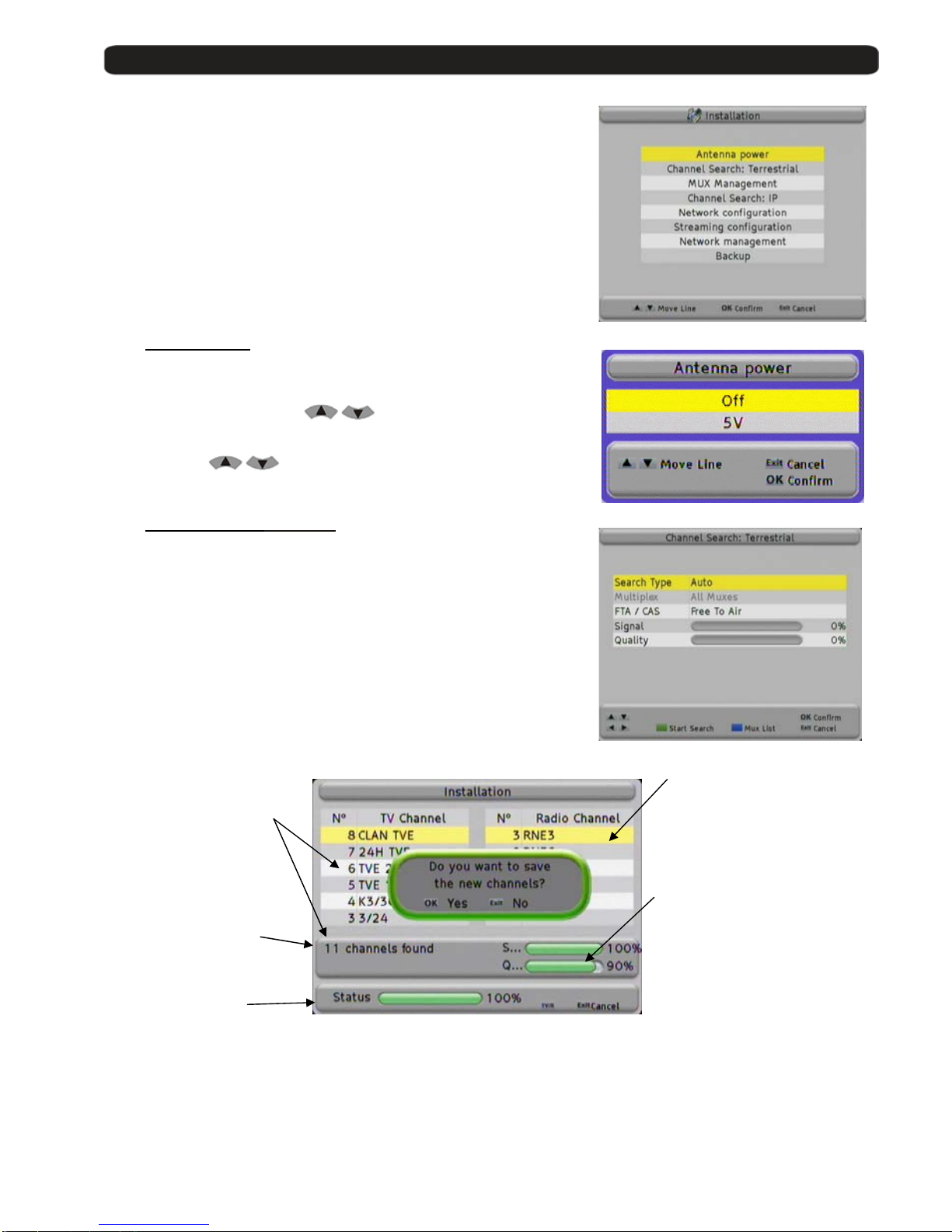

10. Installation............................................................................................................................................................33

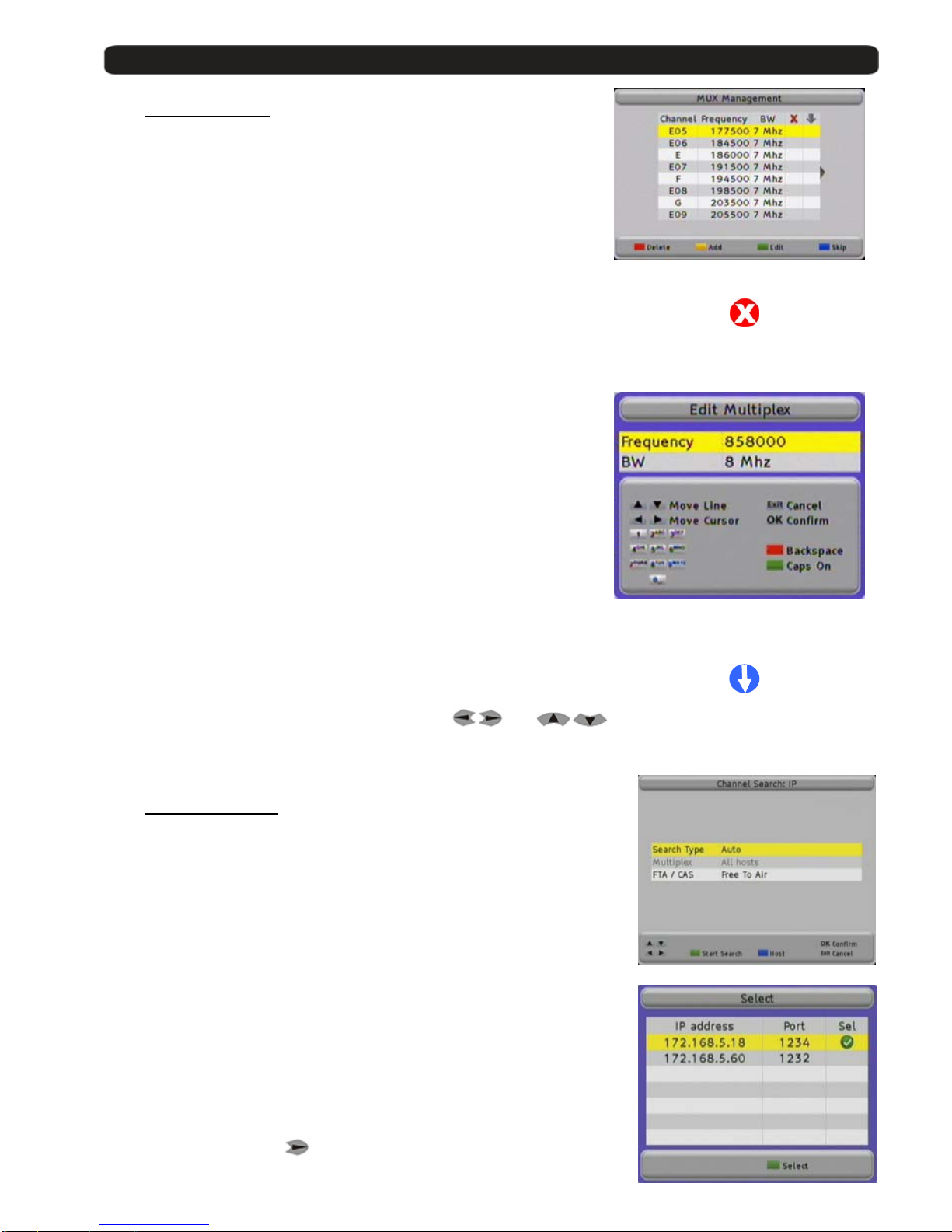

10.3. MUX Management....................................................................................................................................34

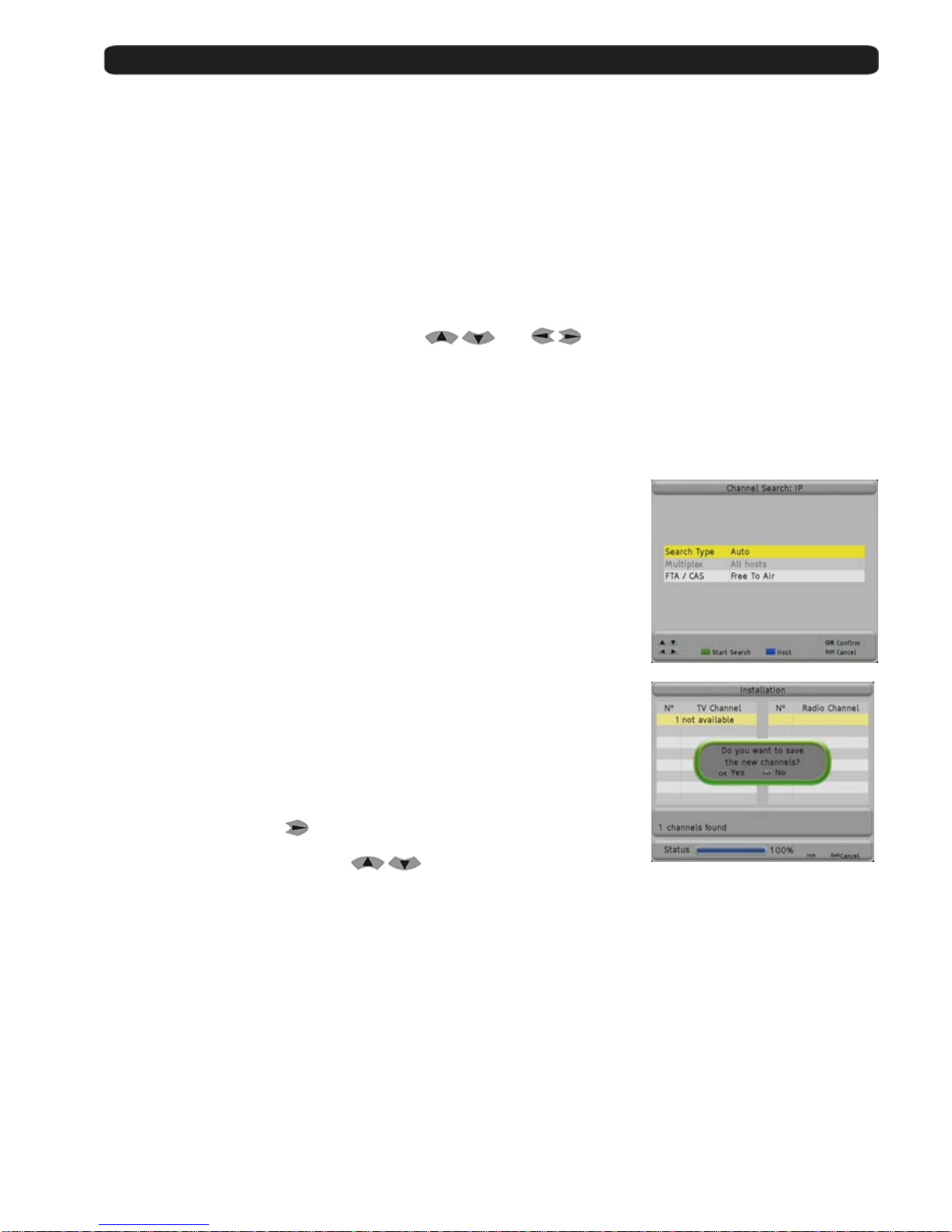

10.4. Channel Search: IP..................................................................................................................................34

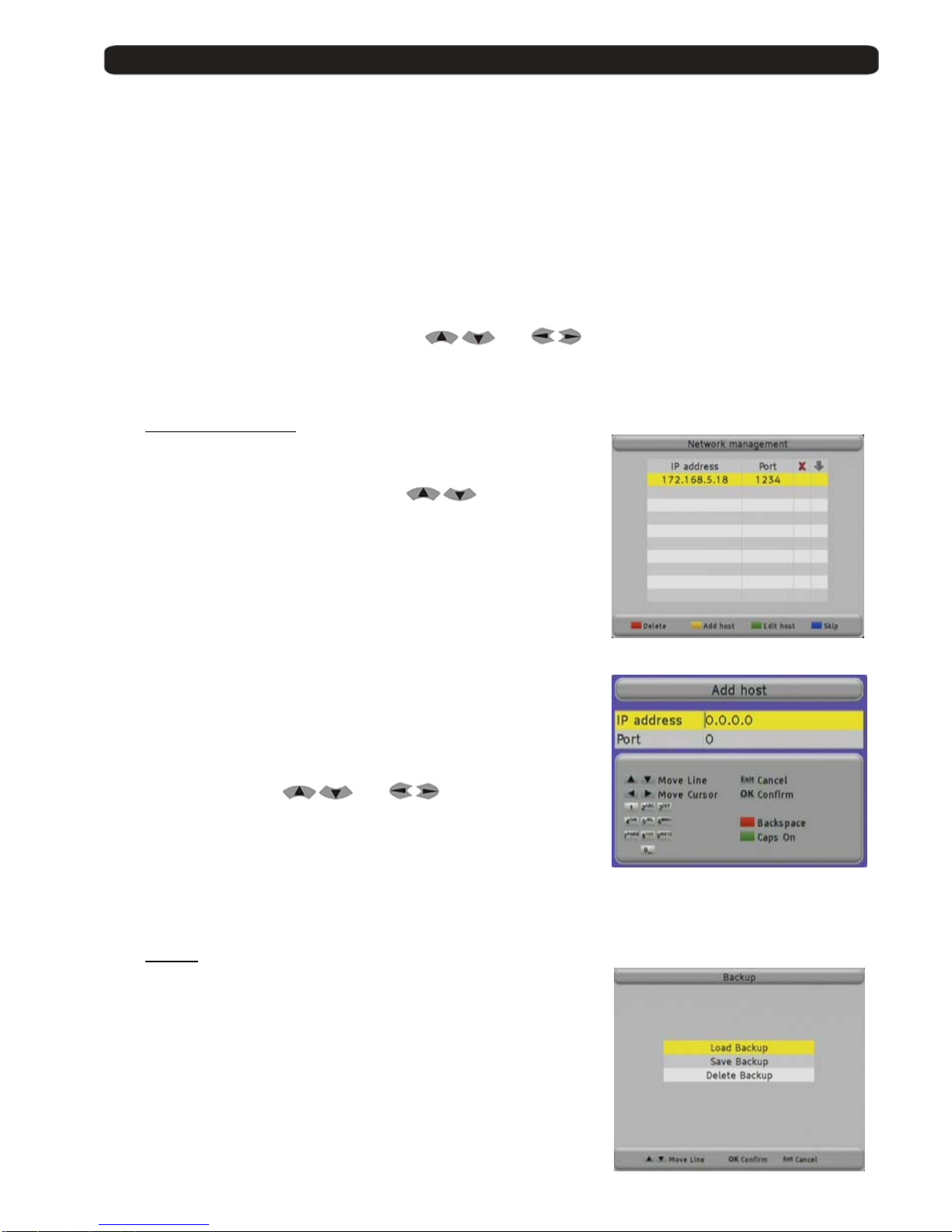

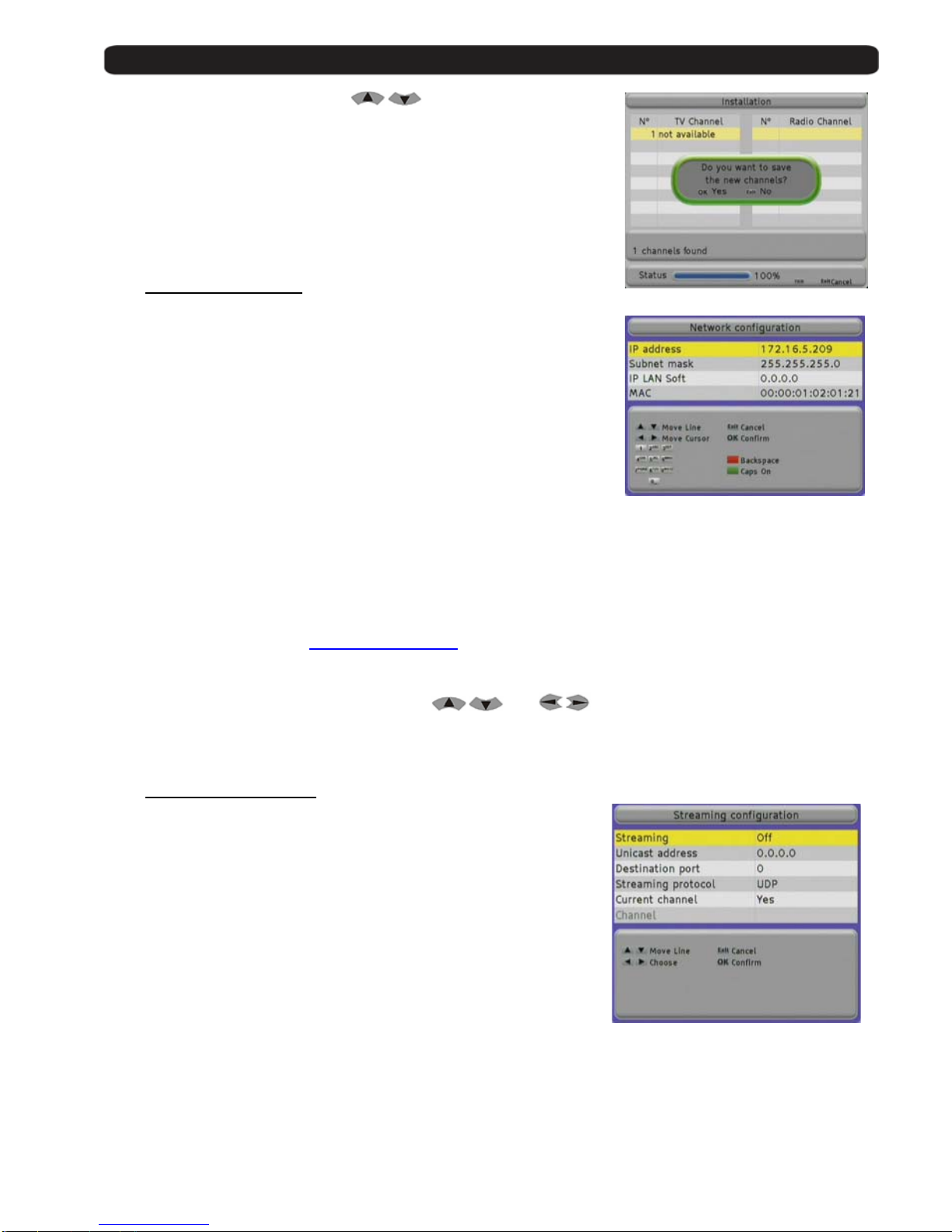

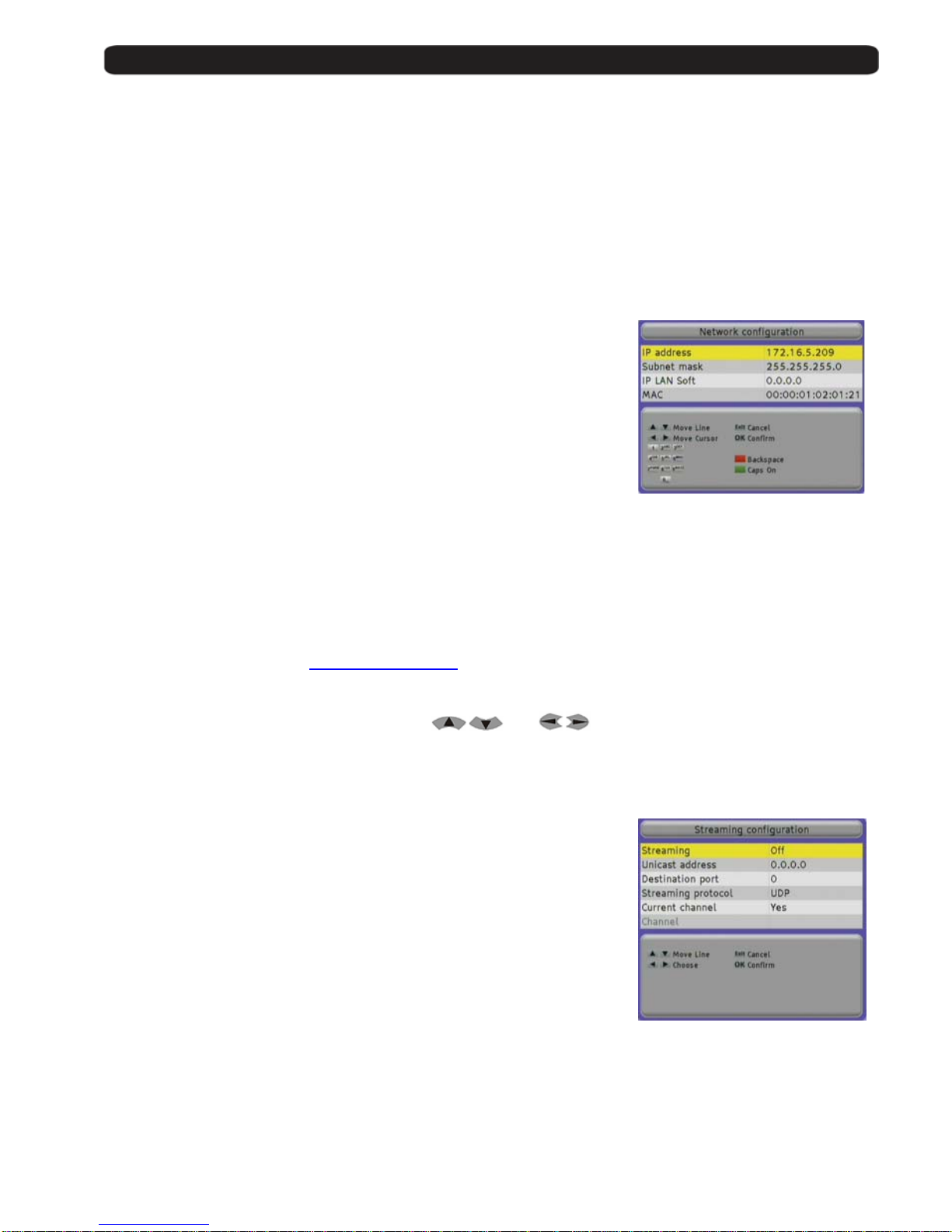

10.5. Network Configuration............................................................................................................................35
11. The equipment of the receiver ... ................................................................... ......................................................37
Page 3
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 3 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

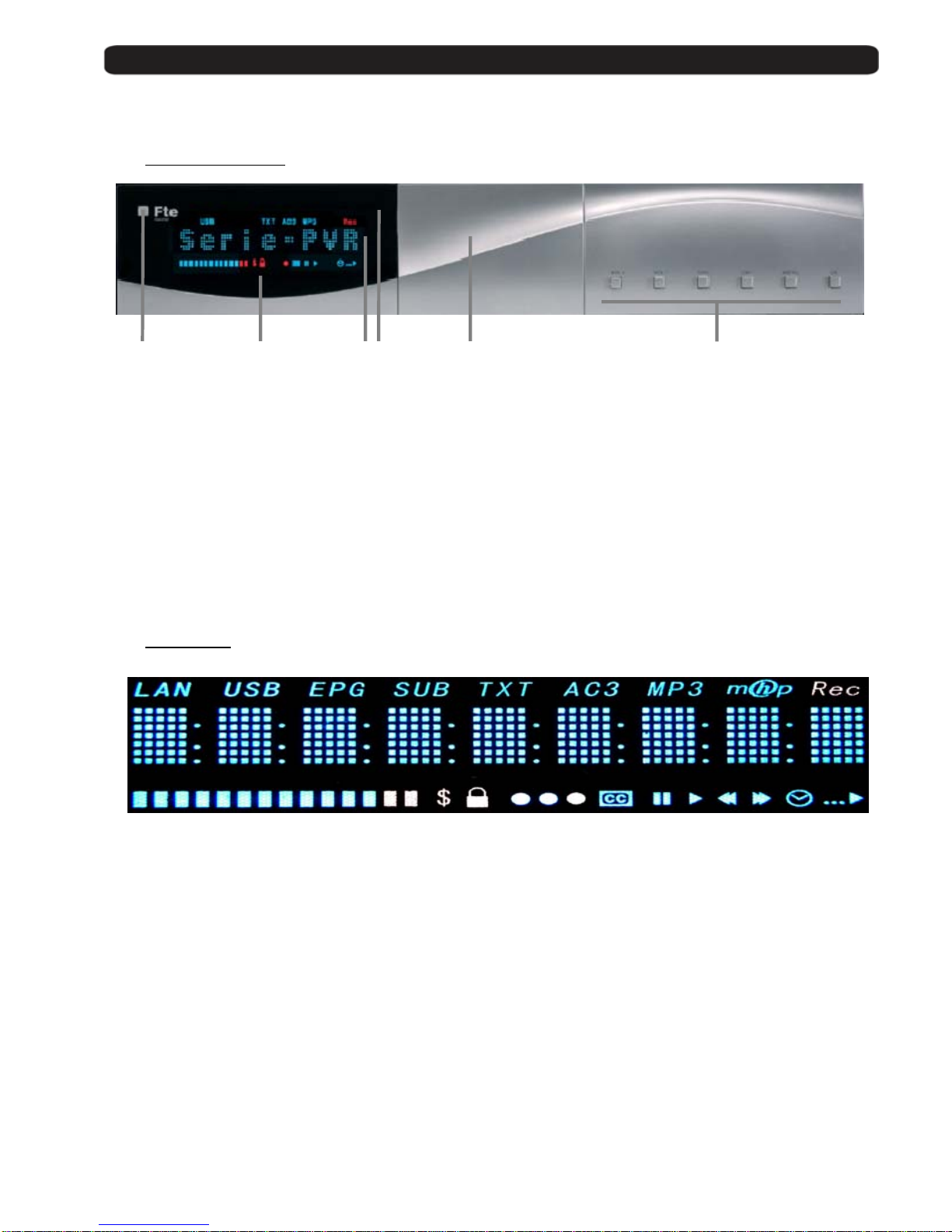

0. Control elements and connections
0.1. Receiver front panel
1 2 3 4 5 6
1 POWER: Switches the receiver ON or in Standby mode. For total switching off,
use the main switch at the back side of the receiver.
2 VFD-DISPLAY: Shows information like channel name and receiver functions 3 STAND-BY-LED: Shows if the receiver is in Standby mode (when LPC mode is ON) 4 IR-SENSOR: Reception sensor for the IR remote control signals 5 FRONT COVER: Opening the front cover, you will access to the Conditional Access system
and to the USB connector.
6 BUTTONS: These buttons allow controlling the main functions of the receiver, and
provide the same functionality as the remote control ones.
0.2. VFD-Display 1 2 3 4 5 6 7 8 9
10
11 12 13 14 15 16 17 18 19 20 21 22 23 24
1
Without function currently
13 Channel is locked by password
2 USB-device is connected 14 Tuner 1 signal OK 3 Channel have EPG- information 15 Tuner 2 signal OK 4 Subtitle available 16 Without function currently 5 Channel have TXT information 17
Without function currently
6 Audio signal in AC3 available 18 Time shifting is working 7
Without function currently
19 Record is playing
8
Without function currently
20 Record will be moved backward 9 Receiver records one channel 21 Record will be moved forward 10 Alpha numeric display 22 Sleep mode is active 11 Bar to show adjusted volume 23
Without function currently
12 Channel is coded 24
Without function currently
Page 4
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 4 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

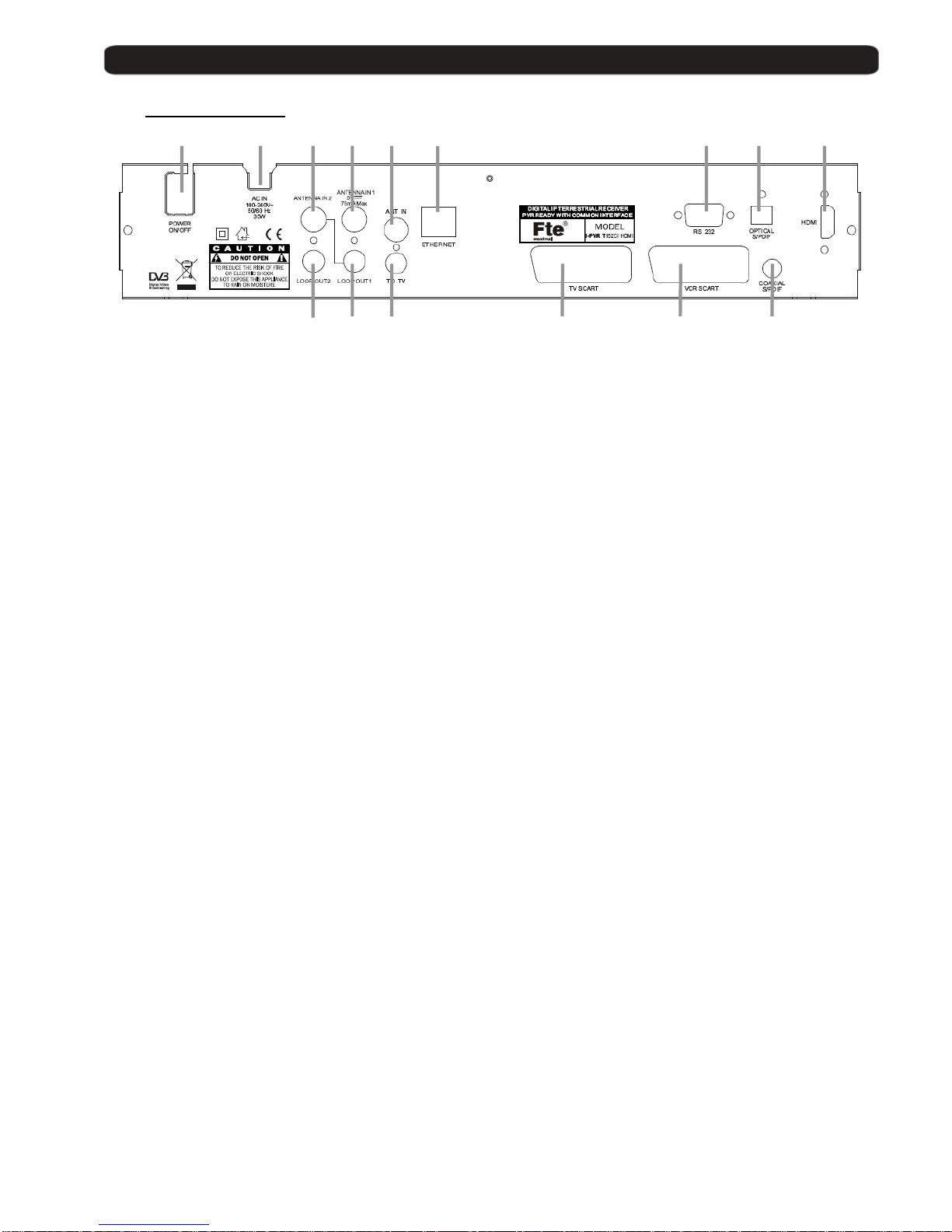

0.3. Receiver back panel 1 2 3 4 5 6 7 8 9
10 11 12 13 14 15
1 POWER ON/OFF: Main switch to switch off totally the receiver. 2 AC IN: Power cord 230VAC/50Hz. 3 ANTENNA IN 2: Input of the second digital tuner, it must be connected to LOOP OUT 1 4 ANTENNA IN 1: Input of the first digital tuner 5 ANT IN: Antenna input for analogue signals, it must be connected to LOOP OUT 2 6 ETHERNET: Network connection of the receiver. 7 RS-232: Serial port to update the firmware of the receiver. 8 OPTICAL S/PDIF: Optical output for digital audio (AC3) 9 HDMI: Video & Audio Output to connect the TV. 10 LOOP OUT 2: Output from second digital tuner, it must be connected to ANT IN 11 LOOP OUT 1: Output from first digital tuner, please connect to ANTENNA IN 2 12 TO TV: Modulator output to connect one TV set. Audio signal is available in Mono. 13 TV SCART: SCART output for connecting one TV set 14 VCR SCART: SCART connector for video recorder, DVD recorder or DVD player. 15 COAXIAL S/PDIF: Coaxial output for digital audio (AC3)
Page 5
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 5 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

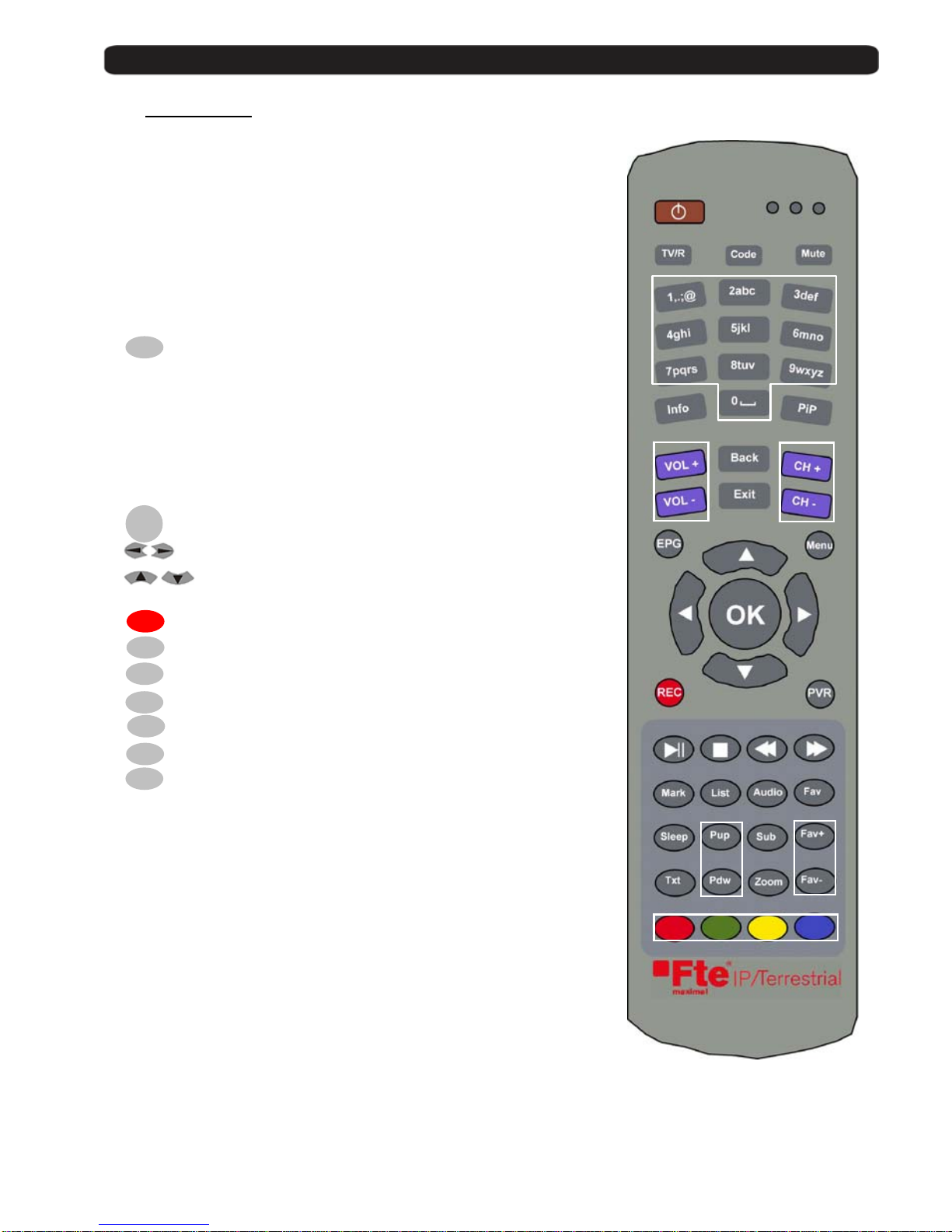

0.4. Remote control
1. POWER: Switches receiver ON or in stand-by-mode.
2. 3-set LED: Shines as function control,
showing the selected transmission code 1, 2 or 3
3. TV/R: Switches between TV and Radio channels.
4. CODE: Changes transmission code of the remote control.
5. MUTE: Switches audio on and off.
6. NUMERIC KEYS: For direct typing values and names.
7. INFO: Shows channel information with signal bar.
8. : Starts Picture In Picture function.
9. VOL+ VOL-: Adjusts audio volume up and down.
10. CH+ CH-: Changes channel up and down.
11. Back: Watch the last viewed channel.
12. EXIT: Exit menus or stop operations.
13. EPG: Shows the EPG information.
14. MENU: Opens the main menu.
15. : Confirms selections or opens channel list.
16. : Adjusts audio volume or controls the cursor in menus.
17. : Changes channels volume or controls the
cursor in menus.
18. : Quick start for recording.
19. : Opens PVR menu.
20. : Start / Stop button for recording and TimeShift.
21. : Stop button for recording and TimeShift.
22. : Backward button for recording and TimeShift.
23. : Forward button for recording and TimeShift.
24. : Places marks within recording process.
25. List: Opens channel list.
26. Audio: Opens audio menu.
27. Fav: Opens favourite channel list.
28. App: Without function currently.
29. Sub: Switches subtitle on and off.
30. TEXT: Opens and closes teletext.
31. Pup Pdw: Moves cursor in block steps
32. Zoom: Zoom function.
33. Fav+ Fav-: Moves favourite channel up and down.
34. Color Keys: Controls menu options.
35. Green Button: Start sending video streaming.
36. Red Button: Stop sending video streaming.
►II
◄◄
►►
■
PVR
MARK
REC
PIP
OK
Back: Battery box
1 2
7 8
9 10
11
12
22
16
21
24
18
13 14
15
19
23 20
17 17
6
3
4
5
16
25 26 27
28 29
30 31 32 33
34
Page 6
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 6 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
1. First installation

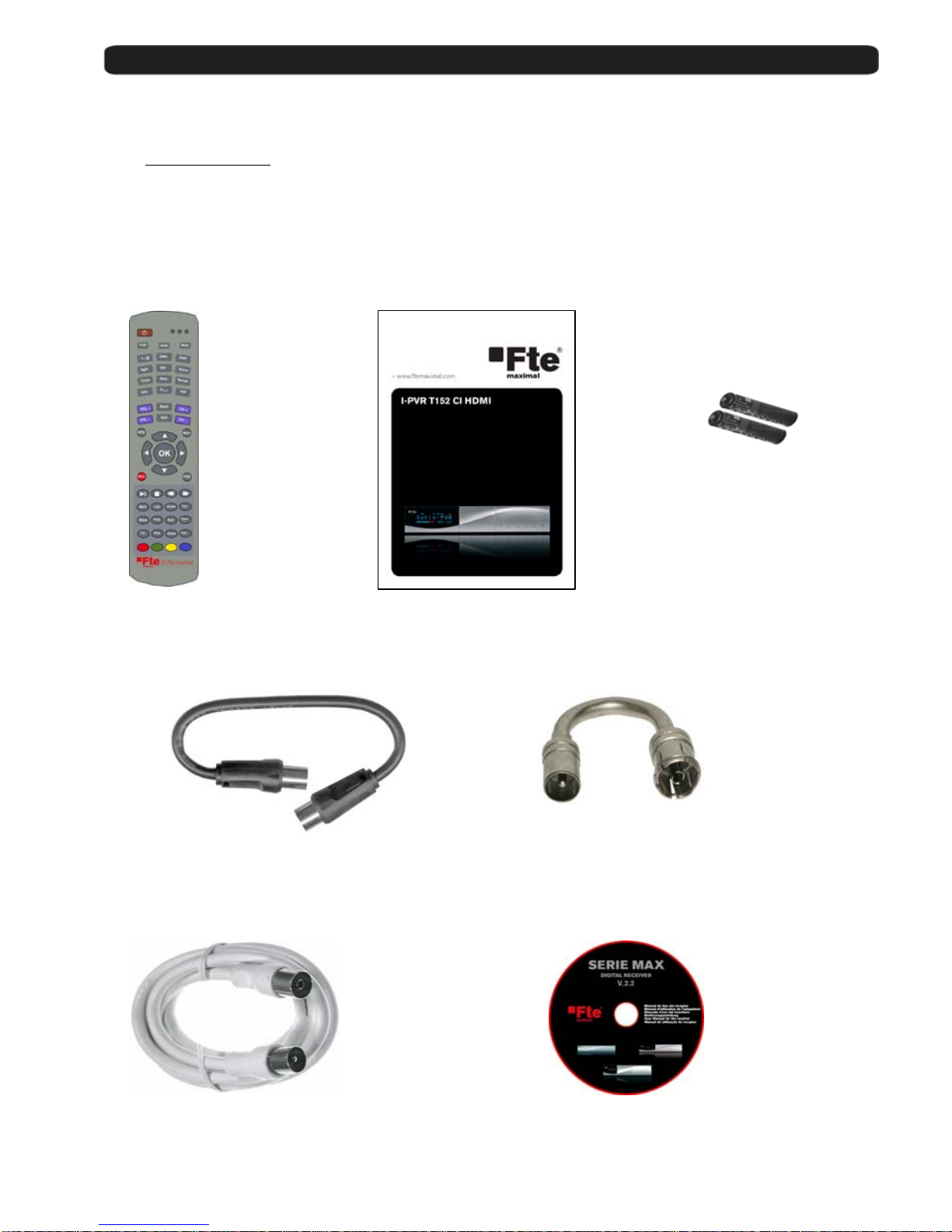

1.1. Complete Content
The following goods must be included in this package when you open it for the first time.
Remote control Installation guide Two batteries type AAA, Micro, 1,5V
Two connection bridges
IEC connection cable CDROM
Page 7
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 7 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

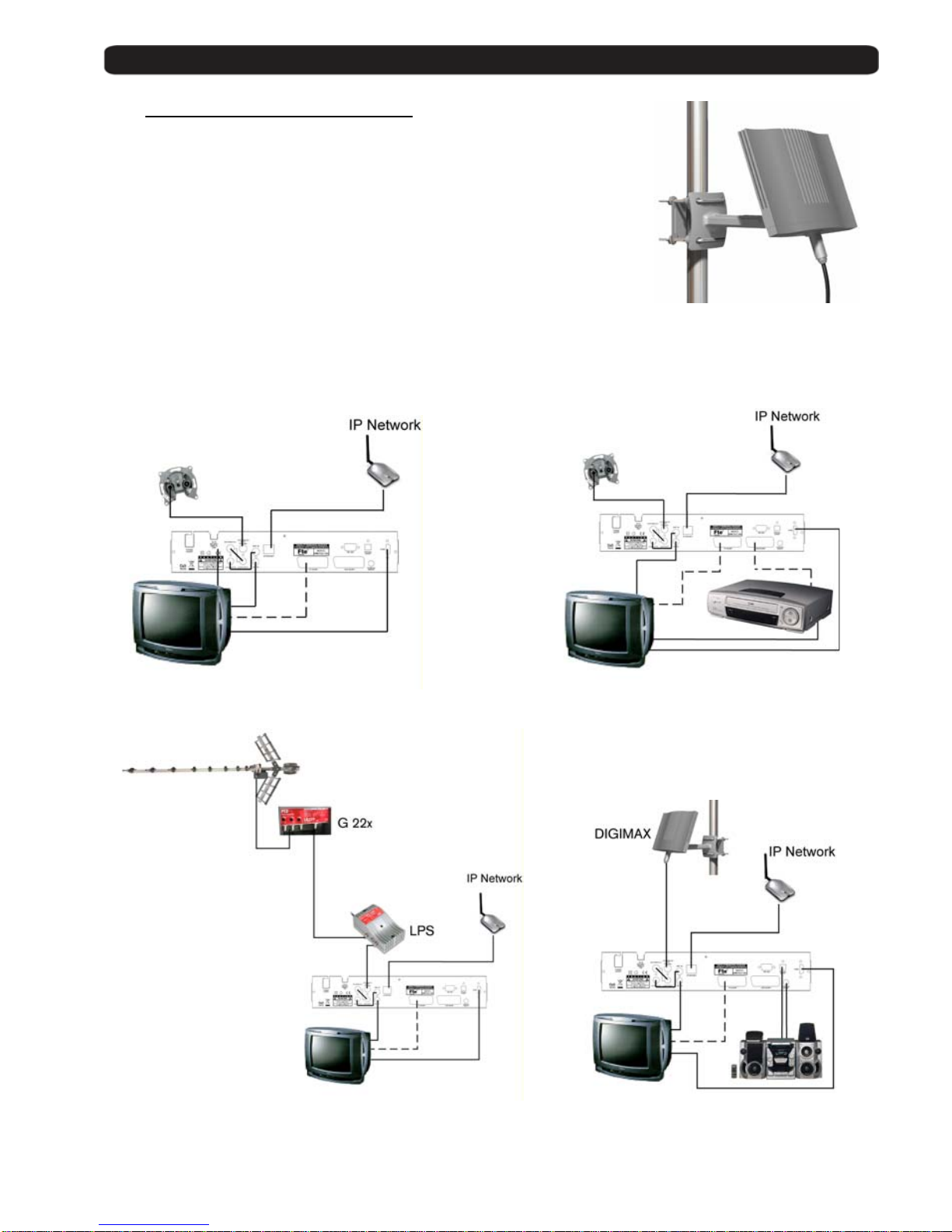

1.2. Accessories and installation examples
DIGIMAX Active DVB-T- outdoor antenna CODE: 9002029 LOG 3235 F VHF-UHF DVB-T- outdoor antenna CODE: 0203235 DVB-T Antenna Active DVB-T- indoor antenna CODE: 9002024 LG 229 DVB-T / UKW mast amplifier CODE: 9000329 LPS 1222 remote supply LG229 CODE: 9901222
DiGimax
Page 8
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 8 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
1.3. Safety rules
Please read the manual carefully before using the receiver. You will receive a lot of information to use this product correctly and you will prevent incidents. Please keep the manual on a safe place.
This sign warns you about high voltages, with risk of electric shock
Caution: Do not open the housing of
this receiver. Repairs can only be made by professionals authorized by Fte maximal. If not, warranty will not be valid anymore.
This sign informs about special information which is important to know.
Caution: Keep this receiver far away from liquids. Do not place it on placements close to water like flowers
vases, wash basin, aquariums or pools. It exists a high risk of electric shock when water or high humidity
filters inside the receivers. Never place other devices on it; they can overheat the receiver as well as daring fire risk. The receiver must be used only with original power cord to 230V main plug. Please read carefully this manual and do not hesitate to contact to professional help if you have any doubt.
Opening the receiver housing as well as the Hard Disk case will mean a total lost of warranty.
Installation:
1. Never work during a thunderstorm or staying near of the antenna systems.
2. Before adjusting the receiver, make sure that your antenna is well aligned and works properly.
3. Unplug the main connection (230V) every time you work with receiver connections. Do it also when you stay
away for a long time out of home like in holiday periods.
4. The best placement for the receiver is close to the TV and your other equipment like DVD, VCR, CD, and game
stations. Select a stable place where you can make the necessary connections in a safety way. The 230V main plug should be in a place easy to reach, that you can unplug it when it is necessary.
Cleaning: Before cleaning the receiver with a slightly damped cloth, please disconnect the main 230 V connection from
the receiver. Please use only mild cleaners.
Accessories: Please, do not use accessories which are not agreed by the manufacturer of the receiver.
Unsuitable accessories could increase the risk of getting on fire, an electrical impact or other damages.
Placement: Select a placement where the Receiver has air circulation enough, otherwise it may have overheating
accumulation. Do not cover the openings of the housing. Unsuitable placements are also places close to heaters or soft locations like e.g. sofas and beds.
Power connection: Select a main plug with easy access, in case of unplugging necessity; it will be easier and faster.
Please, make sure that the cord as well as the plug is in perfect conditions. Do not pull the cable, use always the plug.
Housing: Please, make sure that no liquid will filter into the housing of the receiver. If so, disconnect immediately the
receiver from the main 230 V plug and bring the receiver to a professional.
Air humidity: When you take the Receiver from a cold to a warm place, please wait until the receiver gets the same
temperature as the new environment, in order to avoid problems of humidity condensation.
Maintenance / Repairing: Within the warranty time all the repairing processes should be done by Fte Maximal technical
staff. Otherwise, the warranty will be lost.
RISK OF ELEKTRIC SHOCK
DO NOT OPEN
CAUTIONR
Page 9
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 9 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
1.4. Fast installation guide Please, follow the instructions for a faster and simpler installation of the receiver.

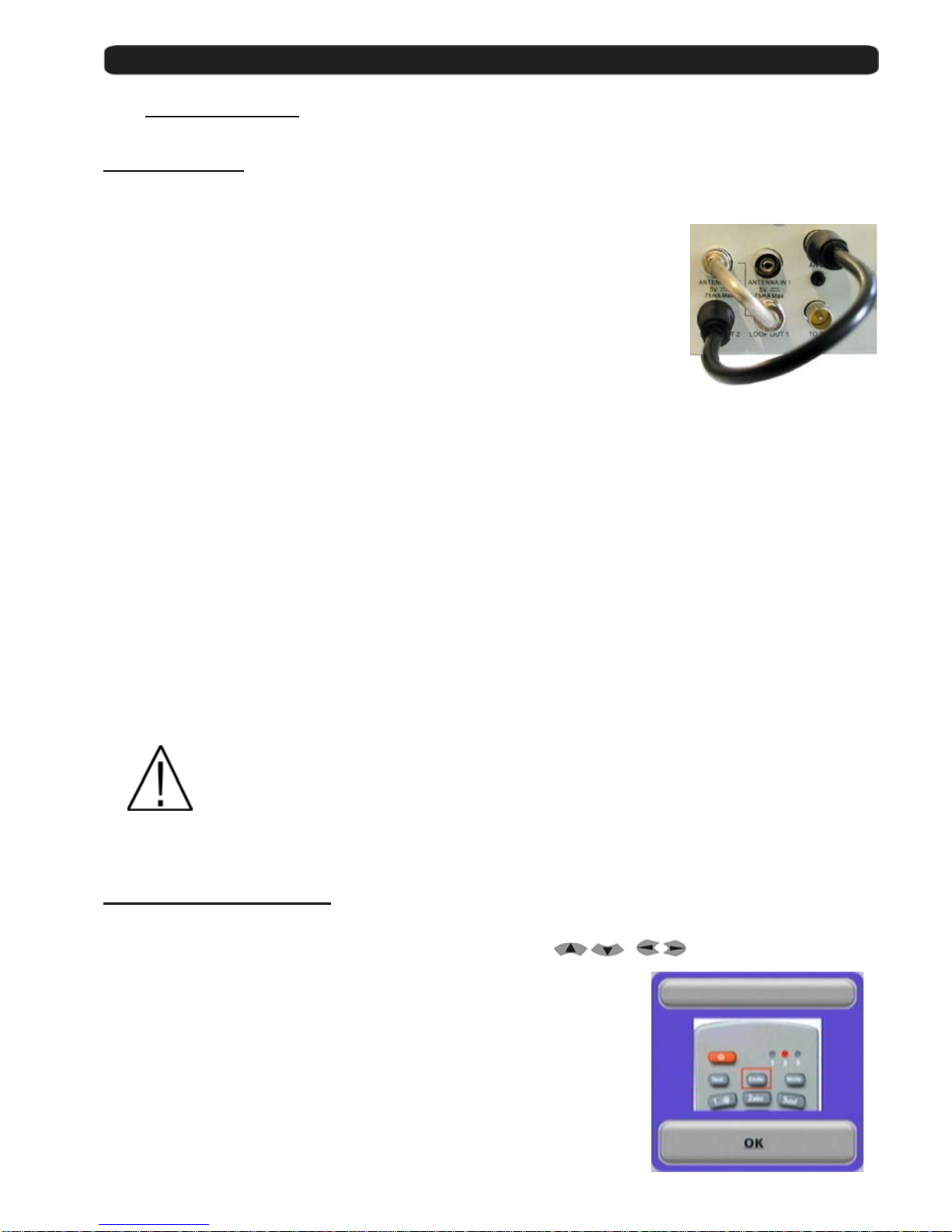

Step 1: Connections
Connect the ETHERNET input of the receiver to the network.
Connecting the antenna cable
Connect the antenna cable coming from your DVB antenna or distribution system to
Antenna IN 1. Connect the output LOOP OUT 1 to the input Antenna IN 2.
Use the included metal connection bridge.
With the short black cable, you have to connect LOOP OUT 2 to the input ANT IN from
modulator.
Connecting TV set, LCD or video beamer:
You can connect in different ways your TV set or other display system:
Scart This is the connector which will be normally used to connect the TV.
For this purpose, you will need a Scart – Scart connector.
HDMI Connector Connect this output to the TV to get the Video & Audi signals.
Modulator The modulator output gives the lowest picture quality. You only will need this output if
your TV set only have IEC input. You can use the IEC connection cable that is included.
On the receiver, you have to use the connector TO TV.
Please note that with the modulator, you only will have available mono audio signal.
Recorder / DVD At the VCR - Scart connector, you can connect a Video or DVD-Recorder.
Also the signal coming from a DVD player is possible to be watched if your TV set has Scart connections.
You will find further information at chapter TV Settings.
You can obtain further information in chapter Receiver back panel.
This receiver has a main switch at the back panel of the receiver.

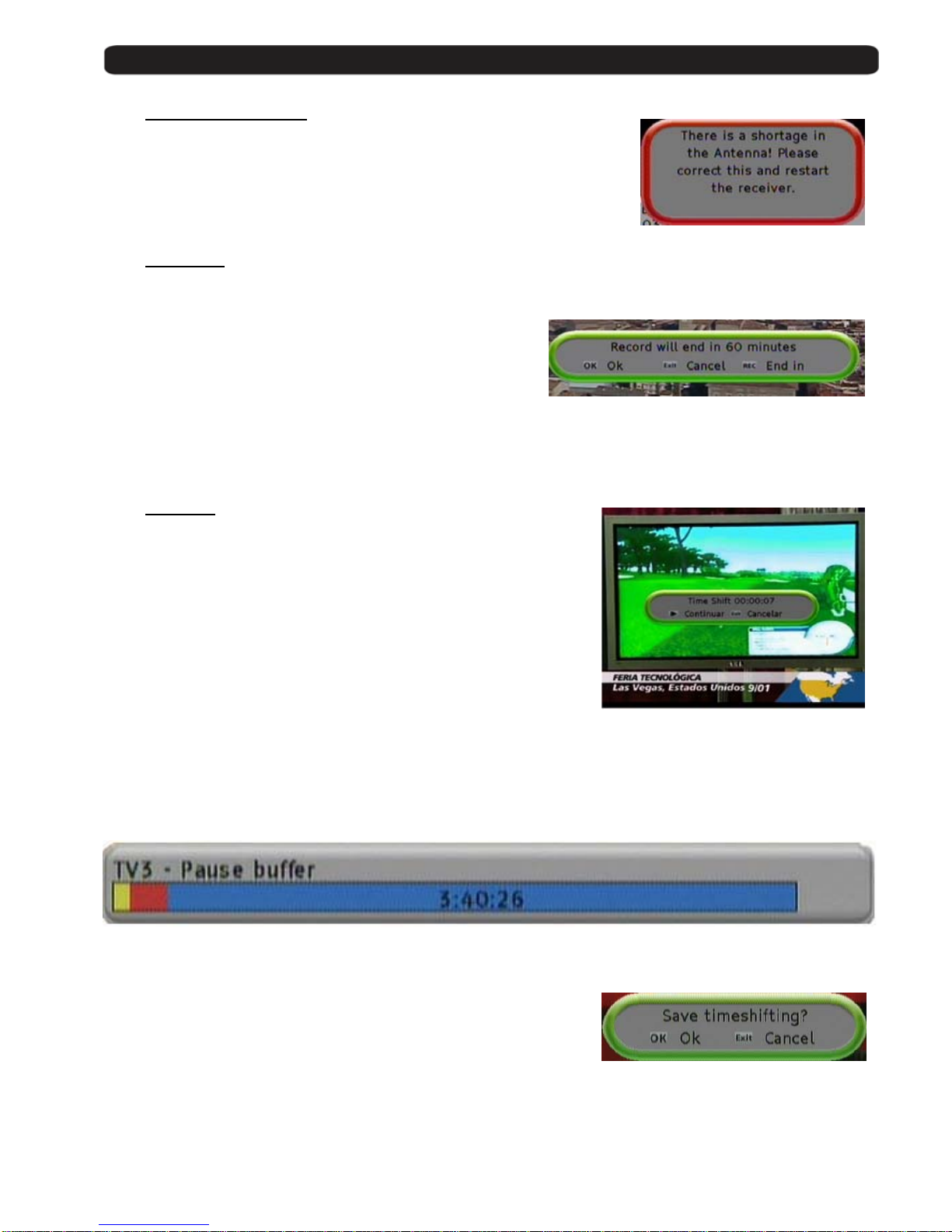

If a message “short-circuit” in shown, you have a short-circuit in your antenna system. Please check it and restart the receiver.
When you set up the system for the first time, the current date will be stored in Menu > System Settings > Version as beginning date for the warranty period.

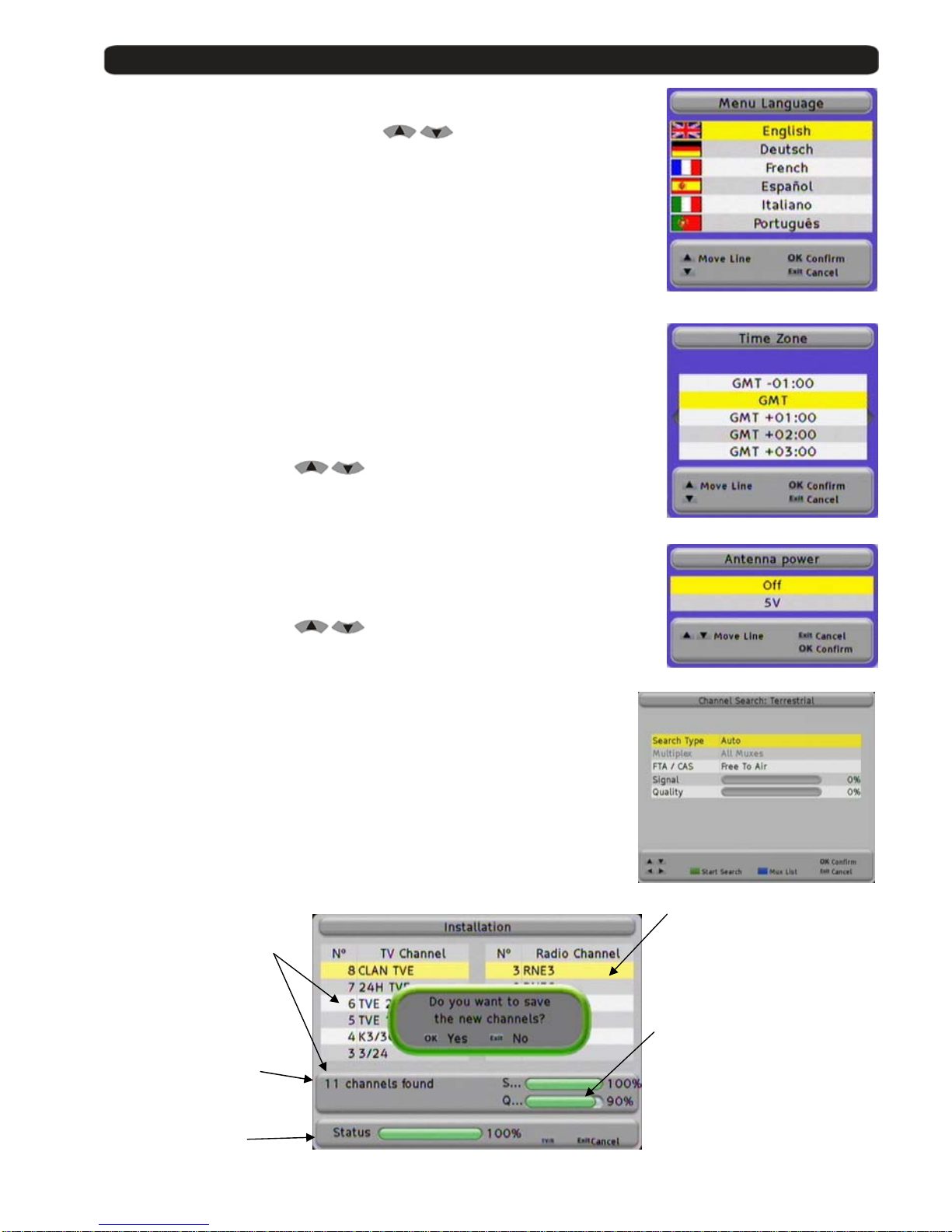

Step 2: Main settings on receiver
When you start the first time the receiver or when you execute a “factory default” process, you will see this installation guide in English language.
The selection of the menu options will be done with the arrow buttons
, and the button
OK of the remote control.
Please, choose the code for your remote control in the first window. Fte Maximal gives you the possibility of using a IP, a DVB-T and a DVB-S receivers at the same time. For this purpose, your new receiver is selected by factory with code 2.
Please press now the button Code on your remote control until the LED at the
middle is lighting. You have to select the same position in the receiver than in the remote control.

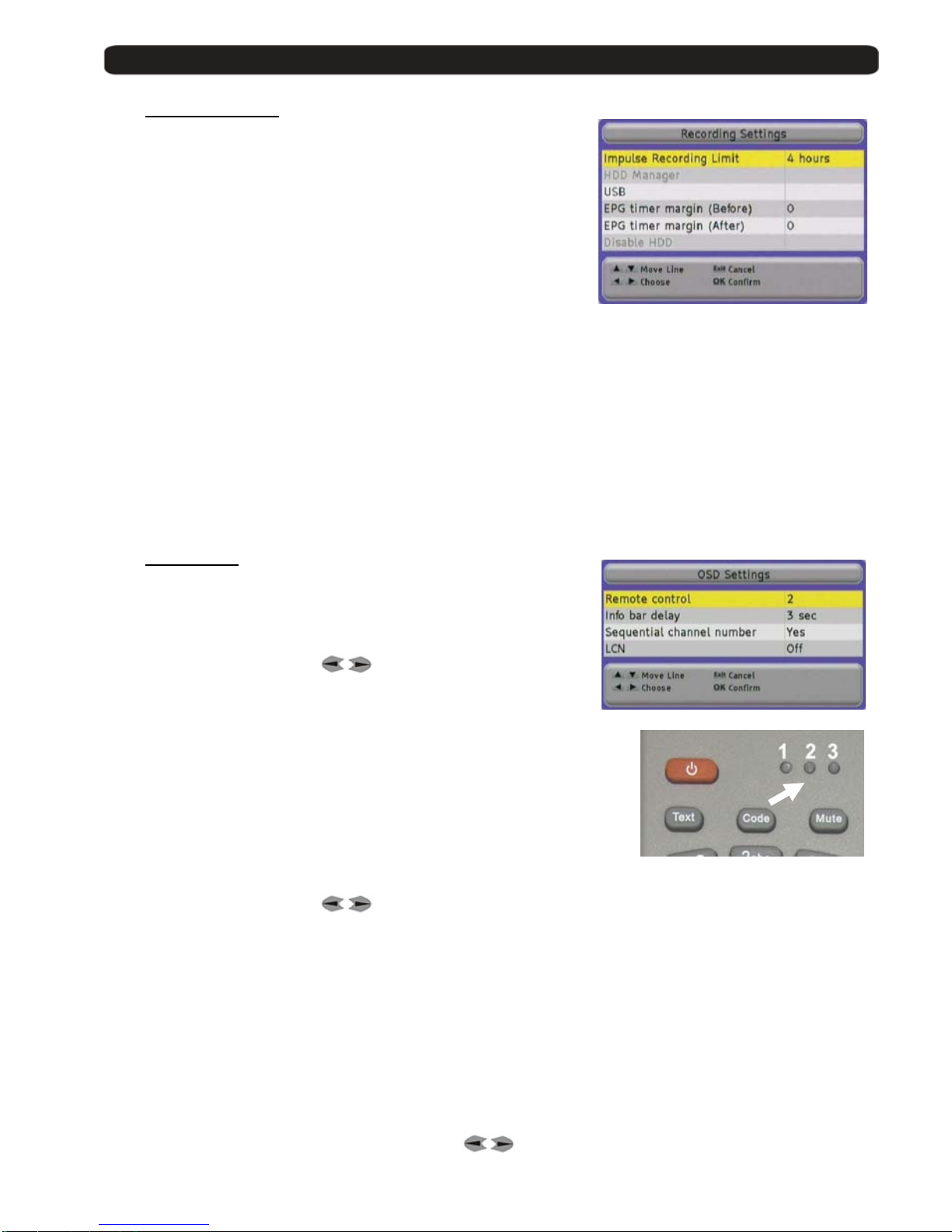

If you have problems with remote control devices, you can change the
transmission code if you go to Menu > System Settings > OSD Settings after finishing the quick installation guide.
Page 10
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 10 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
Menu Language :
Here you have to select the language for the Receiver menu and information. Select the language with the arrow buttons
and press the OK button.
Time Zone:
In order to the receiver is able to display the correct time and adjust the timer recordings correctly, it is needed to fix the time zone to the place you live.
Select here the time delay according to your position comparing to Greenwich Time.
In UK: Summer time: +1 hours Winter time: GMT hour
Select with the arrow buttons
and press the OK button.
5V Supply for active antennas:
When you use an active DVB-T antenna which needs 5VDC supply, you must activate this option here.
Select with the arrow buttons
the option 5V and press the OK button.
Channel Searching: Terrestrial:
This receiver has no pre programmed channel list, because DVB-T configuration changes in every different area.
Start the channel searching process by pressing the Green Button.
The receiver searches now in all TV frequencies.
Search status
Current channel
Radio Channels detected
Channels which the receiver has found, currently 11
Signal Power and Quality meter related to the selected frequency
Page 11
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 11 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
You may stop searching by pressing the button Exit .
Once the search is finished, you must confirm if the new found channels have to be stored.
Press for confirm the OK-button. Now you come back to menu Channel Search. You can start a new search again, or you can close the menu now with the button Exit .
Network Configuration
The receiver will require the introduction of the needed parameters to be able to get connected to a network, as well as to be visible to other equipments so that receive streaming of video and audio.
You should introduce the following parameters:
IP Address Number of 32 bits expressed in 4 numbers between 0
and 255 which identifies the receiver inside its network.
Every device in the network should have a different IP Address and it is highly recommended that all of them are in the same subnetwork and with IP addresses into the following range:
10.x.x.x
172.16.0.0 – 172.31.255.255
192.168.x.x
Subnet Mask Number in IP format that, combined with the IP address, identifies where the equipment is. IP LAN Soft: IP address of the PC where the application for exchanging video streamings between the
PC and the receiver is installed.
If you want, you can download the application IP LAN Soft from the Website:
www.ftemaximal.com
MAC Device address at hardware level. It is unique in each device and it comes from the factory.
You can move through the menus with the buttons
and .
With the Red button you delete the last character. Press OK to save the changes.
Streaming Configuration
This receiver can send streaming to other equipment connected to the network.
You can send video streamings in Unicast and Multicast modes.
- Unicast is when the information is sent from a unique sender to a
unique receiver.
- Multicast in when the information is sent through a network to multiple
destinations simultaneously. The equipment that work in multicast mode send the information into an IP range between 224.0.0.0 and
239.255.255.255.
In this window you can configure the network parameters of the device at destination:
Streaming You should select On so that the receiver sends the streaming. Address IP Address of the destination device.
You can simultaneously send the streaming to different devices in case that in this field a multicast IP address is introduced.
Destination port Communications port where the information is sent.
The port must be a pair number into the range between 1024 – 65534.
Page 12
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 12 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
Streaming protocol You can select the communications protocol. Options: UDP or RTP. Current Channel It allow you to fix the number of transponder that is going to be sent t othe destination receiver.
No: Always will be sent to the receiver at destination the indicated cannel in the field Channel,
and the origin receiver only will be able to see any cannel belonging to the same transponder
which is indicated in the Channel field, or IP channels.
When you see an IP channel, the streaming sending process will stop.
Yes: the receiver will send the channel which is tuned locally. Every time you
change the channel in the receiver, you must tune the same in the destination receiver.
Channel: Service to be sent. Only available when you select No in the field Cur rent Channel.
You can move through the menu with the buttons
and .
With the Red button you delete the last character. Press OK to save the changes.
Search IP Channels
The receiver will carry out a search for channels broadcasted by other equipment connected to the network.
You can receive transmissions of other equipment in mode Unicast and
Multicast.
- Unicast is when the information is sent from a unique sender to a
unique receiver.
- Multicast in when the information is sent through a network to multiple
destinations simultaneously. The equipment that work in multicast mode send the information into an IP range between 224.0.0.0 and
239.255.255.255.
In Search Type select Auto to search for all the channels which are broadcasted by other equipment in your network in multicast mode. If you select the Host option, it will look for transmissions of the equipment present in the list Network Management that you select.
In the field Multiplex you should select the hosts from the list Network
Management in which you with to search for channels.
Pressing the Blue button or
a new window will appear, where you can select
the hosts.
You can move the cursor with
.
With the Green button you select the hosts.
Press Exit to go back to the search menu. If you press the Green button, it will carry out a search of the video IP channels. Press Exit to exit.
The Fast install guide is now finished.
Page 13
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 13 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
1.5. Menu overview
Main menu
Channel Management
System Settings
Move, rename or delete channels, Program and, create favourite list.
Main settings for receiver for OSD and adapt TV set Factory default
Software upgrade
PVR - Management
Tools Parental Control
Administration for recordings, Pictures and MP3 files as well as connecting external USB devices
Calculator, Calendar with date management
Activate parental control
Timers
CAS Management Installation
Manual activation for timer events
Conditional access system
information.
Receiver and antenna settings Network adjustments Search channels Backup
Page 14
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 14 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
2. Standard functions
2.1. Switch on the receiver
The receiver has a main switch at the back panel. To switch on, take the switch in position 1.
Now the receiver begins to run and show information on its display.
2.2. StandBy
To switch the receiver from Standby (sleep mode) to the working mode, press Orange Power button on the left corner
at the top of the remote control. If the receiver had been working before and you did not switch on by main switch, the receiver show the last displayed channel. When you press it again, the receiver goes back to the stand by mode.

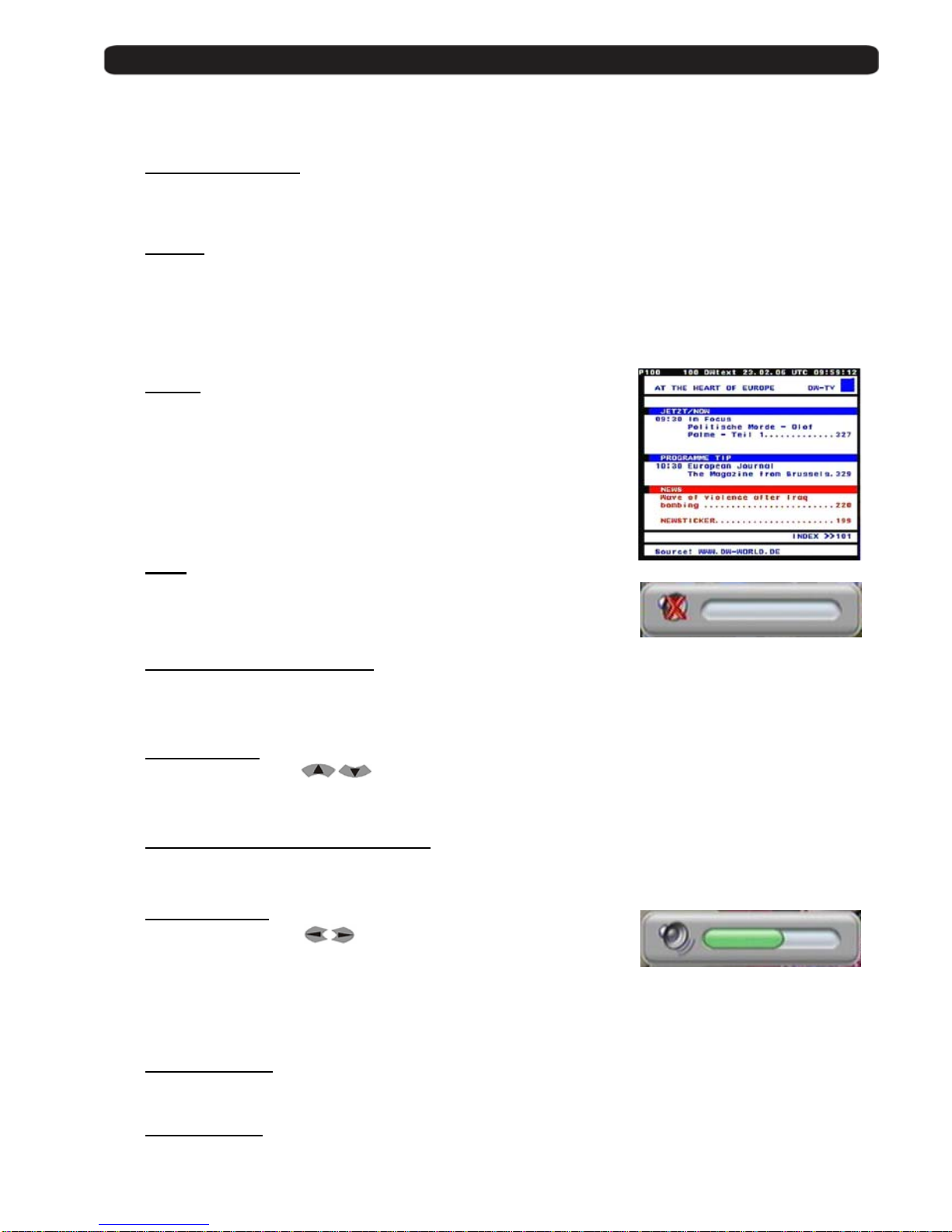

2.3. Teletext
The button Text opens the teletext generator.
Automatically the receiver loads page 100 as standard.
Like in your TV set you can open the pages by pressing the buttons 0-9.
If you want to open, for example, the page 140, you
have to press the buttons 1 – 4 – 0. When you want close the page, press Exit.
2.4. MUTE
With this function, you will be able to shut down the audio completely.
To do it, press the button Mute and the warning symbol will be displayed. By pressing again the button Mute the function will be disabled.
2.5. Numeric block on remote control
Over the numeric block in the remote control, you can select directly channels the when you know the stored program
place. If you want for example place 23, you have to press the buttons 2 and 3 and after the button OK .
2.6. Switch channels
With the buttons CH+ / CH- or
you can change the channels also.
Press one button for getting one channel up or down.
2.7. Change between TV- and Radio channels
When you want change between TV and Radio channels, you have to press the button TV/R on the remote control.
2.8. Vol+/Vol- Volume
With the buttons Vol+ / Vol- or
you can regulate the audio volume. To do it, you will see a graphic like the one at the left side. For using this function properly, you need to make an alignment with you TV set.
Turn off the volume of the receiver. For this, press the button MUTE on remote control. Now turn up the volume on TV
until the moment you hear a noise. Now turn down the volume until the noise desapears. Normally this is around 50­75% of the total volume of the TV set.
2.9. Stop the functions
With the button Exit you can stop functions like channels search or close menus.
2.10. Open Main menu
To open the main menu, you have to press the button MENU.
The menu system is made in a tree structure
Page 15
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 15 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
2.11. Watch the last viewed channel
With the Back button, you can access to the channel viewed previously.
2.12. Channel list
When all the menus are closed, you can open a channel list by pressing the
button OK. With the button TV/R you can switch between TV and Radio channels. With the button FAV you can sort this list as follows:
POS, Position in channel list Name, by alphabetic sort FTA / CAS sort by free or coded channels
If the position or the name of the channel fits, you can carry out a searching.
Press the Green button to select the searching mode until the symbol (…) appears in the row Pos or Name, and introduce the characters with the
alphanumeric keyboard.
The handling of the keyboard is like in a mobile phone. When you press one button several times you will have different results. Example: If you press button 2: a, b, c and 2
You will get a channel list with the information requested. With the EPG button, you can filter the channels shown in the list.
A window will appear where all the inputs of your receiver are shown.
You can select showing only between the terrestrial channels, IP channels or ALL the channels. In this window, if you press List, the sort of the list changes.
2.13. EPG Electronic Program Guide
By pressing the button EPG you will start the electronic program guide.
The receiver gets the information of the tuned channel. The information only will be available in case that the streaming contains it or the broadcaster transmits it.
With the buttons
you can select a channel and with one
event. The Blue colour field highlights the current selected event and the Red line shows the current time.
With the Yellow button you can mark one event. The receiver will switch to
this channel once the event has begun. If you select an event which has already started, the receiver switches to this channel immediately.
Using the REC button (over and event) the receiver will record this event
into the external hard disk.
Pressing the button INFO you will get more detailed information about the event.
With the arrow buttons
you can move along the text.
Page 16
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 16 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
2.14. Favourite channel list
If no menu is opened, you can get your favourite channels list by pressing the
button FAV. With the buttons Pup / Pdw you can switch between 8 different lists, if you have
marked channels before.
With the buttons
you can select a channel from this list.
2.15. Menu Audio
If all menus are closed you can open the menu Audio by pressing the button Audio.
You can change here the audio output in Stereo, Left and Right audio format.
Testing the channels, you will be able to make the most suitable selection.
Standard selection is Stereo.
2.16. Signal and Channel information
Pressing the INFO button, with no menu activated, You will see the channel information and the Signal Level Bar. This information is the same that appears when you change the channels.
In the signal bar we can see the following information: Channel Number, Channel Name, current Time and Date, Name of the current event and brief description given by EPG. Start and Stop time of the event and the indication of the current time from the beginning in yellow colour.
This menu disposes of 2 keys of advanced functions. Blue and Yellow keys. Through Blue key, you can get the technical information of the shown channel at the top part of the window, as you can see in the image:
Yellow key allows seeing which will be the next event indicated by EPG, with its start and stop times.
2.17. Changing favourite channels
With the buttons FAV+ and FAV- you can switch the favourite channels directly.
The Sequence for the channels is the established one before in main channel list.
2.18. Zoom Function
With the Zoom button you can see more details of the image. By pressing the button OK you can select the enlargement.
If you want to stop, please press Exit.
2.19. Subtitles
When no menu is opened, you can start with Sub button the subtitle function.
Subtitles only can be displayed when the operator transmit them.
2.20. Direct buttons in the streaming function
Pressing the Green button out of the menus, it automatically start sending the video streaming that you have configured in the menu Streaming Configuration.
With the Red button, it stops sending.
Page 17
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 17 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
2.21. Short-circuit protection
If you see one message like this, you have a short circuit or to high powerin the antenna system. In this case switch off the receiver and check the system. The displayed information stops automatically when the problem is solved.
2.22. Fast record
If you want to record one event immediately you must press only
the button REC on the remote control. You will see the event as usually
and you will see a red point for a while in screen.
If you press REC more that one time, you can select how long the
record will be. Selection: 30min, 60min, 90min, 120min, 180min, 240min
If you press only one time the record time will be according your
selection, which will be done in: Menu > System Settings > Recording settings
2.23. Time Shift
If you want to use time shift function to stop one event, you only need to press only the button ►II one remote control.
The program stops and it will be stored on the hard disk until you restart to watch it. The OSD shows you the information about the time delay from the original event.
When you want continue you only press again ►II.
As the information you see now comes from the hard disk, you can also use forward and backward functions.
If you press several times ►► you can adjust the speed for forward. Selection: 2x, 4x, 8x speed. You also have the option 5m, in this case the receiver moves in 5 minutes steps.
Through INFO Key, you can see the time difference between you playback and the realtime, in an horizontal bar which
appears in the top part of the picture. The maximum time that the equipment allows recording meanwhile it is paused is for 4 hours.
The red bar is the recorded time, the yellow bar is the played time, the rest of time is the time in Time Shifting mode.
When you exit of the Time Shifting mode, the receiver will give you the option of storing the Time Shifting in the Hard Disk like a recording.
Press OK to save the recording.
Page 18
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 18 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
3. Channel management
3.1. TV-Channel list
Here you will find an overview about all channels. Channels can be administrated, moved, deleted or blocked.
The navigation is with the buttons
and .
With the button TV/R you will switch between TV and Radio
channels.
With the button LIST you can sort this list as follows:
POS, Position in channel list Name, alphabetically FTA / CAS sort by free or coded channels
To see the PID information, you have to press the button TEXT.
This information will be read by the receiver automatically and it gives the information where the program is in the data stream.
It is not necessary to change it, but it can be done by the numeric keys of the remote control.
With the EPG button, you can filter the channels shown in the list.
A window will appear where all the inputs of your receiver are shown.
You can select showing only between the terrestrial channels, IP channels or ALL the channels. In this window, if you press List, the sort of the list changes.
3.1.1. Skip channels
With this function it is possible to skip selected
with the buttons CH+ / CH- or
.
If you want mark channels for skipping, you have to select the channel and then press
the Blue Button Skip. Doing this, you will see that the channel has a symbol
like the one at the right side. Marked channels only will be opened by channel list.
3.1.2. Lock channels
If you want to lock channels with a password needed for opening them, you can do it with this function. If you want to mark channels, please select the channel by
buttons and than press the Yellow button Lock.
Doing this, you will see that the channel now has a symbol like the one at the right side. In order the function works properly, you have to activate the password
function in menu Parental Control.
±
Page 19
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 19 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
3.1.3. Delete channels
If you want to delete one channel, you have to select it and then press the
Red button Delete.
Doing this, you see now one symbol like one the right side. You can mark more than one channel, the channels will be deleted when you close the
Channel Management.
3.1.4. Delete channel groups or all channels
If you want to delete a channel group or all channels,
you have to select them and than press the Green button Del. Group. In the following submenu you should choose all channels from one Host,
MUX or All channels. With the OK button the selection will be done.
3.1.5. Edit channels
If you want to move channels in their position in channel list or you want to change their name, you can do it in the submenu
Edit Channel. To do it, press the button INFO. In the line POS you can change the placement in channel list
In Operation, you can select the mode of changing the position of the channel. You can choose between Move (it will shift the rest of channels) and Exchange (it will exchange the position between 2 channels) In the line Name you can modify the actual name of this channel.
The keyboard handling is like in a mobile phone. When you press one button several times you will have different results. Example: If you press button 2: a, b, c and 2 With the arrow buttons you can move the cursor in its position.
In this menu, the Green button change between normal and capital letters and the RED button delete the letters. With the OK button the selection will be done.
The receiver stores the changes when you leave the menu.
Please confirm by selecting with
OK the message.
3.1.6. List of favourite channels
With the buttons 1 to 8 from the numeric block you can select channels of the
favourite channel list 1 to 8.
At the column Favourite of the Channel List, you will see which Favourite list
each channel is from.
If you want to give to a favourite channel list an own name,
you can do it by pressing the button FAV.
With the buttons
you have to select one list.
In the line you can move the cursor with the buttons
.
The RED button delete letters and the Green button change between
normal and capital letters.
The keyboard handling is like in a mobile phone. When you press one button several times you will have different results. Example: If you press button 2: a, b, c and 2
With the OK button the selection will be done.
Page 20
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 20 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
4. PVR Management
IMPORTANT: This menu will be only available when it is connect ed to an external Hard Disk USB 2.0 properly formatted (FA T 32) as well as detected by the rece iver.
The PVR Management is similar to a file viewer.
4.1. Play record
If you want play one record, you can do it by pressing the button
OK.
4.2. Lock record
With this function it is possible to lock one record and you need to give the password before playing it. If you want to mark a record for lock, please select the file and then press
the Yellow button Lock.
Behind this channel you will see now a symbol like the one at the right side. In order to the function works properly, you have to activate the password
function in menu Parental Control.
4.3. Delete record
If you want to delete a recorded file, select it and press the Red (Delete) button. Doing this, it will appear a menu requesting for confirmation to delete, press OK to delete or Exit to exit without deleting.
4.4. Movies, MP3, Photos
The file list contains the different file formats that can be played. You can differentiate them with the icon placed at the left side of the file number. You can select between:
±
Stored files And folders
Ordering recorded files options.
Pre-viewing window of the selected file.
Information of the selected file.
Movies
(
recorded by receiver
)
Musi
c
in MP3 format
Pictures in JPEG or PNG format
Page 21
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 21 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
4.5. Sorting
In order to have a better view, you can sort the files.
Please press the button LIST.
With
buttons you can select the following options:
Sort A to Z: Sort the files related to the first letter of the name in A,B,C…. Sort Date: Sort the files related to the file date. Sort Size: Sort the files related to the file size. Sort None: No sorting
4.6. HDD Management
In the HDD management submenu you can see the capacity of the hard disk. You also see the free space available.
To open this menu, you have to press the button PVR.
The indicated HDD capacity is lower than the one the manufacture writes. This is due to the manufacturers often counts as follows. 1 GB = 1.000.000 bytes More correctly is 1GB = 1.024.000 bytes. The result for this is that a 160GB HDD indicated by the manufacturer the storage have real 148GB. This receiver shows you the real space.
If you want to delete the hard disk totally, you can do it with
the Yellow Button Format and the hard disk will be completely erased.
Caution: This p rocess will delete also saves you have made with Backup tools.
4.6.1. Folder management
To keep sorted your HDD, you can create own folders.
To do it, open the folder management by pressing the button Text (copy) and then press the Yellow (Add) button to create a new folder.
In one folder you can create again other folders.
The navigation inside the folder management is made with the buttons
.
4.6.2. Delete folder
If you want to delete one folder with all included files, you can
do it with the Red button Delete. Doing this, it will appear requesting for confirmation to delete, press OK to delete or EXIT to exit without deleting.
4.6.3. Lock folder
With this function it is possible to lock one folder, you will need to give the password before playing. If you want to mark a folder for locking, please select the file and then press
the Yellow button Lock.
Behind this folder you see now a symbol like the one at the right side. In order to this function works properly, you have to activate the password
function in menu Parental Control.
±
Page 22
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 22 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
4.6.4. Add folder
In the menu of Record Management, push the Text (Copy) button and you will
enter in a submenu.
With the Yellow (Add) button, you can add a new subfolder.
The keyboard handling is like in a mobile phone. When you press one button several times you will have different results. Example: If you press button 2: a, b, c and 2 With the arrow buttons you can move the cursor in its position.
In this menu, the Green button change between normal and capital letters and the RED button delete letters. With the OK button the folder will be created.
4.6.5. Move file
If you want to move one file to another folder, you can do it as follows:
If it is not opened, please open the PVR Management by pressing the button PVR.
Press now the button TEXT to open the folder management.
It will appear two columns with the same files. The left column is the file origin which will be moved, the right column is the destination where the file will be moved.
You can select the folder by pressing OK when it has been selected. To change the window where the selections are being done, use the GREEN key and you will see the yellow highlighted to the other window.
Once selected the file to copy in the left column and the destination where it will be copied in the right one, press the BLUE key to proceed to the copy or movement of the file. You should have selected the origin file in yellow, in the left column.
The receiver stores all the events in the folder PVR .
Please select with the buttons ►► and ◄◄ the folder where the file
is stored currently and press the OK button.
ORIGIN Files Selection with
Destination folder Selection with
ORIGIN Device
DESTINATION Device
Page 23
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 23 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
5. Timers
In menu Timers you get one overview about all events which you have programmed. These events can be store over EPG or direct in this menu.
5.1. Sorting
For having a better view, you can sort the events.
Please press for this the button LIST.
With
buttons you can select the follow options:
Sort Channel: Sort the list related to the first letter of the program name in A,B,C…. Sort Name: Sort the events related to the name of event in A,B,C…. Sort Start: Sort the files related to the start time. Sort Pos: Sort the files by date of creation.
5.2. Delete Timer
With the Red button Delete you can delete events.
With
buttons you can select one event and then press the
Red button Delete, then confirm the following message.
5.3. Edit / Add timer
With the Green button Edit you can modify one event.
This can be useful, when you want to program one event and you do not know exactly its starting or ending time.
With the Yellow button Add you can add manual one event. The using of Add and Edit is the same.
Channel
Here you can change the channel which will be programmed.
Press the button
and select in the new menu the channel you want by
the buttons
and press OK.
Start date and time selected of event
Frequency and PID information for the selected event
List with all events including channel name and name for the event
Menu options
Menu options
Page 24
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 24 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
Title
You can modify an existing title or create a new one. If you want to change it, select this line by
buttons.
The keyboard handling is like in a mobile phone. When you press one button several times you will have different results. Example: If you press button 2: a, b, c and 2
With the arrow buttons
you can move the cursor in its position.
In this menu, the Green button changes between normal and capital letters and the RED button deletes letters.
Start / Stop
If you want to modify start and stop times, select this line by buttons.
Press now
and select with the entry you want to change.
The entry will be modified by the buttons
.
When you have finished, press OK.
Repeat
The standard value is 1x, for one time recording.
With the buttons
you can choose the following options also.
2x - 6x This repeats the timer next day, at same time, same channel. T This repeat the timer every day at same time, same channel. W This repeat the timer every week at same time, same channel. Monday – Friday It will repeat the timer since Monday to Friday in the same channel and at the same time.
Record
Here you can select if you want to store this event in an external device, or not.
If you select no, you can store one event through one DVD-Recorder over the connector VCR Scart. Selection: yes- external or no
Page 25
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 25 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
6. Tools
In this menu you can find two little helper tools. The calculator is useful for fast calculations and with the calendar you can mark dates for special events like birthdays.
6.1. Calculator
The using of the calculator is very easy. With numeric block remote control, input the numbers. For the calculations you use the colour buttons.
Red Button Addition Green Button Subtraction Yellow Button Multiplication Blue Button Division
The button OK is used for = function.
With the buttons ◄ you restore the calculator.
6.2. Calendar
If you open the calendar, the yellow marked field shows the current date. This will be shown in the line under the calendar.
With the buttons Fav- and Fav+ you can switch between the months. With the buttons Pup and Pdown you can change the year.
In the first column it is marked the number of week in the year and one blue marked field shows a stored event.
You can select the individual dates with the buttons
and .
Add one event (Anni versary)
If you want to add an event, select the date and press the
Yellow button Add Anniversary.
You can type the name for the event like in a mobile phone. When you press one button several times you will have different results. Example: If you press button 2: a, b, c and 2
With the arrow buttons
you can move the cursor in its position.
In this menu, the Green button changes between normal and capital letters and the RED button deletes letters.
If you select later a blue marked field you will see the name info the field.
Delete one event
If you want to delete an event, you have to select it and then press the Red button delete Anniversary.
Change Alarm Pushing the Green button, you can add an alarm to the event, you will see that this symbol (*) appears close to the
date. A visual alarm will appear in the screen the day of the event.
Page 26
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 26 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
7. CAS Configuration (Conditional Access System)
In this option, you can find the information related to the Conditional Access.
Once this option is selected, the status of each slot is shown. If there is no interface or it is wrongly introduced, the menu will show it as empty.
With one or the two of the CI modules correctly introduced, the data of the inserted card will be shown. Please, follow the instructions shown on the screen.
Page 27
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 27 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
8. System Settings
In the menu System Settings you will find all basic adjustments of the
Receiver.
8.1. Menu Language
Here you can choose the language which will be shown in the receiver. You can select:
English, German, French, Spanish, Italian, Portuguese
Please select with the buttons
and then press OK.
8.2. Audio Language
Here you can choose the audio language for the TV and Radio channels. Example: If you select English and the channel you want to see have one audio carrier in English, you will get the audio in English.
If there is no audio carrier in English, you will get the first one which is supported in this channel, for example German. You can select:
English, German, French, Spanish, Italian, Portuguese
Please select with the buttons
and then press OK.
8.3. Time Zone
In order to the receiver shows the correct time as well as adjusting the records properly, it is needed the adjustment of the Time Zone where you live.
For UK: Summer time: +1 hour Winter time: GMT hour
Please select with the buttons
and then press OK.
Page 28
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 28 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
8.4. TV Settings
Here you can adapt your receiver to your TV set and you can select the screen format.
TV-System
Select here which TV system your TV set support.
Selection: NTSC, PAL, Secam and AUTO
Please change with the buttons
.
TV-Format
Select here which TV format your TV set has available.
Selection: 4:3, 16:9 and AUTO, please change it with the buttons
.
RF Mode
If you connect your TV or Video set with one IEC coaxial connection at the
output TO TV, you will need to select which system is supported by this device. Options: PAL M, B/G, I, D/K or NTSC , please change them with the buttons
.
RF Channel
Here you can select which channel the modulator has to use. This is only needed if you connect your receiver with the IEC coaxial connection at the
output TO TV to your TV set. Selection: Channel 21 to 69 , please change with the buttons
.
Picture Format
This option is only available when you have not selected TV format in mode AUTO. Options: Pan&Scan or Letter Box , please change with the buttons .
In this option you can choose how the pictures in films with a big format will be adapted to your TV set.
If you select Pan&Scan you will see one part of the film and at the left and right sides it will be cut In Letter Box, the picture will become smaller and you will see on top and bottom two black bars.
TV output
This option allows choosing how the receiver will send the colours to the TV set.
Selection: CVBS , RGB, SVIDEO or YUV , please change with the buttons
.
Loop VCR
Here you select the priority of an external video signal.
If you have selected Slave, the receiver shows every time the signal coming from the VCR Scart connector, when there
is signal available. It also can be a signal from DVD player or recorder.
If you have select Master , the signal from receiver has priority and you will see only the signal from connector VCR
scart when the receiver is in Standby mode.
Selection: Master or Slave , please change with the buttons
.
LPC Mode
This receiver has a special LPC mode for saving current. This reduces the consumption in Standby mode.
Please check your settings in menu Loop VCR . In the LPC mode, the antenna signal keeps cut at the output TO TV ,
so if you use the antenna signal to watch the TV through the receiver, you should disable it.
Selection: ON or Off , please change it with the buttons
.
The LPC function has 2 consequenc es. The first one is the time it dela ys t o switch from Sta nd By to working mode, and the second one is that in this mode, the signals which has to pass through the tuners or the modulator are attenuated because off the unfeeding from the main board. If whatever of these 2 effects are disturbing you during the use of your PVR, just disable this function.
Sleep
If you want shut down the receiver automatically, you can choose here the time for the sleep timer.
Selection: 15, 30, 45, 60, 75, 90, 105, 120 or Sleep Off
Please change it with the buttons
.
Page 29
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 29 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
8.5. Recording Settings
Impulsive Recording Limit
Select here how much time do you want to record when you activate the function Fast Recording.
Selection: 1, 2 or 4 hours
HDD Manager
Not available in this model
USB
In this menu you will see the total space and the free space of your USB device. You also can format this device.
Margin REC EPG (Before)
Here you can indicate if you want that the recording begins before the starting time of the EPG. You can select among 0, 5, 10, 15 or 30 minutes.
Margin REC EPG (After)
Here you can indicate if you want that the recording ends after the ending time of the EPG. You can select among 0, 5, 10, 15 or 30 minutes.
Disable HDD
Not available in this model
8.6. OSD Settings
Remote control
Here you can change the transmission code for the remote control if you have problems with other devices.
Please change it with the buttons
.
For saving the changes, please press OK .
Do not forget to change also the code on the remote control.
For this, press the button CODE on your remote control until the correct LED is
lighting.
You have to select the same position in the receiver than in the remote control.
Info bar dela y
Here you can select how long the information of the OSD will be displayed on the screen.
Selection: 1 to 10 sec.
Please change it with the buttons
.
Number of Sequential Channel Selecting Yes in this option, the positions of the channels will be occupied continuously and sequentially. Although you
move the position of one channel, you will shift the positions to avoid leaving empty channels.
Selecting No, you can leave empty channels if we shift the position of one channel.
LCN
With this option you can select, how the receiver have to sort the channels after a new search. Please check if LCN is supported in your country.
Selection: ON or Off , please change it with the buttons
.
Page 30
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 30 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal

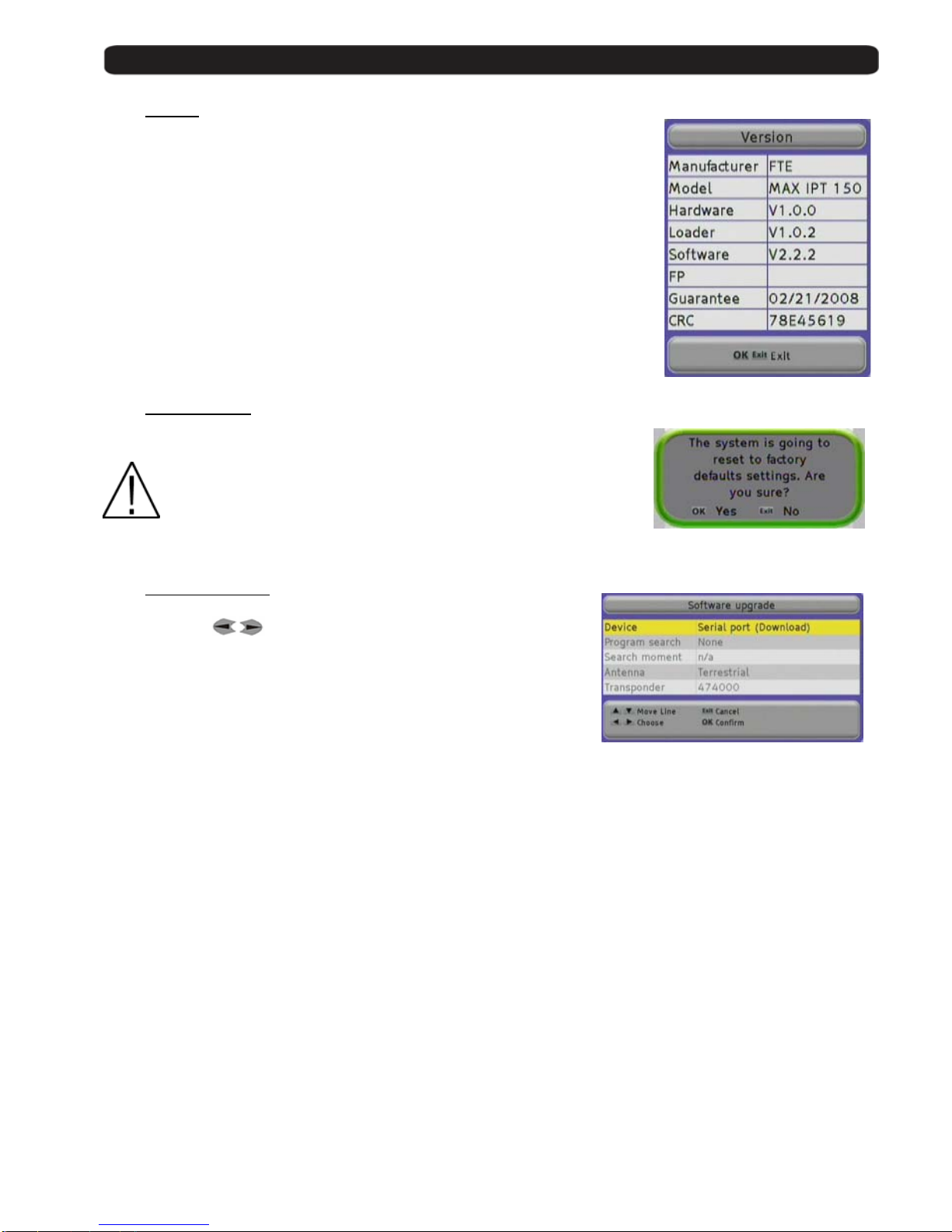

8.7. Version
Here you get information about the hard and software from your receiver.
Manufacturer Manufacturer of the receiver. Model Exact article name. Hardware Revisions number from main PCB Loader Version for boot loader Software Version for installed software FP Not available in this model Guarantee Beginning of the warranty time CRC Checksum of the EEprom
8.8. Factory Default
With this option you can restore the receiver totally to the status when the receiver was used the first time.
Caution: Make this only if you are 100% sure, this step can is irreversible.
8.9. Software Upgrade
With this menu you can transfer data and install new software.
With the buttons
you can choose between the following
possibilities.
Serial port (Download) Start data download via RS-232 connection. Serial port (Upload-ALL) Send all stored channels and main software to other receivers by using
RS-232 connection.
Serial port (Upload-Backup) Send the backup file (receiver database) and software to other receivers by using
RS-232 connection. For this, the receiving receiver must have been executed a factory default before.
Serial port (Upload-UserDB) Send all stored channels to other receivers by using RS-232 connection. Serial port (Upload-APP) Send the receiver software to other receivers by using RS-232 connection.
USB (Download) Start the data download via USB.
Caution, on USB Stick can be only one receiver file.
Upload-ALL or Upload Backup create two files. usbupdate_userdb_VX_X_XX.bin Database usbupdate_VX_X_XX.bin Software
Both can be used but one must be delete manually on PC.
USB (Upload-ALL) Send all the stored channels and main software to USB-Stick.
This create two files.
Page 31
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 31 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
USB (Upload-Backup) Send the backup file (receiver database) and software to USB-Stick.
This create two files.
USB (Upload-UserDB) Send all stored channels to USB-Stick. USB (Upload-APP) Send the receiver software to USB-Stick. Air (now) Starts data download via OTA immediately Air (programmed) Starts data download via OTA at a programmed time
Page 32
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 32 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
9. Parental Control
With this menu, you can activate the parental control where is necessary to give one password before opening channels or making settings.
9.1. Set Lock
To activate the parental control, select with
button Set Lock
and then press
.
You have to give the standard code 0000 or your individual one with the numeric block from the remote control. Then press OK button.
9.2. Channel lock
Here you can activate the parental control for channels if you have marked
it in Channel Management for Lock.
For this, select with the buttons
the line Channel Lock and
than press
.
You have to give the standard code 0000 or your individual one with the numeric block from remote control. Then press OK button.
9.3. Record Lock
Here you activate the parental control for recording events. For this, select with the buttons
the line Record Lock
and than press
.
You have to give the standard code 0000 or your individual one with the numeric block from remote control. Then press OK button.
9.4. Installation Lock
Here you cane activate the parental control for the menu Parental control, System Settings and Installation.
For this, select with the buttons
the line Installation Lock
and then press
.
You have to give the standard code 0000 or your individual one with the numeric block from remote control. Than press OK button.
9.5. Change Password
When you want to change the standard password, select for this with the buttons
Change Password and press OK button.
Old Password Input here the actual password New Password Input here the new password you want.
Password must have 4 digit.
Retype Password Retype here the new password and press OK button.
If you loose in any time the standard or your individual password you can unlock it with master passw ord 5100.
Page 33
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 33 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
10. Installation
Over this menu you can search for new channels Channel Search , modify the frequency list MUX Management, or make backups.
10.1. Antenna power
If you use this receiver with an active antenna DVB-T, you can give it directly 5V for feeding it.
For this select with the buttons
the line Antenna power
and then press OK.
Select now with
the line 5V and then press OK.
10.2. Channel Search: Terrestrial
This receiver has no pre programmed channel list, because DVB-T configuration changes in every different area.
Start the channel searching process by pressing the Green Button.
The receiver searches now in all TV frequencies.
You may stop searching by pressing the button Exit .
Once the search is finished, you must confirm if the new found channels have to be stored.
Press for confirm the OK button. Now you come back to menu Channel Search. You can start a new search again, or you can close the menu now with the button Exit .
Search status
Current channel
Radio Channels detected
Channels which the receiver has found, currently 11
Signal Power and Quality meter related to the selected frequency
Page 34
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 34 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
10.3. MUX Management
Here you can modify the frequency list of the channels. In normal conditions, you do need no handling.
Delete Fre quency
If you want delete one frequency, you can do it with the Red button Delete.
Doing it, you will see now one symbol like the one at the right side. You can mark more than one lines, all of them will be deleted when you close the
MUX Management.
Edit / Add Frequency With the Green button Edit you can modify one frequency, and with the Yellow button Add you can add one new frequency . The use of Add and Edit is the same.
Please input here the middle frequency of one carrier. Example: CH 26 is from 510 up to 518 MHz The correct frequency is 514MHz
In the line BW you have to select the bandwidth for this frequency. Normally is in VHF band 7MHz, and in UHF 8MHz.
If everything is done, press OK button.
Skip Frequency
With this function it is possible to skip one frequency in the channels searching process. The marked frequencies will not be checked when new channels are searched, so make sure before marking these channels.
For marking the frequencies, select it with the buttons
and
and then press the Blue button Skip.
You can mark more than one frequency.
10.4. Channel Search: IP
The receiver will carry out a search for channels broadcasted by other equipment connected to the network.
You can receive transmissions of other equipment in mode Unicast and
Multicast.
- Unicast is when the information is sent from a unique sender to a
unique receiver.
- Multicast in when the information is sent through a network to multiple
destinations simultaneously. The equipment that work in multicast mode send the information into an IP range between 224.0.0.0 and
239.255.255.255.
In Search Type select Auto to search for all the channels which are
broadcasted by other equipment in your network in multicast mode. If you
select the Host option, it will look for transmissions of the equipment present in the list Network Management that you select.
In the field Multiplex you should select the hosts from the list Network
Management in which you with to search for channels.
Pressing the Blue button or
a new window will appear, where you can
select the hosts.
Page 35
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 35 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
You can move the cursor with
.
With the Green button you select the hosts. Press Exit to go back to the search menu.
If you press the Green button, it will carry out a search of the video IP
channels.
Press Exit to exit.
10.5. Network Configuration
The receiver will require the introduction of the needed parameters to be able to get connected to a network, as well as to be visible to other equipments so that receive streaming of video and audio. You should introduce the following parameters:
IP Address Number of 32 bits expressed in 4 numbers between
0 and 255 which identifies the receiver inside its network.
Every device in the network should have a different IP Address and it is highly recommended that all of them are in the same subnetwork and with IP addresses into the following range:
10.x.x.x
172.16.0.0 – 172.31.255.255
192.168.x.x
Subnet Mask Number in IP format that, combined with the IP address, identifies where the equipment is. IP LAN Soft: IP address of the PC where the application for exchanging video streamings between the
PC and the receiver is installed.
If you want, you can download the application IP LAN Soft from the Website:
www.ftemaximal.com
MAC Device address at hardware level. It is unique in each device and it comes from the factory.
You can move through the menus with the buttons
and .
With the Red button you delete the last character. Press OK to save the changes.
10.6. Streaming Configuration
This receiver can send streaming to other equipment connected to the network.
You can send video streamings in Unicast and Multicast modes.
- Unicast is when the information is sent from a unique sender to a
unique receiver.
- Multicast in when the information is sent through a network to
multiple destinations simultaneously. The equipment that work in multicast mode send the information into an IP range between
224.0.0.0 and 239.255.255.255.
In this window you can configure the network parameters of the device at destination:
Streaming You should select On so that the receiver sends the streaming. Address IP Address of the destination device.
You can simultaneously send the streaming to different devices in case that in this field a multicast IP address is introduced.
Destination port Communications port where the information is sent.
The port must be a pair number into the range between 1024 – 65534.
Page 36
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 36 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
Streaming protocol You can select the communications protocol. Options: UDP or RTP. Current Channel It allow you to fix the number of transponder that is going to be sent t othe destination receiver.
No: Always will be sent to the receiver at destination the indicated cannel in the field Channel,
and the origin receiver only will be able to see any cannel belonging to the same transponder
which is indicated in the Channel field, or IP channels.
When you see an IP channel, the streaming sending process will stop.
Yes: the receiver will send the channel which is tuned locally. Every time you
change the channel in the receiver, you must tune the same in the destination receiver.
Channel: Service to be sent. Only available when you select No in the field Current Channe l.
You can move through the menu with the buttons
and .
With the Red button you delete the last character. Press OK to save the changes.
10.7. Network Management
In this menu you can manage the equipment you decide to receive
streaming from, in mode Unicast.
You can move through the list with the buttons
.
Pressing the Red button you can delete a host from the list. With the Yellow key a new window will appear where you will be able to
add a new host.
At IP Address introduce the IP address of the sender device.
Every device in the network should have a different IP Address and it is highly recommended that all of them are in the same subnetwork and with IP addresses into the following range:
10.x.x.x
172.16.0.0 – 172.31.255.255
192.168.x.x
At Port introduce the number of the port where the information will be
received. The port must be a pair number into the range between 1024 –
65534.
You can move with buttons
and .
With the Red button you will delete the last character. Press OK to add the new host.
With the Green button you can edit the information of the selected host. With the Blue button the receiver will not take into account the selected
receiver when you carry out a search of IP channels.
10.8. Backup
Here you can save and load personal backups.
Load Backup
This function load one backup from internal receiver memory.
Save Backup
This function saves one backup to the internal receiver memory. This process overwrites whatever backup made before.
Delete Backup
This function deletes one backup in the internal receiver memory.
Page 37
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 37 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
11. The equi pment of the receiver
11.1. Technical data
The features of a digital receiver depend only on a part of its hardware / electronic components. A big part of the functions are made by the software.
General
Reference I-PVR T152 CI HDMI Code 0710106 Reception range DVB-T (VHF + UHF) + IPTV Memory places 5000
OSD Language
English, German, French, Spanish, Italian,
Portuguese Codes for remote control 3 HDD Connection USB 2.0 / FAT32 Electronic Program Guide (EPG) Yes Picture In Picture function (PIP) Yes LPC mode for save current in Standby Yes Time Shift Yes Fast Record Function Yes Recording over EPG Yes Play MP3 music Yes Play JPEG / PNG pictures Yes Integrated tele text decoder Yes Memory for tele text 800 pages Data connections RS-232, USB 2.0 HighSpeed COMMON INTERFACE 2 CI modules
VIDEO
Decoding MPEG-2 & MPEG-1 compatible Bit Rate Max 15Mbps Output NTSC/ SECAM / PAL Screen format 4:3 / 16:9 / Auto Resolution 720X480 @ 30fps; 720X576 @ 25fps Connections Scart, HDMI or RCA
AUDIO
Decoding MPEG-2/MEPG-1 layer 1&2 Sampling rate 32 / 44,1 / 48 Connections Scart, HDMI, RCA, AC3 coaxial, AC3 optical
DEMODULATION
Demodulation COFDM 2k, 8k Guard 1/4, 1/8, 1/16, 1/32 Input data rate 2-45 MS/s
INPUT SIGNAL
Frequency range VHF-UHF Input level -78dBm -20dBm
RF MODULATOR
Band UHF C21-69 TV Standard PAL BG / I / DK, NTSC Output channels 21~69(PAL), 14~83(NTSC)
Page 38
User’s manual · I-PVR T152 CI HDMI
Technical changes and mistakes reserve - 38 - I-PVR T152 CI HDMI Version en_1.0 FTE Maximal
NETWORK
Network Interface 10/100 (RJ45) half/full duplex, auto negotiate
Network Protocols (over IP v4)
UDP/RTP
SAP/SDP
TCP
IGMP v1, v2 Input Max Bitrate 9.4 Mbps
DIVERS
Current supply for active ant e nna (x2) 5V / 75mA Power supply 100~240VAC 50Hz~60Hz Power consumption 35W max Consumption in Standby with LP C active < 3 W Operation temperature +5° to +40° Size (B×T×H) 360× 250×65mm Weight 2,2Kg
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
