FSR WB-X1-GNG User Manual

FSR

WB-X1-GNG

WB-X1-GNG / WB-X1-IPS / WB-X1-PLT / WB-X1-XLR INSTALLATION INSTRUCTIONS

244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]

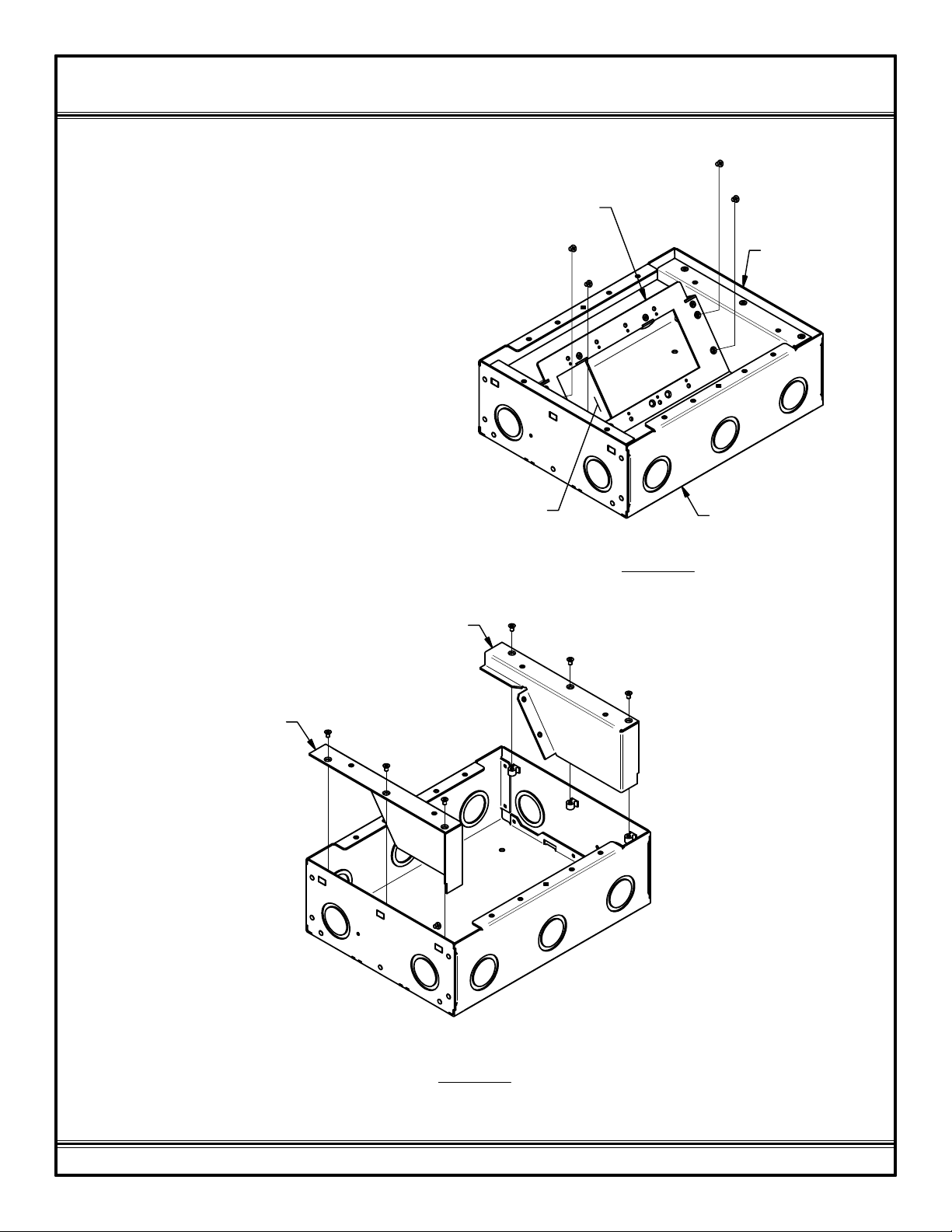

STEPS:

1.

REMOVE ASSEMBLED 4G MOUNTING PLATE
FROM CHASSIS AS SHOWN IN FIGURE 1,
SETTING PLATE AND SCREWS ASIDE.

2.

REMOVE UPPER/LOWER GANG-UNIT END FROM
CHASSIS AS SHOWN IN FIGURE 2, SETTING
GANG-UNIT ENDS AND SCREWS ASIDE.

3.

INSTALL CHASSIS INTO WALL PER INSTRUCTIONS
AT THE END OF THIS DOCUMENT.

4.

ROUTE CONDUITS TO CHASSIS, AND PULL
WIRES AS REQUIRED.

5.

REINSTALL GANG-UNIT ENDS AS SHOWN IN
FIGURE 2.

6.

REINSTALL 4G MOUNTING PLATE AS SHOWN IN
FIGURE 1. USE SEPARATOR AS REQUIRED.

7.

MAKE ELECTRICAL CONNECTIONS AS REQUIRED.

UPPER GANG-UNIT END

ASSEMBLED 4G

MOUNTING PLATE

SEPARATOR

UPPER END OF
CHASSIS UPON
INSTALLATION

CHASSIS ASSEMBLY
(AVAILABLE WITHOUT KO'S)

FIGURE 1

LOWER GANG-UNIT END

FIGURE 2

43017 LIT1404

WB-X1-IPS

STEPS:

1.

INSTALL CHASSIS INTO WALL PER
INSTRUCTIONS AT THE END OF THIS
DOCUMENT.

2.

ROUTE CONDUITS TO CHASSIS, AND PULL
WIRES AS R E Q UIRED.

3.

ASSEMBLE FRAME ASSEMBLY AS SHOWN IN
FIGURE 3.

4.

INSTALL FRAME ASSEMBLY AS SHOWN IN
FIGURE 4.

5.

INSTALL IPS WALLBOX BUCKETS AS SHOWN IN
FIGURE 5.

6.

MAKE ELECTRICAL CONNECTIONS AS REQUIRED.

(2) IPS BUCKET

MOUNTING BRACKET

IPS LOWER INTERIOR

SUPPORT BRACKET

NOTE: ASSEMBLE

FRAME AS SHOWN ON

A FLAT

SURFACE

FIGURE 3

IPS UPPER INTERIOR
SUPPORT BRACKET

NOTE SLOT

(4) #8-32x1/4" FLAT HEAD SCREW
(LOCTITE RECOMMENDED)

NOTE SLOT LOCATION,

WHICH DESIGNATES

UPPER END OF CHASSIS

UPON INSTALLATION

FRAME

ASSEMBLY

(6) #8-32x1/4" FLAT
HEAD SCREW

CHASSIS ASSEMBLY
(AVAILABLE WITHOUT KO'S)

(2) IPS WALLBOX

BUCKET

(8) #8-32x1/4" FLAT
HEAD SCREW

UPPER END OF
CHASSIS UPON
INSTALLATION

FIGURE 4 FIGURE 5

WB-X1-PLT

STEPS:

1.

INSTALL CHASSIS INTO WALL PER INSTRUCTIONS AT THE END
OF THIS DOCUMENT.

2.

ROUTE CONDUITS TO CHASSIS, AND PULL WIRES AS REQUIRED.

3.

ASSEMBLE BRACKET ASSEMBLY AS SHOWN IN FIGURE 6.

4.

INSTALL BRACKET ASSEMBLIES AS SHOWN IN FIGURE 7.

5.

MODIFY BLANK PLATE AS NECESSARY TO MOUNT DESIRED
COMPONENTS. INSTALL THIS PLATE AS SHOWN IN FIGURE 8.

6.

MAKE ELECTRICAL CONNECTIONS AS REQUIRED.

BLANK PLATE MOUNTING BRACKET

(2) #8-32x3/8" PAN
HEAD SCREW

MOUNTING

BRACKET

SUPPORT

BRACKET

ASSEMBLY

(ENSURE BOTH BRACKET ASSEMBLIES

(6) #8-32x1/4" FLAT
HEAD SCREW

BRACKET ASSEMBLY

HEIGHT ADJUSTMENT HOLE

ARE USING THE SAME HOLES)

FIGURE 6

COMPONENT AREA

(4) #8-32x3/8" PAN
HEAD SCREW

BLANK PLATE

CHASSIS ASSEMBLY
(AVAILABLE WITHOUT KO'S)

FIGURE 7 FIGURE 8

WB-X1-XLR

STEPS:

1.

INSTALL CHASSIS INTO WALL PER INSTRUCTIONS
AT THE END OF THIS DOCUMENT.

2.

ROUTE CONDUITS TO CHASSIS, AND
PULL WIRES AS REQUIRED.

3.

ASSEMBLE FRAME ASSEMBLY AS SHOWN
IN FIGURE 9.

4.

INSTALL FRAME ASSEMBLY AS SHOWN IN
FIGURE 10.

5.

INSTALL XLR WALLBOX BUCKETS AS SHOWN IN
FIGURE 11.

6.

MAKE ELECTRICAL CONNECTIONS AS REQUIRED.

(6) #8-32x1/4" FLAT

HEAD SCREW

FRAME ASSEMBLY

(2) XLR BUCKET

MOUNTING

BRACKET

XLR LOWER INTERIOR

SUPPORT BRACKET

NOTE STRAIGHT SURFACE,
WHICH DESIGNATES
UPPER END OF CHASSIS
UPON INSTALLATION

NOTE: ASSEMBLE

FRAME AS SHOWN ON

A FLAT

FIGURE 9

(3) XLR WALLBOX

BUCKET

NOTE STRAIGHT SURFACE

XLR UPPER INTERIOR
SUPPORT BRACKET

SURFACE

(4) #8-32x1/4" FLAT HEAD SCREW
(LOCTITE RECOMMENDED)

(12) #8-32x1/4" FLAT
HEAD SCREW

UPPER END OF
CHASSIS UPON

INSTALLATION

CHASSIS ASSEMBLY
(AVAILABLE WITHOUT KO'S)

FIGURE 10 FIGURE 11

WB-X1 INSTALLATION (OLD-WORK)

2 x 4 STUDS
16" ON CENTER

1/2" OR 5/8" DRYWALL

STEPS:

1.

CUT A 9-1/2" x 12-1/2" OPENING IN WALL
CENTERED BETWEEN THE STUDS.

2.

INSTALL SCREW/CLAMP BLOCK ALONG EDGE OF
CUT-OUT AS SHOWN IN FIGURE 12 - SEE STEP 3.

3.

ENSURE AT LEAST 3" OF BLOCKING MATERIAL
BEYOND BOTH UPPER AND
CUT-OUT.

4.

INSTALL OLD-WORK MOUNTING BRACKET TO
CHASSIS ASSEMBLY AS SHOWN IN FIGURE 13.

5.

MOUNT CHASSIS ASSEMBLY TO WALL AS
SHOWN IN FIGURE 14.

LOWER EDGES OF

1" CUSTOMER-SUPPLIED
BLOCKING - 5/4 WOOD
MATERIAL RECOMMENDED

(8) CUSTOMER-

SUPPLIED

#8 WOOD SCREW

SCREW/CLAMP BLOCK

(8) #8-32 SCREW

(SUPPLIED)

(2) OLD-WORK
MOUNTING
BRACKET

CHASSIS ASSEMBLY
(AVAILABLE WITHOUT KO'S)

FIGURE 12

(8) CUSTOMER-SUPPLIED
#8 WOOD SCREW
(AFTER CHASSIS IS IN
POSITION IN WALL)

FIGURE 13 FIGURE 14

WB-X1 INSTALLATION (NEW-WORK)

(8) #8-32 SCREW
(SUPPLIED)

STEPS:

1.

INSTALL (2) MOUNTING BRACKET TO CHASSIS
ASSEMBLY AS SHOWN IN FIGURE 15.

2.

INSTALL BOX ASSEMBLY ONTO STUDS
AS SHOWN IN FIGURE 16.

(2) NEW-WORK

MOUNTING

BRACKET

CHASSIS ASSEMBLY

(AVAILABLE WITHOUT KO'S)

FIGURE 15

2 x 4 STUDS, 16" ON CENTER

CUSTOMER-SUPPLIED

#8 WOOD SCREWS,

NAILS OR STAPLES

CENTER-ON-STUDS ASSIST NOTCHES
(LINE UP NOTCH EDGES WITH STUD
INNER EDGES TO CENTER CHASSIS
BETWEEN STUDS)

FIGURE 16
