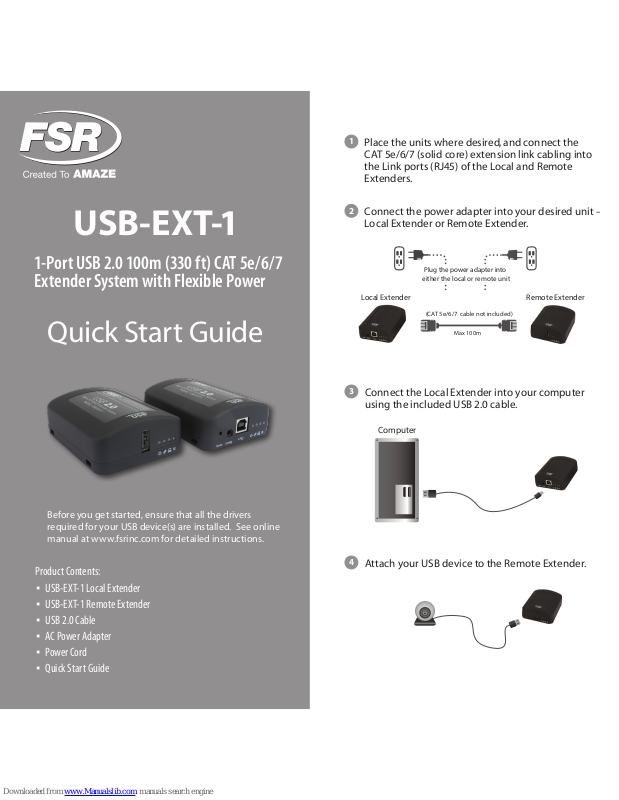

USB-EXT-1
1-Port USB 2.0 100m (330 ft) CAT 5e/6/7
Extender System with Flexible Power
Local Extender Remote Extender
1

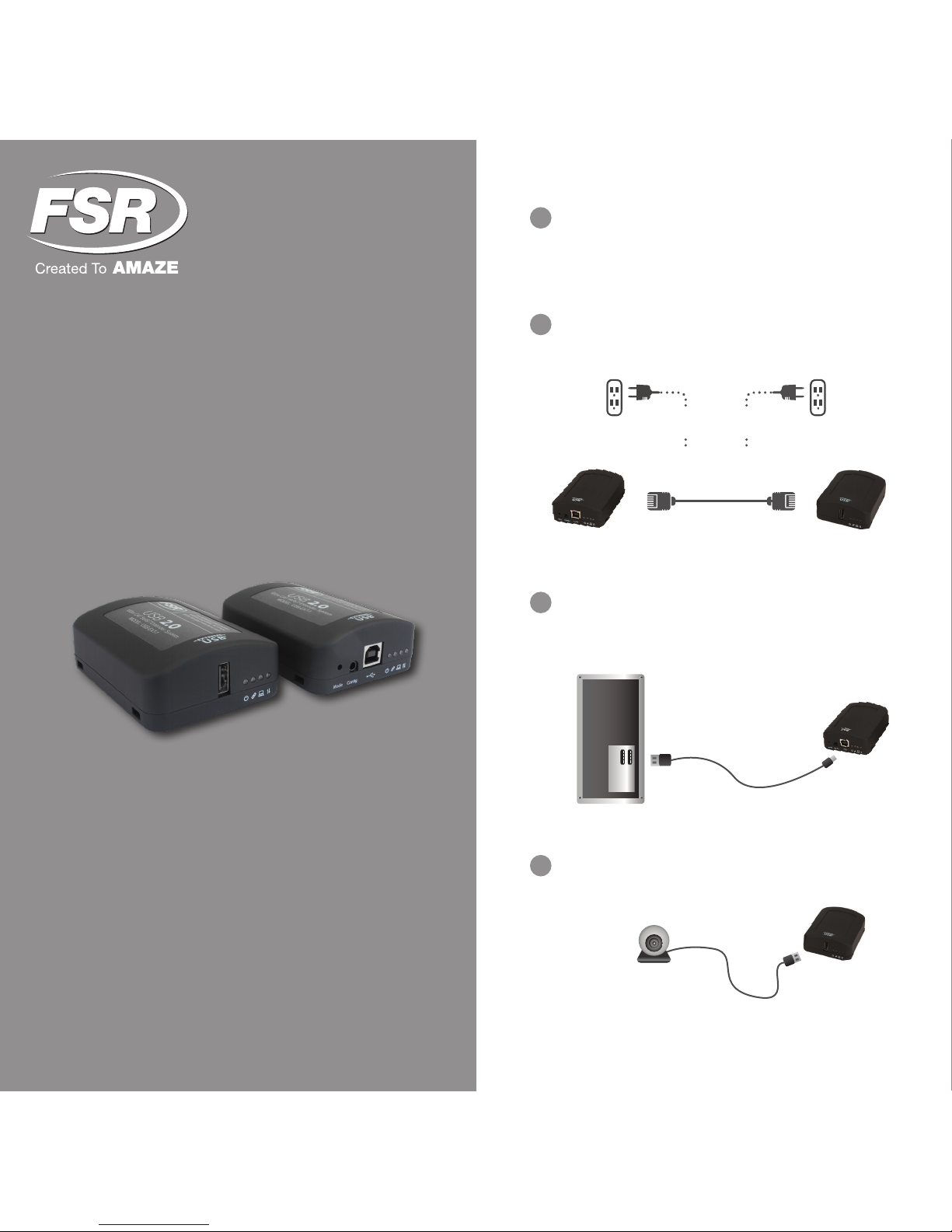

Place the units where desired, and connect the
CAT 5e/6/7 (solid core) extension link cabling into
the Link ports (RJ45) of the Local and Remote
Extenders.
2
Connec
t the power adapter into your desired unit –
Local Extender or Remote Extender.
Max 100m
(CAT 5e/6/7 cable not included)
3
Connect the Local Extender into your computer
using the included USB 2.0 cable.
Computer
4
Attach your USB device to the Remote Extender.
Plug the power adapter into
either the local or remote unit
Quick Start Guide
Product Contents:
▪ USB-EXT-1 Local Extender
▪ USB-EXT-1 Remote Extender
▪ USB 2.0 Cable
▪ AC Power Adapter
▪ Power Cord
▪ Quick Start Guide
Before you get started, ensure that all the drivers
required for your USB device(s) are installed. See online
manual at www.fsrinc.com for detailed instructions.
Page 2
FCC Radio Frequency Interference Statement Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
CE Statement
We, FSR Inc. , declare under our sole responsibility that the USB-EXT-1, to which this declaration relates, is in conformity with European Standard
EN 55022, EN 61000 and EN 55024.
IC Statement
This Class A digital apparatus complies with Canadian ICES-003.
WEEE Statement
The European Union has established regulations for the collection and recycling of all waste electrical and electronic equipment (WEEE).
Implementation of WEEE regulations may vary slightly by individual EU member states. Please check with your local and state government
guidelines for safe disposal and recycling or contact your national WEEE recycling agency for more information.
Product Operation and Storage
Please read and follow all instructions provided with this product, and operate for intended use only. Do not attempt to open the product casing
as this may cause damage and will void warranty. Use only the power supply provided with this product. When not in use, product should be
stored in a dry location between -20°C and 70°C.
Certification and Compliance
FSR Inc.
244 Bergen Blvd.
Woodland Park NJ 08724
1-800-332-3771 or +1-973-998-2300
www.fsrinc.com
Information contained herein is subject to
change without notice.
2
4
3
1

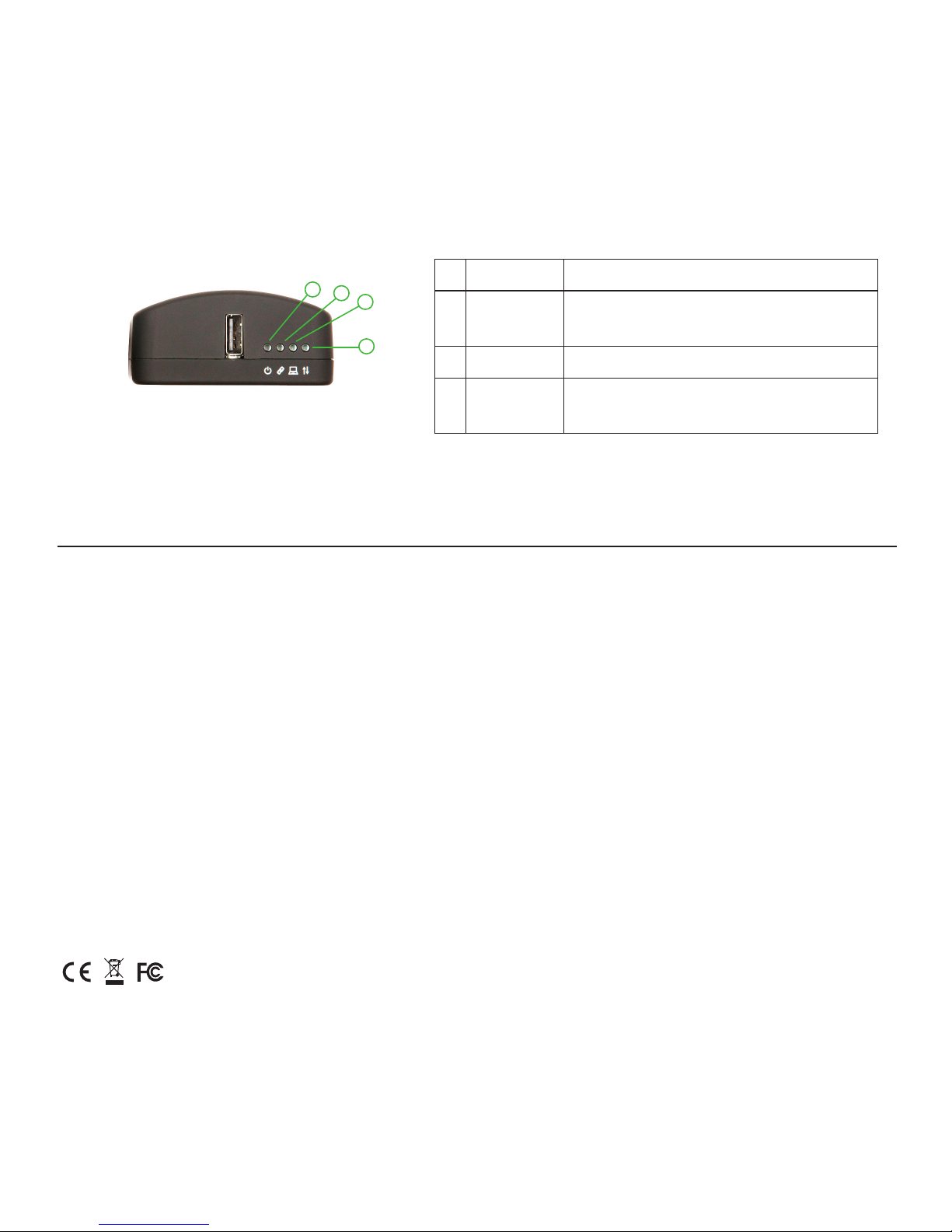

1 Power LED (Blue) LED turns on when power is supplied.
2 Link LED (Green) Indicates a valid ExtremeUSB link is established between the local and
remote extenders.
LED turns on when link between local and remote extenders is established.
LED is off when there is no link between the local and remote extenders.
3 Host LED (Green) Indicates that the extender system is properly enumerated on the host com-
puter. LED blinks when the extender system is in a suspended state.
4 Activity LED
(Amber)
Indicates data transmission is occurring between the local and remote
extenders.
LED blinks intermittently with or without a USB device connected.
When the local and remote extenders are in suspend mode, the LED is off.
USB-EXT-1 Remote Extender shown
See online manual at www.fsrinc.com for detailed instructions.
43297 LIT1711A
