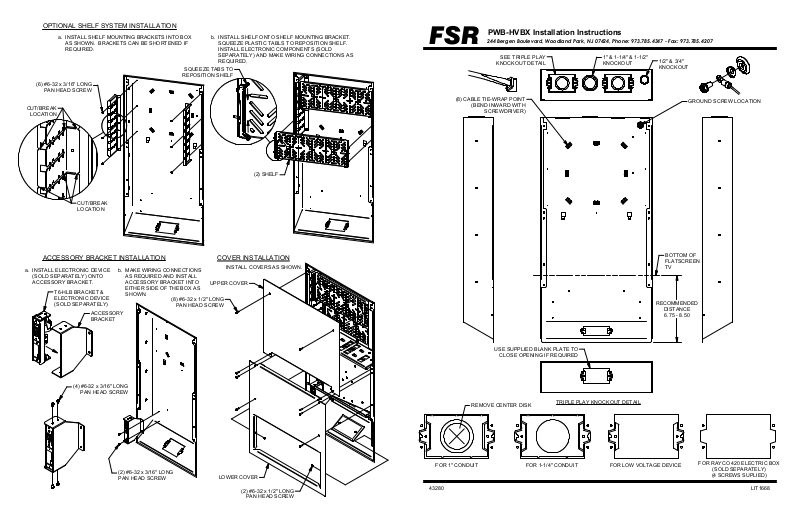

FSR PWB-HVBX Users Guide

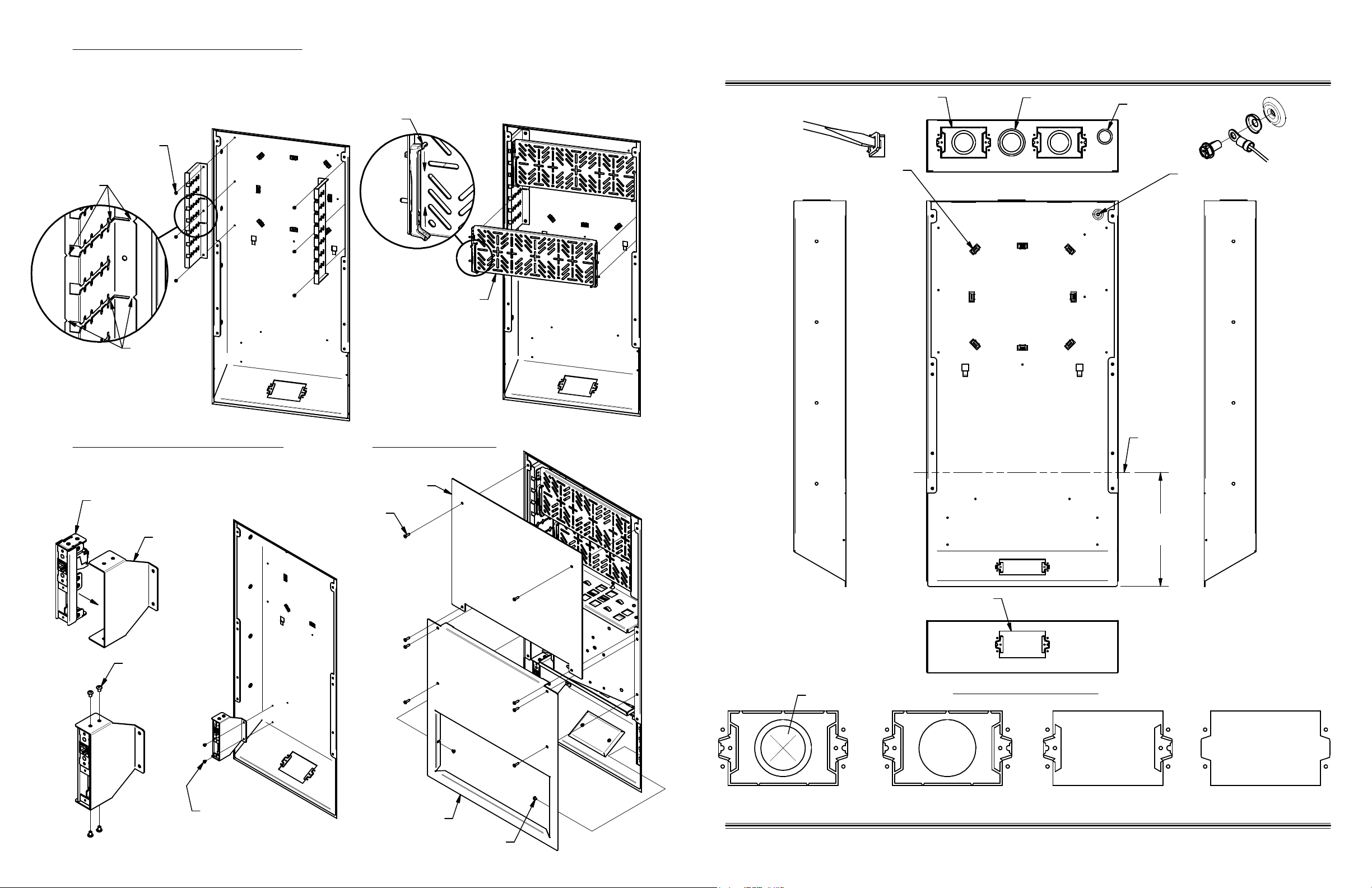

OPTIONAL SHELF SYSTEM INSTALLATION

a.

INSTALL SHELF MOUNTING BRACKETS INTO BOX
AS SHOWN. BRACKETS CAN BE SHORTENED IF
REQUIRED.

(6) #6-32 x 3/16" LONG

PAN HEAD SCREW

CUT/BREAK

LOCATION

b.

INSTALL SHELF ONTO SHELF MOUNTING BRACKET.
SQUEEZE PLASTIC TABLS TO REPOSITION SHELF.
INSTALL ELECTRONIC COMPONENTS (SOLD
SEPARATELY) AND MAKE WIRING CONNECTIONS AS
REQUIRED.

SQUEEZE TABS TO

REPOSITION SHELF

FSR

(8) CABLE TIE-WRAP POINT

(BEND INWARD WITH

PWB-HVBX Installation Instructions

244 Bergen Boulevard, Woodland Park, NJ 07424, Phone: [phone] - Fax: [phone]

SEE TRIPLE PLAY

KNOCKOUT DETAIL

1" & 1-1/4" & 1-1/2"
KNOCKOUT

1/2" & 3/4"
KNOCKOUT

GROUND SCREW LOCATION

SCREWDRIVER)

CUT/BREAK
LOCATION

ACCESSORY BRACKET INSTALLATION COVER INSTALLATION

a.

INSTALL ELECTRONIC DEVICE
(SOLD SEPARATELY) ONTO
ACCESSORY BRACKET.

T6-HLB BRACKET &
ELECTRONIC DEVICE
(SOLD SEPARATELY)

ACCESSORY
BRACKET

b.

MAKE WIRING CONNECTIONS
AS REQUIRED AND INSTALL
ACCESSORY BRACKET INTO
EITHER SIDE OF THE BOX AS
SHOWN.

(8) #6-32 x 1/2" LONG

PAN HEAD SCREW

INSTALL COVERS AS SHOWN.

UPPER COVER

(2) SHELF

BOTTOM OF
FLATSCREEN
TV

RECOMMENDED

DISTANCE

6.75 - 8.50

USE SUPPLIED BLANK PLATE TO

CLOSE OPENING IF REQUIRED

(4) #6-32 x 3/16" LONG
PAN HEAD SCREW

(2) #6-32 x 3/16" LONG
PAN HEAD SCREW

LOWER COVER

(2) #6-32 x 1/2" LONG

PAN HEAD SCREW

REMOVE CENTER DISK

FOR 1" CONDUIT FOR 1-1/4" CONDUIT FOR LOW VOLTAGE DEVICE

43280 LIT1668

TRIPLE PLAY KNOCKOUT DETAIL

FOR RAYCO 420 ELECTRIC BOX

(SOLD SEPARATELY)

(4 SCREWS SUPLIED)

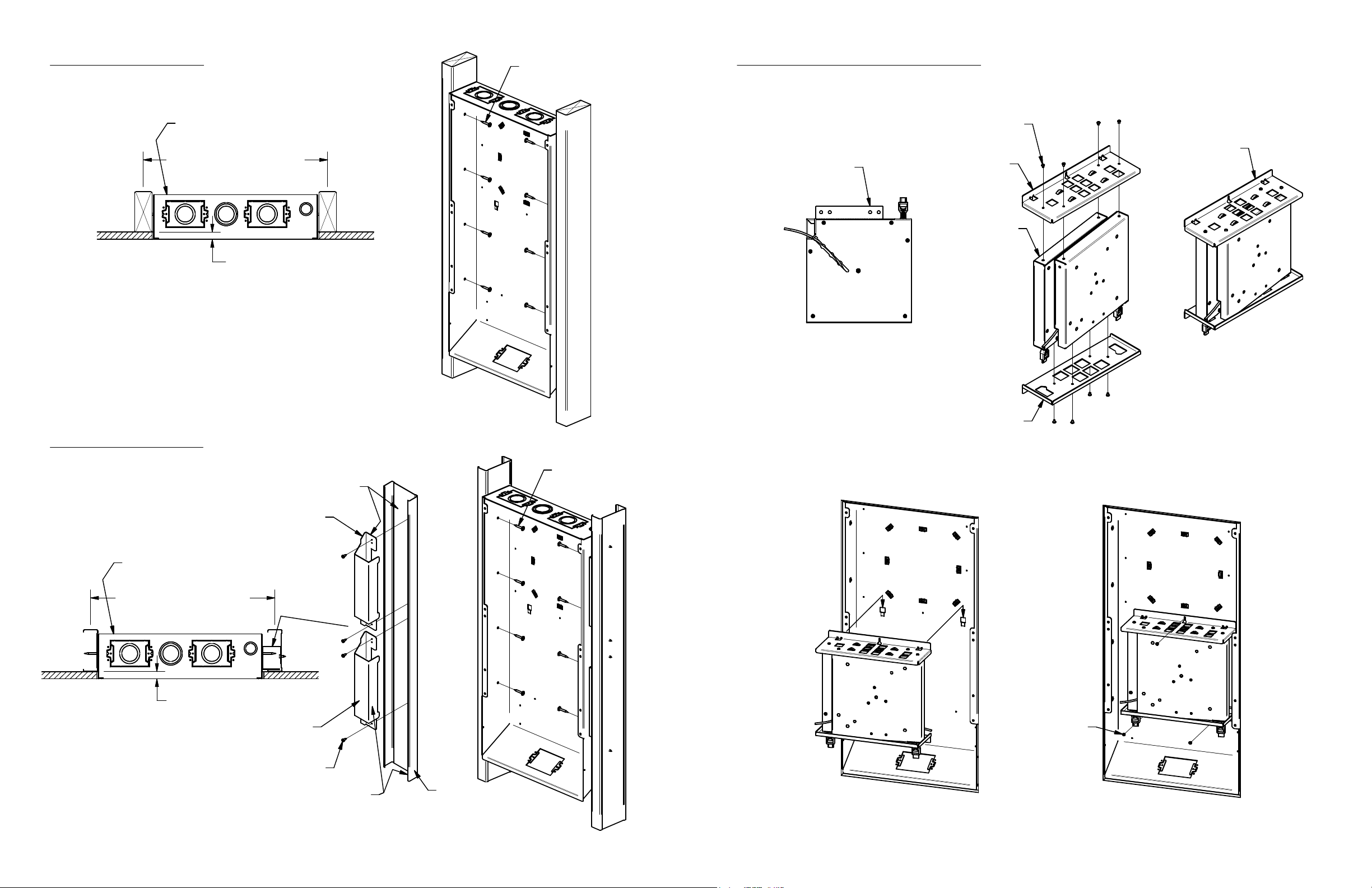

WOOD STUD INSTALLATION

WALL OPENING: 14-1/2" x 29"

(8) #8 x 1” SCREW

LP-TBRT CABLE RETRACTOR INSTALLATION

a.

INSTALL LP-TBRT CABLE RETRACTORS (SOLD SEPARATELY)
ONTO CABLE RETRACTOR MOUNTING BRACKETS.

ENSURE REAR SURFACE OF BOX DOES NOT
EXTEND PAST SURFACE OF WALL STUD

16" STUD CENTERS

(2" x 4" WOOD STUDS SHOWN)

STEEL STUD INSTALLATION

WALL OPENING: 14-1/2" x 29"

WALL THICKNESS FROM
STUD TO BOX EDGE

SPACER SURFACE TO

INSIDE STUD SURFACE

(8) #8 x 1” SCREW

(8) #6-32 x 3/16" LONG

PAN HEAD SCREW

LP-TBRT FLANGE

MUST BE REMOVED

b.

HANG RETRACTOR INSIDE BOX AND SECURE WITH #6-32 SCREWS
AND MAKE WIRING CONNECTIONS AS REQUIRED.

TOP BRACKET

LP-TBRT

CABLE RETRACTOR

(SOLD SEPARATELY)

BOTTOM BRACKET

CAN HOLD 1 OR 2

RETRACTORS

(2) STUD SPACER REQUIRED

WHEN MOUNTING BOX TO

OPEN END SIDE OF STUD

ENSURE REAR SURFACE OF BOX DOES NOT
EXTEND PAST SURFACE OF WALL STUD

16” STUD CENTERS

(2” x 4” STEEL STUDS SHOWN

WALL THICKNESS FROM
STUD TO BOX EDGE

MOUNT BOX TO

THIS SURFACE

(4) #7 x 7/16" SELF-DRILLING SCREW

SPACER SURFACE TO STUD

EDGE ON DRYWALL SIDE

(3) #6-32 x 3/16" LONG

PAN HEAD SCREW

DRYWALL
SIDE
