FSP Technology K948 User Manual

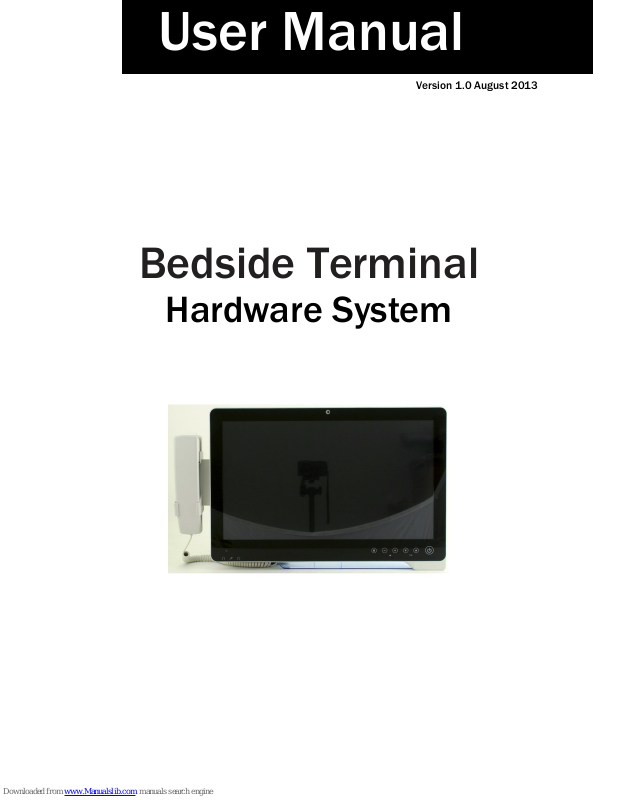

User Manual

Version 1.0 August 2013

Bedside Terminal

Hardware System

i

Copyright 2013
All Rights Reserved
Manual Version 1.0

The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular
purpose. We shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of
this material.

This document contains proprietary information that is protected by copyright. All
rights are reserved. No part of this document may be photocopied, reproduced or
translated to another language without the prior written consent of the
manufacturer.

TRADEMARK

Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Other trademarks mentioned herein are the property of their respective owners.

Safety

IMPORTANT SAFETY INSTRUCTIONS

1. To disconnect the machine from the electrical Power Supply, turn off the power
switch and remove the power cord plug from the wall socket. The wall socket
must be easily accessible and in close proximity to the machine.

2. Read these instructions carefully. Save these instructions for future reference.

3. Follow all warnings and instructions marked on the product.

4. Do not use this product near water.

5. Do not place this product on an unstable cart, stand, or table. The product may
fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over a radiator or
heat register, or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult your
dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product
where persons will walk on the cord.

9. Never push objects of any kind into this product through cabinet slots as they
may touch dangerous voltage points or short out parts that could result in a fire
or electric shock. Never spill liquid of any kind on the product.

ii

CE MARK

This device complies with the requirements of the EEC directive 2004/108/EC
with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage
Directive”

FCC

This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation

"Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment."

This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver
is connected.

—Consult the dealer or an experienced radio/TV technician for help

Battery Caution

Risk of explosion if battery is replaced by an incorrectly type.
Dispose of used battery according to the local disposal instructions.
Indicating that replacement by inadequately trained personnel could result in a
hazard (such as excessive temperatures, fire, or explosion)
Lithium battery: CR2032

iii

Safety Caution

Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related
legislation, peripherals shall be 4.7.3.2 "Materials for fire enclosure" compliant.

4.7.3.2 Materials for fire enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding

18kg.the material of a FIRE ENCLOSURE, in the thinnest significant
wall thickness used, shall be of V-1 CLASS MATERIAL or shall pass
the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg
and for all STATIONARY EQUIPMENT, the material of a FIRE
ENCLOSURE, in the thinnest significant wall thickness used, shall
be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1

CAUTION SYMBOL IN CARTON

ATTENTION

WARNING:

To avoid risk of electric shock, this equipment must only be connected to a supply

mains with protective earth.

WARNING:

Do not modify this equipment without authorization of the manufacturer.

WARNING:

If an appliance coupler or separable plug is used as the disconnecting device, it shall

iv

be readily identifiable and easily reached by the operator. For single-phase portable
equipment, a plug on a cord of length not greater than 3m is considered to be easily
reached.

LEGISLATION AND WEEE SYMBOL

2012/19/EU Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.

The crossed dustbin symbol on the device means that it should not be disposed of
with other household wastes at the end of its working life. Instead, the device
should be taken to the waste collection centers for activation of the treatment,
collection, recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions
of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

Power supply is specified as a part of ME EQUIPMENT

Please read the user manual

v

Revision History

Revision Date Description

V1.0 August, 2013  Release

vi

Table of Contents

1 Intended Use ...................................................... 1

2 Package Checklist ............................................ 2

2-1 Standard Items ................................................................................. 2

3 System View ....................................................... 3

3-1 Front View .......................................................................................... 3

3-2 Side View............................................................................................ 4

3-3 Rear View ........................................................................................... 4

3-4 Bottom View ...................................................................................... 5

3-5 Dimension .......................................................................................... 5

4 System Assembly .............................................. 6

4-1 SSD/HDD Replacement .................................................................. 6

5 Peripherals Installation .................................... 7

5-1 Phone module Installation .............................................................. 7

5-2 Stand Installation ………………………………………………………………….8

6 Specification ...................................................... 9

7 Jumper Setting ................................................ 12

7-1 C73 Motherboard ........................................................................... 12

7-2 Connectors & Functions ................................................................ 13

7-3 Jumper Setting ................................................................................ 14
