Fry's Electronics FR-300RTR User Manual

Page 1

Page 2

iFR-300RTR User Manual

Fry’s reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Trademarks

Fry’s and the Fry’s logo are trademarks or registered trademarks of Fry’s Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

Preface

Page 3

iiFR-300RTR User Manual

Table of Contents

Preface ...........................................................................i

Trademarks ............................................................... i

Product Overview ........................................................1

Package Contents....................................................1

System Requirements .............................................2

Features ...................................................................3

Hardware Overview ................................................. 4

Connections .......................................................4

LEDs ..................................................................5

Installation ....................................................................6

Before you Begin ..................................................... 6

Wireless Installation Considerations ........................ 7

Network Diagram .....................................................8

Connect to Cable/DSL/Satellite Modem .................. 9

Connect to Another Router ....................................10

Getting Started ......................................................12

Conﬁguration .............................................................13

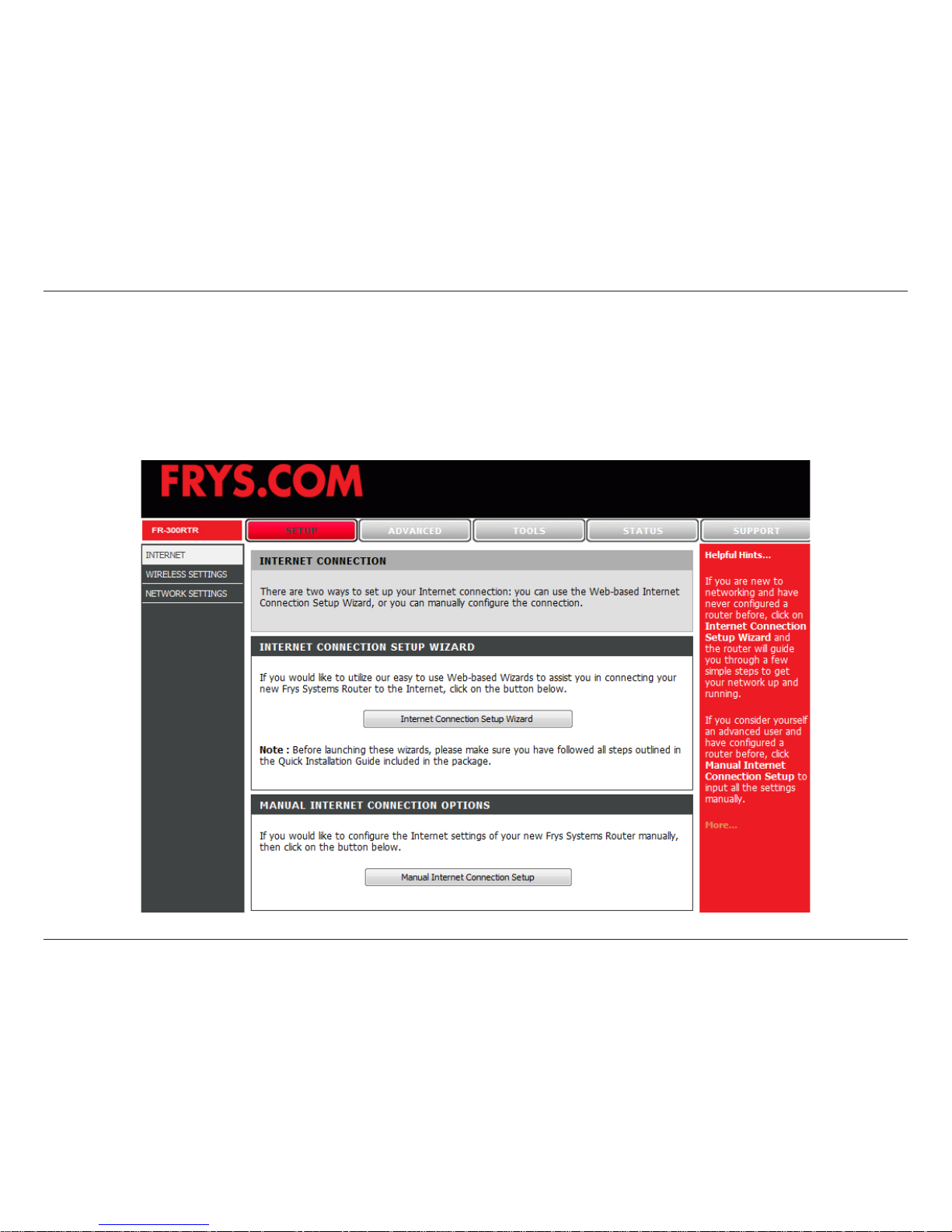

Web-based Conﬁguration Utility ............................ 13

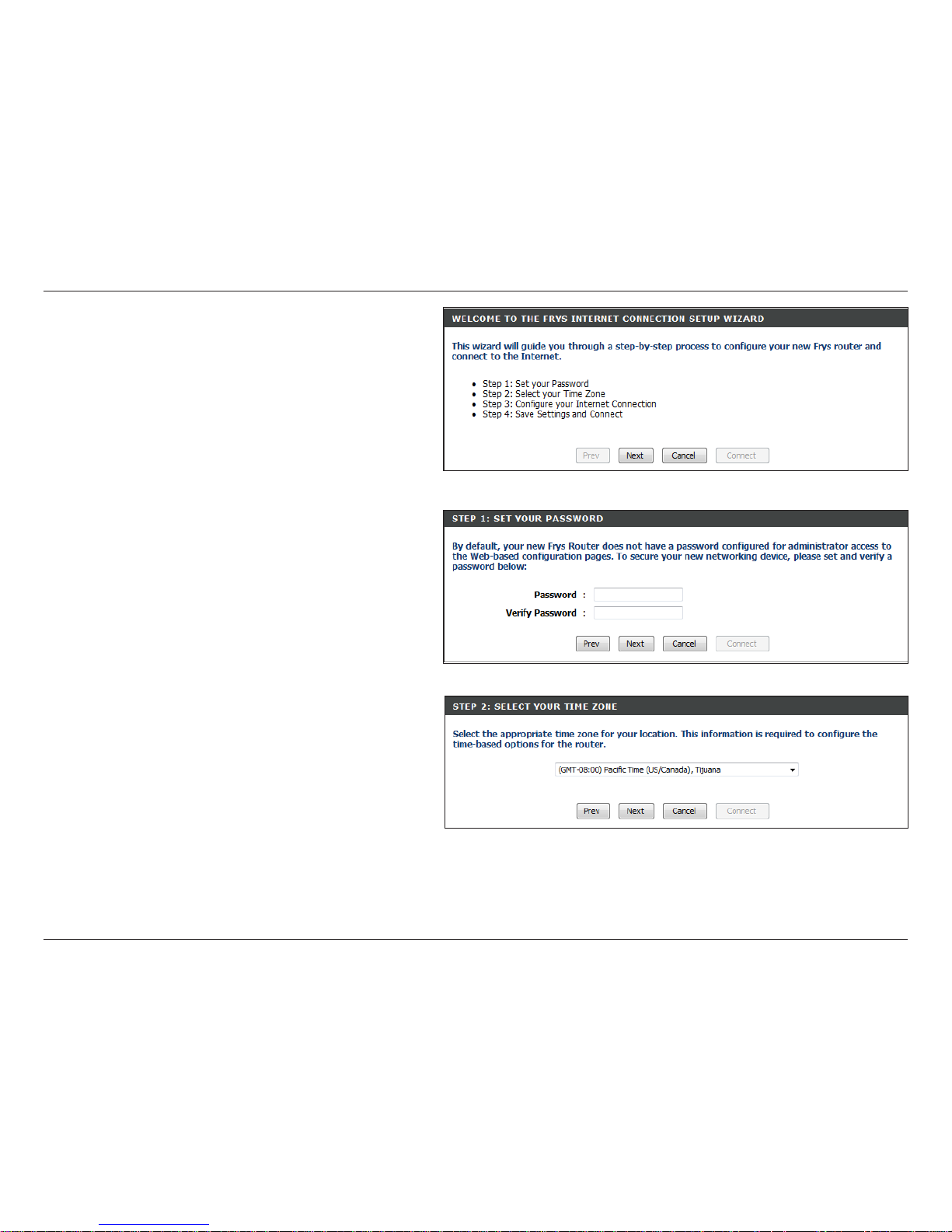

Internet Connection Setup Wizard ...................14

Manual Conﬁguration ....................................... 20

Dynamic (Cable)...........................................20

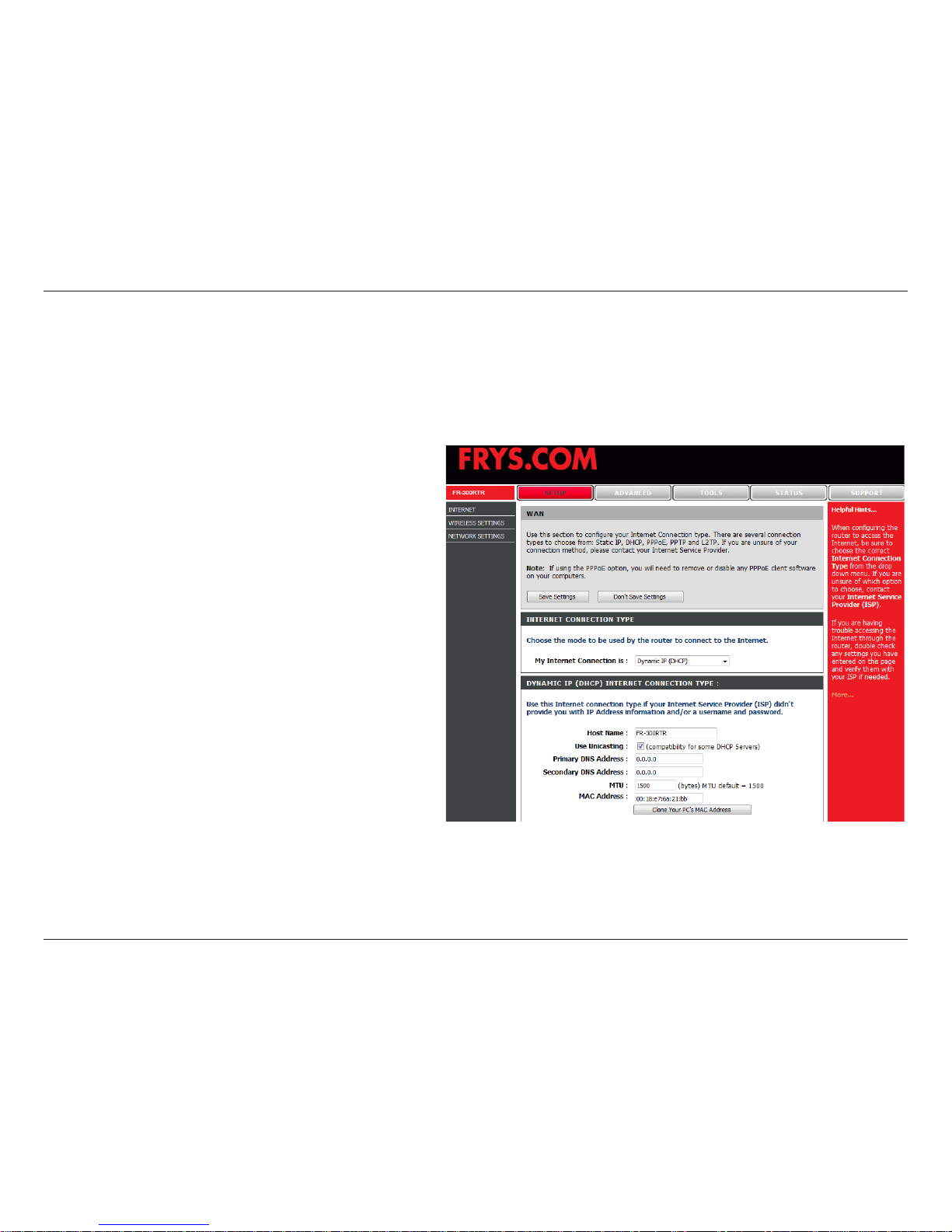

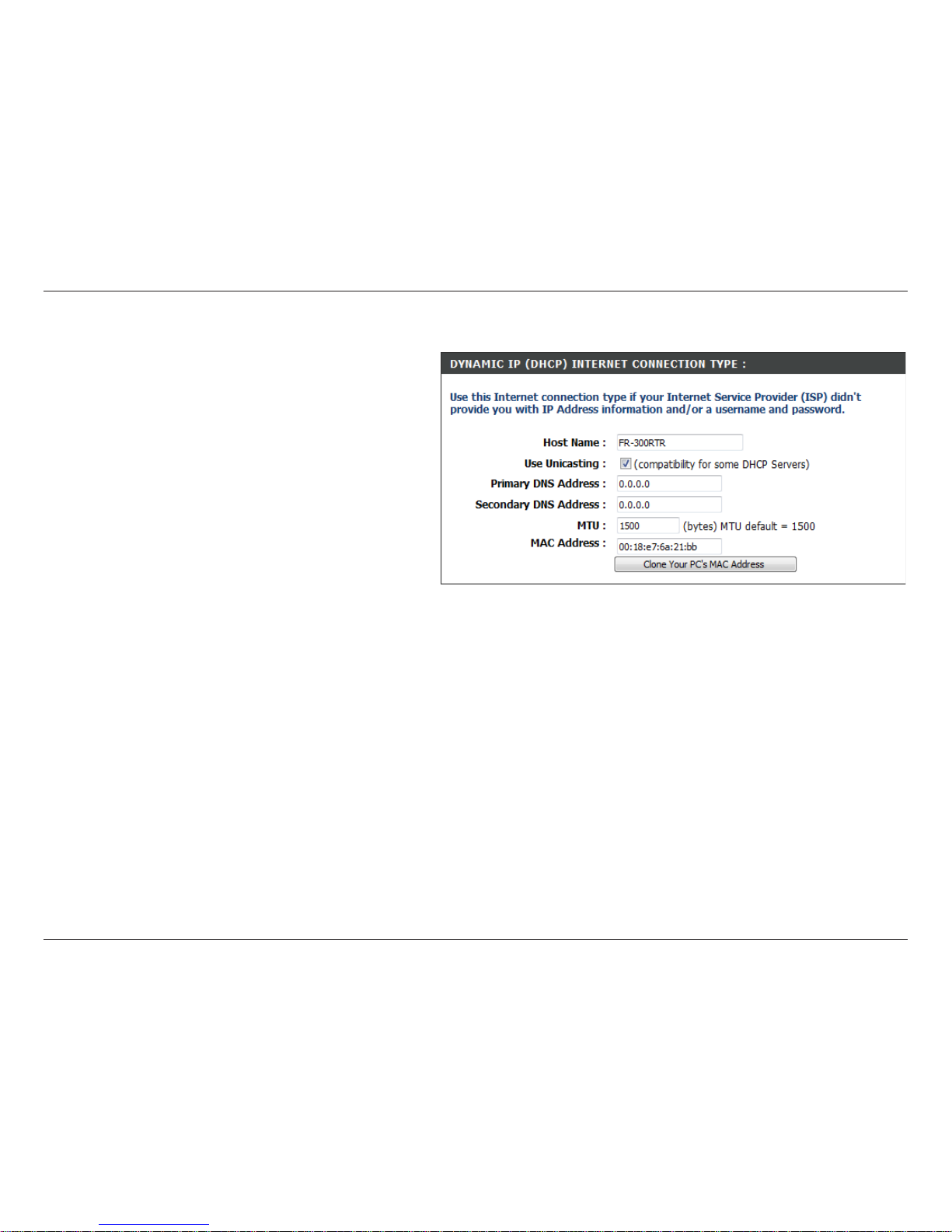

Dynamic IP Address (DHCP) .......................21

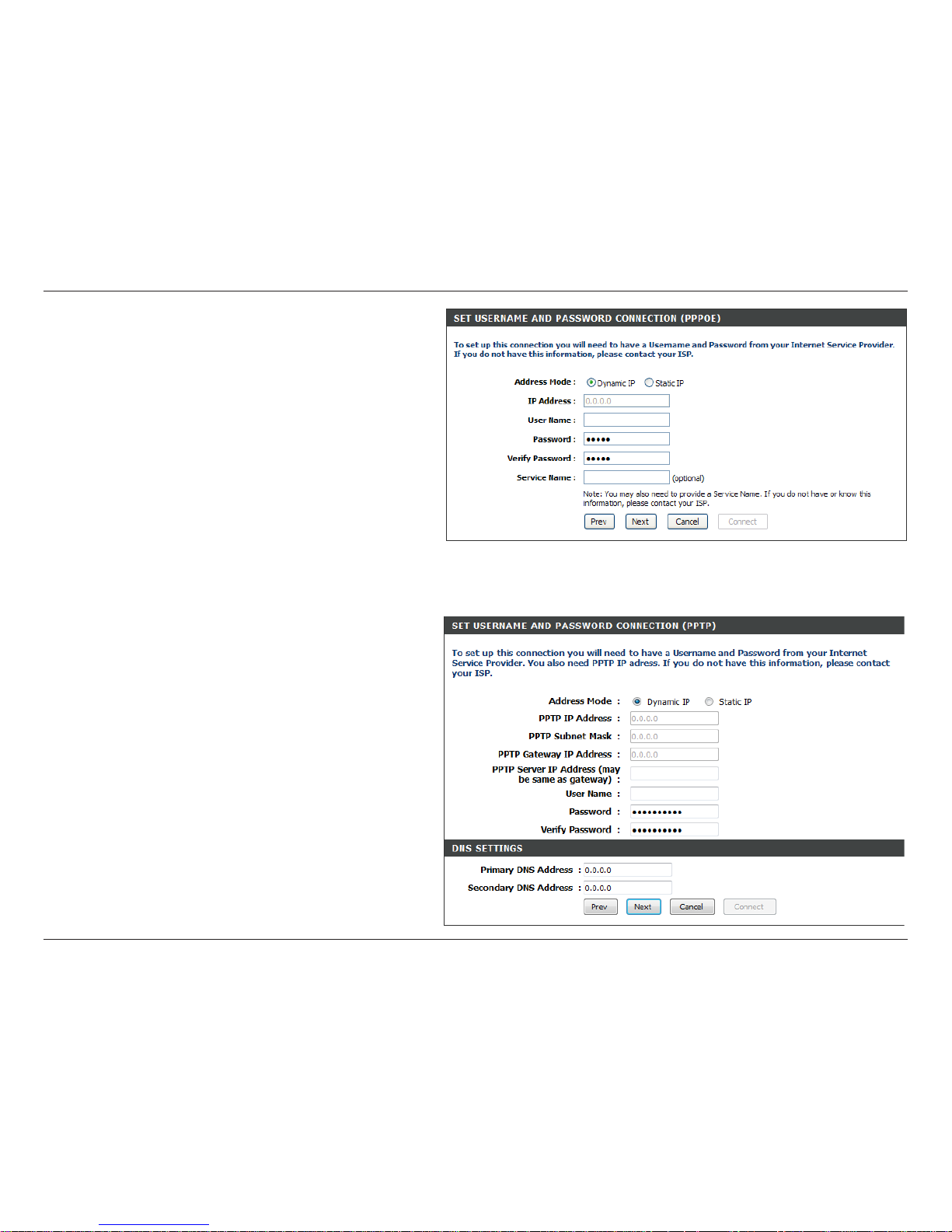

PPPoE (DSL) ............................................... 22

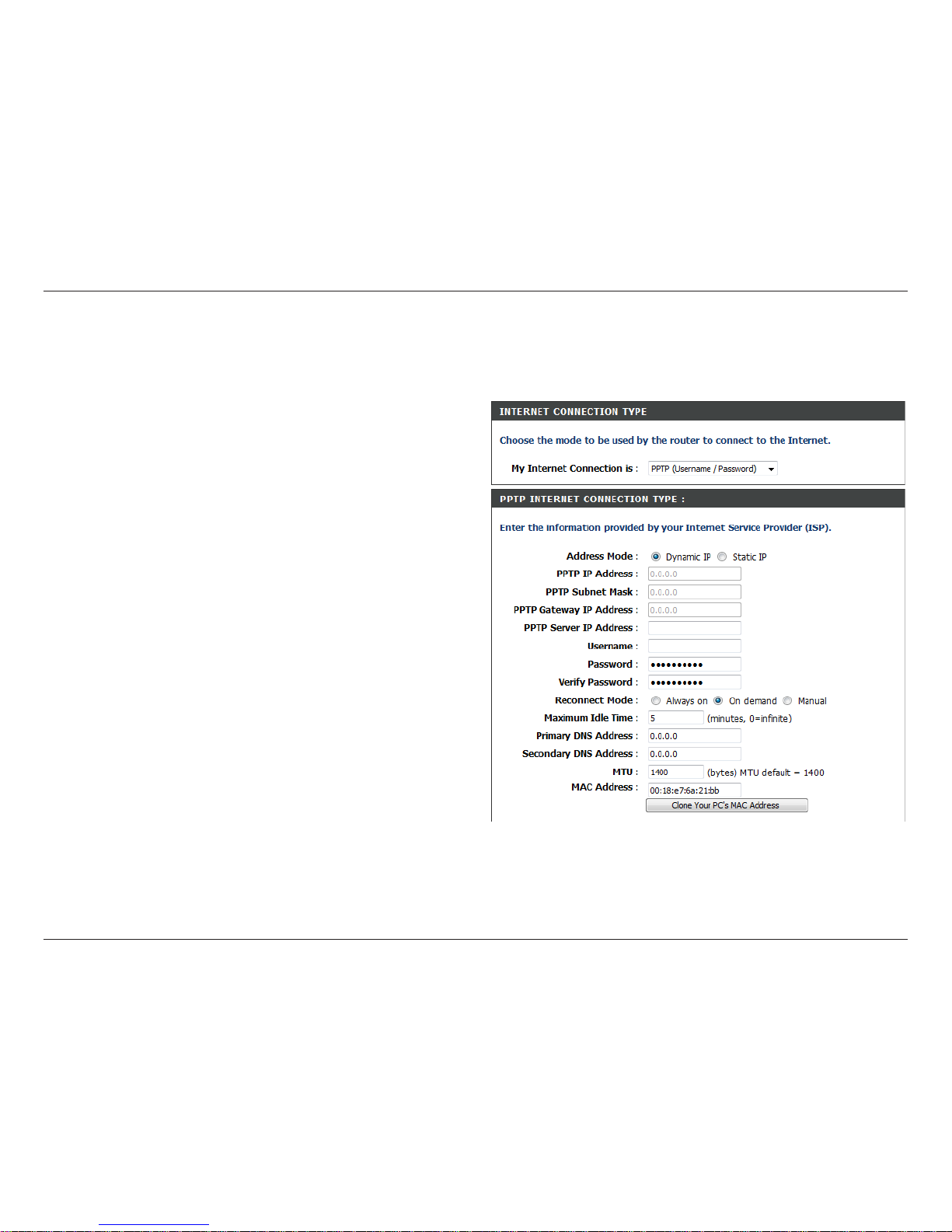

PPTP ............................................................23

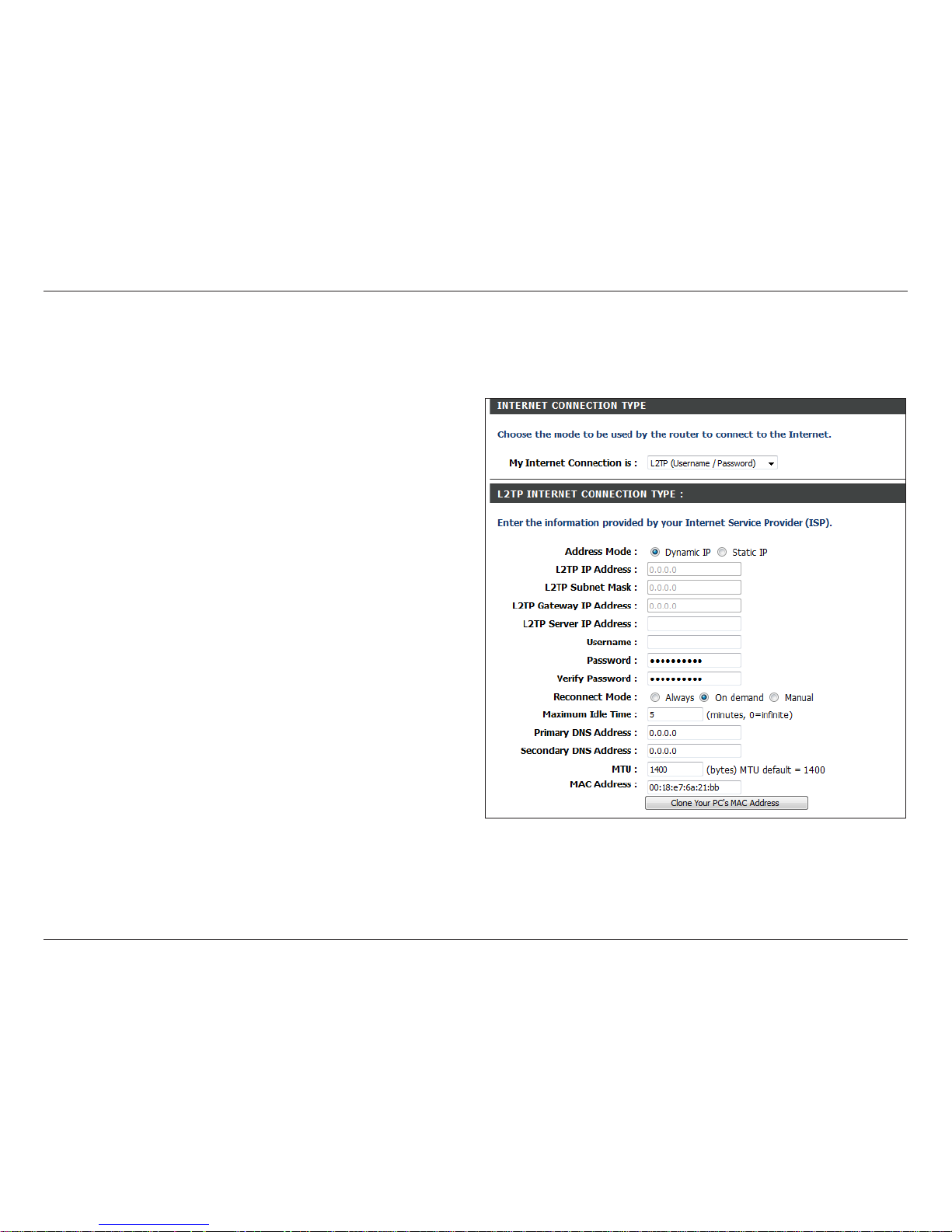

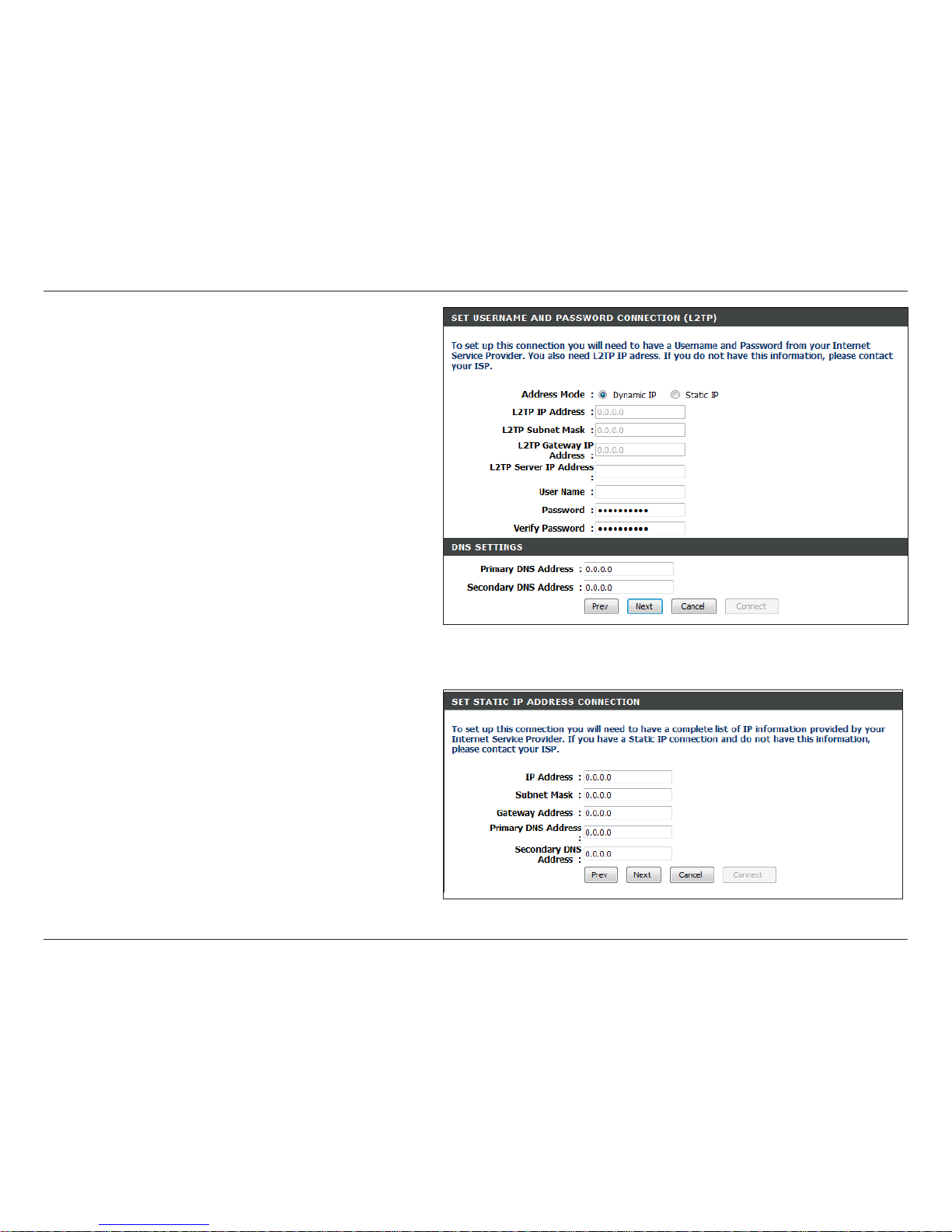

L2TP ............................................................. 25

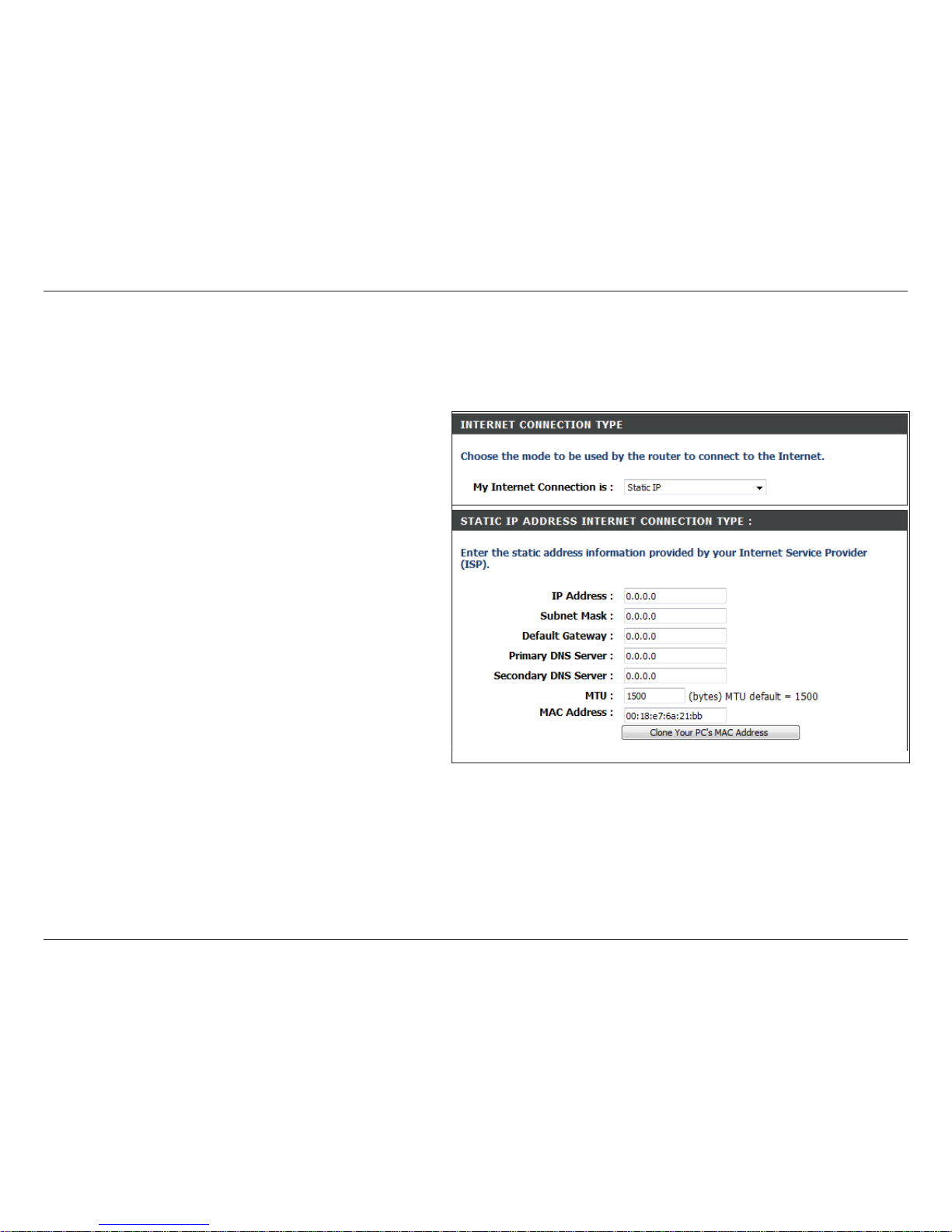

Static IP Address .......................................... 27

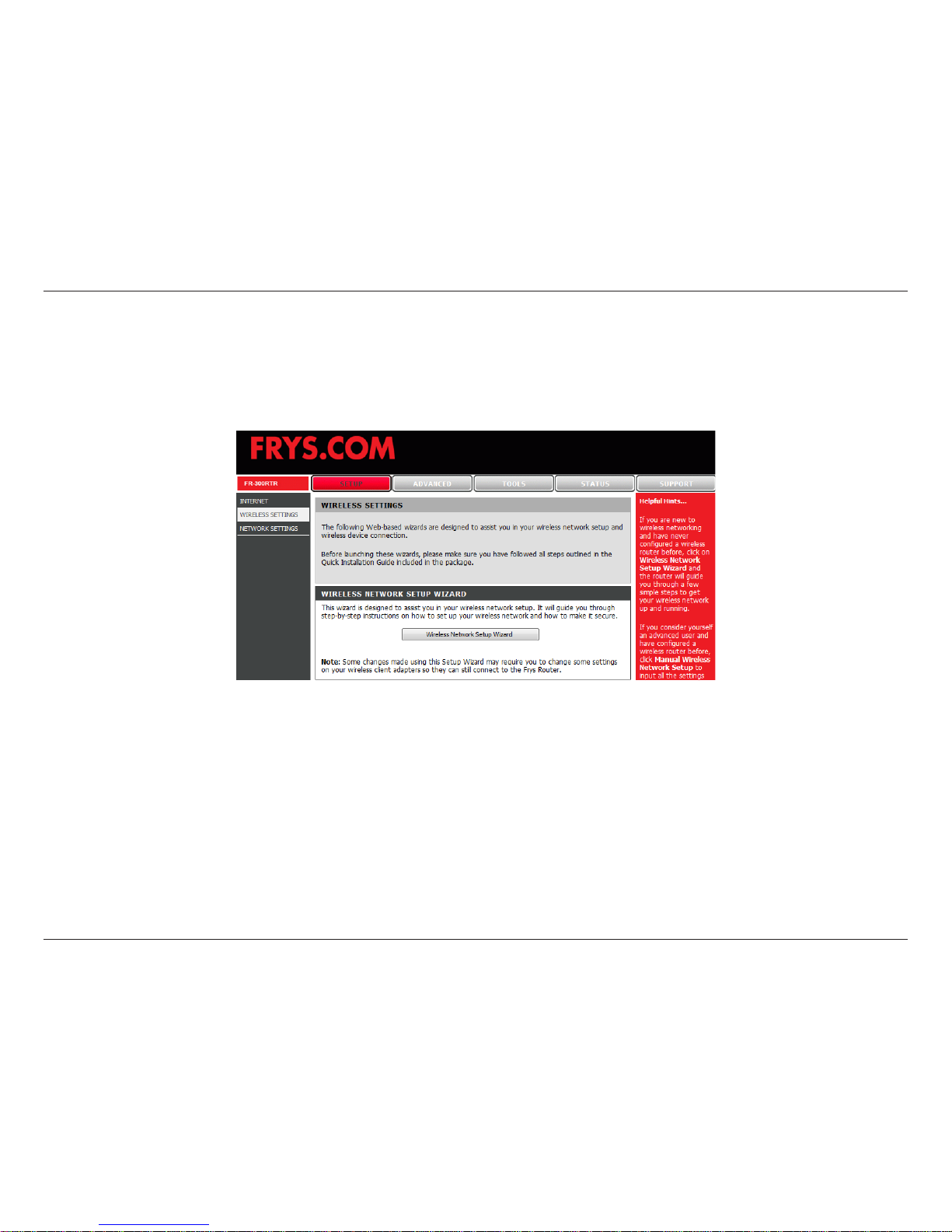

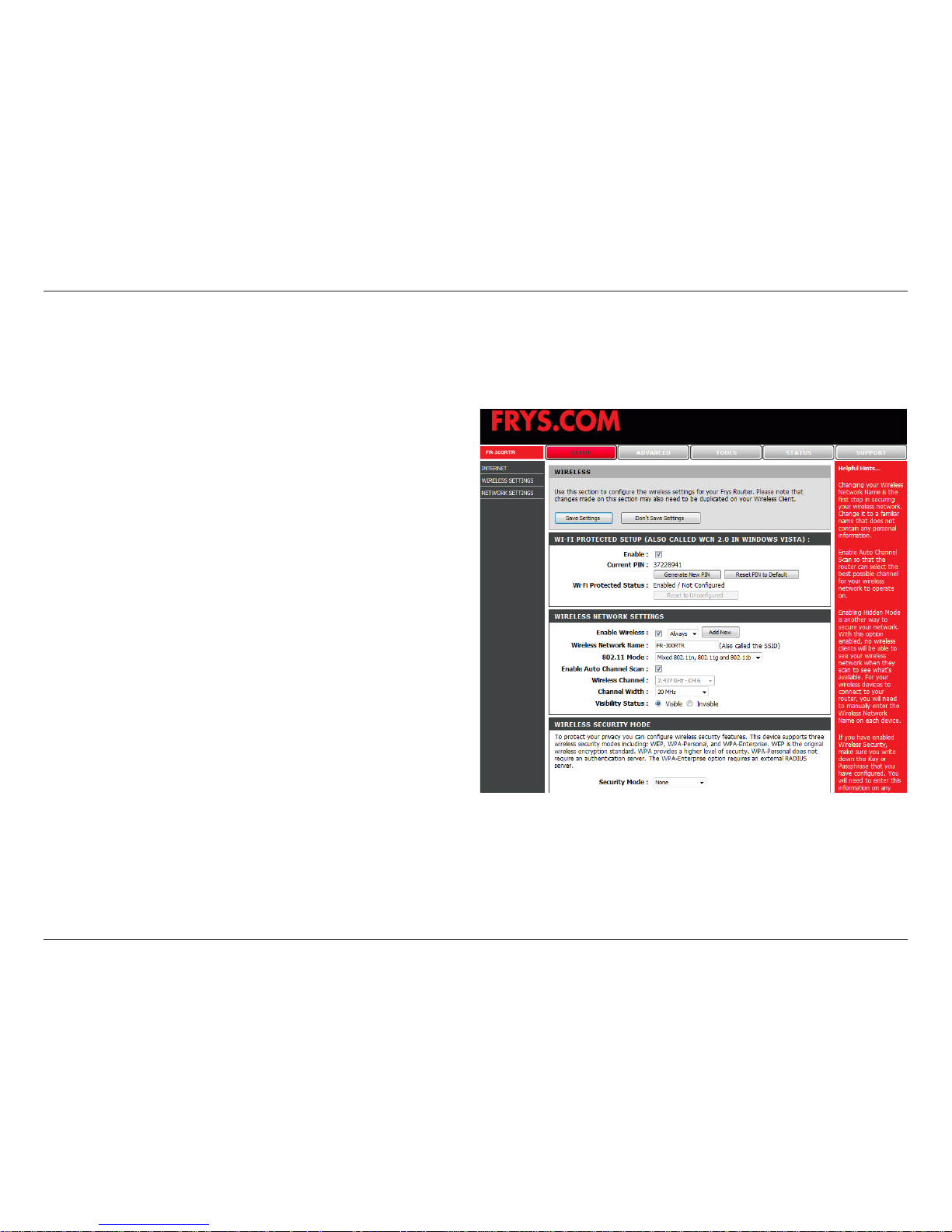

Wireless Settings ............................................. 28

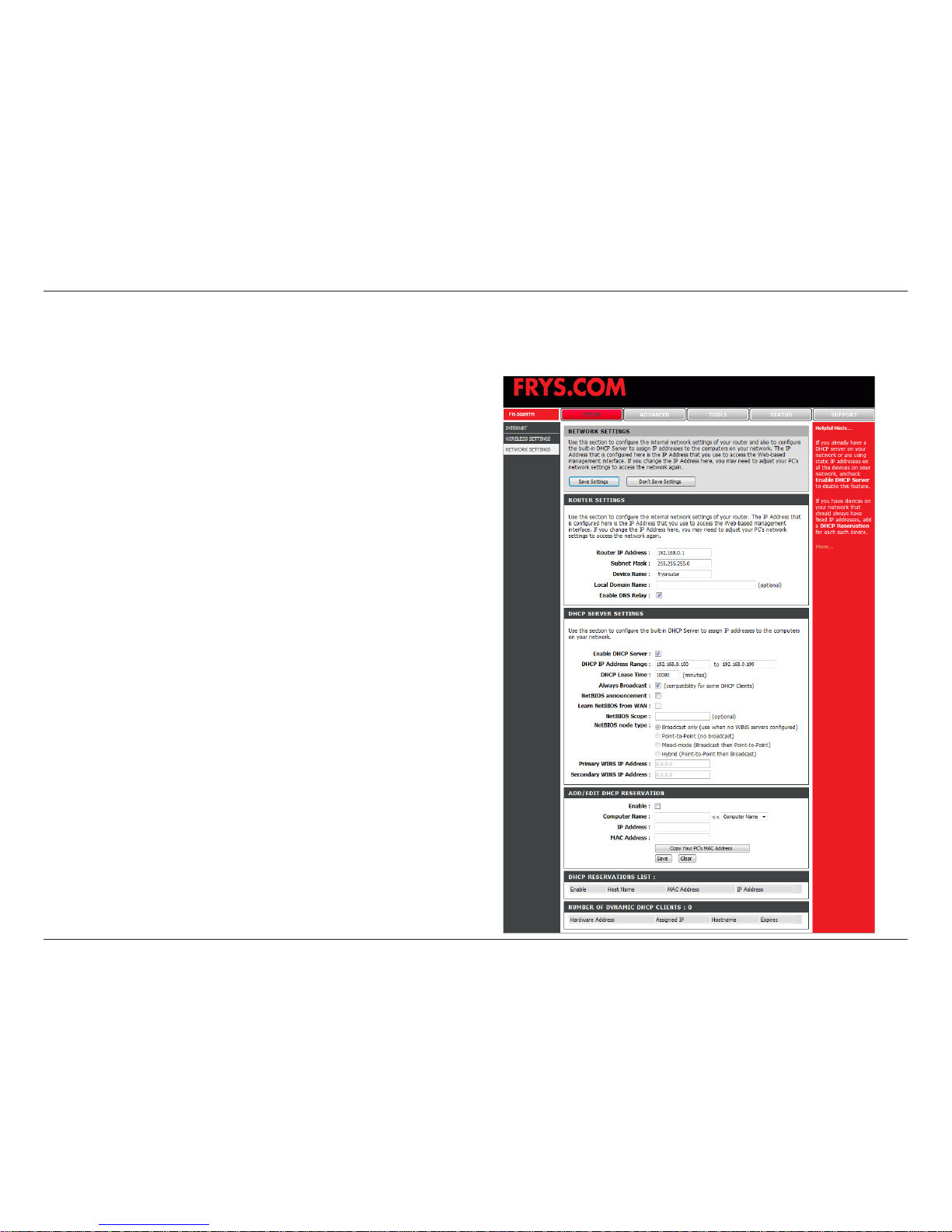

Network Settings .............................................. 30

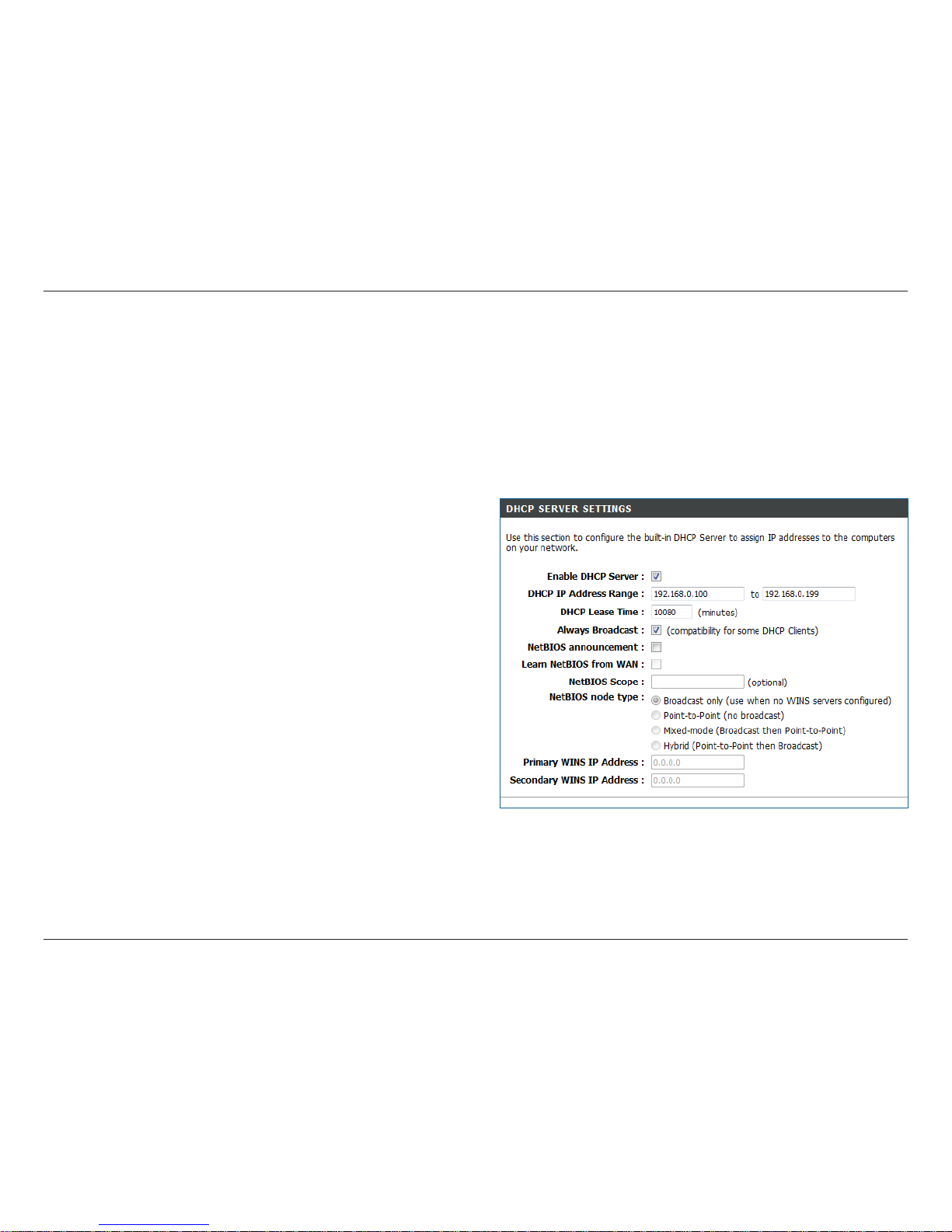

DHCP Server Settings .................................31

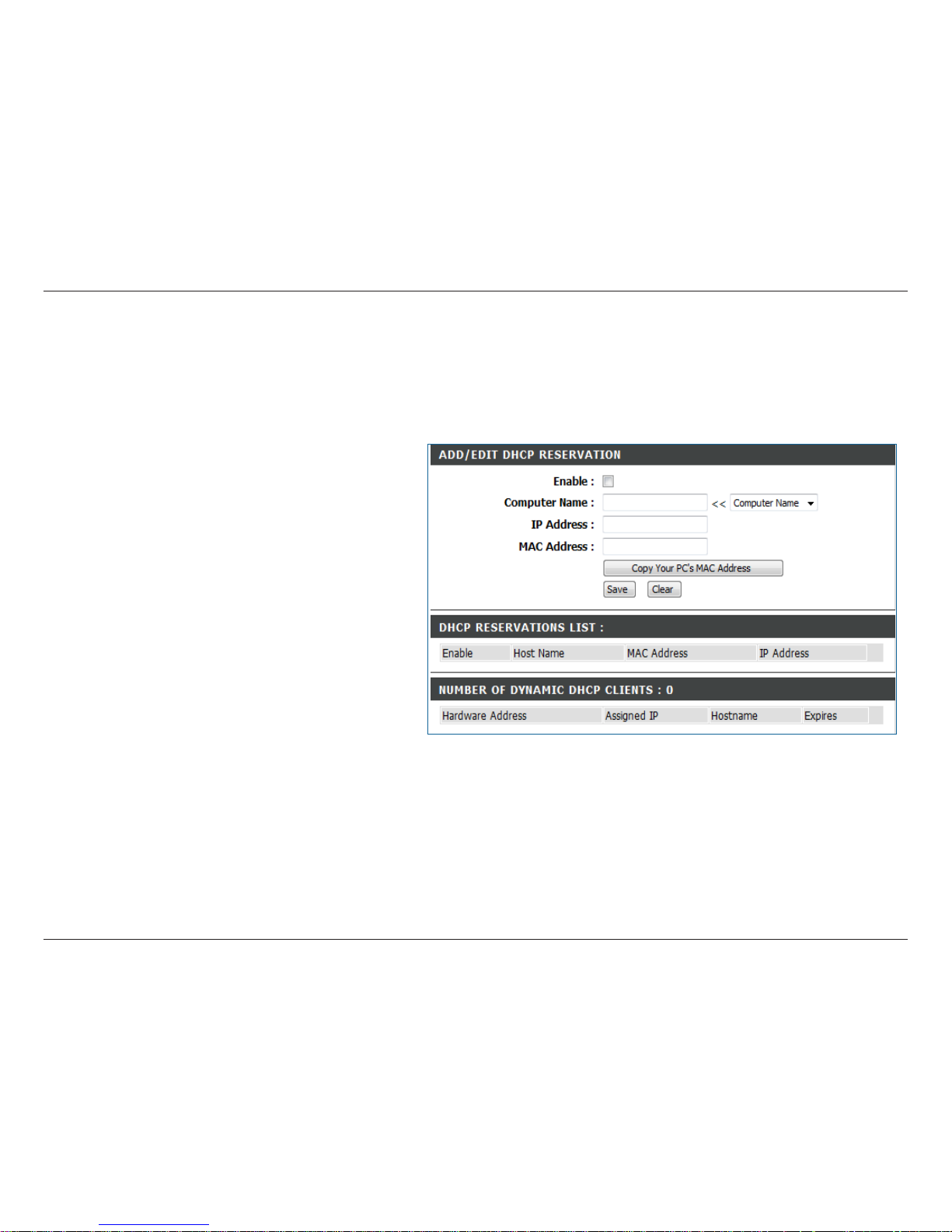

DHCP Reservation .......................................32

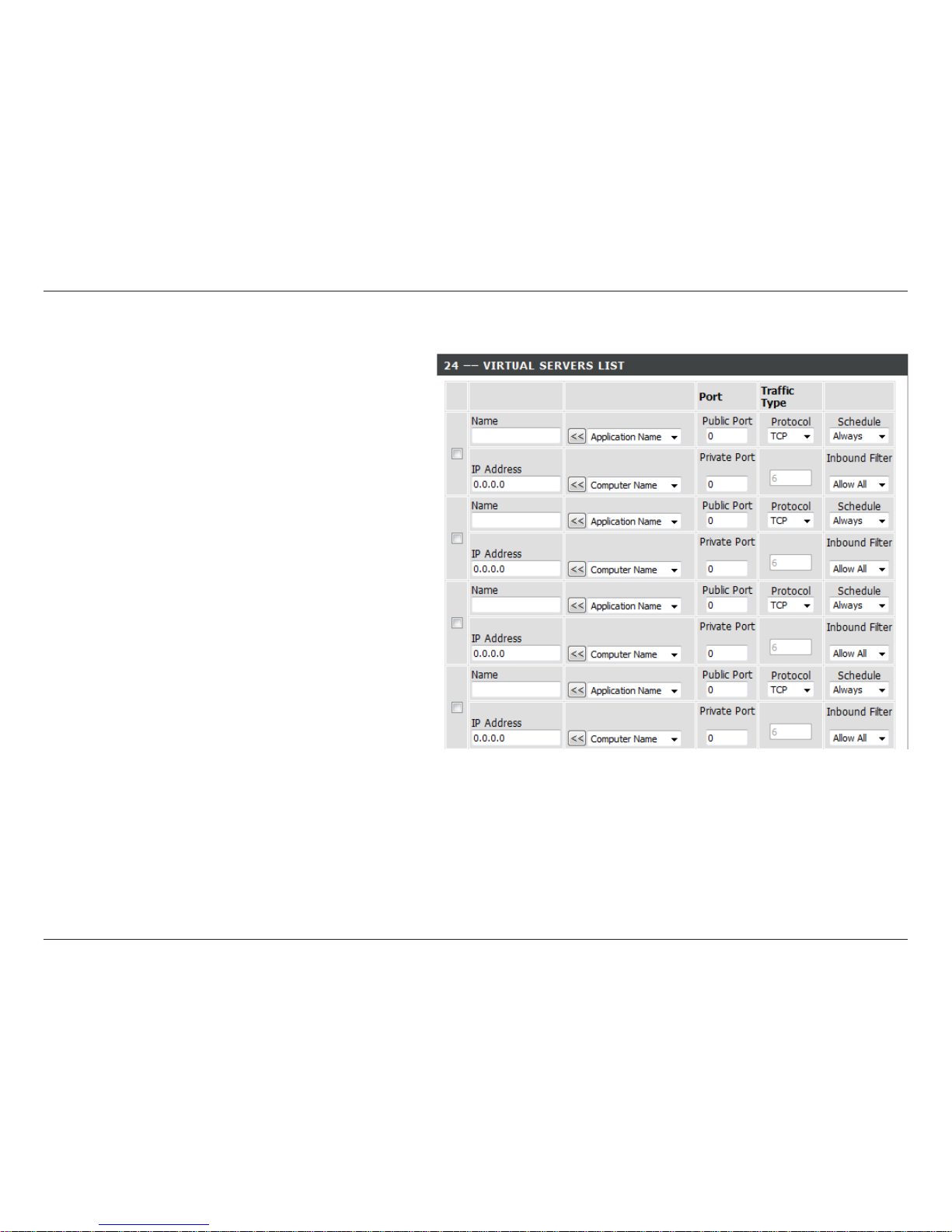

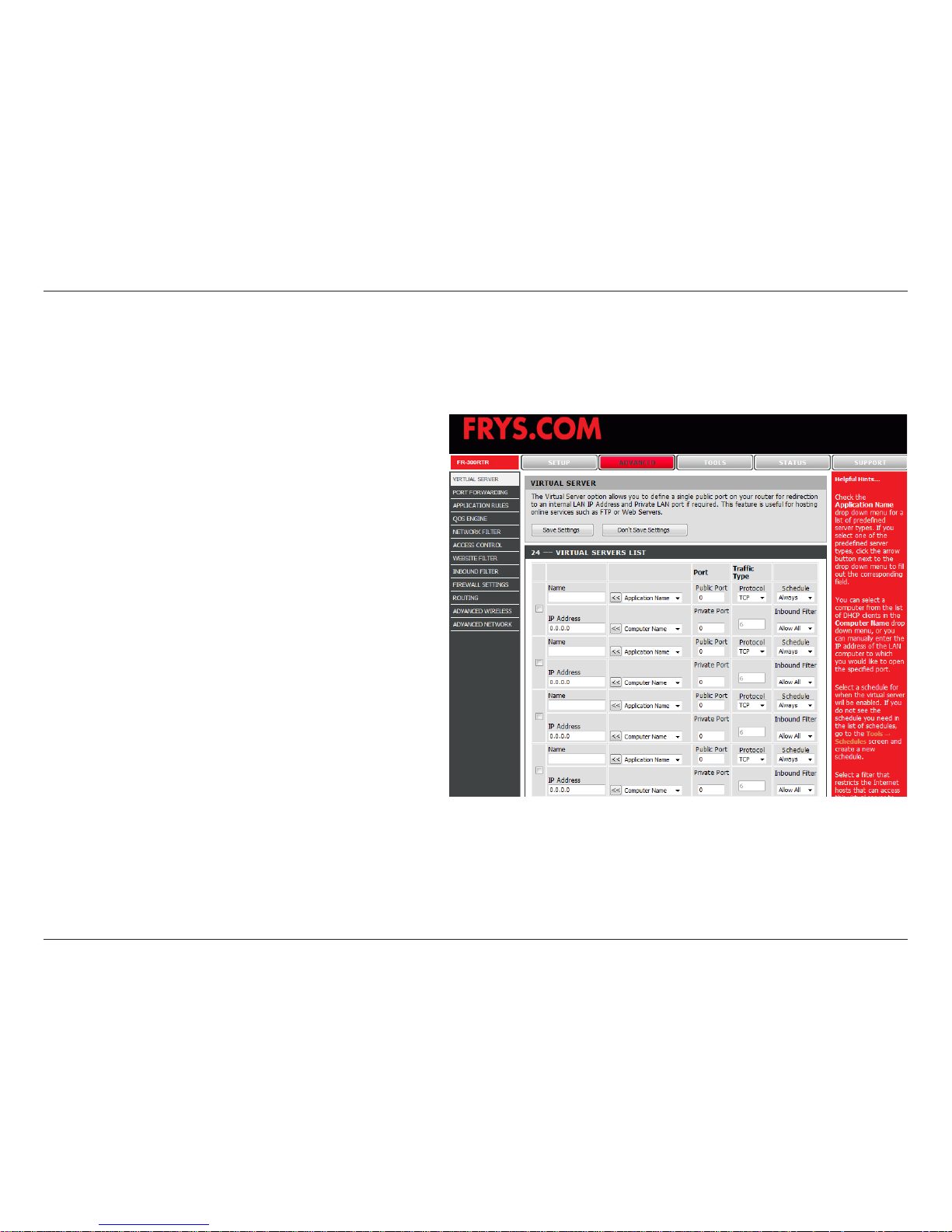

Virtual Server ...................................................34

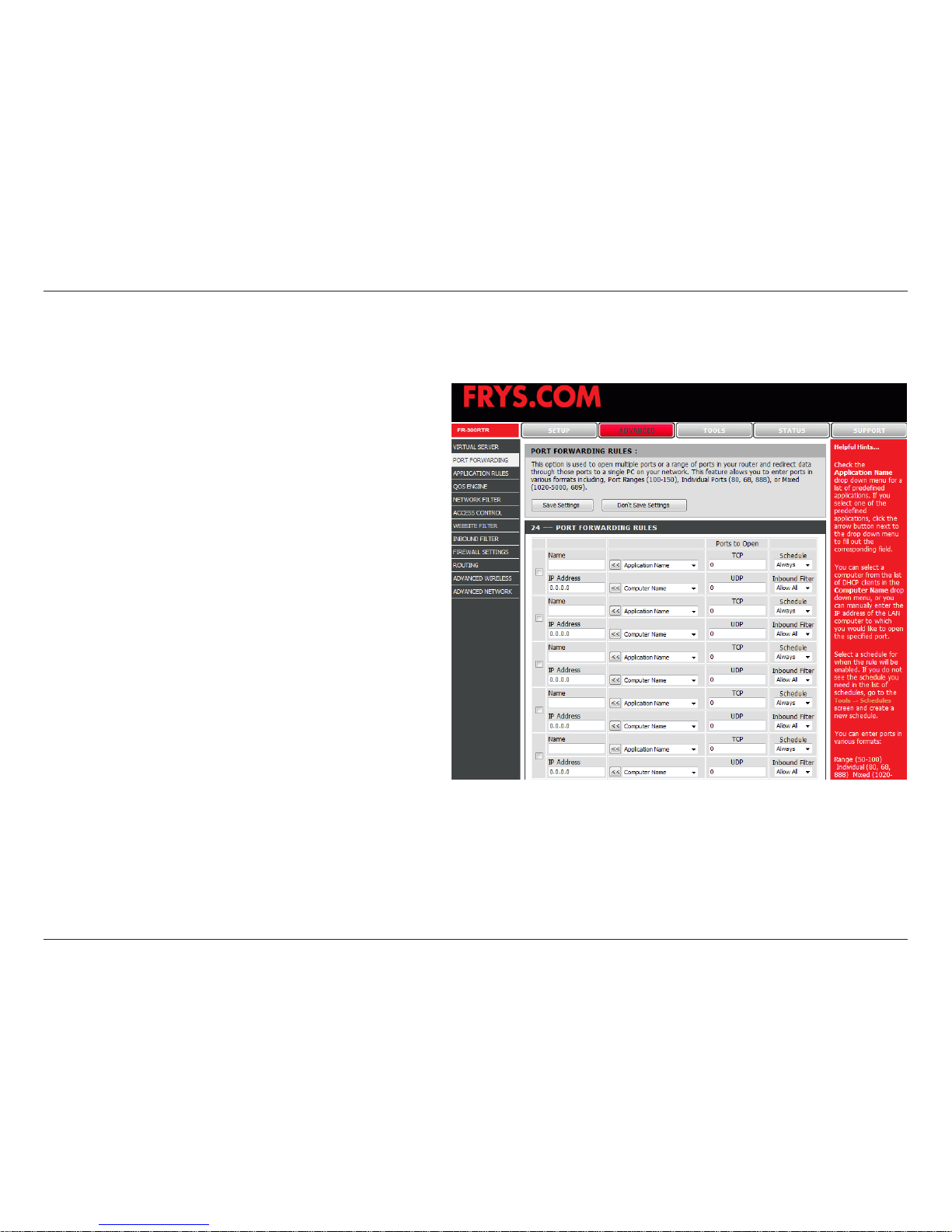

Port Forwarding ............................................... 36

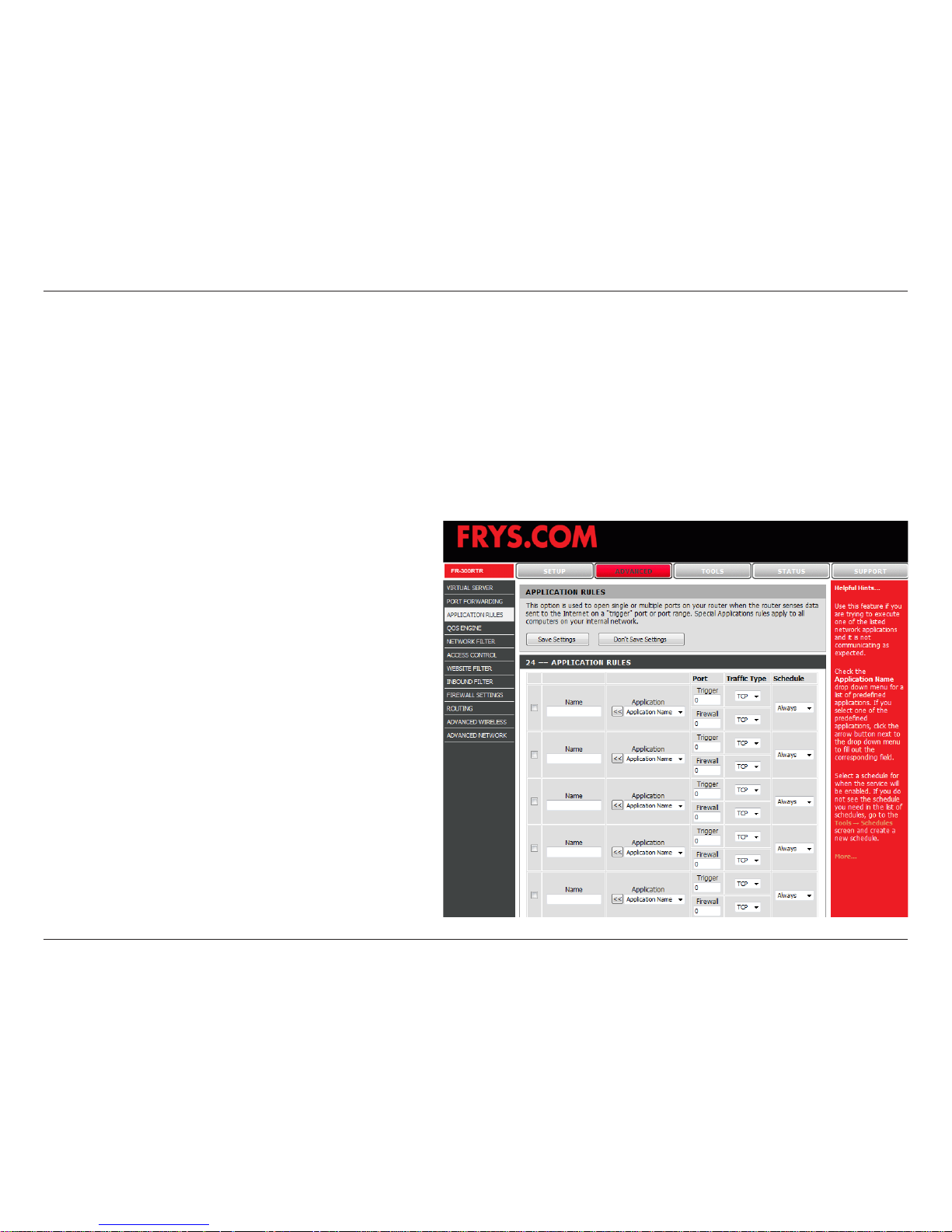

Application Rules .............................................37

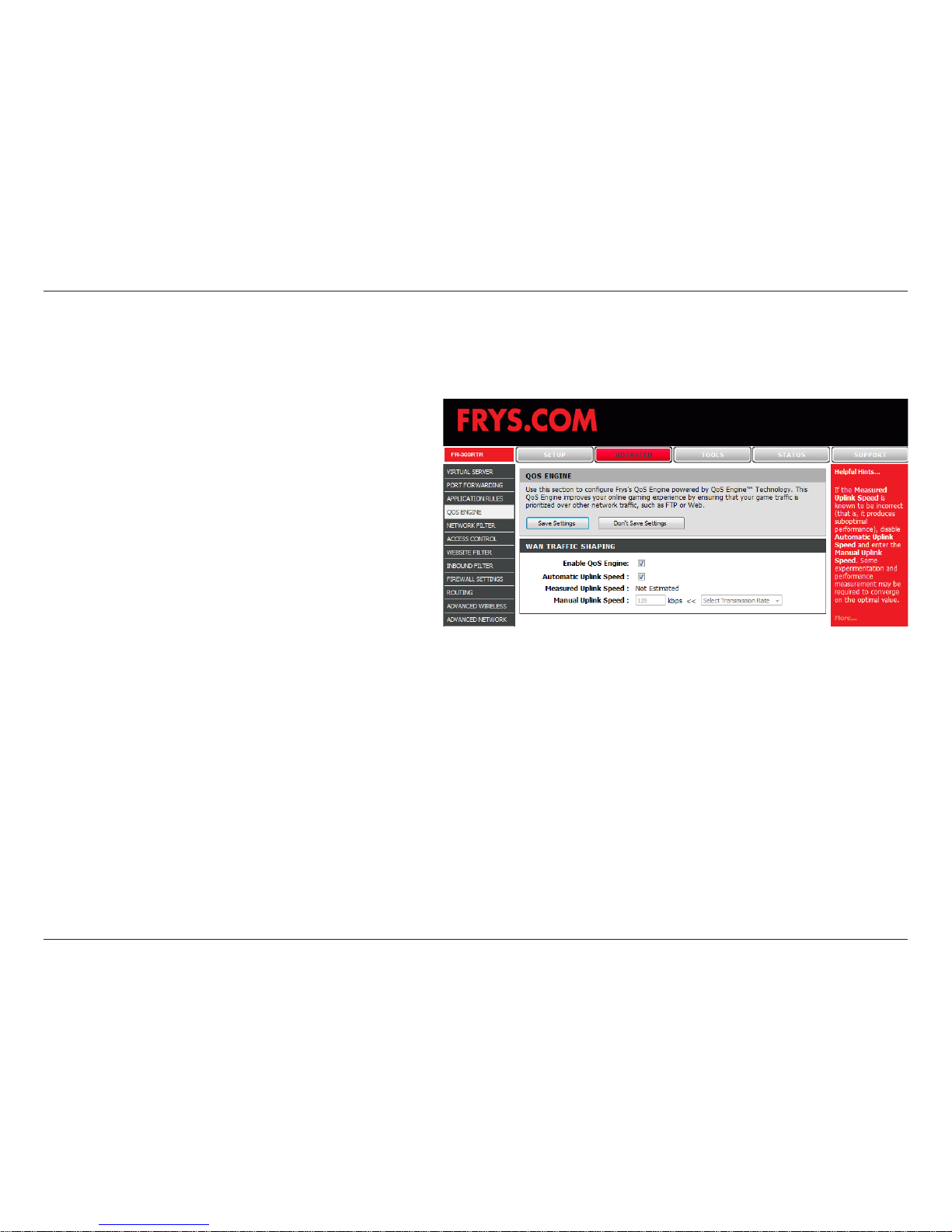

QoS Engine .....................................................38

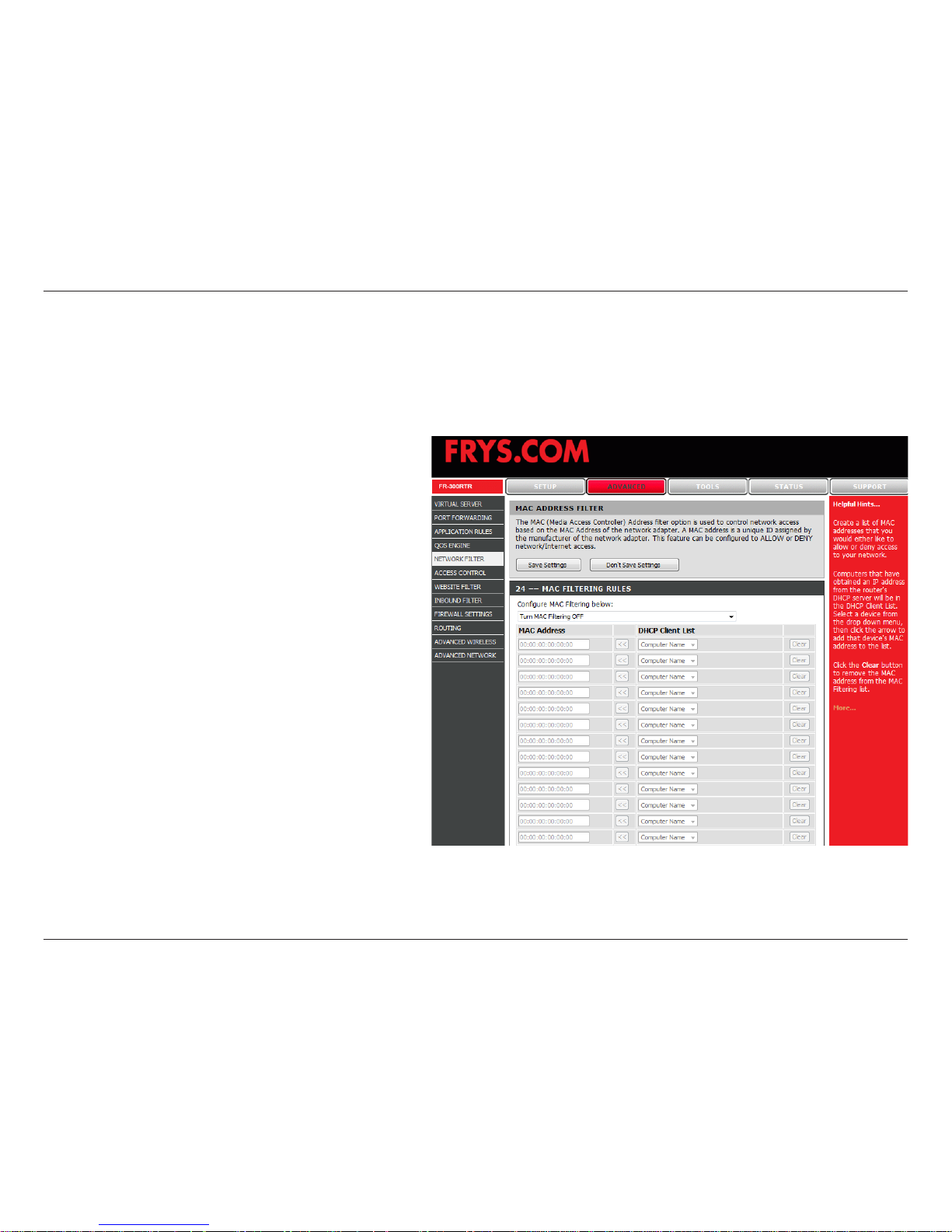

Network Filters ................................................. 39

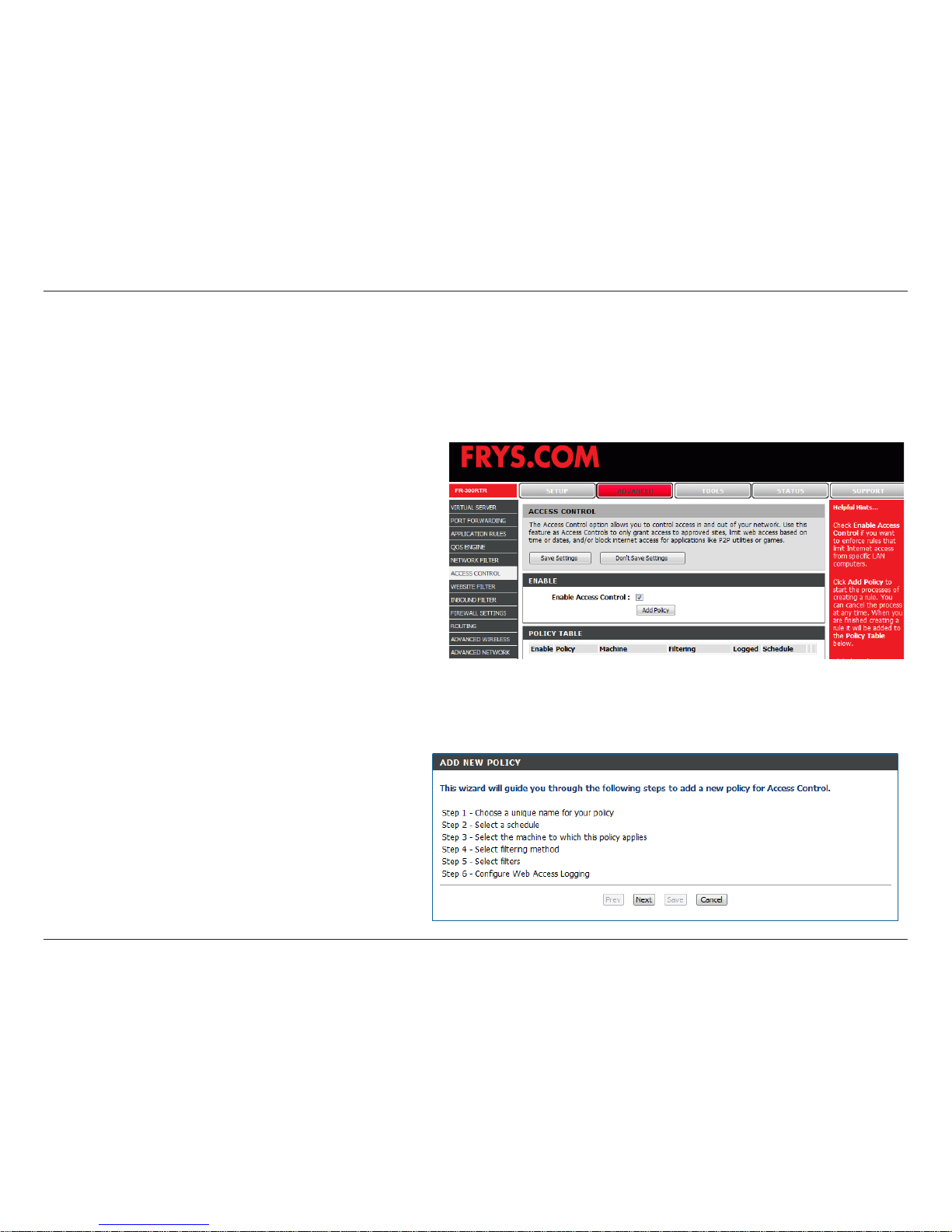

Access Control ................................................. 40

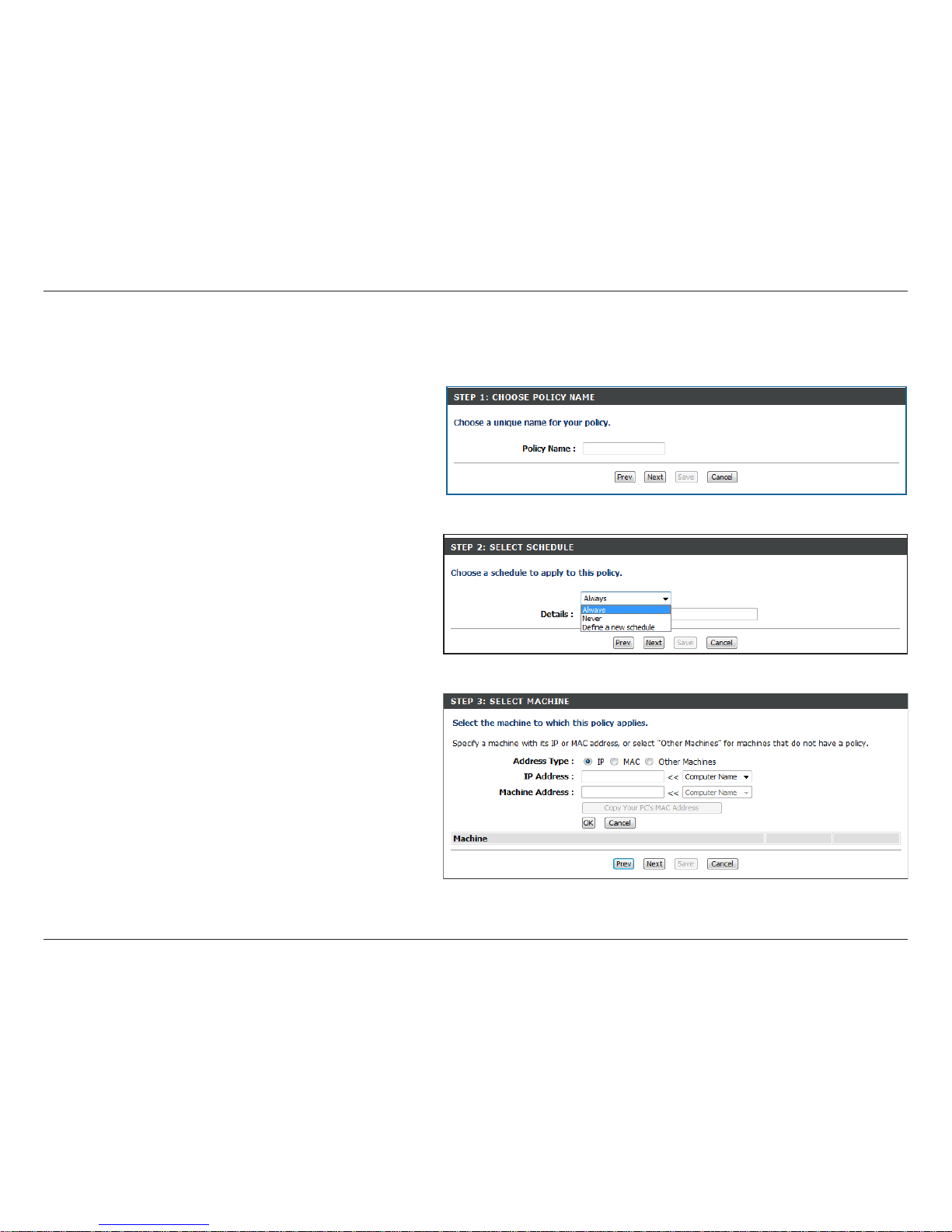

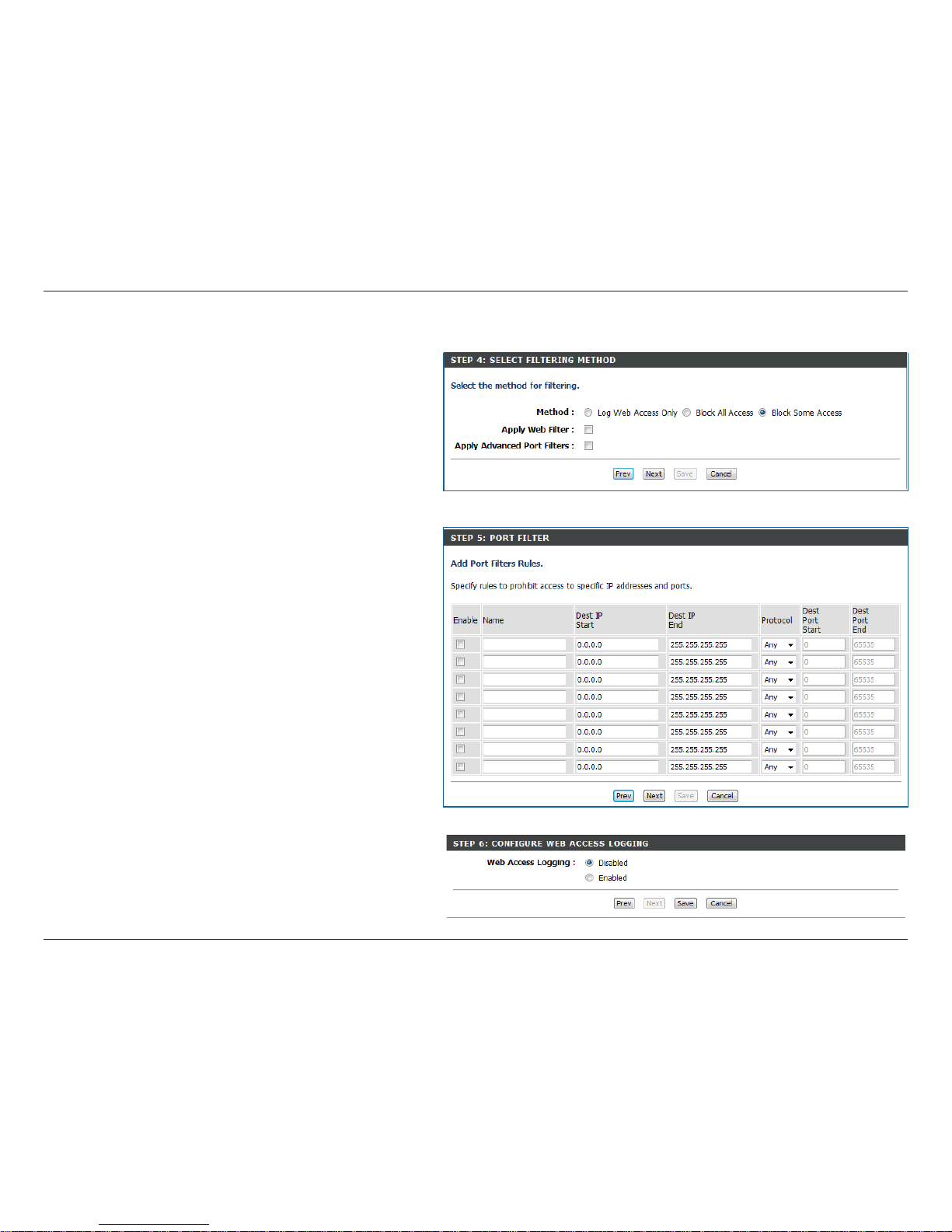

Access Control Wizard ................................. 40

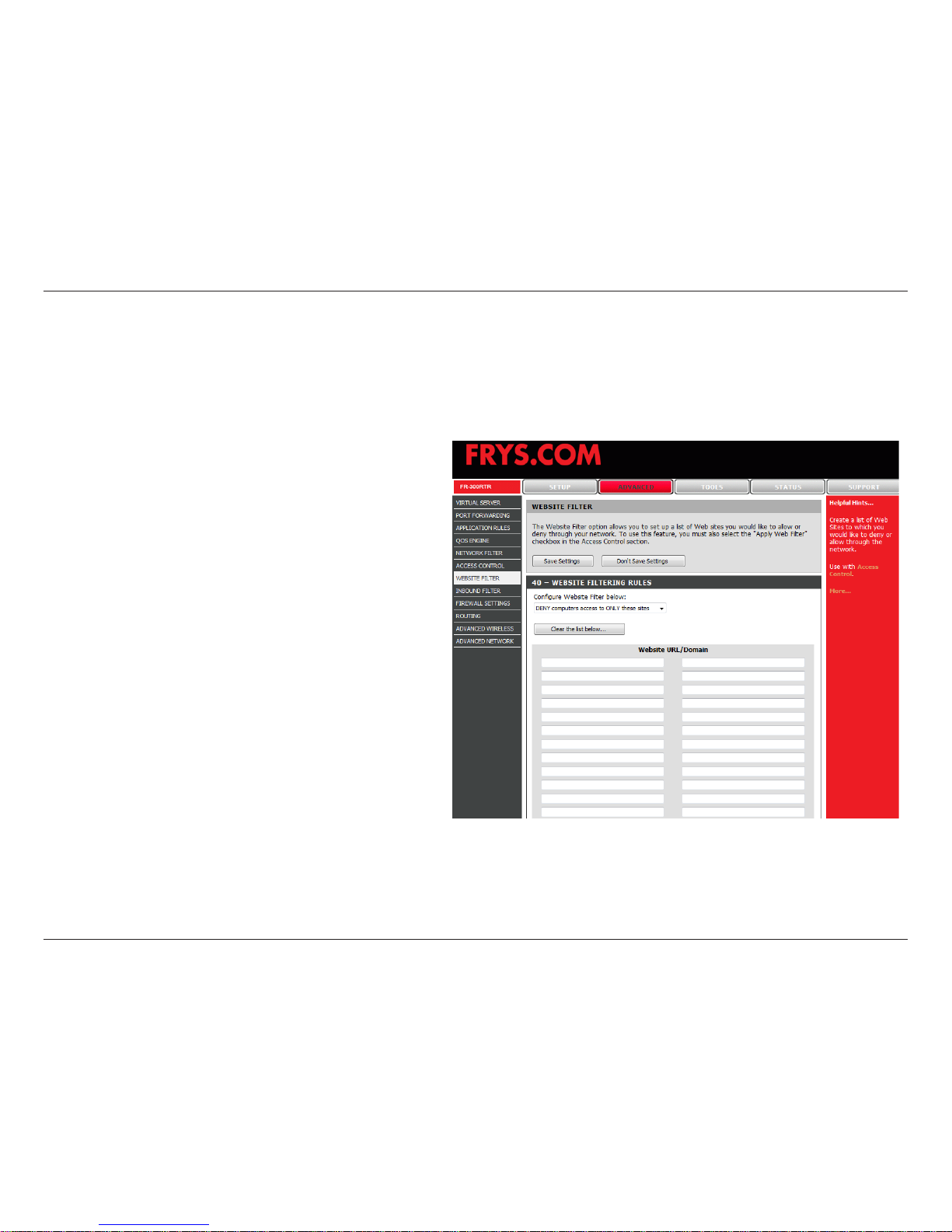

Website Filters ................................................. 43

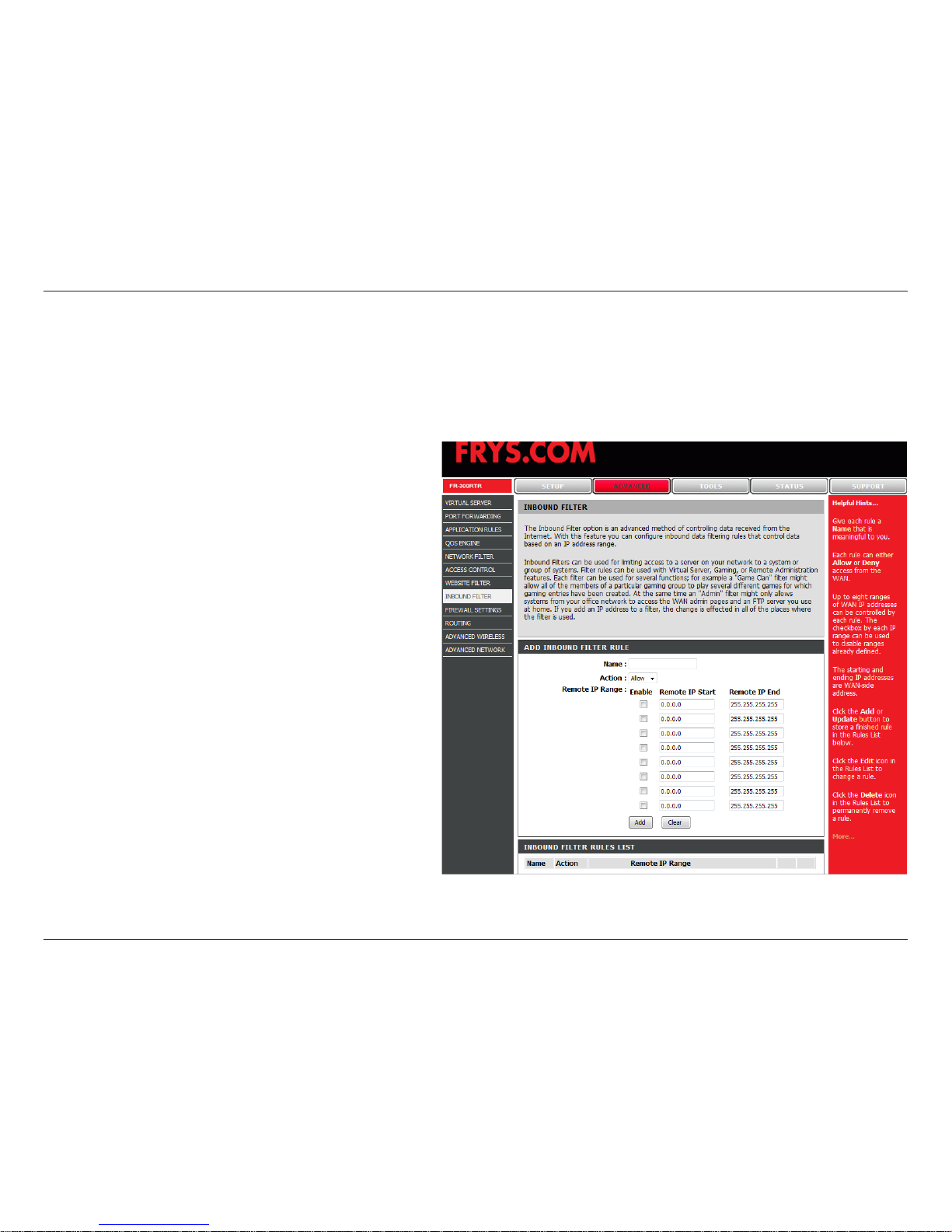

Inbound Filters .................................................44

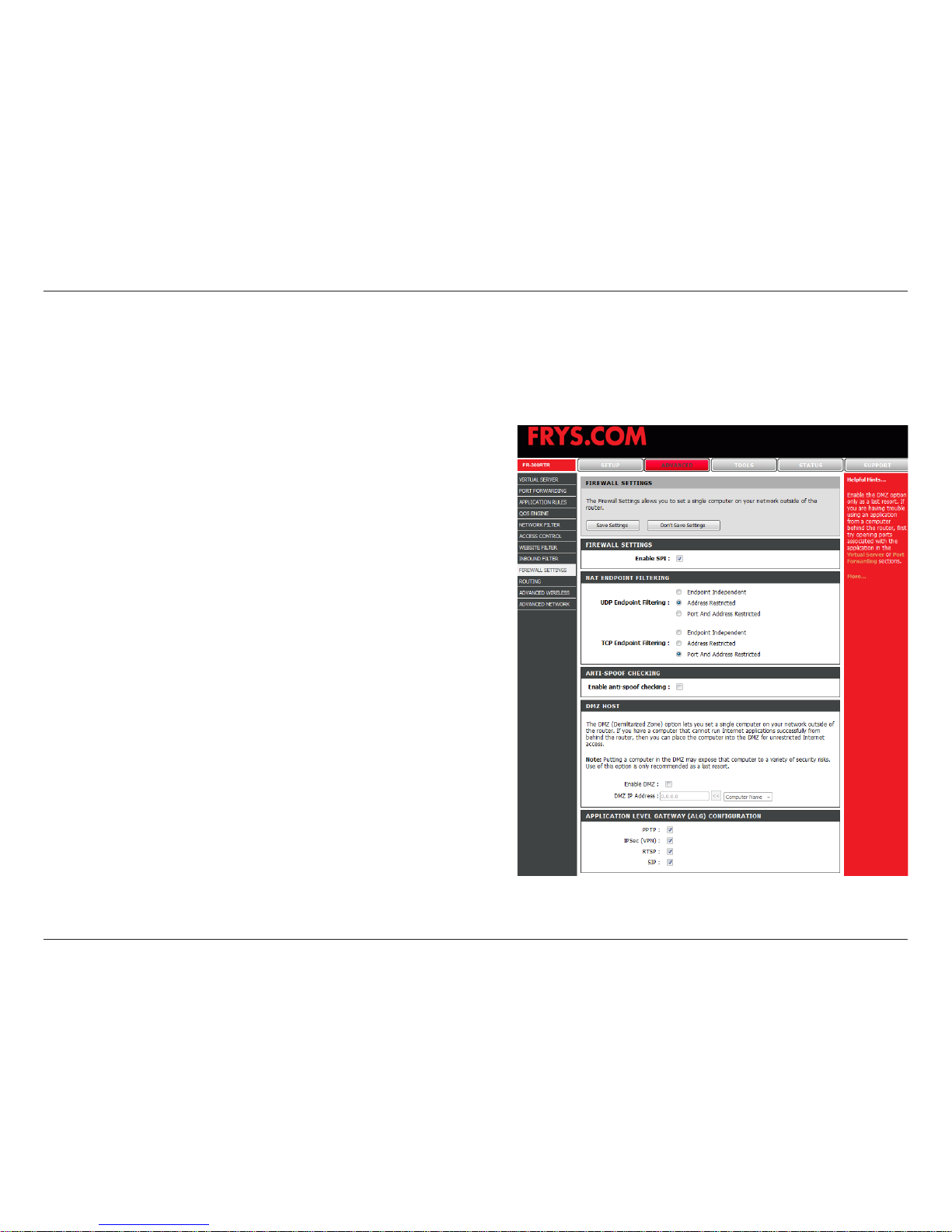

Firewall Settings ...............................................45

Application Level Gateway (ALG)

Conﬁguration....................................................46

VPN Passthrough ......................................... 46

RTSP ............................................................ 46

H.323 ............................................................ 46

SIP (VoIP) ..................................................... 46

MMS .............................................................46

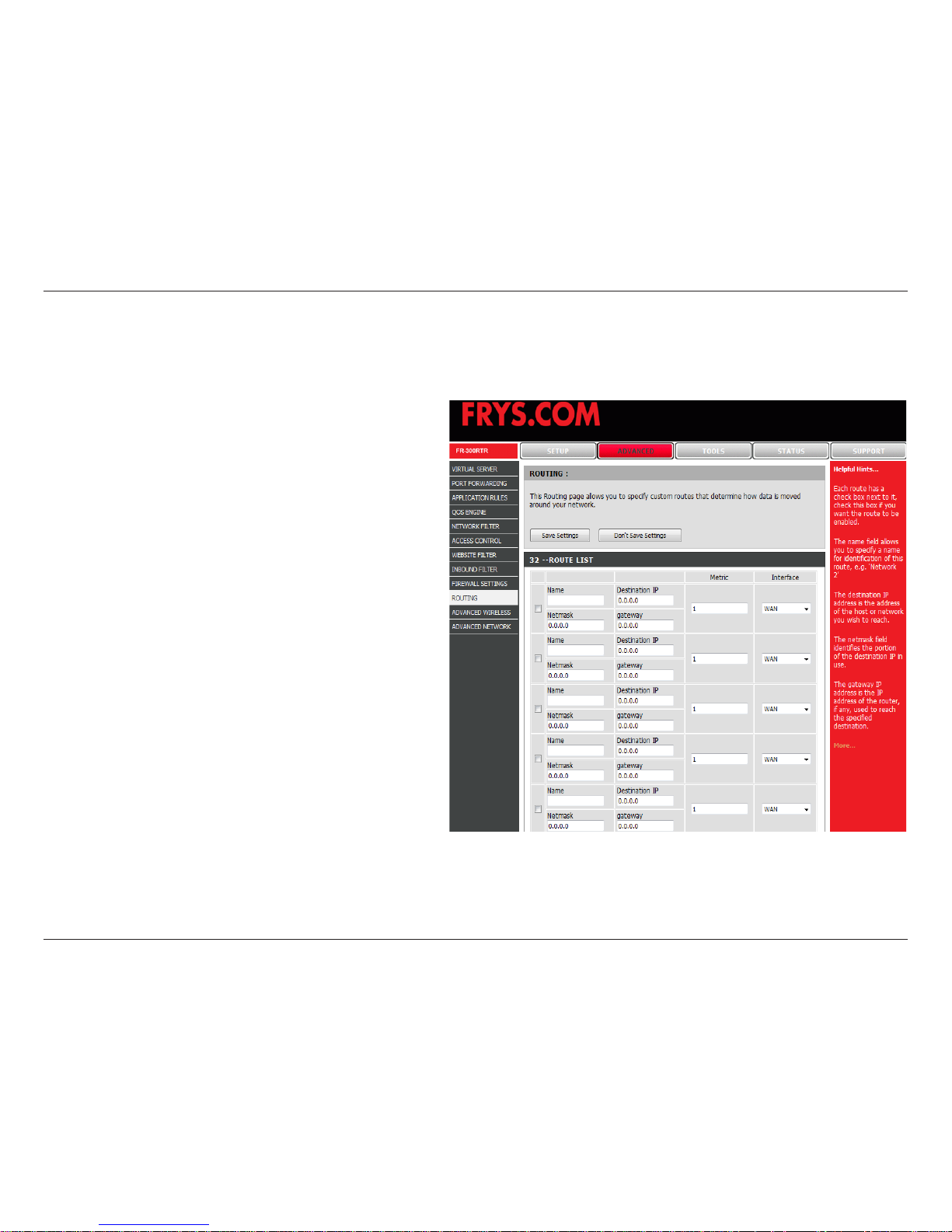

Routing ............................................................47

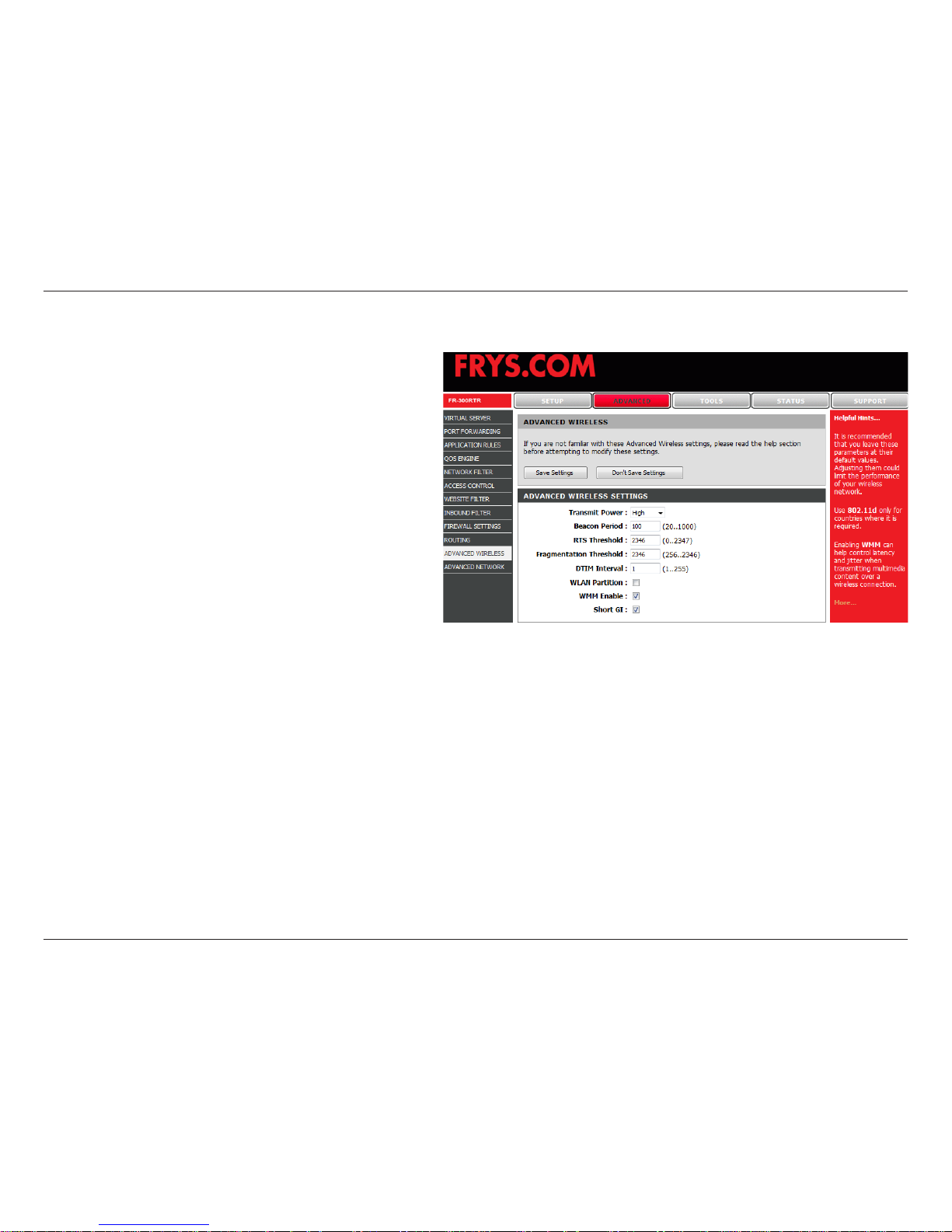

Advanced Wireless Settings ............................48

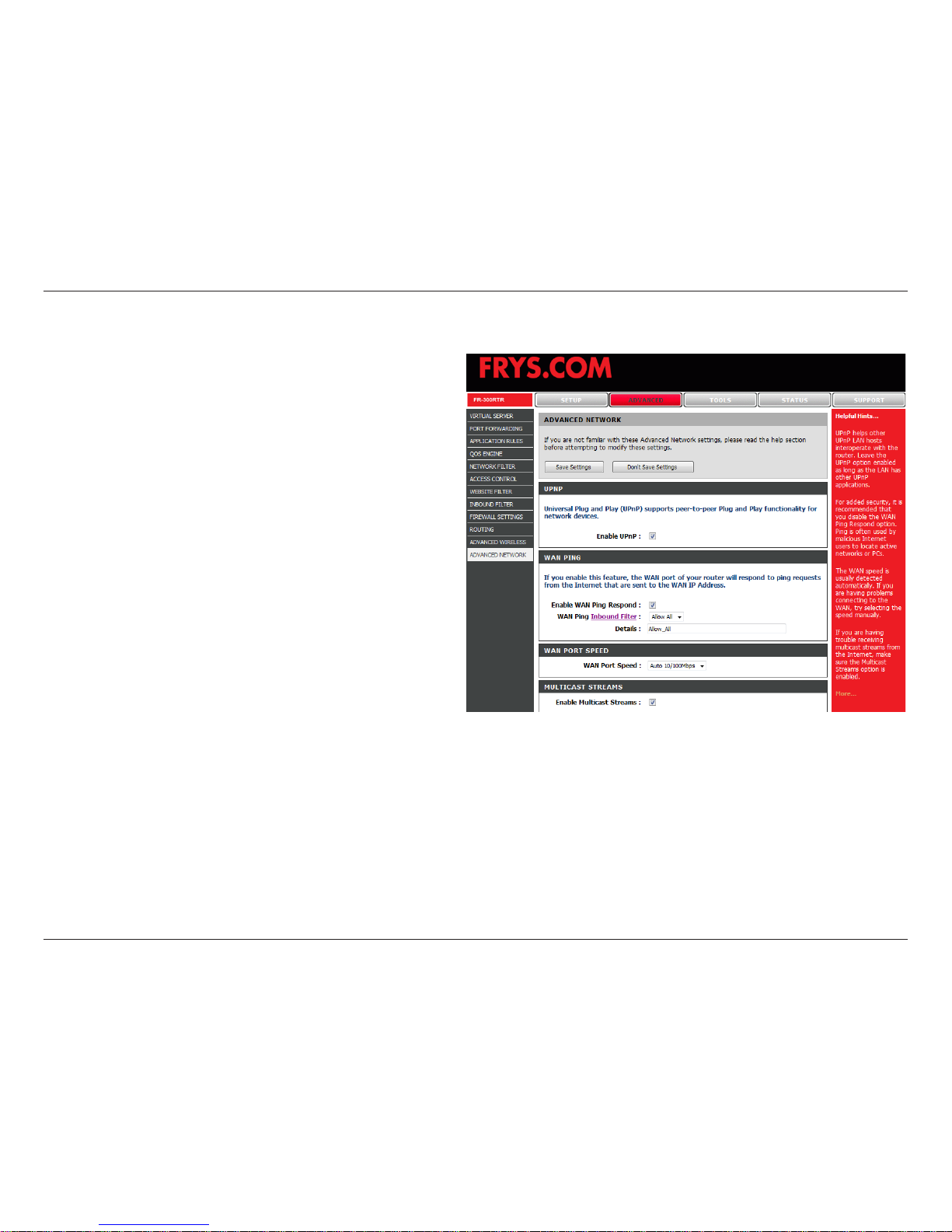

Advanced Network Settings ............................. 49

Table of Contents

Page 4

iiiFR-300RTR User Manual

Table of Contents

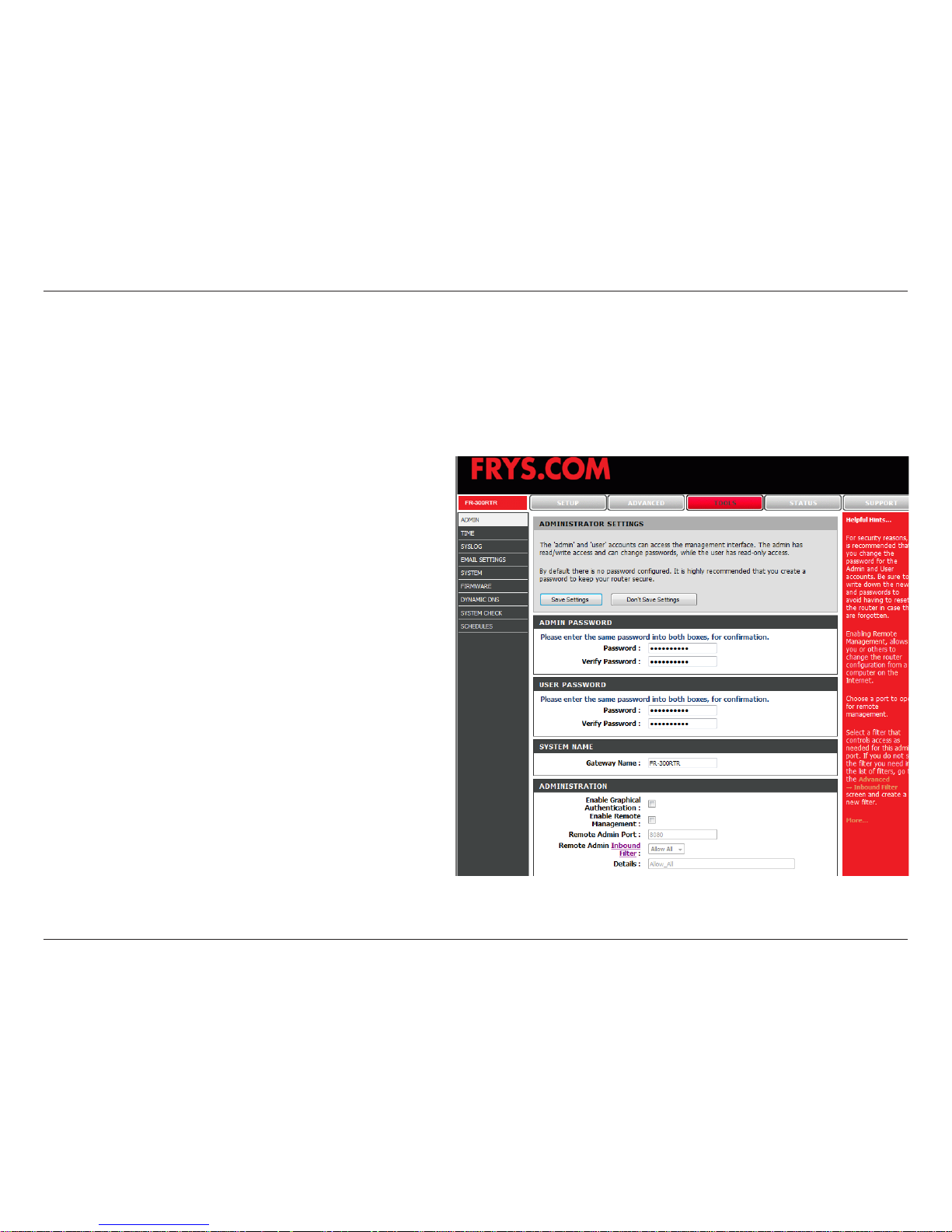

Administrator Settings ...................................... 50

Change Password ........................................50

Remote Management ................................... 50

Time Settings ................................................... 52

SysLog ............................................................. 53

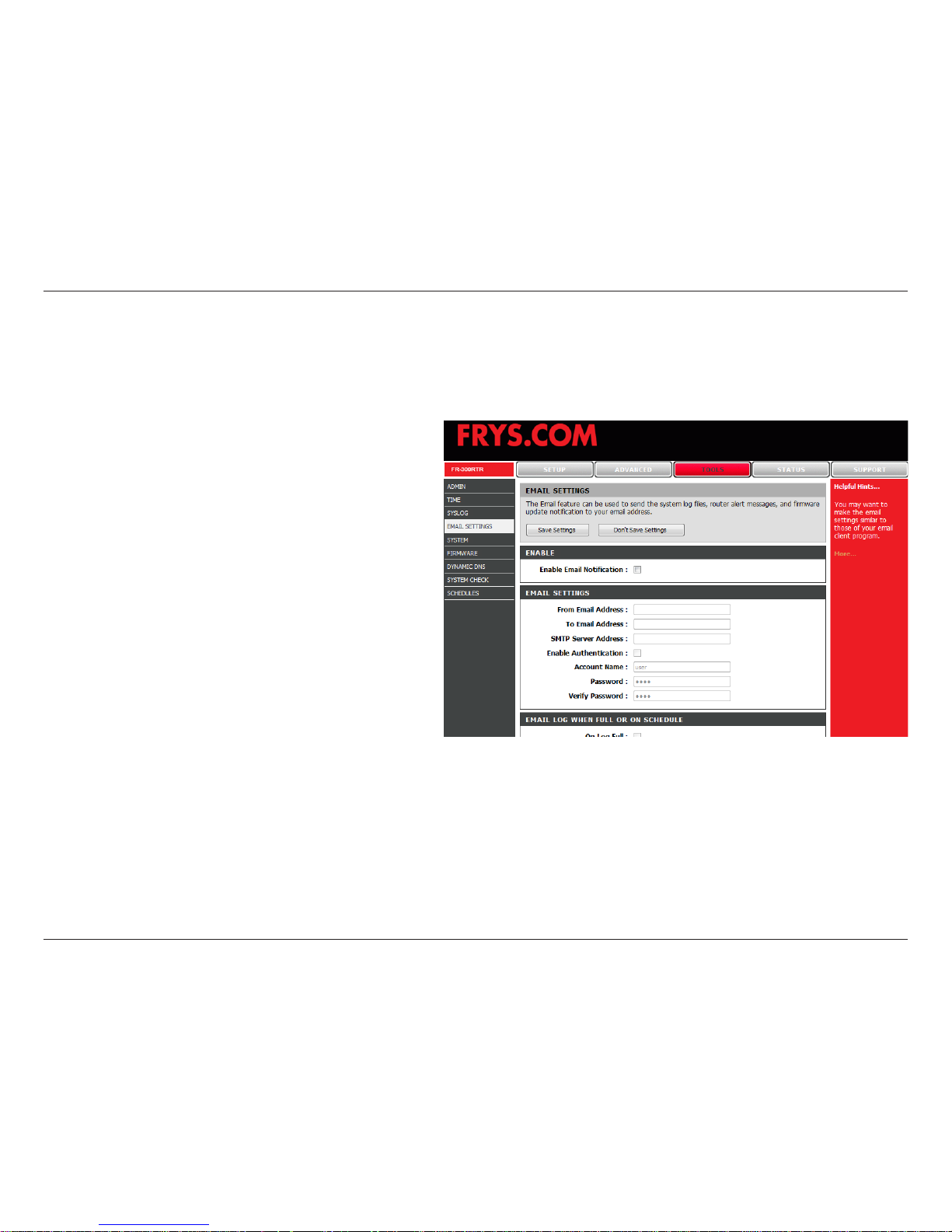

E-mail Settings ................................................. 54

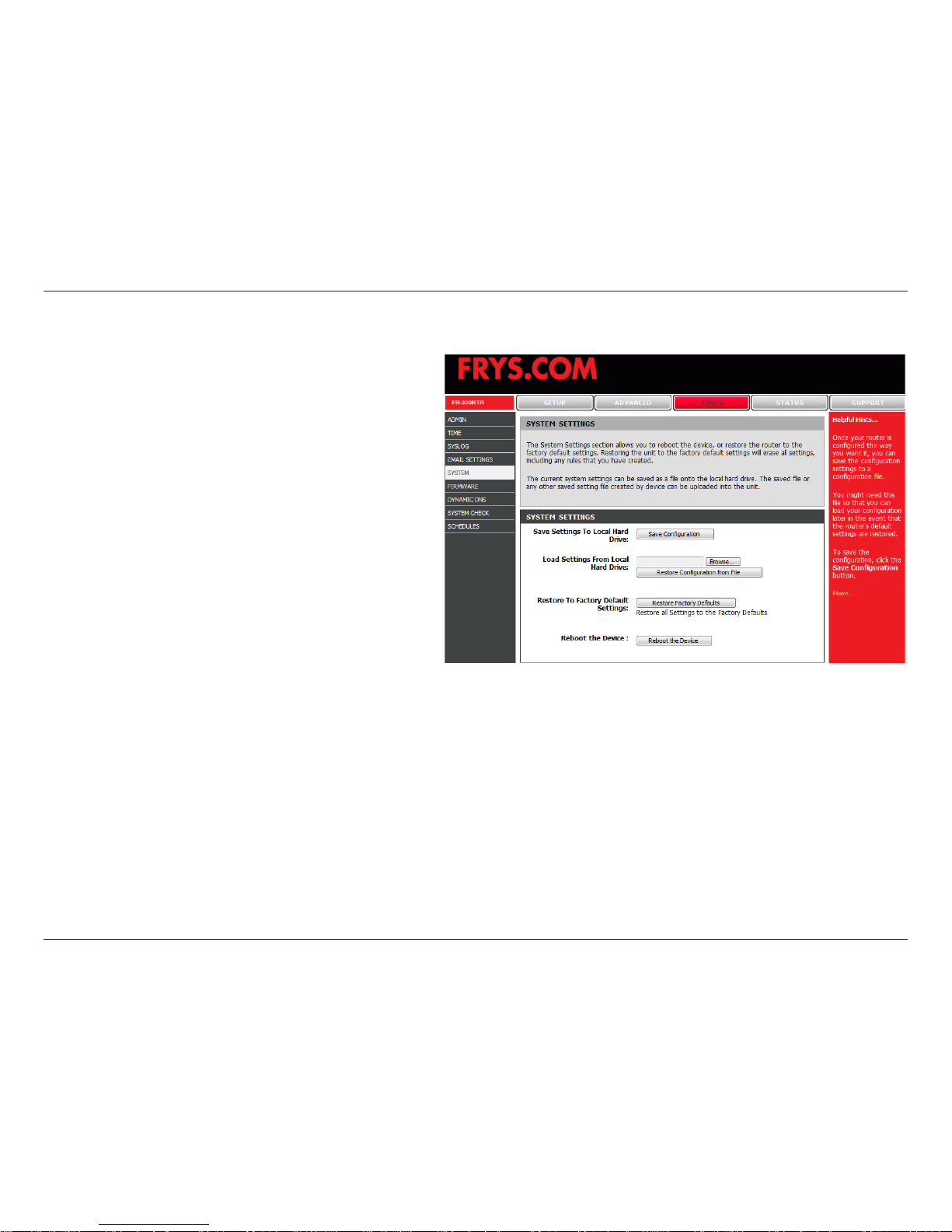

System Settings ............................................... 55

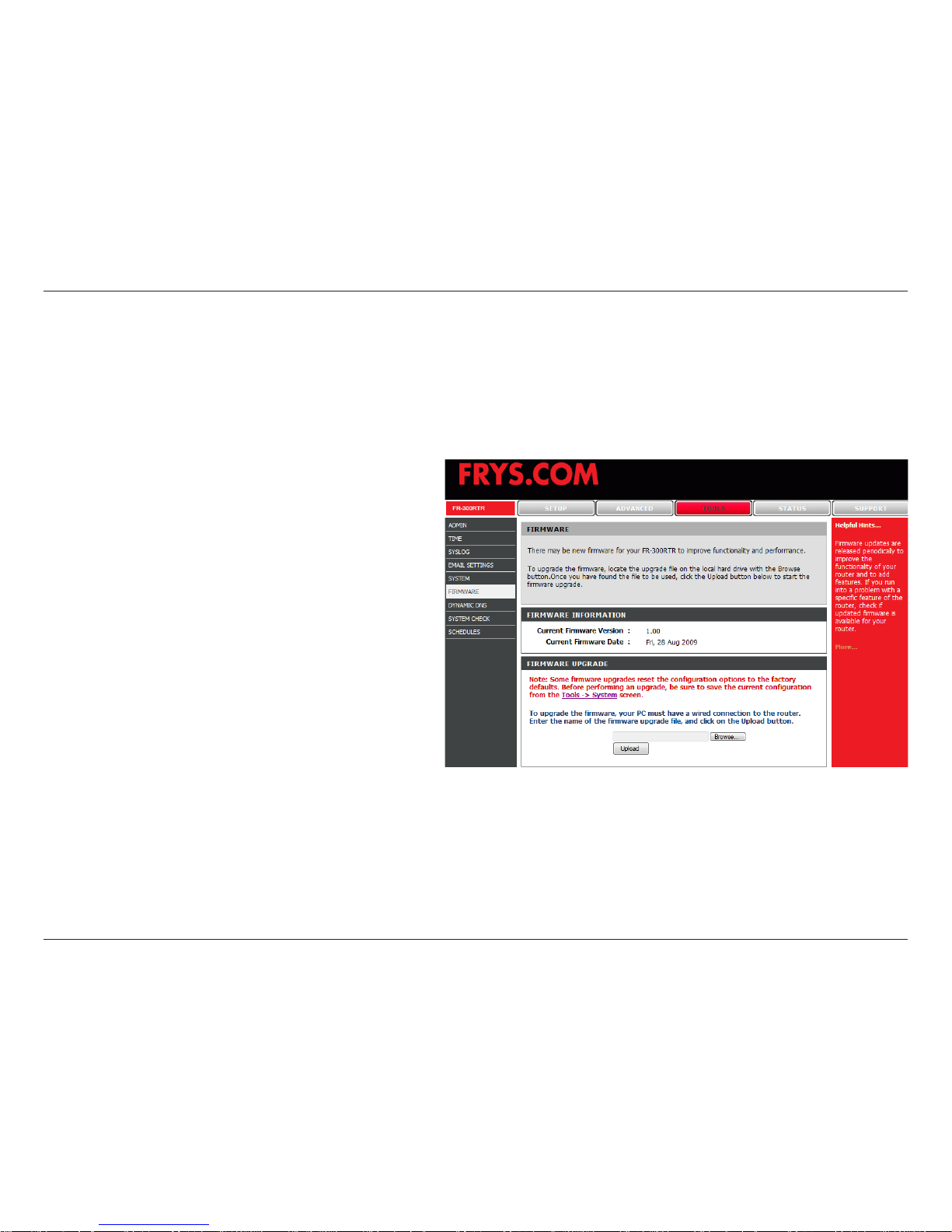

Upgrade Firmware ........................................... 56

DDNS ............................................................... 57

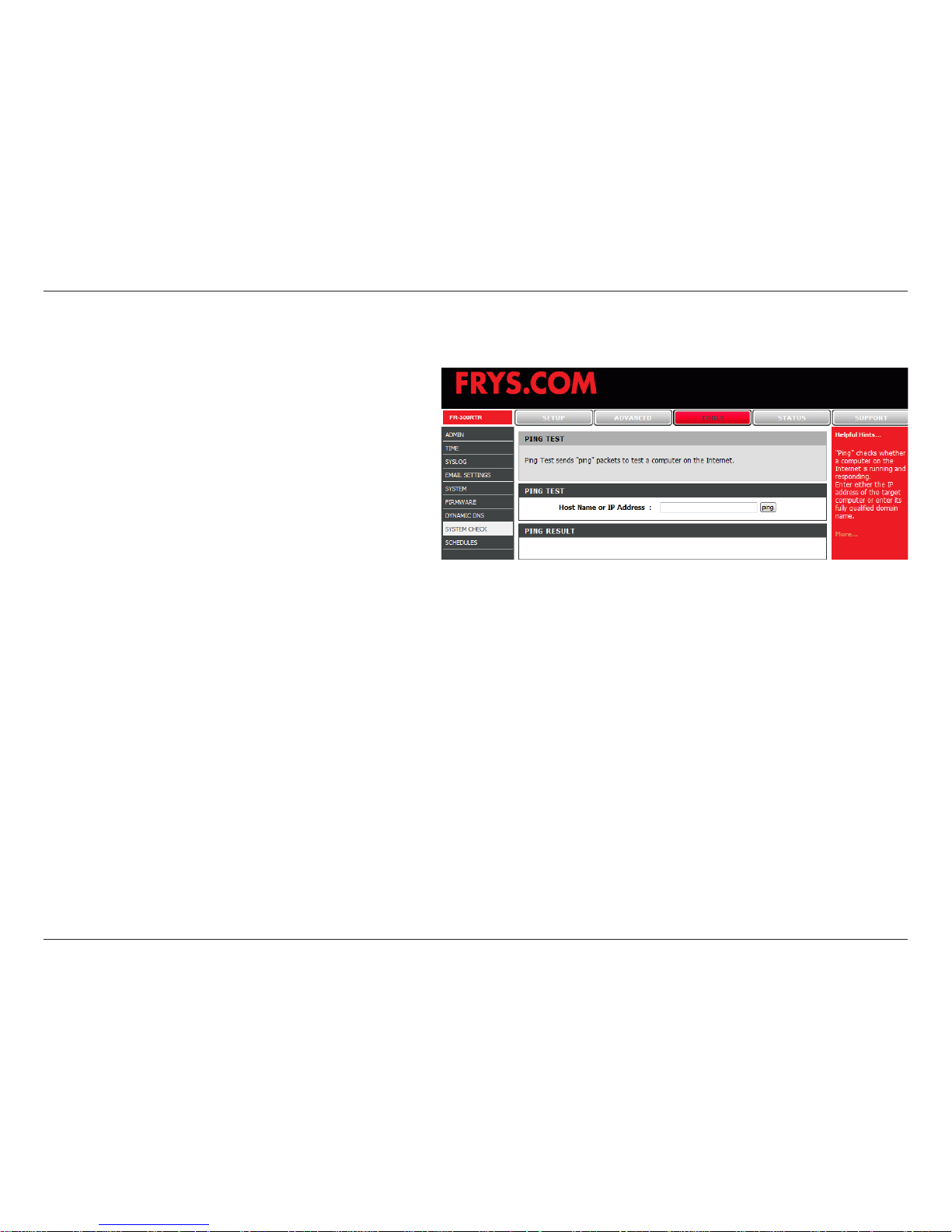

System Check .................................................. 58

Schedules ........................................................59

Device Information ........................................... 60

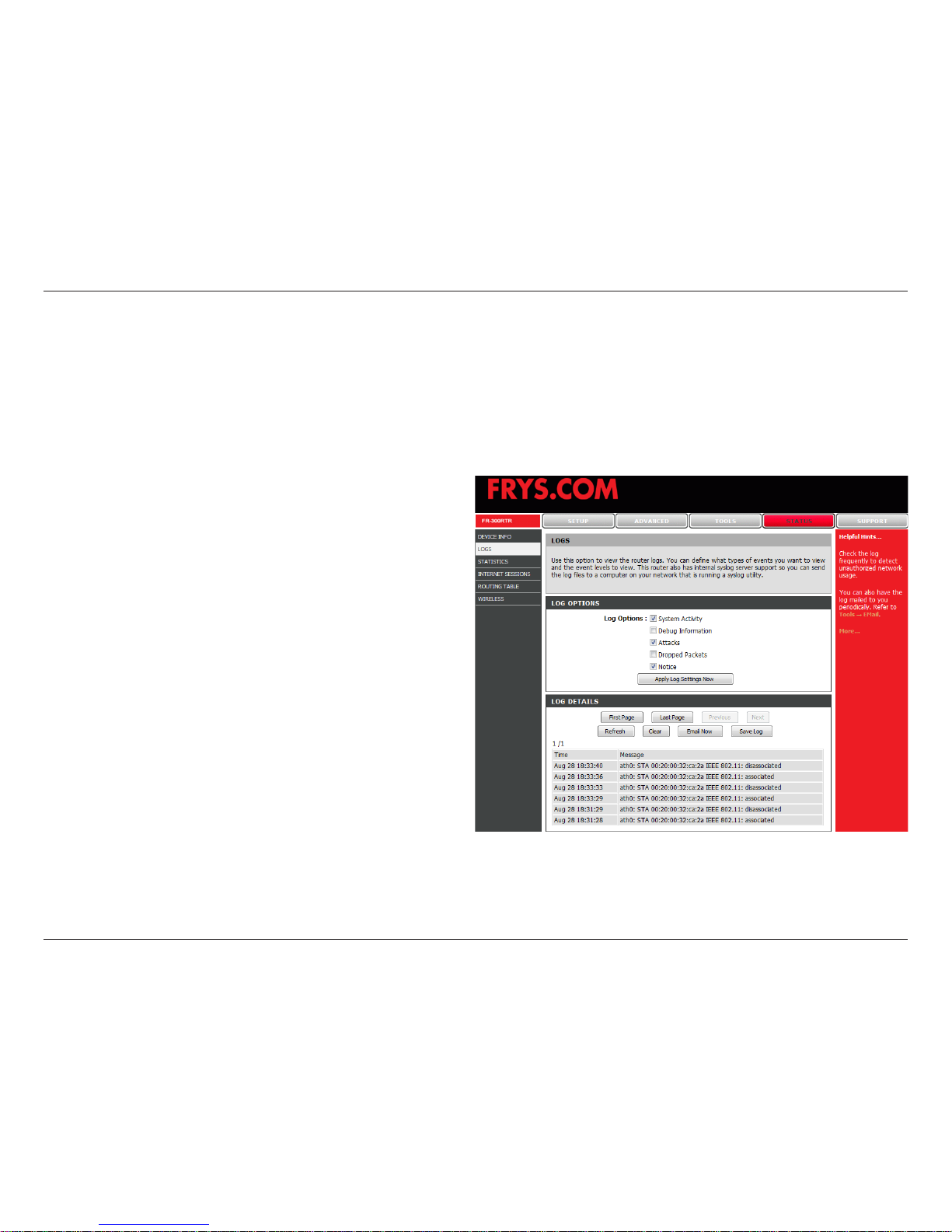

Log ................................................................... 61

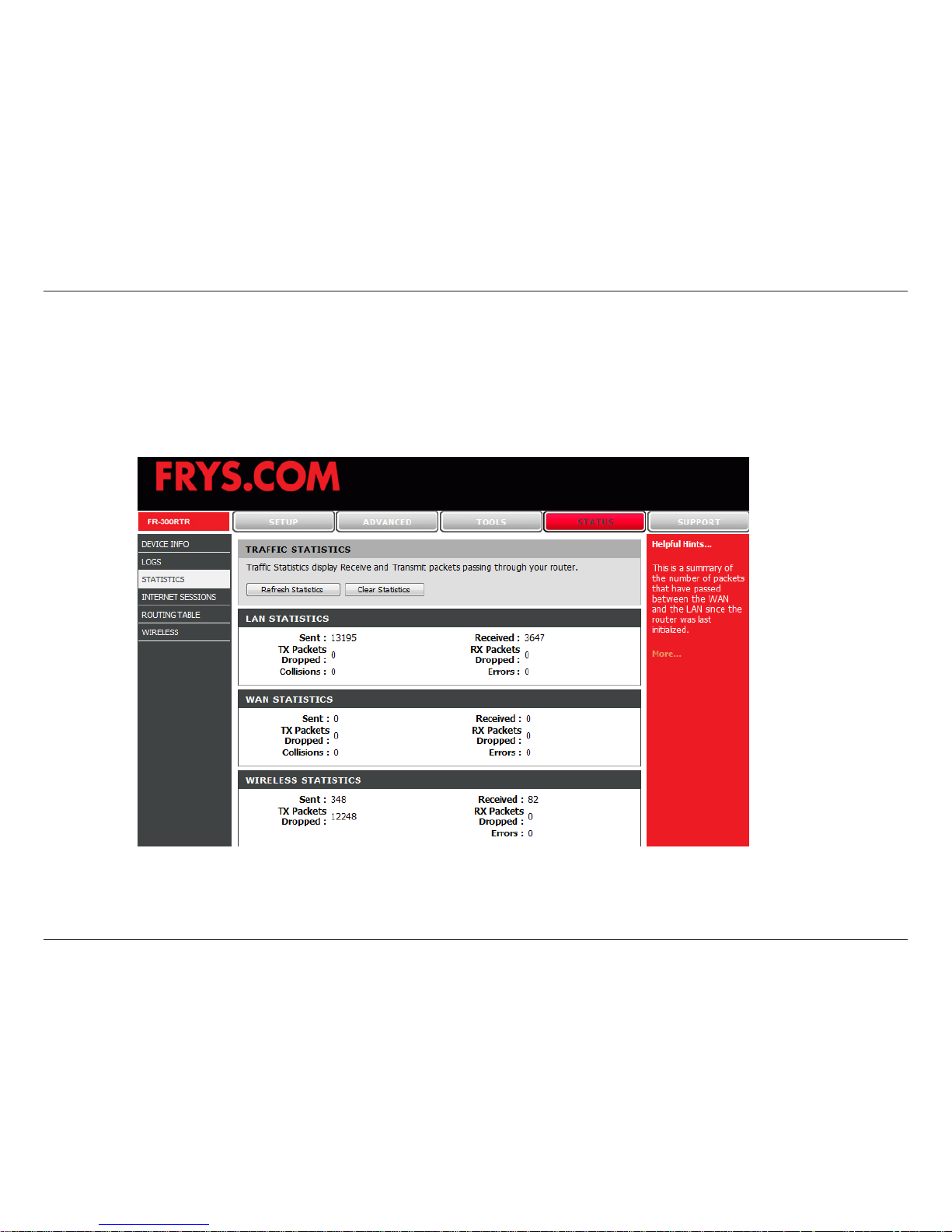

Stats ................................................................. 62

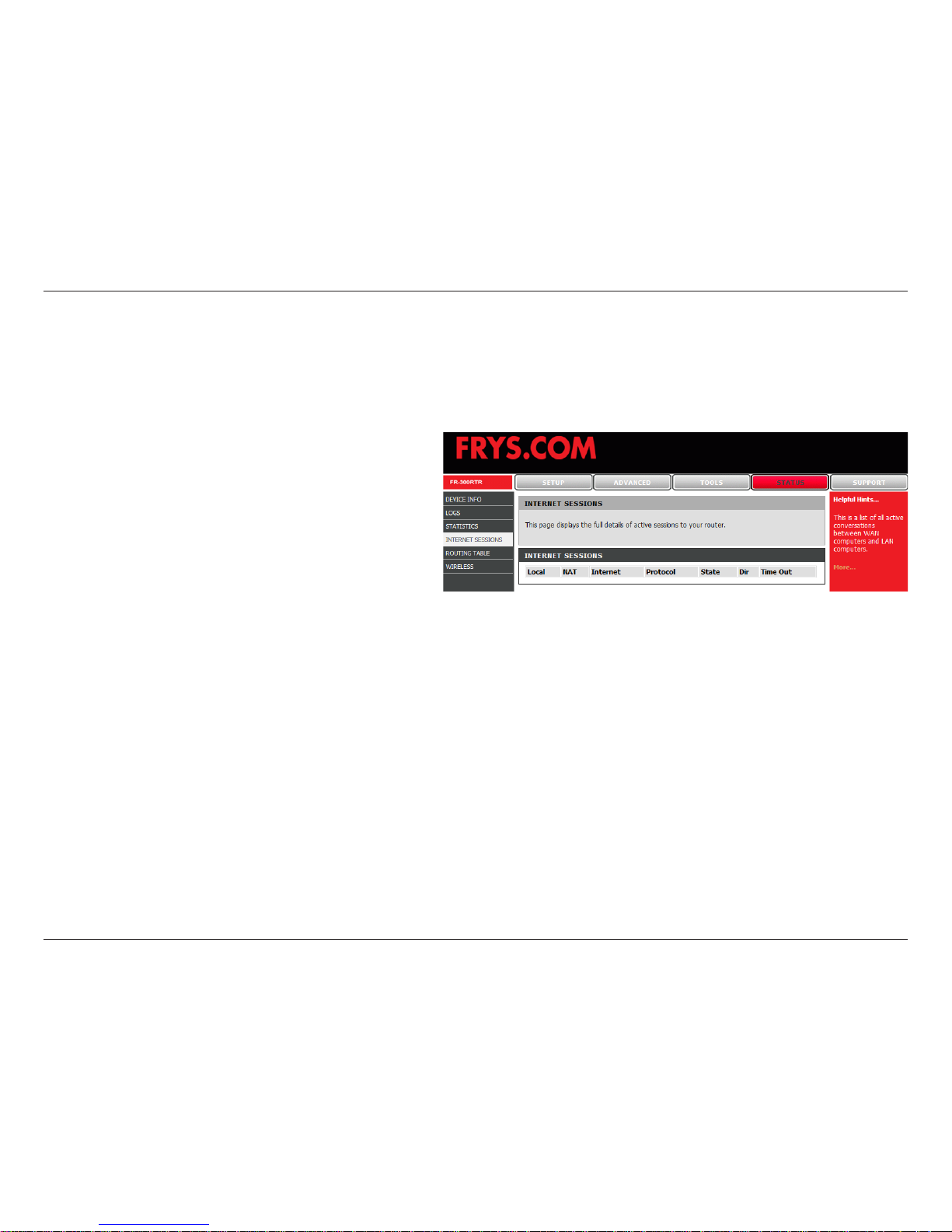

Internet Sessions .............................................63

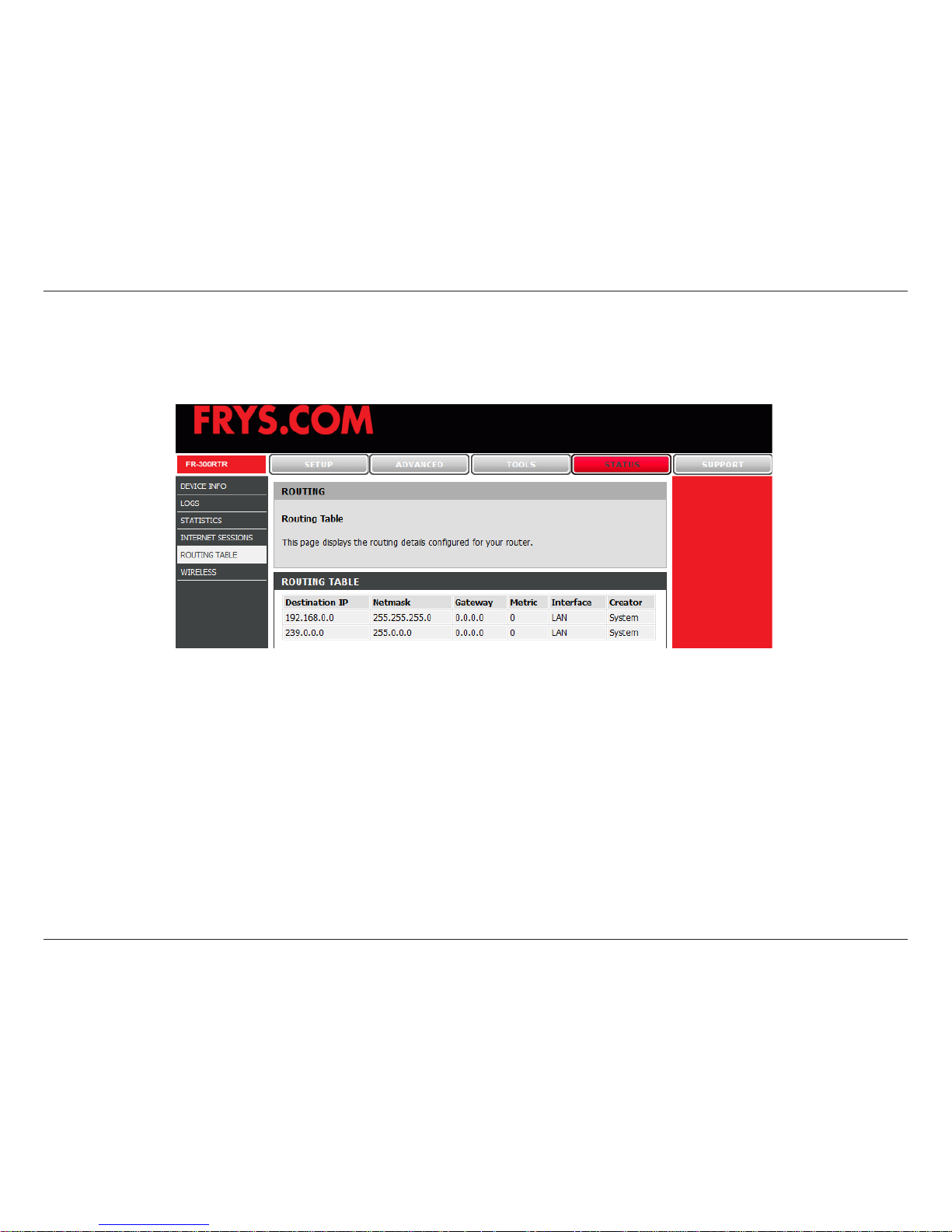

Routing ............................................................65

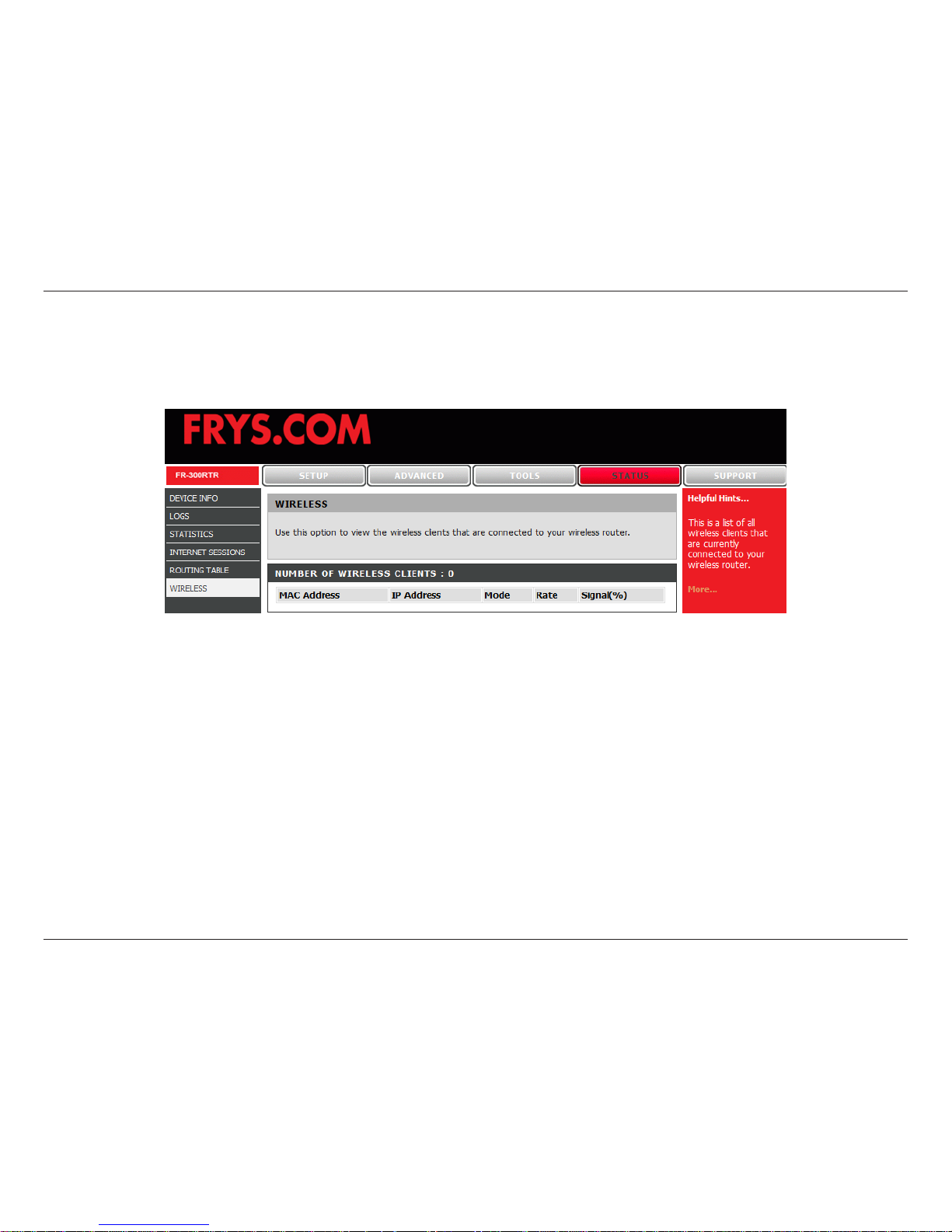

Wireless ...........................................................66

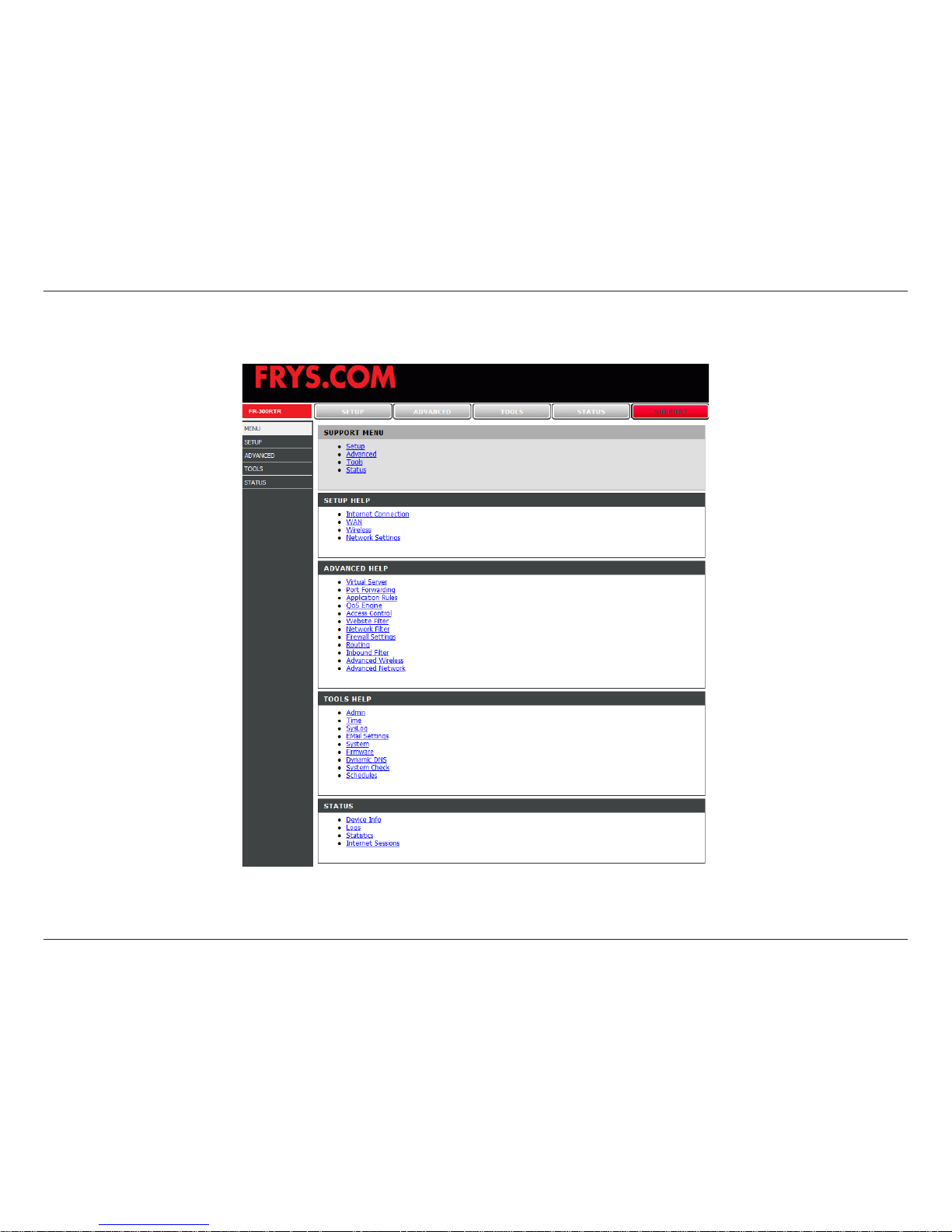

Support ............................................................ 67

Wireless Security .......................................................68

What is WPA? ........................................................ 68

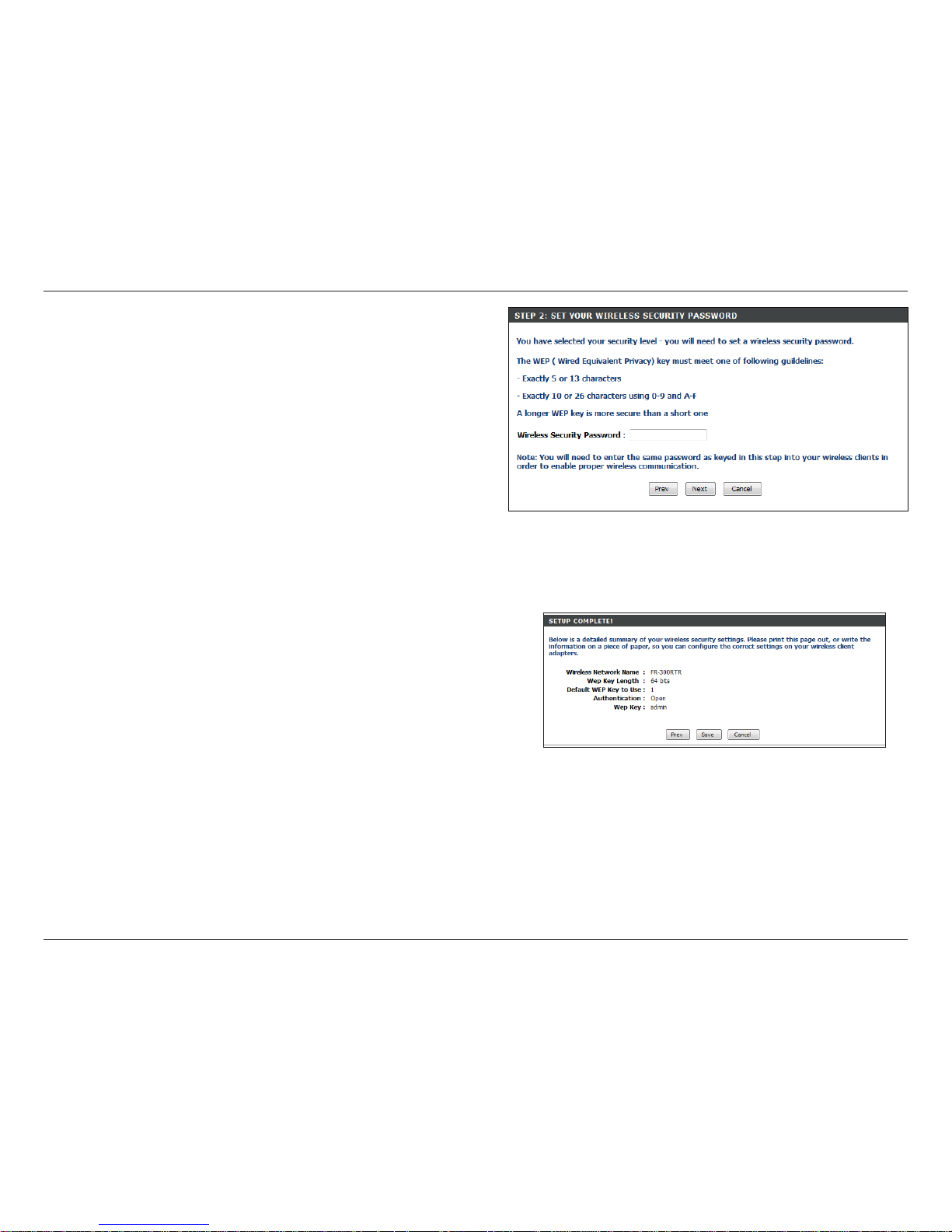

Wireless Security Setup Wizard ............................69

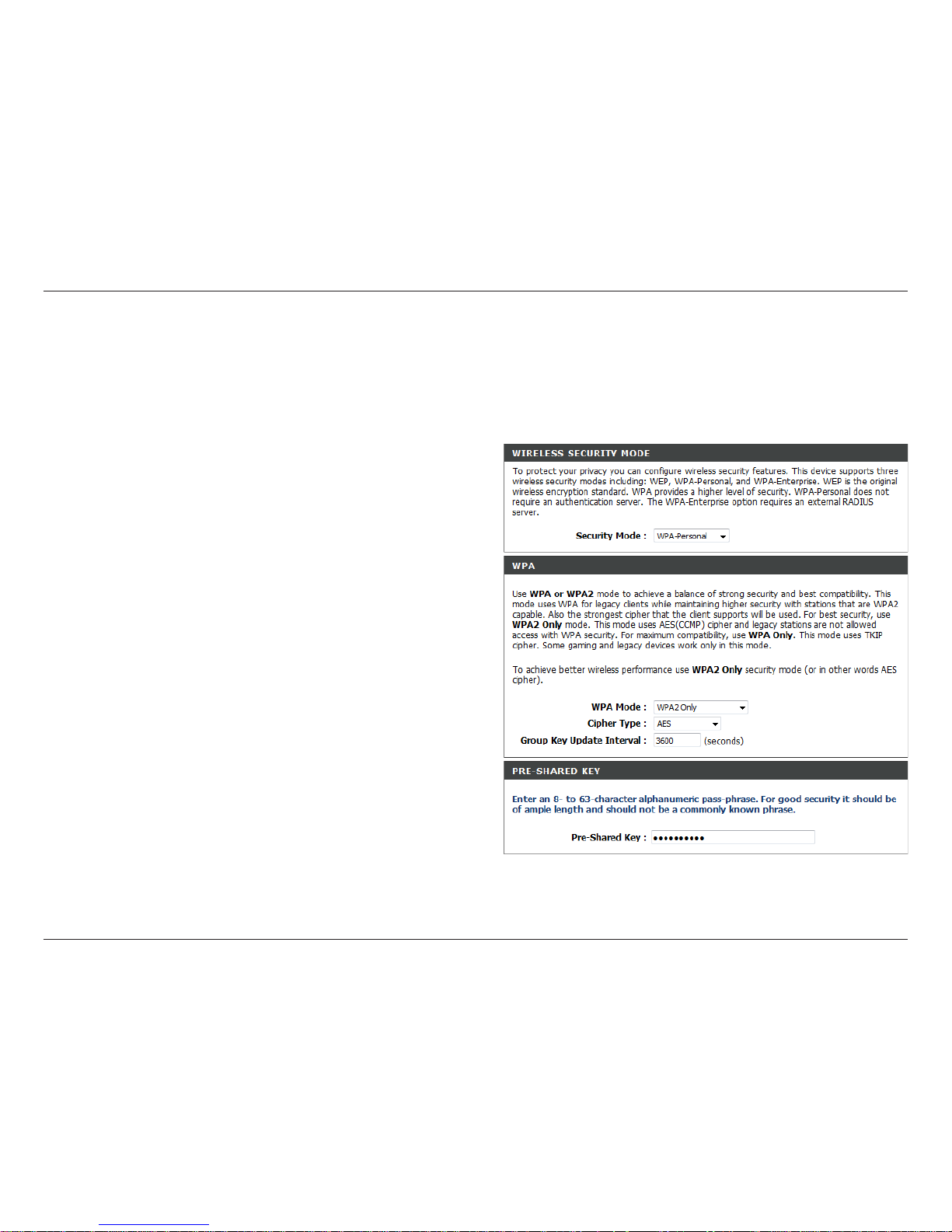

Conﬁgure WPA-Personal (PSK) .......................72

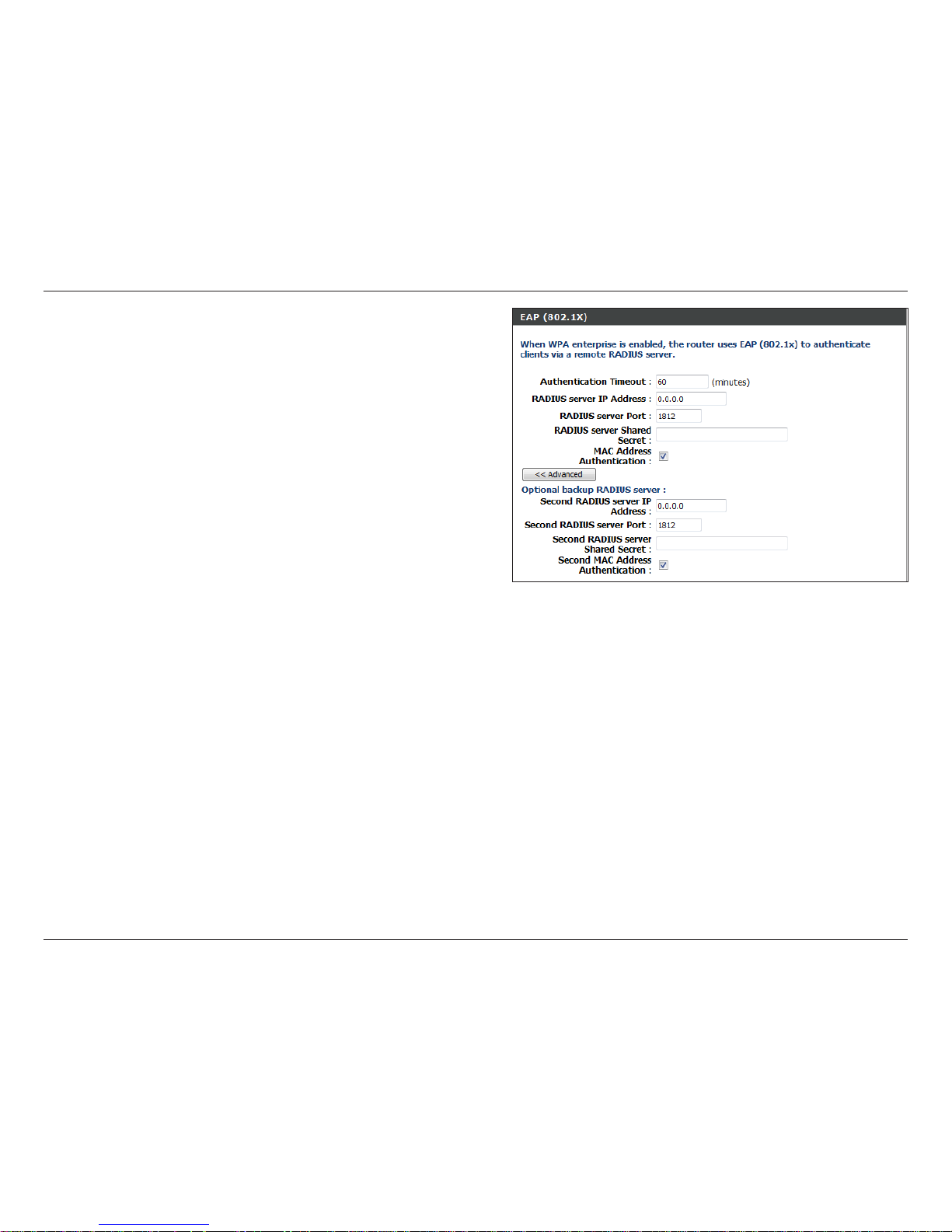

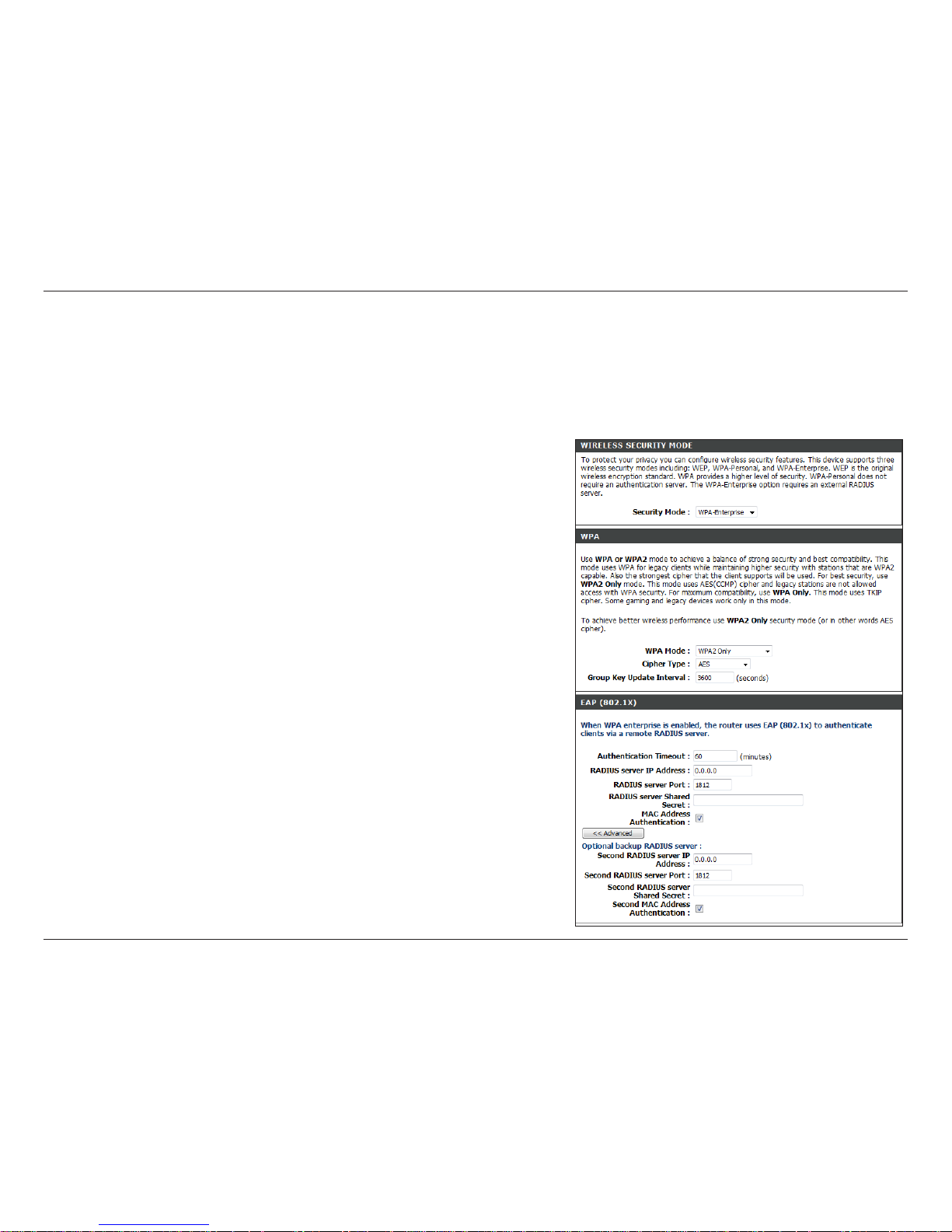

Conﬁgure WPA-Enterprise (RADIUS) .............. 73

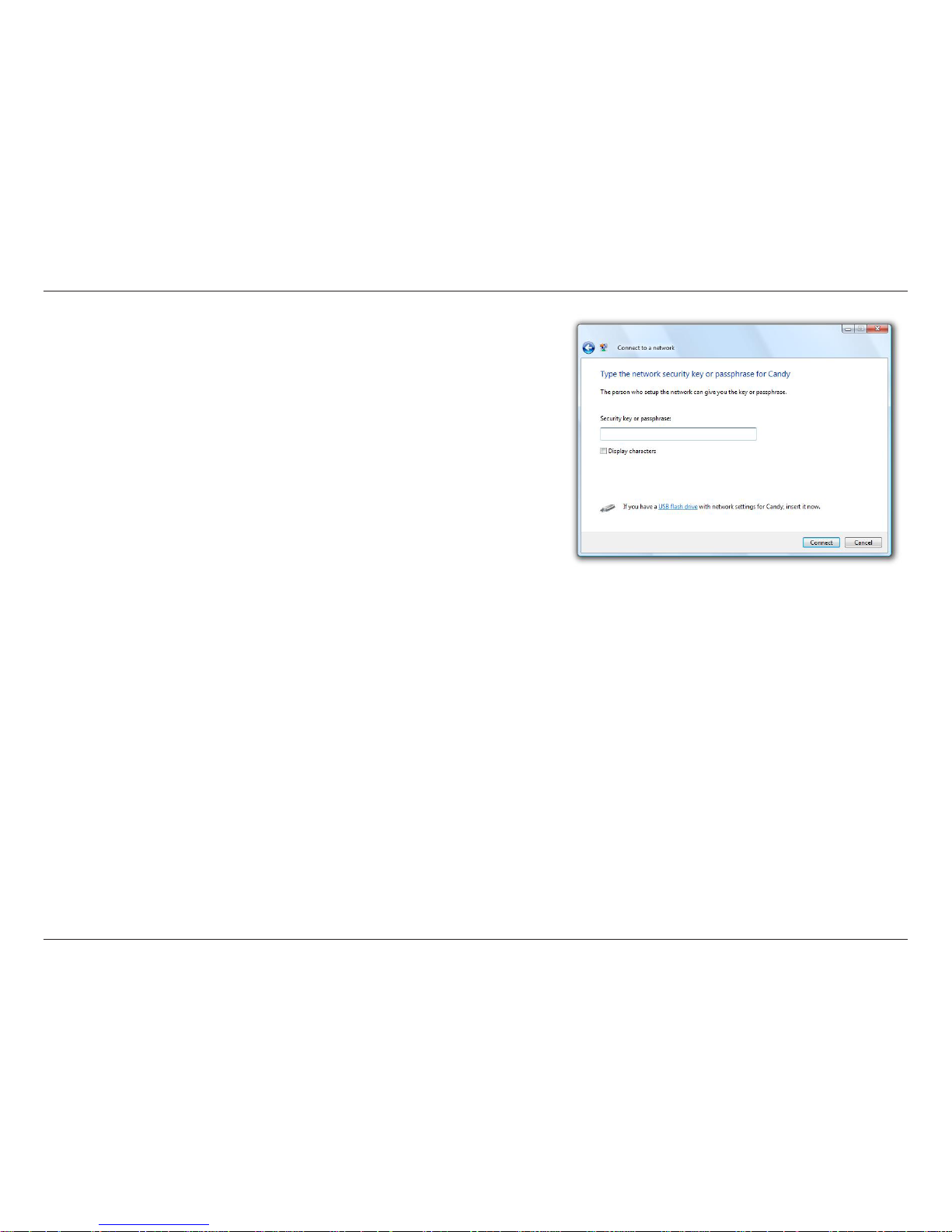

Connect to a Wireless Network ................................ 75

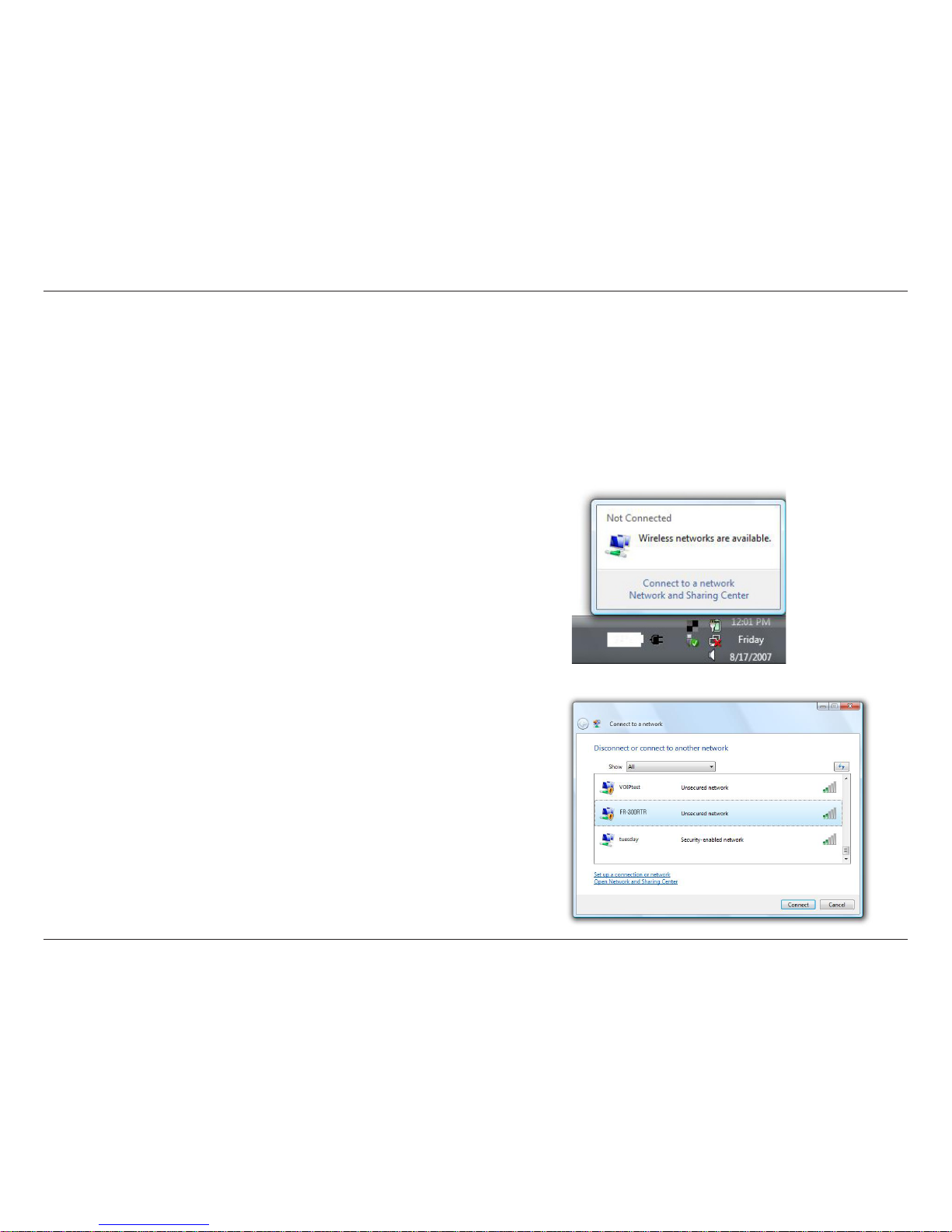

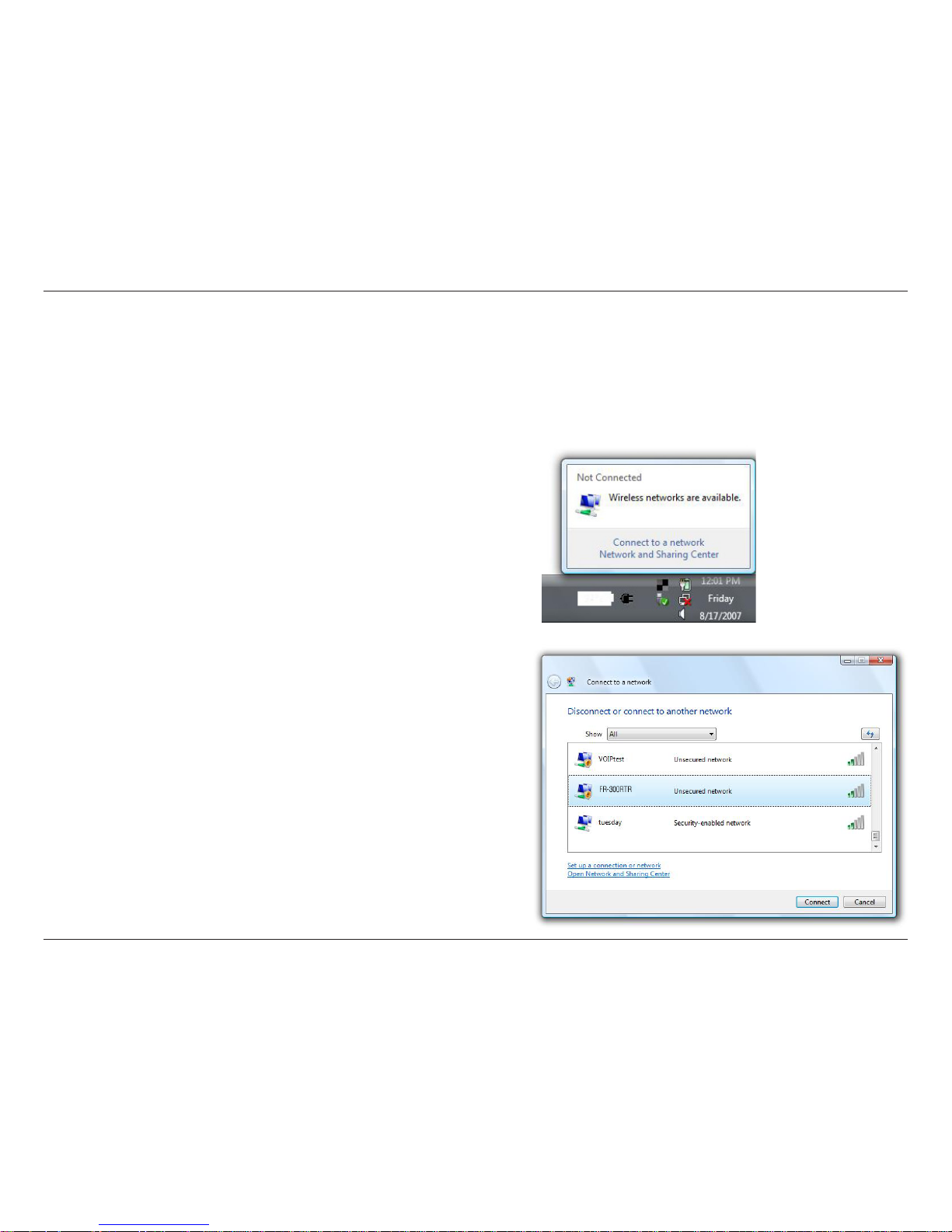

Using Windows Vista® ............................................75

Conﬁgure WPA/WPA2 ...................................... 76

Connect Using WCN 2.0 .................................. 78

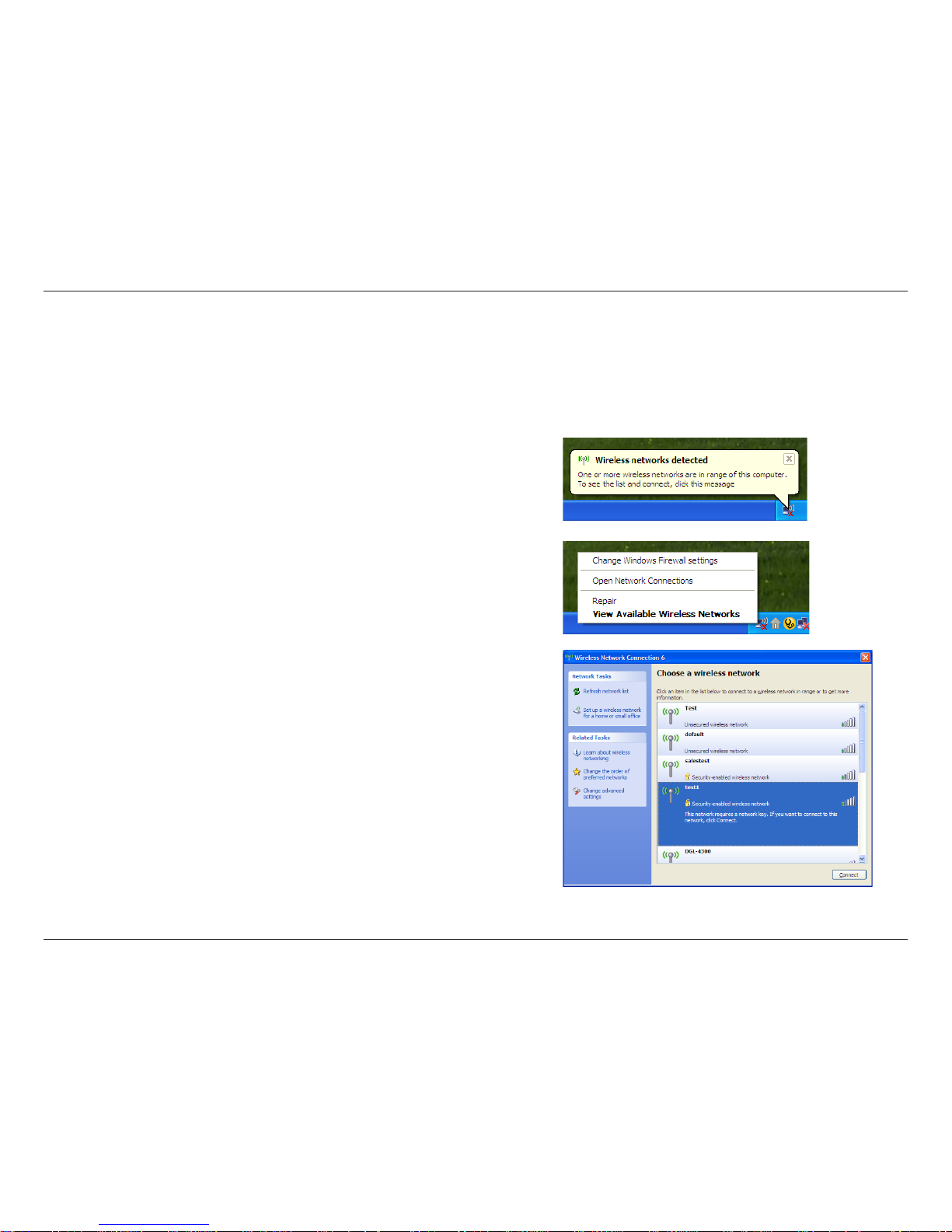

Using Windows® XP ...............................................79

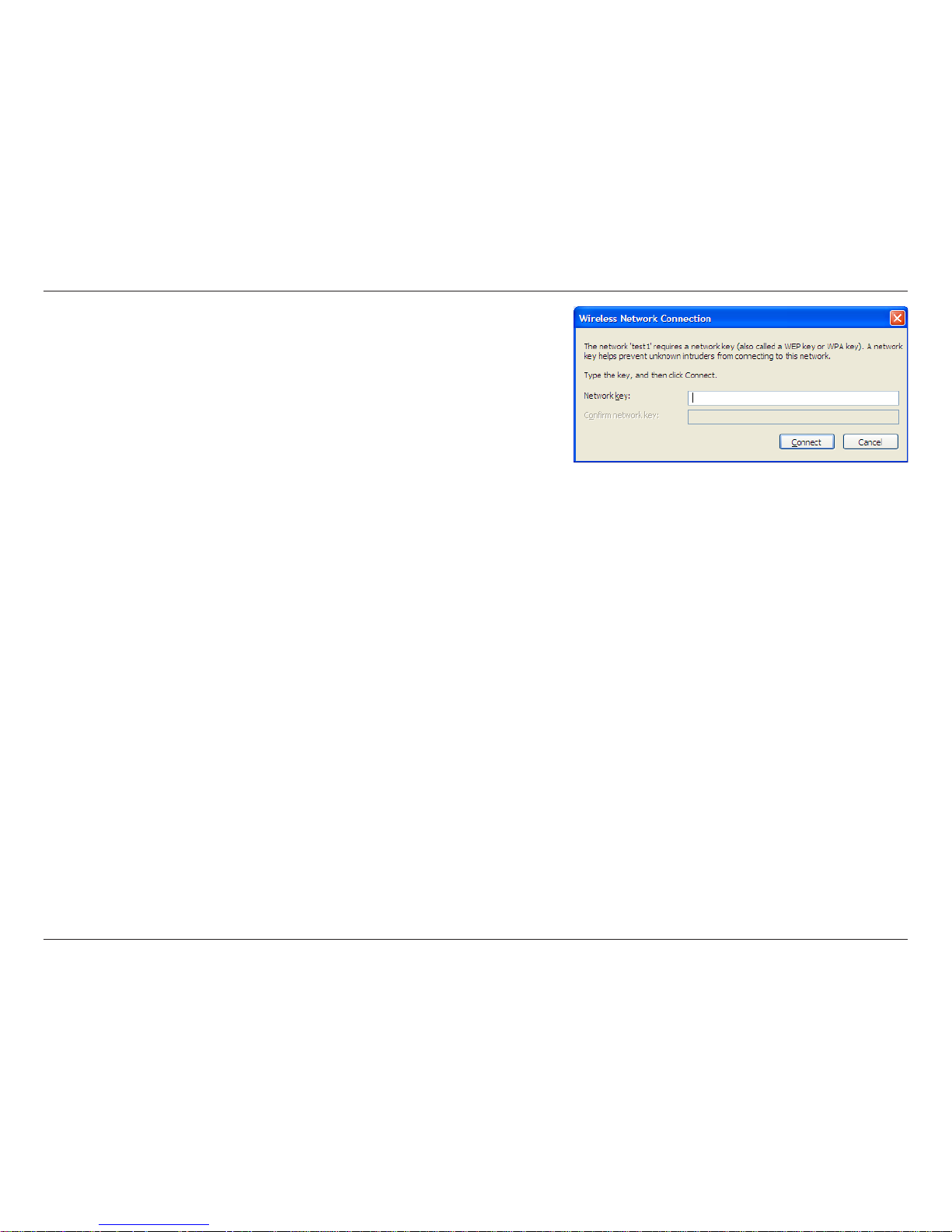

Conﬁgure WPA-PSK ........................................80

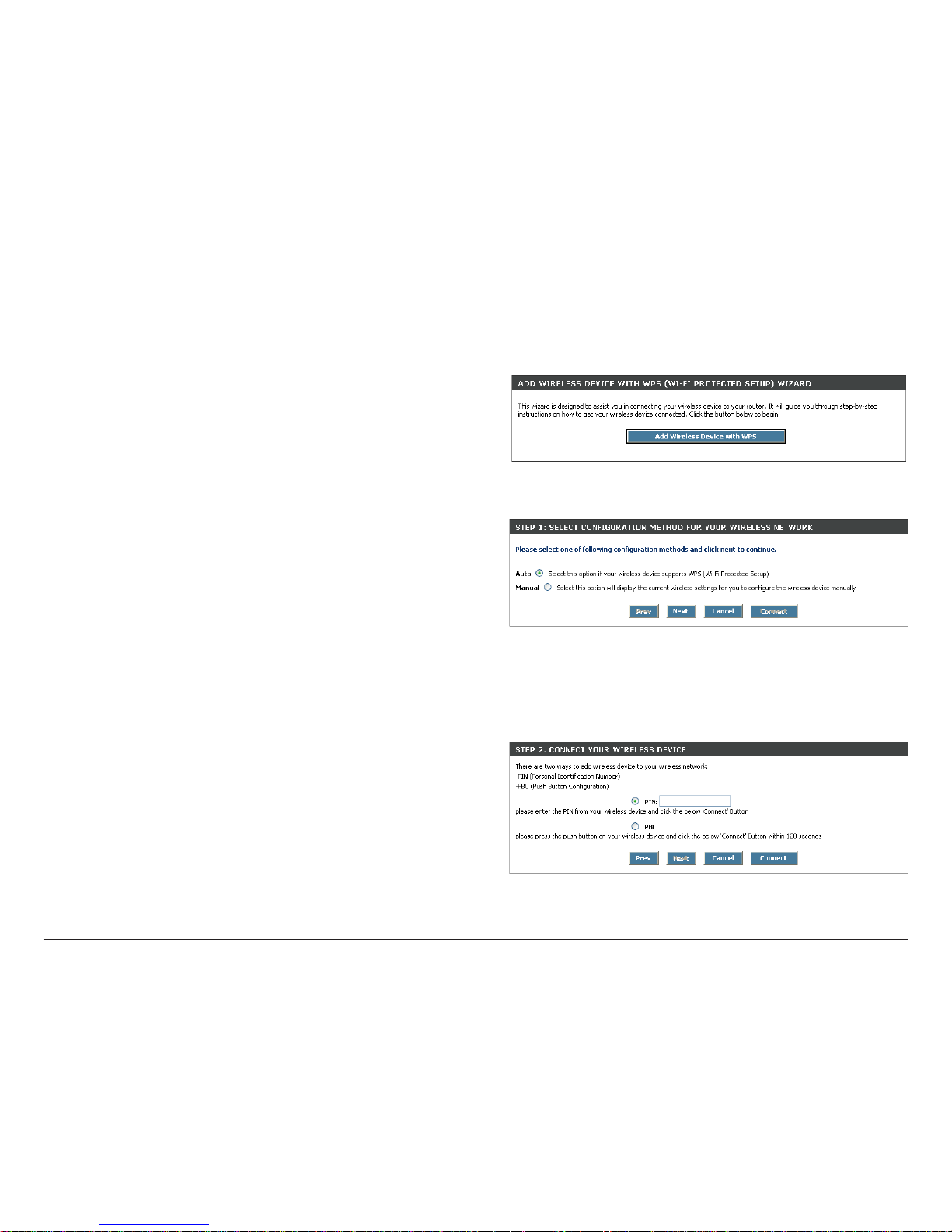

Add Wireless Device with WPS Wizard ................. 82

Troubleshooting ......................................................... 83

Wireless Basics ......................................................... 87

What is Wireless? .................................................. 88

Tips ........................................................................ 90

Wireless Modes ..................................................... 91

Networking Basics ....................................................92

Check your IP address ..........................................92

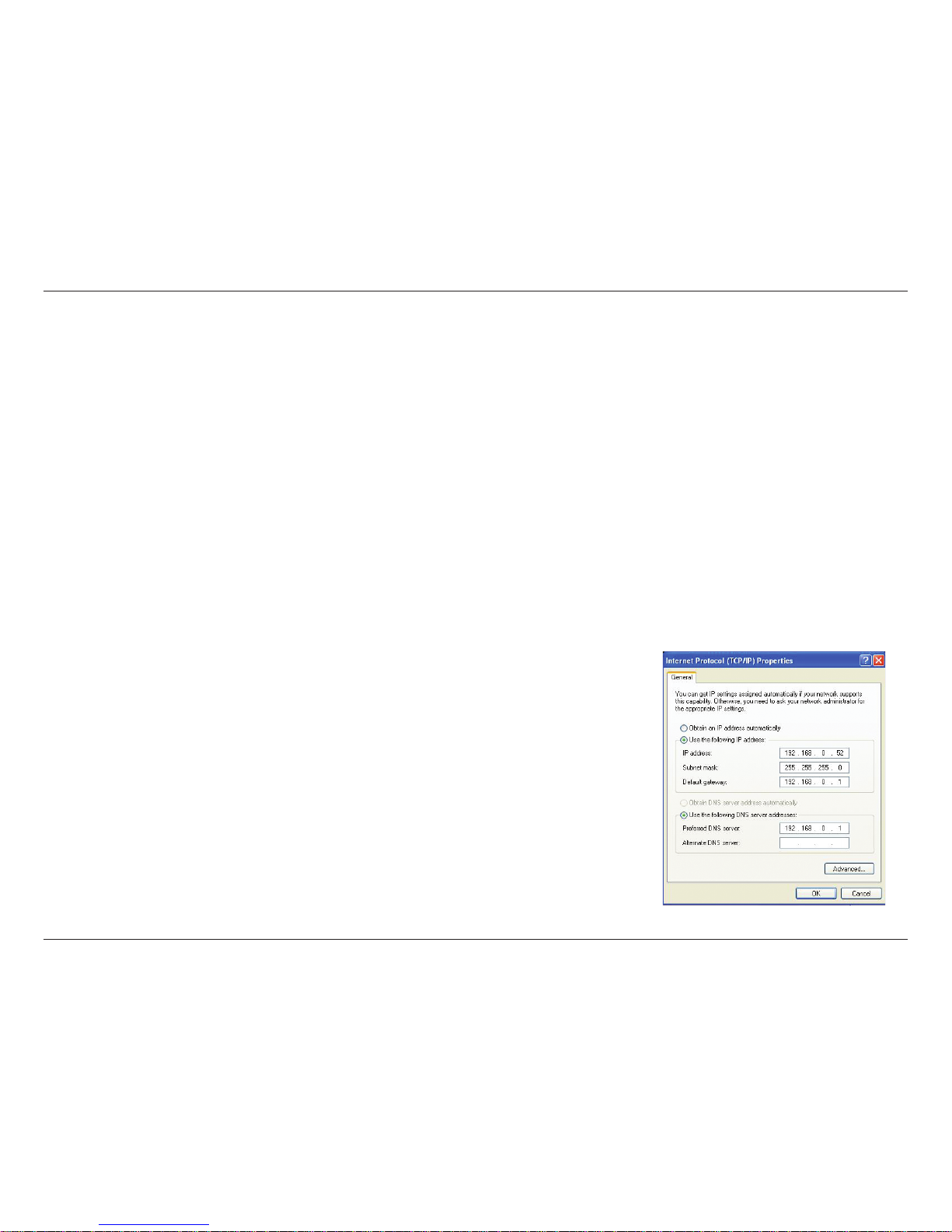

Statically Assign an IP address .............................93

Technical Speciﬁcations ........................................... 94

Contacting Technical Support ..................................95

Warranty ..................................................................... 96

Registration ..............................................................101

Page 5

1FR-300RTR User Manual

Section 1 - Product Overview

Product Overview

Note: Using a power supply with a different voltage rating than the one included with the FR-300RTR will cause damage and void the warranty for this product.

Package Contents

Fry’s FR-300RTR Wireless N Router

with 2 detachable antennas

Power Adapter

Ethernet Cable

CD-ROM

Page 6

2FR-300RTR User Manual

Section 1 - Product Overview

Network Requirements

• An Ethernet-based Cable or DSL modem

• IEEE 802.11n-draft/g wireless clients

• 10/100 Ethernet

Web-based Conﬁguration

Utility Requirements

Computer with the following:

• Windows®, Macintosh, or Linux-based operating system

• An installed Ethernet adapter

Browser Requirements:

• Internet Explorer 6.0 or higher

• Mozilla 1.7.12 or higher

• Firefox 1.5 or higher

• Safari 1.0 or higher (with Java 1.3.1 or higher)

• Flock 0.7.14 or higher

• Opera 6.0 or higher

Windows® Users: Make sure you have the latest version of Java installed. Visit www.java.com to download the latest version.

CD Installation Wizard

Requirements

Computer with the following:

• Windows® XP with Service Pack 2 or Vista

• An installed Ethernet adapter

• CD-ROM drive

System Requirements

Page 7

3FR-300RTR User Manual

Section 1 - Product Overview

• Faster Wireless Networking - The FR-300RTR provides up to 300Mbps* wireless connection with other

802.11n wireless clients. This capability allows users to participate in real-time activities online, such as video streaming, online gaming, and real-time audio.

• Compatible with 802.11g Devices - The FR-300RTR is still fully compatible with the IEEE 802.11g standard, so it can connect with existing 802.11g PCI, USB and Cardbus adapters.

• Advanced Firewall Features - The Web-based user interface displays a number of advanced network management features including:

• Content Filtering - Easily applied content ﬁltering based on MAC Address, URL, and/or Domain Name.

• Filter Scheduling - These ﬁlters can be scheduled to be active on certain days or for a duration of hours or minutes.

• Secure Multiple/Concurrent Sessions - The FR-300RTR can pass through VPN sessions. It supports multiple and concurrent IPSec and PPTP sessions, so users behind the FR-300RTR can securely access corporate networks.

• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the FR-300RTR lets you control what information is accessible to those on the wireless network, whether from the Internet or from your company’s server. Conﬁgure your router to your speciﬁc settings within minutes.

* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n speciﬁcations. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental conditions will adversely affect wireless signal range.

Features

Page 8

4FR-300RTR User Manual

Section 1 - Product Overview

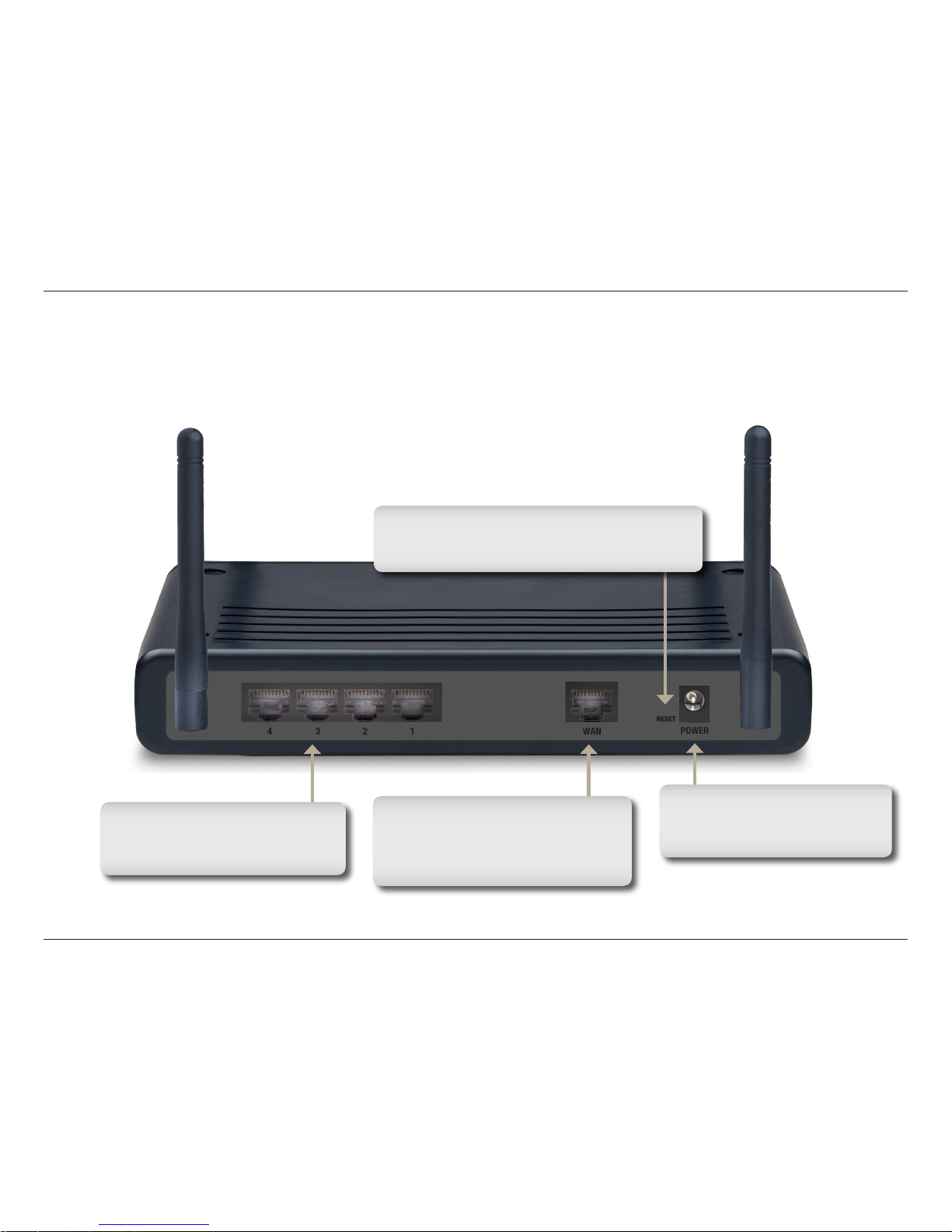

Hardware Overview

Connections

Reset Pressing the Reset button restores the router to its original factory default settings.

Power Receptor

Receptor for the supplied power adapter.

LAN Ports (1-4) Connect Ethernet devices such as computers, switches, and hubs.

Internet Port The auto MDI/MDIX Internet port is the connection for the Ethernet cable to the cable or DSL modem.

Page 9

5FR-300RTR User Manual

Section 1 - Product Overview

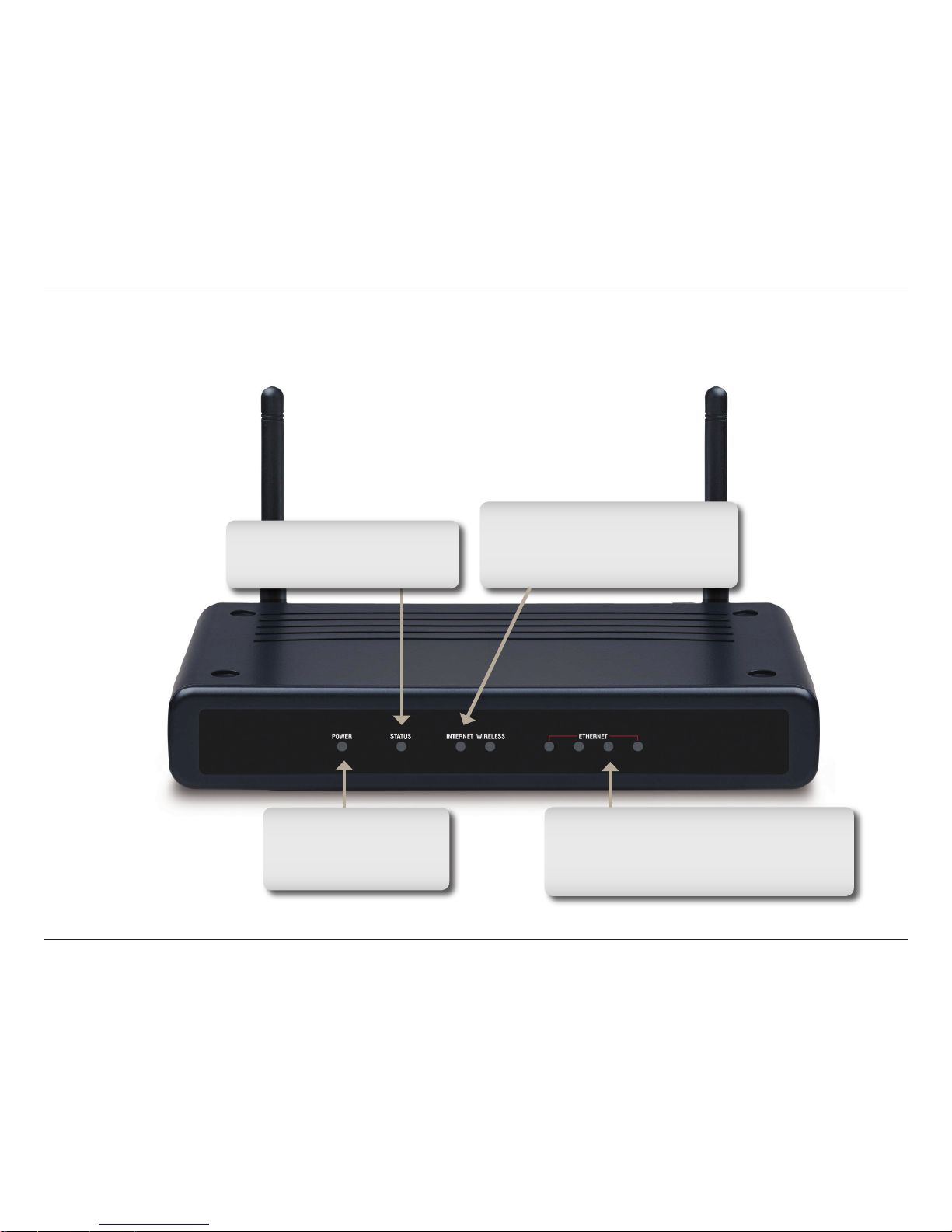

Status LED

A blinking light indicates that the FR-300RTR is ready.

Internet LED A solid light indicates connection on the Internet port. This LED blinks during data transmission.

Power LED A solid light indicates a proper connection to the power supply.

Local Network LEDs

A solid light indicates a connection to an Ethernet-enabled computer on ports 1-4. This LED blinks during data transmission.

Hardware Overview

LEDs

Page 10

6FR-300RTR User Manual

Section 2 - Installation

Before you Begin

This section will walk you through the installation process. Placement of the router is very important. Do not place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.

• Please conﬁgure the router with the computer that was last connected directly to your modem.

• You can only use the Ethernet port on your modem. If you were using the USB connection before using the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable to the Internet port on the router, and then turn the modem back on. In some cases, you may need to call your ISP to change connection types (USB to Ethernet).

• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to the Internet.

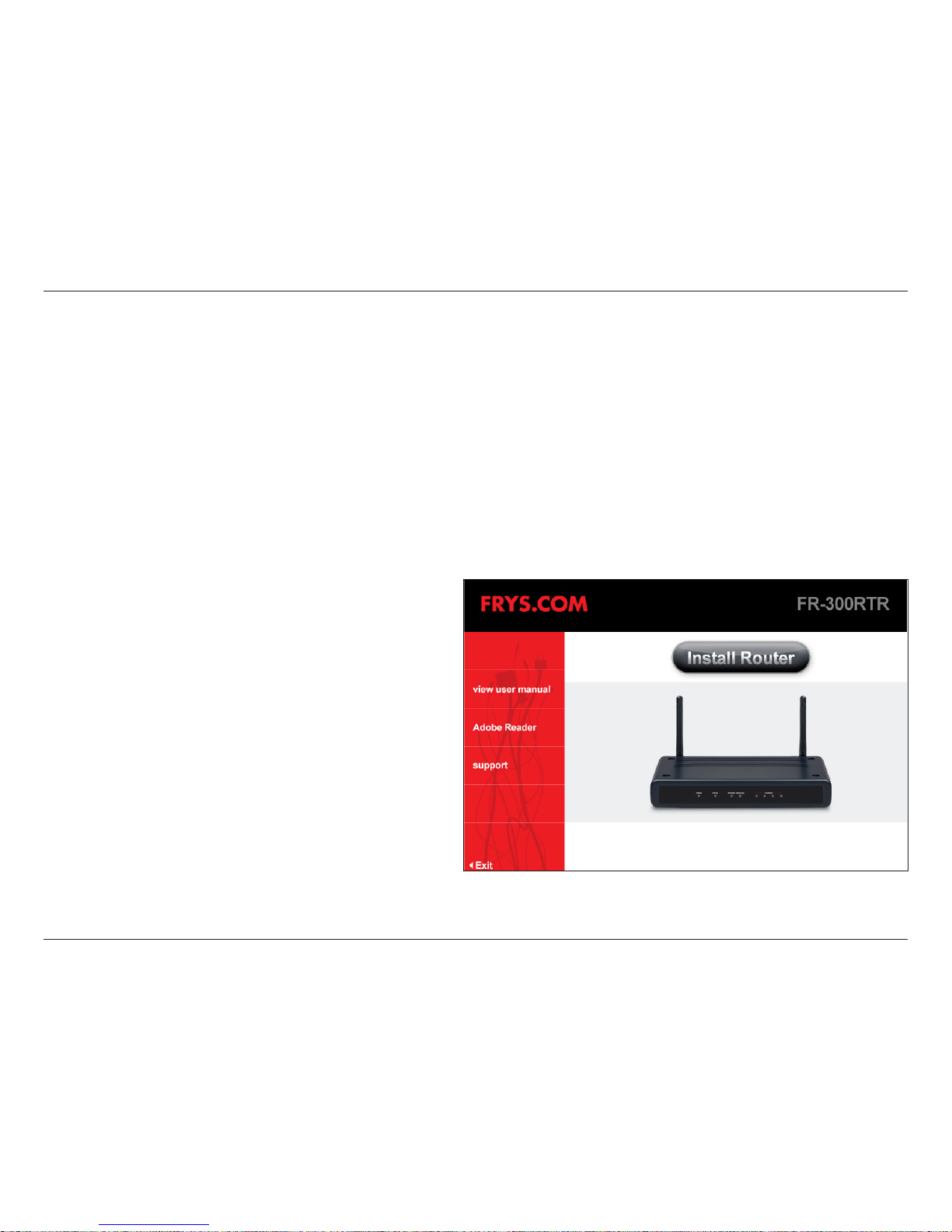

• When running the Setup Wizard from the Fry’s CD, make sure the computer you are running the CD from is connected to the Internet and online or the wizard will not work. If you have disconnected any hardware, re-connect your computer back to the modem and make sure you are online.

Installation

Page 11

7FR-300RTR User Manual

Section 2 - Installation

Wireless Installation Considerations

The Fry’s wireless router lets you access your network using a wireless connection from virtually anywhere within the operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:

1. Keep the number of walls and ceilings between the Fry’s router and other network devices to a minimum

- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet (14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try to position access points, wireless routers, and computers so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (ﬁsh tanks), mirrors, ﬁle cabinets, brick, and concrete will degrade your wireless signal.

4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that generate RF noise.

5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and home security systems), your wireless connection may degrade dramatically or drop completely. Make sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if the phone in not in use.

Page 12

8FR-300RTR User Manual

Section 2 - Installation

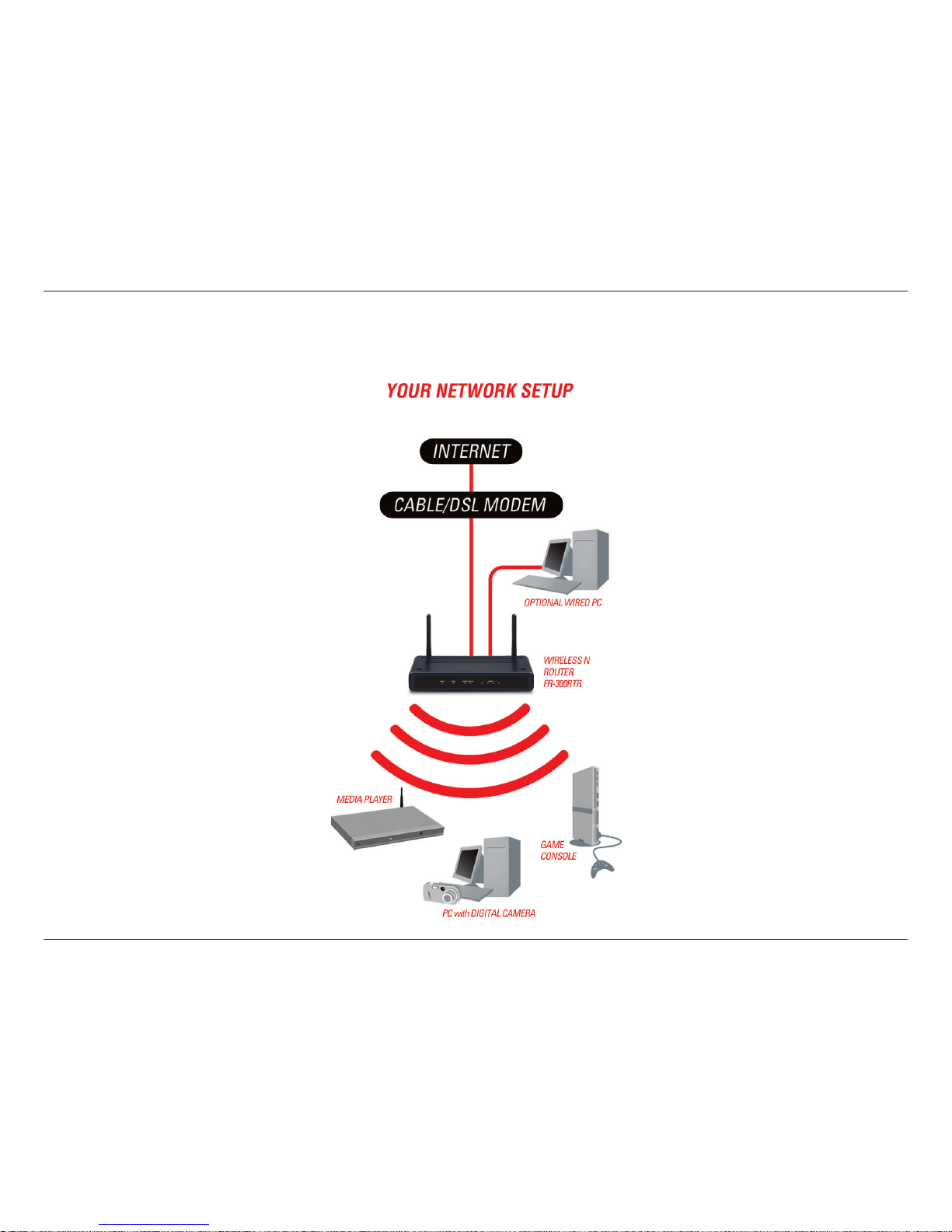

Network Diagram

Page 13

9FR-300RTR User Manual

Section 2 - Installation

If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:

1. Place the router in an open and central location. Do not plug the power adapter into the router.

2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter. Shut down your computer.

3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the Internet port on the router.

4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your computer.

5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).

6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router to boot.

7. Turn on your computer.

8. Verify the link lights on the router. The power light, Internet light, and the LAN light (the port that your computer is plugged into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable connections are correct.

9. Skip to page 13 to conﬁgure your router.

Connect to Cable/DSL/Satellite Modem

Page 14

10FR-300RTR User Manual

Section 2 - Installation

If you are connecting the Fry’s router to another router to use as a wireless access point and/or switch, you will have to do the following before connecting the router to your network:

• Disable UPnP

™

• Disable DHCP

• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot accept a DHCP address from your other router.

To connect to another router, please follow the steps below:

1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable. Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the Networking Basics section for more information. If you need to change the settings, write down your existing settings before making any changes. In most cases, your computer should be set to receive an IP address automatically in which case you will not have to do anything to your computer.

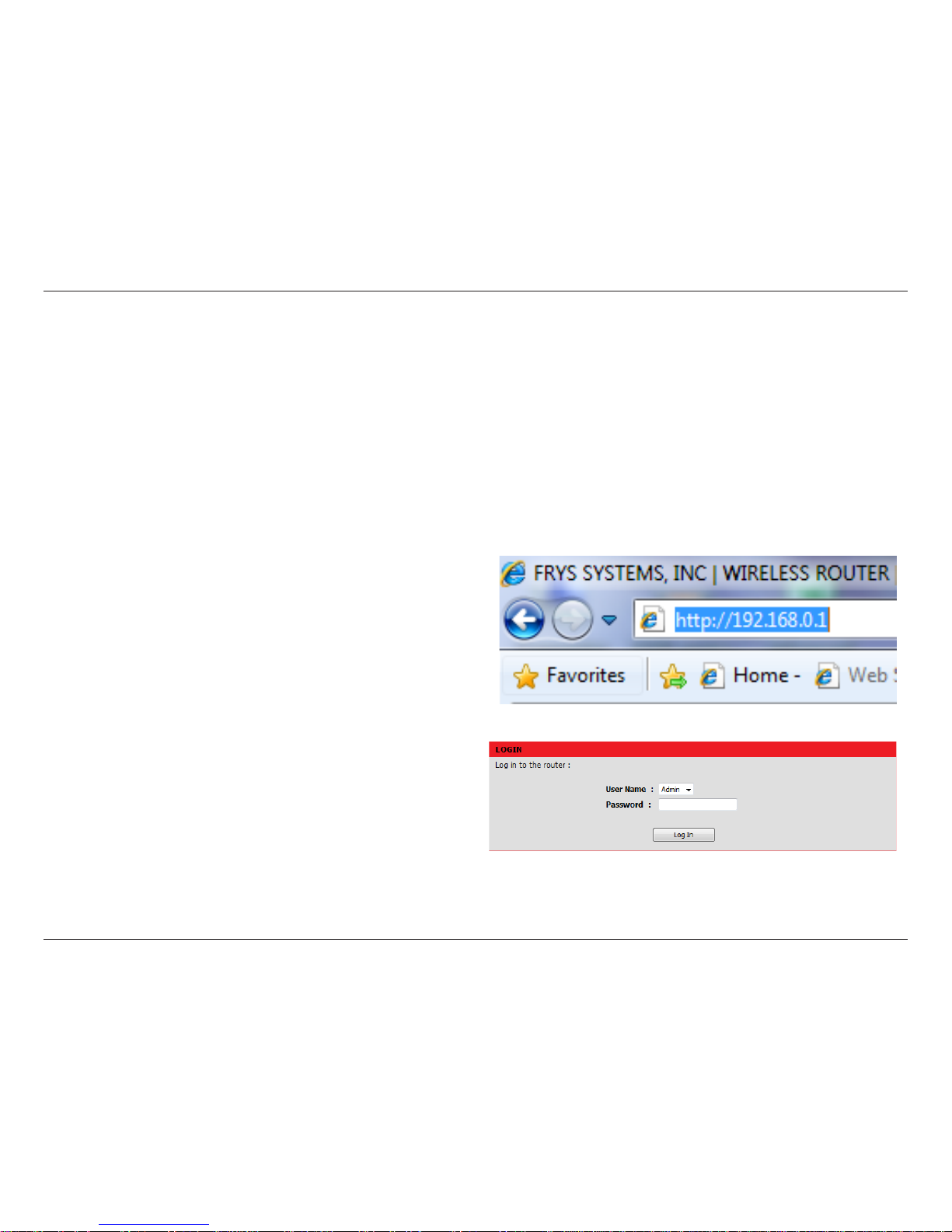

2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user name to Admin and leave the password box empty. Click Log In to continue.

3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings to continue.

4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save Settings to continue.

5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to save your settings. Use this new IP address to access the conﬁguration utility of the router in the future. Close the browser and change your computer’s IP settings back to the original values as in Step 1.

Connect to Another Router

Page 15

11FR-300RTR User Manual

Section 2 - Installation

6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.

7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug anything into the Internet port of the Fry’s router.

8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To conﬁgure your wireless network, open a web browser and enter the IP address you assigned to the router. Refer to the Conﬁguration and Wireless Security sections for more information on setting up your wireless network.

Page 16

12FR-300RTR User Manual

Section 2 - Installation

Note: It is recommended to write down the login password on the provided CD holder.

The FR-300RTR includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to guide you quickly through the installation process. You may manually conﬁgure your router without the wizard. Refer to the next page to manually setup your router.

Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown in Windows® XP or Vista®. The steps and screens are similar for the other Windows® operating systems.

If the CD autorun function does not automatically start on your computer, go to Start > Run. In the run box type “D:\FR-300RTR.exe” (where D: represents the drive letter of your CD-ROM drive).

When the autorun screen appears, click Install Router and follow the on-screen instructions.

Getting Started

Page 17

13FR-300RTR User Manual

Section 3 - Conﬁguration

Conﬁguration

This section will show you how to conﬁgure your new Fry’s wireless router using the web-based conﬁguration utility.

Web-based Conﬁguration Utility

To access the conﬁguration utility, open a web-browser such as Internet Explorer and enter the IP address of the router (192.168.0.1).

Select Admin from the drop-down menu and then enter your password. Leave the password blank by default.

If you get a Page Cannot be Displayed error, please refer to the Troubleshooting section for assistance.

Page 18

14FR-300RTR User Manual

Section 3 - Conﬁguration

Internet Connection Setup Wizard

Once logged into the web interface of the router, the Setup > Internet page will appear. Click the Internet Connection Setup Wizard button to quickly conﬁgure your router using the setup wizard.

If you want to enter your settings without running the wizard, click Manual Internet Conﬁguration Wizard and skip to page 19.

Page 19

15FR-300RTR User Manual

Section 3 - Conﬁguration

Click Next to continue.

Create a new password and then click Next to continue.

Select your time zone from the drop-down menu and then click Next to continue.

Page 20

16FR-300RTR User Manual

Section 3 - Conﬁguration

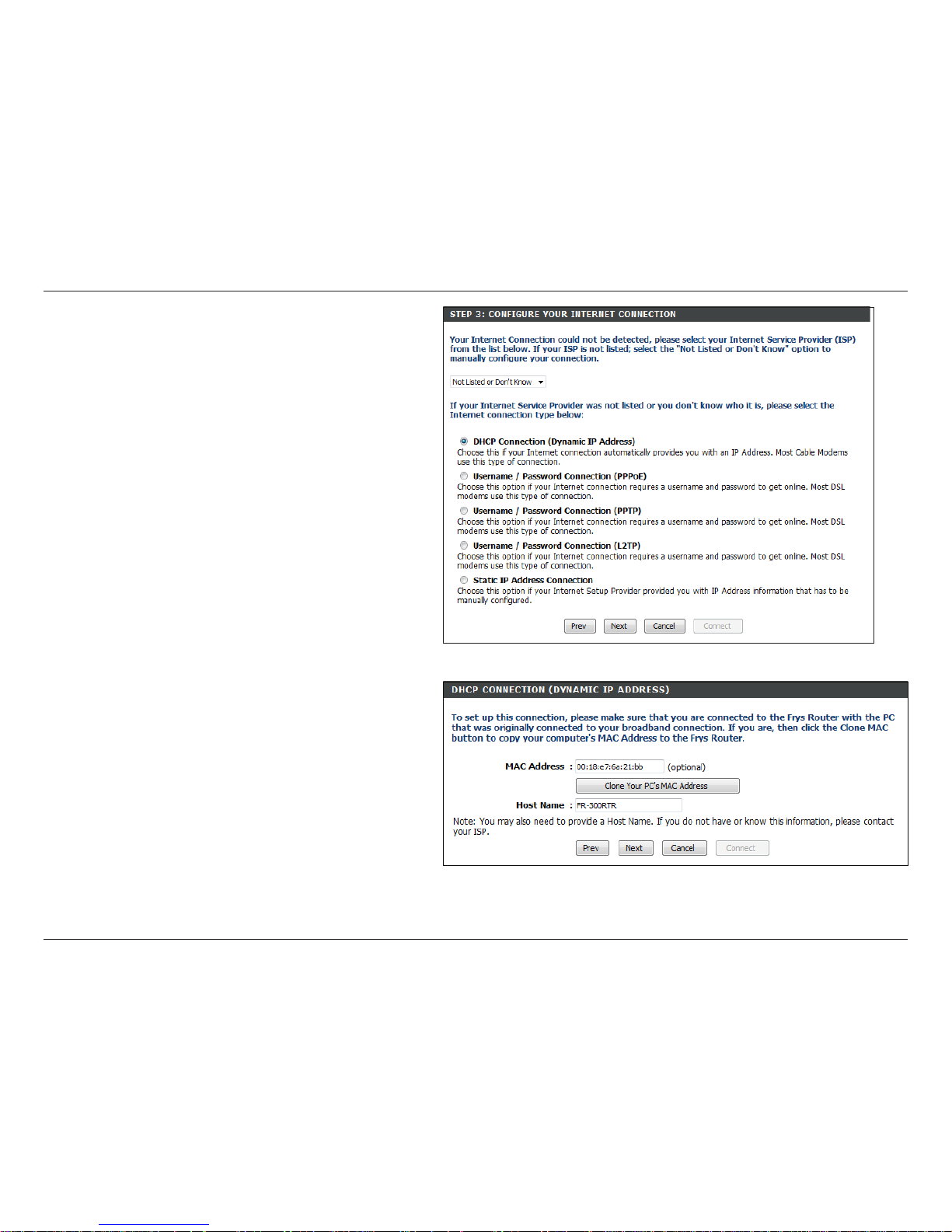

If you selected Dynamic, you may need to enter the MAC address of the computer that was last connected directly to your modem. If you are currently using that computer, click Clone Your PC’s MAC Address and then click Next to continue.

The Host Name is optional but may be required by some ISPs. The default host name is the device name of the Router and may be changed.

Select the type of Internet connection you use and then click Next to continue.

Page 21

17FR-300RTR User Manual

Section 3 - Conﬁguration

If you selected PPTP, enter your PPTP username and password. Click Next to continue.

If you selected PPPoE, enter your PPPoE username and password. Click Next to continue.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses.

Note: Make sure to remove your PPPoE software

from your computer. The software is no longer needed and will not work through a router.

Page 22

18FR-300RTR User Manual

Section 3 - Conﬁguration

If you selected L2TP, enter your L2TP username and password. Click Next to continue.

If you selected Static, enter your network settings supplied by your Internet provider. Click Next to continue.

Page 23

19FR-300RTR User Manual

Section 3 - Conﬁguration

Click Connect to save your settings. Once the router is ﬁnished rebooting, click Continue. Please allow 1-2 minutes to connect.

Page 24

20FR-300RTR User Manual

Section 3 - Conﬁguration

If you opt to set up your Internet connection manually, you will be redirected to a WAN page that allows you to select your Internet type and enter the correct conﬁguration parameters.

Select your Internet connection type using the “My Internet Connection is” drop-down menu.

Click the Save Settings button when you have conﬁgured the connection.

Manual Conﬁguration

Dynamic (Cable)

Page 25

21FR-300RTR User Manual

Section 3 - Conﬁguration

Dynamic IP Address (DHCP)

Select Dynamic IP (DHCP) to obtain IP Address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services.

The Host Name is optional but may be required by some ISPs.

Check the box if you are having problems obtaining an IP address from your ISP.

Enter the Primary DNS server IP address assigned by your ISP.

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1500 is the default MTU.

The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to replace the Internet port’s MAC address with the MAC address of your Ethernet card.

My Internet

Connection:

Host Name:

MAC Address:

DNS Addresses:

MTU:

Use Unicasting:

Page 26

22FR-300RTR User Manual

Section 3 - Conﬁguration

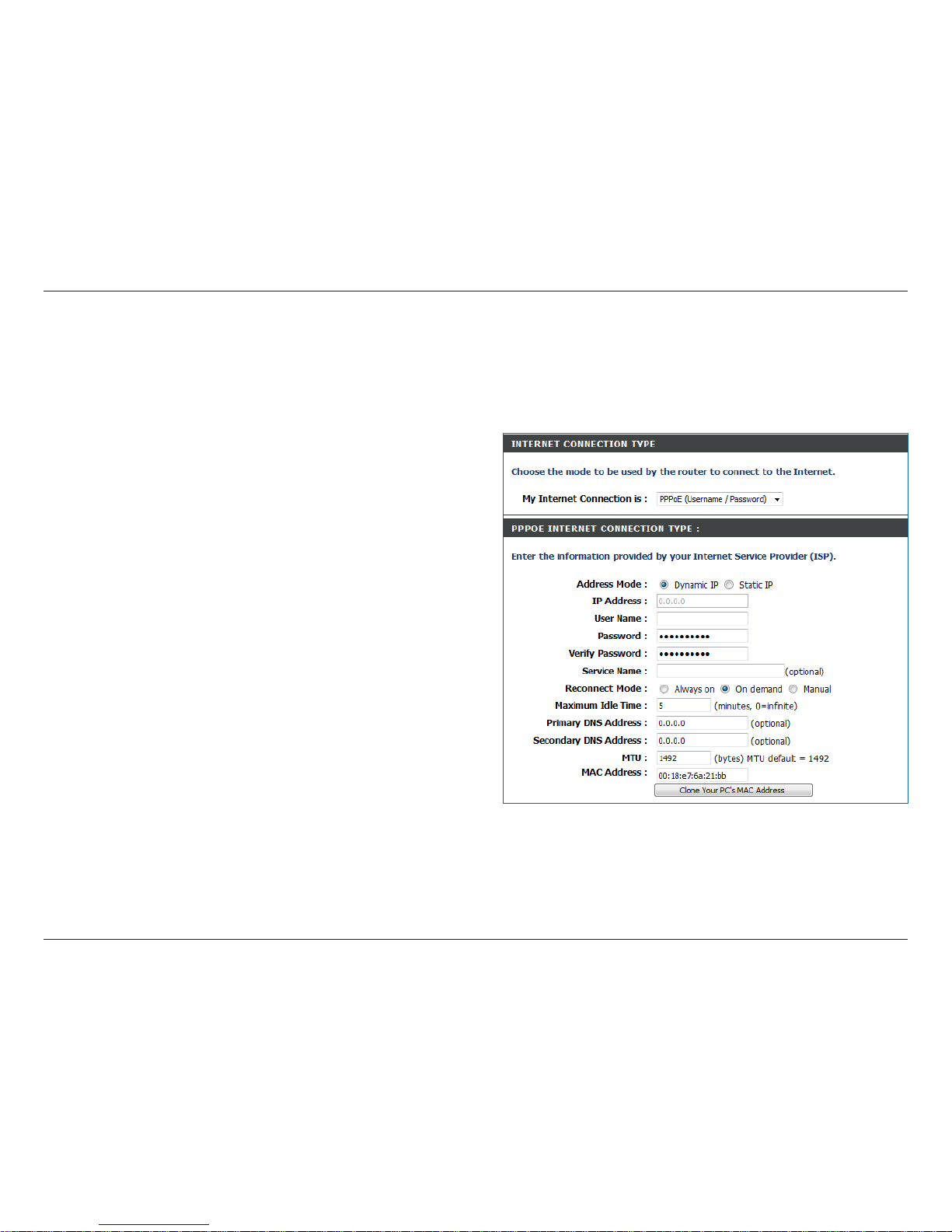

Select PPPoE (Username/Password) from the drop-down menu.

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPPoE only).

Enter your PPPoE user name.

Enter your PPPoE password and then retype the password in the next box.

Enter the ISP Service Name (optional).

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1492 is the default MTU.

My Internet

Connection:

Address Mode:

IP Address:

User Name:

Password:

Service Name:

Reconnection Mode:

Maximum Idle Time:

DNS Addresses:

MTU:

MAC Address:

PPPoE (DSL)

Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

Page 27

23FR-300RTR User Manual

Section 3 - Conﬁguration

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the IP address (Static PPTP only).

Enter the Primary and Secondary DNS Server Addresses (Static PPTP only).

Enter the Gateway IP Address provided by your ISP.

Enter the Server IP provided by your ISP (optional).

Enter your PPTP username.

Enter your PPTP password and then retype the password in the next box.

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1400 is the default MTU.

Address Mode:

PPTP IP Address:

PPTP Subnet

Mask:

PPTP Gateway:

PPTP Server IP:

PPTP

Choose PPTP (Point-to-Point-Tunneling Protocol ) if your ISP uses a PPTP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.

Username:

Password:

Reconnect Mode:

Maximum Idle

Time:

DNS Servers:

MTU:

Page 28

24FR-300RTR User Manual

Section 3 - Conﬁguration

MAC Address:

Page 29

25FR-300RTR User Manual

Section 3 - Conﬁguration

Select Static if your ISP assigned you the IP address, subnet mask, gateway, and DNS server addresses. In most cases, select Dynamic.

Enter the L2TP IP address supplied by your ISP (Static only).

Enter the Subnet Mask supplied by your ISP (Static only).

Enter the Gateway IP Address provided by your ISP.

Enter the Server IP provided by your ISP (optional).

Enter your L2TP username.

Enter your L2TP password and then retype the password in the next box.

Select either Always-on, On-Demand, or Manual.

Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disable this feature, enable Auto-reconnect.

Enter the Primary and Secondary DNS Server Addresses (Static L2TP only).

Address Mode:

L2TP IP Address:

L2TP Subnet Mask:

L2TP Gateway:

L2TP Server IP:

Username:

Password:

Reconnect Mode:

Maximum Idle Time:

DNS Servers:

L2TP

Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and password. This option is typically used for DSL services.

Page 30

26FR-300RTR User Manual

Section 3 - Conﬁguration

MTU:

Clone MAC

Address:

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1400 is the default MTU.

Page 31

27FR-300RTR User Manual

Section 3 - Conﬁguration

Enter the IP address assigned by your ISP.

Enter the Subnet Mask assigned by your ISP.

Enter the Gateway assigned by your ISP.

The DNS server information will be supplied by your ISP (Internet Service Provider.)

Maximum Transmission Unit - you may need to change the MTU for optimal performance with your speciﬁc ISP. 1500 is the default MTU.

IP Address:

Subnet Mask:

Default Gateway:

DNS Servers:

MTU:

MAC Address:

Static IP Address

Select Static IP Address if all the Internet port’s IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS address(es) provided to you by your ISP. Each IP address entered in the ﬁelds must be in the appropriate IP form, which are four octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format.

Page 32

28FR-300RTR User Manual

Section 3 - Conﬁguration

Wireless Settings

Check the box to enable the wireless function. If you do not want to use wireless, uncheck the box to disable all the wireless functions. Click Add New to create your own time schedule to enable the wireless function.

Service Set Identiﬁer (SSID) is the name of your wireless network. Create a name using up to 32 characters. The SSID is case-sensitive.

Select one of the following:

802.11g Only - Select if all of your wireless clients are 802.11g. Mixed 802.11g and 802.11b - Select if you are using both 802.11b and 802.11g wireless clients.

802.11b Only - Select if all of your wireless clients are 802.11b.

802.11n Only - Select only if all of your wireless clients are 802.11n. Mixed 802.11n, 802.11b, and 802.11g - Select if you are using a mix of 802.11n, 11g, and 11b wireless clients. Mixed 802.11n and 802.11g - Select if you are using a mix of 802.11n and 802.11g wireless clients.

The Auto Channel Scan setting can be selected to allow the FR-300RTR to choose the channel with the least amount of interference.

Indicates the channel setting for the FR-300RTR. By default the channel is set to 6. The Channel can be changed to ﬁt the channel setting for an existing wireless network or to customize the wireless network. If you enable Auto Channel Scan, this option will be greyed out.

Select the transmit rate. It is strongly suggested to select Best (Auto) for best performance.

Enable Wireless:

Wireless Network

Name:

802.11 Mode:

Transmission Rate:

Enable Auto

Channel Scan:

Wireless Channel:

Page 33

29FR-300RTR User Manual

Section 3 - Conﬁguration

Select the Channel Width:

Auto 20/40 - Select if you are using both 802.11n and non-802.11n wireless devices. 20MHz - Select if you are not using any 802.11n wireless clients. This is the default setting.

Select Invisible if you do not want the SSID of your wireless network to be broadcasted by the FR-300RTR. If Invisible is selected, the SSID of the FR-300RTR will not be seen by Site Survey utilities so your wireless clients will have to know the SSID of your FR-300RTR in order to connect to it.

Refer to page 67 for more information regarding wireless security.

Visibility Status:

Wireless Security:

Channel Width:

Page 34

30FR-300RTR User Manual

Section 3 - Conﬁguration

This section will allow you to change the local network settings of the router and to conﬁgure the DHCP settings.

Network Settings

Enter the IP address of the router. The default IP address is 192.168.0.1.

If you change the IP address, once you click Apply, you will need to enter the new IP address in your browser to get back into the conﬁguration utility.

Enter the Subnet Mask. The default subnet mask is

255.255.255.0.

Enter the Domain name (Optional).

Uncheck the box to transfer the DNS server information from your ISP to your computers. If checked, your computers will use the router for a DNS server.

IP Address:

Subnet Mask:

Local Domain:

Enable DNS Relay:

Page 35

31FR-300RTR User Manual

Section 3 - Conﬁguration

Check this box to enable the DHCP server on your router. Uncheck to disable this function.

Enter the starting and ending IP addresses for the DHCP server’s IP assignment.

Note: If you statically (manually) assign IP addresses to your computers or devices, make sure the IP addresses are outside of this range or you may have an IP conﬂict.

The length of time for the IP address lease. Enter the Lease time in minutes.

Enable this function to ensure compatibility with some DHCP clients.

NetBIOS allows LAN hosts to discover other computers within the network. Enable this feature to allow the DHCP Server to offer NetBIOS conﬁguration settings.

If NetBIOS advertisement is switched on, switching this setting on causes WINS information to be learned from the WAN side, if available. Turn this setting off to conﬁgure manually.

This is an advance setting and is normally left blank. This allows the conﬁguration of NetBIOS domain name under which network hosts operate. This setting has no effect if the “ Learn NetBIOS information form WAN is activated.

Enable DHCP

Server:

DHCP IP Address

Range:

Lease Time:

Always Broadcast:

NetBIOS

announcement:

Learn NetBIOS

from WAN:

NetBIOS Scope:

DHCP Server Settings

DHCP stands for Dynamic Host Control Protocol. The FR-300RTR has a built-in DHCP server. The DHCP Server will automatically assign an IP address to the computers on the LAN/private network. Be sure to set your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address Automatically.” When you turn your computers on, they will automatically load the proper TCP/IP settings provided by the FR-300RTR. The DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

Page 36

32FR-300RTR User Manual

Section 3 - Conﬁguration

DHCP Reservation

If you want a computer or device to always have the same IP address assigned, you can create a DHCP reservation. The router will assign the IP address only to that computer or device.

Note: This IP address must be within the DHCP IP Address Range.

Check this box to enable the reservation.

Enter the computer name or select from the drop-down menu and click <<.

Enter the IP address you want to assign to the computer or device. This IP Address must be within the DHCP IP Address Range.

Enter the MAC address of the computer or device.

If you want to assign an IP address to the computer you are currently on, click this button to populate the ﬁelds.

Click Save to save your entry. You must click Save Settings at the top to activate your reservations.

In this section you can see what LAN devices are currently leasing IP addresses.

Click Revoke to cancel the lease for a speciﬁc LAN device and free an entry in the lease table. Do this only if the device no longer needs the leased IP address, because, for example, it has been removed from the network.

Enable:

Computer Name:

IP Address:

MAC Address:

Copy Your PC’s

MAC Address:

Save:

Number of

Dynamic DHCP

Clients:

Revoke:

Page 37

33FR-300RTR User Manual

Section 3 - Conﬁguration

Reserve:

Note: The Revoke option will not disconnect a PC with a current network session from the network; you would need to use

MAC Address Filter to do that. Revoke will only free up a DHCP Address for the very next requester. If the previous owner is still available, those two devices may both receive an IP Address Conﬂict error, or the second device may still not receive an IP Address; in that case, you may still need to extend the “DHCP IP Address Range” to address the issue, it is located in the DHCP Server section.

The Reserve option converts this dynamic IP allocation into a DHCP Reservation and adds the corresponding entry to the DHCP Reservations List.

Page 38

34FR-300RTR User Manual

Section 3 - Conﬁguration

The FR-300RTR can be conﬁgured as a virtual server so that remote users accessing Web or FTP services via the public IP address can be automatically redirected to local servers in the LAN (Local Area Network).

The FR-300RTR ﬁrewall feature ﬁlters out unrecognized packets to protect your LAN network so all computers networked with the FR-300RTR are invisible to the outside world. If you wish, you can make some of the LAN computers accessible from the Internet by enabling Virtual Server. Depending on the requested service, the FR-300RTR redirects the external service request to the appropriate server within the LAN network.

The FR-300RTR is also capable of port-redirection meaning incoming trafﬁc to a particular port may be redirected to a different port on the server computer.

Each virtual service that is created will be listed at the bottom of the screen in the Virtual Servers List. There are pre-deﬁned virtual services already in the table. You may use them by enabling them and assigning the server IP to use that particular virtual service.

Virtual Server

Page 39

35FR-300RTR User Manual

Section 3 - Conﬁguration

This will allow you to open a single port. If you would like to open a range of ports, refer to page 36.

Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the ﬁelds.

Enter the IP address of the computer on your local network that you want to allow the incoming service to. If your computer is receiving an IP address automatically from the router (DHCP), you computer will be listed in the “Computer Name” drop-down menu. Select your computer and click <<.

Enter the port that you want to open next to Private Port and Public Port. The private and public ports are usually the same. The public port is the port seen from the Internet side, and the private port is the port being used by the application on the computer within your local network.

Select TCP, UDP, or Both from the drop-down menu.

Select Allow All (most common) or a created Inbound ﬁlter. You may create your own inbound ﬁlters in the Advanced > Inbound Filter page.

The schedule of time when the Virtual Server Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.

Name:

IP Address:

Private Port/

Public Port:

Protocol Type:

Inbound Filter:

Schedule:

Page 40

36FR-300RTR User Manual

Section 3 - Conﬁguration

This will allow you to open a single port or a range of ports.

Port Forwarding

Enter a name for the rule or select an application from the drop-down menu. Select an application and click << to populate the ﬁelds.

Enter the TCP and/or UDP port or ports that you want to open. You can enter a single port or a range of ports. Separate ports with a common.

Example: 24,1009,3000-4000

Select Allow All (most common) or a created Inbound ﬁlter. You may create your own inbound ﬁlters in the Advanced > Inbound Filter page.

Name:

IP Address:

TCP/UDP:

Inbound Filter:

Schedule:

Page 41

37FR-300RTR User Manual

Section 3 - Conﬁguration

Enter a name for the rule. You may select a pre-deﬁned application from the drop-down menu and click <<.

This is the port used to trigger the application. It can be either a single port or a range of ports.

Select the protocol of the trigger por t (TCP, UDP, or Both).

This is the port number on the Internet side that will be used to access the application. You may deﬁne a single port or a range of ports. You can use a comma to add multiple ports or port ranges.

Select the protocol of the ﬁrewall port (TCP, UDP, or Both).

The schedule of time when the Application Rule will be enabled. The schedule may be set to Always, which will allow the particular service to always be enabled. You can create your own times in the Tools > Schedules section.

Name:

Trigger:

Trafﬁc Type:

Firewall:

Trafﬁc Type:

Schedule:

Application Rules

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications have difﬁculties working through NAT (Network Address Translation). Special Applications makes some of these applications work with the FR-300RTR. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port” ﬁeld, select the protocol type as TCP or UDP, then enter the ﬁrewall (public) ports associated with the trigger port to open them for inbound trafﬁc.

The FR-300RTR provides some predeﬁned applications in the table on the bottom of the web page. Select the application you want to use and enable it.

Page 42

38FR-300RTR User Manual

Section 3 - Conﬁguration

QoS Engine

En able this opti on for be tter perfor mance and experience with online games and other interactive applications, such as VoIP. Uncheck to disable this option.

This option is enabled by default when the QoS Engine option is enabled. This option will allow your router to automatically determine the uplink speed of your Internet connection.

This displays the detected uplink speed.

The speed at which data can be transferred from the router to your ISP. This is determined by your ISP. ISP’s often speed as a download/upload pair. For example, 1.5Mbits/ 284Kbits. Using this example, you would enter 284. Alternatively you can test your uplink speed with a service such as www. dslreports.com.

Enable QOS

Engine:

Automatic Uplink

Speed:

Measured Uplink

Speed:

Manual Uplink

Speed:

The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS Engine settings are enabled.

Page 43

39FR-300RTR User Manual

Section 3 - Conﬁguration

Network Filters

Select Turn MAC Filtering Off, allow MAC addresses listed below, or deny MAC addresses listed below from the drop-down menu.

Enter the MAC address you would like to ﬁlter. To ﬁnd the MAC address on a computer, please refer to the Networking Basics section in this manual.

Select a DHCP client from the drop-down menu and click << to copy that MAC Address.

Conﬁgure MAC

Filtering:

MAC Address:

DHCP Client:

Use MAC (Media Access Control) Filters to allow or deny LAN (Local Area Network) computers by their MAC addresses from accessing the Network. You can either manually add a MAC address or select the MAC address from the list of clients that are currently connected to the Broadband Router.

Page 44

40FR-300RTR User Manual

Section 3 - Conﬁguration

Access Control

Check the Enable Access Control check box and click the Add Policy button to start the Access Control Wizard.

Add Policy:

The Access Control section allows you to control access in and out of your network. Use this feature as Parental Controls to only grant access to approved sites, limit web access based on time or dates, and/or block access from applications like P2P utilities or games.

Click Next to continue with the wizard.

Access Control Wizard

Page 45

41FR-300RTR User Manual

Section 3 - Conﬁguration

Enter a name for the policy and then click Next to continue.

Access Control Wizard (continued)

Select a schedule (I.E. Always) from the drop-down menu and then click Next to continue.

Enter the following information and then click Next to continue.

• Address Type - Select IP address, MAC address, or Other Machines.

• IP Address - Enter the IP address of the computer you want to apply the rule to.

Page 46

42FR-300RTR User Manual

Section 3 - Conﬁguration

Select the ﬁltering method and then click Next to continue.

Access Control Wizard (continued)

Enter the rule:

Enable - Check to enable the rule. Name - Enter a name for your rule. Dest IP Start - Enter the starting IP address. Dest IP End - Enter the ending IP address. Protocol - Select the protocol. Dest Port Start - Enter the starting port number. Dest Port End - Enter the ending port number.

To enable web logging, click Enable.

Click Save to save the access control rule.

Page 47

43FR-300RTR User Manual

Section 3 - Conﬁguration

Select Deny or Allow computers access to only these sites.

Click to delete all entries in the list.

Enter the keywords or URLs that you want to allow or deny.

Conﬁgure Website

Filter Below:

Clear the list

below:

Website URL/

Domain:

Website Filters

Website Filters are used to allow you to set up a list of allowed Web sites that can be used by multiple users through the network. To use this feature select to Allow or Deny, enter the domain or website and click Add, and then click Save Settings. You must also select Apply Web Filter under the Access Control section (page 39).

Page 48

44FR-300RTR User Manual

Section 3 - Conﬁguration

Enter a name for the inbound ﬁlter rule.

Select Allow or Deny.

Check to enable rule.

Enter the starting IP address. Enter 0.0.0.0 if you do not want to specify an IP range.

Enter t h e e n d i n g IP address. E n t e r

255.255.255.255 if you do not want to specify and IP range.

Click the Add button to apply your settings.

This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule.

Name:

Action:

Enable:

Remote IP Start:

Remote IP End:

Add:

Inbound Filter

Rules List:

The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can conﬁgure inbound data ﬁltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual Server, Port Forwarding, or Remote Administration features.

Inbound Filters

Page 49

45FR-300RTR User Manual

Section 3 - Conﬁguration

SPI (Stateful Packet Inspection, also known as dynamic packet ﬁltering) helps to prevent cyber attacks by tracking more state per session. It validates that the trafﬁc passing through the session conforms to the protocol.

Select one of the following for TCP and UDP ports: Endpoint Independent - Any incoming trafﬁc sent to an open port will be forwarded to the application that opened the port. The port will close if idle for 5 minutes.

Address Restricted - Incoming trafﬁc must match the IP address of the outgoing connection.

Address + Port Restriction - Incoming trafﬁc must match the IP address and port of the outgoing connection.

Enable this option to provide protection from certain kinds of “spooﬁng” attacks.

If an application has trouble working from behind the router, you can expose one computer to the Internet and run the application on that computer.

Note: Placing a computer in the DMZ may expose that computer to a variety of security risks. Use of this option is only recommended as a last resort.

Specify the IP address of the computer on the LAN that you want to have unrestricted Internet communication. If this computer obtains it’s IP address automatically using DHCP, be sure to make a static reservation on the System > Network Settings page so that the IP address of the DMZ machine does not change.

Enable SPI:

NAT Endpoint

Filtering:

Enable Anti-Spoof

Checking:

Enable DMZ Host:

IP Address:

Firewall Settings

A ﬁrewall protects your network from the outside world. The Fry’s FR-300RTR offers a ﬁrewall type functionality. The SPI feature helps prevent cyber attacks. Sometimes you may want a computer exposed to the outside world for certain types of applications. If you choose to expose a computer, you can enable DMZ. DMZ is short for Demilitarized Zone. This option will expose the chosen computer completely to the outside world.

Page 50

46FR-300RTR User Manual

Section 3 - Conﬁguration

VPN Passthrough

RTSP H.323

SIP (VoIP)

MMS

Application Level Gateway (ALG) Conﬁguration

Here you can enable or disable ALG’s. Some protocols and applications require special handling of the IP payload to make them work with network address translation (NAT). Each ALG provides special handling for a speciﬁc protocol or application. A number of ALGs for common applications are enabled by default.

Allows multiple machines on the LAN to connect to their corporate network using PPTP protocol.

Allows multiple VPN clients to connect to their corporate network using IPSec. Some VPN clients support traversal of IPSec through NAT. This ALG may interfere with the operation of such VPN clients. If you are having trouble connecting with your corporate network, try turning this ALG off. Please check with the system administrator of your corporate network whether your VPN client supports NAT traversal.

Allows applications that use Real Time Streaming Protocol to receive streaming media from the internet. QuickTime and Real Player are some of the common applications using this protocol.

Allows FTP clients and servers to transfer data across NAT. Refer to the Advanced > Virtual Server page if you want to host an FTP server.

Allows devices and applications using VoIP (Voice over IP) to communicate across NAT. Some VoIP applications and devices have the ability to discover NAT devices and work around them. This ALG may interfere with the operation of such devices. If you are having trouble making VoIP calls, try turning this ALG off.

PPTP:

IPSec (VPN):

RTSP:

FTP:

SIP:

Page 51

47FR-300RTR User Manual

Section 3 - Conﬁguration

Routing

This page allows you to specify custom routes that determine how data is moved around your network.

Routing List:

Name:

Destination IP:

Metric:

Netmask:

Gateway:

Each Route has a checkbox next to it, check the box of the route you wish to enable.

Specify a name for identiﬁcation of this route.

Enter the address of the host or network you wish to access.

The route metric is a value from 1 to 16 that indicates the cost of using this route. A value 1 is the lowest cost and 15 is the highest cost.

This ﬁeld identiﬁes the portion of the destination IP in use.

The IP address of the router will be displayed here.

Page 52

48FR-300RTR User Manual

Section 3 - Conﬁguration

Set the transmit power of the antennas.

Beacons are packets sent by an Access Point to synchronize a wireless network. Specify a value. 100 is the default setting and is recommended.

This value should remain at its default setting of

2432. If inconsistent data ﬂow is a problem, only a minor modiﬁcation should be made.

The fragmentation threshold, which is speciﬁed in bytes, determines whether packets will be fragmented. Packets exceeding the 2346 byte setting will be fragmented before transmission. 2346 is the default setting.

(Delivery Trafﬁc Indication Message) 3 is the default setting. A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.

This enables 802.11d operation. 802.11d is a wireless speciﬁcation developed to allow implementation of wireless networks in countries that cannot use the 802.11 standard. This feature should only be enabled if you are in a country that requires it.

WMM is QoS for your wireless network. This will improve the quality of video and voice applications for your wireless clients.

Check this box to reduce the guard interval time therefore increasing the data capacity. However, it’s less reliable and may create higher data loss.

Transmit Power:

Beacon Period:

RTS Threshold:

Fragmentation

Threshold:

DTIM Interval:

WLAN Partition:

WMM Enable:

Short GI:

Advanced Wireless Settings

Page 53

49FR-300RTR User Manual

Section 3 - Conﬁguration

To use the Universal Plug and Play (UPnP™) feature click on Enabled. UPNP provides compatibility with networking equipment, software and peripherals.

Unchecking the box will not allow the FR-300RTR to respond to pings. Blocking the Ping may provide some extra security from hackers. Check the box to allow the Internet port to be “pinged”.

You may set the port speed of the Internet port to 10Mbps, 100Mbps, or auto. Some older cable or DSL modems may require you to set the port speed to 10Mbps.

Check the box to allow multicast trafﬁc to pass through the router from the Internet.

UPnP Settings:

WAN Ping:

WAN Port

Speed:

Multicast Streams:

Advanced Network Settings

Page 54

50FR-300RTR User Manual

Section 3 - Conﬁguration

Change Password Remote Management

Enter a new password for the Administrator Login Name. The administrator can make changes to the settings.

Enter the new password for the User login. If you login as the User, you can only see the settings, but cannot change them.

Enter a name for the FR-300RTR router.

Enables a challenge-response test to require users to type letters or numbers from a distorted image displayed on the screen to prevent online hackers and unauthorized users from gaining access to your router’s network settings.

Remote management allows the FR-300RTR to be conﬁgured from the Internet by a web browser. A username and password is still required to access the Web-Management interface. In general, only a member of your network can browse the built-in web pages to perform Administrator tasks. This feature enables you to perform Administrator tasks from the remote (Internet) host.

Admin Password:

User Password:

Gateway Name:

Enable Graphical

Authentication:

Remote

Management:

Administrator Settings

This page will allow you to change the Administrator and User passwords. You can also enable Remote Management. There are two accounts that can access the management interface through the web browser. The accounts are admin and user. Admin has read/write access while user has read-only access. User can only view the settings but cannot make any changes. Only the admin account has the ability to change both admin and user account passwords.

Page 55

51FR-300RTR User Manual

Section 3 - Conﬁguration

Remote Admin

Port:

Inbound Filter:

The port number used to access the FR-300RTR. Example: http://x.x.x.x:8080 whereas x.x.x.x is the Internet IP address of the FR-300RTR and 8080 is the port used for the Web Management interface.

This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the Delete icon to remove the rule.

Page 56

52FR-300RTR User Manual

Section 3 - Conﬁguration

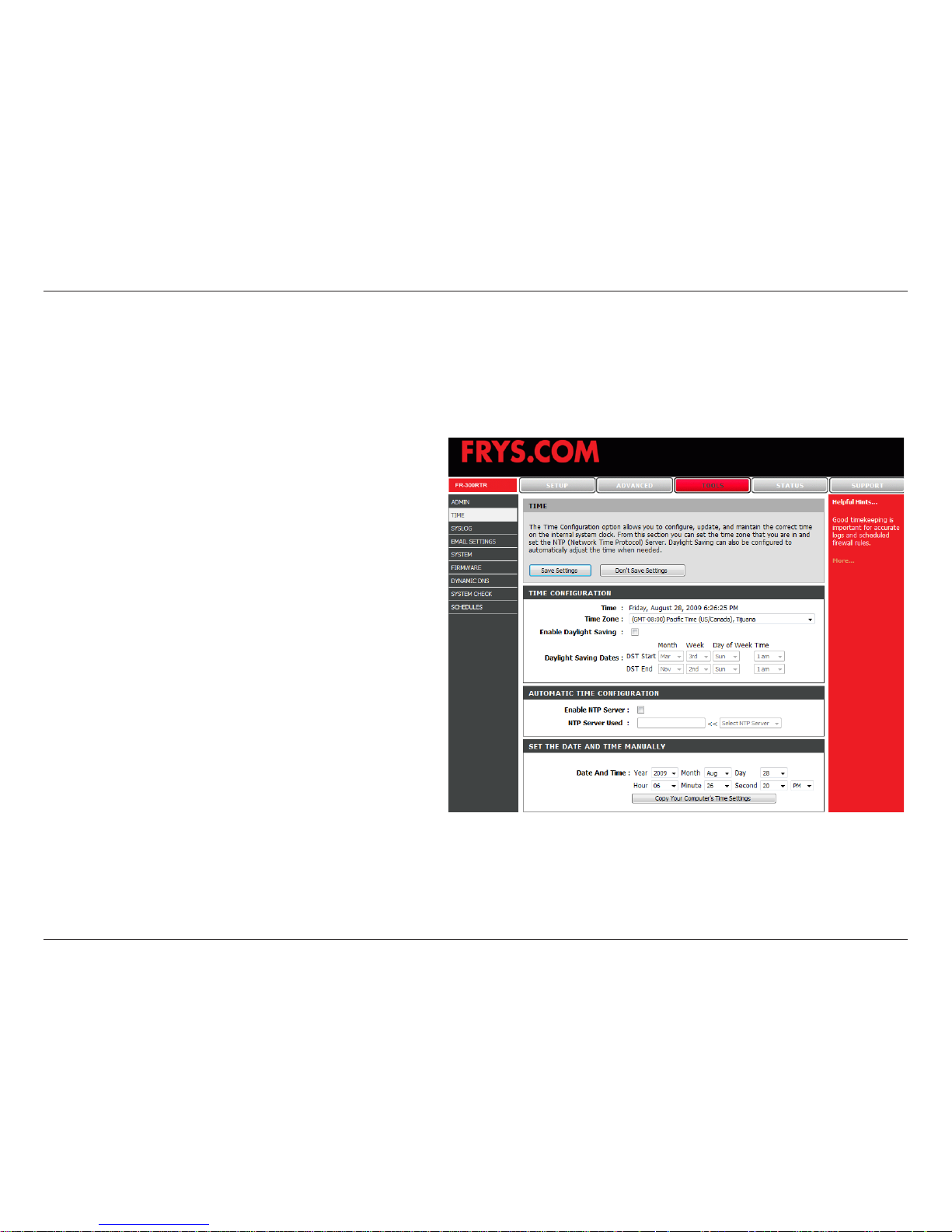

Time Settings

Select the Time Zone from the drop-down menu.

To select Daylight Saving time manually, select enabled or disabled, and enter a start date and an end date for daylight saving time.

NTP is short for Network Time Protocol. NTP synchronizes computer clock times in a network of computers. Check this box to use a NTP server. This will only connect to a server on the Internet, not a local server.

Enter the NTP server or select one from the drop-down menu.

To manually input the time, enter the values in these ﬁelds for the Year, Month, Day, Hour, Minute, and Second and then click Set Time. You can also click Copy Your Computer’s Time Settings.

Time Zone:

Daylight Saving:

Enable NTP

Server:

NTP Server Used:

Manual:

The Time Conﬁguration option allows you to conﬁgure, update, and maintain the correct time on the internal system clock. From this section you can set the time zone that you are in and set the Time Server. Daylight Saving can also be conﬁgured to automatically adjust the time when needed.

Page 57

53FR-300RTR User Manual

Section 3 - Conﬁguration

SysLog

The Broadband Router keeps a running log of events and activities occurring on the Router. You may send these logs to a SysLog server on your network.

Enable

Logging

to SysLog

Server:

SysLog

Server IP

Address:

Check this box to send the router logs to a SysLog Server.

The address of the SysLog server that will be used to send the logs. You may also select your computer from the drop-down menu (only if receiving an IP address from the router via DHCP).

Page 58

54FR-300RTR User Manual

Section 3 - Conﬁguration

E-mail Settings

The Email feature can be used to send the system log ﬁles, router alert messages, and ﬁrmware update notiﬁcation to your e-mail address.

Enable Email

Notiﬁcation:

From Email

Address:

To Email Address:

SMTP Server

Address:

Enable

Authentication:

Account Name:

Password:

On Log Full:

On Schedule:

Schedule:

When this option is enabled, router activity logs are e-mailed to a designated e-mail address.

This e-mail address will appear as the sender when you receive a log ﬁle or ﬁrmware upgrade notiﬁcation via e-mail.

Enter the e-mail address where you want the e-mail sent.

Enter the SMTP server address for sending e-mail. If your SMTP server requires authentication, select this option.

Check this box if your SMTP server requires authentication.

Enter your account for sending e-mail.

Enter the password associated with the account. Re-type the password associated with the account.

When this option is selected, logs will be sent via e-mail when the log is full.

Selecting this option will send the logs via e-mail according to schedule.

This option is enabled when On Schedule is selected. You can select a schedule from the list of deﬁned schedules. To create a schedule, go to Tools > Schedules.

Page 59

55FR-300RTR User Manual

Section 3 - Conﬁguration

Use this option to save the current router conﬁguration settings to a ﬁle on the hard disk of the computer you are using. First, click the Save button. You will then see a ﬁle dialog, where you can select a location and ﬁle name for the settings.

Use thi s option to load previously saved router configuration settings. First, use the Browse control to ﬁnd a previously save ﬁle of conﬁguration settings. Then, click the Load button to transfer those settings to the router.

This option will restore all conﬁguration settings back to the settings that were in effect at the time the router was shipped from the factory. Any settings that have not been saved will be lost, including any rules that you have created. If you want to save the current router conﬁguration settings, use the Save button above.

Click to reboot the router.

Save Settings to

Local Hard Drive:

Load Settings

from Local Hard

Drive:

Restore to Factory

Default Settings:

Reboot Device:

System Settings

Page 60

56FR-300RTR User Manual

Section 3 - Conﬁguration

Click on Check Online Now for Latest Firmware Version to ﬁnd out if there is an updated ﬁrmware;

if so, download the new ﬁrmware to your hard drive.

After you have downloaded the new ﬁrmware, click Browse to locate the ﬁrmware update on your hard drive. Click Upload to complete the ﬁrmware upgrade.

Check Automatically Check Online for Latest Firmware Version to have the router check automatically to see if there is a new ﬁrmware upgrade.

Check Email Notiﬁcation of Newer Firmware Version to have the router send an e-mail when there is a new ﬁrmware available.

Firmware

Upgrade:

Browse:

Notiﬁcations

Options:

Upgrade Firmware

You can upgrade the ﬁrmware of the Router here. Make sure the ﬁrmware you want to use is on the local hard drive of the computer. Click on Browse to locate the ﬁrmware ﬁle to be used for the update. Please check the Fry’s support site for ﬁrmware updates at http://www.frysnetworksupport.com. You can download ﬁrmware upgrades to your hard drive from the Fry’s support site.

Page 61

57FR-300RTR User Manual

Section 3 - Conﬁguration

Dynamic Domain Name System is a method of keeping a domain name linked to a changing IP Address. Check the box to enable DDNS.

Choose your DDNS provider from the drop down menu.

Enter the Host Name that you registered with your DDNS service provider.

Enter the Username for your DDNS account.

Enter the Password for your DDNS account.

Enter a time (in hours).

Displays the current connection status to your DDNS server.

DDNS:

Server Address:

Host Name:

Username or Key:

Password or Key:

Timeout:

Status:

DDNS

The DDNS feature allows you to host a server (Web, FTP, Game Server, etc…) using a domain name that you have purchased (www.whateveryournameis.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses. Using a DDNS service provider, your friends can enter in your domain name to connect to your server no matter what your IP address is.

Page 62

58FR-300RTR User Manual

Section 3 - Conﬁguration

System Check

The Ping Test is used to send Ping packets to test if a computer is on the Internet. Enter the IP Address that you wish to Ping, and click Ping.

The results of your ping attempts will be displayed here.

Ping Test:

Ping Results:

Page 63

59FR-300RTR User Manual

Section 3 - Conﬁguration

Enter a name for your new schedule.

Select a day, a range of days, or All Week to include every day.

Check All Day - 24hrs or enter a start and end time for your schedule.

Cl ick S av e t o save you r schedule. You must click Save Settings at the top for your schedules to go into effect.

The list of schedules will be listed here. Click the Edit icon to make changes or click the Delete icon to remove the schedule.

Name:

Days:

Time:

Save:

Schedule Rules

List:

Schedules

Page 64

60FR-300RTR User Manual

Section 3 - Conﬁguration

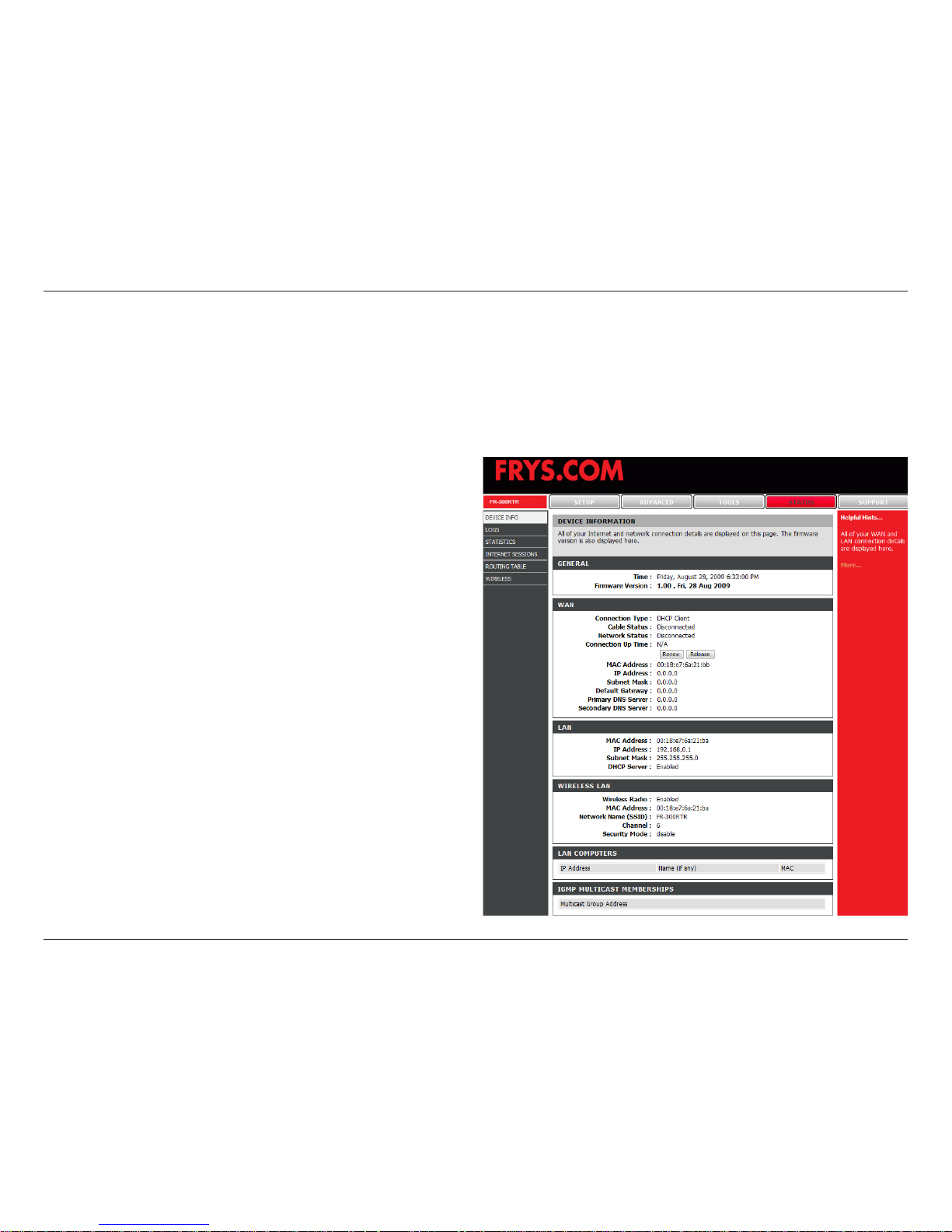

This page displays the current information for the FR-300RTR. It will display the LAN, WAN (Internet), and Wireless information.

If your Internet connection is set up for a Dynamic IP address then a Release button and a Renew button will be displayed. Use Release to disconnect from your ISP and use Renew to connect to your ISP.

If your Internet connection is set up for PPPoE, a Connect button and a Disconnect button will be displayed. Use

Disconnect to drop the PPPoE connection and use Connect to establish the PPPoE connection.

Device Information

Displays the router’s time and ﬁrmware version.

Displays the MAC address and the public IP settings for the router.

Displays the MAC address and the private (local) IP settings for the router.

Displays the wireless MAC address and your wireless settings such as SSID and Channel.

Displays computers and devices that are connected to the router via Ethernet and that are receiving an IP address assigned by the router (DHCP).

Displays the Multicast Group IP Address.

General:

WAN:

LAN:

Wireless LAN:

LAN Computers:

IGMP Multicast

Memberships:

Page 65

61FR-300RTR User Manual

Section 3 - Conﬁguration

Log

What to View:

View Levels:

Apply Log

Settings:

Refresh:

Clear:

Email Now:

Save Log:

You can select the types of messages that you want to display from the log. Firewall & Security, System, and Router Status messages can be selected.

There are three levels of message importance: Informational, Warning, and Critical. Select the levels that you want displayed in the log.

Will ﬁlter the log results so that only the selected options appear.

Updates the log details on the screen so it displays any recent activity.

Clears all of the log contents.

This option will send a copy of the router log to the e-mail address conﬁgured in the Tools > Email Settings screen.

This option will save the router to a log ﬁle on your computer.

The router automatically logs (records) events of possible interest in it’s internal memory. If there isn’t enough internal memory for all events, logs of older events are deleted but logs of the latest events are retained. The Logs option allows you to view the router logs. You can deﬁne what types of events you want to view and the level of the events to view. This router also has external Syslog Server support so you can send the log ﬁles to a computer on your network that is running a Syslog utility.

Page 66

62FR-300RTR User Manual

Section 3 - Conﬁguration

Statistics

The screen below displays the Trafﬁc Statistics. Here you can view the amount of packets that pass through the FR-300RTR on both the Internet and the LAN ports. The trafﬁc counter will reset if the device is rebooted.

Page 67

63FR-300RTR User Manual

Section 3 - Conﬁguration

Internet Sessions

The Internet Sessions page displays full details of active Internet sessions through your router. An Internet session is a conversation between a program or application on a LAN-side computer and a program or application on a WAN-side computer.

Local:

NAT:

Internet:

Protocol:

State:

The IP address and, where appropriate, por t number of the local application.

The port number of the LAN-side application as viewed by the WAN-side application.

The IP address and, where appropriate, por t number of the application on the Internet.

The communications protocol used for the conversation.

State for sessions that use the TCP protocol:

NO: None -- This entry is used as a placeholder for a future connection that may occur. SS: SYN Sent -- One of the systems is attempting to start a connection. EST: Established -- the connection is passing data. FW: FIN Wait -- The client system has requested that the connection be stopped. CW: Close Wait -- The server system has requested that the connection be stopped. TW: Time Wait -- Waiting for a short time while a connection that was in FIN Wait is fully closed. LA: Last ACK -- Waiting for a short time while a connection that was in Close Wait is fully closed.

CL: Closed -- The connection is no longer active but the session is being tracked in case there are any retransmitted

packets still pending.

The direction of initiation of the conversation:

Out - Initiated from LAN to WAN. In - Initiated from WAN to LAN.

Page 68

64FR-300RTR User Manual

Section 3 - Conﬁguration

Dir:

Priority:

Time Out:

The preference given to outbound packets of this conversation by the QoS Engine logic. Smaller numbers represent higher priority.

The number of seconds of idle time until the router considers the session terminated. The initial value of Time Out depends on the type and state of the connection.

300 seconds - UDP connections.

240 seconds - Reset or closed TCP connections. The connection does not close instantly so that lingering packets can pass or the connection can be re-established.

7800 seconds - Established or closing TCP connections.

Page 69

65FR-300RTR User Manual

Section 3 - Conﬁguration

Routing Table

This page displays the routing details conﬁgured for your router.

Page 70

66FR-300RTR User Manual

Section 3 - Conﬁguration

The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and MAC address of the connected wireless clients.

Wireless

Page 71

67FR-300RTR User Manual

Section 3 - Conﬁguration

Support

Page 72

68FR-300RTR User Manual

Section 4 - Security

Wireless Security

This section will show you the different levels of security you can use to protect your data from intruders. The FR-300RTR offers the following types of security:

• WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK(Pre-Shared Key)

• WPA (Wi-Fi Protected Access) • WPA-PSK (Pre-Shared Key)

What is WPA?

WPA, or Wi-Fi Protected Access, is a Wi-Fi standard that was designed to improve the security features of WEP (Wired Equivalent Privacy).

The 2 major improvements over WEP:

• Improved data encryption through the Temporal Key Integrity Protocol (TKIP). TKIP scrambles the keys using a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard (AES) instead of TKIP.

• User authentication, which is generally missing in WEP, through the extensible authentication protocol (EAP). WEP regulates access to a wireless network based on a computer’s hardware-speciﬁc MAC address, which is relatively simple to be sniffed out and stolen. EAP is built on a more secure public-key encryption system to ensure that only authorized network users can access the network.

WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection. The key is an alpha-numeric password between 8 and 63 characters long. The password can include symbols (!?*&_) and spaces. This key must be the exact same key entered on your wireless router or access point.

WPA/WPA2 incorporates user authentication through the Extensible Authentication Protocol (EAP). EAP is built on a more secure public key encryption system to ensure that only authorized network users can access the network.

Page 73

69FR-300RTR User Manual

Section 4 - Security

Conﬁgure WPA-Personal (PSK)

It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the added overhead.

1. Log into the web-based configuration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Personal.

3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if you have wireless clients using both WPA and WPA2.

4. Next to Cypher Type, select TKIP and AES, TKIP, or AES. If you have wireless clients that use both types, use TKIP and AES.

5. Next to Group Key Update Interval, enter the amount of time before the group key used for broadcast and multicast data is changed (3600 is default).

6. Next to Pre-Shared Key, enter a key (passphrase). The key is entered as a pass-phrase in ASCII format at both ends of the wireless connection. The pass-phrase must be between 8-63 characters.

7. Click Save Settings to save your settings. If you are conﬁguring the router with a wireless adapter, you will lose connectivity until you enable WPA-PSK on your adapter and enter the same passphrase as you did on the router.

Page 74

70FR-300RTR User Manual

Section 4 - Security

the added overhead.

1. Log into the web-based conﬁguration by opening a web browser and entering the IP address of the router (192.168.0.1). Click on Setup and then click Wireless Settings on the left side.

2. Next to Security Mode, select WPA-Enterprise.

3. Next to WPA Mode, select Auto, WPA2 Only, or WPA Only. Use Auto if you have wireless clients using both WPA and WPA2.

4. Next to Cypher Type, select TKIP and AES, TKIP, or AES. If you have wireless clients that use both types, use TKIP and AES.

5. Next to Group Key Update Interval, enter the amount of time before the group key used for broadcast and multicast data is changed (3600 is default).

6. Next to Authentication Timeout, enter the amount of time before a client is required to re-authenticate (60 minutes is default).

7. Next to RADIUS Server IP Address enter the IP Address of your RADIUS server.

8. Next to RADIUS Server Port, enter the port you are using with your RADIUS server. 1812 is the default port.

Conﬁgure WPA-Enterprise (RADIUS)

Page 75

71FR-300RTR User Manual

Section 4 - Security

9. Next to RADIUS Server Shared Secret, enter the security key.

10. If the MAC Address Authentication box is selected then the

user will need to connect from the same computer whenever logging into the wireless network.

11. Click Advanced to enter settings for a secondary RADIUS

Server.

12. Click Apply Settings to save your settings.

Page 76

72FR-300RTR User Manual

Section 4 - Security

Wireless Security Setup Wizard

To run the security wizard, browse to the Setup page and then click the Launch Wireless Security Setup Wizard button.

Page 77

73FR-300RTR User Manual

Section 4 - Security

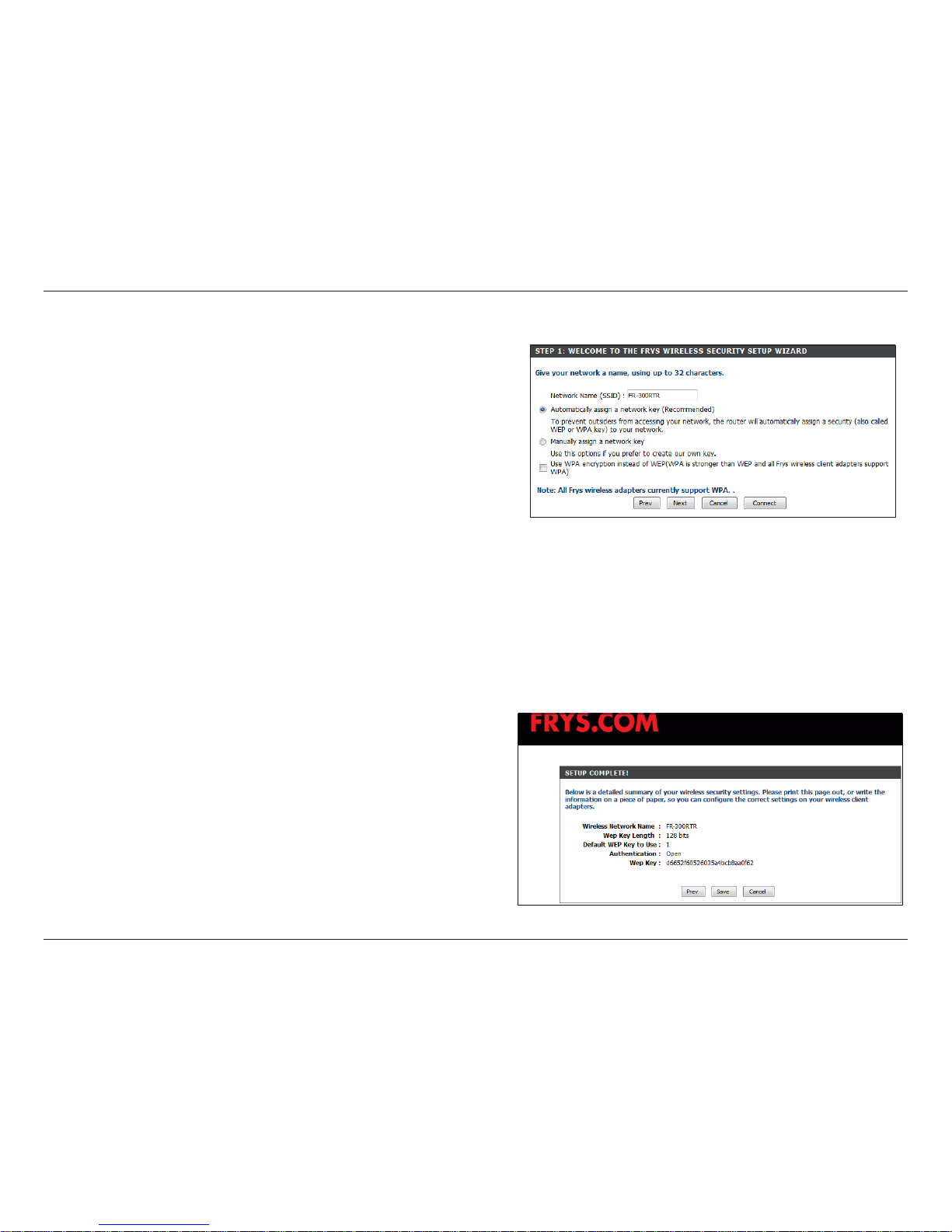

If you selected Automatically, the following screen will show you your security key to enter on your wireless clients. Click Save to ﬁnish the Security Wizard.

Click Next to continue.

Page 78

74FR-300RTR User Manual

Section 4 - Security

This screen will appear once your Setup is complete. Click Save to ﬁnish the Security Wizard.

If you selected to Manually assign a network key, enter your encryption key in the box and click Next to continue. You will need to enter this key on your wireless clients to connect to the router.

Page 79

75FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

Connect to a Wireless Network

Using Windows Vista

Windows Vista® users may use the built-in wireless utility. If you are using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows Vista® utility as seen below.

Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select Connect to a network.

If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility.

The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.

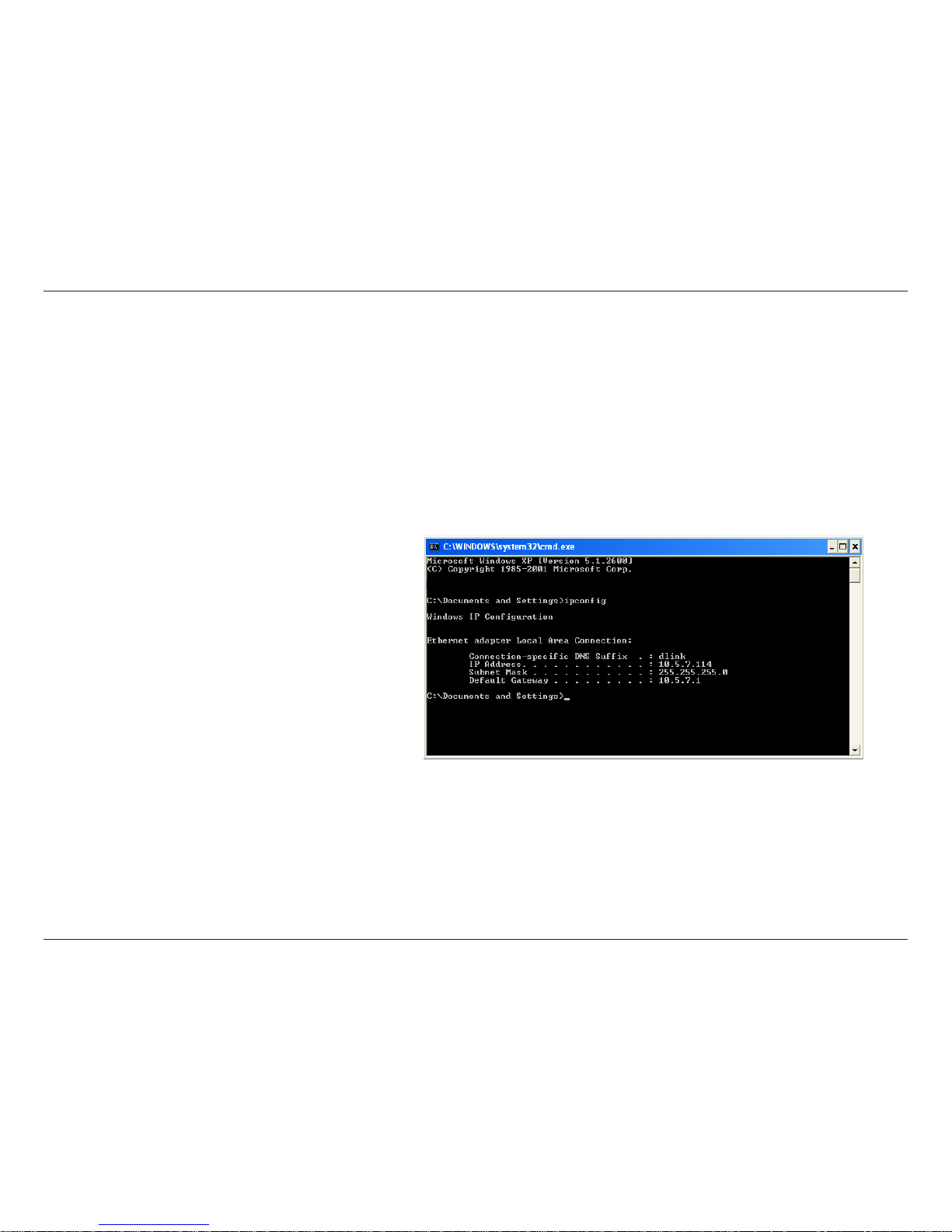

If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information.

Page 80

76FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

Conﬁgure WPA/WPA2

It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conﬁguring your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

2. Highlight the wireless network (SSID) you would like to connect to and click Connect.

1. Open the Windows Vista® Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower right corner of screen). Select Connect to a network.

Page 81

77FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

3. Enter the same security key or passphrase that is on your router and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the security settings are correct. The key or passphrase must be exactly the same as on the wireless router.

Page 82

78FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

Connect Using WCN 2.0

The router supports Wi-Fi protection, referred to as WCN 2.0 in Windows Vista®. The following instructions for setting this up depends on whether you are using Windows Vista® to conﬁgure the router or third party software.

When you ﬁrst set up the router, Wi-Fi protection is disabled and unconﬁgured. To enjoy the beneﬁts of Wi-Fi protection, the router must be both enabled and conﬁgured. There are three basic methods to accomplish this: use Windows Vista’s built-in support for WCN 2.0, use software provided by a third party, or manually conﬁgure.

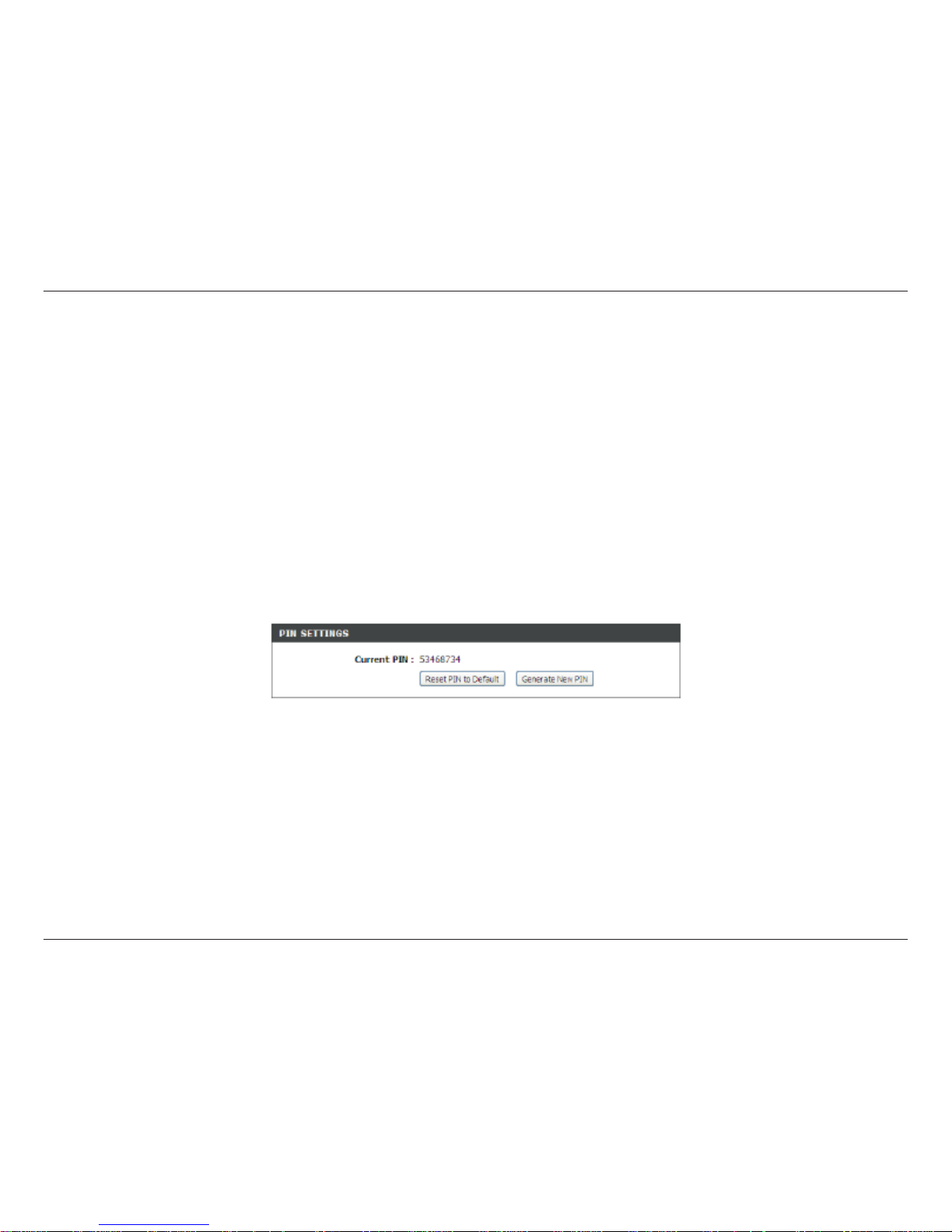

If you are running Windows Vista®, log into the router and click the Enable checkbox in the Basic > Wireless section. Use the Current PIN that is displayed on the Advanced > Wi-Fi Protected Setup section or choose to click the Generate New PIN button or Reset PIN to Default button.

For additional information, please refer to page 47.

If you are using third party software to set up Wi-Fi Protection, carefully follow the directions. When you are ﬁnished, proceed to the next section to set up the newly-conﬁgured router.

Page 83

79FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

Using Windows® XP

Windows® XP users may use the built-in wireless utility (Zero Conﬁguration Utility). The following instructions are for Service Pack 2 users. If you are using another company’s utility or Windows® 2000, please refer to the user manual of your wireless adapter for help with connecting to a wireless network. Most utilities will have a “site survey” option similar to the Windows® XP utility as seen below.

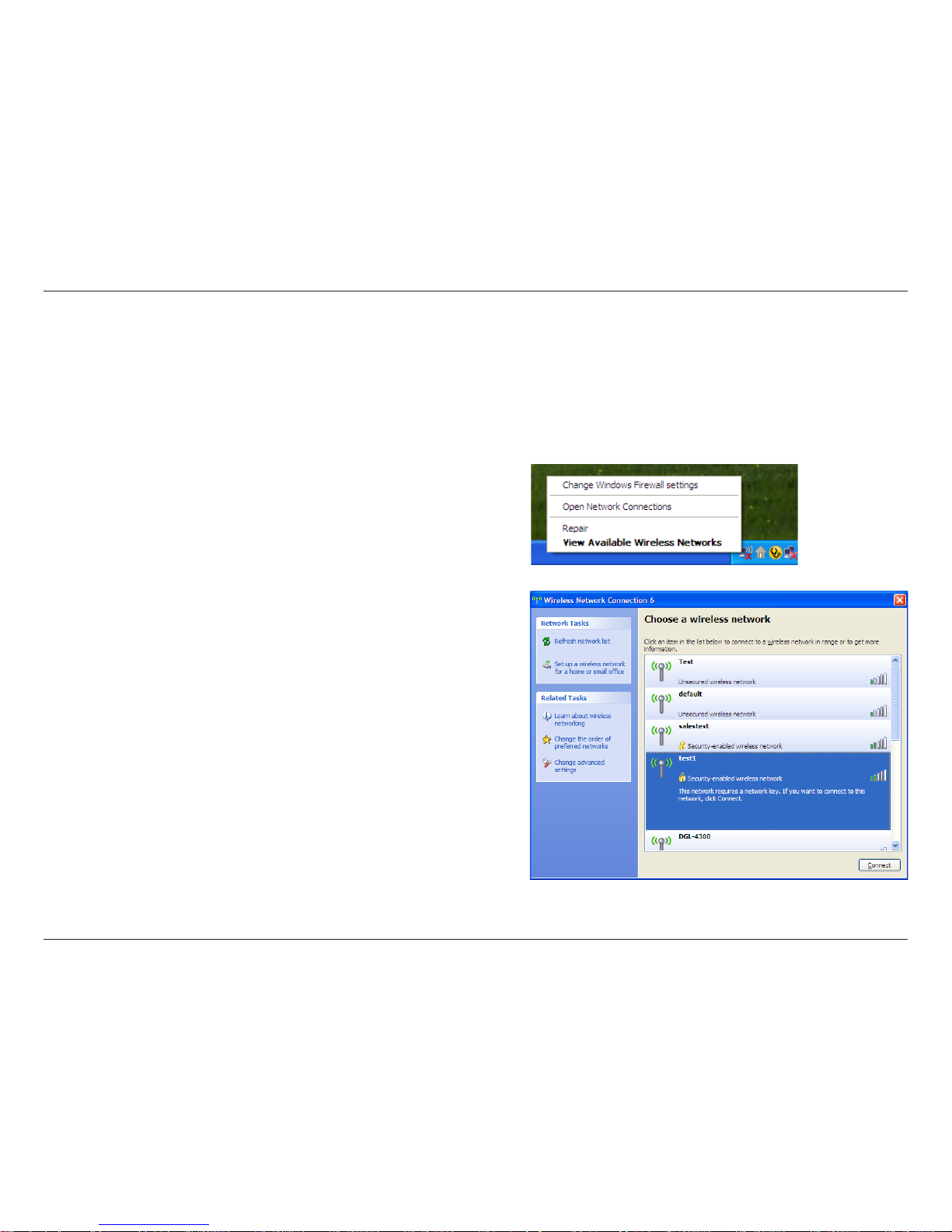

If you receive the Wireless Networks Detected bubble, click on the center of the bubble to access the utility.

Right-click on the wireless computer icon in your system tray (lower-right corner next to the time). Select View Available Wireless Networks.

The utility will display any available wireless networks in your area. Click on a network (displayed using the SSID) and click the Connect button.

If you get a good signal but cannot access the Internet, check you TCP/IP settings for your wireless adapter. Refer to the Networking Basics section in this manual for more information.

Page 84

80FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

Conﬁgure WPA-PSK

It is recommended to enable WEP on your wireless router or access point before conﬁguring your wireless adapter. If you are joining an existing network, you will need to know the WEP key being used.

2. Highlight the wireless network (SSID) you would like to connect to and click Connect.

1. Open the Windows® XP Wireless Utility by right-clicking on the wireless computer icon in your system tray (lower-right corner of screen). Select View Available Wireless Networks.

Page 85

81FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

3. The Wireless Network Connection box will appear. Enter the WPA-PSK passphrase and click Connect.

It may take 20-30 seconds to connect to the wireless network. If the connection fails, please verify that the WPA-PSK settings are correct. The WPA-PSK passphrase must be exactly the same as on the wireless router.

Page 86

82FR-300RTR User Manual

Section 5 - Connecting to a Wireless Network

From the Basic > Wizard screen, click Add Wireless Device with WPS.

Add Wireless Device with WPS Wizard

PIN: Select this option to use PIN method. In order to use this method you must know the wireless client’s 8 digit PIN and click Connect.

PBC: Select this option to use PBC (Push Button) method to add a wireless client. Click Connect.

Select Auto to add a wireless client using WPS (Wi-Fi Protected Setup). Once you select Auto and click Connect, you will have a 120 second time limit to apply the settings to your wireless client(s) and successfully establish a connection.

If you select Manual, a settings summary screen will appear. Write down the security key and enter this on your wireless clients.

Page 87

83FR-300RTR User Manual

Section 6 - Troubleshooting

Troubleshooting

This chapter provides solutions to problems that can occur during the installation and operation of the FR-300RTR. Read the following descriptions if you are having problems. (The examples below are illustrated in Windows® XP. If you have a different operating system, the screen shots on your computer will look similar to the following examples.)

1. Why can’t I access the web-based conﬁguration utility?

When entering the IP address of the Fry’s router (192.168.0.1 for example), you are not connecting to a website on the Internet or have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility.

• Make sure you have an updated Java-enabled web browser. We recommend the following:

• Internet Explorer 6.0 or higher

• Netscape 8 or higher

• Mozilla 1.7.12 (5.0) or higher

• Opera 8.5 or higher

• Safari 1.2 or higher (with Java 1.3.1 or higher)

• Camino 0.8.4 or higher

• Firefox 1.5 or higher

• Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using

a different cable or connect to a different port on the device if possible. If the computer is turned off, the link light may not be on.

• Disable any Internet security software running on the computer. Software ﬁrewalls such as Zone Alarm, Black Ice,

Sygate, Norton Personal Firewall, and Windows® XP ﬁrewall may block access to the conﬁguration pages. Check the help ﬁles included with your ﬁrewall software for more information on disabling or conﬁguring it.

Page 88

84FR-300RTR User Manual

Section 6 - Troubleshooting

• Conﬁgure your Internet settings:

• Go to Start > Settings > Control Panel. Double-click the Internet Options Icon. From the Security tab, click the button to restore the settings to their defaults.

• Click the Connection tab and set the dial-up option to Never Dial a Connection. Click the LAN Settings button. Make sure nothing is checked. Click OK.

• Go to the Advanced tab and click the button to restore these settings to their defaults. Click OK three times.

• Close your web browser (if open) and open it.

• Access the web management. Open your web browser and enter the IP address of your Fry’s router in the address bar. This should open the login page for your the web management.

• If you still cannot access the conﬁguration, unplug the power to the router for 10 seconds and plug back in. Wait about 30 seconds and try accessing the conﬁguration. If you have multiple computers, try connecting using a different computer.

2. What can I do if I forgot my password?

If you forgot your password, you must reset your router. Unfortunately this process will change all your settings back to the factory defaults.

To reset the router, locate the reset button (hole) on the rear panel of the unit. With the router powered on, use a paperclip to hold the button down for 10 seconds. Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default IP address is 192.168.0.1. When logging in, the username is admin and leave the password box empty.

Page 89

85FR-300RTR User Manual

Section 6 - Troubleshooting

3. Why can’t I connect to certain sites or send and receive e-mails when connecting through my router?

If you are having a problem sending or receiving e-mail, or connecting to secure sites such as eBay, banking sites, and Hotmail, we suggest lowering the MTU in increments of ten (Ex. 1492, 1482, 1472, etc).

Note: AOL DSL+ users must use MTU of 1400.

To ﬁnd the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be another computer, or a URL.

• Click on Start and then click Run.

• Windows® 95, 98, and Me users type in command (Windows® NT, 2000, and XP users type in cmd) and press Enter (or click OK).

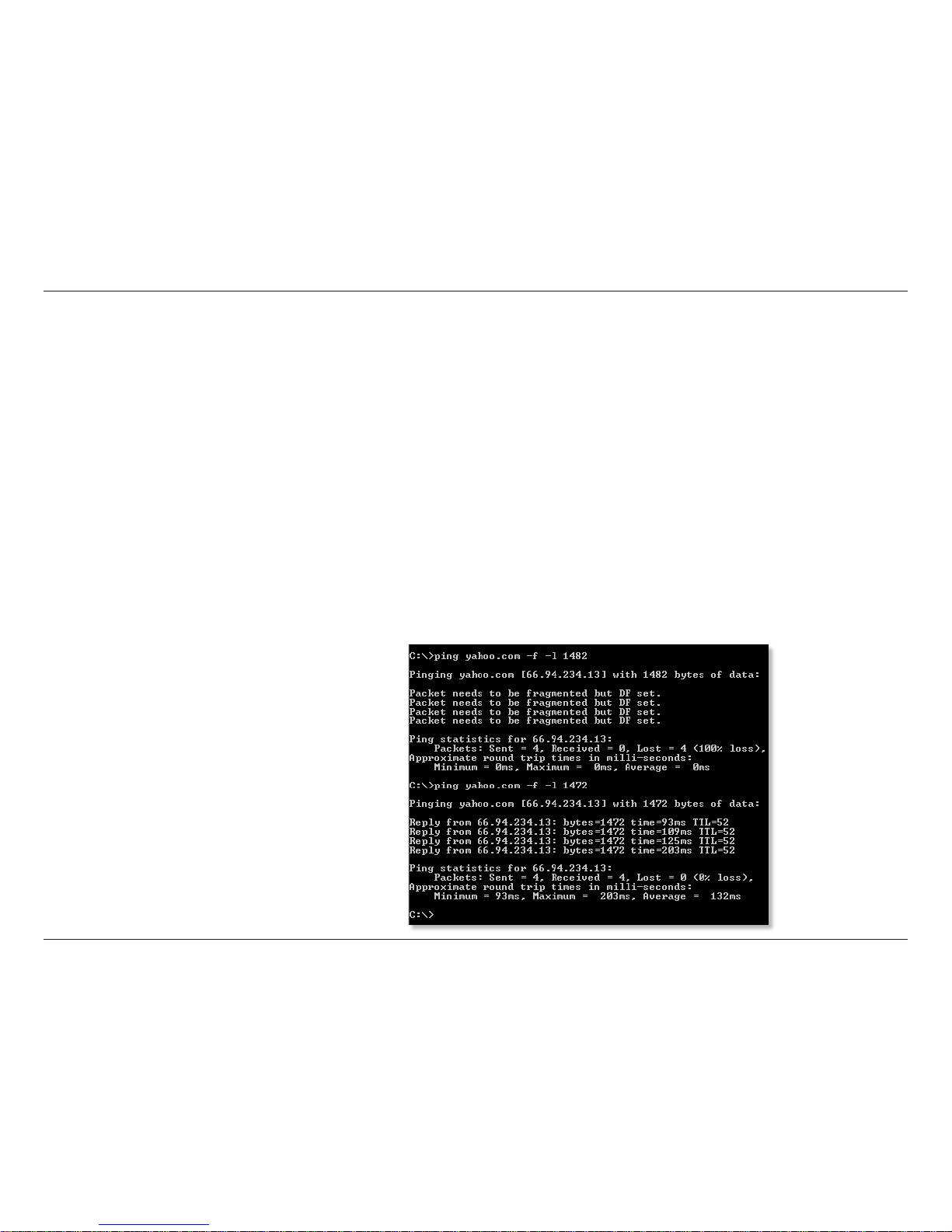

• Once the window opens, you’ll need to do a special ping. Use the following syntax:

ping [url] [-f] [-l] [MTU value]

Example: ping yahoo.com -f -l 1472

Page 90

86FR-300RTR User Manual

Section 6 - Troubleshooting

You should start at 1472 and work your way down by 10 each time. Once you get a reply, go up by 2 until you get a fragmented packet. Take that value and add 28 to the value to account for the various TCP/IP headers. For example, lets say that 1452 was the proper value, the actual MTU size would be 1480, which is the optimum for the network we’re working with (1452+28=1480).

Once you ﬁnd your MTU, you can now conﬁgure your router with the proper MTU size.

To change the MTU rate on your router follow the steps below:

• Open your browser, enter the IP address of your router (192.168.0.1) and click OK.

• Enter your username (admin) and password (blank by default). Click OK to enter the web conﬁguration page for the device.

• Click on Setup and then click Manual Conﬁgure.

• To change the MTU enter the number in the MTU ﬁeld and click Save Settings to save your settings.

• Test your e-mail. If changing the MTU does not resolve the problem, continue changing the MTU in increments of ten.

Page 91

87FR-300RTR User Manual

Appendix A - Wireless Basics

Fry’s wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the Fry’s wireless family of products will allow you to securely access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

A wireless local area network (WLAN) is a cellular computer network that transmits and receives data with radio signals instead of wires. Wireless LANs are used increasingly in both home and ofﬁce environments, and public areas such as airports, coffee shops and universities. Innovative ways to utilize WLAN technology are helping people to work and communicate more efﬁciently. Increased mobility and the absence of cabling and other ﬁxed infrastructure have proven to be beneﬁcial for many users.

Wireless users can use the same applications they use on a wired network. Wireless adapter cards used on laptop and desktop systems support the same protocols as Ethernet adapter cards.

Under many circumstances, it may be desirable for mobile network devices to link to a conventional Ethernet LAN in order to use servers, printers or an Internet connection supplied through the wired LAN. A Wireless Router is a device used to provide this link.

Wireless Basics

Page 92

88FR-300RTR User Manual

Appendix A - Wireless Basics

What is Wireless?

Wireless or Wi-Fi technology is another way of connecting your computer to the network without using wires. Wi-Fi uses radio frequency to connect wirelessly, so you have the freedom to connect computers anywhere in your home or ofﬁce network.

Why Fry’s Wireless?

Fry’s is the worldwide leader and award winning designer, developer, and manufacturer of networking products. Fry’s delivers the performance you need at a price you can afford. Fry’s has all the products you need to build your network.

How does wireless work?

Wireless works similar to how cordless phone work, through radio signals to transmit data from one point A to point B. But wireless technology has restrictions as to how you can access the network. You must be within the wireless network range area to be able to connect your computer. There are two different types of wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN).

Wireless Local Area Network (WLAN)

In a wireless local area network, a device called an Access Point (AP) connects computers to the network. The access point has a small antenna attached to it, which allows it to transmit data back and forth over radio signals. With an indoor access point as seen in the picture, the signal can travel up to 300 feet. With an outdoor access point the signal can reach out up to 30 miles to serve places like manufacturing plants, industrial locations, college and high school campuses, airports, golf courses, and many other outdoor venues.

Page 93

89FR-300RTR User Manual

Appendix A - Wireless Basics

Wireless Personal Area Network (WPAN)

Bluetooth is the industry standard wireless technology used for WPAN. Bluetooth devices in WPAN operate in a range up to 30 feet away.

Compared to WLAN the speed and wireless operation range are both less than WLAN, but in return it doesn’t use nearly as much power which makes it ideal for personal devices, such as mobile phones, PDAs, headphones, laptops, speakers, and other devices that operate on batteries.

Who uses wireless?

Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, ofﬁce, business, Fry’s has a wireless solution for it.

Home

• Gives everyone at home broadband access

• Surf the web, check e-mail, instant message, and etc

• Gets rid of the cables around the house

• Simple and easy to use

Small Ofﬁce and Home Ofﬁce

• Stay on top of everything at home as you would at ofﬁce

• Remotely access your ofﬁce network from home

• Share Internet connection and printer with multiple computers

• No need to dedicate ofﬁce space

Page 94

90FR-300RTR User Manual

Appendix A - Wireless Basics

Where is wireless used?

Wireless technology is expanding everywhere not just at home or ofﬁce. People like the freedom of mobility and it’s becoming so popular that more and more public facilities now provide wireless access to attract people. The wireless connection in public places is usually called “hotspots”.

Using a Fry’s Cardbus Adapter with your laptop, you can access the hotspot to connect to Internet from remote locations like: Airports, Hotels, Coffee Shops, Libraries, Restaurants, and Convention Centers.

Wireless network is easy to setup, but if you’re installing it for the ﬁrst time it could be quite a task not knowing where to start. That’s why we’ve put together a few setup steps and tips to help you through the process of setting up a wireless network.

Tips

Here are a few things to keep in mind, when you install a wireless network.

Centralize your router or Access Point

Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. If you have a two-story home, you may need a repeater to boost the signal to extend the range.

Eliminate Interference

Place home appliances such as cordless telephones, microwaves, and televisions as far away as possible from the router/access point. This would signiﬁcantly reduce any interference that the appliances might cause since they operate on same frequency.

Page 95

91FR-300RTR User Manual

Appendix A - Wireless Basics

Security

Don’t let you next-door neighbors or intruders connect to your wireless network. Secure your wireless network by turning on the WPA or WEP security feature on the router. Refer to product manual for detail information on how to set it up.

There are basically two modes of networking:

• Infrastructure – All wireless clients will connect to an access point or wireless router.

• Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two or more FR-300RTR wireless network Cardbus adapters.

An Infrastructure network contains an Access Point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point.

An Ad-Hoc network contains only clients, such as laptops with wireless cardbus adapters. All the adapters must be in Ad-Hoc mode to communicate.

Wireless Modes

Page 96

92FR-300RTR User Manual

Appendix B - Networking Basics

Networking Basics

Check your IP address

After you install your adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.

Click on Start > Run. In the run box type cmd and click OK. (Windows Vista® users type cmd in the Start Search box.)

At the prompt, type ipconﬁg and press Enter.

This will display the IP address, subnet mask, and the default gateway of your adapter.

If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router. Some ﬁrewall software programs may block a DHCP request on newly installed adapters.

Page 97

93FR-300RTR User Manual

Appendix B - Networking Basics

Statically Assign an IP address

If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:

Step 1 Windows Vista® - Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Manage

Network Connections.

Windows® XP - Click on Start > Control Panel > Network Connections. Windows® 2000 - From the desktop, right-click My Network Places > Properties.

Step 2 Right-click on the Local Area Connection which represents your network adapter and select Properties.

Step 3 Highlight Internet Protocol (TCP/IP) and click Properties.

Step 4

Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN IP address on your router.

Example: If the router´s LAN IP address is 192.168.0.1, make your IP address

192.168.0.X where X is a number between 2 and 99. Make sure that the number you choose is not in use on the network. Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).

Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is not needed or you may enter a DNS server from your ISP.

Step 5 Click OK twice to save your settings.

Page 98

94FR-300RTR User Manual

Appendix C - Technical Speciﬁcations

Technical Speciﬁcations

Standards

• IEEE 802.11n (draft)

• IEEE 802.11g

• IEEE 802.3

• IEEE 802.3u

Security

• WPA-Personal

• WPA2-Personal

• WPA-Enterprise

• WPA2-Enterprise

Wireless Signal Rates*

• 108Mbps • 48Mbps

• 54Mbps • 24Mbps

• 36Mbps • 12Mbps

• 18Mbps • 9Mbps

• 11Mbps • 5.5Mbps

• 6Mbps • 1Mbps

• 2Mbps

MSC (0-15)

• 130Mbps (270) • 117Mbps (243)

• 104Mbps (216) • 78Mbps (162)

• 66Mbps (135) • 58.5Mbps (121.5)

• 52Mbps (108) • 39Mbps (81)

• 26Mbps (54) • 19.5Mbps (40.5)

• 12Mbps (27) • 6.5Mbps (13.5)

Frequency Range

• 2.4GHz to 2.483GHz

Transmitter Output Power

• 17dBm ± 2dB

External Antenna Type

• Two (2) detachable reverse SMA Antennas

LEDs

• Power • Internet • Status

• WLAN • LAN (10/100) • WAN

Operating Temperature

• 32°F to 104°F ( 0°C to 40°C)

Humidity

• 95% maximum (non-condensing)

Safety & Emissions

• FCC

• IC

• CE

Dimensions

• L = 7.6 inches

• W = 4.6 inches

• H = 1.2inches

Warranty

• 1 Year Limited

* Maximum wireless signal rate derived from IEEE Standard 802.11g and Draft 802.11n speciﬁcations. Actual data throughput will vary. Network conditions and environmental factors, including volume of network trafﬁc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

Page 99

95FR-300RTR User Manual

Appendix D - Contacting Technical Support

Contacting Technical Support

U.S. customers can contact Fry’s technical support through our web site or by phone.

Before you contact technical support, please have the following ready:

• Model number of the product (e.g. FR-300RTR)

• Hardware Revision (located on the label on the bottom of the router (e.g. rev A1))

• Serial Number (s/n number located on the label on the bottom of the router).

You can ﬁnd software updates and user documentation on the Fry’s website as well as frequently asked questions and answers to technical issues.

For customers within the United States:

Phone Support:

(888) 755-7070

Mon- Fri 9am - 6pm PST

Internet Support:

http://www.frysnetworksupport.com

Page 100

96FR-300RTR User Manual

Appendix E - Warranty

Warranty

Subject to the terms and conditions set forth herein, Fry’s Electronics, Inc. (“Fry’s”) provides this Limited Warranty:

• Only to the person or entity that originally purchased the product from Fry’s or its authorized reseller or distributor, and

• Only for products purchased and delivered within the ﬁfty states of the United States, the District of Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.

Limited Warranty:

Fry’s warrants that the hardware portion of the Fry’s product described below (“Hardware”) will be free from material defects in workmanship and materials under normal use from the date of original retail purchase of the product, for the period of 90 days.

The customer’s sole and exclusive remedy and the entire liability of Fry’s and its suppliers under this Limited Warranty will be, at Fry’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the actual purchase price paid. Any repair or replacement will be rendered by Fry’s at an Authorized Fry’s Service Ofﬁce. The replacement hardware need not be new or have an identical make, model or part. Fry’s may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that Fry’s reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety (90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if Fry’s determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the defective Hardware will be refunded by Fry’s upon return to Fry’s of the defective Hardware. All Hardware or part thereof that is replaced by Fry’s, or for which the purchase price is refunded, shall become the property of Fry’s upon replacement or refund.

Limited Software Warranty:

Fry’s warrants that the software portion of the product (“Software”) will substantially conform to Fry’s then current functional speciﬁcations for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety (90) days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated in its documentation. Fry’s further warrants that, during the Software Warranty Period, the magnetic media on which Fry’s delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of Fry’s and its suppliers under this Limited Warranty will be, at Fry’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to Fry’s functional speciﬁcations for the Software or to refund the portion of the actual purchase price paid that is attributable to the Software.
