Frymaster YSCF14G User Manual

YSCF14G Series with Built-In Filtration

YSCF14G Series Gas Fryers

Installation & Operation Manual

Frymaster and Dean, members of the Commercial Food Equipment Service Association,
recommend using CFESA Certified Technicians.

www.frymaster.com

24-Hour Service Hotline [phone]

*8196132*

JULY 09

Please read all sections of this manual and retain for future reference.

NOTICE

This appliance is intended for professional use only and is to be operated by qualified

personnel only. A Frymaster/Dean Authorized Service Agency (ASA) or other qualified

professional should perform installation, maintenance, and repairs. Installation, maintenance,

or repairs by unqualified personnel may void the manufacturer’s warranty.

NOTICE

This equipment must be installed in accordance with the appropriate national and local codes of

the country and/or region in which the appliance is installed.

NOTICE

Drawings and photos used in this manual are intended to illustrate operational, cleaning and

technical procedures and may not conform to onsite management operational procedures.

NOTICE TO OWNERS OF UNITS EQUIPPED WITH COMPUTERS

U.S.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions: 1) This device may not cause harmful interference, and 2) This device must accept

any interference received, including interference that may cause undesired operation. While

this device is a verified Class A device, it has been shown to meet Class B limits.

CANADA

This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set

out by the ICES-003 standard of the Canadian Department of Communications.

Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A
et B prescrites dans la norme NMB-003 edictee par le Ministre des Communications du Canada.

DANGER

Improper installation, adjustment, maintenance or service, and unauthorized alterations or

modifications can cause property damage, injury, or death. Read the installation, operating and

service instructions thoroughly before installing or servicing this equipment. Only qualified

service personnel may convert this appliance to use a gas other than that for which it was

originally configured.

NOTICE
The Commonwealth of Massachusetts requires any and all gas products to be installed by a
licensed plumber or pipe fitter.

DANGER

Adequate means must be provided to limit the movement of this appliance without depending

upon the gas line connection. Single fryers equipped with legs must be stabilized by installing

anchor straps. All fryers equipped with casters must be stabilized by installing restraining

chains. If a flexible gas line is used, an additional restraining cable must be connected at all

times when the fryer is in use.

DANGER

The front ledge of the fryer is not a step. Do not stand on the fryer. Serious injury can result

from slips or contact with the hot oil.

DANGER

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance.

DANGER

Instructions to be followed in the event the operator smells gas or otherwise detects a gas leak

must be posted in a prominent location. This information can be obtained from the local gas

company or gas supplier.

NOTICE

IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS ENODIS

EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED

DIRECTLY FROM FRYMASTER/DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS,

AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS

WARRANTY WILL BE VOID. FURTHER, FRYMASTER/DEAN AND ITS AFFILIAT ES WILL NOT BE

LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH

ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF

ANY MODIFIED PART AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.

DANGER

The crumb tray in fryers equipped with a filter system must be emptied into a fireproof container

at the end of frying operations each day. Some food particles can spontaneously combust if left

soaking in certain shortening material.

WARNING

No structural material on the fryer should be altered or removed to accommodate placement of

the fryer under a hood. Questions? Call the Frymaster Dean Service Hotline at 1-800-551-8633.

WARNING

Do not bang fry baskets or other utensils on the fryer’s joiner strip. The strip is present to seal

the joint between the frypot. Banging fry baskets on the strip to dislodge shortening will distort

the strip, adversely affecting its fit. It is designed for a tight fit and should only be removed for

cleaning.

YSCF14G

INSTALLATION & OPERATION MANUAL

TABLE OF CONTENTS

Page #

1. Installation …………………………………………………………………………………1-1

2. Fryer Operations …………………………………………………………………….……2-1

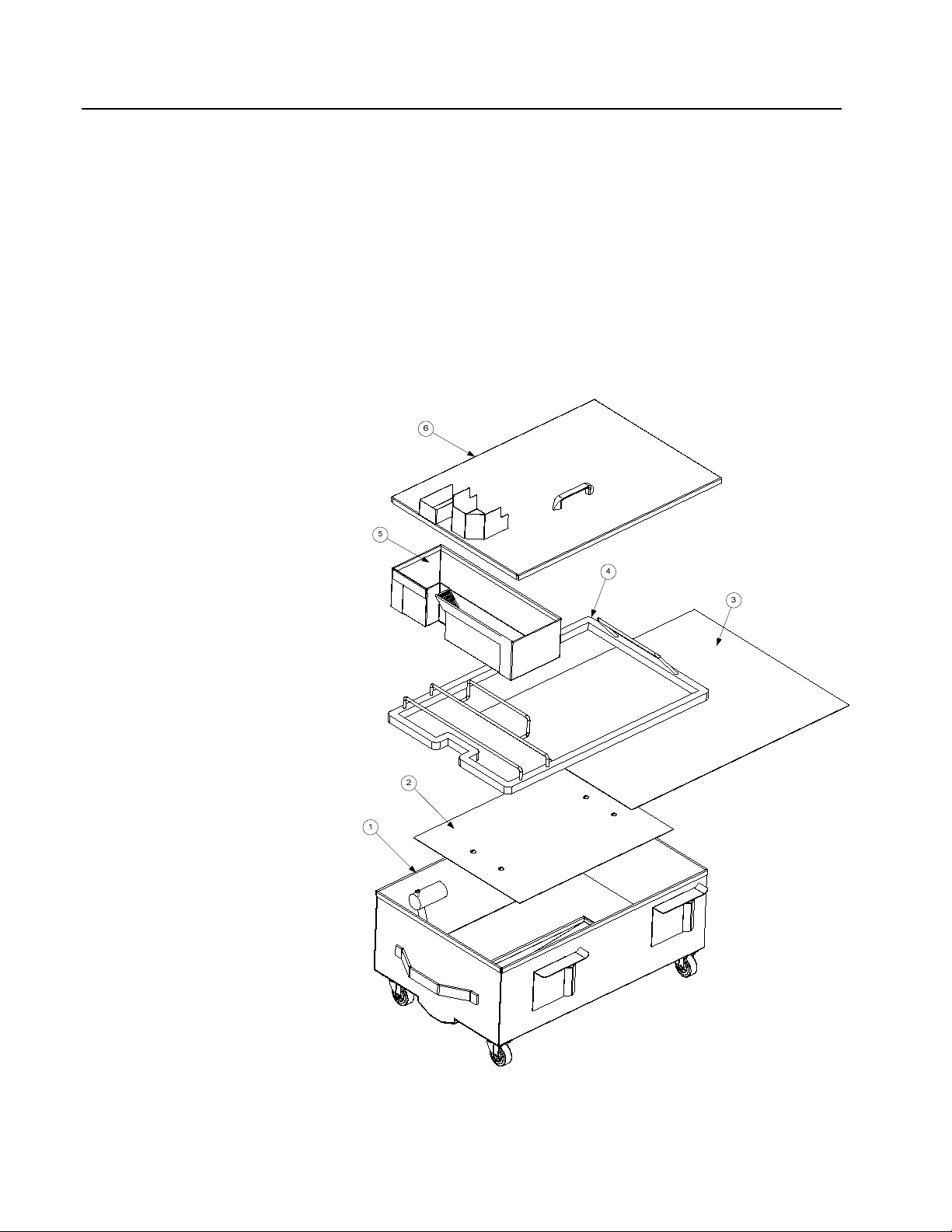

3. Filtration Instructions ……………………………………………………………………..3-1

4. Computer Operation ……………………………………………………………………..4-1

5. Preventive Maintenance …………………………………………………………………5-1

YSCF14G SERIES GAS FRYERS

CHAPTER 1: INSTALLATION

1.1 Gas Connections

DANGER

Before connecting new pipe to this appliance the pipe must be blown out thoroughly

to remove all foreign material. Foreign material in the burner and gas controls will

cause improper and dangerous operation.

NATIONAL CODE REQUIREMENTS

This equipment is to be installed in compliance with the Basic Plumbing Code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation
Manual of the U.S. Food and Drug Administration.

This equipment is manufactured to use the type of gas specified on the rating plate attached to the
door. Connect equipment stamped "NAT" only to natural gas and that stamped "PRO" only to LP
(Propane) gas.

Installation shall be made with a gas connector that complies with national and local codes.

Quick disconnect devices, if used, shall likewise comply with national and local codes.

DANGER

The fryer MUST be connected to the gas supply specified on the rating and serial number

plate located on the back of the fryer door.

DANGER

If gas odors are detected, the gas supply MUST be shut off at the main shut-off valve. The

local gas company or FASC should be contacted immediately to rectify the problem.

A. The gas supply (service) line must be the same size or greater than the fryer inlet line. This

fryer is equipped with a 3/4" (22 mm) male inlet. The gas supply line must be sized to
accommodate all the gas-fired equipment that may be connected to that gas supply. Consult
your contractor, gas company, supplier, or other knowledgeable authorities.

Gas Types Number of Fryers

Natural Gas 3/4" (22 mm) 1" (28 mm) 1-1/4" (35 mm)
Propane Gas 1/2" (15 mm) 3/4" (22 mm) 1" (28 mm)

(*) When exceeding 18 feet (6 meters) for a configuration of more than four fryers, it is necessary

to provide a 1 1/4" (33 mm) rigid gas connection.

Recommended Gas Supply Line Sizes

1 2 to 3 4 or more (*)

1-1

YSCF14G SERIES GAS FRYERS

CHAPTER 1: INSTALLATION

1.1 Gas Connections (cont.)

DANGER

All connections must be sealed with a joint compound suitable for the gas being

used and all connections must be tested with a solution of soapy water before

lighting any pilots.

Never use matches, candles, or any other ignition source to check for leaks. If gas

odors are detected, shut off the gas supply to the appliance at the main shut-off

valve and immediately contact the local gas company or an authorized service

agency for service.

DANGER
"Dry-firing" your unit will cause damage to the frypot and can cause a fire. Always
ensure that melted shortening, cooking oil or water is in the frypot before firing the

unit.

B. Rigid Connections: Check any installer-supplied intake pi pe(s) and clean threading chips, or

any other foreign matter before installing into a service line. If the intake pipes are not clear
of all foreign matter, the orifices will clog when gas pressure is applied. Seal pipe joints
with a sealant resistive to LP gas. When using thread compound on gas piping, use very
small amounts and only on male threads. Use a pipe thread compound that is not affected
by the chemical action of LP gases. DO NOT apply thread compound to the first two pipe
threads—doing so will cause clogging of the burner orifices and control valve.

C. Manual shut-off valve : This gas service supplier-installed valve must be installed in the gas

service line ahead of the fryers in the gas stream and in a position where it can be reached
quickly in the event of an emergency.

D. Regulating Gas Pressure

supply during any pressure testing of the system.

1. External gas regulators are not normally required on this fryer. A safety control valve

protects the fryer against pressure fluctuations. If the incoming pressure is in excess of
½ PSI (3.45 kPa/35 mbar), a step-down regulator will be required.

: The fryer and shut-off valve must be disconnected from the gas

DANGER

When pressure-testing incoming gas supply lines, disconnect the fryer from the gas

line if the test pressure is ½ PSI [3.45 kPa (14 inches W.C.)] or greater to avoid

damage to the fryer’s gas piping and gas valve(s).

1-2

YSCF14G SERIES GAS FRYERS

CHAPTER 1: INSTALLATION

1.1 Gas Connections (cont.)

E. Manifold Pressure: Only qualified personnel should check the manifold pressure with a

manometer.

1. Check the rating plate for manifold gas pressures. Natural gas units normally require 4"

W.C., and propane units normally require 11" W.C. gas pressure.

2. Double check the arrow forged into the bottom of the regulator body, which indicates

gas flow direction. It should point downstream towards the fryers. The air vent cap is
also part of the regulator and should not be removed.

3. If a vent line from the gas pressure regulator is used, it should be installed in

accordance with local codes or in the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1-(latest edition).

WARNING

Use a diluted soap solution to find potentially dangerous gas leaks when making

new connections.

F. Regulators can be adjusted in the field, but it is recommended that they not be tampered with

unless the part is known to be out of adjustment or serious pressure fluctuations are found to
exist and can be solved no other way.

G. Only qualified service personnel should make adjustments to the regulators.
H. Orifices: The fryer can be configured to operate on any available gas. The correct safety

control valve, appropriate gas orifices, and pilot burner are installed at the factory. While the
valve can be adjusted in the field, only qualified service personnel should make any
adjustments with the proper test equipment.

I. Flexible Couplings, Connectors and Casters

:

1. If the fryer is to be installed with flexible couplings and/or quick-disconnect fittings, the

installer must use a heavy-duty AGA design-certified commercial flexible connector of
at least 3/4" NPT (with suitable strain reliefs), in compliance with the Standard for
Connectors for Movable Gas Appliances, ANSI Z21.69-(latest edition) and Addenda
Z21.69a-(latest edition). Quick disconnect devices must comply with the Standard for
Quick-Disconnect Devices for Use with Gas Fuel, ANSI Z21.41-(latest edition).

WARNING

Do not attach accessories to this fryer unless fryer is secured from tipping. Personal

injury may result.

2. The fryer must be restrained by means independent of the flexible coupling or

connector in order to limit the movement of the fryer. Clips are located on the back
panel of the fryer for the attachment of restraints.

1-3

YSCF14G SERIES GAS FRYERS

CHAPTER 1: INSTALLATION

1.1 Gas Connections (cont.)

3. If disconnection of the restraint is necessary, this restraint must be reconnected after the

fryer has been returned to its originally installed position.

J. After hook-up, bleed the gas line of air to ensure that the pilot light will ignite quickly.
K. CE Standards: If the unit is to be installed with flexible coupling, use a commercial flexible

coupling certified as NF D 36123 (or other national standard) or a quick disconnect device
certified NF D 36124 (or other national standard).

1.2 Electrical Connections

The fryer when installed must be electrically grounded in accordance with local codes, or in the
absence of local codes, with the National Electrical Code, ANSI/NFPA 70-(latest edition).

DANGER

This fryer is equipped with a three-prong (grounding) plug for protection against

electrical shock and must be plugged directly into a properly grounded, three-prong

receptacle. DO NOT CUT, REMOVE, OR OTHERWISE BYPASS THE GROUNDING

PRONG ON THIS PLUG!

The rating plate and wiring diagram are located inside the front door. The fryer is equipped with a
120VAC single-phase 60-hertz system (Domestic), or 230VAC single-phase 50-hertz system
(International/CE). Do not cut or remove the ground prong from the power cord plug. Do not
attempt to use the fryer during a power outage.

DANGER

This appliance requires electrical power for operation. Place the gas control valve in

the OFF position in case of a prolonged power outage. Do not attempt to operate

this appliance during a power outage.

1-4
