Frymaster YPF95 Parts List
1
11
16
17
18
19
20
21
22
23
24
25
26
27
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
fry_p_0061_6_15

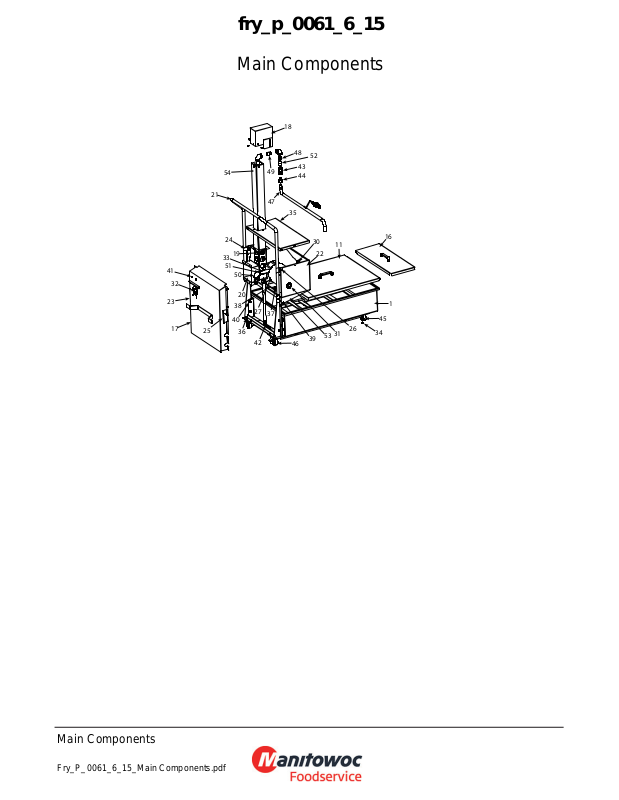

Main Components
Main Components
Fry_P_0061_6_15_Main Components.pdf
fry_p_0061_6_15
Main Components
# PART # DESCRIPTION QTY Note
1 1064589 Filter Pan Assembly 1
2 2008685 Sana Grid Screen 1
3 2118703 Stiffener, Pan Frame, Left 1
4 2128703 Stiffener, Pan Frame, Right 1
5 8090417 Nut Flange 0.25-inch 0.25-20 Serr 1
6 8101057 Flexline, 13-inch Oil Return 1
7 8101668 Adaptor, Male 0.625” OD x 0.5” 1
8 8130062 Elbow, 0.5” BM x 90° 1
9 8235022 Hold Down Ring 1
10 8235057 Filter Pan 1
11 1064608 Filter Pan Lid, Rear 1 [1]
12 8241459 Lid, Filter Pan 1
13 8100180 Handle 1
14 8090918 Screw, 10-24 x 0.5” Slotted 1
15 8090191 Washer, Lock 0.25 Spring ZP 1
16 1068342 Filter Pan Cover, Front 1 [2]
17 1064610 Rear Panel, Filter 1
18 1064613 Cover Assembly, Top of Arm 1
19 1064647 Plumbing, Oil Return 1
20 2008887 Cover, Filter Switch 1
21 8103364 Handle, Filter Unit 1
22 2303558 Pump Housing 1
23 2313565 Bracket, Handle, LT 1
24 2313566 Clip, 0.625", Handle, LT 1
25 2323565 Bracket, Handle, RT 1
26 2323566 Clip, 0.625", Handle, RT 1
27 8261712 Motor and Gasket Kit, 115V 50/60 Hz 1
28 8261270 Motor and Gasket Kit, 220-240V 50/60 Hz 1
29 8261264 Pump and Gasket Kit, Viking 4 GPM 1
30 8071041 Switch, Toggle- 2-Way SPDT - All PF50 1
31 8071043 Bushing, 1.06 ID Heyco 1
32 8071219 Receptacle, 115V 3-Wire 1
33 8072469 Bushing, Heyco 1” ID 1
34 8090059 Nut Grip 0.25-inch 0.25-20 Hex NP 1
35 8241460 Cover, Housing Top 1
36 8090131 Screw, 0.25-20 x 0.75-inch Hex Head ZP 1
37 8090189 Washer, 0.25-inch SS Flat 1
38 8241479 Plate, Filter Pump 1
39 8090412 Screw, 10 x 0.5-inch Hex Head 1
40 8090417 Nut Flange 0.25-inch 0.25-20 Serr 1
41 8090449 Screw, #10 x0.5 Phillips 1
42 8101668 Adaptor, Male 0.625” OD x 0.5” 1
43 8102699 Coupling, Quick Disconnect, Snaptite 1
44 8102700 Nipple, Quick Disconnect, Snaptite 1
45 8102805 Caster, 2” Filter Pan 1
46 8102806 Caster, 2”- Swivel 1
