YFPRE Series Electric Fryers
Accessories
YFPRE Series Electric Fryers
Accessories
# PART # DESCRIPTION QTY Note
1 8030366 Basket, 4-Lane Cooking 1
2 1069620 Cover, Full-Vat Frypot 1
3 8030278 L-shaped Brush 1
4 8030197 Fryer’s Friend 1
5 8030380 Rack, Full-Vat Basket Support 1
6 8030002 Powder, Filter 1 [1]
7 8030170 Filter Paper, 16.5” x 25.75” 1
8 8030293 Gloves, Neoprene 1
PART NOTES:
[1] - 80 1-Cup Applications
YFPRE Series Electric Fryers
Cabinetry
YFPRE Series Electric Fryers
Cabinetry
# PART # DESCRIPTION QTY Note
1 1069311 Cabinet Assembly 1
2 1069431 Upright Assembly, LT Enclosure 1
3 1069432 Upright Assembly, RT Enclosure 1
4 8241920 Bridge Weldment, Pump/Motor 1
5 2324568 Side, RT, Cabinet 1
6 2314568 Side, LT, Cabinet 1
7 2204316 Back Panel - Upper 1
8 2204317 Back Panel - Lower 1
9 2304318 Basket Hanger, KFC 1
10 8236716 Tilt Housing Single Station 1
11 8235440 Cove, Element Tilt Housing 1
12 1081722 Top Cap 1
13 2204328 Heat Shield, Top Cap 1
14 2304332 Bezel, One-Controller 1
15 1069346 Frame - Control Panel 1
16 1067710 Door Assembly, left or right 1
16a 1081284SP Computer, McDonald’s M3000 Gas Fryer SMT, Non-CE
M3000
17 8261343 Spring - Door Pin Hinge 1
18 1064067SP Door Pin Assembly 1
19 8101105 Door Magnet - Vertical 1
20 2108077 Door Handle - Chrome 1
21 8122227 Rear Caster, without brake 1
22 8103010 Leg, Single Fryer Single-Station Fryer 1
23 8232844 Caster, BIH152 Front 1
1
YFPRE Series Electric Fryers
Drain Components
YFPRE Series Electric Fryers
Drain Components
# PART # DESCRIPTION QTY Note
1 1069351SP Drain Valve Assembly 1
2 1066020 Bracket Assy 1.25” Drain Valve 1
3 2001257 Retainer, Drain Valve Nut 1
4 2200143 Guard, BID180 Microswitch Drain 1
5 2204497 Strap, 1-0.25" Drain Valve 1
6 8072104 Microswitch 1
7 8261366 Nut - #4-40 Keps Hex 1
8 8090988 Washer, 1.00 OD x .525 ID Teflon 1
9 8102784 Valve, 1.25” Full Port Drain 1
10 8160220 Insulation, Microswitch 1
11 8160549 Cap, Flush Valve Handle- Blue 1
12 8236262 Handle - Drain Valve 1
13 8236712 Drain Tube, Downspout 1
YFPRE Series Electric Fryers

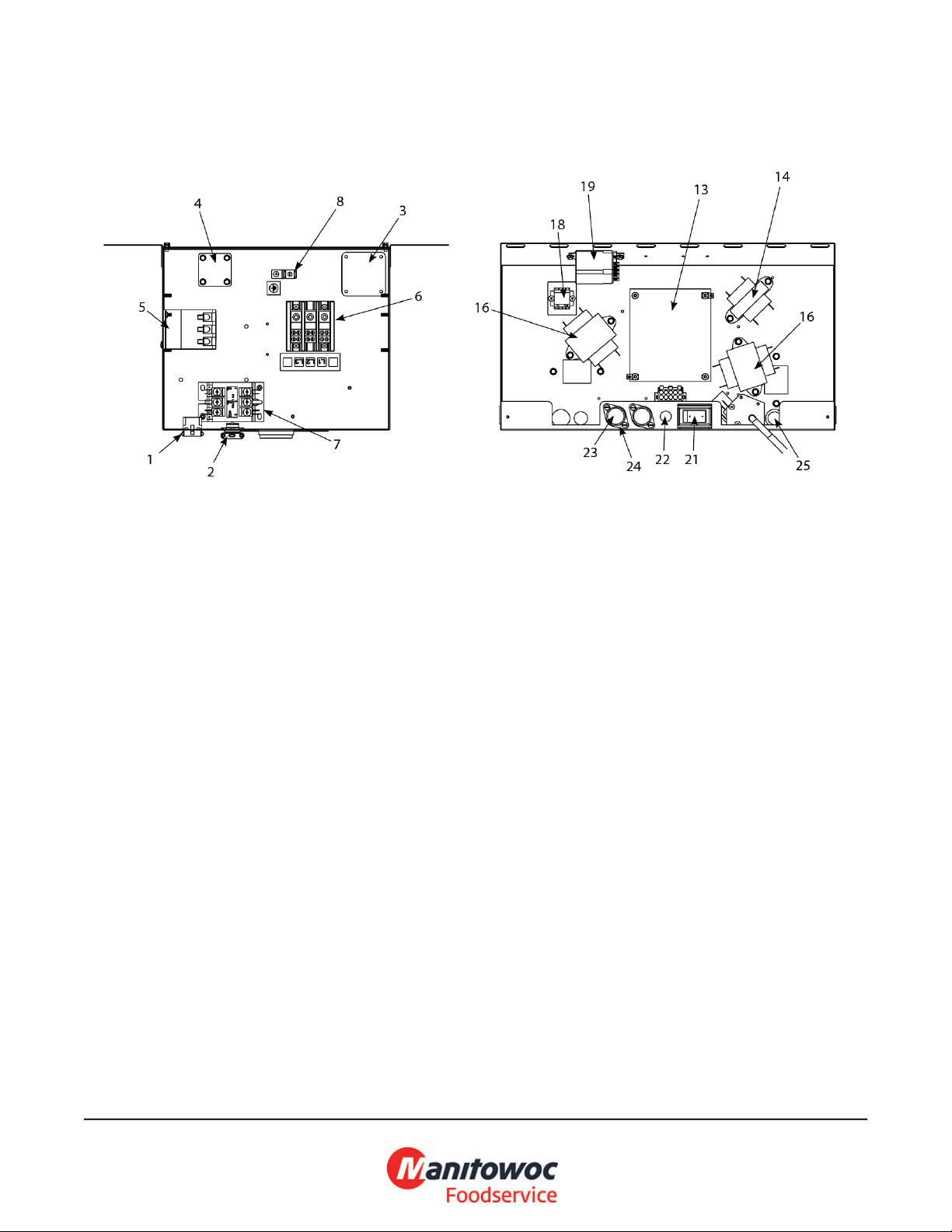

Electronics and Wiring Components - Contactor Box, Component Box
YFPRE Series Electric Fryers
Electronics and Wiring Components - Contactor Box, Component Box
# PART # DESCRIPTION QTY Note
1 1080159 Contactor Box Harness Assembly, 12-Pin 1
2 1080158 Harness Assembly, 208/240 Contactor Box Power 1
2a 1081047 Harness Assembly, Contactor Box Power, CE 1
3 2204489 Plate, Contactor Box Cordset Cover 1
4 2206878 Plate, Power Cord Cover 1
5 8072284 Contactor, 24V 50 Amp Mechanical 1
6 8073970 Block, Terminal 3 pole 600V 175A 1
7 8101202 Contactor, 24V 40 Amp Mechanical 1
8 8070070 Terminal, Ground Lug 1
9 1068744 14/17 kW Mechanical Contactor 1
9a 1068745 14/17 kW Mechanical Contactor 1
10 8074658 Domestic 208/240V 1
11 8073835 Power Cords, 220-250V 3-Phase 4-wire w/o plug Export 92” 1
12 1069227 Component Box - 208-240V FV 1
12a 1081043 Component Box - 208-240V FV CE 1
13 8262260 Standard Interface Board 1
14 8070979 Transformer, 208V/240V/12V 1
14a 8072191 Transformer - 208-240V -12V 30VA 1
15 8071597 Fuse - 3amp Slo-Blow 1
16 8070680 Transformer, 208V, 50/60Hz –24V 20VA 1
17 8072180 Transformer - 208-240V/24V 50A 1
18 8101164 Block, One-Piece Screwless Terminal 1
19 8070670 Relay, 24V DPDT 1
20 8070012 Filter Relay - 18A 24VAC 1
21 8074036 Switch 1
22 8102446 Plug - 0.5" Heyco Double “D” 1
23 8072278 Fuse, 20 Amp 1
24 8070922 Holder, Bus Fuse 1
25 8100045 Bushing, .875 Dia. Hole 0.6875” 1
26 1065750SP Full Vat Control Harness J4 to J2 1
YFPRE Series Electric Fryers
Electronics and Wiring Components - Tilt Switch Assembly, 4-Lane Controller
YFPRE Series Electric Fryers
Electronics and Wiring Components - Tilt Switch Assembly, 4-Lane Controller
# PART # DESCRIPTION QTY Note
1 1065876SP Magnet Sensor 1 [1]
2 8103007 Magnet - Ring 1 [1]
3 8262598 Kit, Tilt Switch 1 [2]
3a 8074742 Switch, Long Lever High Temp 1
3b 2205352 Bracket, Mechanical Tilt Switch 1
3c 8102993 Bushing, Tube End Teflon 1
7 8262859 Wingstreet 4-lane Computer 1
8 8103141 Sound Device, Universal SMT 1
9 2204284 Guard 1
10 8074199 Cable, 20-pin Controller to 15-pin Interface Board – SMT for
fryer’s with CM 3.5 controller.
PART NOTES:
[1] - serial numbers before 08/09
[2] - serial numbers after 08/09
1
YFPRE Series Electric Fryers

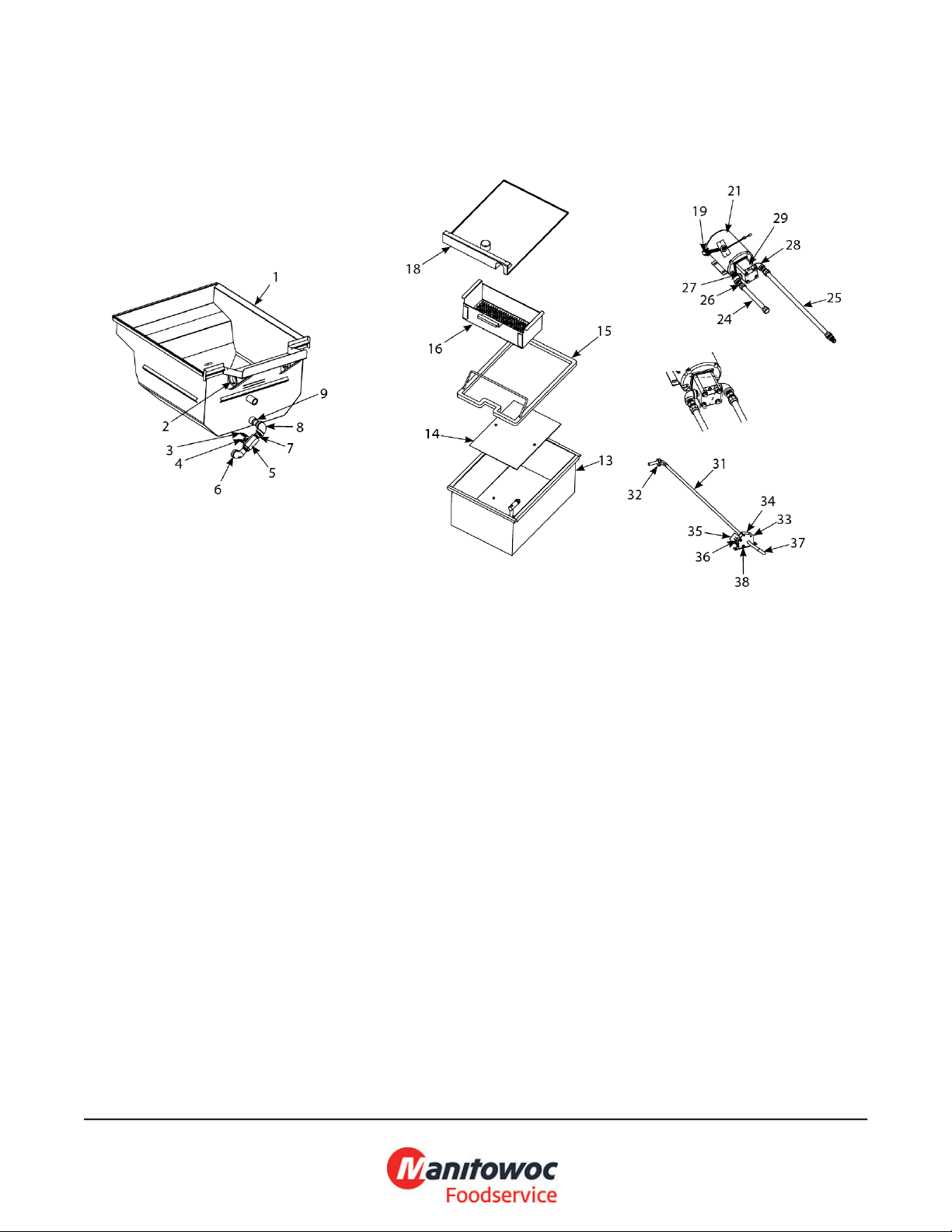

Frypot and Associated Parts, Filtration System Components
YFPRE Series Electric Fryers
Frypot and Associated Parts, Filtration System Components
# PART # DESCRIPTION QTY Note
1 8236706 Frypot 1
2 8070128 Bushing, Insulating Heyco 1
3 2204564 Handle, Oil Return 1
4 9002935 Retainer, Nut Oil Return Valve 1
5 8100278 Valve, 0.5” Ball 1
6 8130165 Elbow - 0.5" x 90° NPT Street 1
7 8130087 Nipple, 0.5-inch NPT x 1.5-inch (3.8 cm) 1
8 8130062 Elbow - 0.5" BM x 90° 1
9 8130298 Nipple, 0.5” x 2.00” NPT BM Pipe 1
10 8261177 Thermostat, High-Limit 425°F/218°C 1
11 1065876SP Magnet Sensor 1
12 1069313 Filter Pan Assembly 1
13 8237086 Filter Pan 1
14 2204446 SanaGrid Filter Screen 1
15 8103414 Ring, Wireform Holddown 1
16 8241957 Crumb Basket 1
17 8261392 O-Ring 5
18 8236714 Lid, Filter Pan 1
19 1065906SP Wiring Harness - 208/230/240/250V Filter Pump 1
20 1065912SP Heater Strip Assembly -208-250V/25W - 18" 1
21 8261756 Motor and Gasket Kit - 208V/50-60 Hz 1 [1]
22 8261270 Motor and Gasket Kit - 220-240V/50-60 Hz 1 [1]
23 8160093 Gasket - Pump/Motor 1
24 8101055 Flexline - 0.625" OD x 11.5" L 1
25 8101068 Flexline - 0.625" OD x 21.5" L 1
26 8101668 Male Adaptor - 0.625" OD x 0.5" 1
27 8130022 Nipple, 0.5” Close NPT BM 1
28 8130062 Elbow - 0.5" BM x 90° 1
29 8262795 Pump and Gasket Kit, 4 GPM 1 [1]
30 1069255 Oil Return Handle 1
31 8103615 Rod, Rear Flush Oil Return 1
32 8090601 Clip, Clevis 1
33 2205218 Bracket, Rod Retainer 1
34 1080078 Bracket Stud Assembly 1
35 8160220 Insulation, Microswitch 1
36 8072103 Microswitch 1 [2]
37 8100677 Grip, Handle Round 1
38 8261366 Nut - #4-40 Keps Hex 1
PART NOTES:
[1] - Gasket,included.
[2] - Straight Lever
YFPRE Series Electric Fryers
Heating Elements and Associated Parts
YFPRE Series Electric Fryers
Heating Elements and Associated Parts
# PART # DESCRIPTION QTY Note
1 8262557 Element Kit - 208V 1 [1]
1a 8262558 Element Kit - 240V 1 [1]
1b 8262707 Element Kit - 230V 1 [1]
1c 8074653 Element Kit - 208V - 8.5 kW 1
1d 8074841 Element Kit - 230V - 8.5 kW 1
1e 8074688 Element Kit - 240V - 8.5 kW 1
2 8236711 Bracket - Element 1
3 2300784 Bracket - Temperature Probe 8.5/11 kW 1
4 8262652 Temperature Probe - Wingstreet 1
5 8090567 Tie-Wrap - Metal 1
6 8101212 Pin, .125 X .5-inch Split 1
7 8101233 Handle, Element Lift 1
8 8160688 Gasket, Element 1
9 2300781 Key Operated Switch Ice With Keys 1 [2]
10 9102042 Clamp, Element 1 [3]
11 8103030 Spring, Element Lift Left 1
12 8103031 Spring, Element Lift Right 1
13 2204302 Bracket, Lower Spring 1
14 8160681 Grommet, Probe 1
PART NOTES:
[1] - includes items 2-12
[2] - Long
[3] - Short
Short
YFPRE Series Electric Fryers

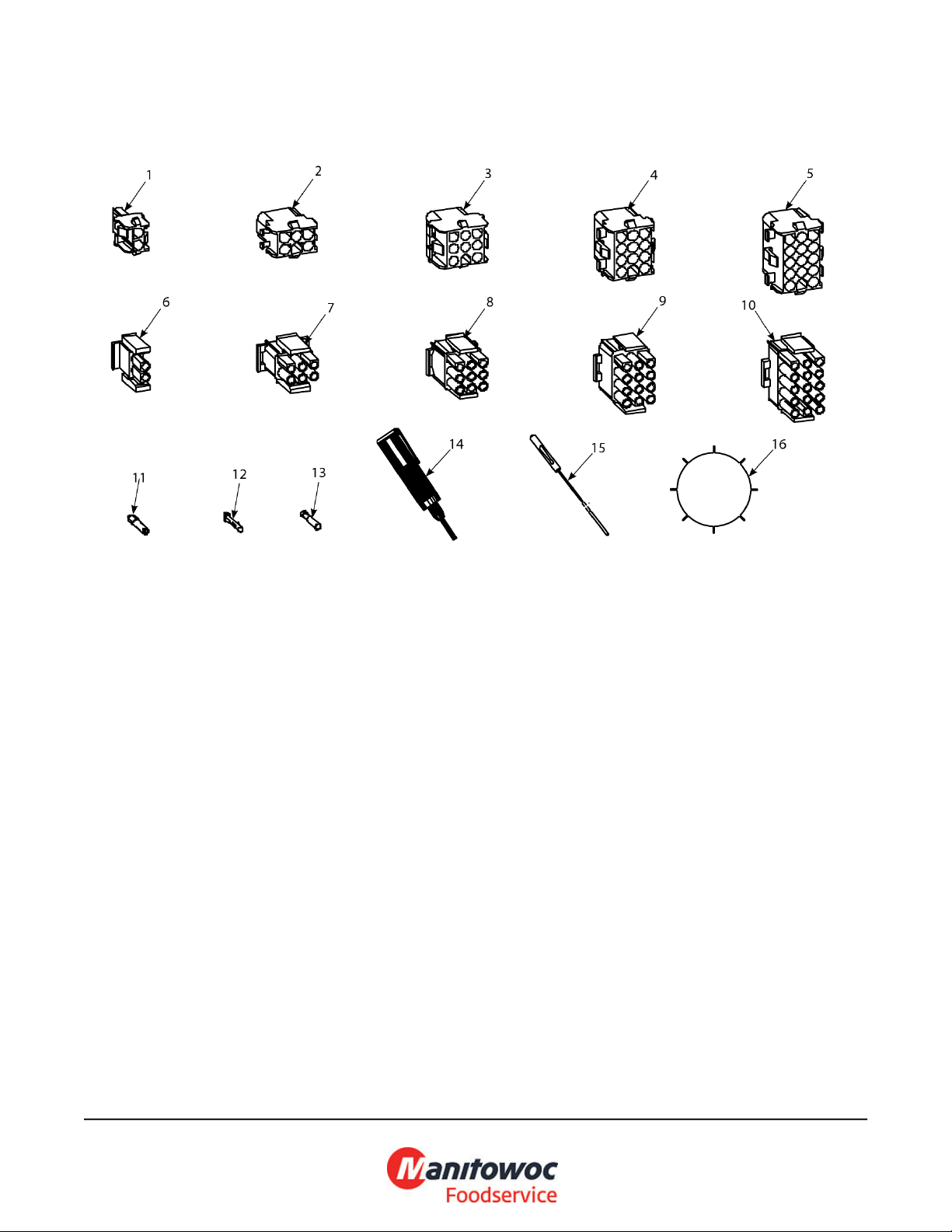

Wiring Connectors and Pin Connectors and Fasteners
YFPRE Series Electric Fryers
Wiring Connectors and Pin Connectors and Fasteners
# PART # DESCRIPTION QTY Note
1 8071068 2-Pin Female 1
2 8072136 Connector, 6-Pin Female 1
3 8072138 Connector, 9-Pin Female 1
4 8070159 12-Pin Female 1
5 8070875 15-Pin Female 1
6 8071067 2-Pin Male 1
7 8070157 6-Pin Male 1
8 8070155 9-Pin Male 1
9 8070160 12-Pin Male 1
10 8070804 15-Pin Male 1
11 8261341 Terminal, Female Split Pin 25
12 8261342 Terminal, Male Split Pin 25
13 8072518 Plug, Mate-N-Lock 1 [1]
14 8070928 Extract Tool Pin Pusher 1
15 8064855 Pin Pusher Screwdriver Assy 1
16 2302345 SMT Pin Extractor 1
17 8074660PK SMT Pin Service Repair Kit 1
18 8090514 Cap Screw - 0.3125" 18 NC Hex 1
19 8090448 Clip, Tinnerman 1
20 8261366 Nut - #4-40 Keps Hex 1
21 8261366 Nut - #4-40 Keps Hex 25
22 8090247 Nut - #8-32 Keps Hex 1
23 8261376 Nut - #10-32 Keps Hex 1
25 8090766 Nut, 10-32 Keps Hex SS 1
26 8090020 Nut Cap 10-24 NP 1
27 8261359 Screw - #4-40 x 0.75" Slotted Round Head 1
29 8261365 Screw, 6-32 x 0.375-inch Slot Head 1
31 8090357 Screw, 6 x 0.375-inch Phillips Head NP 1
32 8090359 Screw, 8 x 0.25-inch Hex Washer Head 1
33 8090360 Screw, 8 x 0.375-inch Hex Washer Slot Head 1
34 8261371 Screw - #8 x 0.5" Hex Head ZP 1
36 8090518 Screw, 8-32 x 0.375-inch Hex Washer Slotted Head SS 1
37 8261363 Screw - #8-32 x 0.5" NP 1
39 8261360 Screw - #10-24 x 0.3125" Round Slot Head ZP 1
41 8261330 Screw, 10-32 x 0.375-inch Slot Head SS 1 [2]
42 8091003 Screw - #10-32 x 0.375" Hex Trim Head SS 1
43 8261375 Screw - #10-32 x 0.75" - Hex Trim Head SS 1
45 8261374 Screw - #10 x 0.5" Hex Head 1
46 8261374 Screw - #10 x 0.5" Hex Head 25
47 8090266 Screw, 10 x 0.5-inch Phillips Head ZP 1
48 8261389 Screw - 0.25"-20 x 0.75" Hex Head ZP 1
50 8090184 Washer, #10 LK ZP 1
51 8090191 Washer, Lock 0.25 Spring ZP 1
52 8090193 Flat Washer - 0.25" Nylon 1
53 8090194 Flat Washer - 0.3125" ZP 1
YFPRE Series Electric Fryers
Wiring Connectors and Pin Connectors and Fasteners
# PART # DESCRIPTION QTY Note
PART NOTES:
[1] - Dummy Pin
[2] - 8090117
YFPRE Series Electric Fryers
Wiring Harnesses
YFPRE Series Electric Fryers
Wiring Harnesses
# PART # DESCRIPTION QTY Note
1 1080159 Contactor Box Harness Assembly, 12-Pin 1 [1]
2 1068744 14/17 kW Mechanical Contactor 1 [2]
3 1068745 14/17 kW Mechanical Contactor 1 [3]
4 1065935 Filter Pump C2 to Component Box Wiring Harness 1
5 8074194 Full Vat Harness 1
6 1065750SP Full Vat Control Harness J4 to J2 1 [4]
7 1065935SP Component Box to Filter Pump Harness 1
PART NOTES:
[1] - Control
[2] - Left Element
[3] - Right Element
[4] - Standard
