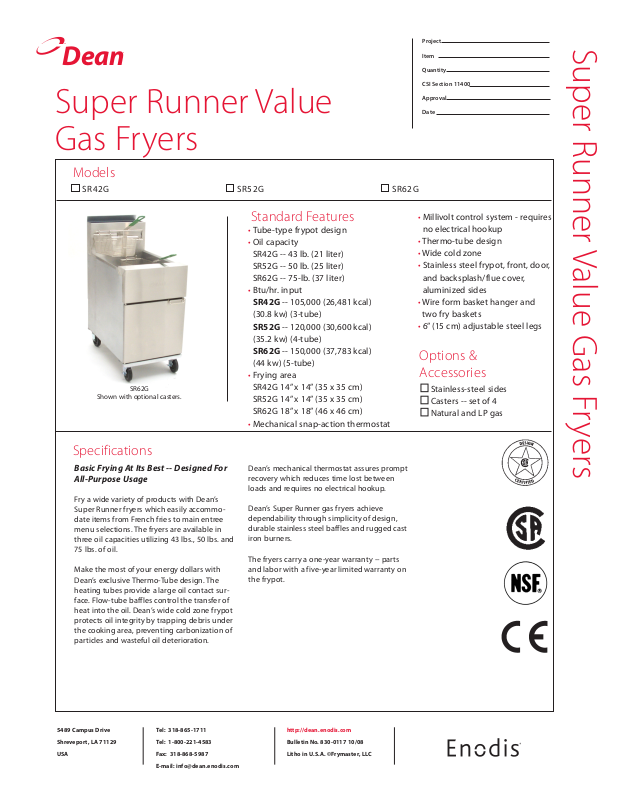

Page 1
Super Runner Value
Dean
™
®
Gas Fryers
Models
S R42G S R52G S R62G
Project
Item
Quantity
CSI Sec tion 11400
Approval
Date
Super Runner Value Gas Fryers
Shown with optional casters.
SR62G
Specifications
Basic Frying At Its Best -- Designed For
All-Purpose Usage
Fry a wide variety of products with Dean’s
Super Runner fryers which easily accommodate items from French fries to main entree
menu selections. The fryers are available in
three oil capacities utilizing 43 lbs., 50 lbs. and
75 lbs. of oil.
Make the most of your energy dollars with
Dean’s exclusive Thermo-Tube design. The
heating tubes provide a large oil contact surface. Flow-tube baffles control the transfer of
heat into the oil. Dean’s wide cold zone frypot
protects oil integrity by trapping debris under
the cooking area, preventing carbonization of
particles and wasteful oil deterioration.
Standard Features
• Tube-type frypot design
• Oil capacity
SR42G -- 43 lb. (21 liter)
SR52G -- 50 lb. (25 liter)
SR62G -- 75-lb. (37 liter)
• Btu/hr. input
SR42G -- 105,000 (26,481 kcal)
(30.8 kw) (3-tube)
SR52G -- 120,000 (30,600 kcal)
(35.2 kw) (4-tube)
SR62G -- 150,000 (37,783 kcal)
(44 kw) (5-tube)
• Frying area
SR42G 14” x 14” (35 x 35 cm)
SR52G 14” x 14” (35 x 35 cm)
SR62G 18” x 18” (46 x 46 cm)
• Mechanical snap-action thermostat
Dean’s mechanical thermostat assures prompt
recovery which reduces time lost between
loads and requires no electrical hookup.
Dean’s Super Runner gas fryers achieve
dependability through simplicity of design,
durable stainless steel baffles and rugged cast
iron burners.
The fryers carry a one-year warranty -- parts
and labor with a five-year limited warranty on
the frypot.
• Millivolt control system - requires
no electrical hookup
• Thermo-tube design
• Wide cold zone
• Stainless steel frypot, front, door,
and backsplash/flue cover,
aluminized sides
• Wire form basket hanger and
two fry baskets
• 6” (15 cm) adjustable steel legs
Options &
Accessories
Stainless-steel sides
Casters -- set of 4
Natural and LP gas
5489 Campus Drive
Shreveport, LA 71129
USA
Tel: 318-865-17 11
Tel: 1-800-221- 4583
Fax: 318-86 8-5987
E-mail: in [email protected]
http://dean. enodis.com
Bulletin N o. 830-0117 10/08
Litho in U.S.A. ©Frymaster, LLC
Page 2
Dean
™
®
Super Runner Value Gas Fryers
TOP VIEW
FRONT VIEW
(51)
2.00
SIDE VIEW
7.20
(183)
35.00
(889)
7.62
(194)
47.00
(1194)
CONNECTION
w/ 3/4" NPT PIPE
(36)
1.4
GAS LINE
(mm)
INCHES
35.5
(902)
45.00
(1143)
DEAN
A
DIMENSIONS
MO DEL MI N./MA X.
OI L
CA PACI TY
SR42G 35-43 lbs.
(17-32 lite r)
SR52G 35-50 lbs.
(17-25 lite r)
SR62G 60-75 lbs.
(34-42 lite r)
OV ERA LL SIZ E mm DR AIN
OV ERA LL
HE IGH T
(1143)
(1143)
(1143)
45”
45”
45”
WO RK
HE IGH T
35”
(890)
35”
(890)
35”
(890)
WI DTH
A
15-1/2”
(394)
15-1/2”
(394)
20”
(508)
POWER REQUIREMENTS
MO DEL NAT URA L O R L P G AS
IN PUT RAT ING
SR42G 1 05,0 00 Btu/hr. (26,481 kcal) (30.8 kw) 3/4” N.P.T.
SR52G 1 20,0 00 Btu/hr. (30,600 kcal) (35 kw)
SR62G 1 50,0 00 Btu/hr. (37,783 kcal/hr.) (44 kw)
SHORT TERM SPECIFICATION
The following description will assist with ordering the features
desired for this equipment:
Shall be DEAN free-standing cool zone deep fat fryer, Model
_________. Only ________ wide, _________# oil capacity, requiring ____________Btu/hr. natural or LP gas input (3/4” N.P.T.
connection) and mechanical controls.
5489 Campus Drive
Shreveport, LA 71129
USA
We reserve the right to change specifications appearing in this bulletin without incurring any obligation for equipment previously or subsequently sold.
Tel: 318-865-17 11
Tel: 1-800-221- 4583
Fax: 318-86 8-5987
E-mail: in [email protected]
DR AIN
LE NGT H CL ASS SH IPP ING
29-1/4”
29-1/4”
35-1/2”
*Regulato r no t required
VALV E
(743)1”(25)
(743)
(902)
CO NNE CTI ON
mm
1-1/4”
(32)
1-1/4”
(32)
GA S
VALV E
HE IGH T
mm
18-3/8”
(467)
17-1/2”
(445)
19-3/4”
(501)
NO.
FR YIN G
OF
AR EA mm
TU BES
3 14” x 14”
(356 x 356)
4 14” x 14”
(356 x 356)
5 18 x 18”
(457 x 457)
EL ECT RICA L
RE QUI REM ENT
NONE
AP PRO XIMATE SH IPP ING DI MEN SIO NS
lbs./ cu.f t.
(kg /m3
85 150 lbs./ 15
(68/0,42)
85 180 lbs./ 15
(82/0.42)
85 255 lbs./ 28
(116/0,79)H48-1/2”
ORDERING DATA
Please specify:
Natural or propane gas
Altitude -- if above 2000 ft. (610 m)
http://dean. enodis.com
Bulletin N o. 830-0117 10/08
Litho in U.S.A. ©Frymaster, LLC
NOTE:
DO NOT CURB MOUNT.
*Do not exceed 14” W.C. or 1/2 PSI.
48-1/2”
48-1/2”
DI MEN SIO NS
(1232)
(1232)
(1232)
mm
20-1/2”
(521)
20-1/2”
(521)
W
20-1/2”
(521)
36”
(914)
36”
(914)
L
36”
(914)
Model #____________ ___
CSI Secti on 11400
