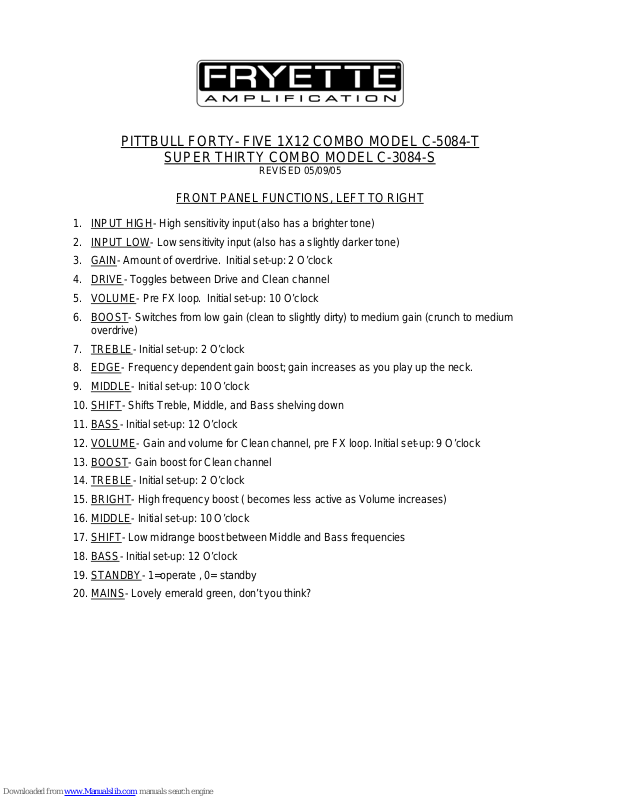

Page 1
PITTBULL FORTY- FIVE 1X12 COMBO MODEL C-5084-T
1. INPUT HIGH
2. INPUT LOW
3. GAIN
4. DRIVE
5. VOLUME
6. BOOST
7. TREBLE
8. EDGE
9. MIDDLE
- Amount of overdrive. Initial set-up: 2 O’clock
- Toggles between Drive and Clean channel
- Pre FX loop. Initial set-up: 10 O’clock
- Switches from low gain (clean to slightly dirty) to medium gain (crunch to mediu m
overdrive)
- Initial set-up: 2 O’clock
- Frequency dependent gain boost; gain increases as you play up the neck.
- Initial set-up: 10 O’clock
SUPER THIRTY COMBO MODEL C-3084-S
REVISED 05/09/05
FRONT PANEL FUNCTIONS, LEFT TO RIGHT
- High sensitivity input (also has a brighter tone)
- Low sensitivity input (also has a slightly darker tone)
10. SHIFT
11. BASS
12. VOLUME
13. BOOST
14. TREBLE
15. BRIGHT
16. MIDDLE
17. SHIFT
18. BASS
19. STANDBY
20. MAINS
- Shifts Treble, Middle, and Bass shelving down
- Initial set-up: 12 O’clock
- Gain boost for Clean channel
- Initial set-up: 2 O’clock
- High frequency boost ( becomes less active as Volume increases)
- Initial set-up: 10 O’clock
- Low midrange boost between Middle and Bass frequencies
- Initial set-up: 12 O’clock
- Lovely emerald green, don’t you think?
- Gain and volume for Clean channel, pre FX loop. Initial set-up: 9 O’clock
- 1=operate , 0= standby
Page 2
PITTBULL FORTY- FIVE 1X12 COMBO MODEL C-5084-T
SUPER THIRTY COMBO MODEL C-3084-S
FRONT PANEL FUNCTIONS, RIGHT TO LEFT
1. REVERB- Initial set-up: 8 O’clock
REVISED 05/09/05
2. EFFECTS MIX/LEVEL
3. EFFECTS SEND
4. EFFECTS LOOP LEVEL
5. EFFECTS SERIES/PARALLEL SWITCH
- Initial set-up: 5 O’clock (not provided on earlier models).
- Send level set by preamp volumes
- Sets overall level of loop (Out = 0dB, In = -10,dB)
- Sets loop for series or parallel operation (not
provided on earlier models).
6. EFFECTS RETURN
7. FOOTSWITCH JACK
8. LINE OUT
jack- Power amp line out
9. SPEAKER OUTPUT
10. IMPEDENCE SELECT- 4,8,16 ohm
11.
CLASS A/CLASS AB SWITCH- Sets operation of power tube to Class A or Class AB mode.
- Overall level adjusted by Hi/Low switch, then feeds to power amp
- 6Pin Din Connector
- Parallel wired
Forty-Five models only. Not available on earlier models.
MAINS FUSE- AC line fuse. 3A Slo-Blo (USA), 3.5A Slo-Blo (Japan), T1.6A Time Delay Fuse
12.
(Europe).
13.
GROUND SWITCH- 4,8,16 ohm. US and Japan only. Normally set to “0” position unless fully
grounded outlet in not available. Set for minimum hum.
Page 3
TUBE FUNCTION AND LOCATION CHART
Each 12AX7 has two sections/functions. Section A is shown first, Sect ion B is second. F actory
recommended tubes are listed under each location. Numbering sequence is right t o left looking at
back of amp starting with the row closest to front panel of amp.
V1 (shielded tube) Reverb return amplifier.
12AX7WB Russia Input Gain Stage 1 and signal splitter for both channels
V2 Tone Control Driver, Drive channel
12AX7 China Gain Stage 3 for Drive channel
V3 Gain Stage 2 for Clean channel
12AX7 China Gain Stage 2 for Drive channel
V4 Reverb Driver.
12AT7 Not interchangeable with 12AX7, EF86 or EL84!!!
1995-1999 uses EL84
2001-2004 uses EF86
V5 Phase Inverter
12AX7 China Power amp input stage
V6-9 Power Tubes
EL84 Russia
V10 Rectifier Tube Forty-Five models only.
5AR4
REVISED 05/09/05
Page 4
LIMITED WARRANTY
Subject to the obligations and exclusions found below, this product is warranted by Steven Fryette Design, Inc., (herein
SFD) against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of
purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90 day warranty.
The warranty period commences on the date of purchase by the original user. Performance under this warranty must be
obtained at one of the following: an SFD Authorized Service Station, by returning the unit to the SFD factory with prior
written authorization, or (in countries outside of the United States) by a representative SFD distributor.
Obligations
1. This warranty will be honored only on the presentation of the original proof of purchase.
2. Transportation of the product to and from an authorized SFD service outlet is the responsibility of the user. Units
sent directly to the SFD factory for warranty repairs must be authorized by SFD and shipped prepaid.
Exclusions
1. This warranty shall not cover adjustment of consumer-operated controls as explained in the appropriate
instruction manual, or products that have been altered or have missing, or defaced serial numbers.
2. This warranty shall not apply to the appearance of accessory items including but not limited to, cabinets, cabinet
parts, or knobs.
3. This warranty does not apply to uncrating, setup, installation, or the removal and reinstallation of products for
repair.
4. This warranty shall not apply to repair or replacements necessitated by any cause beyond the control of SFD
including, but not limited to, any malfunction, defects, or failure caused by or resulting from unauthorized
service or parts, damaged or broken tubes, incorrect line voltage, improper maintenance, modification or repair
by the user, abuse misuse, neglect, accident, fire, flood, or other Acts of God.
5. Responsibility for the repair of any SFD product sold outside of U.S. boundaries is borne by the SFD
representative in that particular country or territory. Also, the warranty term and conditions may be different
from those stated above. Please contact the SFD distributor or dealer in your country for more information.
The foregoing is in lieu of all other expressed warranties, and SFD does not authorize any party to assume for it any other
obligation or liability. In no event shall SFD be liable for special or consequential damages arising from the use of this
product, or for any delay in the performance of this warranty due to causes beyond our control. Some states do not allow
limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential
damages, so the above limitations on implied warranty and consequential damages may not apply to you. This warranty
gives you specific legal rights. You may have other rights that vary from state to state.
WARRANTY REGISTRATION
U.S. and Canadian residents may register their Fryette product(s) online at www.fryette.com/support_form.aspx by
selecting and completing the Warranty Registration form. All other international residents please contact the authorized
distributor your Fryette product was purchased from. For a list of international distributors please visit
www.fryette.com/dealers.html
STEVEN FRYETTE DESIGN, INC.
6850 VINELAND AVENUE., UNIT P
NORTH HOLLYWOOD, CA 91605
TEL (818) 980-2800 FAX (818) 980-2802 www.fryette.com
Copyright 2009 Steven Fryette Design, Inc.
