Specifications:
Page
1

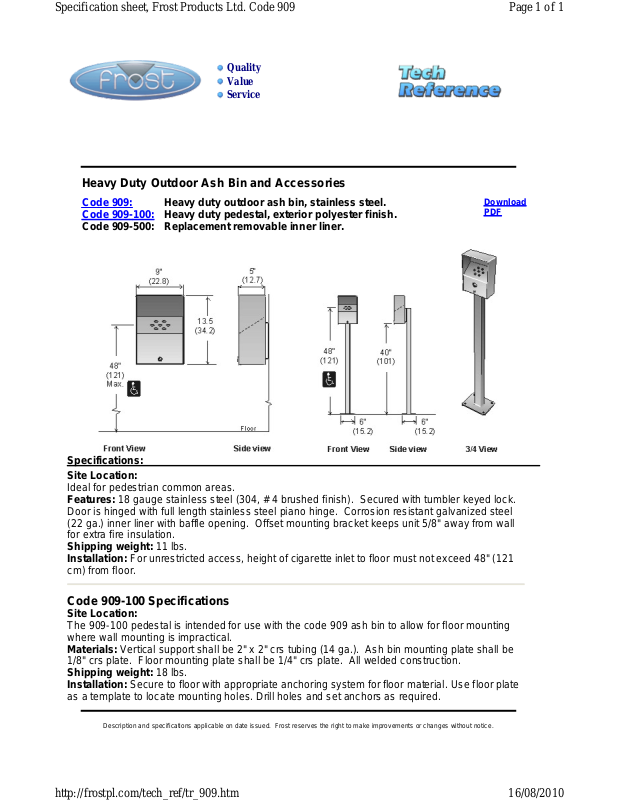

of 1Specification sheet, Frost Products Ltd. Code 909
16/08/2010
http://frostpl.com/tech_ref/tr_909.htm
Quality
Value
Service
Heavy Duty Outdoor Ash Bin and Accessories
Code 909:
Code 909-100:
Code 909-500:
Site Location:
Ideal for pedestrian common areas.
Features: 18 gauge stainless steel (304, # 4 brushed finish). Secured with tumbler keyed lock.
Door is hinged with full length stainless steel piano hinge. Corrosion resistant galvanized steel
(22 ga.) inner liner with baffle opening. Offset mounting bracket keeps unit 5/8" away from wall
for extra fire insulation.
Shipping weight: 11 lbs.
Installation: For unrestricted access, height of cigarette inlet to floor must not exceed 48" (121
cm) from floor.
Code 909-100 Specifications
Site Location:
The 909-100 pedestal is intended for use with the code 909 ash bin to allow for floor mounting
where wall mounting is impractical.
Materials: Vertical support shall be 2" x 2" crs tubing (14 ga.). Ash bin mounting plate shall be
1/8" crs plate. Floor mounting plate shall be 1/4" crs plate. All welded construction.
Shipping weight: 18 lbs.
Installation: Secure to floor with appropriate anchoring system for floor material. Use floor plate
as a template to locate mounting holes. Drill holes and set anchors as required.
Heavy duty outdoor ash bin, stainless steel.
Heavy duty pedestal, exterior polyester finish.
Replacement removable inner liner.
Download
PDF
Description and specifications applicable on date issued. Frost reserves the right to make improvements or changes without notice.
