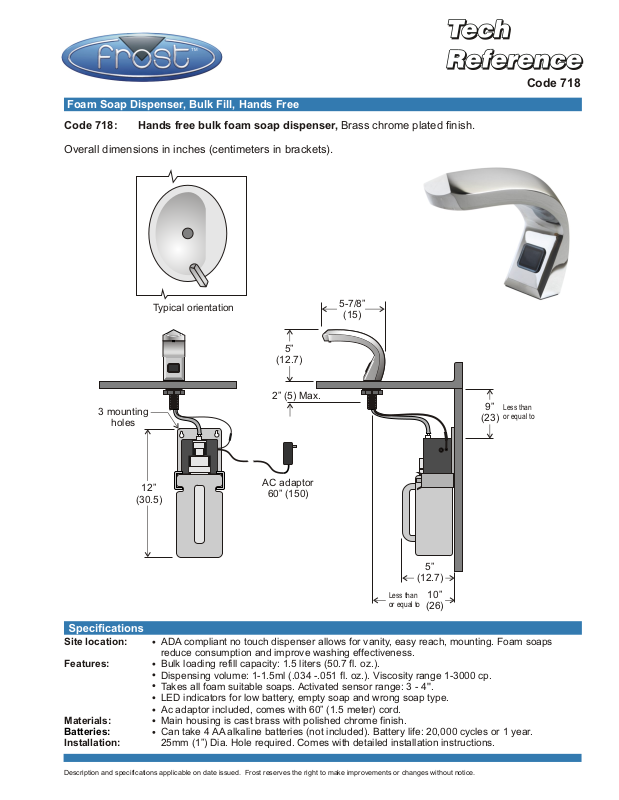

Foam Soap Dispenser, Bulk Fill, Hands Free
Code 718
Code 718:
Hands free bulk foam soap dispenser, Brass chrome plated finish.
Overall dimensions in inches (centimeters in brackets).
Typical orientation
5”
(12.7)
2” (5) Max.
3 mounting
holes
5-7/8”
(15)
9”
(23)
Less than
or equal to
12”
(30.5)
AC adaptor
60” (150)
5”
(12.7)
10”
(26)
Site location:
Less than
or equal to
ADA compliant no touch dispenser allows for vanity, easy reach, mounting. Foam soaps
reduce consumption and improve washing effectiveness.
Features:
Bulk loading refill capacity: 1.5 liters (50.7 fl. oz.).
Dispensing volume: 1-1.5ml (.034 -.051 fl. oz.). Viscosity range 1-3000 cp.
Takes all foam suitable soaps. Activated sensor range: 3 - 4''.
LED indicators for low battery, empty soap and wrong soap type.
Ac adaptor included, comes with 60” (1.5 meter) cord.
Materials:
Batteries:
Installation:
Description and specifications applicable on date issued. Frost reserves the right to make improvements or changes without notice.
Main housing is cast brass with polished chrome finish.
Can take 4 AA alkaline batteries (not included). Battery life: 20,000 cycles or 1 year.
25mm (1”) Dia. Hole required. Comes with detailed installation instructions.
