Specifications:
Quality
Value
Service

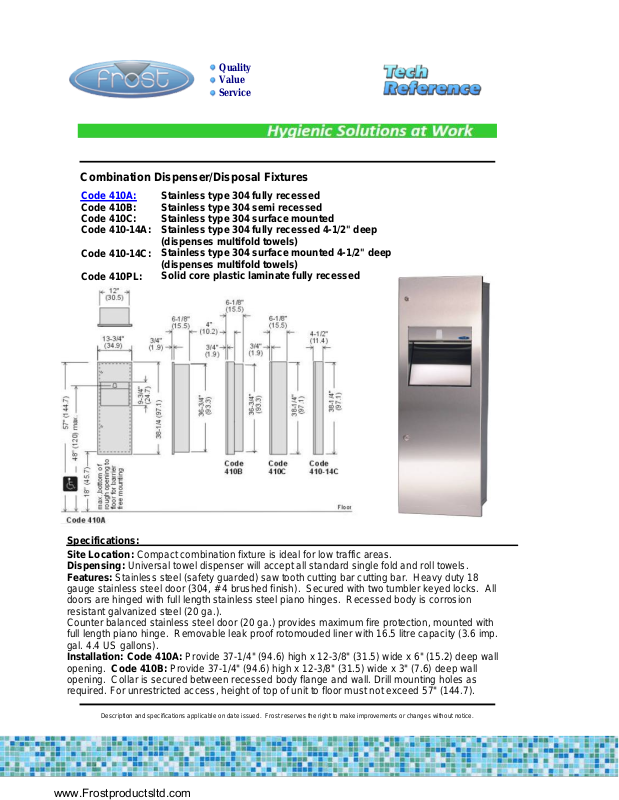

Combination Dispenser/Disposal Fixtures
Code 410A:
Code 410B:
Code 410C:
Code 410-14A:
Code 410-14C:
Code 410PL:
Stainless type 304 fully recessed
Stainless type 304 semi recessed
Stainless type 304 surface mounted
Stainless type 304 fully recessed 4-1/2" deep
(dispenses multifold towels)
Stainless type 304 surface mounted 4-1/2" deep
(dispenses multifold towels)
Solid core plastic laminate fully recessed
Site Location: Compact combination fixture is ideal for low traffic areas.
Dispensing: Universal towel dispenser will accept all standard single fold and roll towels.
Features: Stainless steel (safety guarded) saw tooth cutting bar cutting bar. Heavy duty 18
gauge stainless steel door (304, # 4 brushed finish). Secured with two tumbler keyed locks. All
doors are hinged with full length stainless steel piano hinges. Recessed body is corrosion
resistant galvanized steel (20 ga.).
Counter balanced stainless steel door (20 ga.) provides maximum fire protection, mounted with
full length piano hinge. Removable leak proof rotomouded liner with 16.5 litre capacity (3.6 imp.
gal. 4.4 US gallons).
Installation: Code 410A: Provide 37-1/4" (94.6) high x 12-3/8" (31.5) wide x 6" (15.2) deep wall
opening. Code 410B: Provide 37-1/4" (94.6) high x 12-3/8" (31.5) wide x 3" (7.6) deep wall
opening. Collar is secured between recessed body flange and wall. Drill mounting holes as
required. For unrestricted access, height of top of unit to floor must not exceed 57" (144.7).
Description and specifications applicable on date issued. Frost reserves the right to make improvements or changes without notice.
