Frontrunner FALD008 User guide

ENG

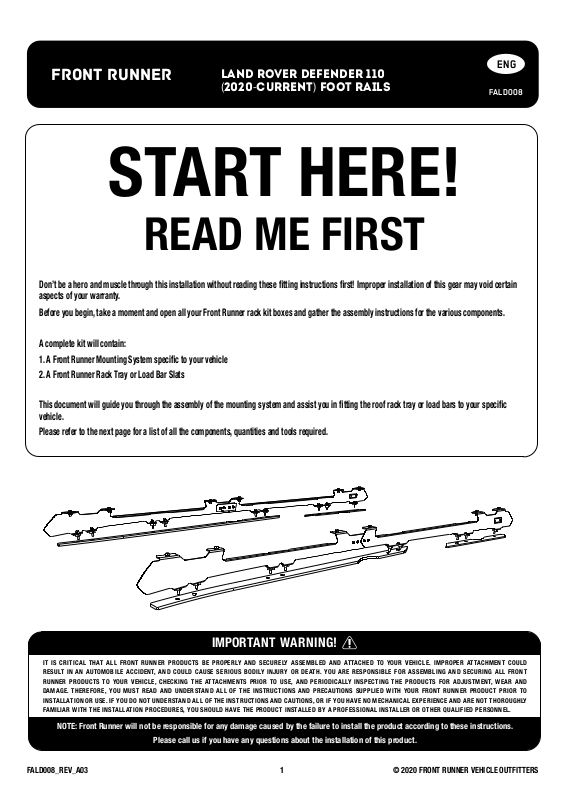

front runner

Land Rover Defender 110 (2020-Current) Foot Rails

FALD008

START HERE!

READ ME FIRST

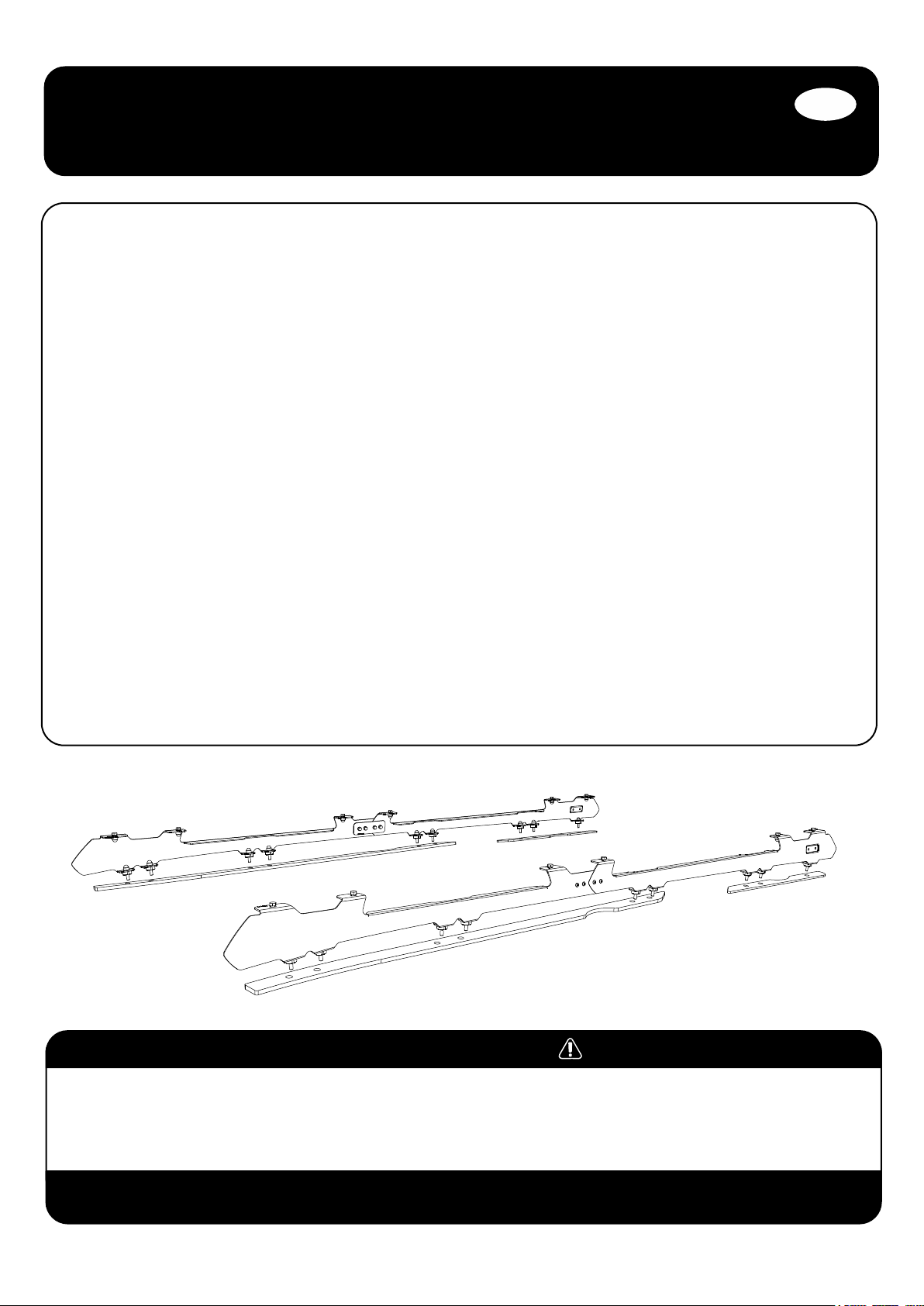

Don’t be a hero and muscle through this installation without reading these ﬁtting instructions ﬁrst! Improper installation of this gear may void certain aspects of your warranty.

Before you begin, take a moment and open all your Front Runner rack kit boxes and gather the assembly instructions for the various components.

A complete kit will contain:

1. A Front Runner Mounting System speciﬁc to your vehicle

2. A Front Runner Rack Tray or Load Bar Slats

This document will guide you through the assembly of the mounting system and assist you in ﬁtting the roof rack tray or load bars to your speciﬁc vehicle.

Please refer to the next page for a list of all the components, quantities and tools required.

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

FALD008_REV_A03

1

GET ORGANIZED

IN THE BOX

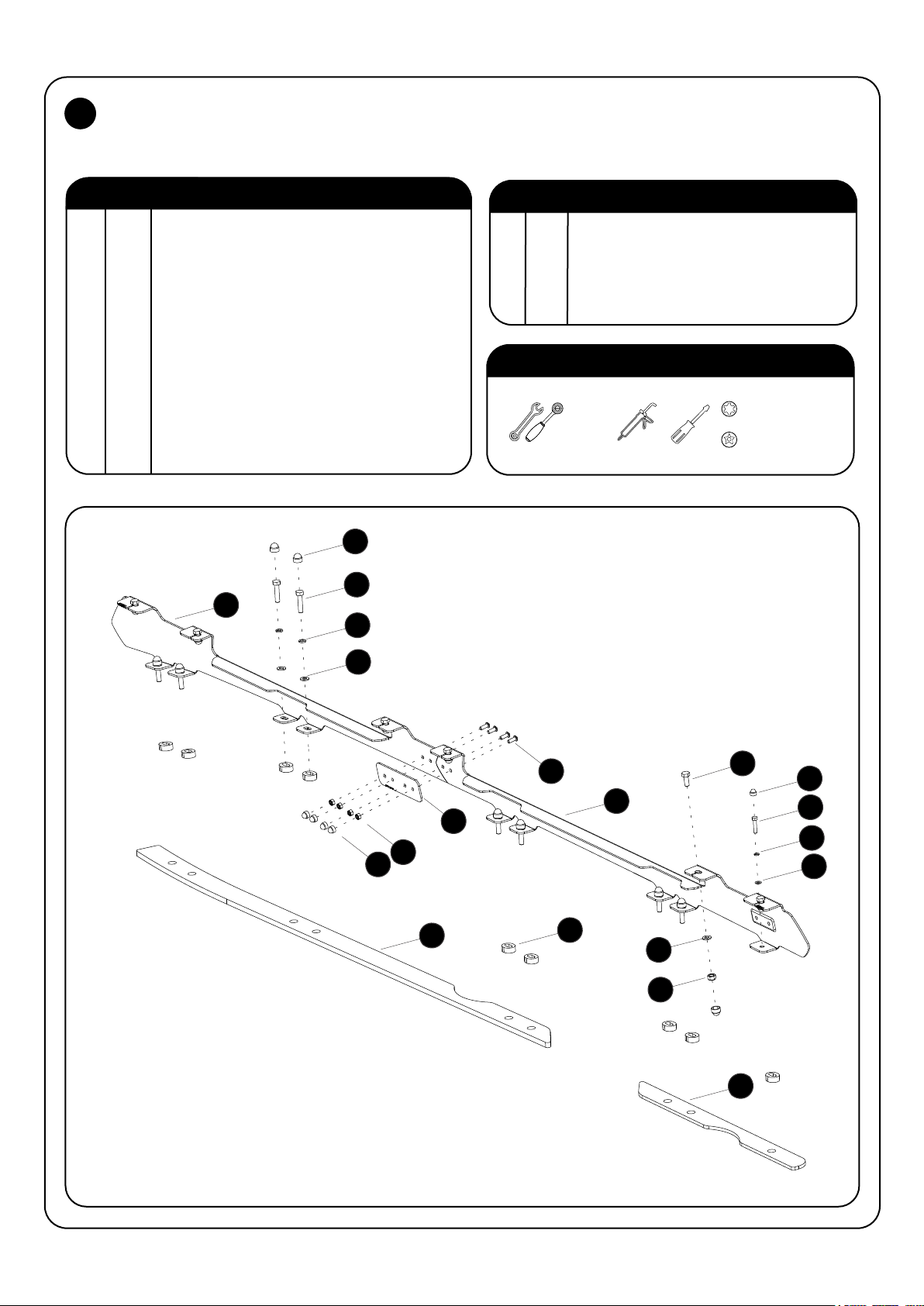

1 2 X Foot Rail Front - 1LH + 1RH 2 2 X Foot Rail Rear - 1LH + 1RH 3 2 X Spacer Front 4 2 X Spacer Rear 5 18 X Spacer 6 10 X M6 Nut Cap 7 8 X M6 Nyloc Nut 8 2 X Joiner Plate 9 8 X M6 x 12 Button Head Bolt 10 28 X M8 x 16 x 1.6SS Please Washer 11 16 X M8 SS Spring Washer 12 16 X M8 x 35 Hex Bolt 13 28 X M8 Nut Cap

FIGURE 1.1

1

13

12

11

IN THE BOX

15 12 X M8 x 20 Hex Bolt 16 12 X M8 Nyloc Nut 17 2 X M6 x 35 hex Bolt 18 2 X M6 SS Spring Washer 19 2 X M6 x 19 x 1SS Flat Washer

TOOLS NEEDED

T45 Torx

10mm 13mm

T30 Torx 5 Point

10

9

2

9

7

6

3

5

11

16

15

6

17

18

19

4

FALD008_REV_A03

2

RACK FITMENT ON VEHICLE WITH OEM RAILS 2

2.1

2.2

T45

10mm 13mm

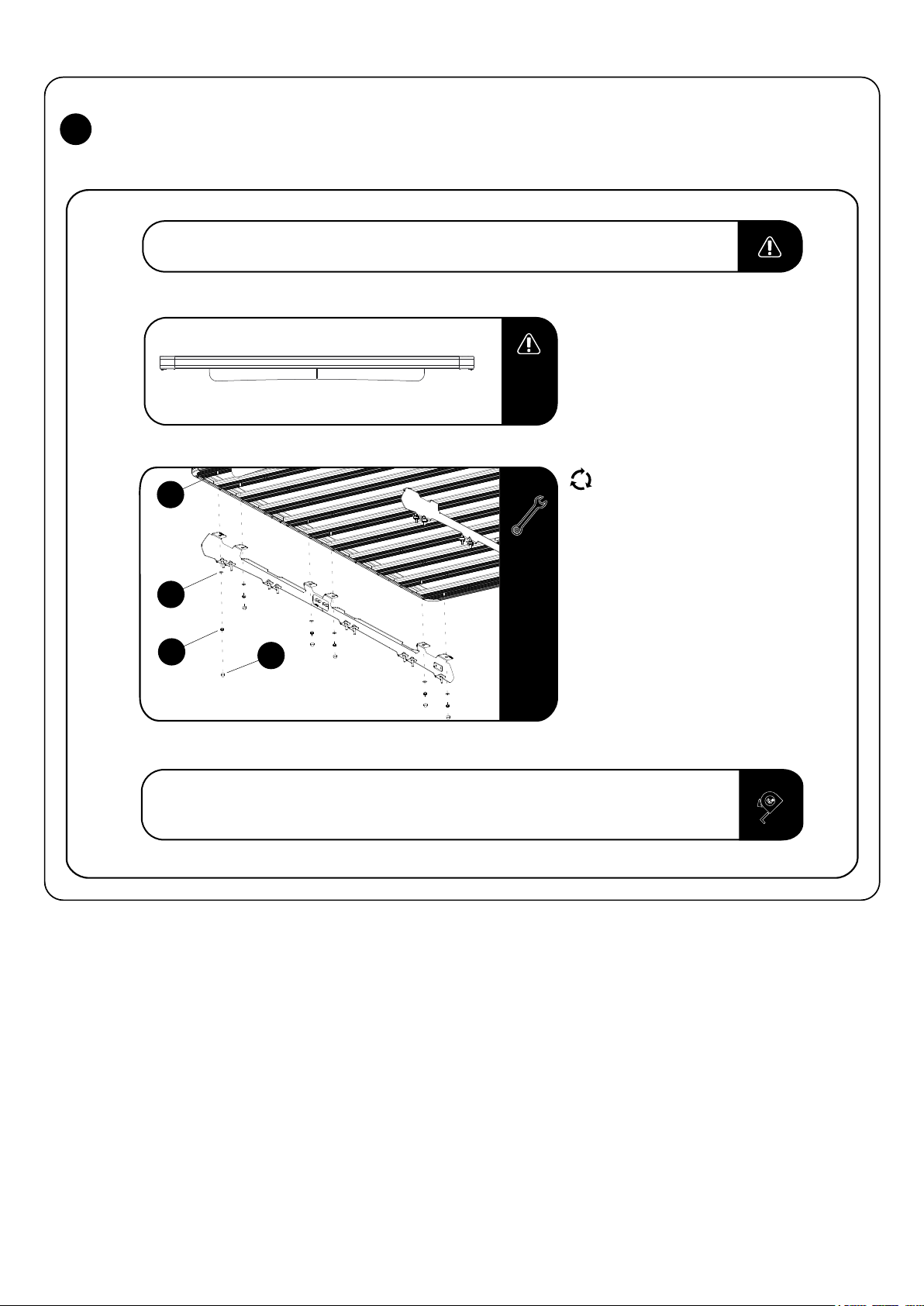

Remove the OEM rails from left and right side of the vehicle.

Remove the front saddle bracket under both rails.

Loosen with care and take your time as the factory bolts have a lot of loc tite and if not careful the inserts can break loose.

Assemble the Front and Rear Foot Rails

(Items 1 & 2) using the Joiner Plate (Item 8) and M6 x 12 Button Head Bots and M6 Nyloc Nuts (Items 7 & 9) as shown.

Finish off by placing M6 Nut Caps (Item 6) on the Nyloc Nuts.

2.3

9

8

7

6

Remove tape covering rear hole.

Place the Front and Rear Spacers as shown

14

13

12

11

17

6

10mm 13mm

18

19

into the ditch where you removed the OEM rails.

Align the holes in the spacers with the factory holes in the vehicles ditch.

Place a bead of all perpose/waterproof silicone on the bolt threads before securing to the roof.

Secure the Foot Rails to the vehicle using M8 x 35 Hex Bolts, M8 SS Spring Washers and M8 x 16 x 1.6SS Flat Washers (Items 11, 12 & 13) in all holes exept the one at the rear.

Use an M6 x 35 Hex Bolts, M6 SS Spring Washers and M6 x 19 x 1SS Flat Washers (Items 17, 18 & 19) on the two rear holes in the Foot Rail.

Fully tighten all bolts. Finish off by placing M8 Nut Caps (Item 14)

on the M8 Bolt Heads and M6 Nut Caps (Item

6) on the M6 Bolt Heads.

FALD008_REV_A03

3

RACK FITMENT ON VEHICLE WITH OEM RAILS

2.1

2.4

3.1

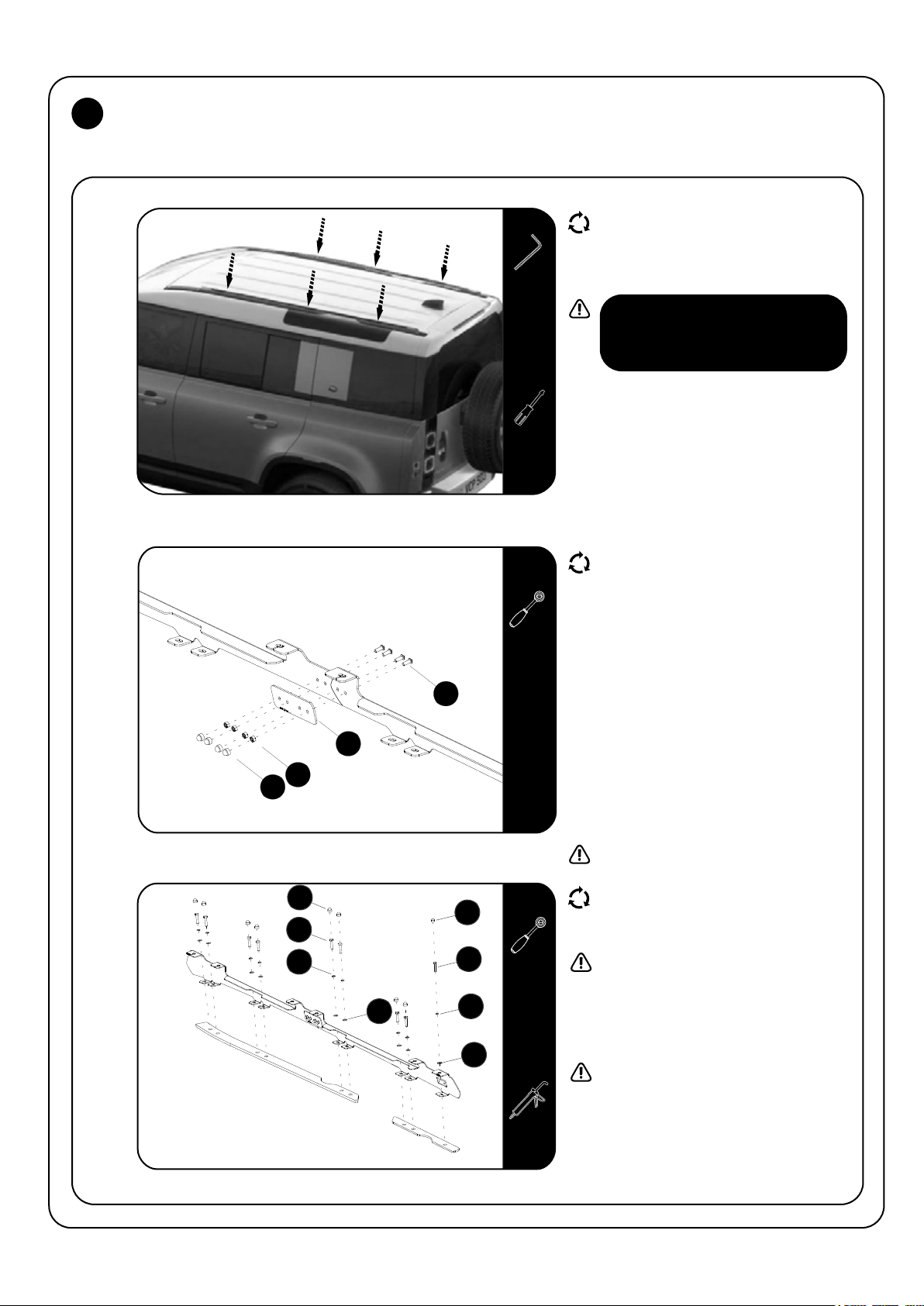

Refer to RRSTUNI when assembling your Slimline II Tray.

2.2

3.2

3.3

15

11

16

4MM

Make sure that the wind deﬂector is installed before you proceed to the next step.

Fit your roof rack to the Foot Rails using M8 x 20 Hex Bolts, M8 x 16 x 1.6SS Flat Washers and M8 Nyloc Nuts (Items 11, 15 & 16) as shown.

13mm

14

3.4

Center the rack and tighten fully. Use M8 Nut Caps (Items 14) to ﬁnish off the nuts.

FALD008_REV _A03

4

RACK FITMENT ON VEHICLE WITHOUT OEM RAILS 4

4.1

4.2

T30

10mm 13mm

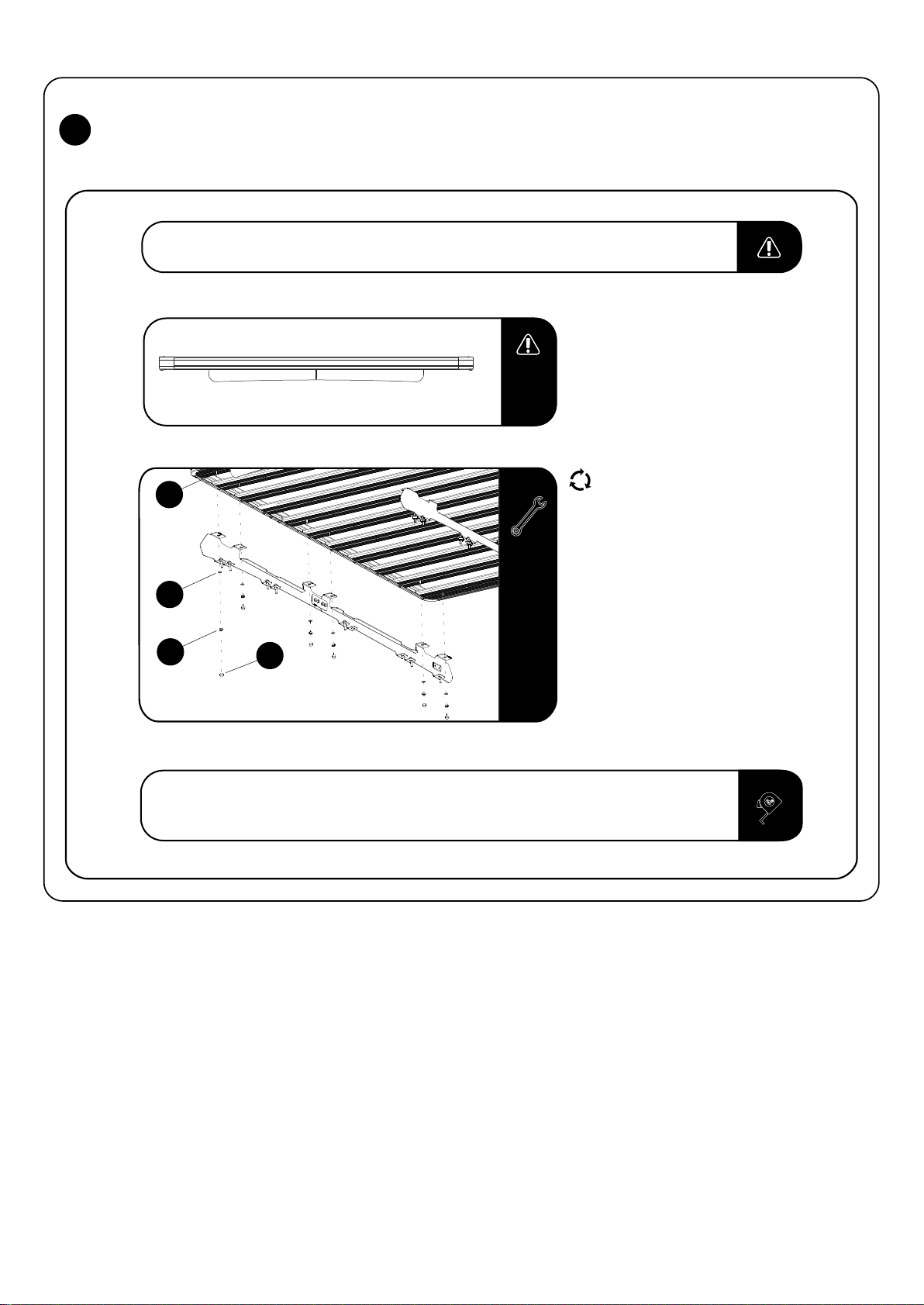

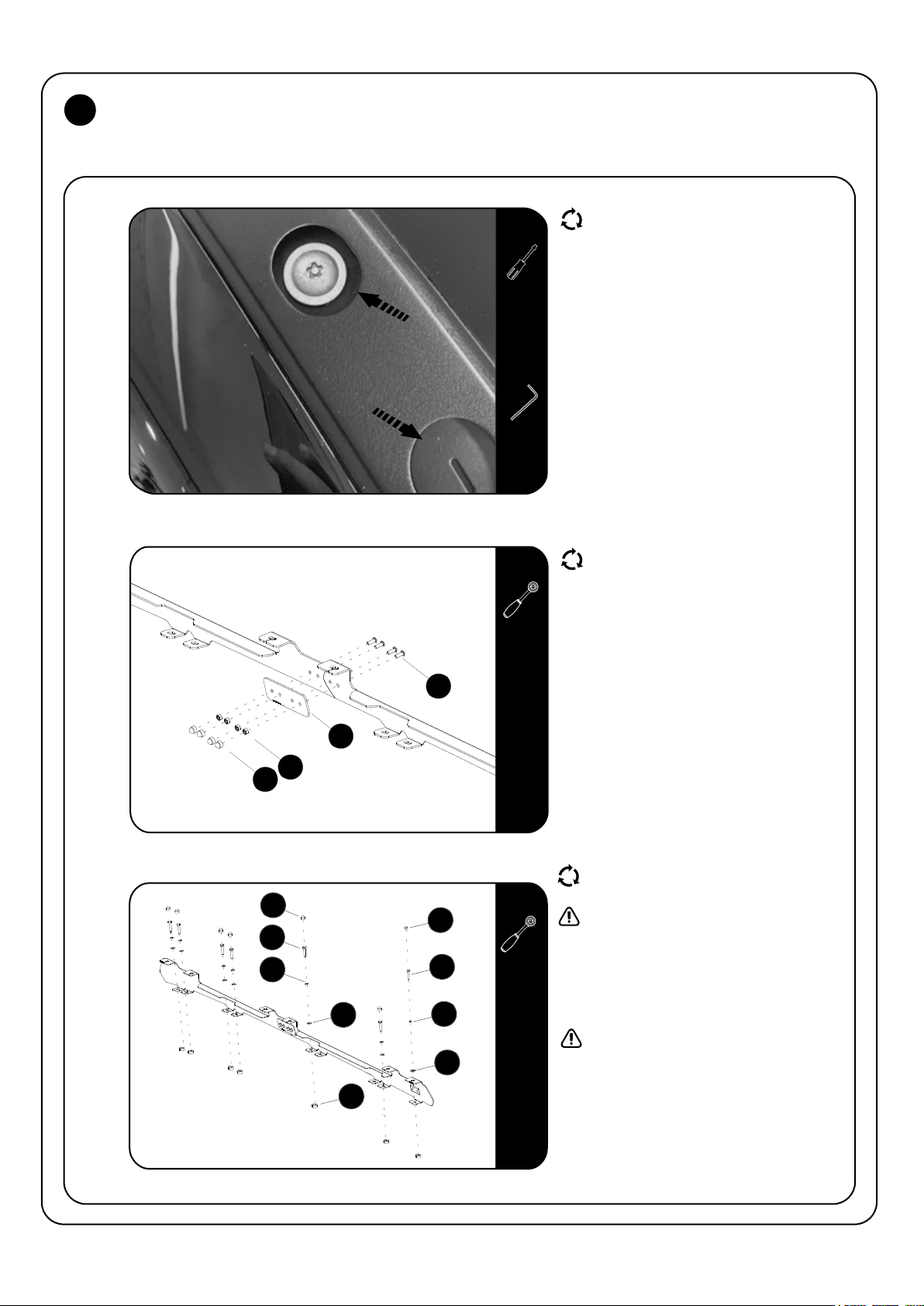

Remove the plugs on the ditch cover.

Remove the screws under the plugs.

Assemble the Front and Rear Foot Rails

(Items 1 & 2) using the Joiner Plate (Item 8) and M6 x 12 Button Head Bots and M6 Nyloc Nuts (Items 7 & 9) as shown.

Finish off by placing M6 Nut Caps (Item 6) on the Nyloc Nuts.

4.3

9

8

7

6

Place one Spacer (Item 5) into each of the openings where the rail plugs was removed

14

13

12

11

6

17

18

19

5

10mm 13mm

in 2.1. Place a bead of all-perpose/waterproof

silicone on the bolt threads before securing to the roof.

Secure the Foot Rails to the vehicle using M8 x 35 Hex Bolts, M8 SS Spring Washers and M8 x 16 x 1.6SS Flat Washers (Items 11, 12 & 13) in all holes exept the one at the rear.

Use an M6 x 35 Hex Bolts, M6 SS Spring Washers and M6 x 19 x 1SS Flat Washers (Items 17, 18 & 19) on the two rear holes in the Foot Rail.

Fully tighten all bolts.

Finish off by placing M8 Nut Caps (Item 14) on the M8 Bolt Heads and M6 Nut Caps (Item

6) on the M6 Bolt Heads.

FALD008_REV _A03

5

RACK FITMENT ON VEHICLE WITHOUT OEM RAILS

2.1

2.4

5.1

Refer to RRSTUNI when assembling your Slimline II Tray.

2.2

5.2

5.3

15

11

16

4MM

Make sure that the wind deﬂector is installed before you proceed to the next step.

Fit your roof rack to the Foot Rails using M8 x 20 Hex Bolts, M8 x 16 x 1.6SS Flat Washers and M8 Nyloc Nuts (Items 11, 15 & 16) as shown.

13mm

14

5.4

Center the rack and tighten fully. Use M8 Nut Caps (Items 14) to ﬁnish off the nuts.

FALD008_REV _A03

6

COMPLETION

6.1

7

Congratulations! You did it. Take a step back and admire your work!

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

IMPORTANT!

FRONT RUNNER RACK KITS OFTEN HAVE A HIGHER LOAD RATING THAN THE VEHICLES THEY ARE MOUNTED TO. PLEASE REFER TO YOUR SPECIFIC VEHICLE MANUFACTURER FOR A RECOMMENDED ROOF RATING. FRONT RUNNER CANNOT BE RESPONSIBLE FOR IMPROPER LOADING BEYOND THE VEHICLE MANUFACTURER'S STATED LOAD CAPACITY.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FALD008_REV _A03

7
