Front Row FR Quick Start Manual

Quick Start Guide

1

Introduction

Thank you for purchasing the Front Row Camera. This Quick Start
Guide is designed to guide you through installation and also
includes warranty terms.

Package Contents

Front Row Camera Magnetic Clip USB Cable with

Adapter

Adjustable

Lanyard

MicroFiber Cloth Documentation Sticker

2

Hardware Overview

Display Side

Feb 24 Tuesday

AM

Facebook Live

Reverse Camera

Home Button

Touchscreen

Media Button

Power Button

Chain Adapter

3

Chain Adapter The Chain Adapter can be used to wear your
Front Row on your favorite necklace. It is removable so that you
can connect the included lanyard, clip, or optional accessories
such as the car mount and coil mount.

Reverse Camera The Reverse Camera incorporates a lens with an
85° viewing angle.

Media Button Press the Media Button to take a photo or hold it
down to begin video recording.

Power Button Use the Power Button to power on the Front Row
Camera. When the Front Row Camera is powered on, pressing the

Power Button will enter or exit sleep mode. Press and hold the
Power Button to access the Reboot and Power o options.

Touchscreen Use the Touchscreen to navigate between the
various modes. Tap the touchscreen in the center on the home
page to hide/view the main icons.

Home Button The Home button returns you to the home screen.
It can also be used to hide/show the icons on the main screen.

4

Front

The Main Camera has a 147.5° viewingangle sheye lens.
The LED behavior is described below:

LED Description

Solid Blue Fully Charged

Blinking Blue Charging

Blinking Red Recording

Main Camera

LED

5

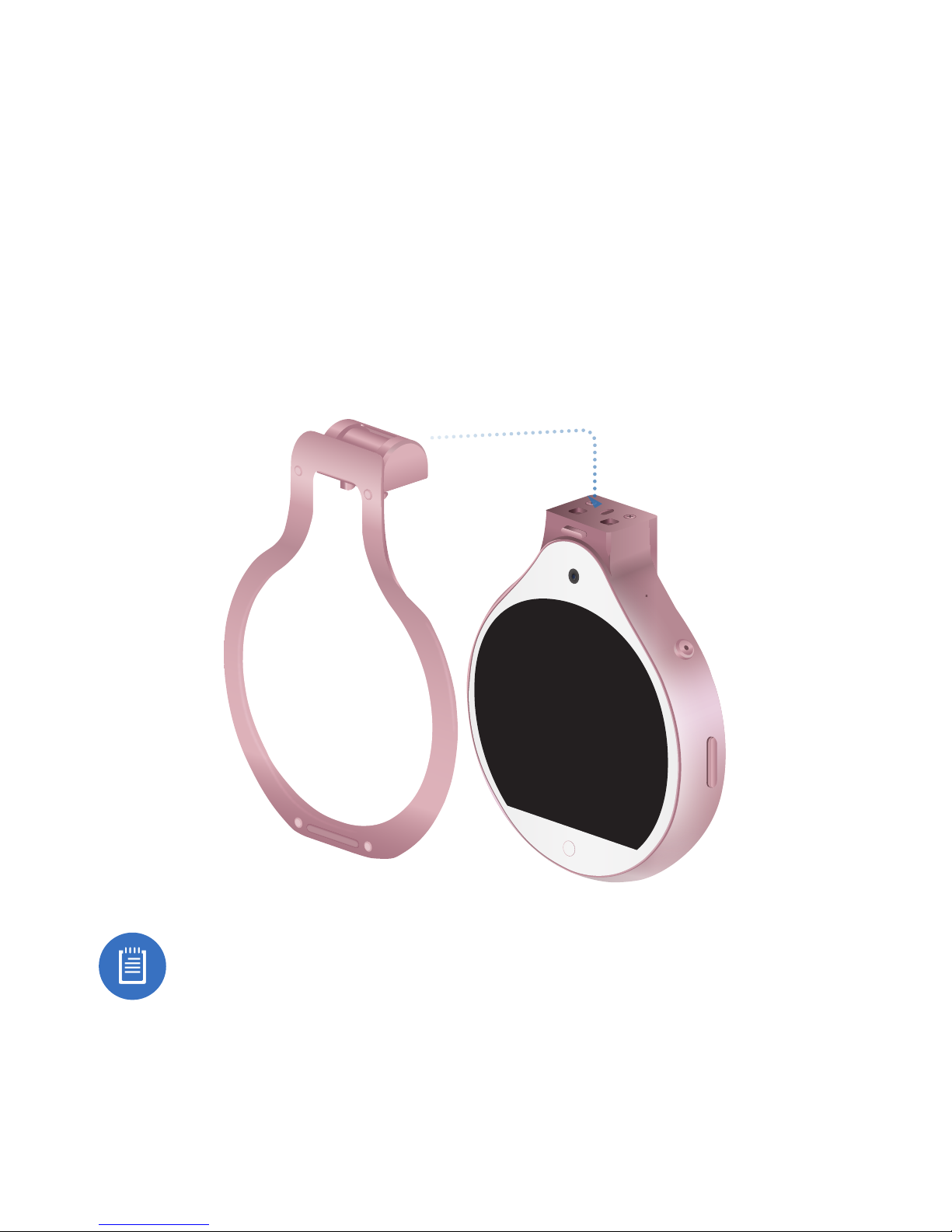

Connecting Accessories

Front Row can be used with the included adjustable lanyard,
magnetic clip, third party chain adapter, optional car adapter, or
optional coil adapter for mounting exibility. Simply attach the
desired accessory (Magnetic Clip shown below).

The Magnetic Clip can be tilted for use as a stand,
used as a clip, or used on a magnetic surface.

6

Disconnecting Accessories

Press and hold the Release Button while you remove the
connected accessory.

Before You Begin

Remove the protective lm covering
the touchscreen on the Front Row.

7

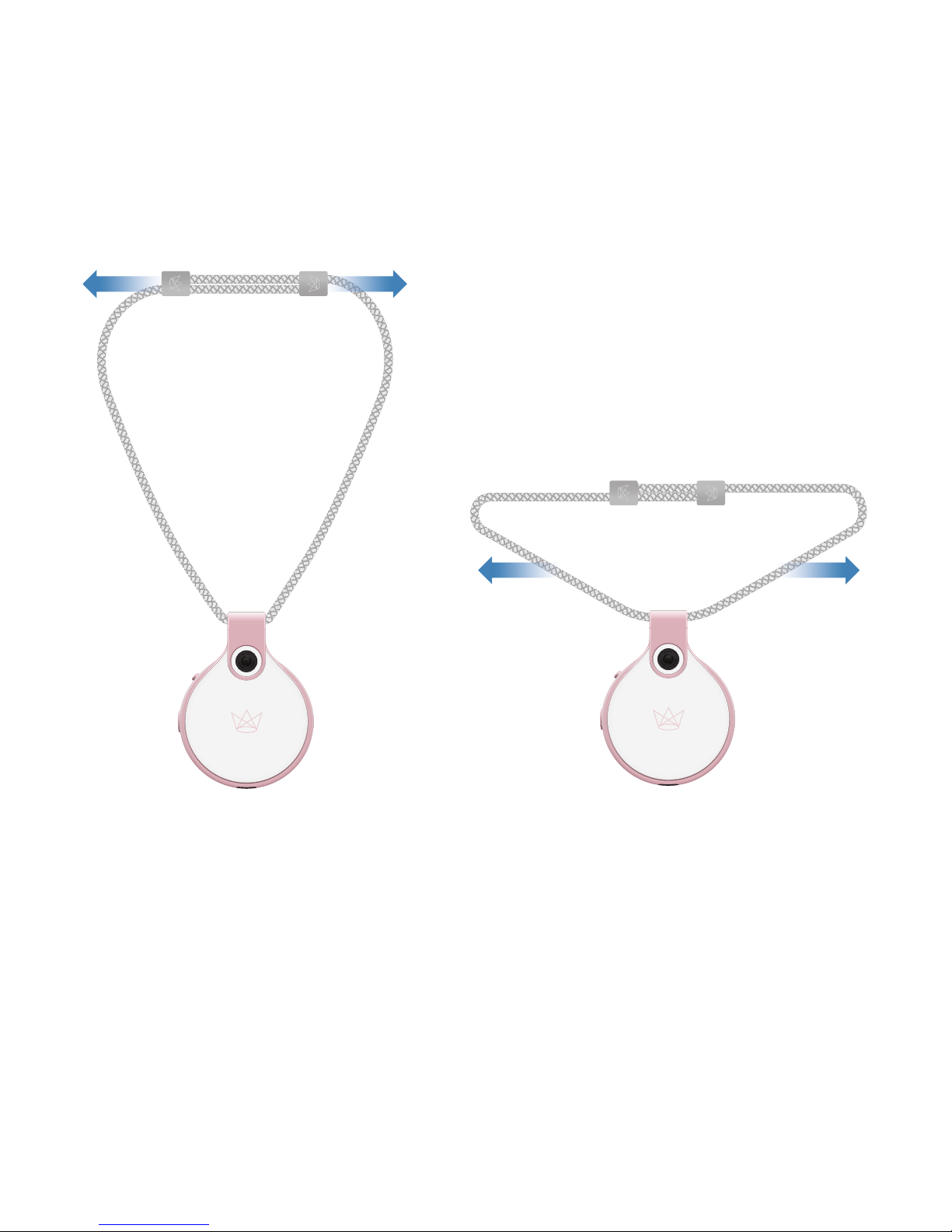

Adjusting the Lanyard

To tighten, press and hold
the adjustment buttons and
slide outwards.

To loosen, pull outwards on the
cord from both sides.

8

Installation

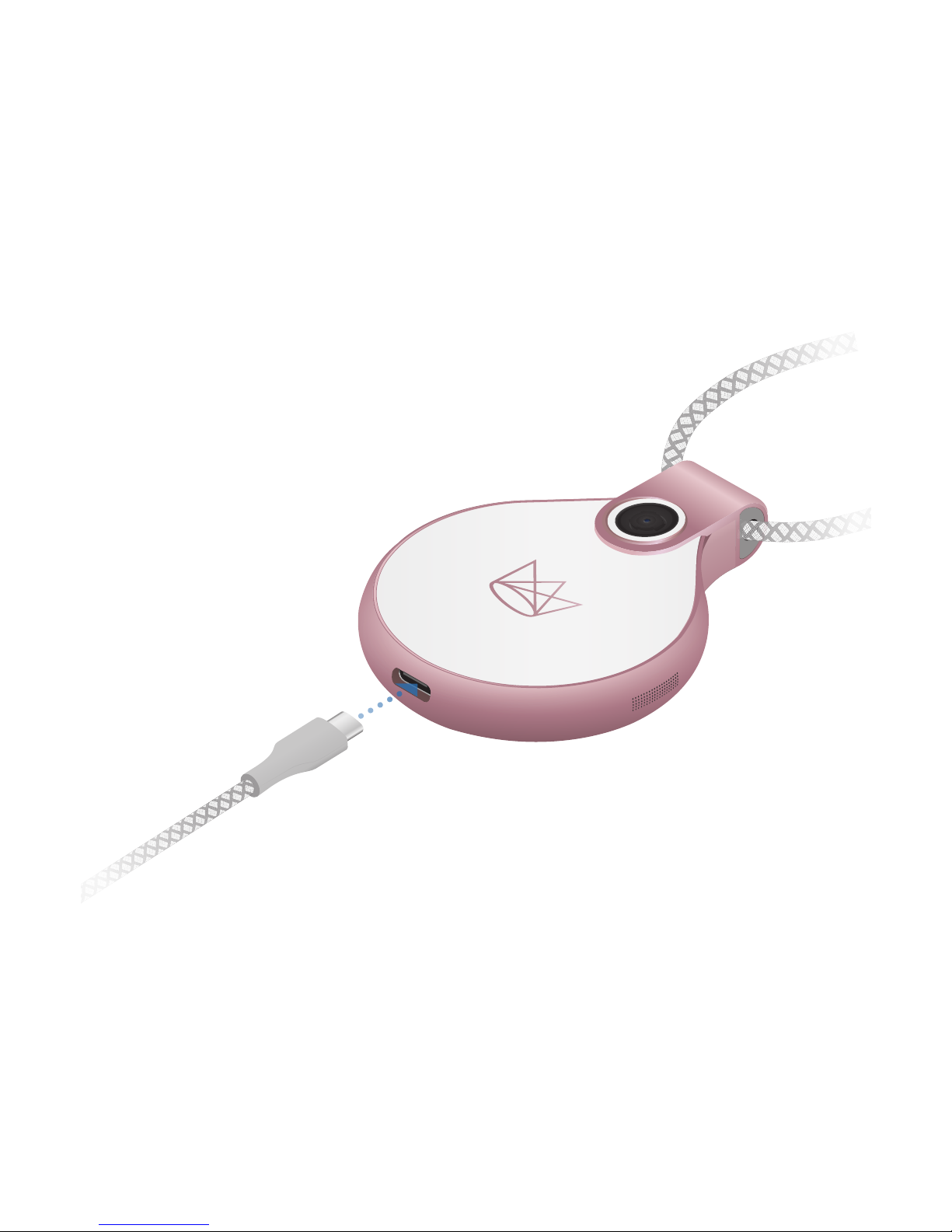

1 Connect the USB Cable to the USB Port.

9

2 Connect the other end of the USB Cable to your power

adapter, laptop, power bank, or mobile phone.

USB Adapter
(Included)

For versatility, it can be charged using the included
USBAdapter or remove the adapter to use the USB
TypeC connector.

10

3 Press the Power Button on

the side of your Front Row.

4 Select your language.

100%

English

日本語

繁体中文

Françai

s

100%

1:59:40

00:53

00:1300:45

01:20

100%

Language

English

Deutsch

日本語

繁体中文

Français

11

5 Select your wireless network.

100%

English

日本語

繁体中文

Françai

s

100%

UBNT_Test

AmpliFi-OC

UBNT-OC

Wi-Fi

6 Enter your password and

tap OK.

Password

q w e r t y u i o p

a s d f g h j k

z x

?123

c v b n m

l

Done

OK

12

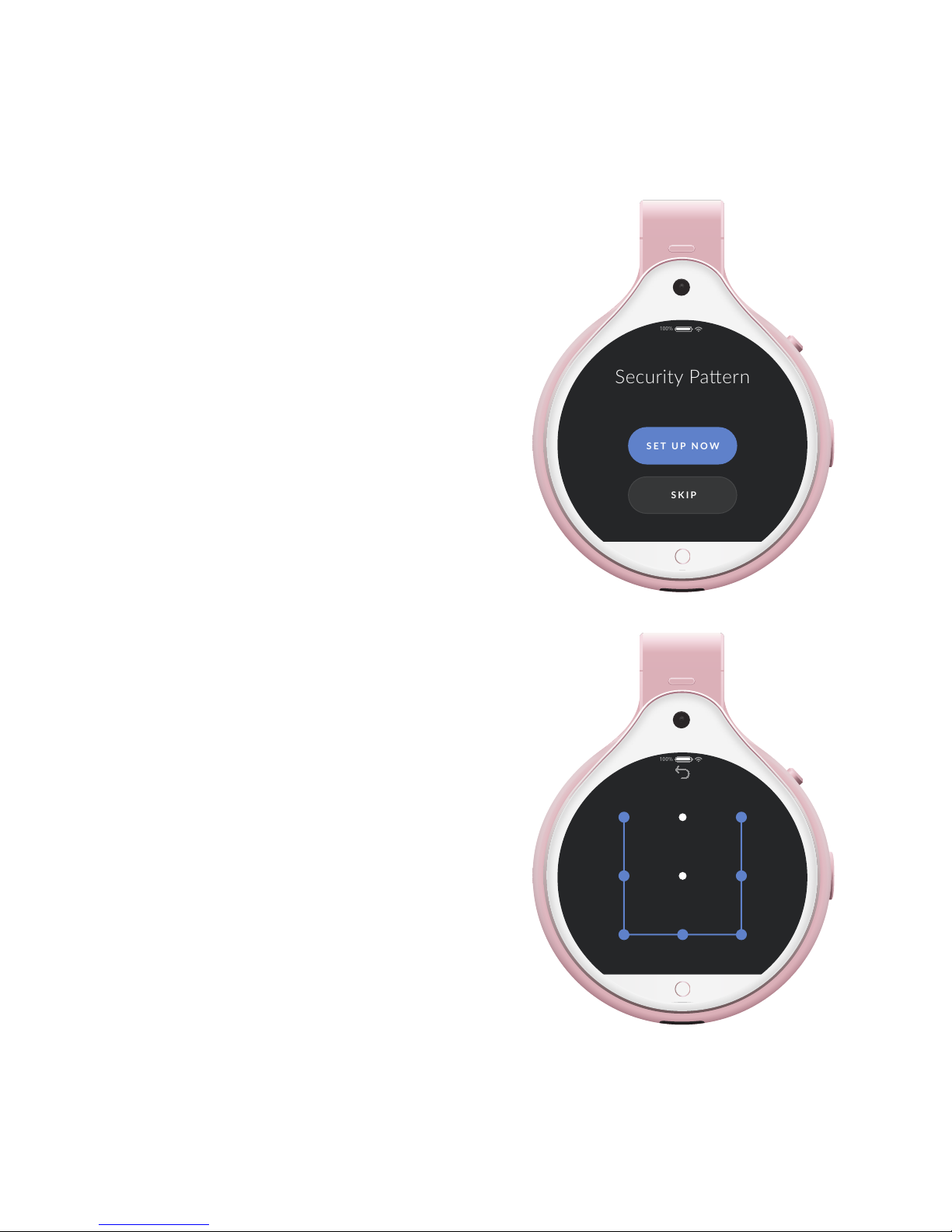

7 Tap Set Up Now to set up a

security pattern.

100%

SET UP NO

W

SKI P

Security Paer

n

8 Draw a security pattern and

conrm it.

100%

Draw Again

13

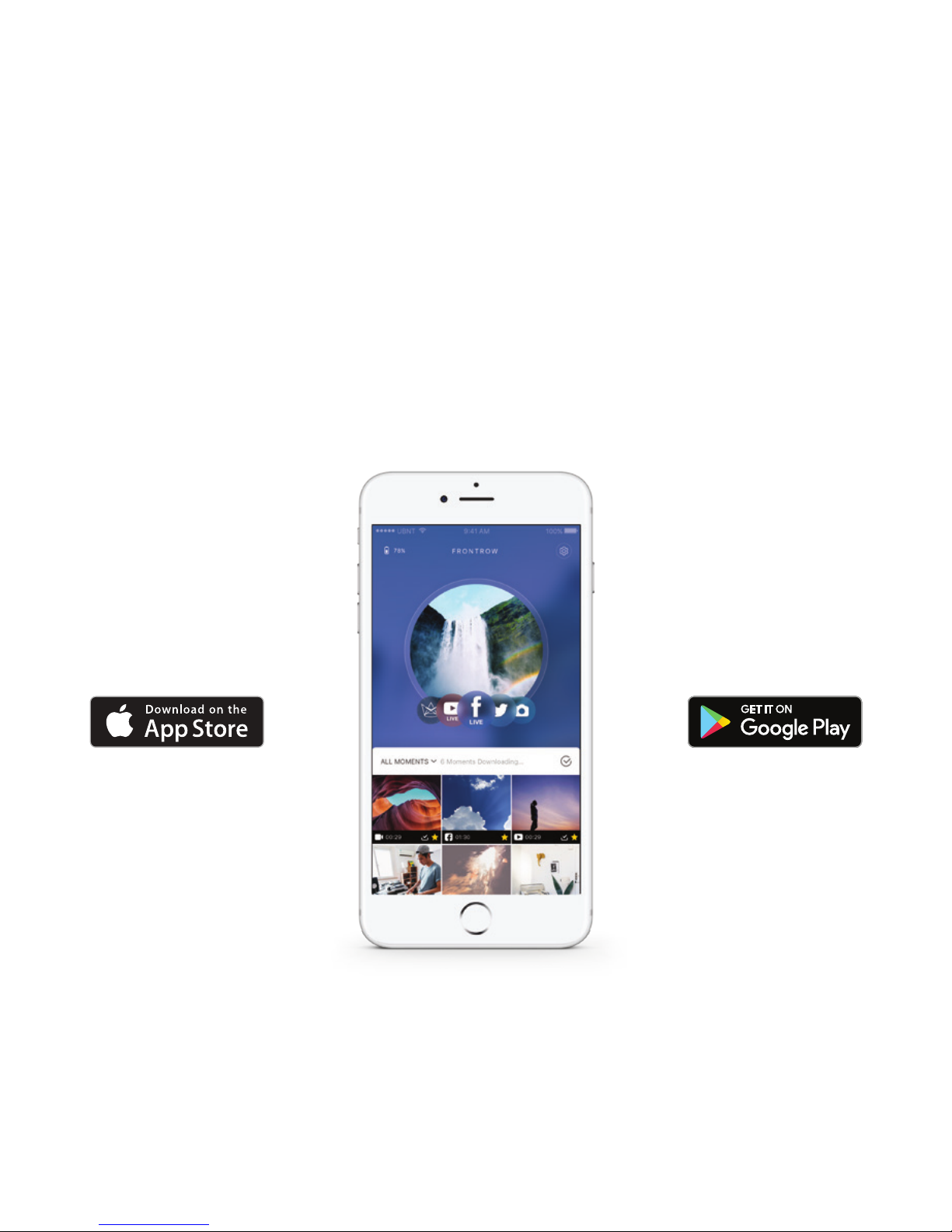

Front Row App

Download and install the Front Row app from the App Store or
Google Play™ Store. The Front Row app connects your Front Row
Camera to your mobile device for video review, editing, and
remote access. Preview the video feed, remotely start, and stop
recording without disrupting the cameraview.

14

Touchscreen Features

Tap the Home button or the center of the screen to show/hide
the icons. Swipe left or right over the App icons to navigate to
apps and tap the icon to launch. Swipe towards the center of the
touchscreen from the Gallery icon to view recordings and photos.
Swipe to the center from the Camera icon to enter Camera mode.

Camera

Feb 24 Tuesday

AM

Facebook Live

Home Button

App Icons

Gallery

App Icons

15

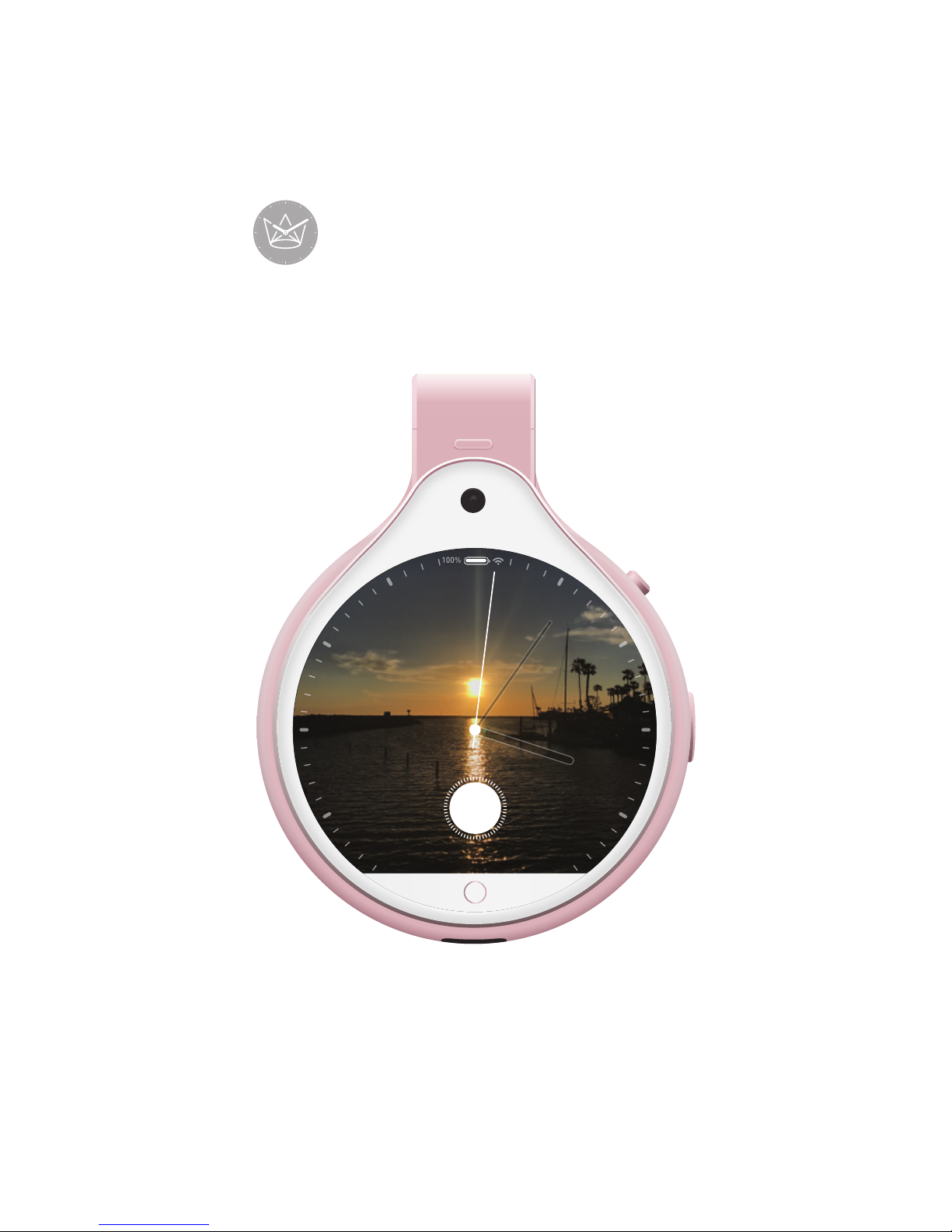

Story Mode

Story Mode captures a photo every few moments and creates a
condensed video of your activities.

100%

Draw Again

100%

16

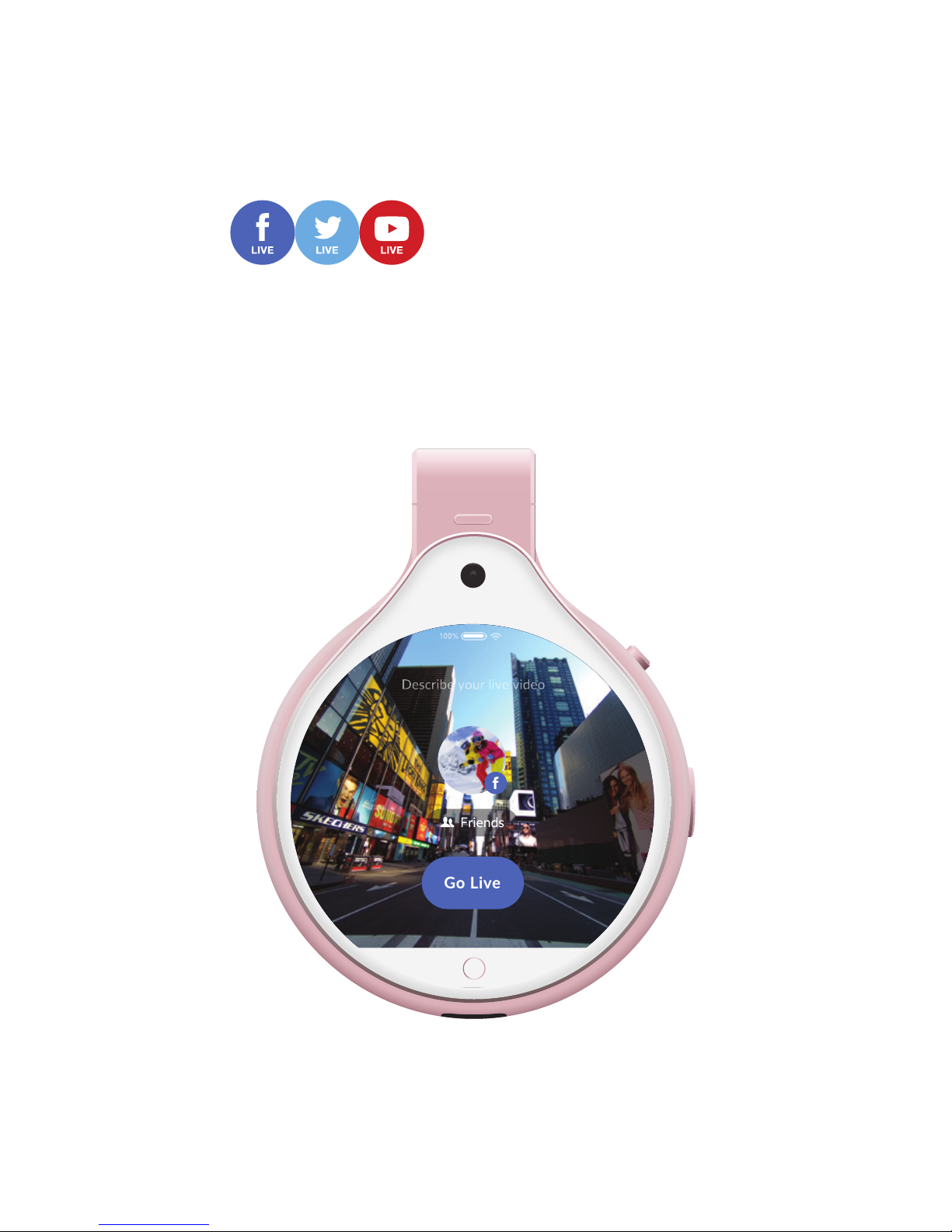

Live Mode

Livestream to your social media accounts by connecting to a Wi-Fi
network or tethering from your mobile device. To connect, simply
sign in to your social media account at the specied web address
from a computer or smartphone and enter the code provided.

17

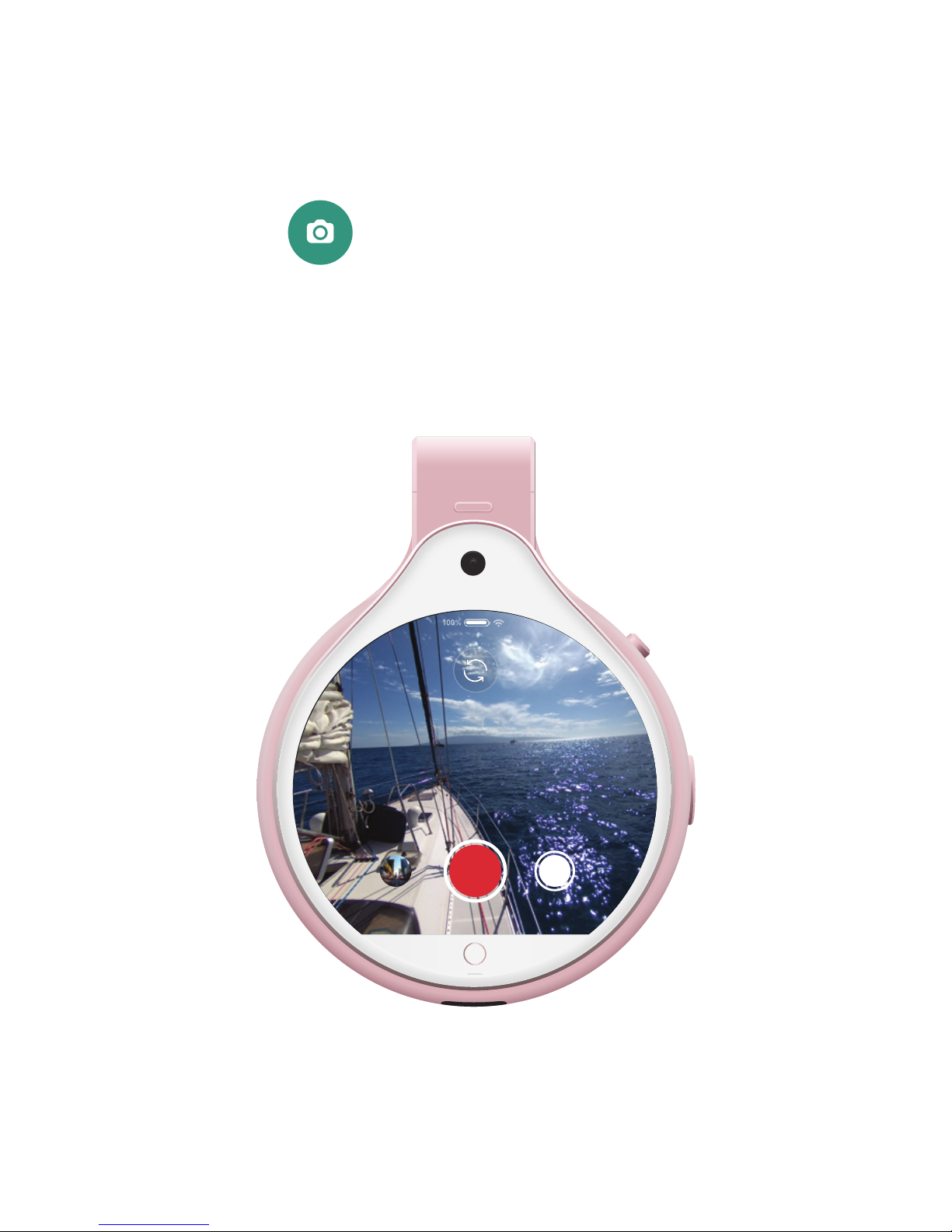

Camera Mode

Record HD video or take high-resolution photos. Press and hold
the media button to begin video recording or tap the record
button in the bottom center on the screen. To take a photo, press
the media button or tap the button on the bottom right.

18

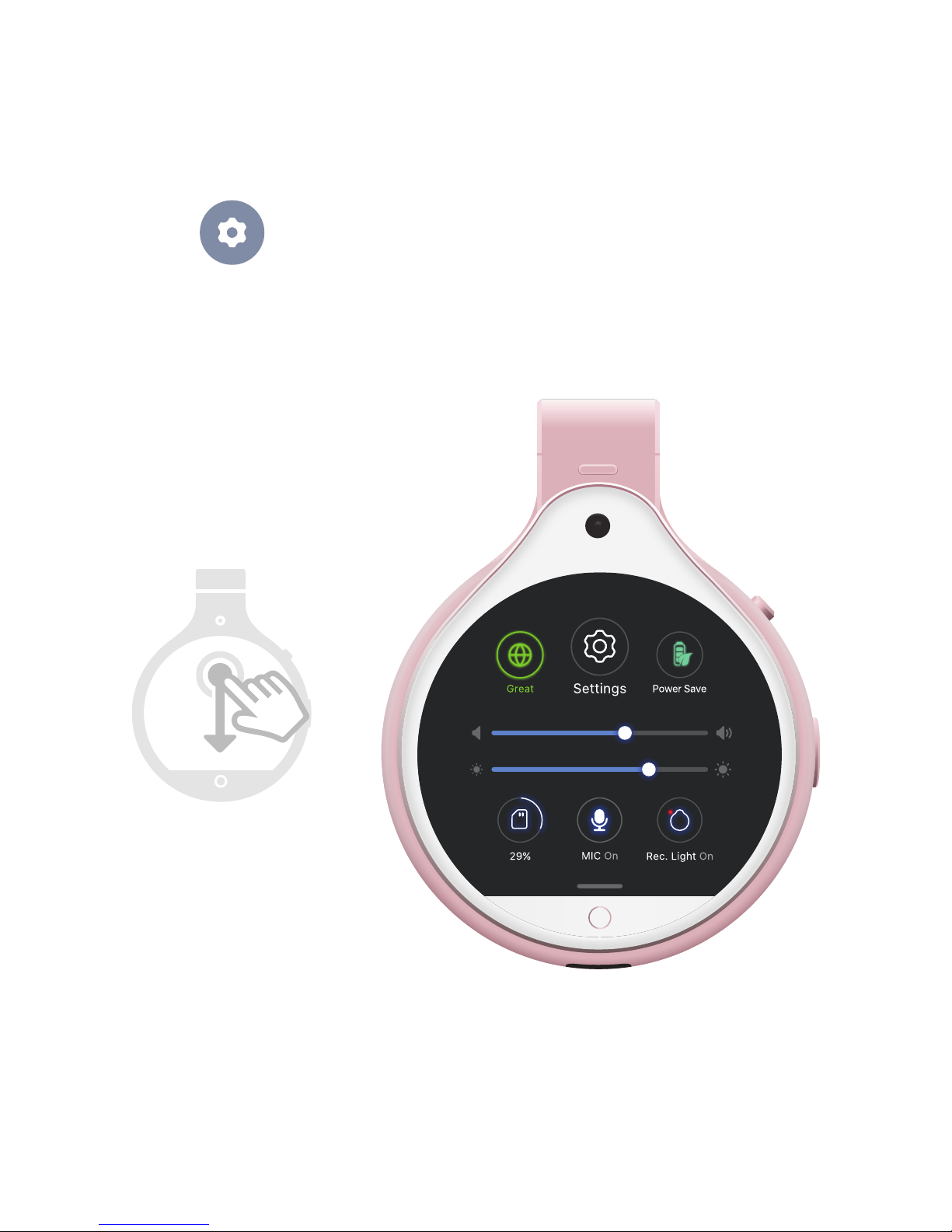

Settings

On the Home screen, swipe from the top down towards the center
to access settings. Adjust the volume, display brightness, check
Wi-Fi status, and access additional settings.

100%

Draw Again

19

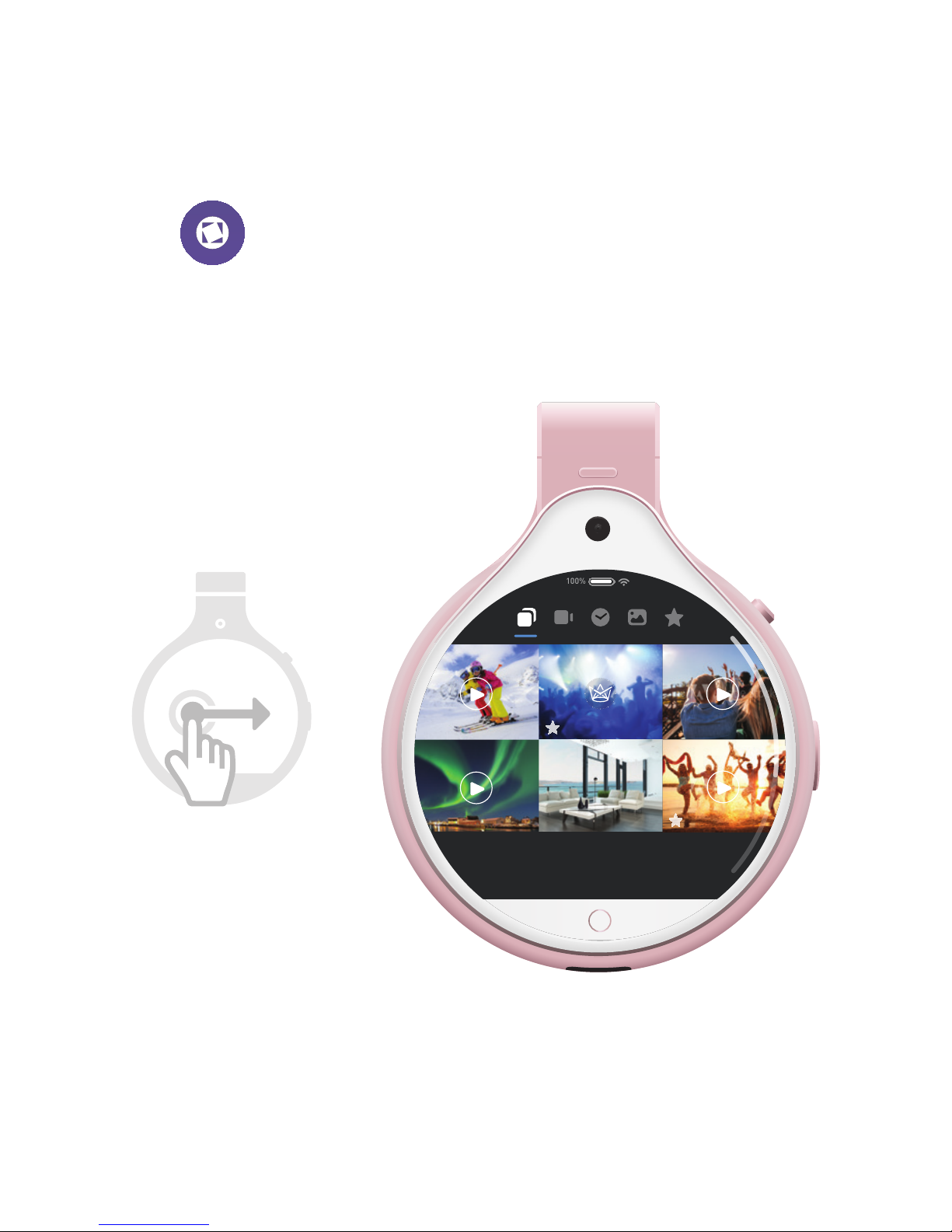

Gallery

Go to the Gallery to access your story recordings, video clips, and
photos on the Front Row. To access, tap the Gallery icon or swipe
from the left towards the center on the Homescreen.

100%

English

日本語

繁体中文

Françai

s

100%

1:59:40

00:53

00:1300:45

01:20

20

Specications

Dimensions 59.8 x 70.3 x 12.1 mm (2.354 x 2.768 x 0.476")

Weight 59 g (2.08 oz)

RAM / Storage 2 GB / 32 GB (Shared with Other Applications)

Connectivity USB 3.0/2.0 Type C, 802.11b/g/n/ac, Bluetooth 4.1 LE

Camera Front IMX179 (8M) / Rear S5K5E2YA (5M)

Lens Main F2.2 / Reverse F2.0

View Angle Main 147.5° / Reverse 85°

Video Compression 4K @ 30 fps, 1080p @ 60 Hz, H.264, H.265, VP8

Resolution 2688 x 1512

Maximum Frame Rate 30 fps

Microphone / Speaker Stereo / Mono

Sensors Accelerometer, Gyro

Management Interface Touchscreen UI

Display 1.96-inch LTPS Round, 640 x 572, 327 ppi

G+F Virtual Multi-Touch, Full Color

Max. Power Consumption 6W

Power Method USB (5V, 3A)

Certications FCC, CE, IC

21

Operating Temperature Information

Very cold conditions may temporarily shorten battery life and could cause the device to
turn o. Front Row does generate heat during operation to help keep the battery pack from
getting too cold and therefore help minimize a reduction in run times. Front Row does include
a rechargeable lithium ion battery pack, which holds up best in cold temperatures.

Product Warranty

Warranty Terms

Each of our manufactured products (a “Product”) is warranted against defects in materials
and workmanship for a period of one (1) year from the date of original purchase when used
under normal conditions and consistent with applicable Product documentation, subject to
the other terms in this Product Warranty.

Warranty Service

If we determine that the hardware components of a Product do not conform to this Product
Warranty during the applicable warranty period we will, at our option, repair or replace the
Product, or refund the original purchase price of the Product.

Returns

To benet from this Product Warranty, you must obtain an RMA during the warranty period.
You will be responsible for delivering the Product to the designated RMA address, freight
prepaid, for warranty service. We will pay the return freight for the Product using a service
of our choice. You may request, and will be solely responsible for, payment of any shipping
upgrades. Any Product shipped to us under an RMA, but which is not covered by this Product
Warranty, will not be returned.

To obtain an RMA, please use our online RMA Request form, located at:

www.frontrow.com/RMA

22

You will be required to supply the following information: name, contact information, and
shipping information; date of purchase of the Product (we may request a copy of the invoice
as proof of purchase); problem description; MAC Address of the Product; and troubleshooting
actions taken so far. By submitting an RMA Request, you conrm all terms in this Product
Warranty.

Following warranty service, a repaired or replacement product may be returned to you as
the Product was congured when originally purchased. You are responsible for all back-up,
recovery and reinstallation of other software or data.

For customers outside of the United States: you are required to use your own shipping
account when sending the Product; the commercial invoice must declare “return for repair”
and “no commercial value”; the total value of the commercial invoice cannot exceed $10.00
USD. If these steps are not followed, the RMA Request will not be accepted or fullled. You
are responsible for all applicable duties and customs charges for shipment of a Product to
and from us.

Limitations of Warranty and Liability

This Product Warranty sets forth our sole and exclusive liability, and the sole and exclusive
remedies available in relation to any non-conformity, defect or similar claim. This Product
Warranty is provided only to the original purchaser of the Product. This Product Warranty does
not, among other things, cover labor cost for removing and reinstalling a Product for repair,
any consumable parts that are readily replaced in normal use, problems caused by normal
wear and tear or otherwise due to the normal aging of the Product, or cosmetic damage. No
representation or warranty is made with respect to services that may be delivered or made
available in connection with a Product.

This Product Warranty does not apply to any Product that we determine has been, in any
way: dis-assembled, modied or altered, other than by us or as authorized by us; painted,
rebranded or physically modied; improperly installed or not used at all times in accordance
with the applicable Product documentation; damaged due to improper cabling or
installation; subjected to misuse, abuse, negligence, or abnormal physical, electromagnetic or
electrical stress; damaged or impaired as a result of the use of third party hardware, rmware

23

or software; or, has had its original Ubiquiti Networks MAC address label removed; or, has not
been received by us within thirty (30) days of issuance of the RMA.

For a Product to be eligible under this Product Warranty, you shall: use only CAT5 (or above)
cabling for all Ethernet cabling runs; use shielded Ethernet cabling for outdoor installations;
follow indoor cabling requirements for indoor installations; operate the Product in accordance
with the applicable Product documentation; use all software updates made available for your
Product; comply with all applicable laws and regulations governing the installation and use of
the Product; obtain all locally required authorizations, permits, and licenses; not export to, or
use the Product in, any jurisdiction or for any person in a manner that would cause a violation
of U.S. or other laws.

TO THE EXTENT PERMITTED BY APPLICABLE LAW, NEITHER UBIQUITI NETWORKS NOR ANY
OF ITS AFFILITATES ARE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE PURCHASE OR USE OF A PRODUCT, INCLUDING WITHOUT
LIMITATION ANY LOST PROFITS OR LOST SAVINGS (INCLUDING LOSS OF REVENUE OR PROFITS
ON CONTRACTS, LOSS OF THE USE OF MONEY, LOSS OF GOODWILL, LOSS OF OPPORTUNITY,
DAMAGE TO REPUTATION, OR LOSS OF USE OR INTERRUPTION OF BUSINESS, COST OF COVER
OR PROCUREMENT OF SUBSTITUTE GOODS), HOWEVER CAUSED, ARISING IN CONTRACT,
TORT, BREACH OF WARRANTY, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. THIS PRODUCT
WARRANTY AND REMEDIES SET FORTH HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, REMEDIES, AND CONDITIONS, WHETHER ORAL, WRITTEN, EXPRESS, STATUTORY
OR IMPLIED. EXCEPT FOR ANY EXPRESS WARRANTIES SET FORTH HEREIN, UBIQUITI NETWORKS,
ITS AFFILIATES, AND ITS AND THEIR SUPPLIERS, LICENSORS, SERVICE AND OTHER PROVIDERS
HEREBY DISCLAIM AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS,
GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE OR
RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF VIRUSES, LACK OF VULNERABILITY
TO INTRUSION OR ATTACK, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND
NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE OF DEALING,
USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES. YOU
ACKNOWLEDGE THAT NEITHER UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS
CONTROL YOUR EQUIPMENT OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES,

24

INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO
LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT
IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS
AND THEIR SUPPLIERS AND SERVICE AND OTHER PROVIDERS ARE NOT RESPONSIBLE FOR
ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
IF IMPLIED WARRANTIES CANNOT BE DISCLAIMED, THEN SUCH WARRANTIES ARE LIMITED
IN DURATION TO THE DURATION OF THIS WARRANTY OR AS OTHERWISE REQUIRED BY LAW.
EXCEPT FOR THE WARRANTIES EXPLICITLY MADE TO YOU UNDER THIS PRODUCT WARRANTY,
AND ANY OTHER WARRANTY REQUIRED BY APPLICABLE LAW, ALL PRODUCTS AND SERVICES
ARE PROVIDED ON AN “AS IS” BASIS WITHOUT ANY WARRANTY WHATSOEVER. WE DO NOT
WARRANT THAT THE OPERATION OF THE PRODUCT WILL BE ERROR FREE OR UNINTERRUPTED,
OR THAT THE PRODUCT WILL CONFORM TO SPECIFICATIONS THAT ARE NOT DEFINED IN THIS
PRODUCT WARRANTY. NO WARRANTY OR REMEDY SHALL APPLY OR BE AVAILABLE TO A
PRODUCT FOR WHICH AN RMA HAS NOT BEEN REQUESTED DURING THE WARRANTY PERIOD.
These limitations and disclaimers apply even if the express warranty may be deemed to fail
of its essential purpose. No person is authorized to waive or modify the terms of this Product
Warranty. Some jurisdictions do not allow the exclusions of certain implied warranties or
certain terms and conditions, so some of the above limitations and exclusions may not apply
to you. The United Nations Convention on Contracts for the International Sale of Goods shall
not apply to any transactions regarding the sale of the Product.

25

Compliance

FCC

Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions.

1 This device may not cause harmful interference, and

2 This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct the interference by
one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver
is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Operations of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.

The Front Row Camera has been approved by the FCC under FCC ID: SWX-FR

26

CAN ICES-3(B)/NMB-3(B)

This Class B digital apparatus complies with Canadian CAN ICES-003.

To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that
permitted for successful communication.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:

1 This device may not cause interference, and

2 This device must accept any interference, including interference that may cause

undesired operation of the device.

The Front Row Camera has been approved by Industry Canada under IC: 6545A-FR.
The device could automatically discontinue transmission in case of absence of information

to transmit, or operational failure. Note that this is not intended to prohibit transmission
of control or signaling information or the use of repetitive codes where required by the
technology.

The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems. In addition, high­power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz
and 5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN
devices.

27

CAN ICES-3(B)/NMB-3(B)

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain
doivent être choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne
dépasse pas ce qui est nécessaire pour une communication réussie.

Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son
fonctionnement est soumis aux deux conditions suivantes:

1 Cet appareil ne peut pas provoquer d’interférences et

2 Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent

causer un mauvais fonctionnement du dispositif.

La Caméra Front Row a été approuvée par Industrie Canada en vertu IC : 6545A-FR.
Le dispositif doit interrompre automatiquement l’émission en cas d’absence d’information

à transmettre ou en cas de panne. À noter que l’objectif de cette disposition n’est pas
d’empêcher la transmission d’informations de contrôle ou de signalisation, ni l’utilisation de
codes répétitifs exigés par la technique.

Les dispositifs fonctionnant dans la bande de 5 150 à 5 250 MHz sont réservés uniquement
pour une utilisation à l’intérieur an de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux. De plus, les radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) des bandes de 5
250 à 5 350 MHz et de 5 650 à 5 850 MHz et, ces radars pourraient causer du brouillage et/ou
des dommages aux dispositifs de RL-EL.

28

BC

Battery Warning

1 Do not expose cells or batteries to heat or re. Avoid storage in direct sunlight.

2 Do not use any cell or battery which is not designed for use with the equipment.

3 Always purchase the battery recommended by the device manufacturer for the

equipment.

4 Secondary cells and batteries need to be charged before use. Always use the correct

charger and refer to the manufacturer’s instructions or equipment manual for proper
charging instructions.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

RF Exposure Warning

This device has been tested and meets applicable limits for Radio Frequency (RF) exposure.
Specic Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. SAR
limits are 1.6 Watts per kilogram (over a volume containing a mass of 1 gram of tissue) in
countries that follow the United States FCC limit and 2.0W/kg (averaged over 10 grams of
tissue) in countries that follow the Council of the European Union limit. Tests for SAR are
conducted using standard operating positions with the device transmitting at its highest
certied power level in all tested frequency bands.

29

CE Marking

CE marking on this product represents the product is in compliance with all directives that
are applicable to it.

RoHS/WEEE Compliance Statement

English

European Directive 2012/19/EU requires that the equipment bearing this symbol on the
product and/or its packaging must not be disposed of with unsorted municipal waste. The
symbol indicates that this product should be disposed of separately from regular household
waste streams. It is your responsibility to dispose of this and other electric and electronic
equipment via designated collection facilities appointed by the government or local
authorities. Correct disposal and recycling will help prevent potential negative consequences
to the environment and human health. For more detailed information about the disposal of
your old equipment, please contact your local authorities, waste disposal service, or the shop
where you purchased the product.

30

Deutsch

Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt
am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen
mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin,
dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in
Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über
die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten
Sammelstellen zu entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn
Sie weitere Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an
die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem
Sie das Produkt erworben haben.

Español

La Directiva 2012/19/EU exige que los equipos que lleven este símbolo en el propio aparato
y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados.
El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos
convencionales con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos de recogida
que ponen a su disposición el gobierno y las autoridades locales. Al desechar y reciclar
correctamente estos aparatos estará contribuyendo a evitar posibles consecuencias negativas
para el medio ambiente y la salud de las personas. Si desea obtener información más detallada
sobre la eliminación segura de su aparato usado, consulte a las autoridades locales, al servicio
de recogida y eliminación de residuos de su zona o pregunte en la tienda donde adquirió
el producto.

31

Français

La directive européenne 2012/19/EU exige que l’équipement sur lequel est apposé ce symbole
sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce
symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les
déchets des ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout autre
matériel électrique ou électronique par les moyens de collecte indiqués par le gouvernement
et les pouvoirs publics des collectivités territoriales. L’élimination et le recyclage en bonne et
due forme ont pour but de lutter contre l’impact néfaste potentiel de ce type de produits sur
l’environnement et la santé publique. Pour plus d’informations sur le mode d’élimination de
votre ancien équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service
de traitement des déchets, ou l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2012/19/EU richiede che le apparecchiature contrassegnate con questo
simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme ai riuti urbani non
dierenziati. Il simbolo indica che questo prodotto non deve essere smaltito insieme ai
normali riuti domestici. È responsabilità del proprietario smaltire sia questi prodotti sia le
altre apparecchiature elettriche ed elettroniche mediante le speciche strutture di raccolta
indicate dal governo o dagli enti pubblici locali. Il corretto smaltimento ed il riciclaggio
aiuteranno a prevenire conseguenze potenzialmente negative per l’ambiente e per la salute
dell’essere umano. Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il
servizio di smaltimento riuti o il negozio nel quale avete acquistato il prodotto.

32

Declaration of Conformity

български
[Bulgarian]

С настоящото UBIQUITI NETWORKS декларира, че този тип радиосъоръжение
FR е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС
декларацията за съответствие може да се намери на следния интернет
адрес:

www.ubnt.com/compliance

Hrvatski
[Croatian]

UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa FR u skladu s
Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na
sljedećoj internetskoj adresi:

www.ubnt.com/compliance

Čeština
[Czech]

Tímto UBIQUITI NETWORKS prohlašuje, že typ rádiového zařízení FR je v souladu
se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této
internetové adrese:

www.ubnt.com/compliance

Dansk
[Danish]

Hermed erklærer UBIQUITI NETWORKS, at radioudstyrstypen
FR er i overensstemmelse med direktiv 2014/53/EU.
EU-overensstemmelseserklæringens fulde tekst kan ndes på følgende
internetadresse:

www.ubnt.com/compliance

Nederlands
[Dutch]

Hierbij verklaar ik, UBIQUITI NETWORKS, dat het type radioapparatuur
FR conform is met Richtlijn 2014/53/EU. De volledige tekst van de
EU-conformiteitsverklaring kan worden geraadpleegd op het volgende
internetadres:

www.ubnt.com/compliance

English

Hereby, UBIQUITI NETWORKS declares that the radio equipment type
FR

is in compliance with Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the following internet address:

www.ubnt.com/compliance

Eesti keel
[Estonian]

Käesolevaga deklareerib UBIQUITI NETWORKS, et käesolev raadioseadme tüüp
FR vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst
on kättesaadav järgmisel internetiaadressil:

www.ubnt.com/compliance

Suomi
[Finnish]

UBIQUITI NETWORKS vakuuttaa, että radiolaitetyyppi FR on direktiivin
2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen
teksti on saatavilla seuraavassa internetosoitteessa:

www.ubnt.com/compliance

33

Français
[French]

Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique
du type FR est conforme à la directive 2014/53/UE. Le texte complet de la
déclaration UE de conformité est disponible à l’adresse internet suivante:

www.ubnt.com/compliance

Deutsch
[German]

Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp FR der Richtlinie
2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist
unter der folgenden Internetadresse verfügbar:

www.ubnt.com/compliance

Ελληνικά
[Greek]

Με την παρούσα ο/η UBIQUITI NETWORKS, δηλώνει ότι ο ραδιοεξοπλισμός
FR πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης
συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:

www.ubnt.com/compliance

Magyar
[Hungarian]

UBIQUITI NETWORKS igazolja, hogy a FR típusú rádióberendezés megfelel a
2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető
a következő internetes címen:

www.ubnt.com/compliance

Íslenska
[Icelandic]

Hér með lýsir UBIQUITI NETWORKS yr því að FR er í samræmi
við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun
2014/53/EU. Fullur texti ESB samræmisyrlýsing er að nna á eftirfarandi
netfangi:

www.ubnt.com/compliance

Italiano
[Italian]

Il fabbricante, UBIQUITI NETWORKS, dichiara che il tipo di apparecchiatura
radio FR èconforme alla direttiva 2014/53/UE. Il testo completo della
dichiarazione di conformità UE è disponibile al seguente indirizzo Internet:

www.ubnt.com/compliance

Latvių kalba
[Latvian]

Ar šo UBIQUITI NETWORKS deklarē, ka radioiekārta FR atbilst Direktīvai
2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta
vietnē:

www.ubnt.com/compliance

Lietuvių kalba
[Lithuanian]

Aš, UBIQUITI NETWORKS, patvirtinu, kad radijo įrenginių tipas FR atitinka
Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo
interneto adresu:

www.ubnt.com/compliance

Malti
[Maltese]

B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju FR huwa
konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi
kkonsultata minn www.ubnt.com/compliance

34

Norsk
[Norwegian]

UBIQUITI NETWORKS erklærer herved at utstyret FR er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Den fulle
teksten til EU-samsvarserklæringen er tilgjengelig på følgende internettadresse:

www.ubnt.com/compliance

Polski
[Polish]

UBIQUITI NETWORKS niniejszym oświadcza, że typ urządzenia
radiowego FR jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji
zgodności UE jest dostępny pod następującym adresem internetowym:

www.ubnt.com/compliance

Português
[Portuguese]

O(a) abaixo assinado(a) UBIQUITI NETWORKS declara que o presente tipo de
equipamento de rádio FR está em conformidade com a Diretiva 2014/53/UE.
O texto integral da declaração de conformidade está disponível no seguinte
endereço de Internet:

www.ubnt.com/compliance

Română
[Romanian]

Prin prezenta, UBIQUITI NETWORKS declară că tipul de echipamente
radio FR este în conformitate cu Directiva 2014/53/UE. Textul integral al
declarației UE de conformitate este disponibil la următoarea adresă internet:

www.ubnt.com/compliance

Slovenčina
[Slovak]

UBIQUITI NETWORKS

týmto vyhlasuje, že rádiové zariadenie typu FR je v súlade
so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto
internetovej adrese:

www.ubnt.com/compliance

Slovenščina
[Slovenian]

UBIQUITI NETWORKS potrjuje, da je tip radijske opreme FR skladen z Direktivo
2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem
spletnem naslovu: www.ubnt.com/compliance

Español
[Spanish]

Por la presente, UBIQUITI NETWORKS declara que el tipo de equipo radioeléctrico
FR es conforme con la Directiva 2014/53/UE. El texto completo de la declaración
UE de conformidad está disponible en la dirección Internet siguiente:

www.ubnt.com/compliance

Svenska
[Swedish]

Härmed försäkrar UBIQUITI NETWORKS att denna typ av radioutrustning
FR överensstämmer med direktiv 2014/53/EU. Den fullständiga texten
till EU-försäkran om överensstämmelse nns på följande webbadress:

www.ubnt.com/compliance

35

24/7 Live Chat Support

Live chat support is available at help.frontrow.com,
24hoursaday, 7days a week.

Online

help.frontrow.com

Email

[email protected]

Ubiquiti Networks, Inc.
685 Third Avenue, 27th Floor
New York, NY 10017
USA

©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the
Ubiquiti U logo, U Labs, the U Labs logo, and Front Row are trademarks or registered
trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the
U.S. and other countries. App Store is a service mark of Apple Inc. Google, Google
Play, the Google Play logo and other marks are trademarks of Google Inc. All other
trademarks are the property of their respectiveowners.

640-00290-03 • RRJL080817
