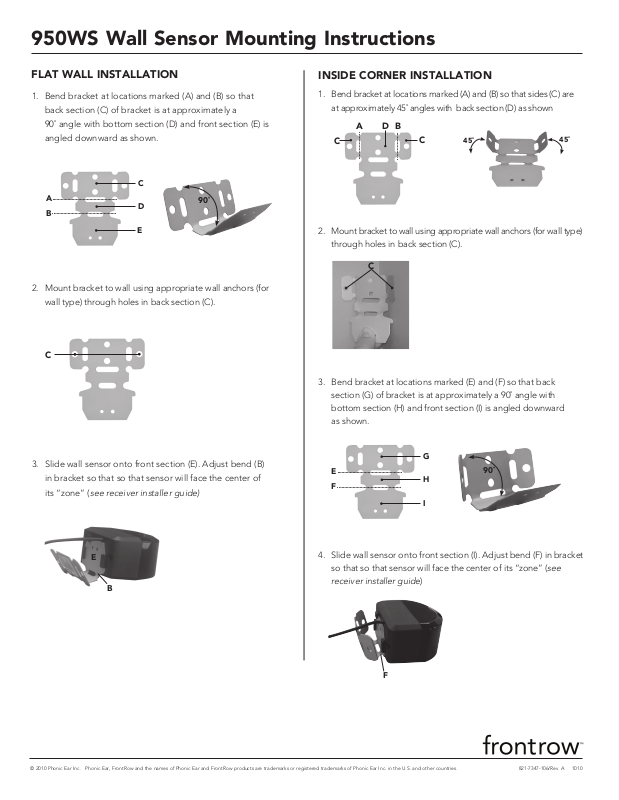

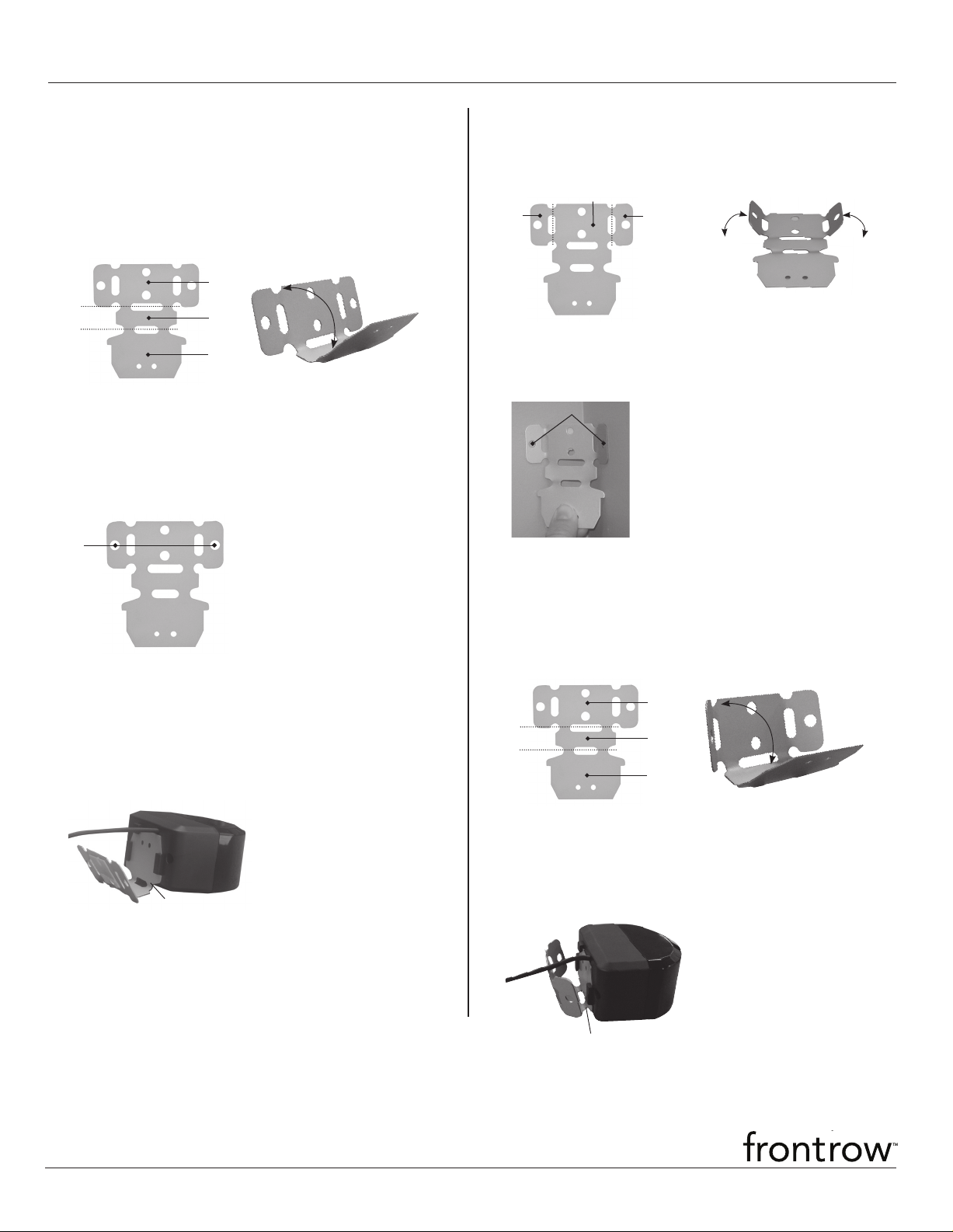

950WS Wall Sensor Mounting Instructions
FLAT WALL INSTALLATION
1. Bend bracket at locations marked (A) and (B) so that
back section (C) of bracket is at approximately a
90˚ angle with bottom section (D) and front section (E) is
angled downward as shown.
C
A
B
D
E
2. Mount bracket to wall using appropriate wall anchors (for
wall type) through holes in back section (C).
C
90˚
INSIDE CORNER INSTALLATION
1. Bend bracket at locations marked (A) and (B) so that sides (C) are
at approximately 45˚ angles with back section (D) as shown
D
A
C
2. Mount bracket to wall using appropriate wall anchors (for wall type)
through holes in back section (C).
B
C
45˚
45˚
C
3. Slide wall sensor onto front section (E). Adjust bend (B)
in bracket so that so that sensor will face the center of
its “zone” (see receiver installer guide)
E
B
3. Bend bracket at locations marked (E) and (F) so that back
section (G) of bracket is at approximately a 90˚ angle with
bottom section (H) and front section (I) is angled downward
as shown.
G
E
F
H
I
90˚
4. Slide wall sensor onto front section (I). Adjust bend (F) in bracket
so that so that sensor will face the center of its “zone” (see
receiver installer guide)
F
© 2010 Phonic Ear Inc. Phonic Ear, FrontRow and the names of Phonic Ear and FrontRow products are trademarks or registered trademarks of Phonic Ear Inc. in the U.S. and other countries. 821-7347-106/Rev. A 1010
