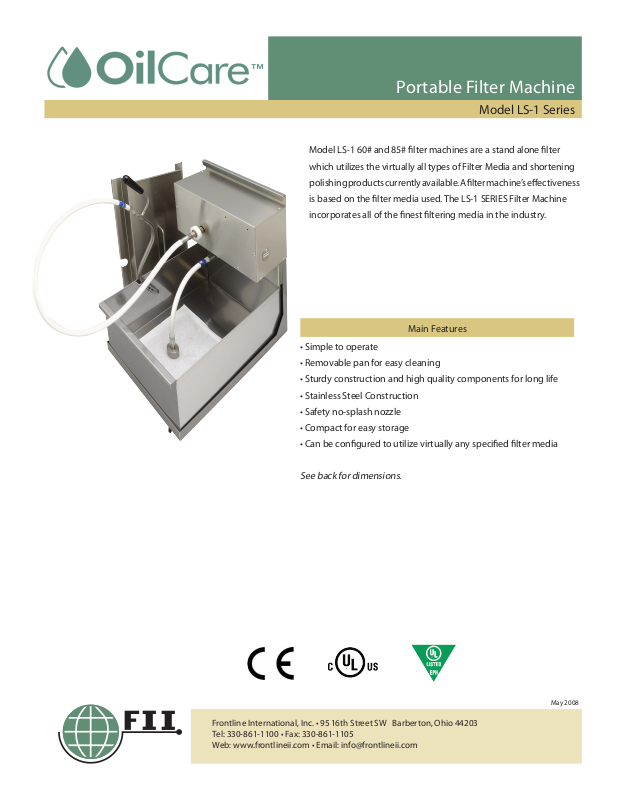

Portable Filter Machine

Model LS-1 Series

Model LS-1 60# and 85# lter machines are a stand alone lter

which utilizes the virtually all types of Filter Media and shortening

polishing products currently available. A lter machine’s eectiveness

is based on the lter media used. The LS-1 SERIES Filter Machine

incorporates all of the nest ltering media in the industry.

Main Features

• Simple to operate

• Removable pan for easy cleaning

• Sturdy construction and high quality components for long life

• Stainless Steel Construction

• Safety no-splash nozzle

• Compact for easy storage

• Can be congured to utilize virtually any specied lter media

See back for dimensions.

Frontline International, Inc. • 95 16th Street SW Barberton, Ohio 44203
Tel: [phone] • Fax: [phone]
Web: www.frontlineii.com • Email: [e-mail]

May 2008

Portable Filter Machine

Model LS-1 Series

Dimensions for LS-1-60

Weight 72 Lbs.

Overall Dimensions 6.75" w x 23.75" d x 27.25" h

Pan Height 11.75"

Total Pan Capacity 1.63 cubic feet or 12.1 gallons 60 Lbs. of

oil or 7.7 gallons

Pump/Motor Haight 5E Hot Oil Hub mount Pump

Capacity 4.6 GPM at 1750 RPM, 1/3 HP capacitor

start, Rotary Gear, positive displacement

pump, 115 volt, 6.2 amperes, 60-cycle
motor

Electrical Plug Standard 3 wire, 110 volt plug-in cord

Dimensions for LS-1-85

Weight 75 Lbs.

Overall Dimensions 16.75" w x 29.5" d x 27.25" h

Pan Height 11.75"

Total Pan Capacity 2.1 cubic feet or 16.2 gallons 85 Lbs. of oil

or 10.9 gallons

Pump/Motor Haight 5E Hot Oil Hub mount Pump

Capacity 4.6 GPM at 1750 RPM, 1/3 HP, capacitor

start, Rotary Gear, positive displacement

pump, 115 volt, 6.2 amperes, 60-cycle
motor

Electrical Plug Standard 3 wire, 110 volt plug-in cord
