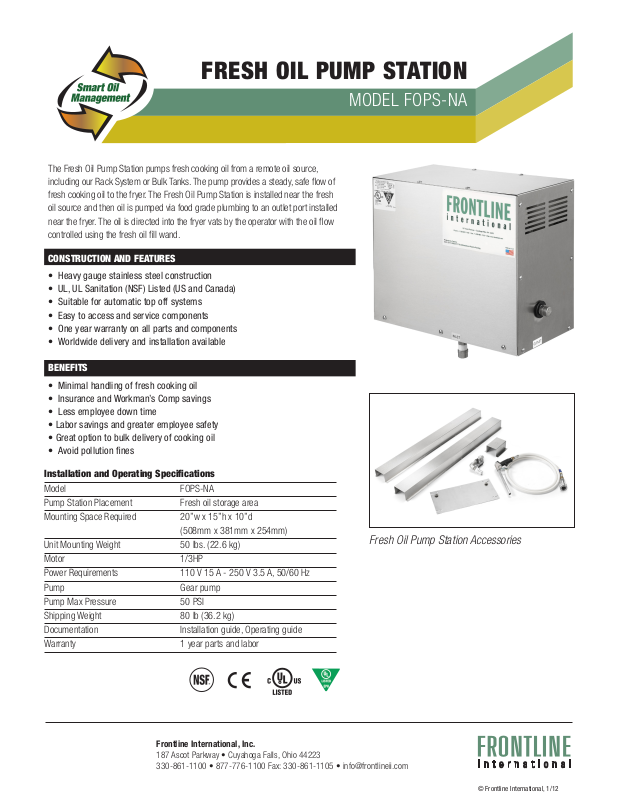

FRESH OIL PUMP STATION
The Fresh Oil Pump Station pumps fresh cooking oil from a remote oil source,
including our Rack System or Bulk Tanks. The pump provides a steady, safe ow of
fresh cooking oil to the fryer. The Fresh Oil Pump Station is installed near the fresh
oil source and then oil is pumped via food grade plumbing to an outlet port installed
near the fryer. The oil is directed into the fryer vats by the operator with the oil ow
controlled using the fresh oil ll wand.
CONSTRUCTION AND FEATURES
• Heavy gauge stainless steel construction
• UL, UL Sanitation (NSF) Listed (US and Canada)
• Suitable for automatic top off systems
• Easy to access and service components
• One year warranty on all parts and components
• Worldwide delivery and installation available
BENEFITS
MODEL FOPS-NA
• Minimal handling of fresh cooking oil
• Insurance and Workman’s Comp savings
• Less employee down time
• Labor savings and greater employee safety
• Great option to bulk delivery of cooking oil
• Avoid pollution nes
Installation and Operating Specifications
Model FOPS-NA
Pump Station Placement Fresh oil storage area
Mounting Space Required 20”w x 15”h x 10”d
(508mm x 381mm x 254mm)
Unit Mounting Weight 50 lbs. (22.6 kg)
Motor 1/3HP
Power Requirements 110 V 15 A - 250 V 3.5 A, 50/60 Hz
Pump Gear pump
Pump Max Pressure 50 PSI
Shipping Weight 80 lb (36.2 kg)
Documentation Installation guide, Operating guide
Warranty 1 year parts and labor
Fresh Oil Pump Station Accessories
Frontline International, Inc.
187 Ascot Parkway • Cuyahoga Falls, Ohio 44223
330-861-1100 • 877-776-1100 Fax: 330-861-1105 • info@frontlineii.com
© Frontline International, 1/12
