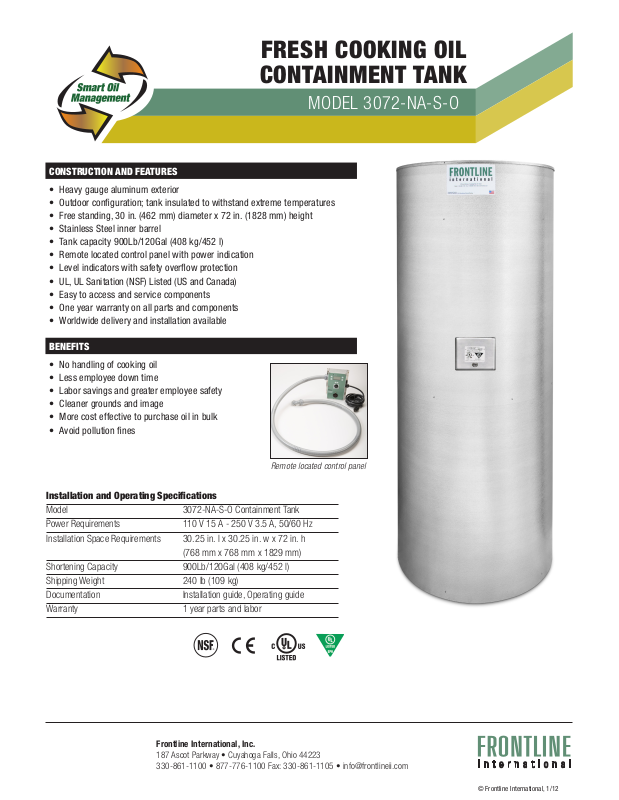

Frontline 3072-NA-S-O User Manual

FRESH COOKING OIL

CONTAINMENT TANK

MODEL 3072-NA-S-O

CONSTRUCTION AND FEATURES

• Heavy gauge aluminum exterior

• Outdoor conguration; tank insulated to withstand extreme temperatures

• Free standing, 30 in. (462 mm) diameter x 72 in. (1828 mm) height

• Stainless Steel inner barrel

• Tank capacity 900Lb/120Gal (408 kg/452 l)

• Remote located control panel with power indication

• Level indicators with safety overow protection

• UL, UL Sanitation (NSF) Listed (US and Canada)

• Easy to access and service components

• One year warranty on all parts and components

• Worldwide delivery and installation available

BENEFITS

• No handling of cooking oil

• Less employee down time

• Labor savings and greater employee safety

• Cleaner grounds and image

• More cost effective to purchase oil in bulk

• Avoid pollution nes

Remote located control panel

Installation and Operating Specifications

Model 3072-NA-S-O Containment Tank
Power Requirements 110 V 15 A - 250 V 3.5 A, 50/60 Hz
Installation Space Requirements 30.25 in. l x 30.25 in. w x 72 in. h
(768 mm x 768 mm x 1829 mm)
Shortening Capacity 900Lb/120Gal (408 kg/452 l)
Shipping Weight 240 lb (109 kg)
Documentation Installation guide, Operating guide
Warranty 1 year parts and labor

Frontline International, Inc.

187 Ascot Parkway • Cuyahoga Falls, Ohio 44223
330-861-1100 • 877-776-1100 Fax: [phone] • [e-mail]

© Frontline International, 1/12
