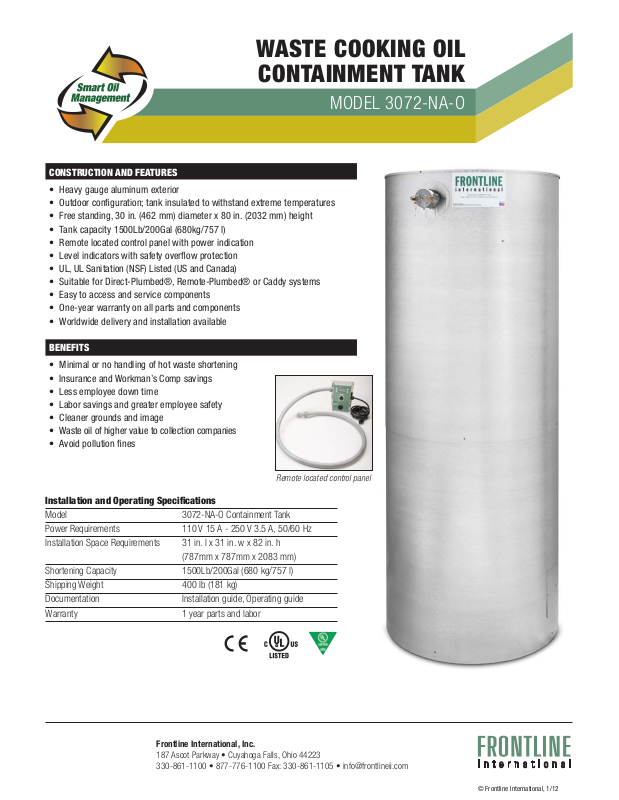

Frontline 3072-NA-O User Manual

WASTE COOKING OIL

CONTAINMENT TANK

CONSTRUCTION AND FEATURES

• Heavy gauge aluminum exterior

• Outdoor conguration; tank insulated to withstand extreme temperatures

• Free standing, 30 in. (462 mm) diameter x 80 in. (2032 mm) height

• Tank capacity 1500Lb/200Gal (680kg/757 l)

• Remote located control panel with power indication

• Level indicators with safety overow protection

• UL, UL Sanitation (NSF) Listed (US and Canada)

• Suitable for Direct-Plumbed®, Remote-Plumbed® or Caddy systems

• Easy to access and service components

• One-year warranty on all parts and components

• Worldwide delivery and installation available

MODEL 3072-NA-O

BENEFITS

• Minimal or no handling of hot waste shortening

• Insurance and Workman’s Comp savings

• Less employee down time

• Labor savings and greater employee safety

• Cleaner grounds and image

• Waste oil of higher value to collection companies

• Avoid pollution nes

Remote located control panel

Installation and Operating Specifications

Model 3072-NA-O Containment Tank
Power Requirements 110 V 15 A - 250 V 3.5 A, 50/60 Hz
Installation Space Requirements 31 in. l x 31 in. w x 82 in. h

(787mm x 787mm x 2083 mm)
Shortening Capacity 1500Lb/200Gal (680 kg/757 l)
Shipping Weight 400 lb (181 kg)
Documentation Installation guide, Operating guide
Warranty 1 year parts and labor

Frontline International, Inc.

187 Ascot Parkway • Cuyahoga Falls, Ohio 44223
330-861-1100 • 877-776-1100 Fax: [phone] • [e-mail]

© Frontline International, 1/12

WASTE OIL PUMP STATION

WASTE OIL

INTLET

ON

OFF

SYSTEM OVERVIEW

• The pump station is mounted on a wall, oor, or even in the ceiling
at or near the fryer positions. This allows the used shortening to be
suctioned from the fry vat and pumped to the containment tank, which
is located at a remote location.

• The waste shortening is sucked from the fry vat using a stainless steel
nozzle attached to the pump station with a high temperature spring
loaded suction hose.

• The pump and the plumbing are
protected from fryer debris by a permanent strainer located on the
end of the suction nozzle.

• A control panel located on (or near) the pump station
controls the pump operation, monitors the condition of
the tank, indicates the level of waste oil in the tank,
and controls the over-ow protection system.

MODEL WOPS-NA

Installation and Operating Specifications

Model WOPS-NA, WOPS-NA-R
Pump Station Placement Generally within 15' (4.6 m) of fry vat
Mounting Space Required 24"w x 12"h x 10"d

(609.5 mm x 305 mm x 254 mm)
Unit Mounting Weight 70 lbs. (31.7 kg)
Motor 3/4 HP, 115-230/60-50/1, 1725 RPM
Power Requirements 110 V 15 A - 250 V 3.5 A, 50/60 Hz

dedicated circuit
Pump 10.8 (44 l) GPM Stainless Steel Helical Gear
Pump Max Pressure 100 PSI (6.7 bar)
Pump Temperature Range +40° - +400°F (+4.4º - +204.4º C)
Shipping Weight 100 lbs. (45.3 kg)

Frontline International, Inc.

187 Ascot Parkway • Cuyahoga Falls, Ohio 44223
330-861-1100 • 877-776-1100 Fax: [phone] • [e-mail]

© Frontline International, 1/12
