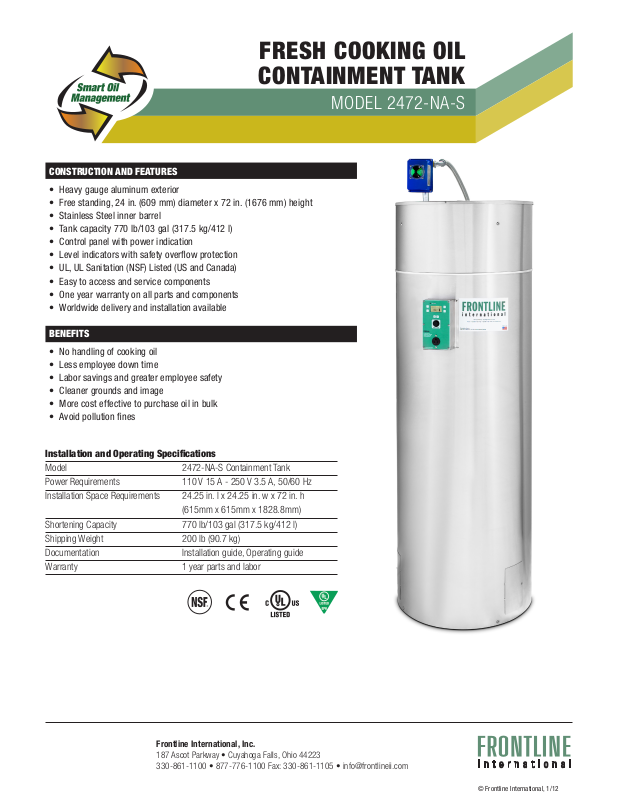

Frontline 2472-NA-S User Manual

FRESH COOKING OIL

CONTAINMENT TANK

CONSTRUCTION AND FEATURES

• Heavy gauge aluminum exterior

• Free standing, 24 in. (609 mm) diameter x 72 in. (1676 mm) height

• Stainless Steel inner barrel

• Tank capacity 770 lb/103 gal (317.5 kg/412 l)

• Control panel with power indication

• Level indicators with safety overow protection

• UL, UL Sanitation (NSF) Listed (US and Canada)

• Easy to access and service components

• One year warranty on all parts and components

• Worldwide delivery and installation available

BENEFITS

MODEL 2472-NA-S

• No handling of cooking oil

• Less employee down time

• Labor savings and greater employee safety

• Cleaner grounds and image

• More cost effective to purchase oil in bulk

• Avoid pollution nes

Installation and Operating Specifications

Model 2472-NA-S Containment Tank
Power Requirements 110 V 15 A - 250 V 3.5 A, 50/60 Hz
Installation Space Requirements 24.25 in. l x 24.25 in. w x 72 in. h
(615mm x 615mm x 1828.8mm)
Shortening Capacity 770 lb/103 gal (317.5 kg/412 l)
Shipping Weight 200 lb (90.7 kg)
Documentation Installation guide, Operating guide
Warranty 1 year parts and labor

Frontline International, Inc.

187 Ascot Parkway • Cuyahoga Falls, Ohio 44223
330-861-1100 • 877-776-1100 Fax: [phone] • [e-mail]

© Frontline International, 1/12
