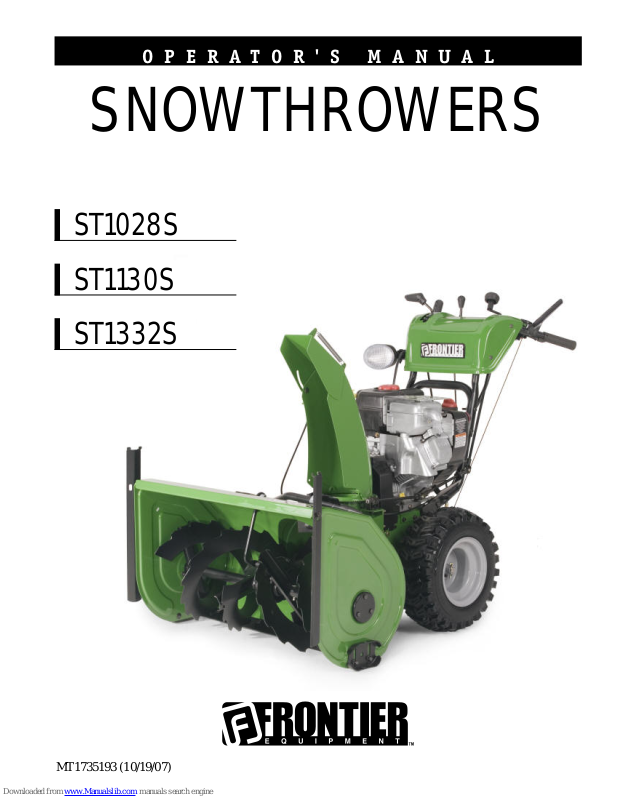

OPERATOR'S MANUAL
SNOWTHROWERS
ST1028S
ST1130S
ST1332S
MT1735193 (10/19/07)
Table Of Content
s
PRODUCT COMPONENTS PAGES
Handles and Controls Group ...............................................................................................................................
Engine and Frame Group - Steerable .................................................................................................................
Auger Drive Group - 26", 28", 30" & 32" ..............................................................................................................
Auger Housing and Chute Group - 28", 30" & 32" ...............................................................................................
Traction Drive Group - Steerable .........................................................................................................................
Wheels and Tires Group ......................................................................................................................................
Decal Group .........................................................................................................................................................
10
12
14
18
20
Torque Specification Chart ..................................................................... Inside Back Cover
4
8
Handles and Controls Group
Frontier Model ST1028S, ST1130S & ST1332S
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987752
The above parts group applies to the following Mfg. Nos.:
1695321 - ST1028S
1695322 - ST1130S
1695323 - ST1332S
© Copyright by Briggs and Stratton Corporation
2007
4
TP 400-4677-02-LW-T
Handles and Controls Group
PART NO. DESCRIPTIONREF NO
Frontier Model ST1028S, ST1130S & ST1332S
CAPSCREW, Hex Head 3/8-16 x 2 G5 1 MT1923701SM
ROD, Remote Chute 3 MT1732427SM
WASHER, 3/8 4 MT1924356SM
SPRING, Compression .509 DIA x 3/4 5 MT50786MA
WASHER, 3/8 6 MT1918266SM
NUT, Hex Loc k ESNA Light 3/8-16 NC3B 7 MT1919439SM
HANDLE, Clutch L.H. 8 MT1722667SM
ROD & PLATE ASSEMBLY, Speed Control 10 MT1733205SM
CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5 11 MT1923282SM
CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5 12 MT1921962SM
BRACKET, Speed & Deflector Control 12GA 13 MT1733045ASM
ROD, Link Speed Control 14 MT1734354SM
NUT, Hex Flange 5/16-18, Whiz Lock Small 15 MT1931277SM
CABLE, Deflector Control 16 MT1732971SM
NUT, Hex 5/16-24 17 MT2820263SM
BALLJOINT, Steel 19 MT50782MA
LOCKWASHER, Spring 5/16 20 MT1917356SM
NUT, Push Pal 5/16 Diameter Stud Capped 21 MT1960093SM
KNOB, Spinner 22 MT1714084SM
ROD, Chute Control 23 MT1715658SM
HARNESS, Wiring Handwarmers (Used on ST1130S & ST1332S) 24 MT1732738SM
SWITCH, Rocker Hand Warmer (Used on ST1130S & ST1332S) 25 MT1732563SM
BUSHING 26 MT1667588SM
CARRIAGE BOLT, 1/4-20 x 3/4 G5 (Used on ST1130S & ST1332S) 27 MT1931317SM
RESISTOR BLOCK, Hand Warmers (Used on ST1130S & ST1332S) 28 MT1724037SM
NUT, Hex KEPS 1/4-20 Conical Washer (Used on ST1130S & ST1332S) 29 MT1960685SM
NUT, Hex Lock E S NA Li gh t 1/4-20 30 MT1920397SM
SCREW, Hex Washer Head Taptite 1/4-20 x 5/8 31 MT1927429SM
KNOB, Interior Thread 3/8-16 32 MT1732470SM
COVER, Panel 16GA 33 MT1733778FSM
SCREW, Truss Head Torx Drive 1/4-20 x 3/4 34 MT1960715SM
PLUG, Dash Hole (Used on ST8526 & ST1028S) 35 MT1709188SM
CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5 36 MT1922837SM
CARRIAGE BOLT, 5/16-18 x 3/4 G5 37 MT1931333SM
SUPPORT, Dash Panel Cover 39 MT1732064ASM
CABLE & SPRING ASSEMBLY, Auger Drive R.H. 40 MT1732471SM
HANDLE, Clutch R.H. 41 MT1722638SM
NUT, Hex Centerlock 1/4-20 42 MT1923358SM
GRIP, Black Soft 1" Diameter (Used on ST8526 & ST1028S) 43 MT1726317SM
HAND GRIP, Heated 1" Diameter (Used on ST1130S & ST1332S) 43 MT1723965SM
SPACER, Handle 44 MT1715655SM
SPACER 45 MT1678392SM
HANDLE, Upper R.H. Tubular 47 MT1734587ASM
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695321 - ST1028S
1695322 - ST1130S
1695323 - ST1332S
© Copyright by Briggs and Stratton Corporation
2007
5
TP 400-4677-02-LW-T
Handles and Controls Group
Frontier Model ST1028S, ST1130S & ST1332S
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987752
The above parts group applies to the following Mfg. Nos.:
1695321 - ST1028S
1695322 - ST1130S
1695323 - ST1332S
© Copyright by Briggs and Stratton Corporation
2007
6
TP 400-4677-02-LW-T
Handles and Controls Group
PART NO. DESCRIPTIONREF NO
Frontier Model ST1028S, ST1130S & ST1332S
HANDLE, Upper L.H. Tubular 48 MT1734586ASM
CARRIAGE BOLT, 5/16-18 x 2-1/4 G5 49 MT1960723SM
HANDLE, Lower Tubular 50 MT1732781ASM
NUT, Hex Flange 5/16-18 ESNA 51 MT1960686SM
SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 53 MT1664847SM
BRACKET, Cable Adjusting 13GA 54 MT313441MA
BOOT, Spring End Cover 55 MT308146MA
CABLE, Drive 56 MT1502113MA
SHIM, Spacer 18GA (Used on ST8526 & ST1028S) 57 MT1733730SM
SPACER 58 MT1679166SM
BRACKET, Free Hand Control 59 MT1733505ASM
SPACER, Powdered Metal 60 MT1733095SM
ROD & SPRING ASSEMBLY, w/Pin 61 MT1733509SM
WASHER, 1/2 62 MT1960027SM
SPRING, Compression 63 MT2108360SM
WASHER, 1/4 64 MT1960353SM
ROD, Hold Down 65 MT1722630SM
HEADLIGHT ASSEMBLY, Oval Clear (Used on ST1028S ST1130S & ST1332S) 66 MT1732322SM
TIE, Self Locking (Used on ST1130S & ST1332S) 67 MT1701011SM
KNOB, Slot Speed 68 MT1733192SM
SPOOL CABLE, Auger Control 69 MT579860MA
ROD & YOKE ASSEMBLY, Chute 70 MT1732761SM
PIN, Spring 71 MT2816168SM
SUPPORT, Worm 10GA 72 MT1611911SM
WORM, Chute L.H. 73 MT1668186SM
SCREW, Round Head Phillips #10-24 x 3/4 75 MT1960589SM
NUT, Hex Lock 10-24 W/Nylon Insert 76 MT1933896SM
PIN, Universal Joint 80 MT578060MA
BLOCK, Universal Pivot 81 MT578063MA
PIN, Cotter 82 MT579493MA
SUPPORT, Chute Rod 83 MT1733737ASM
YOKE & TUBE ASSEMBLY, Chute 84 MT1733611SM
PIN, Hair Chute Gear 85 MT1501293MA
PIN, Clevis 86 MT578309MA
ROD & YOKE ASSEMBLY, Chute 87 MT1733182SM
SCREW, Hex Washer Head Taptite 5/16-18 x 1 88 MT1960373SM
SPACER, Block 89 MT1733379ASM
NUT, Hex Flange 5/16-18 Two-Way Lock 90 MT1935048SM
CAPSCREW, Hex Head 5/16-18 x 1 G5 91 MT1921333SM
CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5 92 MT1921977SM
NUT, Hex KEPS 5/16-18 Conical Washer 93 MT1960684SM
Footnotes
The above parts group applies to the following Mfg. Nos.:
1695321 - ST1028S
1695322 - ST1130S
1695323 - ST1332S
© Copyright by Briggs and Stratton Corporation
2007
7
TP 400-4677-02-LW-T
Engine and Frame Group - Steerable
Frontier Model ST1028S, ST1130S & ST1332S
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
2987788
The above parts group applies to the following Mfg. Nos.:
1695321 - ST1028S
1695322 - ST1130S
1695323 - ST1332S
© Copyright by Briggs and Stratton Corporation
2007
8
TP 400-4677-02-LW-T
