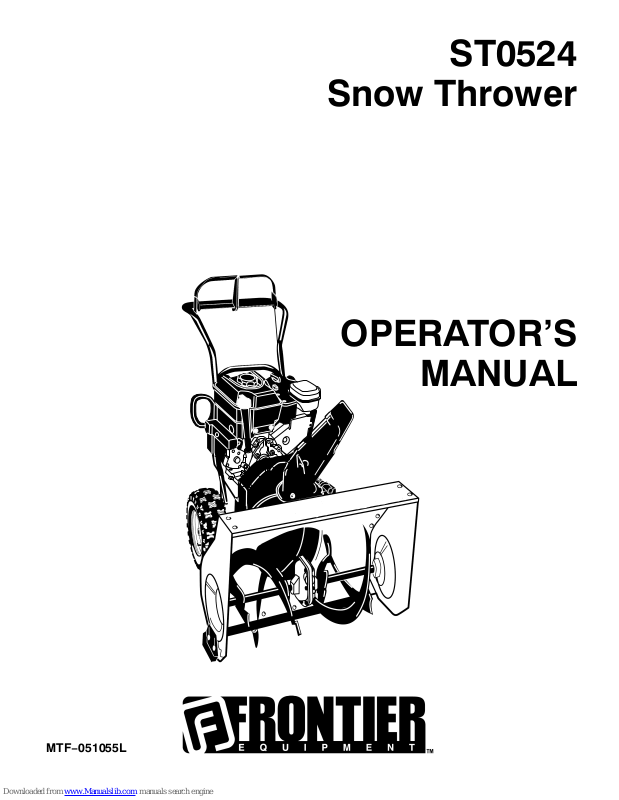

ST0524

Snow Thrower

OPERATOR’S

MANUAL

MTF−051055L

INTRODUCTION

MTF−051055L

Congratulations on your purchase of a Frontier Snowthrower. It has been designed, engineered and manufactured to give you the best possible dependability and performance. However, like all mechanical products, your machine will occasionally require adjustment and maintenance. This handbook should be read before operating or performing and adjustments on your machine.

The instructions in this Owner’s Manual are written for a person with some mechanical ability. Like most service books, not all the steps are described. Steps on how to loosen or tighten fasteners are steps anyone can follow with some mechanical ability. Read and follow these instructions before you use the unit.

Know your product:: If you understand the unit and how the unit operates, you will get the best performance. As you read this manual, compare the illustrations to the unit. Learn the location and the function of the controls. To help prevent an accident, follow the operating instructions and the safety rules. Keep this manual for future reference.

IMPORTANT: Many units are not assembled and are sold in cartons. It is the responsibility of the owner to make sure the as- sembly instructions in this manual are exactly followed. Other units are purchased in an assembled condition. On assembled units, it is the responsibility of the owner to make sure the unit is correctly assembled. The owner must carefully check the unit according to the instructions in this manual before it is first used.

The warranty, found in this manual, details the coverage and limitations of this product. Registration of the warranty is necessary and must be preformed by the dealer within sixty (60) days from the date of retail sale or delivery. The Warranty Registration Form is located on the Frontier website.

RESPONSIBILITY OF THE OWNER

The responsibility of the owners to follow the instructions below.

1. Carefully read and follow the rules for safe operation.

2. Follow all the assembly instructions.

3. Inspect the unit.

4. Make sure that the operator of the unit knows how to correctly use all standard and accessory equipment.

5. Operate the unit only with guards, shields, and other safety items in place and working correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or approved replacement parts.

8. Complete all maintenance on the unit.

Read And Keep This Book For

Future Reference. This Book Contains Important Information On:

SAFETY, ASSEMBLY, OPERATION AND MAINTENANCE.

PRODUCT INFORMATION

The owner must be certain that all the product information is included with this unit.

This information includes the INSTRUCTION BOOKS, the REPLACEMENT PARTS

and the WARRANTIES. This information must be included to make

sure state laws and other laws are followed.

RULES FOR SAFE OPERATION

MTF−051055L

This manual contains safety information to make you

aware of the hazards and risks associated with snow throwers, and how to avoid them. The snow thrower is designed and intended for removal of snow, and should not be used for any other purpose. It is important that you read and understand these instructions, and anyone operating the equipment read and understand these instructions.

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

WARNING

A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in minor or moderate injury.

CAUTION, when used without the alert symbol, indicates a situation that could result in damage to the equipment.

Hazard Symbols and the meanings

These symbols are used on your equipment and defined in your operating manual. Review and understand the meanings. The use of one of these symbols combined with a signal word will alert you to potential hazards and how to avoid them.

Explosion

Toxic fumes

Shock

Hot Surface

Fire

Operator’s Manual − Read and understand before performing any activity or running equipment.

Safety Alert − Identifies safety information about hazards that can result in personal injury.

Rotating auger

Rotating impeller

Rotating gears

Thrown objects

Keep a safe distance from the equipment.

Operating Symbols and their meanings

These symbols are used on your equipment and defined in your operating manual. It is important that you review and understand the meanings. Failure to understand the symbols might result in harm to you.

Stop

Fuel

Choke off

Oil

Choke on

Slow

Fast

On Off

Ignition Key

Ignition Off

Ignition On

Primer bulb

Throttle

Drive Clutch

Auger Clutch

Engage

RIGHT

Auger Collector

Traction

Discharge Chute

LEFT UP

DOWN

Foward

Neutral

Reverse

Push to engage electric start

Electric Start

Engine Start

Engine Run

Engine Off

Chute Deflector

Engage

Disengage

RULES FOR SAFE OPERATION

MTF−051055L

Avoid death or serious injury from rotating auger. Keep hands, feet and clothing away. Unclogging discharge chute is a hazardous activity.

• Never attempt to clear auger of debris or clogged snow while equipment is

engaged or engine is running. Clogged or blocked augers store energy and can rotate unexpectedly, EVEN WITH ENGINE OFF.

• Stop engine and disconnect spark plug wire when performing maintenance

on equipment.

• Never leave the equipment unattended while engine is running. Always

disengage the auger and traction controls, stop engine, and remove keys.

• Keep children, pets, and others out of the area during operation. Children

are often attracted to the equipment. Be mindful of all persons present.

• Keep all loose clothing far away from front of snow thrower and auger.

Scarfs, mittens, dangling drawstrings, loose clothes and pants can quickly become caught in the rotating device and dismemberment will occur. Tie up long hair and remove jewerly.

• The snow thrower is intended to remove snow only. Do not use for other

purposes other than what is intended.

• Do not clear snow across the face of slopes. Exercise extreme caution when

changing direction on slopes. Do not attempt to clear steep slopes.

• Do not use the snow thrower on surfaces above ground level such as roofs

of residences, garages, porches or other such structures or buildings.

DANGER

Discharge chute contains rotating impeller to throw snow. Never clear or unclog discharge chute with your hands, or while engine is running.

Fingers can quickly become caught and traumatic amputation or severe laceration can result.

• Unclogging the discharge chute is a hazardous activity. Clogged or

blocked augers store energy and can rotate unexpectedly.

• Never place hands in or near discharge chute.

• With engine OFF, wait for all moving parts to cease movement, then with a

stick, clear the chute. Even with engine off, parts may rotate and dismemberment can occur.

• Clogged snow can hide other obstructions in the chute and cause damage

to the equipment, impeller or auger. Take precautions when restating the equipment after snow removal.

DANGER

Objects can be picked up by auger and thrown from chute. Never throw snow toward people or cars, and never allow

anyone in front of the snow thrower.

• Be aware of your enviroment while operating equipment. Running over

items such as, gravel, doormats, newspapers, toys, and rocks hidden under snow, can all be thrown from chute or jam in the auger.

• Always be aware of the direction the snow is being thrown. Nearby

pedestrians, pets or property may be harmed by objects being thrown.

• Familiarize yourself with the area you plan to work. Mark off boundarties of

walkways and driveways to prevent property damage, or throwing objects.

• Take caution when snow throwing in unfamiliar areas. Stay alert for hidden

hazards and traffic.

• After striking a foreign object, turn engine OFF, wait for moving parts to

cease movement, and check immediately for damage. If damaged, repair before starting and operating snow thrower.

• With engine OFF, wait for moving parts to stop and always use a stick to

clear discharge chute.

• If unit vibrates abnormally, turn engine OFF. Vibration is generally a

warning of trouble. See an authorized dealer if necessary for repairs.

DANGER

Rotating gears can contact or entangle hands, feet, hair, clothing, or accessories.

Traumatic amputation or severe laceration can result.

• Always operate equipment with all guards in place.

• Keep hands and feet away from rotating gears.

• Tie up long hair and remove jewelry.

• Do not wear loose-fitting clothing, dangling drawstrings or items that could

become caught.

WARNING

Engines give off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting or death.

• Start and run engine outdoors.

• Do not start or run engine in enclosed area, even if doors or

windows are open.

WARNING

RULES FOR SAFE OPERATION

MTF−051055L

Gasoline and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

WHEN ADDING FUEL

• Turn engine OFF and let engine cool at least 2 minutes before removing

gas cap.

• Fill fuel tank outdoors or in well-ventilated area.

• Do not overfill fuel tank.

• Keep gasoline away from sparks, open flames, pilot lights, heat, and other

ignition sources.

• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks.

Replace if necessary.

WHEN STARTING ENGINE

• Make sure spark plug, muffler, fuel cap and air cleaner are in place.

• Do not crank engine with spark plug removed.

• If fuel spills, wait until it evaporates before starting engine.

• If engine floods, set choke to OPEN/RUN position, place throttle in FAST

and crank until engine starts.

WHEN OPERATING EQUIPMENT

• Do not choke carburetor to stop engine.

WHEN TRANSPORTING EQUIPMENT

• Transport with fuel tank EMPTY.

WHEN STORING GASOLINE OR EQUIPMENT WITH FUEL IN TANK

• Store away from furnaces, stoves, water heaters or other appliances that

have pilot light or other ignition source because they can ignite gasoline vapors.

WARNING

Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion and fire could result.

• If there is natural or LP gas leakage in area, do not start engine.

• Do not use pressurized starting fluids because vapors are flammable.

WARNING

• Allow muffler, engine cylinder and fins to cool before touching.

• Remove accumulated combustibles from muffler area and cylinder

area.

• Install and maintain in working order a spark arrester before using

equipment on forest-covered, grass-covered, brush-covered unimproved land. The state of California requires this (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal land.

WARNING

Running engines produce heat. Engine parts, especially muffler, become extremely hot.

Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch

fire.

Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic

amputation, or laceration.

BEFORE PERFORMING ADJUSTMENTS OR REPAIRS

• Disconnect spark plug wire and keep it away from spark plug.

WHEN TESTING FOR SPARK

• Use approved spark plug tester.

• Do not check for spark with spark plug removed.

WARNING

TABLE OF CONTENTS

MTF−051055L

HAZARD SYMBOLS AND THE MEANINGS 3. . . . . . . . . . . . . . . . . . . . . . .

OPERATING SYMBOLS AND THEIR MEANINGS 3. . . . . . . . . . . . . . . . . .

SAFETY DECALS 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARRANTY 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OWNER’S INFORMATION 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ASSEMBLY 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOOLS REQUIRED FOR ASSEMBLY 9. . . . . . . . . . . . . . . . . . . . . . . . . . .

CONTENTS OF SHIPPING CARTON 9. . . . . . . . . . . . . . . . . . . . . . . . . . .

PARTS BAGS CONTENTS 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UNPACKING 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UPPER HANDLE AND CRANK ASSEMBLY 11. . . . . . . . . . . . . . . . . . . . . .

CHECK THE CABLES 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO SET THE LENGTH OF THE CABLES 11. . . . . . . . . . . . . . . . . . .

OPERATION 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE AND SNOWTHROWER CONTROLS 13. . . . . . . . . . . . . . . . . . . .

SNOWTHROWER OPERATION 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WHEEL LOCK OUT PIN 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO SET THE DRIFT CUTTERS 16. . . . . . . . . . . . . . . . . . . . . . . . . . .

BEFORE STARTING ENGINE 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHECK THE OIL 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FILL GAS 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BEFORE STOPPING THE ENGINE 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TO STOP ENGINE 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TO START ENGINE 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FROZEN STARTER 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO CLEAR A CLOGGED DISCHARGE CHUTE 20. . . . . . . . . . . . .

HOW TO USE THE CLEAN-OUT TOOL 20. . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING TIPS 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SERVICE RECOMMENDATIONS 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SNOW BLOWER 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AS REQUIRED 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LUBRICATION AT STORAGE 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LUBRICATION − EVERY 25 HOURS 24. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REMOVE THE SNOW HOOD 26. . . . . . . . . . . . . . . . . . . . . . . . .

AUGER HOUSING HEIGHT ADJUSTMENT 27. . . . . . . . . . . . . . . . . . . . . .

BELT ADJUSTMENT 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REPLACE THE BELTS 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BELT GUIDE ADJUSTMENT 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TRACTION DRIVE CABLE ADJUSTMENT 33. . . . . . . . . . . . . . . . . . . . . . .

HOW TO ADJUST OR REPLACE THE FRICTION WHEEL 34. . . . . . . . .

AUGER SHEAR BOLT REPLACEMENT 37. . . . . . . . . . . . . . . . . . . . . . . . .

TO ADJUST OR REPLACE THE SPARK PLUG 37. . . . . . . . . . . . . . . . . . .

STORAGE 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLE SHOOTING CHART 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

REPLACEMENT PARTS 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PARTS SCHEMATICS 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIFICATIONS 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SAFETY DECALS

MTF−051055L

WARNING: If safety decals are damaged or missing, replace immediately.

Look for this symbol to indicate important safety precautions. This symbol indicates: “Attention! Become Alert! Your Safety Is At Risk.”

Before operation of your snowthrower, read the safety decals as shown on your snowthrower. The cautions and warnings are for your safety. To avoid a personal injury or damage to your snowthrower, understand and follow all safety decals. If you have any questions regarding the meaning or how to comply with the instructions, do not operate until you understand the purpose for the warning or danger given in the safety decal. If you do not understand

the meaning, then thoroughly read all safety and operation instructions in this Owner’s Manual or contact your local dealer.

If any safety decals become worn or damaged and cannot be read, order replacement decals from your local dealer.

Identifying Your Snowthrower

The snowthrower has two (2) identifying numbers: (1) unit model number: (2) unit serial number. The two preceding numbers are required to insure that the proper replacement parts are obtained when required. If you have any questions concerning parts, service, or technical data, contact the dealer where the unit was purchased. For complete warranty information refer to the warranty in the Owner’s Information section of this manual.

Figure 1

OWNER’S INFORMATION

MTF−051055L

THREE YEAR LIMITED WARRANTY

Murray warrants to the original purchaser of this Frontier Branded Snowthrower that this unit shall be free from defects in material and workmanship under normal use and service for a period of Three (3) Year from the date of purchase; however, this warranty does not cover accessories (such as electric starters) and Normal Wear Parts (except as noted below) as the companies that manufacture these items furnish their own warranties and provide service through their authorized field service facilities. For additional information, see the warranties covering these particular parts. If you are uncertain whether your unit contains or is equipped with one or more of these parts, consult your dealer prior to purchase. Subject to the terms and conditions noted in this Limited Warranty, we shall, at our option, repair or replace at no cost to the original purchaser any part covered by this Limited Warranty during the applicable warranty period.

Normal Wear Parts are defined as drive belts, augers, shear pins, tires and headlights. These parts are warranted to be free from defects in material and workmanship as delivered with the product. Any claim for repair or replacement of Normal Wear Parts must be made within thirty (30) days of the date of purchase. No claims involving damage caused from material use, abuse or misuse will be honored.

This Murray Three (3) Year Limited Warranty for your Frontier Branded Snowthrower is your exclusive remedy; however, this warranty is void or does not apply to any unit that has been tampered with, altered, misused, abused. If used for commercial and/or professional (non−homeowner) uses, the duration of this warranty is ninety (90) days after the date of purchase. Your warranty does not cover minor mechanical adjustments which are not due to any defect in material or workmanship. For assistance in making such adjustments, consult your Operator’s Manual.

The engine on this Frontier Branded Snowthrower is warranted to the original purchaser for a Three (3) Year Limited Warranty by the equipment manufacturer. See your engine manual for information regarding the warranty policy and items covered under warranty. See your authorized John Deere/Frontier Dealer for service or replacement parts.

To make a claim under this Murray Three (3) Year Limited Warranty for your Frontier Branded Snowthrower, return the unit (or if authorized in advance, the defective part) along with your proof of purchase to an Authorized John Deere/Frontier Dealer near you. To locate the nearest Authorized John Deere/Frontier Dealer, check the Yellow Page listings in your local telephone directory. If you return the entire unit, John Deere/Frontier will repair all warranty items. If authorize to return the defective part only, John Deere/Frontier will either replace or repair the part. This Murray Three (3) Year Limited Warranty for your Frontier Branded Snowthrower gives you specific legal rights, and you may also have other rights which vary from state to

state.

This Limited Warranty is given in lieu of all other expressed and implied warranties including the implied

warranty of merchantability and warranty of fitness for a particular purpose. If you need additional information on this written warranty or assistance in obtaining service, contact you local John Deere/Frontier Dealer.

DATE PURCHASED:

MODEL NO:

SERIAL NO:

STORE WHERE PURCHASED:

ADDRESS:

CITY: STATE:

TELEPHONE :

Record this information about your unit so that you will be able to provide it in case of loss or theft.

FOR YOUR RECORDS

ASSEMBLY

MTF−051055L

TOOLS REQUIRED FOR ASSEMBLY

1 − Knife 2 − 1/2” wrenches (or adjustable wrenches) 2 − 9/16” wrenches (or adjustable wrenches) 2 − 3/4” wrenches (or adjustable wrenches) 1 − 3/8” wrenches (or adjustable wrenches) 1 − Pair pliers or screw driver (to spread cotter pin)

HOW TO MEASURE SCREW SIZE

LENGTH

DIAMETER

CONTENTS OF SHIPPING CARTON

1− Snowthrower

1− Container of Fuel Stabilizer (Located in Parts Bag)

1− Crank Assembly

1− Parts Bag

WARNING: Always wear safety glasses or eye shields while assembling snowthrower.

PARTS BAGS CONTENTS:

*2− Shear Bolt

*2− Nut

* 2−Spacer

* Non Assembly parts are found in toolbox located on top of belt cover.

ASSEMBLY

MTF−051055L

Figure 2 shows the snowthrower in the shipping position.

Figure 3 shows the snowthrower completely assembled.

Reference to right and left hand side of the snowthrower is from the operator’s position at the handle.

UNPACKING

1. Locate the two tear tabs at the bottom of the carton.

2. Pull the tear tape no more than twelve inches (30.48cm.) at a time. Re−grasp tape next to the carton and pull again. Repeat until all the tape is torn off.

3. After the tape has been completely removed from the carton, remove the carton from the base. Cut all four corners and fold the sides toward the center for easy disposal.

4. Remove the plastic bag that covers the unit.

5. Locate and remove the parts bag.

NOTE: Set the fuel stabilizer aside until adding gasoline to the fuel tank. We recommend that fuel stabilizer is added to the fuel each time that gasoline is added to the fuel tank.

6. For shipping purposes, the height adjust skids are at-

tached to the pallet. Remove the screw that secures each height adjust skid to the pallet. (See Figure 2).

7. Roll the snowthrower off the carton by pulling on the lower handle.

CAUTION: DO NOT back over cables.

8. Remove the packing material from the handle assembly.

9. Cut ties securing the clutch control cables to the lower handle.

NOTE: If the cables have become disconnected from the clutch levers, reinstall the cables as shown in Figure 4.

Figure 2

Figure 3

Auger Drive Lever

Traction Drive Lever

Snow Chute Deflector

Height Adjust

Skid

Auger Housing

Screw

Figure 4

”Z” Fitting

Auger Drive Lever

Cable

Traction Drive Lever

”Z” Fitting

ASSEMBLY

MTF−051055L

UPPER HANDLE AND CRANK ASSEMBLY

1. Loosen, but do not remove the screws, flatwashers, lockwashers and hex nuts in the upper holes of the lower handle.

2. Remove the fasteners and the crank assembly eyebolt from the lower holes of the lower handle.

3. Raise upper handle into operating position. Upper handle should be to the outside of the lower handle.

NOTE: Make sure the cables are not caught between the upper and lower handle.

4. Install the fasteners and the crank assembly eyebolt that were removed in step 2. DO NOT tighten until all fasteners are in place.

5. Attach the crank rod to the universal joint assembly with the hair pin (see Figure 6).

6. Tighten nut on eye bolt. Make sure eye bolt is properly aligned and the crank can freely rotate.

7. Tighten all handle bolts.

NOTE: Make sure crank does not touch carburetor cover.

Figure 5

Crank

Eye Bolt

5/16−18” Nut

11/32 “Flatwasher

5/16−18x2”

Bolt 5/16−18” Lockwasher

Flatwasher

3/8” Nylon Locknut

Figure 6

Crank Rod Assembly

Universal Joint

Hair Pin

CHECK THE CABLES

1. If control cables have become unattached from motor mount frame, reconnect cables as shown in Figure 7.

2. For cable adjustments, see “How To Check And Adjust The Cables” in the MAINTENANCE section.

HOW TO SET THE LENGTH OF THE CABLES

The cables were adjusted at the factory and no adjustments should be necessary. However, after the handles are put in the operating position, the cables can be too tight or too loose. If an adjustment is necessary, see “How To Check And Adjust The Cables” in the MAINTENANCE section.

Figure 7

Traction Drive Cable

Auger Drive Cable

ASSEMBLY

MTF−051055L

CHECK THE TIRES

The tires were over inflated for shipment. Check the tire pressure in the tires. See the sidewall of the tire for the proper inflation.

IMPORTANT! BEFORE YOU START OPERATING

r Check the fasteners. Make sure all fasteners are

tight.

r On electric start models, the unit was shipped with

the starter cord plugged into the engine. Before operating, unplug the starter cord from the engine.

NOTE: This snowthrower was shipped WITH OIL in the engine. See “Before Starting Engine” instructions in the Operation section of this manual before starting engine.

OPERATION

MTF−051055L

READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOWTHROWER. Compare the illustrations with your SNOWTHROWER to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

Safety Key

Primer Button

Recoil Starter Handle

Choke Control

Gas Tank

Gas Cap

Figure 8

Auger Drive Clutch Lever

Traction Drive Clutch Lever

Snow Chute

Deflector

Auger Housing

Height

Adjust Skid

Toolbox

Crank

Clean-out Tool

ENGINE AND SNOWTHROWER CONTROLS

ENGINE CONTROLS Choke Control− Use to start a cold engine. Electric Start Button − Used to start the engine using the

120 volt electric starter. Prime Button − Used to inject fuel directly into carburetor

manifold to insure fast starts in cool weather. Safety Key − Must be inserted to start engine. Pull out to

stop. Do not turn safety key.

Starter Handle − Starts the engine manually.

SNOWTHROWER CONTROLS Speed Select Lever − Allows the operator to use one of six

(6) forward and two (2) reverse speeds. To shift, move speed select lever to desired position.

NOTE: Do not move speed select lever while Traction Drive Clutch is engaged. This may result in severe damage to drive system.

Auger Drive Clutch Lever − Used to engage and disengage

the auger and impeller. To engage push down, to disengage release.

Traction Drive Clutch Lever − Used to propel snowthrower forward or reverse. Push down to engage, release to disengage.

Snow Chute Deflector − Changes the direction the snow is blown.

Crank − Used to change direction of the snow discharge. Turn handle clockwise to turn chute to right. Turn handle counter clockwise to turn chute to left.

Height Adjust Skid − Used to adjust ground clearance of auger housing.

Toolbox − Spare shear pins and spacers are located in toolbox.

Clean-Out Tool − Use the clean-out tool to remove snow and debirs from the discharge chute and the auger housing.

OPERATION

MTF−051055L

The operation of any snowthrower can result in foreign objects being thrown into the eyes,which can result in severe eye damage. Always wear safety glasses or eye shields before beginning snowthrower Operation. We recommend standard safety glasses or Wide Vision Safety Mask for over spectacles.

SNOWTHROWER OPERATION

The most effective use of the snowthrower will be established by experience, taking into consideration the terrain, wind conditions and building location which will determine the direction of the discharge chute.

NOTE: Do not blow snow toward a building as hidden objects could be blown with sufficient force to cause damage.

TO STOP YOUR SNOWTHROWER

1. To stop throwing snow, release the auger drive lever. (see Figure 9).

2. To stop the wheels, release the traction drive lever.

3. To stop the engine, push the throttle control lever to off and pull out the ignition key.

TO CONTROL SNOW DISCHARGE

1. Rotate the crank to set the direction (left to right) of the discharge chute (see Figure 8).

2. Adjust the snow chute deflector. Loosen the wing nut on the side of the snow chute deflector. Raise the snow chute deflector for more distance or lower for less distance. Tighten wing nut. (see Figure 10).

HOW TO MOVE FORWARD AND BACKWARD

1. Start the engine. See “To Start Engine” in the Operation section.

NOTE: Always release the traction drive lever before moving the speed select lever.

2. Ground speed is determined by snow conditions. Set the speed select lever (see Figure 11) in one of the follow- ing positions.

1−2 Wet, Heavy, Slushy, Extra Deep

3 Moderate

4−5 Very Light

6 Transport Only

IMPORTANT: Before operating, make sure the area in front of snowthrower is clear of bystanders or obstacles.

3. Engage the traction drive lever (see Figure 9). As the snowthrower starts to move, maintain a firm hold on the handles and guide the snowthrower along the cutting path. Do not attempt to push the snowthrower.

4. To stop forward motion, release the traction drive lever.

5. To move the snowthrower backwards, move the speed select lever into either first or second reverse position and engage the traction drive lever.

Traction Drive Lever

Auger Drive Lever

Figure 9

Figure 10

Wing Nuts

Chute Deflector

Figure 11

Speed Select Lever

OPERATION

MTF−051055L

TO THROW SNOW

1. Push down the auger driver lever (right hand). See Figure 9.

2. To stop throwing snow, release the auger drive lever.

NOTE: When clearing wet, heavy snow, it is recommended that the ground speed of the unit be reduced, maintain full throttle and do not attempt to clear the full width of the unit.

For additional operating instructions see “Operating Tips” in the Operation section.

WARNING: Read Owner’s Manual before operating machine. This machine can be dangerous

if used carelessly. Never operate the snowthrower without all guards, covers, and shields in place. Never direct discharge towards windows or allow bystanders near machine while engine is running. Stop the engine whenever leaving the operating position. Disconnect spark plug before unclogging the impeller housing or the discharge chute and before making repairs or adjustments. When leaving the machine, remove the ignition key. To reduce the risk of fire, keep the machine clean and free from spilled gas, oil and debris.

WARNING: Never run engine indoors or in an enclosed, poor ventilated area. Engine exhaust

contains CARBON MONOXIDE, an ORDERLESS and DEADLY GAS. Keep hands, feet, hair and loose clothing away from any moving parts on engine and snowthrower. Temperature of muffler and nearby areas can exceed 150_ F (66_ C). Avoid these areas. DO NOT allow children or young teenagers to operate or be near snowthrower while it is operating.

WHEEL LOCK OUT PIN

1. The right wheel is secured to the axle with a klick pin. This unit was shipped with this klick pin in the locked position. (Figure 12).

Figure 12

Locked

Position

Klik

2. For ease of maneuverability when lighter conditions prevail, remove klick pin from wheel locked position and insert into single wheel drive (unlocked) position (Figure 13). Make sure that the klick pin is in the single wheel drive position of the axle only and not through the locked position.

Figure 13

Single

Wheel Drive

Position

(Unlocked)

Klik

NOTE: Check tire pressure. See side of tire for maximum inflation. Do not exceed listed maximum pressure.

OPERATION

MTF−051055L

HOW TO SET THE DRIFT CUTTERS

(OPTIONAL ACCESSORY ON SOME MODELS)

Drift cutters are used to cut a path through snow deeper than the auger housing.

1. Loosen the wingnuts that secure the drift cutters to the auger housing (see Figure 14).

2. Raise the drift cutters to the desired height.

3. Tighten the wingnuts.

Drift Cutter

Wingnut

Figure 14

OPERATION

MTF−051055L

BEFORE STARTING ENGINE

Check the oil

NOTE: The engine was shipped from the factory filled with oil. Check the level of the oil. Add oil as needed.

1. Make sure the unit is level. Use a high quality detergent oil classified “For Service SG, SH, SJ, SL, or higher”.

2. Remove the oil fill cap/dipstick and wipe with a clean cloth (see Figure 15).

3. Insert the oil fill cap/dipstick and turn clockwise to tighten.

4. Remove the oil fill cap/dipstick and check the oil.

NOTE: Do not check the level of the oil while the engine runs.

5. If necessary, add oil until the oil reaches the FULL mark on the oil fill/cap dipstick (see Figure 15). Do not add too much oil.

6. Tighten the fill cap/dipstick securely each time you check the oil level.

NOTE: For extreme cold operating conditions of 0F (−18 C) and below, use a synthetic 5W30 motor oil for easier starting.

NOTE: S.A.E. 5W30 motor oil may be used to make starting easier in areas where the temperature is 20 F. (−7 C) to 0F (−18 C). Synthetic 5W30 is acceptable for all temperatures. DO NOT mix oil with gasoline.

NOTE: SEE CHART FOR OIL RECOMMENDATION

0F (−18 C) and above

TYPE OF OILTEMPERATURE

synthetic 5W30

S.A.E. 5W30

0F (−18 C) and below

F − 20 0 20 32 40

C −30 −20 −10 0 10

SAE VISCOSITY GRADES

5W30

synthetic 5W30

FILL GAS

This engine is certified to operate on gasoline. Exhaust Emission Control System: EM (Engine Modifications)

1. Fill the fuel tank with fresh, clean, unleaded regular, unleaded premium, or reformulated automotive gasoline with a minimum of 85 octane along with a fuel stabilizer (follow instructions on fuel stabilizer package). DO NOT use leaded gasoline. We recommend that fuel stabilizer be added to the fuel each time that gasoline is added to the fuel tank.

NOTE: Winter grade gasoline has higher volatility to improve starting. Be certain container is clean and free from rust or other foreign particles. Never use gasoline that may be stale from long periods of storage in the container.

CAUTION: DO NOT use gasoline containing any amount of alcohol as it can cause serious damage to the engine or significantly reduce the performance.

WARNING: Gasoline is flammable. Always use caution when handling or storing gasoline.

Turn engine off and let engine cool at least two minutes before removing the gas cap. Do not add gasoline to the fuel tank while snow blower is running, hot, or when snow blower is in an enclosed area. Keep away from open flame, electrical sparks and DO NOT SMOKE while filling the fuel tank. Never fill the fuel tank completely; but fill the fuel tank to within 1-1/2 inch (3.8 mm) from the top to provide space for the expansion of the fuel. Always fill fuel tank outdoors and use a funnel or spout to prevent spilling. Make sure to wipe up any spilled fuel before starting the engine. Store gasoline in a clean, approved container, and keep the cap in place on the container. Keep gasoline in a cool well ventilated place; never in the house. Never buy more than a 30 day supply of gasoline to assure volatility. Gasoline Is intended to be used as a fuel for internal combustion engines; therefore, do not use gasoline for any other purpose. Since many children like the smell of gasoline, keep it out of their reach because the fumes are dangerous to inhale, as well as being explosive.

Figure 15

Oil Fill Cap/Dipstick

OPERATION

MTF−051055L

BEFORE STOPPING THE ENGINE

Run the engine for a few minutes to help dry off any moisture on the engine.

TO STOP ENGINE

CAUTION: To stop the engine, do not move the choke control to CHOKE position. Backfire or engine damage can occur.

1. Push the stop switch to the OFF position.

Figure 16

Stop Switch

2. Pull out the safety key.

Figure 17

Safety Key

TO START ENGINE

Be sure that engine oil is at FULL mark on the oil fill cap/dipstick. The snow thrower engine is equipped with a 120 volt A.C. electric starter and recoil starter. Before starting the engine, be certain that you have read the following information.

If engine floods, set the choke to the OPEN/RUN position and crank until the engine starts.

WARNING: Rapid retraction of the starter cord (kickback) will pull your hand or arm toward the engine faster than you can let go of the starter

cord.

S When starting the engine, slowly pull the starter cord

until resistance is felt. Then, rapidly pull the starter cord.

S Make sure components; such as impellors, pulleys

or sprockets, are securely attached.

WARNING: The electric starter is equipped with

a three−wire power cord and plug designed to

operate on 120 volt AC house hold current. The power cord must be properly grounded at all times to avoid the possibility of electric shock which can cause injury to the operator. Follow all instructions carefully as set forth below: Make sure your house has a three−wire grounded system. If you are not sure, ask a licensed electrician. If your house does not have a three−wire grounded system, do not use this electric starter under any condition. If your house has a three−wire grounded system but a three hole receptacle is not available to connect the electric starter, have a three−hole receptacle installed by a licensed electrician.

WARNING: To connect a 120 volt power cord,

always connect the power cord first to the

switch box located on the engine and then plug the other end into a three−hole grounded receptacle.

WARNING: To disconnect the power cord, al-

ways unplug the end connected to the three−

hole grounded receptacle first.

OPERATION

MTF−051055L

Figure 18

Stop Switch

Starter Motor

Recoil Starter Handle

Safety Key

Primer

Starter Button

Choke Knob

How To Start A Cold Engine

1. Be sure auger drive and traction drive levers are in the disengaged (RELEASED) position.

2. Push the stop switch to the ON position (see Figure 18).

3. Push in the safety key.

4. Rotate the choke knob to the CHOKE position.

5. (Electric Start) Plug the power cord into the starter mo- tor on the engine. Plug the other end of power cord into a three-hole, grounded 120 VOLT, AC receptacle.

6. Push the primer button as specified below. Remove fin- ger from primer button between pushes.

 Push two times if temperature is 15° F (−9° C) or high-

er.

 Push four times if temperature is below 15° F (−9° C).

7. (Electric Start) Connect the power cord to the engine and depress the starter button. To prolong the life of the starter, do not crank for more than 5 seconds at a time. Wait one minute between starts to allow the starter motor to cool.

8. (Recoil Start) Slowly pull the recoil starter handle until resistance is felt and then pull repidly to start the engine. Do not allow the recoil starter handle to snap back. Slowly return the recoil starter handle.

9. If the engine does not start in 5 or 6 tries, See Difficult Starting in the “Troubleshooting Table”.

10. Allow the engine to warm up for several minutes. As the engine warms up, adjust the choke knob toward the RUN position. Wait until the engine runs smoothly before each choke adjustment.

11. (Electric Start) First disconnect power cord from recep- tacle. Then, disconnect the power cord from the switch box.

If after following the preceding instructions, your engine fails to start, have the engine checked by a John Deere/Frontier dealer.

NOTE: Do not lose the safety/ignition key. Keep the safety/ignition key is a safe place. The engine will not start without the safety/ignition key.

How To Start A Warm Engine

If restarting a warm engine after a short shutdown, leave the choke lever in the off position and do not push the primer button. If the engine fails to start, follow the Cold Start instructions.

OPERATION

MTF−051055L

FROZEN STARTER

If the starter is frozen and will not turn engine:

1. Pull as much rope out of the starter as possible.

2. Release the starter handle and let it snap back against the starter. Repeat until the engine starts.

Warm engines will cause condensation in cold weather. To help prevent possible freeze-up of recoil starter and engine controls, proceed as follows after each snow removal job.

1. With engine off, allow engine to cool for several minutes.

2. Pull starter rope very slowly until resistance is felt, then stop. Allow the starter rope to recoil. Repeat three times.

3. With the engine not running, wipe all snow and moisture from the carburetor cover in area of control levers. Also move choke knob and starter handle several times.

WARNING: Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust

contains CARBON MONOXIDE, AN ODORLESS AND DEADLY GAS. Keep hands, feet, hair and loose clothing away from any moving parts on engine and snow thrower.

S Engine parts, especially the muffler, become ex-

tremely hot. Severe thermal burns can occur on contact. Allow the engine to cool before touching.

S Never allow children to operate the snow thrower.

Never allow adults to operate the snow blower without proper instruction.

S Keep the area of operation clear of all persons, partic-

ularly small children and pets.

S Never leave the snow blower unattended while the

engine is running. Anyone operating the engine or equipment must carefully read and understand the operating instructions.

IMPORTANT: After each use of the snow blower, stop the engine, remove the safety/ignition key, remove all accumulated snow from the snow blower and wipe clean. Store the snow blower in a protected area.

NOTE: Never cover snow blower while engine and exhaust area are still warm.

HOW TO CLEAR A CLOGGED DISCHARGE CHUTE

WARNING: Hand contact with the rotating impeller inside the discharge chute is the most

common cause of injury associated with snow blowers. NEVER USE YOUR HAND TO CLEAN OUT THE DISCHARGE CHUTE.

To Clear The Chute:

S SHUT OFF THE ENGINE! S Wait 10 seconds to be sure that the impeller blades

have stopped rotating.

S Always use a clean-out tool, not your hands.

A clean-out tool is attached to either the handle or the top of the auger housing (see Figure 19). Use the clean-out tool to remove snow from the auger housing.

How To Use The Clean-Out Tool

 Release the auger drive lever.  Pull out the safety key.  Disconnect spark plug wire.  Do not place your hands in the auger or discharge

chute. Use a clean-out tool to remove snow or debris.

WARNING: Blockage must be cleared only after shutting off the snow blower and only with a clean-out tool, not by hand.

Figure 19

Clean-out Tool

OPERATION

MTF−051055L

OPERATING TIPS

1. Most efficient snowblowing is accomplished when snow is removed immediately after it falls.

2. For complete snow removal, slightly overlap each swath previously taken.

3. Snow should be discharged downwind whenever possible.

4. For normal usage, set the skids one−eighth inch (3 mm) below the scraper bar. For extremely hard−packed snow surfaces, the skids may be adjusted upward to insure cleaning efficiency.

5. On gravel or crushed rock surfaces, the skids should be set at 1−1/4 inch (32 mm) below the scraper bar (see To Adjust Skid Height, in the Adjustment/Repair section in this manual). Rocks and gravel must not be picked up and thrown by the machine.

6. After the snowblowing job has been completed, allow the engine to idle for a few minutes, to melt snow and ice accumulated on the engine.

7. Clean the snow thrower thoroughly after each use.

8. Remove ice and snow accumulation and all debris from the entire snow thrower, and flush with water (if possible) to remove all salt or other chemicals. Wipe snow thrower dry.

9. Before starting snow blower, always inspect augers and impeller for ice accumulation and/or debris, which could result in snow blower damage.

10. Check oil level before every start. Make sure the oil is at the FULL mark on the oil fill cap/dipstick.

SERVICE RECOMMENDATIONS

MTF−051055L

SERVICE RECOMMENDATIONS

PROCEDURE

FIRST

HOUR

BEFORE

EACH

USE

OFTEN

EVERY

HOURS

EVERY

HOURS

EVERY

HOURS

BEGINNING

EACH

SEASON

BEFORE

STORAGE

S N

Tighten all screws and nuts

√ √

√

Check Traction Clutch Cable Adjustment (See Cable Adjustment)

√ √

R O

Check Auger clutch Cable Adjustment (See Cable Adjustment)

√ √

Lubricate Chains and Hex Shaft

√

E N G

Oil, Check

√ √

√

Oil, Change

√

√ √

The warranty on this snowthrower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain snowthrower as instructed in this manual. The following Ser- vice Recommendations is supplied to assist operator to properly maintain snowthrower. This is a check list only. Adjustment referred to will be found in the MAINTENANCE section of this manual.

AFTER EACH USE

1. Check for any loose or damaged parts.

2. Tighten any loose fasteners.

3. Check and maintain the auger.

4. After each use, remove all snow and slush off the snowthrower to prevent freezing of auger or controls.

5. Check controls to make sure they are functioning properly.

6. If any parts are worn or damaged, replace immediately.

MAINTENANCE

MTF−051055L

Some adjustments will need to be made periodically to properly maintain your snow blower.

All adjustments in ADJUSTMENTS/REPAIRS section of this manual should be checked at least once each season.

SNOW BLOWER

Auger and Traction Drive Belts should be adjusted after the

first 2 to 4 hours of use, again about mid−season and twice each season thereafter (See To Adjust Belts paragraph in the Adjustment/Repair section).

AS REQUIRED

Auger Gear Box

The auger gear box is lubricated at the factory and should not require additional lubrication. If for some reason the lubricant should leak out, or if the auger gear box has been serviced, add Lubriplate GR132 Grease or equivalent. Maximum 3−1/4 ounces, (92 grams) should be used.

Remove filler plug (Figure 20), once a year. If grease is visible, do not add. If grease is not visible, use a piece of fine wire, like a dipstick to check if there is grease in the gear box. Mobilux EP1 and Shell Aldania EP1 are suitable equivalents.

Figure 20

Filler

Plug

LUBRICATION AT STORAGE

Bearings and bushings

All bearings and bushings are lifetime lubricated and require no maintenance.

Hex shaft and chains

For storage, the hex shaft should be wiped with a cloth lightly moistened with motor oil to prevent rusting (see Figure 22).

For storage, the chains should be lubricated with a chain type lube. (see Figure 22).

NOTE: Any greasing or oiling of the above mentioned components can cause contamination of the rubber friction wheel. If the disc drive plate or friction wheel come in contact with grease or oil damage to rubber friction wheel will result .

If grease or oil comes into contact with the disc drive plate or friction wheel, make sure to clean plate and wheel thoroughly with a alcohol base solvent.

MAINTENANCE

MTF−051055L

LUBRICATION − EVERY 25 HOURS

Chute Rotation Gear

Lubricate the chute rotation gear with automotive type oil. (see Figure 21).

Chute Rotation Gear

Figure 21

Chains

1. Position speed selector lever in first (1) forward gear.

2. Stand the snow blower up on the auger housing end.

NOTE: When the crank case if filled with oil, do not leave the snow blower standing up on the auger housing for an extended period of time.

3. Remove the bottom panel.

4. Lubricate the chains with a chain type lubricant.

5. Wipe the hexshaft and sprockets with 5W30 motor oil.

NOTE: Clean all excess grease or oil found on the rubber friction wheel or the disc drive plate.

CAUTION: Do not allow grease or oil to contact the rubber friction wheel or the disc drive plate.

6. Install the bottom panel.

Hexshaft− wipe with 5W30 motor oil before storage and at the beginning of each season

Figure 22

Chain

If grease or oil come in contact with the disc drive plate or friction wheel, make sure to clean the plate and wheel thoroughly with a alcohol base solvent.

WARNING: If the disc drive plate or rubber friction wheel come in contact with grease or oil damage to rubber friction wheel will result .

MAINTENANCE

MTF−051055L

ENGINE

POWER RATINGS

The power ratings for an individual engine model are initially developed by starting with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure) (Revision 2002-05). Given both the wide array of products on which our engines are placed, and the variety of environmental issues applicable to operating the equipment, it may be that the engine you have purchased will not develop the rated horsepower when used in a piece of power equipment (actual “on-site” power). This difference is due to a variety of factors including, but not limited to, the following: differences in altitude, temperature, barometric pressure, humidity, fuel, engine lubrication, maximum governed engine speed, individual engine to engine variability, design of the particular piece of power equipment, the manner in which the engine is operated, engine run-in to reduce friction and clean out of combustion chambers, adjustments to the valves and carburetor, and other factors. The power ratings may also be adjusted based on comparisons to other similar engines utilized in similar applications, and will therefore not necessarily match the values derived using the foregoing codes.

Check Crankcase Oil Level before starting engine and after each 8 hours of continuous use (see Figure 23). Add the recommended motor oil as required.

NOTE: Overfilling the engine can affect performance. Tighten the oil fill cap securely to prevent leakage.

Change Oil every 50 hours of operation or at least once a

year, even if the snow blower is not used for fifty hours. Use a clean, high quality detergent oil. Fill the crank case to FULL line on dipstick (see Figure 23). Be sure original container is marked: A.P.I. service “SF” or higher. Do not use SAE10W40 oil (as it may not provide proper lubrication). See Chart for oil recommendations.

To Drain Oil − Position snow blower so that the oil drain plug is lowest point on engine. When the engine is warm, remove oil drain plug and oil fill cap and drain oil into a suitable container (Figure 24).

Replace oil drain plug and tighten securely. Refill crank case with the recommended motor oil.

0F (−18 C) and below

0F (−18 C) and above

TYPE OF OILTEMPERATURE

synthetic 5W30

S.A.E. 5W30

F − 20 0 20 32 40

C −30 −20 −10 0 10

SAE VISCOSITY GRADES

5W30

synthetic 5W30

FULL

Oil Fill Cap/Dipstick

Figure 23

NOTE: Oil level must be at FULL mark.

Figure 24

Oil Fill cap/Dipstick

Oil Drain Plug

MAINTENANCE

MTF−051055L

HOW TO REMOVE THE SNOW HOOD

To access the spark plug, the snow hood must be removed as follows:

1. Remove the choke control knob (see Figure 25).

2. Remove the safety key.

3. Remove the mounting screws (see Figure 26).

4. Slowly remove the snow hood. Make sure that the prim- er button hose and the ignition wire are not disconnected.

5. The spark plug can now be accessed.

6. To install the snow hood, first make sure that the primer button hose and the ignition wire are connected.

7. Mount the snow hood to the engine and secure with the mounting screws (see Figure 26).

8. Connect the choke control knob with the choke shaft on the carburetor (see Figure 27 and Figure 28). Make sure the choke control knob is properly installed. If the choke control knob is not installed correctly, the choke will not operate.

9. Install the safety key.

Figure 25

Choke Control

Knob

Safety Key

Figure 26

Snow Hood

Mounting Screws

Primer Button

Hose

Ignition

Wire

Spark

Plug

Figure 27

Choke Control Knob

Choke Shaft

Figure 28

Carburetor

Safety Key

MAINTENANCE

MTF−051055L

WARNING: Always turn unit off, remove ignition key and disconnect the spark plug wire before making any repairs or adjustments.

AUGER HOUSING HEIGHT ADJUSTMENT

TO ADJUST SCRAPER BAR

After considerable use, the metal scraper bar will have a definite wear pattern. The scraper bar in conjunction with the skids should always be adjusted to allow one−eighth of an inch (3 mm) between the scraper bar and the sidewalk or area to be cleaned.

To adjust the scraper bar, proceed as follows:

1. Position the snowthrower on a level surface.

2. Loosen the carriage bolts and nuts securing the scraper bar to the auger housing.

3. Adjust the scraper bar to the proper position. Tighten the carriage bolts and nuts, insuring that the scraper bar is parallel with the working surface.

4. For extended operation, the scraper bar may be reversed. If the scraper bar must be replaced because of wear, remove the carriage bolts and nuts and install a new scraper bar.

TO ADJUST SKID HEIGHT

This snowthrower is equipped with two height adjust skids, secured to the outside of the auger housing. These elevate the front of the snowthrower.

When removing snow from a hard surface area such as a paved driveway or walk, adjust the skids up to bring the front of the snowthrower down.

When removing snow from rock or uneven construction, raise the front of the snowthrower by moving the skids down. This will help to prevent rocks and other debris from being picked up and thrown by the augers.

To adjust skids, proceed as follows:

1. Place a block (equal to height from ground desired) under scraper bar near but not under skid.

2. Loosen skid mounting nuts (Figure 29) and push the skid down until it touches the ground. Retighten mounting nuts.

3. Set skid on other side at same height.

NOTE: Make sure that snowthrower is set at same height on both sides.

WARNING: Be certain to maintain proper ground clearance for your particular area to be

cleared. Objects such as gravel, rocks or other debris, if struck by the impeller, may be thrown with sufficient force to cause personal injury, property damage or damage to the snowthrower.

Figure 29

Skid Mounting Nuts

Height Adjust Skid

MAINTENANCE

MTF−051055L

BELT ADJUSTMENT

Traction Drive Belt

The traction drive belt has constant spring pressure and does not require an adjustment. If the traction drive belt is slipping, replace the belt. See “How To Replace The Belts” in the Maintenance section.

Auger Drive Belt

If your snowthrower will not discharge snow, check the control cable adjustment. If it is correct, then check the condition of the auger drive belt. If it is damaged or loose, replace it (see Belt Replacement in this section of the manual).

1. Disconnect spark plug wire.

2. Remove screw from belt cover. Remove belt cover (see Figure 30).

3. Loosen nut on auger idler pulley and move auger idler pulley towards belt about 1/8 inch (3 mm) (see Figure 34).

4. Tighten nut.

5. Have someone engage auger drive clutch. Check tension on belt (opposite idler pulley). Belt should deflect about 1/2 inch (12.5 mm) with moderate pressure Figure 31). You may have to move idler pulley more than once to obtain the correct tension.

6. Reinstall belt cover.

7. Whenever belts are adjusted or replaced, the cables will need to be adjusted. (See Cable Adjustment in this section of the manual).

8. Attach the spark plug wire.

Figure 30

Belt Cover

Screw

Figure 31

Auger

Drive

Engine

Pulley

1/2 inch

(12.5mm)

Deflection

Impeller

Pulley

Idler

Pulley

Engaged

MAINTENANCE

MTF−051055L

HOW TO REPLACE THE BELTS

The drive belts are of special construction and must be replaced with original factory replacement belts available from your nearest authorized service center.

Some steps require the assistance of a second person.

How To Remove the Auger Drive Belt

If the auger drive belt is damaged, the snow thrower will not discharge snow. Replace the damaged belt as follows.

1. Disconnect the spark plug wire.

2. Loosen the bolts on each side of the bottom panel (see Figure 32).

3. Remove the bottom panel.

4. Remove screw from belt cover. Remove the belt cover (see Figure 30).

5. Loosen the belt guide. Pull the belt guide away from the auger drive pulley (see Figure 34).

6. Pull the idler pulley away from the auger drive belt and slip the auger drive belt off of the idler pulley.

7. Remove the auger drive belt from the engine pulley. To remove the auger drive belt, the engine pulley may have to be partially rotated.

8. Remove the top four bolts that hold together the auger

housing and the motor box. Loosen the bottom two bolts. The auger housing and the motor box can now

be split apart for removal of the belt (see Figure 33).

9. Remove the old auger drive belt from the auger drive pulley . Replace the auger drive belt with an original factory replacement belt available from an authorized service center (see Figure 34).

10. Install the new auger drive belt onto the auger drive

pulley.

NOTE: To assemble the auger housing to the motor box, have someone hold the auger clutch lever in the ENGAGED position. This will move the idler arm and pulley enough to allow the auger drive pulley to move back into position.

11. Assemble the auger housing to the motor box with the four bolts that were removed in step 8. Tighten the bottom two bolts.

12. Install the auger drive belt onto the engine pulley.

13. Slip the auger drive belt under the idler pulley.

14. Adjust the auger drive belt. See “How To Adjust The Auger Drive Belt” in the Maintenance section.

15. Adjust the belt guide. See “How To Adjust The Belt Guide” in the Maintenance section.

16. Install the belt cover. Tighten screw (See Figure 30).

17. Check the adjustment of the cables. See “How To Check And Adjust The Cables” in the Maintenance section.

18. Install the bottom panel (see Figure 32).

19. Tighten the bolts on each side of the bottom panel.

20. Connect the spark plug wire.

Figure 32

Bottom Panel

Bolt

Auger Housing

Bolt

Figure 33

Remove

Bolts

Auger

Housing

Motor Box

Loosen

Bolts

MAINTENANCE

MTF−051055L

Belt Guide

Auger Drive Pulley

Idler Pulley

Auger Drive Belt

Engine Pulley

Figure 34

E−Ring

Swing Plate Axle Rod

Traction Drive Spring

Traction Drive Belt

Engine Pulley

Traction Drive Pulley

Traction Drive Idler Pulley

MAINTENANCE

MTF−051055L

How To Remove the Traction Drive Belt

If the snow thrower will not move forward, check the traction drive belt for wear or damage. If the traction drive belt is worn or damaged, replace the belt as follows.

1. Disconnect the spark plug wire.

2. Remove the auger drive belt. See “How To Remove The Auger Drive Belt” in the Maintenance section.

3. Remove the e−ring from one end of the swing plate axle rod. Remove the swing plate axle rod to allow the the swing plate to pivot forward (see Figure 34).

4. Remove the traction drive spring.

5. Remove the old traction drive belt from the traction

drive pulley and from the engine pulley. Replace the traction drive belt with an original factory replacement

belt available from an authorized service center.

6. Install the new traction drive belt onto the traction drive pulley and onto engine pulley.

7. Make sure the traction drive idler pulley is properly aligned with the traction drive belt.

8. Attach the traction drive spring.

9. Install the swing plate axle rod and secure with the e− ring removed earlier.

10. The bottom of the swing plate must be positioned between the alignment tabs. Make sure the swing plate is properly secured (see Figure 35).

NOTE: If the drive will not engage after the traction drive belt has been replaced, then check to make sure that the swing plate is positioned between the alignment tabs.

11. Install and adjust the auger drive belt. See “How To Remove The Auger Drive Belt” in the Maintenance section.

12. Adjust the belt guide. See “How To Adjust The Belt Guide” in the Maintenance section.

13. Install the bottom panel (see Figure 32).

14. Tighten the bolts on each side of the bottom panel.

15. Install the belt cover. Tighten screw (see Figure 30).

16. Check the adjustment of the cables. See “How To Check And Adjust The Cables” in the Maintenance section.

17. Connect the spark plug wire.

Figure 35

Swing Plate

Alignment Tabs

MAINTENANCE

MTF−051055L

BELT GUIDE ADJUSTMENT

1. Remove spark plug wire.

2. Have someone engage auger drive.

3. Measure the distance between the belt guide and belt. The distance should be 1/8 inch (3.175 mm) for guide. See Figure 36.

4. If adjustment is necessary, loosen belt guide mounting bolt. Move belt guide to the correct position. Tighten mounting bolt.

5. Reinstall belt cover.

6. Reconnect spark plug wire.

HOW TO CHECK AND ADJUST THE CABLES

The cables are adjusted at the factory and no adjustment should be necessary. If the cables have become stretched or are sagging adjustment will be necessary.

Whenever belts are adjusted or replaced, the cables will need to be adjusted.

To check for correct adjustment, unhook “Z” fitting at clutch lever (see Figure 37).

1. Move clutch lever to the full forward position. Holding cable tight, note position of fitting to hole in clutch lever.

2. The center of the “Z” fitting should be between the center and top of the hole in the clutch lever. Adjust either the auger drive cable or the traction drive cable as follows.

Auger Drive Cable Adjustment

WARNING: Drain the gasoline outdoors, away from fire or flame.

1. Remove the gas from the gas tank. Stand the snow thrower up on the front end of the auger housing.

2. Push cable through spring to expose the threaded portion of the cable (see Figure 38).

3. Hold square end of threaded portion with pliers and adjust locknut in or out until correct adjustment is reached. Pull cable back through spring and connect cable.

Figure 36

Belt Guide

1/8 Inch (3.175 mm)

Auger Idler Pulley Engaged

Figure 37

Control lever must be in full forward position when checking cable length.

Figure 38

Cable Spring

Locknut

Square End

MAINTENANCE

MTF−051055L

Traction Drive Cable Adjustment

WARNING: Drain the gasoline outdoors, away from fire or flame.

1. Remove the gas from the gas tank. Stand the snow thrower up on the front end of the auger housing.

2. Loosen the bolts on each side of the bottom panel (see Figure 39).

3. Remove the bottom panel.

4. Disconnect the “Z” fitting from the drive lever (see Figure 37).

5. Slide the cable boot off the cable adjustment bracket (see Figure 40).

6. Push the bottom of the traction drive cable through the cable adjustment bracket until the “Z” hook can be re- moved.

7. Remove the “Z” hook from the cable adjustment bracket. Move the “Z” hook down to the next adjustment hole.

8. Pull the traction drive cable up through the cable ad-

justment bracket.

9. Put the cable boot over the cable adjustment bracket.

10. Install the “Z” hook to the traction drive lever (see Figure 37).

11. To check the adjustment, depress the drive lever and check the length of the drive spring (see Figure 41). In correct adjustment, the length of the drive spring is minimum 3 inches (76 mm.) maximum 3-3/8 inches (85 mm.).

12. Install the bottom panel (see Figure 39).

13. Tighten the bolts on each side of the bottom panel.

Figure 39

Bottom Panel

Bolt

Auger Housing

Bolt

Figure 40

Cable Boot

Cable Adjustment Bracket

Traction Drive Cable

“Z” Hook

Figure 41

Drive Spring

“A”

MAINTENANCE

MTF−051055L

HOW TO ADJUST OR REPLACE THE FRICTION WHEEL

How To Check The Friction Wheel

If the snow thrower will not move forward, check the traction drive belt, the traction drive cable or the friction wheel. If the friction wheel is worn or damaged, it must be replaced. See “How To Replace the Friction Wheel” in this section. If the friction wheel is not worn or damaged, check as follows.

1. Remove the gas from the gas tank. Stand the snow thrower up on the front end of the auger housing (see Figure 42).

WARNING: Drain the gasoline outdoors, away

from fire or flame.

2. Disconnect the spark plug wire.

3. Loosen the bolts on each side of the bottom panel (see Figure 42).

4. Remove the bottom panel.

5. Position the shift speed lever in the lowest forward speed.

6. Note the position of the friction wheel (see Figure 43). The correct distance “A” from the right side of the fric-

tion wheel to the outside of the motorbox is as follows: Tire Size Distance “A”

12 and 13 inch 4-1/8” (10.5 cm.) 16 inch 4-5/16” (10.95 cm.) If the friction wheel is not in the correct position, adjust as follows.

How To Adjust The Friction Wheel

1. Position the shift speed lever in the lowest forward speed.

2. Loosen the bolts on the speed control rod (see Figure 44).

3. Move the friction wheel to the correct position (see Figure 43).

4. Tighten the bolts on the speed control rod (see Figure 44).

5. Install the bottom panel (see Figure 42).

6. Tighten the bolts on each side of the bottom panel.

Figure 42

Bottom Panel

Bolt

Auger Housing

“A”

Figure 43

Figure 44

Speed Control Rod

Loosen Bolts

MAINTENANCE

MTF−051055L

How To Replace The Friction Wheel

If the friction wheel is worn or damaged, the snow thrower will not move forward. The friction wheel must be replaced as follows.

1. Remove the gas from the gas tank. Stand the snow thrower up on the front end of the auger housing (4). (see Figure 42).

WARNING: Drain the gasoline outdoors, away

from fire or flame.

2. Disconnect the spark plug wire.

3. Remove the fasteners that secure the left wheel. Remove the left wheel from the axle (see Figure 45)

4. Loosen the bolts on each side of the bottom panel.

5. Remove the bottom panel.

Figure 45

Wheel

Axle Bolt

Bolt

Bottom Panel

6. Remove the fasteners that secure the drive sprocket to the axle (see Figure 46).

7. Remove the right wheel, axle, and drive sprocket.

Figure 46

Axle

Drive

Sprocket

Chain

8. Remove the four bolts that hold the bearings on each side of the hex shaft (see Figure 47).

9. Remove the hex shaft and bearings.

NOTE: Take special note of the position of the washers on the hex shaft.

Figure 47

Bolts

Bearings

Hex Shaft

MAINTENANCE

MTF−051055L

10. Remove the three fasteners that hold the friction wheel to the hub (see Figure 48).

11. Remove the friction wheel from the hub. Slip the fric- tion wheel off the hex shaft.

12. Assemble the new friction wheel onto hub with the fas- teners removed earlier.

Figure 48

Hex Shaft

Fasteners

Friction

Wheel

Hub

Fasteners

13. Install the hex shaft and bearings with the four bolts removed earlier (see Figure 49).

Make sure the washers are properly installed in the original position. Also, make sure the two washers are properly aligned with the actuator arms.

14. Make sure the hex shaft turns freely.

Washer

Figure 49

Hex Shaft

Actuator Arms

Washer

Bearings

Washer

Bearings

Washer

15. Install the right wheel, axle, and drive sprocket with the fasteners removed earlier. Install the chain onto the drive sprocket (see Figure 46).

16. Check the adjustment of the friction wheel. See “How To Adjust The Friction Wheel” in this section.

17. Make sure the friction wheel and the disc drive plate are free from grease or oil.

18. Install the bottom panel (see Figure 45).

19. Tighten the bolts on each side of the bottom panel.

20. Install the left wheel to the axle with the fasteners removed earlier.

21. Connect the spark plug wire.

MAINTENANCE

MTF−051055L

AUGER SHEAR BOLT REPLACEMENT

The augers are secured to the auger shaft with special bolts that are designed to break if an object becomes lodged in the auger housing. Use of a harder bolt will reduce the protection provided by the shear bolt. To replace a broken shear bolt, proceed as follows:

WARNING: To insure safety and performance levels, only original replacement shear bolts should be used.

1. Move throttle to STOP, disengage all controls, disconnect the spark plug lead wire, and insure all moving parts have stopped.

2. Align the hole in the auger with the hole in the auger shaft. Install new shear bolt, spacer and locknut found in the toolbox located on the belt cover (See Figure 50).

NOTE: The spacer fits into the larger hole in the auger tube.

Figure 50

Shear Pin

Locknut

Spacer

TO ADJUST OR REPLACE THE SPARK PLUG

Check the spark plug every twenty−five (25) hours. Re- place the spark plug if the electrodes are pitted or burned or if the porcelain is cracked.

1. Clean spark plug and reset gap periodically.

2. Clean area around spark plug base before removal, to prevent dirt from entering engine.

3. Replace spark plug if electrodes are pitted or burned or if porcelain is cracked.

4. Clean spark plug by carefully scraping electrodes (do not sandblast or use wire brush).

5. Be sure spark plug is clean and free of foreign material. Check electrodes gap with a wire feeler gauge and reset gap to 0.030” (0.76 mm) if necessary. If a new spark plug is needed, refer to Engine Repair Parts section of this manual for proper replacement spark plug.

6. Before installing spark plug, coat threads lightly with graphite grease to insure easy removal.

7. Tighten plug firmly into engine. If torque wrench is available, torque plug to 18−23 ft−lbs.

Figure 51

.030” (0.76 mm) Gap

STORAGE

MTF−051055L

OFF SEASON STORAGE

WARNING: Never store the engine, with fuel in the tank, indoors or in a poor ventilated enclo-

sure where fuel fumes could reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer, etc. Handle gasoline carefully. It is highly flammable and careless use could result In serious fire damage to your person and /or property. Drain fuel into approved containers outdoors, away from open flame.

If the snowthrower is to be stored for thirty (30) days or more at the end of the snow season, the following steps are recommended to prepare your snowthrower for storage.

NOTE: Gasoline must be removed or treated to prevent gum deposits from forming in the tank, filter, hose, and carburetor during storage.

1. To remove gasoline, run engine until tank is empty and engine stops.

If you do not want to remove the gasoline, add fuel stabilizer to any gasoline left in the tank to minimize gum deposits and acids. If the tank is almost empty, mix stabilizer with fresh gasoline in a separate container and add some to the tank. ALWAYS FOLLOW INSTRUCTIONS ON STABILIZER CONTAINER. THEN RUN ENGINE AT LEAST 10 MINUTES AFTER STABILIZER IS ADDED TO ALLOW MIXTURE TO REACH CARBURETOR. STORE SNOWTHROWER IN SAFE PLACE.

2. You can help keep your engine (4−cycles only) in good operating condition by changing oil before storage.

3. Lubricating the piston/cylinder area. This can be done by first removing the spark plug and squirting clean engine oil into the spark plug hole. Then cover the spark plug hole with a rag to absorb oil spray. Next, rotate the engine by pulling the starter two or three times. Finally, reinstall spark plug and attach spark plug wire.

4. Thoroughly clean the snowthrower.

5. Lubricate all lubrication points (see “Lubrication“ in the Maintenance section).

6. Insure that all nuts, bolts, and screws are securely fastened. Inspect all visible moving parts for damage, breakage, and wear. Replace if necessary.

7. Touch up all rusted or chipped paint surfaces; sand lightly before painting.

8. Cover the bare metal parts of the snowthrower housing auger, and the impeller with rust preventative.

9. If possible, store your snowthrower indoors and cover it to give protection from dust and dirt.

10. On models with folding handles, loosen the knobs that secure the upper handle. Rotate the upper handle back.

11. If the machine must be stored outdoors, block up the snowthrower and insure the entire machine is off the ground. Cover the snowthrower with a heavy tarpaulin.

REMOVING THE SNOWTHROWER FROM STORAGE

When removing the snowthrower from storage, follow the steps below.

1. Put the upper handle in the operating position, tighten the knobs that secure the upper handle.

2. Fill the fuel tank with a fresh fuel.

3. Check the spark plug. Make sure the gap is correct. If the spark plug is worn or damaged, replace before using.

4. Make sure all fasteners are tight.

5. Make sure all guards, shields, and covers are in place.

6. Make sure all adjustments are correct.

TROUBLE SHOOTING CHART

MTF−051055L

PROBLEM LOOK FOR REMEDY

Difficult starting Defective spark plug. Replace defective spark plug.

Engine runs erratically Blocked fuel line. Clean fuel line.

Empty gas tank. Check fuel supply,

Stale gasoline. Add fresh gasoline with fuel stabilizer.

Water or dirt in fuel system. Remove carburetor bowl to drain fuel tank. Refill

with fresh fuel. CAUTION: Do not remove

carburetor bowl when the engine is hot.

Engine stalls Unit running on CHOKE. Set choke lever to RUN position.

Loss of power Gas cap vent hole is plugged. Remove ice and snow from cap. Be sure vent

hole is clear.

Excessive vibration Loose parts or damaged impeller. Stop engine immediately and remove spark plug

wire. Tighten all bolts and make all necessary repairs. If vibration continues, have the unit serviced by a competent repairman.

Unit fails to propel itself

Drive belt loose or damaged. Replace drive belt. Refer to Drive Belt

Replacement in the Maintenance section of this

manual.

Incorrect adjustment of traction drive cable.

Adjust traction drive cable. Refer to Cable Adjustment in the Maintenance section of this manual.

Worn or damaged friction disc. Replace friction disc. Refer to Friction Wheel

Replacement in the Maintenance section of this manual.

Unit fails to discharge snow

Auger drive belt loose or damaged. Replace or adjust auger drive belt. Refer to Drive

Belt Replacement and Drive Belt Adjustment in

the Maintenance section of this manual.

Auger control cable not adjusted correctly.

Adjust auger control cable. Refer to Cable Adjustment in the Maintenance section of this manual.

Broken shear bolt. Replace shear bolt. Refer to Auger Shear Bolt

Replacement in the Maintenance section of this manual.

Discharge chute clogged. Stop engine immediately and disconnect spark

plug wire. Refer to the first Warning in Snowthrower Operation in the Operation section of this manual. Clean discharge chute and inside of auger housing.

Foreign object lodged in auger. Stop engine immediately and disconnect spark

plug wire. Refer to the third Warning in Snowthrower Operation in the Operation section of this manual. Remove object from auger.

Identifying Your Snowthrower

Your new Snowthrower has two (2) identifying numbers: (1) unit model number: (2) unit serial number. The two preceding numbers are required to insure that the proper replacement parts are obtained when required. If you have any questions concerning parts, service, or technical data, contact your nearest John Deere/Frontier dealer. For complete warranty information refer to the warranty in the Owner’s Information section of this manual.

REPLACEMENT PARTS

MTF−051055L

WE RECOMMEND JOHN DEERE/FRONTIER quality parts and lubricants available at your John Deere/Frontier dealer.

PART NUMBERS MAY CHANGE. When you order replacement parts, use the part numbers listed below and on the following pages. If a part number changes, your John Deere/Frontier dealer will have the latest part number.

WHEN YOU ORDER PARTS, your John Deere/Frontier dealer must have your snowthrower model and serial number and your engine model number. This is the model and serial number that you recorded in the “Owner’s Information” section of this Owner’s Manual.

QUICK REFERENCE PART NUMBERS

The following is a list of replacement parts that you may need for routine service and maintenance. If you do not see the replacement part you need in the following chart, then check the full list of replacement part illustrations following this page.

ITEM PART NUMBER *

Belt, Drive MT579932

Belt, Auger MT37x120

Scraper Blade

MT581397E701

Spark Plug Champion RC12YC

* Part Numbers are subject to change without notice.

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

ENGINE

25−1

25−4

25−2

25−3

Ref.Drive Page

Ref. Auger

Housing Page

25−2

Key No. Part No. Description Key No. Part No. Description

1 MT6219 CORD, STARTER 2 − − − − − ENGINE 3 MT002x97 BOLT, CARRIAGE 4 MT028x76 RETAINER, PUSH 5 MT710026 NUT 6 MT1501109 PULLEY, ENGINE 7 MT17x170 WASHER 8 MT71063 WASHER

9 MT001x20 SCREW 10 MT579932 BELT, DRIVE V 4L 11 MT37x120 BELT, AUGER V 3L 12 MT1501112 YZ BRACKET ASSEMBLY, IDLER 13 MT1501065 BUSHING, IDLER BRACKET 14 MT71060 WASHER, SPLIT 15 MT710097 SCREW 5/16−24 X .75

16 MT53704 SPRING, IDLER TRACTION DRIVE 17 MT1502120 PULLEY, IDLER 18 MT590 NUT, JAM 3/8−16 20 MT1501201 GUIDE, ROD BELT 22 MT71060 WASHER

25 − − − − − − FRAME ASSEMBLY 25−1 MT1501062E511 PLATE, ENGINE 25−2 MT310169 SCREW 25−3 MT25x020 SCREW 25−4 MT1501050E511 MOTOR BOX

26 MT1501214 KEY, BRIGGS ENGINE

27 MT226462 DEFLECTOR, MUFFLER

28 MT810140 SCREW

−− F−051055L OWNER’S MANUAL

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

GEAR CASE

340

341

327

326

324

325

324

323

322

301

306

304

310

311

312

320

313

321

303

300

310

311

312

316

315

314

304

Key No. Part No. Description

300 MT10577 CASE, GEAR, RH 301 MT10576 CASE, GEAR, LH 303 MT710025 SCREW,1/4−20X.75 304 MT15X143 NUT,1/4−20 306 MT9344 SCREW, 3/8−16X.50 310 MT9566 SEAL, OIL 311 MT50304 BEARING, FL 312 MT48275 WASHER, FLAT 313 MT340286 SHAFT, AUGER OUTPUT 314 MT51279 GASKET, GEAR BOX 315 MT51405 GEAR, WORM 316 MT431787 KEY, WOODRUFF #61 320 MT50221 BRNG, FL 321 MT1501128 SHAFT, AUGER INPUT (IMPELLER) 322 MT580295 COLLAR, THRUST 323 MT454565 PIN, SPRING 324 MT48275 WASHER, FLAT 325 MT50684 BRNG, ROLL 326 MT50304 BRNG, FL 327 MT9566 SEAL, OIL 340 MT760194E701 IMPELLER 341 MT454565 PIN, SPRING

* MT333431 10oz TUBE LUBRIPLATE

* (NOT ILLUSTRATED)

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

FRAME

162

167

162

122

168

103

106

105

108

Ref. Engine Page

110

148

149

107

Ref. Drive Page

Ref. Auger Housing Page

111

169

160

123

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

FRAME

Key No. Part No. Description

90 MT1501055E701 COVER, BOTTOM

91 MT310169 SCREW, 1/4−20X .63

103 MT1501111 YZ IDLER ASSEMBLY, AUGER

105 MT711682 PIN, HAIR .38DIAX1.64LG

106 MT761761 PIN, CLEVIS 3/16” DIA

107 MT165x160 SPRING, TENSION

108 MT761675 YZ ASSY., SPRING ATTACH

110 MT585781 BOLT, 3/8−16X1.25 CARR.

111 MT711617 WASHER, FLAT

122 MT25x021 SCREW, TAP 5/16−18 X .75

123 MT25x020 SCREW, TAP 5/16−18 X .50

148 MT1502120 PULLEY, IDLER

149 MT590 NUT, JAM 3/8−16

160 MT1502167 COVER, BELT

162 MT26x306 SCREW, TAP

167 MT71067 WASHER, FLAT

168 MT1502041 SPACER, AUGER BRACKET

169 MT760539 LID, TOOL BOX

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

DRIVE

Ref. Wheel Page

229

200

223

225

226

227

234

230

221

Ref.

Wheel Page

Ref. Shift Yoke Page

206

201

203

204

232

234

229

220

218

207

215

238

210

212

213

217

213

203

204

236

Ref. Frame Page

Ref. Wheel

Page

Ref. Wheel

Page

208

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

DRIVE

Key No. Part No. Description

200 MT1501092 YZ LF AXLE, SWING PLATE YZ

201 MT579851 CHAIN, ROLLER #420x19.00

203 MT334163 BEARING AND RETAINER, ASSY

204 MT579858 WASHER

206 MT25x020 SCREW, TAP 5/16−18x0.5

207 MT1501100 ASSY, HEX SHAFT

208 MT579868 CHAIN, ROLLER #420x18.00 LG

210 MT337029 BEARING, TRUNION CLUTCH R

212 MT1501435 WHEEL, FRICTION DISC

213 MT001x38 BOLT

215 MT303008 NUT, KEPS HEX 1/4−20

217 MT579859 RING, RETEXT

218 MT579858 WASHER

220 MT334163 BEARING AND RETAINER, ASSY

221 MT25x020 SCREW, TAP 5/16−18 x .5

223 MT1501115 FRICTION PULLY

225 MT1501057 YZ LF PLATE, SWINGING YZ

226 MT1501158 SPACER, FRICTION PULLEY

227 MT15X114 NUT, FLANGE LOCK 3/8−24

229 MT11X30 RETAINER, RING

230 MT1502105 YZ LF ASSY, SPRING LINK YZ

232 MT11X30 RETAINER, RING

234 MT165X112 SPRING, EXTENSION

236 MT1501090 SPROCKET 33/7

238 MT71074 WASHER, FLAT

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

AUGER HOUSING

550

551

552

553

554

500

527

481

480

485

499

482

490

491

493

527

522

523

521

525

526

525

526

523

524

520

510

541

Ref. Gear Case Page

540

514

544

511

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

AUGER HOUSING

Key No. Part No. Description

480 MT762146 PULLEY, 4L 6.12X .67

481 MT577400 SCREW, 5/16−18X.63

482 MT2001022 KEY, SQUARE 3/16 X 3/4

485 MT1501158 SPACER, FRICTION PULLEY

490 MT582957 YZ RETAINER, BALL BRNG

491 MT1501389 BEARING, BALL

493 MT001x92 BOLT, HEX 5/16−18X .50

499 MT710026 NUT, 5/16−18 HEXWDFLLK

500 MT1501585E511 HOUSING, ASSY

510 MT581397E701 BLADE, SCRAPER

511 MT001x45 BOLT, 1/4−20X.62

514 MT780285 NUT, 1/4−20

520 MT1501209E701 AUGER, ASSY, LH

521 MT1501210E701 AUGER, ASSY, RH

522 MT9524 SCREW, 1/4−20X1.75

523 MT3943 SPACER, SLEEVE

524 MT73826 NUT, 1/4−20

525 MT9517 BEARING,FLANGE

526 MT711862 NUT, 5/16−18

527 MT9357 SCREW, 5/16−18X .75

540 MT1502079E701 SKID, HEIGHT ADJUST

541 MT340720 BOLT, 5/16−18 X .75

544 MT710026 NUT, 5/16−18

550 MT1501576 BRUSH, CLEANOUT

551 MT1501672 CLIP, RETAINER

552 MT06x115 SCREW

553 MT15x146 NUT

554 MT578063 BLOCK

− − MT1501216 KIT, SHEAR BOLT

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

HANDLE ASSEMBLY

720

734

733

736

731

730

737

741

740

728

727

726

725

726

724

756

755

744

727

757

743

763

751

760

762

745

759

745

746

750

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

HANDLE ASSEMBLY

Key No. Part No. Description

720 MT321838E701 HANDLE

724 MT11234 SCREW

725 MT71071 WASHER, FLAT

726 MT71060 WASHER, SPLIT

727 MT15x144 NUT

728 MT11261 PLASTIC−STOP

730 MT302557 CLUTCH, LEFT HANDLE CONTROL

731 MT302558 CLUTCH, RIGHT HANDLE CONTROL

733 MT12621 YZ ROD, PIVOT HANDLE

734 MT3535 PUSH ON CAP

735 MT1502080E701 PLATE, CABLE PIVOT

736 MT303108 SCREW

737 MT73826 NUT

740 MT1501123 CABLE, CLUTCH

741 MT761872 CABLE, AUGER CLUTCH

743 MT313441 BRKT, CABLE ADJUST

744 MT1673 SPRING, AUGER CLUTCH

745 MT15x145 LOCKNUT

746 MT308146 BOOT, CLUTCH SPRING

750 MT339541E701 HANDLE, LOWER

751 MT25x021 SCREW 5/16−18 x 0.75

752 MT71060 WASHER

755 MT337407E701 BRACKET, GEAR SELECTOR

756 MT6751 SCREW 5/16−18 x 2

757 MT310169 SCREW, 1/4−20 x 0.63

759 MT579860 SPOOL−CABLE, AUGRT CLUTCH

760 MT1501059 YZ BRACKET, CABLE SPOOL YZ

762 MT1501122 CABLE, LOWER DRIVE 12”

763 MT001798 BOLT, HEX 1/4−20 x 1.50 YZ

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

SHIFT YOKE

796

790

792

801

791

800

814

802

812

813

Key No. Part No. Description

790 MT762299E701 ROD, SHIFT

791 MT302628 SCREW, 1/4−20X.75

792 MT73826 NUT, 1/4−20

796 MT331624 GRIP

800 MT760564 LEVER, SPRING

801 MT302628 SCREW, 1/4−20X.75

802 MT73826 NUT, 1/4−20

811 MT579944 BEARING, FLANGED

812 MT1501085 YZ ROD ASSY., SPEED SELECT

813 MT11x30 RETAINER, RING

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

DISCHARGE CHUTE

598

597

596

600

583

584

599

582

600

602

603

610

601

606

Ref. Auger Housing Page

607

611

609

Key No. Part No. Description

582 MT2x100 SCREW, 5/16−18 X 1.00

583 MT71071 WASHER, FLAT

584 MT71038 NUT, 5/16−18

596 MT71071 WASHER

597 MT1501260 KNOB, T 3.00

598 MT15x144 NUT, 5/16−18

599 MT002x97 BOLT, 5/16−18 X1.50

600 MT762222 CHUTE ASSEMBLY

601 MT2x100 BOLT, 5/16−18 X 1.00

602 MT71071 WASHER, FLAT

603 MT71038 NUT, 5/16−18

606 MT1501932 YZ CHUTE COLLAR

607 MT02x101 SCREW, 1/4−20 X 0.75

609 MT15x145 NUT, 1/4−20 HEX NYLOCK

610 MT337227 RETAINER RING INNER

611 MT1501282 RETAINER RING OUTER

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

CHUTE ROD

856

855

854

855

861

860

863

864

867

Ref. Handle Assy

870

852−5

852−11

852−9

852−8

852−3

868

852−13

852−10

852−1

852−2

852−6

869

Ref. Auger Housing Assy

852−7

852−4

Key No. Part No. Description Key No. Part No. Description

852−1 MT1501533 YZ ASSEMBLY, YOKE & ROD

852−2 MT164x37 SPRING, COMPRESSION

852−3 MT1501067 GEAR, CHUTE ROTATION 9T

852−4 MT17x170 WASHER

852−5 MT579493 PIN, COTTER

852−6 MT1501306E701 BRACKET, GEAR MOUNT

852−7 MT1501293 PIN, HAIR

852−8 MT1501075 YZ ASSEMBLY, YOKE ADAPTER YZ

852−9 MT711682 PIN, HAIR

852−10 MT578060 PIN, UNIVERSAL JOINT

852−11 MT578309 PIN, CLEVIS

852−13 MT578063 HOUSING, UNIVERSAL

854 MT51443 KNOB, SLEEVE

855 MT309312 FLATWASHER

856 MT73664 NUT, PUSH ON 3/8”

860 MT581618 EYE BOLT 3/8−16X6.00

861 MT148 GROMMET, EYE BOLT

863 MT71045 NUT, 3/8−16 HEXJAM

864 MT71072 FLATWASHER .406X.81X.066

867 MT71046 NUT, 3/8−16 HEXNYL

868 MT002X98 BOLT, CARRIAGE 1/4−20 X 1.00

869 MT15X145 NUT

870 MT1501074 YZ CRANK, ASSY CHUTE

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

WHEELS

679

678

673

675

678

671

655

650

654

652

653

655

671

673

680

676

677

Ref. Drive Page

Key No. Part No. Description

650 MT1501562 SHAFT, AXLE

652 MT1501089 SPRKT & HUB

653 MT01x193 SCREW, 1/4−20 x 1.75

654 MT15x145 NUT, 1/4−20 HEX NYLOCK

655 MT1501114 BEARING, AXLE

671 MT017x83 FLATWASHER

673 MT1501139 BUSHING, WHEEL

675 MT1501822 TIRE & RIM, RIGHT

676 MT577015 SCREW, 1/4−20X1.75 HH

677 MT15X145 NUT, 1/4−20 HEX NYLOCK

678 MT239 RING, RET

679 MT73842 PIN, KLIK .25 X 1.38 DIA

680 MT1501823 TIRE & RIM, LEFT

FRONTIER MODEL ST0524 FACTORY MODEL 624554x16A

MTF−051055L

DECALS

Key No. Part No. Description

1 MT48x5283 DECAL, AUGER CONTROL

2 MT7390 DECAL, V−BELTS

3 MT7859 DECAL, OVER ADJUSTMENT

4 MT48x5967 DECAL, ROTATING AUGER

5 MT48x5578 DECAL, THROWN OBJECTS

6 MT48x5965 DECAL, UNCLOGGING CHUTE

7 MT48x5284 DECAL, SPEED CONTROL

9 MT760983 DECAL, SHEAR BOLTS

10 MT48x5287 LOGO, FRONTIER

11 MT48x5288 DECAL, ST0524

12 MT48x5599 DECAL, CLEAN & CLEAR BRUSH

13 MT586402 DECAL, TRACTON CONTROL

−− MTF−051055L OPERATOR’S MANUAL

SPECIFICATIONS ST0524

MTF−051055L

Engine Briggs & Stratton

Horsepower 5.5 hp

Starter Electric / Recoil

Fuel Capacity 3 quarts

Drive System Friction Disc

Speeds 6 Forward / 2 Reverse

Tire Diameter 13”

Traction Control Pin Lock

Clearing Width 24”

Housing Height 17.5”

Auger Diameter 10”

Auger Type Steel / Notched

Impeller Diameter 9”

Chute Rotation Remote

Chute Turning Radius

190

Deflector Control Manual

Weight 160 lbs

Warranty − Engine 3 years

Warranty − Machine 3 years

Frontier ST0524 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
