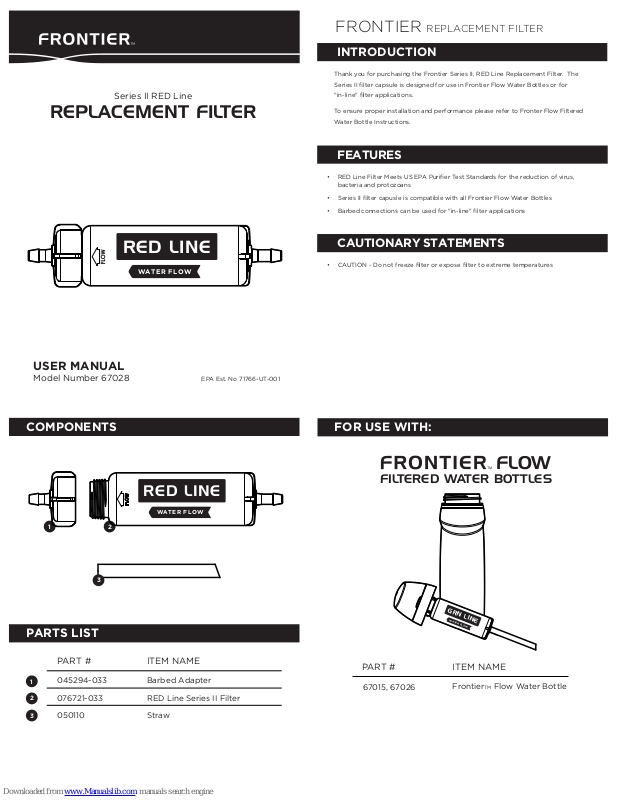

Frontier 67028 User Manual
Series II RED Line
REPLACEMENT FILTER
USER MANUAL
Model Number 67028
FEATURES
• RED Line Filter Meets US EPA Purifier Test Standards for the reduction of virus,
bacteria and protozoans
• Series II filter capusle is compatible with all Frontier Flow Water Bottles
• Barbed connections can be used for "in-line" filter applications
RED LINE
WATE R F LOW
INTRODUCTION
Thank you for purchasing the Frontier Series II, RED Line Replacement Filter. The
Series II filter capsule is designed for use in Frontier Flow Water Bottles or for
"in-line" filter applications.
To ensure proper installation and performance please refer to Fronter Flow Filtered
Water Bottle Instructions.
FRONTIER REPLACEMENT FILTER
COMPONENTS
PARTS LIST
PART # ITEM NAME
Barbed Adapter
RED Line Series II Filter
Straw
045294-033
076721-033
050110
3
2
1
1
2
RED LINE
WATER FLOW
3
FOR USE WITH:
PART # ITEM NAME
FrontierTM Flow Water Bottle
67015, 67026
FILTERED WATER BOTTLES
GRN LINE
WATER FLOW
FLOW
CAUTIONARY STATEMENTS
• CAUTION - Do not freeze filter or expose filter to extreme temperatures
EPA Est. No 71766-UT-001
917 West 600 Nor th, Logan, UT 84321
ph: (877) 644– 4650
www.aquamira.com
© Copyright 2016 Aquamira Technologies, Inc.
LIMITED WARRANTY AND DISCLAIMER
Aquamira warrants all products to be free from defects in workmanship and
materials for one year from the date of purchase by the consumer, or for the
duration of the imprinted shelf life. Filter clogging or normal wear is not a defect. If
you are not satisfied with the performance of an Aquamira product, Aquamira will
repair or replace the product.
Aquamira Technologies, Inc. (Aquamira) hereby excludes any expressed or implied
warranties of fitness for a particular purpose. The following is made in lieu of any
such warranties: The information and specifications supplied by Aquamira are based
on industry standards and are tested using standard laboratory test conditions
which are accepted in the industry to be reliable. Aquamira does not guarantee that
any result shown or claimed will be obtained. Before using any Aquamira product,
the user shall determine the suitability and the fitness of the products for their
intended use. The eectiveness of Aquamira products may be limited by
environmental or hygienic conditions, such as use with contaminated hands,
recontamination after filtration or treatment, failure to maintain a sterile mouthpiece
or downstream equipment, sharing with multiple users, exposure to extreme
environmental conditions such as heat, freezing, severe shock such as drops or other
impact that may damage the integrity of filters, seals or connections. The user
assumes all risk and liability in connection with its own tests and use. Aquamira shall
not be liable for any injury, loss or damage, direct or consequential, resulting by or
from the use, misuse, or inability to use Aquamira products.
1. Filter may be stored wet for short periods of time (<30 days).
2. If you need to store the filter for long periods of time (>30 days):
a. Remove adapter and straw.
b. Shake out any excess water and allow the filter to dry at least 48 hrs. prior to
storage.
c. Store in a cool, dry place. Do not store in a sealed container.
3. D not freeze filter or expose filter to extreme temperatures.
MAINTENANCE AND STORAGE
5
015233
Recommended
3ft tubing
FLOW
RED LINE
WATER FLOW
PRODUCT INSTRUCTIONS
IN-LINE APPLICATIONS
STEP 1
Determine the best location in
for the filter.
NOTE: For gravity systems we
recommend a minimum of 36” from the
reservoir. Increasing the distance
between the reservoir and the filter will
improve the flow.
Mark the tube and make a
clean cut.
STEP 2
Connect the inlet end of the
filter to the outlet tube from
the reservoir by pressing the
tubing firmly over the barbed
connector.
Connect the outlet end of the
filter to the outlet end of the
tube.
STEP 3
Hang the reservoir with the
Series II filter at the lowest
point and allow gravity to force
water through the filter.
STEP 4
If the filter is dry, squeezing or
rolling the reservoir will help
start the flow.
2
1
TECHNICAL INFORMATION
FILTER CARTRIDGES
Service Life
Flow Rate
Operating
Temperatures
Operating
Pressures
Use Conditions
120 Gal. (454 L)
PARAMETER WaterBasics
®
RED Line Series II Filter
Use best w ater source available, quality of the s ource water may var y.
0–3 psi (0-0.211 kg f/cm)
35–120 F (1.6–49 C)
up to 500 ml/min
Removal
VIRUS
PROTECTION
MEETS OR EXCEEDS ANSI /NSF 42
Chlorine, Chemical, Taste & Odor Removal
Virus Remo val
Bacteria Removal
Cyst Re moval
≥99.99%
≥99.9999%
≥99.95%
Certified by IAPMO R&T to US EPA Microbiological Purifier test standard
for the reduction of cysts, bacteria and viruses. Certified to NSF/ANSI 372
for lead free content.
US Patent: #9162167
Other patents pending.
CERTIFICATIONS AND PATENTS
