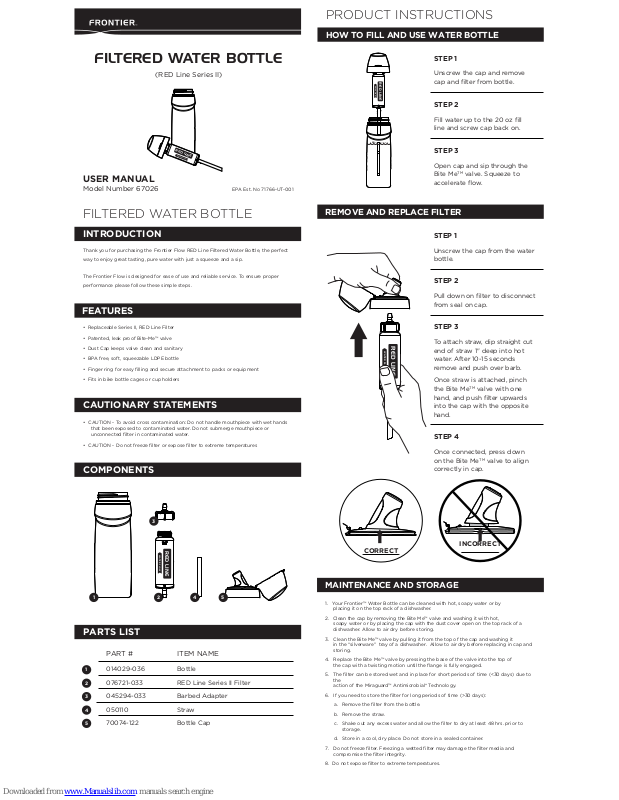

FILTERED WATER BOTTLE
USER MANUAL
Model Number 67026
RED LINE
WATER FLOW
INTRODUCTION
Thank you for purchasing the Frontier Flow RED Line Filtered Water Bottle, the perfect
way to enjoy great tasting, pure water with just a squeeze and a sip.
The Frontier Flow is designed for ease of use and reliable service. To ensure proper
performance please follow these simple steps.
CAUTIONARY STATEMENTS
• CAUTION - To avoid cross contamination: Do not handle mouthpiece with wet hands
that been exposed to contaminated water. Do not submerge mouthpiece or
unconnected filter in contaminated water.
• CAUTION - Do not freeze filter or expose filter to extreme temperatures
PRODUCT INSTRUCTIONS
RED LINE
WATER FLOW
HOW TO FILL AND USE WATER BOTTLE
STEP 1
Unscrew the cap and remove
cap and filter from bottle.
STEP 2
Fill water up to the 20 oz fill
line and screw cap back on.
STEP 3
Open cap and sip through the
Bite Me
TM
valve. Squeeze to
accelerate flow.
FILL LINE
20
OZ
FEATURES
• Replaceable Series II, RED Line Filter
• Patented, leak proof Bite-Me™ valve
• Dust Cap keeps valve clean and sanitary
• BPA free, soft, squeezable LDPE bottle
• Finger ring for easy filling and secure attachment to packs or equipment
• Fits in bike bottle cages or cup holders
FILTERED WATER BOTTLE
(RED Line Series II)
1. Your Frontier™ Water Bottle can be cleaned with hot, soapy water or by
placing it on the top rack of a dishwasher.
2. Clean the cap by removing the Bite Me™ valve and washing it with hot,
soapy water or by placing the cap with the dust cover open on the top rack of a
dishwasher. Allow to air dry before storing.
3. Clean the Bite Me™ valve by pulling it from the top of the cap and washing it
in the “silverware” tray of a dishwasher. Allow to air dry before replacing in cap and
storing.
4. Replace the Bite Me™ valve by pressing the base of the valve into the top of
the cap with a twisting motion until the flange is fully engaged.
5. The filter can be stored wet and in place for short periods of time (<30 days) due to
the
action of the Miraguard™ Antimicrobial* Technology.
6. If you need to store the filter for long periods of time (>30 days):
a. Remove the filter from the bottle.
b. Remove the straw.
c. Shake out any excess water and allow the filter to dry at least 48 hrs. prior to
storage.
d. Store in a cool, dry place. Do not store in a sealed container.
7. Do not freeze filter. Freezing a wetted filter may damage the filter media and
compromise the filter integrity.
8. Do not expose filter to extreme temperatures.
MAINTENANCE AND STORAGE
COMPONENTS
PARTS LIST
PART # ITEM NAME
Bottle
RED Line Series II Filter
Barbed Adapter
Straw
Bottle Cap
014029-036
076721-033
045294-033
050110
70074-122
3
4
5
2
1
1
2
4
5
RED LINE
WATER FLOW
3
REMOVE AND REPLACE FILTER
STEP 1
Unscrew the cap from the water
bottle.
STEP 2
Pull down on filter to disconnect
from seal on cap.
STEP 3
To attach straw, dip straight cut
end of straw 1" deep into hot
water. After 10-15 seconds
remove and push over barb.
Once straw is attached, pinch
the Bite Me
TM
valve with one
hand, and push filter upwards
into the cap with the opposite
hand.
STEP 4
Once connected, press down
on the Bite Me
TM
valve to align
correctly in cap.
RED LINE
WATER FLOW
CORRECT
INCORRECT
EPA Est. No 71766-UT-001
917 West 600 Nor th, Logan, UT 84321
ph: (877) 6 44–465 0
www.aquamira.com
© Copyright 2016 Aquamira Te chnologies, Inc.
LIMITED WARRANTY AND DISCLAIMER
Aquamira warrants all products to be free from defects in workmanship and materials for
one year from the date of purchase by the consumer, or for the duration of the imprinted
shelf life. Filter clogging or normal wear is not a defect. If you are not satisfied with the
performance of an Aquamira product, Aquamira will repair or replace the product.
Aquamira Technologies, Inc. (Aquamira) hereby excludes any expressed or implied
warranties of fitness for a particular purpose. The following is made in lieu of any such
warranties: The information and specifications supplied by Aquamira are based on
industry standards and are tested using standard laboratory test conditions which are
accepted in the industry to be reliable. Aquamira does not guarantee that any result shown
or claimed will be obtained. Before using any Aquamira product, the user shall determine
the suitability and the fitness of the products for their intended use. The eectiveness of
Aquamira products may be limited by environmental or hygienic conditions, such as use
with contaminated hands, recontamination after filtration or treatment, failure to maintain
a sterile mouthpiece or downstream equipment, sharing with multiple users, exposure to
extreme environmental conditions such as heat, freezing, severe shock such as drops or
other impact that may damage the integrity of filters, seals or connections. The user
assumes all risk and liability in connection with its own tests and use. Aquamira shall not
be liable for any injury, loss or damage, direct or consequential, resulting by or from the
use, misuse, or inability to use Aquamira products.
CERTIFICATIONS AND PATENTS
Certified by IAPMO R&T to US EPA Microbiological Purifier test standard for
the reduction of cysts, bacteria and viruses. Certified to NSF/ANSI 372 for
lead free content.
Protected by the following US Patents: #6039305 #9162167
TECHNICAL INFORMATION
FILTER CARTRIDGES
Service Life
Flow Rate
Operating
Temperatures
Operating
Pressures
Use Conditions
120 Gal. (454 L)
PARAMETER RED Line Series II Filter
Use best wate r source available, quality o f the source water ma y vary,
use only Aquamira RED Line or GRN Line S eries II filters. Pre -treatment
with Aquamira Water Treatment Dr ops (67202) is recom mend if using
GRN Line filters and biological qualit y of source water is uncertain.
0–3 psi (0-0.211 kg f/cm)
35–120 F (1.6–49 C)
up to 500 ml/min
Removal
VIRUS
PROTECT ION
MEETS US EPA BIOLOGI CAL PURIFIER
TEST STANDARD
MEETS OR EXC EEDS ANSI/ NSF 42
Chlorine, Chemical, Taste & Odo r Removal
Virus Removal
Bacteria Removal
Cyst Removal
≥99.99%
≥99.9999%
≥99.95%
REPLACEMENT & COMPATIBLE PARTS
PART # ITEM NAME
Frontier Replacement Filter (RED-II-120)
Frontier Replacement Filter (GRN-II-100)
67028
67027
015224
