ROTATION TABLES
FRT 50-150 HS125/H/V

/ Max. load capacity from 50-150 kg

(110.2 - 330.7 lb)

/ Horizontal rotation tables are universal applicable for mechanized welding applications as well as for precise

positioning of work pieces.

STANDARD EQUIPMENT ACCESSORIES

/ Constant speed control

/ AC-motor

/ Welding-current transfer 400 A/50 mm² (2 in²)

/ Prepared for segment welding

/ Hollow shaft 125 mm (4.9 in)

/ Limit switch function (360°)

/ Face plate with concentric cirular markings

/ Protection housing (rotation device)

/ FRT 50: Control unit FCU-10, FCU-20, FCU-50

/ FRT 150: Control unit FCU-20, FCU-50

/ Foot switch FRC-1 (start/stop) with cable 3 m (118 in)

/ Foot switch FRC-2 (start/stop/speed) with cable 3 m

(118 in)

/ Foot switch FRC-3 (start/stop/direction) with cable 3 m

(118 in)

/ Chucks FGC, FSG

/ Mounting sets for chucks

/ I-kit welding-current transfer +400 A

/ Actuating cam for segment welding

/ Stands

Fronius Middle East FZE

Fronius (Thailand) Ltd.

Fronius India Private Limited

Text and images c orrespond to t he current state of techn ology at the t ime of printing. Subject to mo dificat ions.

All info rmation is w ithout gua rantee in spite of carefu l editing - liabilit y excluded. C opyright © 2 011 Fronius™. All rights re served .

TECHNICAL DATA

FRT 50/HS125/H/V FRT 150/HS125/H/V

Max. load capacity 50 kg (110.2 lb) 150 kg (330.7 lb)

Slots 3 x 120° 3 x 120°

Faceplate slots and holes DIN 6350 DIN 6350

Drive AC-motor AC-motor

Speed range 0,9 - 6,8 rpm 0,3-6,0 rpm

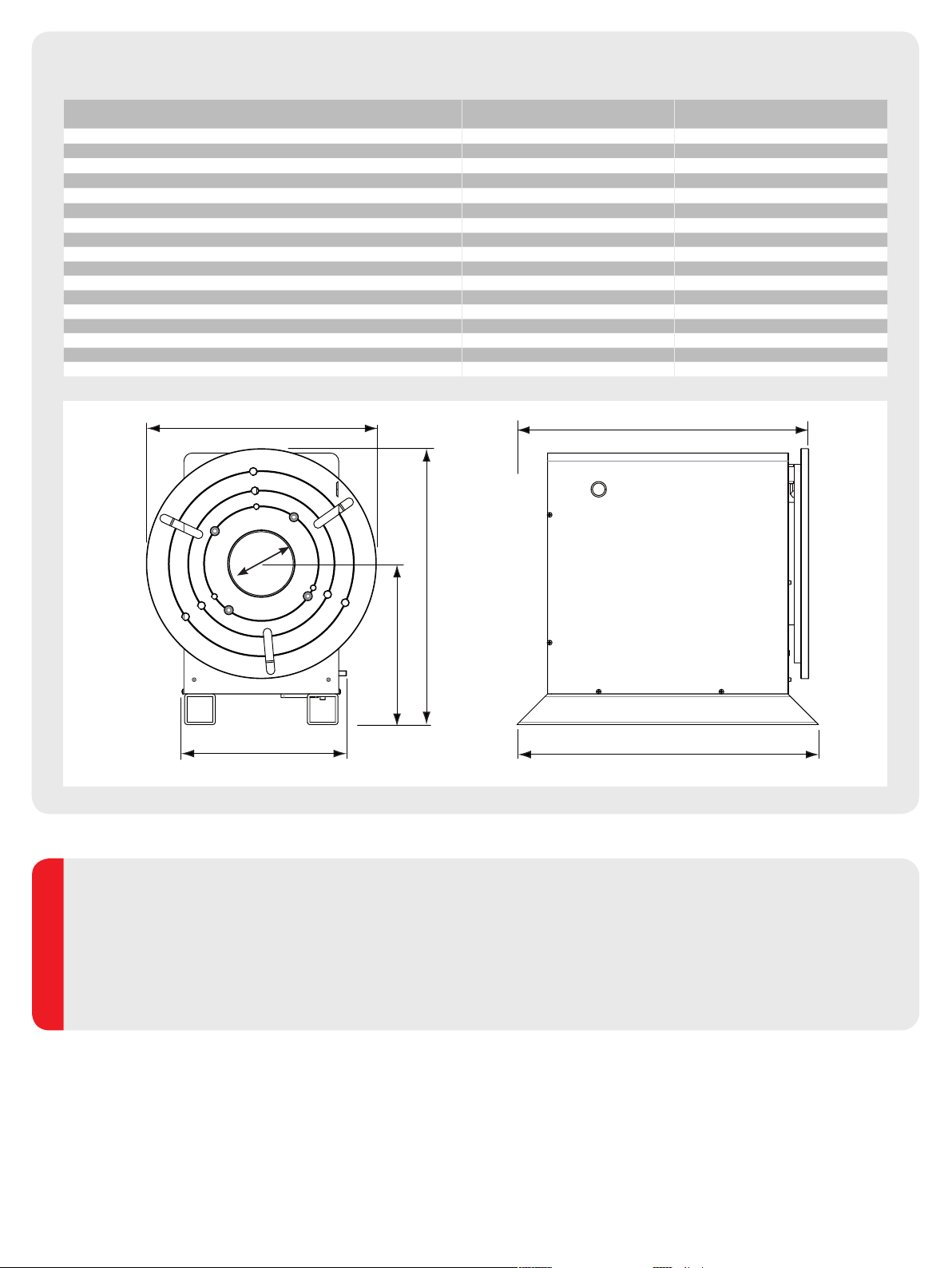

Dimensions

A 340 mm (13.4 in) 542 mm (21.3 in)
B 540 mm (21.3 in) 710 mm (28 in)
C 590 mm (23.2 in) 490 mm (19.3 in)
D 571 mm (22.5 in) 481 mm (18.9 in)
E 315 mm (12.4 in) 432 mm (17 in)
F 450 mm (17.7 in) 450 mm (17.7 in)
G 125 mm (4.9 in) 125 mm (4.9 in)
Max. backlash on faceplate 1,2° 0,25°
Max. current transfer 400 A 400 A
Mains voltage, 50 - 60 Hz 230 V 230 V
Net weight 90 kg (198.4 lb) 145 kg (319.7 lb)

F

G

A
