Fronius Tubra eTherm User Information [DE, EN]

Anwendung mit Tubra –eTherm
G B R
9 10
1 3 5 7
2 4 6 8
12345
LAN
L2 L2L3 N N L3 N
L1
11
6
RS485
PT1000
D+D- -
R3
NC W NO OUT
2
1
3
N
4
11
12
5
6
8
42,0410,0166,DE 004-08052018
7
12
EINGANG - Zuleitung Netz 3x 230 V
1
Federzug 1,5 - 2,5 mm
2
Fremdquelle (z.B. Gastherme)
7
DE
Funktions­beschreibung
HINWEIS! Phase und Neutral-
leiter dürfen nicht vertauscht werden. FI löst aus.
AUSGANG - Heizstab L2
2
AUSGANG - Heizstab L3
3
AUSGANG bis 3 kW regelbar max.
4
13 A ohmsche Last Federzug 1,5 - 2,5 mm
Warmwasser Boiler
5
PT1000 Temperatursensor
6

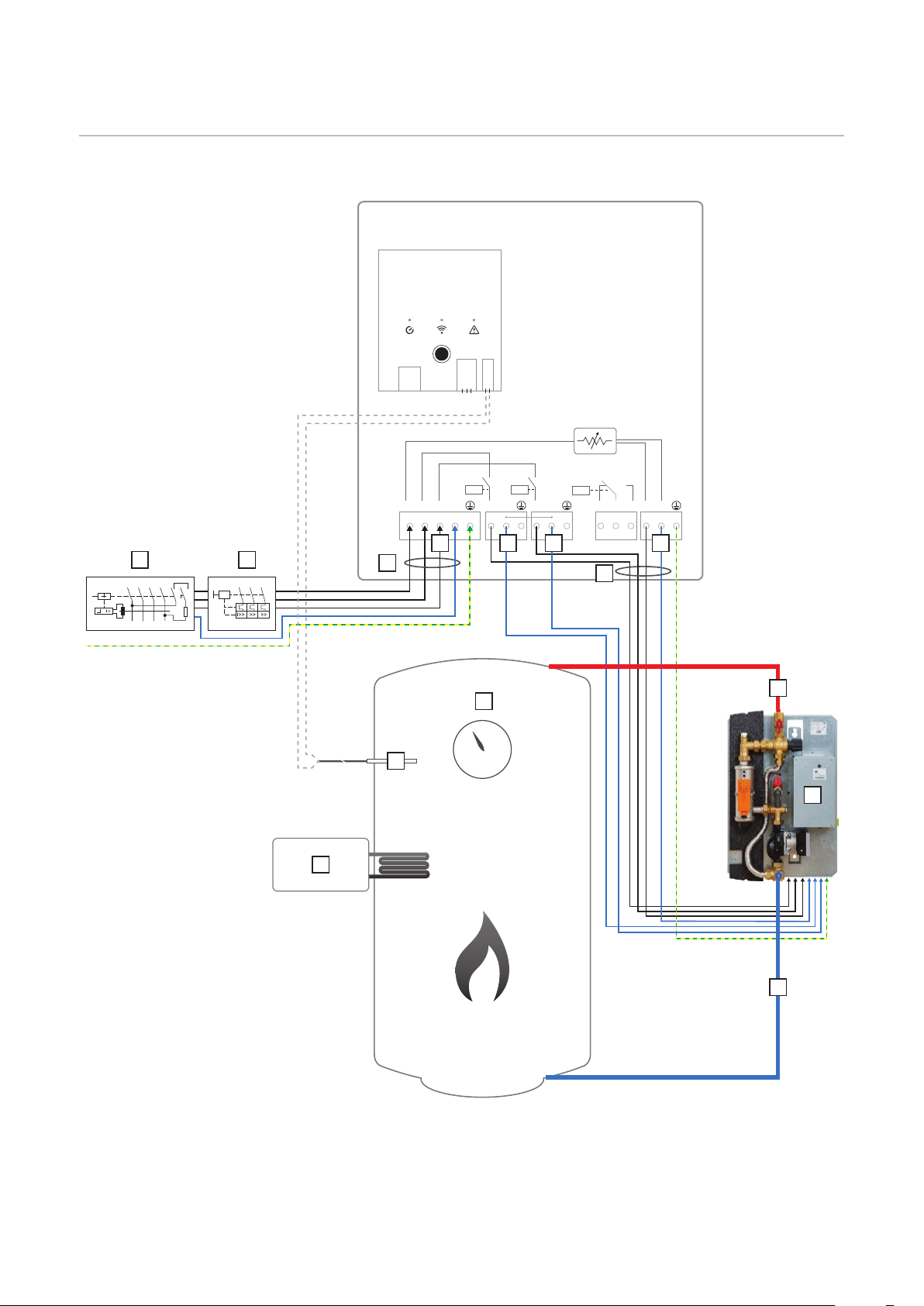

Der Fronius Smart Meter erfasst am Einspeisepunkt die aktuelle Leistung und überträgt die Daten an den Datamanager. Der Datamanger regelt durch Ansteuerung des Ohm­pilot eine zur Verfügung stehende Überschussenergie auf Null aus. Dies geschieht im Detail durch stufenlose Ansteuerung des am Ohmpilot angeschlossenen Heizkreislaufs tubra® - eTherm.
2
Tubra-eTherm (9kW)
8
Fehlerstrom-Schutzschalter
9
Leitungsschutzschalter max. B16A
10
Ferrit (im Lieferungumfang)
11
Wasseranschluss an Boiler zur
12
Schichtung
Das heißt, die Überschussenergie wird mit dem im tubra ® – eTherm verbauten Heizele­ment stufenlos verbraucht. Je nach Überschussleistung werden die einzelnen Phasen zu,- bzw abgeschaltet und die restliche Leistung an L1 verbraucht.
Tubra® – eTherm erwärmt das Wasser in einem Rohrsystem durch Zirkulation, wodurch
das Wasser bereits mit der Zieltemperatur in den Boiler einießt. Somit wird eine ideale
verwirbelungsfreie Schichtung erreicht. Bereits bei geringer verfügbarer Energie steht somit Wasser mit nutzbarer Temperatur zur Verfügung. Nähere Details sind im Datenblatt von Tubra® – eTherm zu entnehmen.
Wenn kein Temperatursensor verbaut ist, muss eine Fremdquelle (z.B. Gastherme) für die Mindesttemperatur sorgen.
Als Alternative kann auch der Ohmpilot die Mindesttemperatur sicherstellen. Dazu muss ein Temperatursensor angeschlossen sein, sodass der Ohmpilot die Temperatur messen kann. Dadurch kann ein Netzbezug entstehen.
Tubra –eTherm in Combination with the Ohmpilot
G B R
9 10
1 3 5 7
2 4 6 8
12345
LAN
L2 L2L3 N N L3 N
L1
11
6
RS485
PT1000
D+D- -
R3
NC W NO OUT
2
1
3
N
4
11
12
5
6
8
42,0410,0166,EN 004-08052018
7
12
INPUT - grid supply 1x 230 V Spring
1
balancer 1.5 - 2.5 mm2
NOTE! Phase and neutral con­ductors must not be mixed up. Residual current-operated circuit breaker is triggered.
External source (e.g. gas-red
7
heating)
Tubra-eTherm (9 kW)
8
EN
Functional Description
OUTPUT - L2 Heating Element
2
OUTPUT - L3 Heating Element
3
OUTPUT up to 3 kW variable max.
4
13 A resistive load Spring balancer 1.5 - 2.5 mm
Hot water boiler
5
PT1000 temperature sensor
6
The Fronius Smart Meter records the current power at the feed-in point and transfers the data to the Datamanager. By controlling the Ohmpilot, the Datamanager adjusts any sur­plus energy that is available to zero. In detail, this takes place by continuously adjusting the heating circuit tubra® - eTherm connected to the Ohmpilot.
That means that surplus energy is continuously consumed by the installed tubra®­eTherm heating element. Depending on the excess power, the individual phases are switched on or off and L1 consumes the remaining power.
2
Residual-current circuit breaker
9
Circuit breaker max. B16A
10
Ferrite (included in delivery)
11
Water supply to the boiler for
12
stratication
Tubra®-eTherm heats the water in a pipe system by circulating it, so that the water
can ow into the boiler at the target temperature. Thus, straightforward stratication is
achieved. Even when a low amount of energy is available, the water temperature can be managed. Further details can be found in the Tubra®-eTherm data sheet.
If no temperature sensor is installed, an external source (e.g. a gas boiler) must provide the minimum temperature.
As an alternative, the Ohmpilot can also control the minimum temperature. To do this, a temperature sensor must be connected so that the Ohmpilot can measure the tempera­ture. This may result in electricity being sourced from the grid.
