TransPocket 150/180 Standard

Fronius TransPocket 150/180 Standard Operating Instruction [EN]

Download
Fronius prints on elemental chlorine free paper (ECF) sourced from certified sustainable forests (FSC).
/ Perfect Charging / Perfect Welding / Solar Energy
TransPocket 150 TransPocket 180
Operating instructions
EN
42,0426,0203,EN 030-10022022
Contents
Safety rules 5
General 16
Before commissioning 19
Controls, connections and mechanical components 21
Safety 21 TransPocket 150 controls, connections and mechanical components 22 TransPocket 180 controls, connections and mechanical components 23 Control panel 24
MMA welding 26
TIG welding 31
Welding process Setup menu 36
Accessing the Setup menu 36 Changing welding parameters 36 Exiting the Setup menu 36
EN
3
Parameters for MMA welding 36 Parameters for TIG welding 38
Setup menu - Level 2 39
Welding parameters in the level 2 Setup menu 39
Care, maintenance and disposal 41
Safety 41 General 41 Maintenance at every start-up 41 Maintenance every 2 months 42 Disposal 42
Troubleshooting 43
Average consumption values during welding 48
Average wire electrode consumption during MIG/MAG welding 48 Average shielding gas consumption during MIG/MAG welding 48 Average shielding gas consumption during TIG welding 48
Technical data 49
4
Safety rules
EN
Explanation of safety notices
DANGER!
Indicates immediate danger.
If not avoided, death or serious injury will result.
▶
WARNING!
Indicates a potentially hazardous situation.
If not avoided, death or serious injury may result.
▶
CAUTION!
Indicates a situation where damage or injury could occur.
If not avoided, minor injury and/or damage to property may result.
▶
NOTE!
Indicates a risk of flawed results and possible damage to the equipment.
General The device is manufactured using state-of-the-art technology and according to recog-
nised safety standards. If used incorrectly or misused, however, it can cause:
- injury or death to the operator or a third party,
- damage to the device and other material assets belonging to the operating com­pany,
- inefficient operation of the device.
All persons involved in commissioning, operating, maintaining and servicing the device must:
- be suitably qualified,
- have sufficient knowledge of welding and
- read and follow these operating instructions carefully.
The operating instructions must always be at hand wherever the device is being used. In addition to the operating instructions, attention must also be paid to any generally applic­able and local regulations regarding accident prevention and environmental protection.
All safety and danger notices on the device
- must be in a legible state,
- must not be damaged,
- must not be removed,
- must not be covered, pasted or painted over.
For the location of the safety and danger notices on the device, refer to the section headed "General" in the operating instructions for the device. Before switching on the device, rectify any faults that could compromise safety.
This is for your personal safety!
Proper use The device is to be used exclusively for its intended purpose.
5
The device is intended solely for the welding processes specified on the rating plate. Any use above and beyond this purpose is deemed improper. The manufacturer shall not be held liable for any damage arising from such usage.
Proper use includes:
- carefully reading and following all the instructions given in the operating instructions
- studying and obeying all safety and danger notices carefully
- performing all stipulated inspection and maintenance work.
Never use the device for the following purposes:
- Thawing out pipes
- Charging batteries
- Starting engines
The device is designed for use in industry and the workshop. The manufacturer accepts no responsibility for any damage caused through use in a domestic setting.
The manufacturer likewise accepts no liability for inadequate or incorrect results.
Environmental conditions
Obligations of the operator
Operation or storage of the device outside the stipulated area will be deemed as not in accordance with the intended purpose. The manufacturer shall not be held liable for any damage arising from such usage.
Ambient temperature range:
- during operation: -10 °C to + 40 °C (14 °F to 104 °F)
- during transport and storage: -20 °C to +55 °C (-4 °F to 131 °F)
Relative humidity:
- up to 50% at 40 °C (104 °F)
- up to 90% at 20 °C (68 °F)
The surrounding air must be free from dust, acids, corrosive gases or substances, etc. Can be used at altitudes of up to 2000 m (6561 ft. 8.16 in.)
The operator must only allow persons to work with the device who:
- are familiar with the fundamental instructions regarding safety at work and accident prevention and have been instructed in how to use the device
- have read and understood these operating instructions, especially the section "safety rules", and have confirmed as much with their signatures
- are trained to produce the required results.
Checks must be carried out at regular intervals to ensure that operators are working in a safety-conscious manner.
Obligations of personnel
Mains connection Devices with a higher rating may affect the energy quality of the mains due to their cur-
6
Before using the device, all persons instructed to do so undertake:
- to observe the basic instructions regarding safety at work and accident prevention
- to read these operating instructions, especially the "Safety rules" section and sign to confirm that they have understood them and will follow them.
Before leaving the workplace, ensure that people or property cannot come to any harm in your absence.
rent consumption.
This may affect a number device types in terms of:
- Connection restrictions
-
Criteria with regard to the maximum permissible mains impedance
-
Criteria with regard to the minimum short-circuit power requirement
*)
at the interface with the public grid
*)
*)
see "Technical data"
In this case, the plant operator or the person using the device should check whether the device may be connected, where appropriate by discussing the matter with the power supply company.
IMPORTANT! Ensure that the mains connection is earthed properly
EN
Residual current protective device
Protecting your­self and others
Local regulations and national guidelines may require a residual current protective device when connecting equipment to the public grid. The type of residual current protective device recommended by the manufacturer for the equipment is indicated in the technical data.
Anyone working with the device exposes themselves to numerous risks, e.g.
- flying sparks and hot pieces of metal
- Arc radiation, which can damage eyes and skin
- Hazardous electromagnetic fields, which can endanger the lives of those using car­diac pacemakers
- Risk of electrocution from mains current and welding current
- Greater noise pollution
- Harmful welding fumes and gases
Suitable protective clothing must be worn when working with the device. The protective clothing must have the following properties:
- Flame-resistant
- Insulating and dry
- Covers the whole body, is undamaged and in good condition
- Safety helmet
- Trousers with no turn-ups
Protective clothing refers to a variety of different items. Operators should:
- Protect eyes and face from UV rays, heat and sparks using a protective visor and regulation filter
- Wear regulation protective goggles with side protection behind the protective visor
- Wear stout footwear that provides insulation even in wet conditions
- Protect the hands with suitable gloves (electrically insulated and providing protection against heat)
- Wear ear protection to reduce the harmful effects of noise and to prevent injury
Noise emission values
Keep all persons, especially children, out of the working area while any devices are in operation or welding is in progress. If, however, there are people in the vicinity:
- Make them aware of all the dangers (risk of dazzling by the arc, injury from flying sparks, harmful welding fumes, noise, possible risks from mains current and welding current, etc.)
- Provide suitable protective equipment
- Alternatively, erect suitable safety screens/curtains.
The device generates a maximum sound power level of <80 dB(A) (ref. 1pW) when idling and in the cooling phase following operation at the maximum permissible operating point under maximum rated load conditions according to EN 60974-1.
7
It is not possible to provide a workplace-related emission value during welding (or cut­ting) as this is influenced by both the process and the environment. All manner of differ­ent welding parameters come into play, including the welding process (MIG/MAG, TIG welding), the type of power selected (DC or AC), the power range, the type of weld met­al, the resonance characteristics of the workpiece, the workplace environment, etc.
Danger from tox­ic gases and va­pours
The fumes produced during welding contain harmful gases and vapours.
Welding fumes contain substances that cause cancer, as stated in Monograph 118 of the International Agency for Research on Cancer.
Use at-source extraction and a room extraction system. If necessary, use a welding torch with an integrated extraction device.
Keep your face away from welding fumes and gases.
Fumes and hazardous gases
- must not be breathed in
- must be extracted from the working area using appropriate methods.
Ensure an adequate supply of fresh air. Ensure that there is a ventilation rate of at least 20 m³ per hour at all times.
Otherwise, a welding helmet with an air supply must be worn.
If there is any doubt about whether the extraction capacity is sufficient, the measured toxic emission values should be compared with the permissible limit values.
The following components are responsible, amongst other things, for the degree of tox­icity of welding fumes:
- Metals used for the workpiece
- Electrodes
- Coatings
- Cleaners, degreasers, etc.
- Welding process used
Danger from fly­ing sparks
The relevant material safety data sheets and manufacturer's specifications for the listed components should therefore be studied carefully.
Recommendations for trade fair scenarios, risk management measures and for identify­ing working conditions can be found on the European Welding Association website under Health & Safety (https://european-welding.org).
Flammable vapours (e.g. solvent fumes) should be kept away from the arc's radiation area.
Close the shielding gas cylinder valve or main gas supply if no welding is taking place.
Flying sparks may cause fires or explosions.
Never weld close to flammable materials.
Flammable materials must be at least 11 metres (36 ft. 1.07 in.) away from the arc, or alternatively covered with an approved cover.
A suitable, tested fire extinguisher must be available and ready for use.
Sparks and pieces of hot metal may also get into adjacent areas through small gaps or openings. Take appropriate precautions to prevent any danger of injury or fire.
8
Welding must not be performed in areas that are subject to fire or explosion or near sealed tanks, vessels or pipes unless these have been prepared in accordance with the relevant national and international standards.
Do not carry out welding on containers that are being or have been used to store gases, propellants, mineral oils or similar products. Residues pose an explosive hazard.
EN
Risks from mains current and weld­ing current
An electric shock is potentially life threatening and can be fatal.
Do not touch live parts either inside or outside the device.
During MIG/MAG welding and TIG welding, the welding wire, the wirespool, the feed rollers and all pieces of metal that are in contact with the welding wire are live.
Always set the wirefeeder up on a sufficiently insulated surface or use a suitable, insu­lated wirefeeder holder.
Make sure that you and others are protected with an adequately insulated, dry base or cover for the earth or ground potential. This base or cover must extend over the entire area between the body and the earth or ground potential.
All cables and leads must be secured, undamaged, insulated and adequately dimen­sioned. Replace loose connections and scorched, damaged, or inadequately dimen­sioned cables and leads immediately. Use the handle to ensure the power connections are tight before every use. In the case of power cables with a bayonet connector, rotate the power cable around the longitudinal axis by at least 180° and pretension.
Do not wrap cables or leads around the body or parts of the body.
The electrode (rod electrode, tungsten electrode, welding wire, etc.) must
- never be immersed in liquid for cooling
- Never touch the electrode when the power source is switched on.
Double the open circuit voltage of a power source can occur between the welding elec­trodes of two power sources. Touching the potentials of both electrodes at the same time may be fatal under certain circumstances.
Arrange for the mains cable to be checked regularly by a qualified electrician to ensure the ground conductor is functioning properly.
Protection class I devices require a mains supply with ground conductor and a connector system with ground conductor contact for proper operation.
Operation of the device on a mains supply without ground conductor and on a socket without ground conductor contact is only permitted if all national regulations for protective separation are observed. Otherwise, this is considered gross negligence. The manufacturer shall not be held liable for any damage arising from such usage.
If necessary, provide adequate earthing for the workpiece.
Switch off unused devices.
Wear a safety harness if working at height.
Before working on the device, switch it off and pull out the mains plug.
Attach a clearly legible and easy-to-understand warning sign to the device to prevent anyone from plugging the mains plug back in and switching it on again.
After opening the device:
- Discharge all live components
- Ensure that all components in the device are de-energised.
9
If work on live parts is required, appoint a second person to switch off the main switch at the right moment.
Meandering weld­ing currents
EMC Device Clas­sifications
If the following instructions are ignored, meandering welding currents can develop with the following consequences:
- Fire hazard
- Overheating of parts connected to the workpiece
- Damage to ground conductors
- Damage to device and other electrical equipment
Ensure that the workpiece is held securely by the workpiece clamp.
Attach the workpiece clamp as close as possible to the area that is to be welded.
Position the device with sufficient insulation against electrically conductive environments, such as insulation against conductive floor or insulation to conductive racks.
If power distribution boards, twin-head mounts, etc., are being used, note the following: The electrode of the welding torch / electrode holder that is not used is also live. Make sure that the welding torch / electrode holder that is not used is kept sufficiently insu­lated.
In the case of automated MIG/MAG applications, ensure that only an insulated wire elec­trode is routed from the welding wire drum, large wirefeeder spool or wirespool to the wirefeeder.
Devices in emission class A:
- Are only designed for use in industrial settings
- Can cause line-bound and radiated interference in other areas
Devices in emission class B:
- Satisfy the emissions criteria for residential and industrial areas. This is also true for residential areas in which the energy is supplied from the public low-voltage mains.
EMC device classification as per the rating plate or technical data.
EMC measures In certain cases, even though a device complies with the standard limit values for emis-
sions, it may affect the application area for which it was designed (e.g. when there is sensitive equipment at the same location, or if the site where the device is installed is close to either radio or television receivers). If this is the case, then the operator is obliged to take appropriate action to rectify the situation.
Check and evaluate the immunity to interference of nearby devices according to national and international regulations. Examples of equipment that may be susceptible to interfer­ence from the device include:
- Safety devices
- Network, signal and data transfer lines
- IT and telecommunications devices
- Measuring and calibrating devices
Supporting measures for avoidance of EMC problems:
1. Mains supply
- If electromagnetic interference arises despite the correct mains connection, ad-
ditional measures are necessary (e.g. use of a suitable line filter)
10
2. Welding power-leads
- must be kept as short as possible
- must be laid close together (to avoid EMF problems)
- must be kept well apart from other leads
3. Equipotential bonding
4. Earthing of the workpiece
- If necessary, establish an earth connection using suitable capacitors.
5. Shield, if necessary
- Shield other devices nearby
- Shield the entire welding installation
EMF measures Electromagnetic fields may pose as yet unknown risks to health:
- Effects on the health of persons in the vicinity, e.g. those with pacemakers and hear­ing aids
- Individuals with pacemakers must seek advice from their doctor before approaching the device or any welding that is in progress
- For safety reasons, maintain as large a distance as possible between the welding power-leads and the head/torso of the welder
- Do not carry welding power-leads and hosepacks over the shoulders or wind them around any part of the body
EN
Specific hazards Keep hands, hair, clothing and tools away from moving parts. For example:
- Fans
- Cogs
- Rollers
- Shafts
- Wirespools and welding wires
Do not reach into the rotating cogs of the wire drive or into rotating drive components.
Covers and side panels may only be opened/removed while maintenance or repair work is being carried out.
During operation
- Ensure that all covers are closed and all side panels are fitted properly.
- Keep all covers and side panels closed.
The welding wire emerging from the welding torch poses a high risk of injury (piercing of the hand, injuries to the face and eyes, etc.).
Therefore, always keep the welding torch away from the body (devices with wirefeeder) and wear suitable protective goggles.
Never touch the workpiece during or after welding - risk of burns.
Slag can jump off cooling workpieces. The specified protective equipment must therefore also be worn when reworking workpieces, and steps must be taken to ensure that other people are also adequately protected.
Welding torches and other parts with a high operating temperature must be allowed to cool down before handling.
Special provisions apply in areas at risk of fire or explosion
- observe relevant national and international regulations.
Power sources for work in areas with increased electric risk (e.g. near boilers) must carry the "Safety" sign. However, the power source must not be located in such areas.
Risk of scalding from escaping coolant. Switch off cooling unit before disconnecting coolant flow or return lines.
11
Observe the information on the coolant safety data sheet when handling coolant. The coolant safety data sheet may be obtained from your service centre or downloaded from the manufacturer's website.
Use only suitable load-carrying equipment supplied by the manufacturer when transport­ing devices by crane.
- Hook chains or ropes onto all suspension points provided on the load-carrying equipment.
- Chains and ropes must be at the smallest angle possible to the vertical.
- Remove gas cylinder and wirefeeder (MIG/MAG and TIG devices).
If the wirefeeder is attached to a crane holder during welding, always use a suitable, in­sulated wirefeeder hoisting attachment (MIG/MAG and TIG devices).
If the device has a carrying strap or handle, this is intended solely for carrying by hand. The carrying strap is not to be used if transporting with a crane, counterbalanced lift truck or other mechanical hoist.
All lifting tackle (straps, handles, chains, etc.) used in connection with the device or its components must be tested regularly (e.g. for mechanical damage, corrosion or changes caused by other environmental factors). The testing interval and scope of testing must comply with applicable national standards and directives as a minimum.
Odourless and colourless shielding gas may escape unnoticed if an adapter is used for the shielding gas connection. Prior to assembly, seal the device-side thread of the ad­apter for the shielding gas connection using suitable Teflon tape.
Requirement for the shielding gas
Danger from shielding gas cyl­inders
Especially with ring lines, contaminated shielding gas can cause damage to equipment and reduce welding quality. Meet the following requirements regarding shielding gas quality:
- Solid particle size < 40 µm
- Pressure condensation point < -20 °C
- Max. oil content < 25 mg/m³
Use filters if necessary.
Shielding gas cylinders contain gas under pressure and can explode if damaged. As the shielding gas cylinders are part of the welding equipment, they must be handled with the greatest of care.
Protect shielding gas cylinders containing compressed gas from excessive heat, mech­anical impact, slag, naked flames, sparks and arcs.
Mount the shielding gas cylinders vertically and secure according to instructions to pre­vent them falling over.
Keep the shielding gas cylinders well away from any welding or other electrical circuits.
Never hang a welding torch on a shielding gas cylinder.
Never touch a shielding gas cylinder with an electrode.
12
Risk of explosion - never attempt to weld a pressurised shielding gas cylinder.
Only use shielding gas cylinders suitable for the application in hand, along with the cor­rect and appropriate accessories (regulator, hoses and fittings). Only use shielding gas cylinders and accessories that are in good condition.
Turn your face to one side when opening the valve of a shielding gas cylinder.
Close the shielding gas cylinder valve if no welding is taking place.
Safety measures at the installation location and dur­ing transport
If the shielding gas cylinder is not connected, leave the valve cap in place on the cylin­der.
The manufacturer's instructions must be observed as well as applicable national and in­ternational regulations for shielding gas cylinders and accessories.
A device toppling over could easily kill someone. Place the device on a solid, level sur­face such that it remains stable
- The maximum permissible tilt angle is 10°.
Special regulations apply in rooms at risk of fire or explosion
- Observe relevant national and international regulations.
Use internal directives and checks to ensure that the workplace environment is always clean and clearly laid out.
Only set up and operate the device in accordance with the degree of protection shown on the rating plate.
When setting up the device, ensure there is an all-round clearance of 0.5 m (1 ft. 7.69 in.) to ensure that cooling air can flow in and out freely.
When transporting the device, observe the relevant national and local guidelines and ac­cident prevention regulations. This applies especially to guidelines regarding the risks arising during transport.
EN
Safety measures in normal opera­tion
Do not lift or transport operational devices. Switch off devices before transport or lifting.
Before transporting the device, allow coolant to drain completely and detach the follow­ing components:
- Wirefeeder
- Wirespool
- Shielding gas cylinder
After transporting the device, the device must be visually inspected for damage before commissioning. Any damage must be repaired by trained service technicians before commissioning the device.
Only operate the device when all safety devices are fully functional. If the safety devices are not fully functional, there is a risk of
- injury or death to the operator or a third party
- damage to the device and other material assets belonging to the operator
- inefficient operation of the device
Any safety devices that are not functioning properly must be repaired before switching on the device.
Never bypass or disable safety devices.
Before switching on the device, ensure that no one is likely to be endangered.
Check the device at least once a week for obvious damage and proper functioning of safety devices.
Always fasten the shielding gas cylinder securely and remove it beforehand if the device is to be transported by crane.
13
Only the manufacturer's original coolant is suitable for use with our devices due to its properties (electrical conductibility, anti-freeze agent, material compatibility, flammability, etc.).
Only use suitable original coolant from the manufacturer.
Do not mix the manufacturer's original coolant with other coolants.
Only connect the manufacturer's system components to the cooling circuit.
The manufacturer accepts no liability for damage resulting from use of other system components or a different coolant. In addition, all warranty claims will be forfeited.
Cooling Liquid FCL 10/20 does not ignite. The ethanol-based coolant can ignite under certain conditions. Transport the coolant only in its original, sealed containers and keep well away from any sources of ignition.
Used coolant must be disposed of properly in accordance with the relevant national and international regulations. The coolant safety data sheet may be obtained from your ser­vice centre or downloaded from the manufacturer's website.
Check the coolant level before starting to weld, while the system is still cool.
Commissioning, maintenance and repair
Safety inspection The manufacturer recommends that a safety inspection of the device is performed at
It is impossible to guarantee that bought-in parts are designed and manufactured to meet the demands made of them, or that they satisfy safety requirements.
- Use only original spare and wearing parts (also applies to standard parts).
- Do not carry out any modifications, alterations, etc. to the device without the manu­facturer's consent.
- Components that are not in perfect condition must be replaced immediately.
- When ordering, please give the exact designation and part number as shown in the spare parts list, as well as the serial number of your device.
The housing screws provide the ground conductor connection for earthing the housing parts. Only use original housing screws in the correct number and tightened to the specified torque.
least once every 12 months.
The manufacturer recommends that the power source be calibrated during the same 12­month period.
A safety inspection should be carried out by a qualified electrician
- after any changes are made
- after any additional parts are installed, or after any conversions
- after repair, care and maintenance has been carried out
- at least every twelve months.
For safety inspections, follow the appropriate national and international standards and directives.
Further details on safety inspection and calibration can be obtained from your service centre. They will provide you on request with any documents you may require.
Disposal Do not dispose of this device with normal domestic waste! To comply with the European
Directive on Waste Electrical and Electronic Equipment and its implementation as nation­al law, electrical equipment that has reached the end of its life must be collected separ-
14
ately and returned to an approved recycling facility. Any device that you no longer require must either be returned to your dealer or given to one of the approved collection and re­cycling facilities in your area. Ignoring this European Directive may have potentially ad­verse affects on the environment and your health!
Safety symbols Devices with the CE mark satisfy the essential requirements of the low-voltage and elec-
tromagnetic compatibility directives (e.g. relevant product standards of the EN 60 974 series).
Fronius International GmbH hereby declares that the device is compliant with Directive 2014/53/EU. The full text on the EU Declaration of Conformity can be found at the follow­ing address: http://www.fronius.com
Devices marked with the CSA test mark satisfy the requirements of the relevant stand­ards for Canada and the USA.
Data protection The user is responsible for the safekeeping of any changes made to the factory settings.
The manufacturer accepts no liability for any deleted personal settings.
EN
Copyright Copyright of these operating instructions remains with the manufacturer.
The text and illustrations are all technically correct at the time of printing. We reserve the right to make changes. The contents of the operating instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you have any sugges­tions for improvement, or can point out any mistakes that you have found in the instruc­tions, we will be most grateful for your comments.
15
General
Device concept The power source has the following prop-
erties:
- Compact dimensions
- Robust plastic housing
- Extremely reliable even under harsh operating conditions
- Carrying strap for easy transport on construction sites, etc.
- Protected controls
- Current sockets with bayonet latch
In conjunction with the digital resonance inverter, an electronic regulator adapts the power source characteristic to suit the welding electrode during welding. The result is a lightweight and compact device with excellent ignition and weld properties.
Warning notices on the device
The power source also features a Power Factor Correction, which adapts the current consumption of the power source to the sinusoidal mains voltage. This results in numer­ous advantages for the user, such as:
- Low primary current
- Low conduction losses
- Late tripping of the circuit breaker
- Improved stability in the event of voltage fluctuations
- Long mains leads can be used
- In the case of multivoltage devices, a continuous input voltage range
When using cellulose electrodes (CEL), a dedicated operating mode can be chosen for perfect welding results.
The warning notices and safety symbols on the power source must not be removed or painted over. They warn against incorrect operation which can lead to serious injury and damage.
Meaning of safety symbols on the device:
Welding is dangerous. The following basic requirements must be met to ensure the equipment is used properly:
- Welders must be sufficiently qualified
- Suitable protective equipment must be used
- All persons not involved must be kept at a safe distance from the welding process
16
Do not use the functions described here until you have fully read and un­derstood the following documents:
- These Operating Instructions
- all the Operating Instructions for the system components of the power source, especially the safety rules
Do not dispose of used devices with domestic waste. Dispose of them ac­cording to the safety rules.
EN
Application areas
MMA welding
17
TIG welding, welding torch with gas cut-off valve
18
Before commissioning
EN
Safety
Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
▶ ▶
▶
Proper use The power source is intended exclusively for MMA welding and TIG welding in conjunc-
tion with system components from Fronius. Utilisation for any other purpose, or in any other manner, shall be deemed to be not in accordance with the intended purpose. The manufacturer shall not be held liable for any damages arising from such usage.
Proper use also includes:
- carefully reading these operating instructions
- following all the instructions and safety rules in these operating instructions
- performing all stipulated inspection and maintenance work
WARNING!
All the work and functions described in this document must only be carried out by technically trained and qualified personnel. Read and understand this document in full.
Read and understand all safety rules and user documentation for this device and all system components.
Setup regulations
WARNING!
Danger from machines toppling over or falling.
This can result in serious personal injury and damage to property.
Set up the device securely on an even, solid surface.
▶
Check all screw connections are tightly fastened after installation.
▶
The device is tested to IP 23 protection, meaning:
- Protection against penetration by solid foreign bodies with diameters > 12.5 mm (0.49 in.)
- Protected against spraywater at any angle up to 60° to the vertical
Cooling air
The device must be set up in such a way that cooling air can flow freely through the slots in the front and rear panels.
Dust
Ensure that metallic dust is not sucked into the system by the fan, when carrying out grinding for example.
Outdoor operation
The device can be set up and operated outdoors in accordance with IP23 degree of pro­tection. Avoid direct wetting (e.g. from rain).
Generator­powered opera­tion
The power source is generator-compatible.
19
In order to dimension the required generator output, the maximum apparent power S of the power source is required.
1max
The maximum apparent power S S
1max
= I
1max
x U
1
See device rating plate or technical data for I
The generator apparent power S
of the power source can be calculated as follows:
1max
and U1 values
1max
needed is calculated using the following rule of
GEN
thumb: S
GEN
= S
1max
x 1.35
A smaller generator may be used when not welding at full power.
IMPORTANT! The generator apparent power S imum apparent power S
of the power source.
1max
must always be higher than the max-
GEN
When using single-phase devices with a 3-phase generator, note that the specified gen­erator apparent power is often only available as a whole across all three phases of the generator. If necessary, obtain further information on the single-phase power of the gen­erator from the generator manufacturer.
NOTE!
The voltage delivered by the generator must never exceed the upper or lower lim­its of the mains voltage tolerance range.
Details of the mains voltage tolerance can be found in the "Technical data" section.
20
Controls, connections and mechanical components
EN
Safety
WARNING!
Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
All the work and functions described in this document must only be carried out by
▶
technically trained and qualified personnel. Read and understand this document in full.
▶
Read and understand all safety rules and user documentation for this device and all
▶
system components.
As a result of software updates, you may find that there are functions available on your device that are not described in these Operating Instructions, or vice versa. Certain illustrations may also differ slightly from the actual controls on your device, but these controls function in exactly the same way.
21
TransPocket 150
(2) (3)
(4)
(1)
(7)
(6)
(5)
(8)

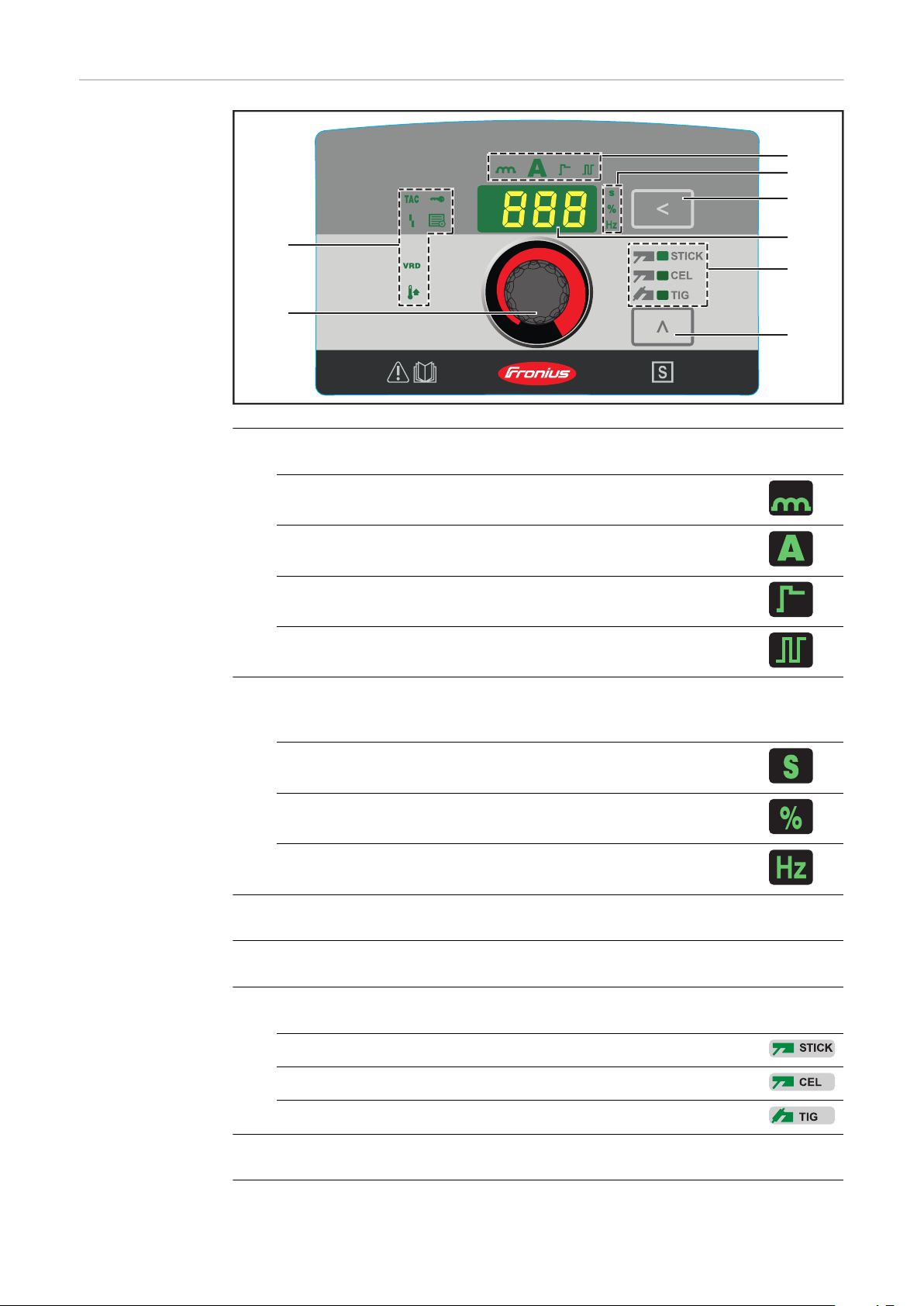

controls, connec­tions and mech­anical compon­ents
(1) Control panel
(2) (-) current socket
with bayonet latch
(3) TMC connection (TIG Multi Connector)
TransPocket 150 RC only - for connecting a remote control
After connecting a remote control to the power source
- ‘rc‘ appears on the power source display
- the welding current can only be adjusted using the remote control
(4) (+) current socket
with bayonet latch
(5) Carrying strap
(6) Cable strap
for holding the mains cable and the welding power-leads Do not use to move the device!
(7) Mains switch
(8) Air filter
Use of the current connections during manual metal arc welding (depending on electrode type):
- (+) current socket for electrode holder or grounding cable
- (-) current socket for electrode holder or grounding cable
Use of the current connections during TIG welding:
- (+) current socket for grounding cable
- (-) current socket for welding torch
22
TransPocket 180
(2) (3)
(4)
(1)
(7)
(8)
(5)
(6)
controls, connec­tions and mech­anical compon­ents
EN
(1) Control panel
(2) (-) current socket
with bayonet latch
(3) TMC connection (TIG Multi Connector)
TransPocket 180 RC only - for connecting a remote control
After connecting a remote control to the power source
- ‘rc‘ appears on the power source display
- the welding current can only be adjusted using the remote control
(4) (+) current socket
with bayonet latch
(5) Carrying strap
(6) Cable strap
for holding the mains cable and the welding power-leads Do not use to move the device!
(7) Mains switch
(8) Air filter
Use of the current connections during manual metal arc welding (depending on electrode type):
- (+) current socket for electrode holder or grounding cable
- (-) current socket for electrode holder or grounding cable
Use of the current connections during TIG welding:
- (+) current socket for grounding cable
- (-) current socket for welding torch
23
Control panel
(7)
(3)
(4)
(5)
(6)
(1) (2)
(8)
(1) Setting value indicator
shows which setting value is selected:
- Arc-force dynamic
- Welding current
- SoftStart / HotStart function
- Pulse welding (only available for manual metal arc welding)
(2) Unit indicator
shows the unit of the value that is currently being changed with the adjusting dial (7):
- Time (seconds)
- Percent
- Frequency (Hertz)
(3) Setting value button
for selecting the desired setting value (1)
(4) Display
shows the current figure of the selected setting value
(5) Welding process indicator
shows which welding process is selected:
24
- MMA welding
- MMA welding with Cel electrode
- TIG welding
(6) Welding process button
for selecting the welding process
(7) Adjusting dial
for continuous adjustment of the selected setting value (1)
(8) Status indicators
display various operating modes of the power source:
- VRD lights up when the safety device for voltage reduction is activ­ated (VRD devices only)
- Setup lights up in Setup mode
- Temperature lights up when the device is outside the permissible temperature range
- Fault lights up in the event of a fault, also see section "Troubleshoot­ing"
- TAC lights up when the tacking function is activated (only on TIG devices with the TIG welding process)
EN
25
MMA welding
Preparation
1 2
3 4
CAUTION!
Danger from electric shocks. As soon as the power source is switched on, the electrode in the electrode holder is live.
This can result in injury and damage to property.
Ensure the electrode does not touch any persons or electrically conductive or
▶
earthed parts (e.g. the housing, etc.).
26
5
EN
MMA welding
SoftStart / Hot­Start function
Use the welding process button to select one of the following pro-
1
cesses:
- MMA welding - the MMA welding indicator lights up after selec­tion
- MMA welding with Cel electrode - the MMA welding with Cel electrode indicator lights up after selection
Press the setting value button until
2
- the welding current indicator lights up
Adjust the welding current using the adjusting dial
3
- power source is ready for welding
This function is used to set the starting current.
Setting range: 1 - 200 %
Operating principle: At the start of the welding process, the welding current is reduced (SoftStart) or in­creased (HotStart) for 0.5 seconds, depending on the setting. The change is shown as a percentage from the set welding current.
The duration of the starting current can be changed in the Setup menu using the starting current duration (Hti) parameter.
Setting the starting current:
Press the setting value button until
1
- the SoftStart / HotStart indicator lights up
27
Turn the adjusting dial until the desired value is reached
I (A)
t
90A
0,5 s 1 s 1,5 s
120A
2
- power source is ready for welding
The maximum HotStart current is limited as follows:
- TransPocket 150 to 160 A
- TransPocket 180 to 200 A
Examples (set welding current = 100 A):
100 % = 100 A starting current = function deactivated
80 % = 80 A starting current = SoftStart
135 % = 135 A starting current = HotStart
200 % = 160 A starting current on TransPocket 150 = HotStart, maximum current
limit is reached!
200 % = 200 A starting current on TransPocket 180 = HotStart
Features of SoftStart function:
- Reduced pore formation with certain electrode types
Features of HotStart function:
- Improved ignition properties, even when using electrodes with poor igni­tion properties
- Better fusion of the base material dur­ing the start-up phase, meaning fewer cold-shut defects
- Largely prevents slag inclusions
Example of HotStart function
Arc-force dynam-icTo obtain optimum welding results, it will sometimes be necessary to adjust the arc-force
dynamic.
Setting range: 0 - 100 (corresponds to 0 - 200 A current increase)
Operating principle: At the moment of droplet transfer or in the event of a short circuit, the amperage is briefly increased in order to obtain a stable arc. If the rod electrode threatens to sink into the weld pool, this measure prevents the weld pool solidifying, as well as preventing a prolonged short-circuit of the arc. This largely prevents the rod electrode from sticking.
Setting the arc-force dynamic:
Press the setting value button until
1
- the arc-force dynamic indicator lights up
28
Turn the adjusting dial until the desired correction value is reached
I-P
I-G
I
t
SoftStart / HotStart
dcY
1/F-P
2
- power source is ready for welding
The maximum arc-force dynamic current is limited as follows:
- TransPocket 150 to 180 A
- TransPocket 180 to 220 A
Examples:
- Arc-force dynamic = 0
- arc-force dynamic deactivated
- soft, low-spatter arc
- Arc-force dynamic = 20
- arc-force dynamic with 40 A current increase
- harder, more stable arc
- Arc-force dynamic = 60, set welding current = 100 A
- for the TransPocket 150: actual increase is just 80 A as the maximum current limit is reached!
- for the TransPocket 180: arc-force dynamic with 120 A current increase
Pulse welding Pulse welding is welding with a pulsing welding current. It is used for out-of-position
welding of steel pipes or when welding thin sheets.
EN
In these applications, the welding current set at the start of welding is not always ideal for the whole welding process:
- if the amperage is too low, the base material will not melt sufficiently
- if overheating occurs, the liquid weld pool may drip
Setting range: 0.2 - 990 Hz
Operating principle:
- A low base current I-G rises steeply to the significantly higher pulse current I-P and drops back to the base current I-G after the Duty cycle dcY time. The pulse current I­P can be set on the power source.
- This results in an average current that is lower than the set pulse current I-P.
- During pulse welding, small sections of the welding location melt quickly and then rapidly re-solidify.
The power source controls the Duty cycle dcY parameter and base current I-G ac­cording to the set pulse current and pulse frequency.
Pulse welding - welding current curve
29
Adjustable parameters:
- F-P = pulse frequency (1/F-P = time interval between two pulses)
- I-P = pulse current
- SoftStart / HotStart
Fixed parameters:
- I-G = base current
- dcY = duty cycle
To use pulse welding:
Press the setting value button until
1
- the pulse welding indicator lights up
Turn the adjusting dial until the desired frequency value (Hz) is reached
2
- power source is ready for welding
30
TIG welding
EN
General
Connecting the gas cylinder
NOTE!
Do not use pure tungsten electrodes (colour-coded green) if the TIG welding pro­cess has been selected.
WARNING!
Danger from falling gas cylinders.
This can result in serious injury and damage to property.
Place gas cylinders on a solid, level surface so that they remain stable. Secure gas
▶
cylinders to prevent them from falling over. Observe the safety rules of the gas cylinder manufacturer.
▶
1
Preparation
1 2
31
3
CAUTION!
Danger from electric shocks. As soon as the power source is switched on, the electrode in the welding torch is live.
This can result in injury and damage to property.
Ensure the electrode does not touch any persons or electrically conductive or
▶
earthed parts (e.g. the housing, etc.).
4
32
Setting the gas
4 6 7
pressure on the welding torch with gas cut-off valve
Welding torch with gas cut-off valve
Open the gas cut-off valve
1
- shielding gas flows
Set the desired gas flow rate on the
2
pressure regulator
Close the gas cut-off valve
3
EN
TIG welding
Select TIG welding with the welding process button
1
- the TIG welding indicator lights up
Press the setting value button until
2
- the welding current indicator lights up
Adjust the welding current using the adjusting dial
3
Place the gas nozzle down on the ignition location, ensuring there is a gap of ap-
4
prox. 2 to 3 mm (5/64 to 1/8 in.) between the tungsten electrode and the workpiece
Actuate the gas cut-off valve
5
- shielding gas flows
Gradually tilt the welding torch up until the tungsten electrode touches the work-
6
piece
Raise the welding torch and rotate it into its normal position
7
- the arc ignites
Carry out welding
8
TIG Comfort Stop To activate and set the TIG Comfort Stop function, see the description Comfort
Stop Sensitivity starting on page 38.
Operating principle and use of the TIG Comfort Stop:
33
1 2 3 4 5
+
Welding
t
tdown
I
Max. A
70 A
(1)
(2)
1 2
3 4 5+
1
During welding, raise the welding torch
2
- the arc length is increased significantly
Lower the welding torch
3
- the arc length is decreased significantly
- the TIG Comfort Stop function is activated
Keep the welding torch at the same height
4
- the welding current continually decreases (DownSlope) until the arc goes out
Wait for the gas post-flow time to finish and lift the welding torch away from the work-
5
piece
Welding current and gas flow curve with TIG Comfort Stop function activated
(1) Gas pre-flow (2) Gas post-flow
DownSlope:
The DownSlope time t
is 0.5 seconds and cannot be adjusted.
down
34
Gas post-flow:
The gas post-flow must be carried out manually.
EN
35
Welding process Setup menu
Accessing the Setup menu
Changing weld­ing parameters
Use the Welding Process button to select the process whose Setup
1
parameters are to be changed:
- MMA welding
- MMA welding with Cel electrode
- TIG welding
Press the Setting Value and Welding Process buttons at the same time
2
- The code for the first parameter in the Setup menu is displayed on the control panel
Turn the adjusting dial to select the required parameter
1
Press the adjusting dial to display the preset value of the parameter
2
Exiting the Setup menu
Parameters for MMA welding
Turn the adjusting dial to change the value
3
- the new value becomes effective immediately
- exception: when restoring the factory settings, press the adjusting dial
after changing the value to activate the new value.
Press the adjusting dial to return to the list of parameters
4
Press the Setting Value or Welding Process button to exit the Setup menu
1
Para-
Description Range Unit
meter
36
Starting current duration
For the SoftStart / HotStart function
Factory setting: 0.5 seconds
0.1 - 2.0 Seconds
Para­meter
Description Range Unit
Anti-stick
When the anti-stick function is active, the arc is ex­tinguished after 1.5 seconds in the event of a short circuit (sticking of the electrode)
Factory setting: ON (activated)
On
OFF
EN
Start ramp
To activate/deactivate grinding mode
Factory setting: ON (activated)
Break voltage (Voltage cut off)
Used to specify at which arc length the welding process is to be completed. The welding voltage increases as the length of the arc increases. The arc is extinguished when it reaches the voltage specified here
Factory setting: 45 volts
Factory setting (FACtory)
This can be used to reset the device to its factory settings
- cancel reset no
- reset the parameters for the selected welding process to their factory settings
- reset the parameters for all welding processes to their factory settings
YES
ALL
On
OFF
25 - 90 Volts
Resetting of the selected value to its factory setting must be confirmed by pressing the adjusting dial.
Level 2 Setup menu
To set general welding parameters
For details, see the "Level 2 Setup menu" section
37
Parameters for TIG welding
Para­meter
Description Range Unit
Comfort Stop Sensitivity
Factory setting on TransPocket 150: 1.5 volts Factory setting on TransPocket 180: 1.5 volts
Factory setting: 35 V (for 2-step mode, 4-step mode and pedal remote control)
For details, see the TIG Comfort Stop section starting at page 33
Break voltage (Voltage cut off)
Used to specify at which arc length the welding process is to be completed. The welding voltage increases as the length of the arc increases. The arc is extinguished when it reaches the voltage specified here
Factory setting: 35 V (for 2-step mode, 4-step mode and pedal remote control)
Factory setting: 25 V (for the trigger = oFF mode)
Factory setting (FACtory)
OFF
Volts
0.6 - 3.5
10 - 45 Volts
This can be used to reset the device to its factory settings
- cancel reset no
- reset the parameters for the selected welding process to their factory settings
- reset the parameters for all welding processes to their factory settings
Resetting of the selected value to its factory setting must be confirmed by pressing the adjusting dial.
Level 2 Setup menu
To set general welding parameters
For details, see the "Level 2 Setup menu" section
YES
ALL
38
Setup menu - Level 2
EN
Welding paramet­ers in the level 2 Setup menu
Parameter Description Range Unit
Software version
The full version number of the currently in­stalled software is spread across a number of displays and can be retrieved by turning the adjusting dial
Automatic switch-off (time Shut down)
If the device is not used or operated for a specified period of time, it automatically switches itself into Standby mode
Pressing any button on the control panel will cancel Standby mode and the device will be ready to resume welding
Factory setting: OFF
Fuse
For displaying/setting the fuse used
Factory setting:
- for mains voltage 230 V = 16 A
- for mains voltage 120 V = 20 A
If a fuse is set on the power source, the power source limits the power drawn from the mains. This prevents the circuit breaker from tripping immediately
5 - 60
OFF
230 V:
10 / 13 /
16 / OFF
(TP 180
MV only)
120 V:
15 / 16 /
20 / OFF
(TP 180
MV only)
At
At
Minutes
Ampere
TransPocket 150 - Ratio between set fuse and welding current:
Mains voltage Set
fuse
230 V 10 A 110 A 150 A 35 %
13 A 130 A 150 A 35 %
16 A 150 A 150 A 35 %
TransPocket 180 - Ratio between set fuse and welding current:
Mains voltage Set fuse Welding cur-
230 V 10 A 125 A 180 A 40 %
13 A 150 A 200 A 40 %
16 A 180 A 220 A 40 %
Welding cur-
rent electrode
rent electrode
TIG
welding cur-
rent
TIG
welding cur-
rent
Duty cycle
Duty cycle
39
OFF (TP 180
MV only)
120 V* 15 A 85 A 130 A 40 %
16 A 95 A 140 A 40 %
180 A 220 A 40 %
20 A (TP 180
MV only)
OFF (TP 180
MV only)
* Depending on the triggering characteristic of the circuit breaker, the full duty cycle of 40% cannot be achieved on 120 V grids (e.g. USA circuit breaker type CH 15% D.C.).
Parameter Description Range Unit
Operating time (System on time)
For displaying the operating time (begins to count as soon as the device is switched on)
The full operating time is spread across a number of displays and can be retrieved by turning the adjusting dial
Welding time (System Active time)
For displaying how long the system has been active for (only shows the time during which welding was in progress)
120 A 170 A 40 %
120 A 170 A 40 %
Hours,
minutes, seconds
Hours,
minutes, seconds
The full system active time is spread across a number of displays and can be retrieved by turning the adjusting dial
40
Care, maintenance and disposal
EN
Safety
WARNING!
Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
All the work and functions described in this document must only be carried out by
▶
technically trained and qualified personnel. Read and understand this document in full.
▶
Read and understand all safety rules and user documentation for this device and all
▶
system components.
WARNING!
Danger from electrical current.
This can result in serious personal injury and damage to property.
Before starting work, switch off all devices and components involved and disconnect
▶
them from the grid. Secure all devices and components involved so they cannot be switched back on.
▶
After opening the device, use a suitable measuring instrument to check that electric-
▶
ally charged components (such as capacitors) have been discharged.
WARNING!
Danger due to insufficient ground conductor connection.
This can result in serious personal injury and damage to property.
The housing screws provide a suitable ground conductor connection for grounding
▶
the housing. The housing screws must not under any circumstances be replaced by other screws
▶
without a reliable ground conductor connection.
General Under normal operating conditions, the device requires only a minimum of care and
maintenance. However, it is vital to observe some important points to ensure the device remains in a usable condition for many years.
Maintenance at every start-up
- Ensure that the mains plug and mains cable as well as the welding torch / electrode holder are undamaged. Replace any damaged components
- Ensure that the welding torch / electrode holder and the grounding cable are prop­erly connected to the power source and screwed/locked in place as described in this document
- Ensure that a proper ground earth connection has been established to the work­piece
- Check that there is an all-round clearance of 0.5 m (1 ft. 8 in.) around the device to ensure that cooling air can flow and escape unhindered. Air inlets and outlets must never be covered, not even partially.
41
Maintenance every 2 months
Clean air filter:
1
Disposal Dispose of in accordance with the applicable national and local regulations.
42
Troubleshooting
EN
Safety
WARNING!
Danger from incorrect operation and work that is not carried out properly.
This can result in serious personal injury and damage to property.
All the work and functions described in this document must only be carried out by
▶
technically trained and qualified personnel. Read and understand this document in full.
▶
Read and understand all safety rules and user documentation for this device and all
▶
system components.
WARNING!
Danger from electrical current.
This can result in serious personal injury and damage to property.
Before starting work, switch off all devices and components involved and disconnect
▶
them from the grid. Secure all devices and components involved so they cannot be switched back on.
▶
After opening the device, use a suitable measuring instrument to check that electric-
▶
ally charged components (such as capacitors) have been discharged.
WARNING!
Indicated errors
Service mes­sages
Danger due to insufficient ground conductor connection.
This can result in serious personal injury and damage to property.
The housing screws provide a suitable ground conductor connection for grounding
▶
the housing. The housing screws must not under any circumstances be replaced by other screws
▶
without a reliable ground conductor connection.
Overtemperature
"hot" appears on the display, the temperature indicator lights up
Cause:
Remedy:
When E and a 2 digit error number appear in the display (e.g. E02) and the "Error" indic­ator lights up, this is an internal power source service code.
Example:
Operating temperature too high
Allow device to cool (do not switch off the device - the fan will cool it down)
It is also possible that several error numbers are present. These appear when turning the adjusting dial.
43
Make a note of the error numbers shown in the display, and of the serial number and configuration of the power source, and contact our after-sales service team with a de­tailed description of the error.
E01 - E03 / E11 / E15 / E21 / E33 - E35 / E37 - E40 / E42 - E44 / E46 - E52
Cause:
Remedy:
E04
Cause:
Remedy:
E05 / E06 / E12
Cause:
Remedy:
E10
Cause:
Remedy:
E16 / E17
Cause:
Remedy:
Fault in power module
Contact After-Sales Service
Open circuit voltage is not being reached: electrode in contact with workpiece / hardware fault
Remove electrode holder from workpiece. If the service code continues to be displayed, contact after-sales service
System start-up failed
Switch device off and on again. Contact after-sales service if a repeated oc­currence
Overvoltage at the current socket (> 113 VDC)
Contact after-sales service
Memory fault
Contact After-Sales Service / Press adjusting dial to acknowledge the ser­vice message
NOTE!
On standard variants of the device, acknowledging the service message has no ef­fect on the availability of power source functions.
On all other variants (TIG, etc.), only a restricted range of functions is available after ac­knowledging the message. Contact After-Sales Service to have the full functionality re­stored.
E19
Cause:
Remedy:
E20
Cause:
Remedy:
E22
Cause:
Remedy:
Overtemperature or undertemperature
Operate the device in permitted ambient temperatures. For more details on environmental conditions, see "Environmental conditions" in the "Safety rules" section
Improper use of the device
Only use the device for its intended purpose
Welding current set too high
Ensure that the power source is being operated on the correct mains voltage; ensure that the correct fuse is set; set a lower welding current
44
E37
Cause:
Remedy:
E36, E41, E45
Cause:
Remedy:
E65 - E75
Cause:
Remedy:
Mains voltage too high
Pull out the mains plug immediately; ensure that the power source is being operated on the correct mains voltage
Mains voltage outside tolerance or maximum load of grid is too low
Ensure that the power source is being operated on the correct mains voltage; ensure that the correct fuse is set;
Communication error with the display
Switch device off and on again / contact after-sales service if a repeated oc­currence
EN
No function
The device cannot be switched on
Cause:
Remedy:
No welding current
Power source is switched on, indicator for the selected welding process is lit
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
Mains switch is faulty
Contact After-Sales Service
Welding power-lead connections have been disconnected
Establish proper welding power-lead connections
Poor or no earth
Establish a connection to the workpiece
There is a break in the power cable in the welding torch or electrode holder
Replace welding torch or electrode holder
45
No welding current
Device switched on, indicator for the selected welding process is lit, overtemperature in­dicator lit
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
Duty cycle exceeded - device overloaded - fan running
Keep within duty cycle
Thermostatic automatic circuit breaker has switched off the device
Wait until the power source comes back on automatically at the end of the cooling phase (do not switch off the device - the fan will cool it down)
The fan in the power source is faulty
Contact After-Sales Service
Insufficient cooling air intake
Ensure adequate air supply
Air filter is dirty
Clean air filter
Power module error
Turn off the device, then turn it on again If the error occurs frequently, contact After-Sales Service
Faulty operation
Poor ignition properties during MMA welding
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
In some cases, arc breaks during welding
Cause:
Remedy:
Cause:
Remedy:
Rod electrode tends to stick
Cause:
Remedy:
Incorrect welding process selected
Select "MMA welding" or "MMA welding with Cel electrode" process
Starting current too low; electrode sticking during ignition
Increase starting current using HotStart function
Starting current too high; electrode consumed too quickly during ignition or is generating a lot of spatter
Reduce starting current using SoftStart function
Break voltage (Uco) set too low
Increase break voltage (Uco) in Setup menu
Electrode (e.g. grooved electrode) voltage too high
If possible, use an alternative electrode or a power source with more weld­ing power
Value of arc-force dynamic parameter (MMA welding) set too low
Increase value of arc-force dynamic parameter
46
Poor weld properties
(severe spattering)
EN
Cause:
Remedy:
Cause:
Remedy:
Cause:
Remedy:
Tungsten electrode melting
Tungsten inclusions in base metal during the ignition phase
Cause:
Remedy:
Cause:
Remedy:
Incorrect electrode polarity
Reverse electrode polarity (refer to manufacturer's instructions)
Poor grounding (earthing) connection
Fasten earthing clamps directly to workpiece
Setup parameters not ideal for selected welding process
Select the optimal settings in the Setup menu for the selected welding pro­cess
Incorrect tungsten electrode polarity
Connect the TIG welding torch to the (-) current socket
Incorrect (or no) shielding gas
Use inert shielding gas (argon)
47
Average consumption values during welding
Average wire electrode con­sumption during MIG/MAG welding
Average shield­ing gas con­sumption during MIG/MAG welding
Average wire electrode consumption at a wire speed of 5 m/min
1.0 mm wire electrode dia-
meter
Steel wire electrode 1.8 kg/h 2.7 kg/h 4.7 kg/h
Aluminium wire electrode 0.6 kg/h 0.9 kg/h 1.6 kg/h
CrNi wire electrode 1.9 kg/h 2.8 kg/h 4.8 kg/h
Average wire electrode consumption at a wire speed of 10 m/min
1.0 mm wire electrode dia-
meter
Steel wire electrode 3.7 kg/h 5.3 kg/h 9.5 kg/h
Aluminium wire electrode 1.3 kg/h 1.8 kg/h 3.2 kg/h
CrNi wire electrode 3.8 kg/h 5.4 kg/h 9.6 kg/h
Wire electrode diameter
Average con­sumption
1.0 mm 1.2 mm 1.6 mm 2.0 mm 2 x 1.2 mm (TWIN)
10 l/min 12 l/min 16 l/min 20 l/min 24 l/min
1.2 mm wire
electrode dia-
meter
1.2 mm wire
electrode dia-
meter
1.6 mm wire
electrode dia-
meter
1.6 mm wire
electrode dia-
meter
Average shield­ing gas con­sumption during TIG welding
Gas nozzle size 4 5 6 7 8 10
Average con­sumption
6 l/min 8 l/min 10 l/min 12 l/min 12 l/min 15 l/min
48
Technical data
10 Min.6 Min.
150 A
0 Min.
0 A
4 Min.6 Min.
60 %
EN
Explanation of the term "duty cycle"
Duty cycle (D.C.) is the proportion of time in a 10-minute cycle at which the device may be operated at its rated output without overheating.
NOTE!
The D.C. values specified on the rating plate are based on an ambient temperature of 40°C.
If the ambient temperature is higher, either the D.C. or output must be reduced accord­ingly.
Example: Welding at 150 A at 60% D.C.
- Welding phase = 60% of 10 minutes = 6 minutes
- Cooling phase = remaining time = 4 minutes
- After the cooling phase, the cycle begins anew.
TransPocket 150
If the device is to be continuously operated without stopping:
look in the technical data for a D.C. value of 100% for the reigning ambient temperat-
1
ure.
Reduce the output or amperage in line with this value so that the device can remain
2
in use without observing a cooling phase.
Mains voltage (U1) 1 x 230 V
Max. effective primary current (I
Max. primary current (I
Max. apparent power (S
) 24 A
1max
1max
) 15 A
1eff
) 5.52 kVA
Mains fuse protection 16 A slow-blow
Mains voltage tolerance -20% / +15%
Grid frequency 50/60 Hz
49
Cos phi 0.99
Max. permitted mains impedance Z
max
at PCC
1)
32 mOhm
Recommended earth-leakage circuit breaker Type B
Welding current range (I2) rod electrode 10 - 150 A
Welding current range (I2) TIG 10 - 150 A
Welding current for MMA welding 10 min / 40 °C (104 °F)
Welding current for TIG welding 10 min / 40 °C (104 °F) 35 %
35 %
150 A
60 %
110 A
60 %
150 A
110 A
100 %
90 A
100 %
90 A
Output voltage range according to standard character-
20.4 - 26.0 V
istic (U2) rod electrode
Output voltage range according to standard character-
10.4 - 16.0 V
istic (U2) TIG
Open circuit voltage (U0 peak) 96 V
Degree of protection IP 23
Type of cooling AF
Overvoltage category III
Pollution degree according to IEC60664 3
EMC device class A
Safety symbols S, CE
TransPocket 180
Dimensions (length x width x height) 365 x 130 x 285 mm
14.4 x 5.1 x 11.2 in.
Weight 6.3 kg
13.9 lb.
Idle state power consumption
15 W
at 230 V
Power source efficiency at
87 %
150 A / 26 V
1) Interface to a 230/400 V and 50 Hz public grid
Mains voltage (U1) 1 x 230 V
Max. effective primary current (I
Max. primary current (I
Max. apparent power (S
) 25 A
1max
1max
) 16 A
1eff
) 5.75 kVA
Mains fuse protection 16 A slow-blow
50
Mains voltage tolerance -20% / +15%
Grid frequency 50/60 Hz
Cos phi 0.99
Max. permitted mains impedance Z
max
at PCC
1)
285 mOhm
Recommended earth-leakage circuit breaker Type B
Welding current range (I2) rod electrode 10 - 180 A
Welding current range (I2) TIG 10 - 220 A
Welding current for MMA welding 10 min / 40 °C (104 °F)
Welding current for TIG welding 10 min / 40 °C (104 °F) 40 %
40 %
180 A
60 %
150 A
60 %
220 A
150 A
100 %
120 A
100 %
120 A
Output voltage range according to standard character-
20.4 - 27.2 V
istic (U2) rod electrode
Output voltage range according to standard character-
10.4 - 18.8 V
istic (U2) TIG
EN
Open circuit voltage (U0 peak) 101 V
Degree of protection IP 23
Type of cooling AF
Overvoltage category III
Pollution degree according to IEC60664 3
EMC device class A
Safety symbols S, CE
Dimensions (length x width x height) 435 x 160 x 310 mm
17.1 x 6.3 x 12.2 in.
Weight 8.7 kg
19.3 lb.
Idle state power consumption
15 W
at 230 V
Power source efficiency at
88 %
180 A / 27.2 V
1) Interface to a 230/400 V and 50 Hz public grid
TransPocket 180 MV
Mains voltage (U1) 1 x 230 V
Max. effective primary current (I
Max. primary current (I
Max. apparent power (S
) 25 A
1max
1max
) 16 A
1eff
) 5.75 kVA
51
Mains fuse protection 16 A slow-blow
Mains voltage (U1) 1 x 120 V
Max. effective primary current (I
Max. primary current (I
Max. apparent power (S
) 28 A
1max
1max
) 20 A
1eff
) 3.48 kVA
Mains fuse protection 20 A slow-blow
Mains voltage (U1) 1 x 120 V
Max. effective primary current (I
Max. primary current (I
Max. apparent power (S
) 19 A
1max
1max
) 15 A
1eff
) 2.28 kVA
Mains fuse protection 15 A slow-blow
Mains voltage tolerance -20% / +15%
Grid frequency 50/60 Hz
Cos phi 0.99
Max. permitted mains impedance Z
max
at PCC
1)
285 mOhm
Recommended earth-leakage circuit breaker Type B
Welding current range (I2), U1 = 230 V,
10 - 180 A
rod electrode
Welding current range (I2), U1 = 230 V,
10 - 220 A
TIG
Welding current range (I2), U1 = 120 V,
10 - 120 A
fuse = 20 A, rod electrode
Welding current range (I2), U1 = 120 V,
10 - 170 A
fuse = 20 A, TIG
Welding current range (I2), U1 = 120 V,
10 - 85 A
fuse = 15 A, rod electrode
Welding current range (I2), U1 = 120 V,
10 - 140 A
fuse = 15 A, TIG
Welding current for MMA welding, 10 min / 40 °C (104 °F),
40 %
180 A
60 %
150 A
(U1 = 230 V, fuse= 16 A)
100 %
120 A
52
Welding current for TIG welding, 10 min / 40 °C (104 °F), (U1 = 230 V, fuse = 16 A)
40 %
220 A
60 %
160 A
100 %
130 A
Welding current for MMA welding, 10 min / 40 °C (104 °F), (U1 = 120 V, fuse= 20 A)
Welding current for TIG welding, 10 min / 40 °C (104 °F), (U1 = 120 V, fuse = 20 A)
Welding current for MMA welding, 10 min / 40 °C (104 °F), (U1 = 120 V, fuse= 15 A)
Welding current for TIG welding, 10 min / 40 °C (104 °F), (U1 = 120 V, fuse = 15 A)
Output voltage range according to standard character­istic (U2)
rod electrode
Output voltage range according to standard character­istic (U2)
TIG
40 %
120 A
40 %
170 A
40 %
85 A
40 %
140 A
60 %
100 A
60 %
130 A
60 %
70 A
60 %
110 A
20.4 - 27.2 V
10.4 - 18.8 V
100 %
90 A
100 %
100 A
100 %
65 A
100 %
100 A
EN
Open circuit voltage (U0 peak) 101 V
Degree of protection IP 23
Type of cooling AF
Overvoltage category III
Pollution degree according to IEC60664 3
EMC device class A
Safety symbols S, CE
Dimensions (length x width x height) 435 x 160 x 310 mm
17.1 x 6.3 x 12.2 in.
Weight excluding mains cable 8.3 kg
18.4 lb.
Weight including mains cable 8.9 kg
19.6 lb.
Idle state power consumption at 230 V
Power source efficiency at 180 A / 27.2 V
15 W
88 %
1) Interface to a 230/400 V and 50 Hz public grid
53
Overview with critical raw ma­terials, year of production of the device
Overview with critical raw materials:
An overview of which critical raw materials are contained in this device can be found at the following Internet address.
www.fronius.com/en/about-fronius/sustainability.
To calculate the year of production of the device:
- Each device is provided with a serial number
- The serial number consists of 8 digits - for example 28020099
- The first two digits give the number from which the year of production of the device can be calculated
- This figure minus 11 gives the year of production
- For example: Serial number = 28020065, calculation of the year of production =
28 - 11 = 17, year of production = 2017
54
EN
55
Fronius International GmbH
Froniusstraße 1
4643 Pettenbach
Austria
contact@fronius.com
www.fronius.com
Under www.fronius.com/contact you will find the adresses
of all Fronius Sales & Service Partners and locations.
spareparts.fronius.com
SPAREPARTS
ONLINE
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
