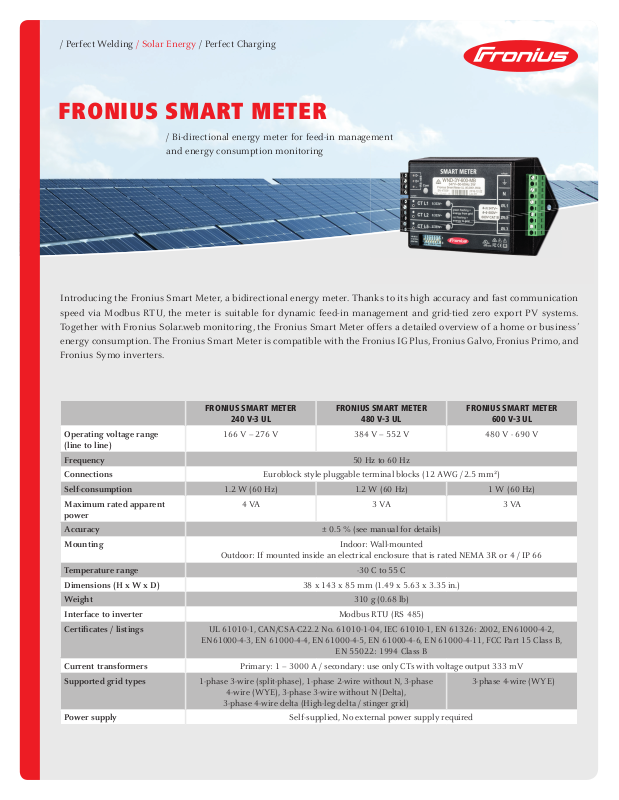

FRONIUS SMART METER
/ Bi-directional energy meter for feed-in management
and energy consumption monitoring
Introducing the Fronius Smart Meter, a bidirectional energy meter. Thanks to its high accuracy and fast communication
speed via Modbus RTU, the meter is suitable for dynamic feed-in management and grid-tied zero export PV systems.
Together with Fronius Solar.web monitoring, the Fronius Smart Meter offers a detailed overview of a home or business’
energy consumption. The Fronius Smart Meter is compatible with the Fronius IG Plus, Fronius Galvo, Fronius Primo, and
Fronius Symo inverters.
FRONIUS SMART METER
240 V-3 UL
Operating voltage range
(line to line)
Frequency 50 Hz to 60 Hz
Connections Euroblock style pluggable terminal blocks (12 AWG / 2.5 mm²)
Self-consumption 1.2 W (60 Hz) 1.2 W (60 Hz) 1 W (60 Hz)
Maximum rated apparent
power
Accuracy ± 0.5 % (see manual for details)
Mounting Indoor: Wall-mounted
Temperature range -30 C to 55 C
Dimensions (H x W x D) 38 x 143 x 85 mm (1.49 x 5.63 x 3.35 in.)
Weight 310 g (0.68 lb)
Interface to inverter Modbus RTU (RS 485)
Certifi cates / listings UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1, EN 61326: 2002, EN61000-4-2,
Current transformers Primary: 1 – 3000 A / secondary: use only CTs with voltage output 333 mV
Supported grid types 1-phase 3-wire (split-phase), 1-phase 2-wire without N, 3-phase
Power supply Self-supplied, No external power supply required
166 V – 276 V 384 V – 552 V 480 V - 690 V
4 VA 3 VA 3 VA
Outdoor: If mounted inside an electrical enclosure that is rated NEMA 3R or 4 / IP 66
EN61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, FCC Part 15 Class B,
4-wire (WYE), 3-phase 3-wire without N (Delta),
3-phase 4-wire delta (High-leg delta / stinger grid)
FRONIUS SMART METER
480 V-3 UL
EN 55022: 1994 Class B
FRONIUS SMART METER
600 V-3 UL
3-phase 4-wire (WYE)
Page 2
Text and images c orrespond to t he curre nt state of technology at the t ime of printi ng. Subject to mod ifications.
All information is w ithout gua rantee in spite of carefu l editing - liabilit y excluded. C opyright © 2011 Fronius™. A ll rights res erved.

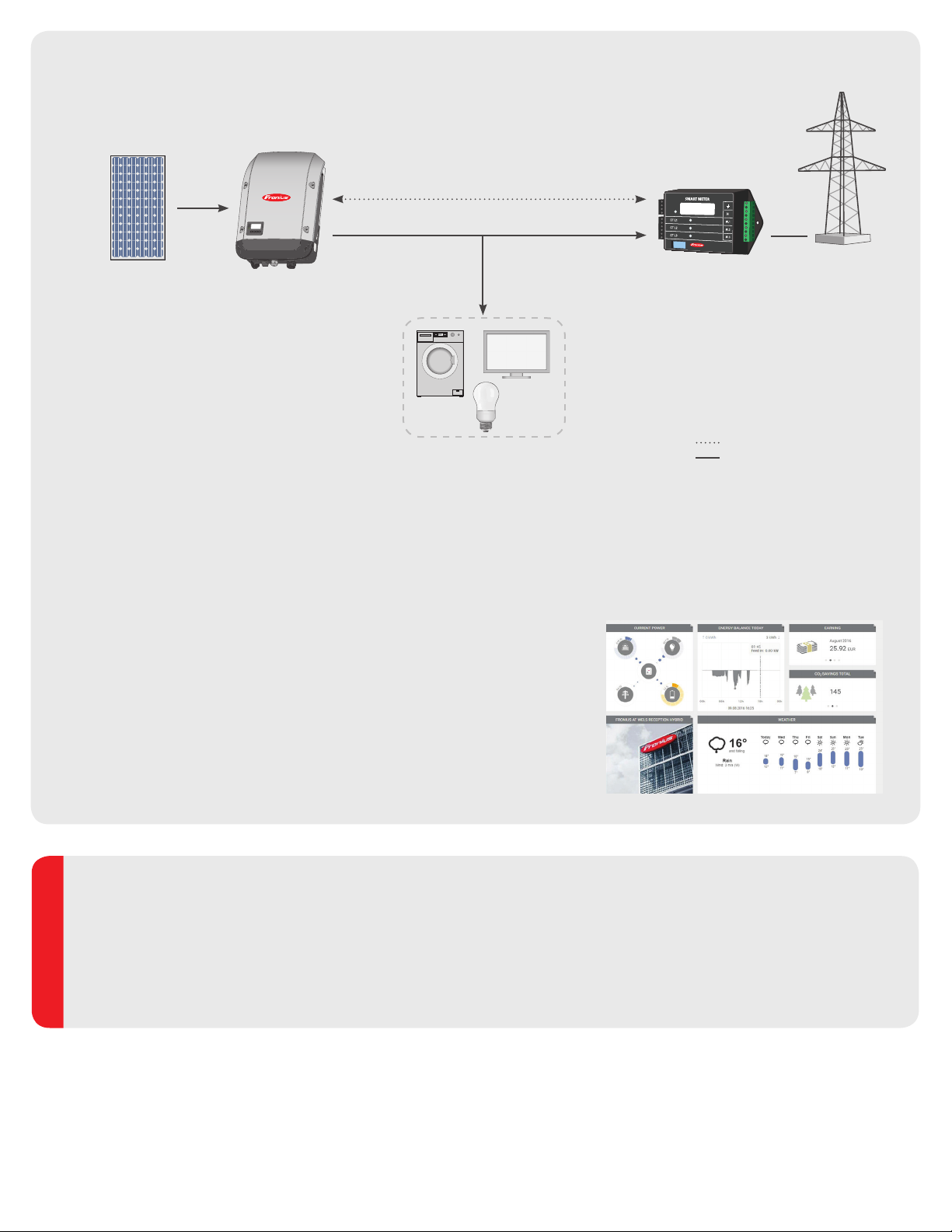

CONFIGURATION DIAGRAM
Modbus RTU
1-phase / 3-phase
PV GENERATOR
FRONIUS
INVERTER
HOUSEHOLD LOADS
FRONIUS
SMART METER
Communication path
Power path
GRID
The Fronius Smart Meter is compatible with all inverters with an RS485 interface (Modbus RTU). The Fronius Smart Meter
works in conjunction with the Fronius Datamanager 2.0 for the Fronius IG Plus inverters. The Fronius Smart Meter can be
retrofitted at any time together with the Fronius Datamanager 2.0 in inverters that have already been installed.
ADVANTAGES AT A GLANCE
• Feed-in management and dynamic power reduction
• Grid-tied zero export
• Easy conguration of dynamic feed-in on the Fronius Datamanager
2.0 software interface
• Visualization of energy consumption in Fronius Solar.web
• Optimized energy management with the Fronius storage solution
