Operating Instructions

Selectiva 4.0 16 kW 96 V / 120 V

EN-US

Operating instructions

42,0426,0402,EA 005-13042023

Table of contents

Power categories 5

General 5

Safety Instructions 6

General 6 Environmental conditions 6 Grid connection 6 Dangers due to Grid and Charging Current 7 Danger due to Acids, Gases, and Vapors 7 General information on working with batteries 7 Personal Protection and Protection of Others 8 Safety Measures in Normal Operation 8 EMC device classifications 8 EMC Measures 8 Data backup 9 Maintenance 9 Repair 9 Obligations of the operating company 9 Safety Inspection 9 Markings on the device 9 Disposal 9 Copyright 10

General information 11

Explanation of Safety Instructions 11 Device concept 11 Intended use 11 Grid connection 12 Charging cables 13 Correct routing of the mains/charging cables 13 Warning notices on the device 14 Warning notices inside the device 15 Setup regulations 15 Wall bracket 17 External start/stop 18

Operating controls and connections 20

Controls and connections 20 Control panel 23

Charging the battery 25

Starting for the first time 25 Charging process 26 Interrupting the charging process 28 Ending the charging process 29 Charging process with InterLock option 31

Display 33

Overview of display modes 33 Standard mode 33 Menu selection 34 Statistics mode 34 History mode 35 Configuration mode 36 Settings 39 Electrolyte circulation 39 Temperature-controlled charging 40 Equalizing charge 41 Delay 42 Calendar 42 Special charges 44 DC connection 44 Additional functions 45 General options 47 Reset settings 49

EN-US

USB mode 49 Status codes 51

Options 56

Safety 56 Electrolyte circulation 56 Temperature-controlled charging 58 Relay board 58 Aquamatic 59 Charging 60 Charge 50 % 60 Charge 80 % 60 Charge not complete 60 Charge Finish 60 Main Charge Finished 60 Cumulative Error 60 Cumulative error + warning 60 Signal Lamp 60 Immobiliser 60 Battery Cold 61 External air pump (electrolyte circulation) 61 Wall and ﬂoor bracket 61 LED strip 61 IP 23 61 Air filter 61 "Mobile" set 61 Remote control system 61 Gateway Link 61 Gateway 62 TagID Link 62 TagID 62 InterLock 62

Technical data 63

Selectiva 16 kW 96 V / 120 V 63

Power categories

General The kW specification for the power categories refers to the housing design and is

not directly related to the actual device power.

Max. charging

Battery voltage Device type

current Housing Mains voltage

EN-US

96 V

120 V

9140 (16 kW) 140 A

E1 3~ 400 V

9160 (16 kW) 160 A

12110 (16 kW) 110 A

E1 3~ 400 V

12140 (16 kW) 140 A

Safety Instructions

General The device has been manufactured using state-of-the-art technology and ac-

cording to recognized safety standards. If used incorrectly or misused, however, it can cause

injury or death to the operator or a third party

damage to the device and other material assets belonging to the operating

company inefficient operation of the equipment

All persons involved in the commissioning, operation, maintenance, and servicing of the device must

be suitably qualified

have completely read and followed these operating instructions

The operating instructions must always be at hand wherever the device is being used. In addition to the operating instructions, all applicable local rules and regulations regarding accident prevention and environmental protection must also be followed.

All safety and danger notices on the device

must be kept in a legible state,

must not be damaged/marked,

must not be removed,

must not be covered, pasted, or painted over.

For the location of the safety and danger notices on the device, refer to the section headed "General Information" in the operating instructions for the device. Before switching on the device, eliminate any faults that could compromise safety.

Your personal safety is at stake!

Environmental conditions

Grid connection Devices with a high output can inﬂuence the energy quality of the grid due to

Operation or storage of the device outside the stipulated area will be deemed as not in accordance with the intended purpose. The manufacturer accepts no liability for any damage resulting from improper use.

For exact information on permitted environmental conditions, please refer to the "Technical data" chapter.

their current consumption.

This may affect a number of device types in terms of:

Connection restrictions, requirements regarding maximum permissible grid

impedance *) or

criteria regarding the minimum required short circuit power

both at the interface with the public grid

See technical data

In this case, the operator or the person using the device should check whether or not the device is allowed to be connected, where appropriate through discussion with the grid operator.

Dangers due to Grid and Charging Current

IMPORTANT! Ensure secure grounding of the grid connection.

Work with battery charging systems poses a number of dangers, such as:

electrical hazard due to grid and charging current.

hazardous electromagnetic fields that may pose a risk of death for individu-

als with pacemakers.

An electric shock can be fatal. Every electric shock poses a risk of death. To prevent electric shock during operation:

do not touch any voltage-carrying parts inside or outside of the device.

never touch the battery poles.

do not short-circuit the charging cable or charging terminals.

All cables and leads must be secured, undamaged, insulated, and adequately dimensioned. Loose connections, scorched, damaged, or under-dimensioned cables and leads must be repaired immediately by an authorized specialist.

EN-US

Danger due to Acids, Gases, and Vapors

Batteries contain acids which pose a risk to the eyes and skin. Furthermore, charging batteries produces gases and vapors that may be hazardous to your health and are highly explosive under certain circumstances.

Only use battery charging systems in well ventilated rooms in order to prevent the accumulation of explosive gases. Battery rooms are not considered at risk of explosion if a hydrogen concentration of less than 4% is guaranteed by natural or artificial ventilation.

During charging observe a minimum distance of 0.5 m (19.69 in.) between the battery and charging system. Keep potential sources of ignition such as fire and open ﬂames away from the battery.

Never disconnect the battery (e.g., charging terminals) during charging.

Never breathe in the gases and vapors produced by the battery - Ensure there is a sufficient supply of fresh air.

Do not place any tools or electrically conductive metals on the battery, in order to prevent short circuits.

Never allow battery acid to come into contact with your eyes, skin, or clothing. Wear eye protection and appropriate protective clothing. Rinse away any splashed acid immediately and thoroughly with clean water, and consult a physician if necessary.

General information on working with batteries

Protect batteries from dirt and mechanical damage.

Store charged batteries in cool rooms. The lowest self discharge occurs at

approx. +2°C (35.6°F). Refer to the specifications of the battery manufacturer or conduct weekly

visual inspections to ensure that the battery is filled with acid (electrolyte) up to the maximum marking. Do not start operating the device, or immediately stop operation, and have

the battery inspected by an authorized specialist if:

the acid level is uneven or there is high water consumption in individual

cells caused by a possible defect the battery heats up to an impermissible level, above 55°C (131°F)

Personal Protection and Protection of Others

Keep persons, especially children, away from the device and working area during operation. If persons are in the vicinity, however:

inform them of any dangers (hazardous acids and gases, risk due to grid and

charging current, etc.) provide suitable protective equipment

Before leaving the working area, ensure that no personal injury or property damage can occur in your absence.

Safety Measures in Normal Operation

Operate devices with ground conductors only on a grid with a ground conductor and a socket with a ground conductor contact. Operating the device on a grid without a ground conductor or on a socket without a ground conductor contact is considered gross negligence. The manufacturer is not responsible for any damage resulting from improper use.

Only operate the device in accordance with the degree of protection shown on the rating plate.

Never commission the device if it is damaged.

Have the grid and device supply lead regularly inspected by an electrician to ensure that the ground conductor is functioning properly.

Safety devices that are not fully functional and components with defects must be repaired by an authorized specialist before the device is turned on.

Never bypass or disable protection devices.

A freely accessible mains plug is required after installation.

EMC device classifications

EMC Measures In certain cases, even though a device complies with the standard limit values for

Devices in emission class A:

Are only designed for use in industrial areas

Can cause wiring-related or radiated interference in other areas.

Devices in emission class B:

Satisfy the emissions criteria for residential and industrial areas. This is also

true for residential areas in which the energy is supplied from the public lowvoltage grid.

EMC device classification as per the rating plate or technical data.

emissions, it may affect the application area for which it was designed (e.g., when there is sensitive equipment at the same location, or if the site where the device is installed is close to either radio or television receivers). If this is the case, then the operating company is obliged to take appropriate action to rectify the situation.

Data backup The user is responsible for backing up any changes made to the factory settings.

The manufacturer accepts no liability for any deleted personal settings.

Maintenance Check the mains plug, mains cable, charging lead, and charging terminals for

damage before each commissioning. If dirt accumulates on the device, clean the surface of the device housing with a soft cloth and only with solvent-free cleaning agents.

Repair Repair work must only be carried out by authorized personnel. Use only original

spare and wearing parts (also applies to standard parts). It is impossible to guarantee that third-party parts are designed and manufactured to meet the demands made on them, or that they satisfy safety requirements.

Do not carry out any alterations, installations, or modifications to the device without first obtaining the manufacturer’s permission.

EN-US

Obligations of the operating company

Safety Inspection

The operating company must only allow persons to work with the device if they

are familiar with the basic occupational safety and accident prevention regu-

lations and are trained in handling the device have read and understood these Operating Instructions, especially the

"Safety rules" section, and have confirmed this with their signature are trained according to the requirements for the work results.

The safety-conscious work of the personnel must be checked regularly.

The manufacturer recommends that a safety inspection of the device be performed at least every 12 months.

A safety inspection by a certified electrician is recommended

after changes,

after alterations,

after repair, service and maintenance,

at least every 12 months.

For the safety inspection, follow the appropriate national and international standards and guidelines.

You can obtain more information about the safety inspection from your service center. The service center will provide the necessary documents upon request.

Markings on the device

Disposal Waste electrical and electronic equipment must be collected separately and re-

Devices bearing the CE label satisfy the essential requirements of applicable directives.

Devices bearing the EAC mark of conformity satisfy the requirements of the relevant standards for Russia, Belarus, Kazakhstan, Armenia, and Kyrgyzstan.

cycled in an environmentally sound manner in accordance with the European Directive and national law. Used equipment must be returned to the distributor or

through a local authorized collection and disposal system. Proper disposal of the used device promotes sustainable recycling of material resources. Failure to observe this may lead to potential health/environmental impacts.

Packaging materials

Separate collection. Check your municipality’s regulations. Reduce the volume of the box.

Text and illustrations were accurate at the time of printing. Fronius reserves the right to make changes. The contents of the Operating Instructions shall not provide the basis for any claims whatsoever on the part of the purchaser. If you have any suggestions for improvement, or can point out any mistakes that you have found in the Operating Instructions, we will be most grateful for your comments.

General information

EN-US

Explanation of Safety Instructions

DANGER!

Indicates an immediate danger.

Death or serious injury may result if appropriate precautions are not taken.

▶

WARNING!

Indicates a possibly dangerous situation.

Death or serious injury may result if appropriate precautions are not taken.

▶

CAUTION!

Indicates a situation where damage or injury could occur.

Minor injury or damage to property may result if appropriate precautions are

▶

not taken.

NOTE!

Indicates the possibility of ﬂawed results and damage to the equipment.

Device concept The battery charging systems in the three-phase range are characterized by intel-

ligent charging technology. The successful Active Inverter Technology adapts to the needs of the battery and only charges the current that is really needed into the battery.

The technology is enclosed in a robust industry-standard housing. The extremely compact design meets all requirements for safety standards, reduces space requirements, and protects the components for a long service life.

Featuring a graphic display, an integrated datalogger, new interfaces, and additional options, the device is perfectly equipped for the future.

Intended use The battery charger is intended to charge the following listed batteries. Any oth-

er use is deemed to be not in accordance with the intended purpose. The manufacturer shall not be liable for any damage resulting from such improper use. Intended use also means

Following all the instructions in these Operating Instructions

Regularly checking the grid and charging cable

WARNING!

Danger from charging dry batteries (primary cells) and non-rechargeable batteries.

This can result in severe personal injury and damage to property.

Only charge the types of battery listed below.

▶

WARNING!

Danger from unsuitable batteries connected to the battery charger.

Serious personal injury and property damage as a result of escaping gases, ignition or explosion may result.

Only connect batteries to the battery charger which are suitable for the bat-

▶

tery charger in terms of their type, voltage and capacity and which correspond to the settings on the battery charger.

The battery charger is designed for charging lead-acid batteries and NiCd batteries. Set the battery charger to the type of battery to be charged:

Pb-WET batteries (PzS, GiS, ...):

Venting, closed lead-acid wet batteries with liquid electrolyte. Pb-GEL batteries (PzV, GiV, ...):

Valve-regulated, sealed lead-acid batteries (VRLA) with fixed electrolyte (gel or ﬂeece). NiCd batteries:

Closed or sealed NiCd batteries with liquid electrolyte. Pb-CSM-WET batteries (Copper Strained Metal):

Closed lead-acid CSM batteries with liquid electrolyte. Lead Crystal batteries:

Type EVFJ/CNFJ Lead Crystal batteries.

The device must be handled correctly in order for it to work. Never pull on the cable when handling the device.

Grid connection

WARNING!

Danger from electrical current.

This may result in serious injuries or death.

Before starting work, switch off all devices and components involved, and

▶

disconnect them from the grid. Secure all devices and components involved so they cannot be switched back

▶

on. If necessary, only use a type B residual current circuit breaker for the grid

▶

connection of the device.

WARNING!

Danger from incorrect operation and work that is not carried out properly.

This can result in severe personal injury and damage to property.

All the work and functions described in this document must only be carried

▶

out by trained and qualified personnel. Read and understand this document.

▶

Read and understand all the Operating Instructions for the system compon-

▶

ents, especially the safety rules.

WARNING!

Danger due to faulty or insufficient grid power supply.

This can result in severe personal injury and damage to property.

The requirements for the grid power supply according to the "Technical data"

▶

chapter must be fulfilled.

Charging cables

WARNING!

Danger due to charging cables lying around.

This can result in severe personal injury and damage to property. Personnel can get caught or trip on unplugged, loose cables

Lay charging cables so that no one can trip over them or get caught on them.

▶

WARNING!

Danger if the active charging process is interrupted by disconnecting the charging plug.

This can result in severe personal injury and damage to property. The resulting sparks can ignite the charging gases that form during charging and cause a fire or explosion

When charging is complete, wind up the charging cables or place them on

▶

the cable holder, if available.

EN-US

Correct routing of the mains/ charging cables

CAUTION!

Danger due to overheating as a result of incorrectly laid mains/charging cables.

Risk of damage to the components.

Lay the mains/charging cable without a loop.

▶

Do not cover the mains/charging cable.

▶

Charging cables longer than 5 m (16 ft. 4.85 in.) must be laid individually (no

▶

bundling). Charging cables longer than 5 m (16 ft. 4.85 in.) can have an increased sur-

▶

face temperature (be aware of hot surfaces). In the following cases, pay special attention that the surface temperature of

▶

the charging cables does not exceed 80 °C (176 °F):

- Ambient temperature is 30 °C (86 °F) or more

- Cross-section of the charging cable is 95 mm2 or more

- Length of the charging cable is 5 m (16 ft. 4.85 in.) or more The mains/charging cable may only be replaced by a qualified electrician.

▶

Warning notices

Ladevorgang immer stoppen bevor das Ladekabel abgezogen wird! Explosive Gase. Flammen und Funken vermeiden. Während des Ladens für ausreichend Frischluft-Zufuhr sorgen!

Always stop charging before you disconnect the charging cable! Explosive gases. Prevent flames and sparks. Provide adequate ventilation during charge!

Toujours arrêter la charge avant de déconnecter le câble de charge! Gaz explosifs. Éviter les flammes et les étincelles. Prévoir une ventilation adaptée pendant la charge!

¡Detener siempre la carga antes de desconectar el cable de carga! Gases explosivos. Evitar llamas y chipas. ¡Mantener una ventilación adecuada durante la carga!

Interrompere sempre la carica prima di scollegare il cavo di carica! Gas esplosivi. Evitare fiamme libere e scintille. Predisporre una ventilazione adeguata durante la carica!

WARNUNG - WARNING - ATTENTION ADVERTENCIA - AVVISO

42,0409,0419

Platform E1

xxA

xxxxW

3~ NPE xxxV 50/60Hz

xxxA

xxV

Always stop charging before you disconnect the charging cable!

Fronius International GmbH

Froniusstraße 1

A-4643 Pettenbach

Austria

Protective class I

IP20 Production Date Code

UAC nom.

OVC III

Part No.:

Ser. No.:

IAC max. PAC max.

UDC nom.

IDC max.

xxxxxxxx

4,010,xxx

xxxx

Selectiva x.0 xxxx xxkW

on the device

The battery charger features safety symbols on the rating plate. The safety symbols must not be removed or painted over.

An electric shock can be fatal. The housing may only be opened by service technicians trained by the manufacturer. Before working with the housing open, the device must be disconnected from the grid. A suitable measuring device must be used to ensure that electrically charged parts (e.g. capacitors) are completely discharged. Ensure that the device remains disconnected from the grid until all work is complete.

Use functions only after reading the Operating Instructions in full.

Keep potential sources of ignition such as fire, sparks, and open ﬂames away from the battery.

Danger of explosion! Oxyhydrogen forms in the battery during charging.

Battery acid is corrosive and must never come into contact with your eyes, skin or clothing.

Ensure there is a sufficient supply of fresh air during charging.

The device can cause DC residual currents in the ground conductor. If a residual current device (RCD) is used on the grid side to protect against electric shock, this must be a type B RCD.

Do not dispose of the product with household waste, but in accordance with the disposal regulations for waste electrical and electronic equipment applicable at the place of installation.

Warning notices

WARNING

Hazardous Voltage

Kondensator Entladezeit < 3 min.

Capacitor discharge time < 3 min.

Décharge de condensateur < 3 min.

Condensador tiempo de descarga < 3 min.

Condensatore tempo di scaricamento < 3 min.

inside the device

WARNING!

Danger from electrical current.

This may result in serious injuries or death.

The housing may only be opened by service technicians trained by the manu-

▶

facturer. Before starting work, switch off all devices and components involved, and

▶

disconnect them from the grid. Secure all devices and components involved so they cannot be switched back

▶

on. After opening the device, use a suitable measuring instrument to check that

▶

electrically charged parts (such as capacitors) have been discharged. With the aid of a clearly legible, understandable warning sign, ensure that

▶

the device remains disconnected from the grid until all work has been completed.

EN-US

Setup regulations

WARNING!

Danger from devices falling or toppling over.

This can result in severe personal injury and damage to property.

Set up all system components in a stable position.

▶

When using a ﬂoor bracket or wall bracket, always ensure that all fastening

▶

elements are firmly seated. Devices weighing more than 25 kg (55.12 lbs.) must be carried by at least 2

▶

persons. When mounted on a shelf, the load capacity of the shelf must at least cor-

▶

respond to the weight of the device.

The device has been tested according to degree of protection IP20. This means:

Protection against the penetration of solid foreign bodies with a diameter of

more than 12.5 mm (0.49 in.). No protection against water.

The device can be set up and operated in dry, closed rooms in accordance with degree of protection IP20. Avoid exposure to moisture.

The permissible operating position of

(a)

the device is horizontal.

The ambient air surrounding the device must be kept free from battery acid vapors. Mounting the device directly above the battery to be charged should therefore be avoided.

Cooling air

The device must be set up so that cooling air can ﬂow through the housing openings provided unhindered. A minimum distance of 0.2 m (7.874 in.) must always be observed from the air inlet and outlet openings. The ambient air must be free from:

Excessive dust exposure

Electrically conductive particles (carbon black or metal chips)

Heat sources

The cooling air ﬂows in and out as indicated by the arrow symbols in the following illustrations.

NOTE!

Danger due to partially or completely covered air intake and outlet openings.

This can result in damage to property.

The setup of several devices one behind the other should be staggered.

▶

If the devices are arranged in a line one behind the other without being staggered, the distance between the devices must be as follows:

16 kW (E1): Minimum distance 60 cm (1 ft. 11.62 in.)

Wall bracket

312

WARNING!

Danger from incorrectly performed work and falling equipment.

This can result in severe personal injury and damage to property.

The mounting may only be carried out by trained and qualified personnel.

▶

Follow the safety rules in the battery charger's Operating Instructions.

▶

Depending on the substrate, different dowels and screws are required.

▶

Therefore, dowels and screws are not part of the scope of supply.

▶

The system installer is responsible for selecting the proper dowels and

▶

screws.

WARNING!

Danger from devices falling or toppling over.

This can result in severe personal injury and damage to property.

Check that all screw connections are tightly fastened.

▶

Only use with a Fronius Selectiva 8 - 18 kW battery charger.

▶

Mount the device horizontally.

▶

EN-US

16 kW (E1)

392 (15.43)

502 (19.76)

647 (25.47)

267 (10.51)

247 (9.72)

241 (9.49)

585 (23.03)

20 (.79)

110

(4.33)

mm (in.)

342 (13.46)

418 (16.46)

494 (19.45)

500 (19.69)

492 (19.37)

450 (17.72)

400 (15.75)

300 (11.81)

200 (7.87)

20 (.79)

8.3

(.79)

(.24)

7 (.28)

8.5 (.33)

(.24)

(.98)

76 (2.99)

(2.36)

mm (in.)

16 kW (E1)

Hole pattern

External start/ stop

Weight of the wall bracket:

16 kW (E1)

WARNING!

Danger if the plug connection is disconnected during the charging process

This can result in severe personal injury and damage to property.

Do not disconnect the plug connection while the charging process is running.

▶

Do not touch live contacts on the charging plug.

▶

3.15 kg (6.49 lbs.)

The external start-stop function is implemented as standard.

The external start-stop function allows the charging process to be controlled both via an auxiliary contact and via an external switch.

If the charging cable is disconnected while charging is in progress, the external start-stop prevents sparking and thus extends the service life of the contacts.

EN-US

Operating controls and connections

(5)

(4)

(3)

(2)

(8)

(6)

(7)

(1)

(9)

(11)

(10)

(12)

Controls and connections

No. Function

(1) USB port

The USB port allows a USB thumb drive to be used to update the device and also to log the charging parameters while charging is in progress. The maximum supply current is 0.5 A.

(2) Position for the remote control

system, 13 V charging lights, or InterLock options.

(3) Position for the external start/

stop option or temperaturecontrolled charging option.

No. Function

(4) (-) Charging lead

(5) (+) Charging lead

(6) Positions for relay-specific options.

(e.g. Aquamatic control) Detailed information can be found in the "Options" chapter.

(7) Position for the internal electrolyte circulation option.

Compressed air output

(8) Position for the internal electrolyte circulation option.

17 G / 2 13V / 1

Y / 3 R / 4

B Dete

C2 G

C1 G 13V O

C1 L C2 L

C1 H C2 H

- St + St

Pin Pin

Plug Code

Plug 18p

Air intake with air filter

(9) Mains cable

(10) LED strip option.

Lights up in the appropriate colors depending on the state of charge, according to the indicators explained in the "Control panel" section.

(11) Control panel

(12) Connection area for options

The connection area is only accessible by removing the connection plate on the front of the device. To do this, follow the warnings in the "Safety" section of the "Options" chapter.

Connections for 18-pin option plug on the P-Control PC board inside the housing

EN-US

Plug

Code Function

Plug

Code Function

17 G / 2 Ext. LED Green

Remote Control wire 2

InterLock Green wire

CBG Easy VCC

15 Y / 3 Ext. LED Yellow 16 R / 4 External LED Red

Remote Control wire 3

InterLock Yellow wire

CBG Easy De-

tect

13 B Ext. LED Blue

InterLock Brown wire

CBG Easy GND White wire

11 12 C2 G CAN 2GND

Brown wire

9 C1 G CAN 1GND

Brown wire White wire

7 C1 L CAN 1Low 8 C2 L CAN 2Low

18 13V /113 V Ext. LED

Power Supply Remote Con-

trol wire 1

Remote Control wire 4

InterLock White wire

14 Dete Detect

10 13VO13 V Power

Supply

Yellow wire Yellow wire

5 C1 H CAN 1High 6 C2 H CAN 2High

Green wire Green wire

3 4

1 - St Temperature Controlled 2 + St Temperature Controlled

Charging Charging

External Start/Stop External Start/Stop

Gateway / Cloud

Battery Link

Control panel

(1) (8)

(7)

(6)

(5)

(4)(3)(2)

EN-US

No. Function

(1) Display

Display of the current charging parameters. Display of settings.

(2) "Menu" button

Select the desired menu. Return to the higher-level selection.

(3) "Up/Down" buttons

Select the desired menu item. Set the desired value.

(4) "Pause/Start" button

Pause and resume the charging process. Confirm a menu item or setting.

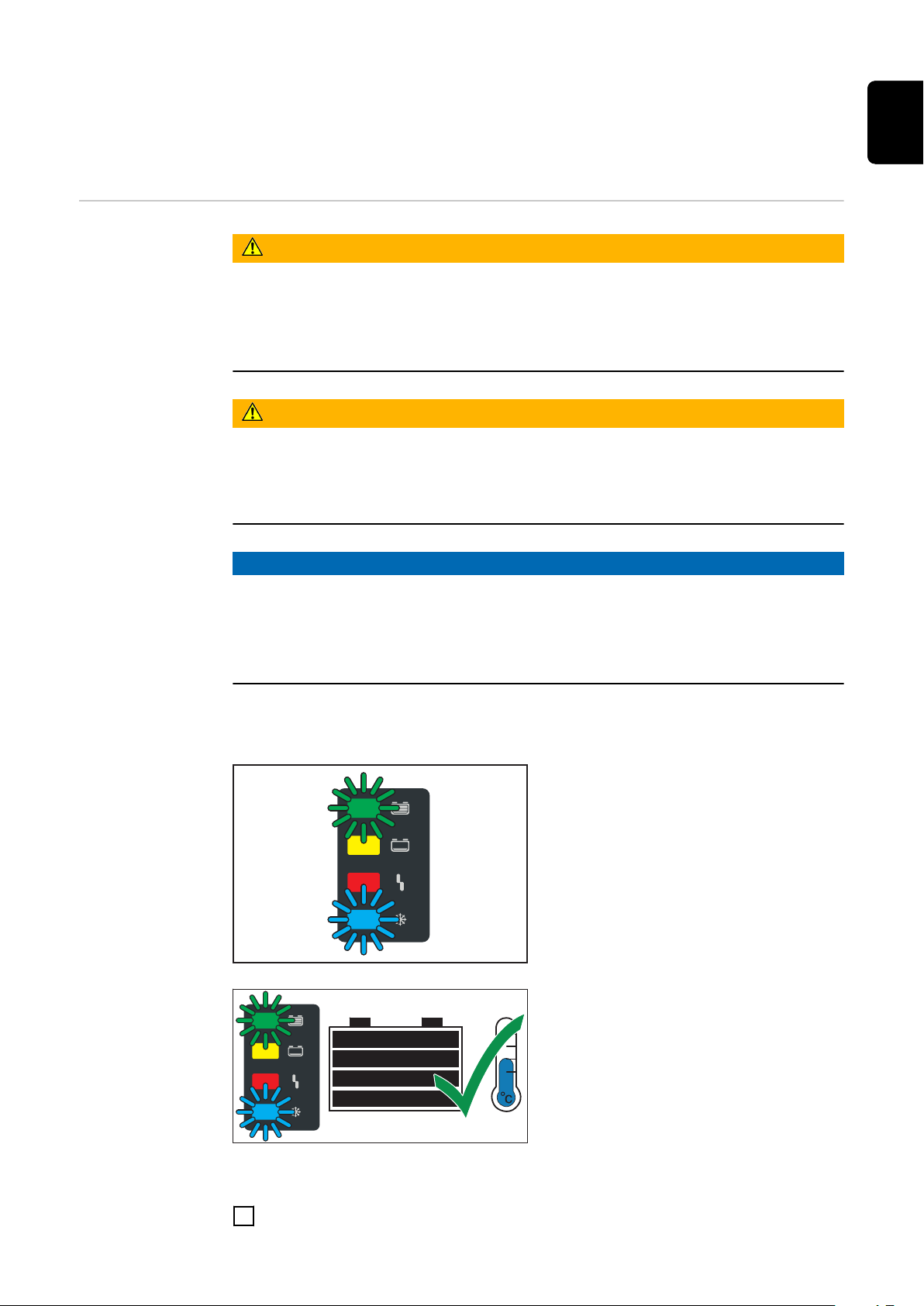

(5) "Battery Cold" indicator (blue)

Signals a cooled down battery ready for use. Lights up continuously: At the end of charging, the set cooling time or, optionally, the battery temperature has been reached. Flashes every second: The water refill indicator has also been activated. Detailed information can be found in the Additional functions section of the "Display" chapter.

(6) "Error" display (red)

Lights up continuously: The device outputs an error. The current situation

does not allow for proper charging. While the red indicator is lit, charging cannot take place (charging interrupted). The display shows a corresponding status code.

Flashes brieﬂy every 3s: The device outputs a warning. Charging parameters are unfavorable, but charging continues. The display alternately shows the corresponding status code and the state of charge.

(7) "Charge" indicator (yellow)

Lights up: during charging. Flashes: when the charge has been interrupted.

(8) "Battery is charged" indicator (green)

Lights up continuously: Charge complete. Flashes every second: Charge complete. The water refill indicator has also

been activated.

Charging the battery

EN-US

Starting for the first time

When the battery charger is connected to the grid for the first time, the device is in SETUP mode.

In this mode, the following basic settings must be made or confirmed:

Language (English, German, French, etc.)

Date, time, and time zone

Charging cable length and charging cable cross-section

Type of battery, curve, number of cells and charging time or battery capacity

Connect the mains plug of the battery charger to the electrical network.

Use the "Up / Down" keys to select

the desired menu language.

Confirm with the "Pause / Start"

key.

English is set as the default language.

Use the "Up / Down" keys to select

the time zone.

Confirm with the "Pause / Start"

key.

The time zone UTC+1 Central European Time (Berlin) is set as default.

The following settings must be made:

Daylight saving time ON/OFF

Hourly format

Time

Date

Use the "Up / Down" keys to select

the desired setting.

Press the "Pause / Start" key to

confirm each setting.

Daylight saving time ON and the 24hour format are set as default.

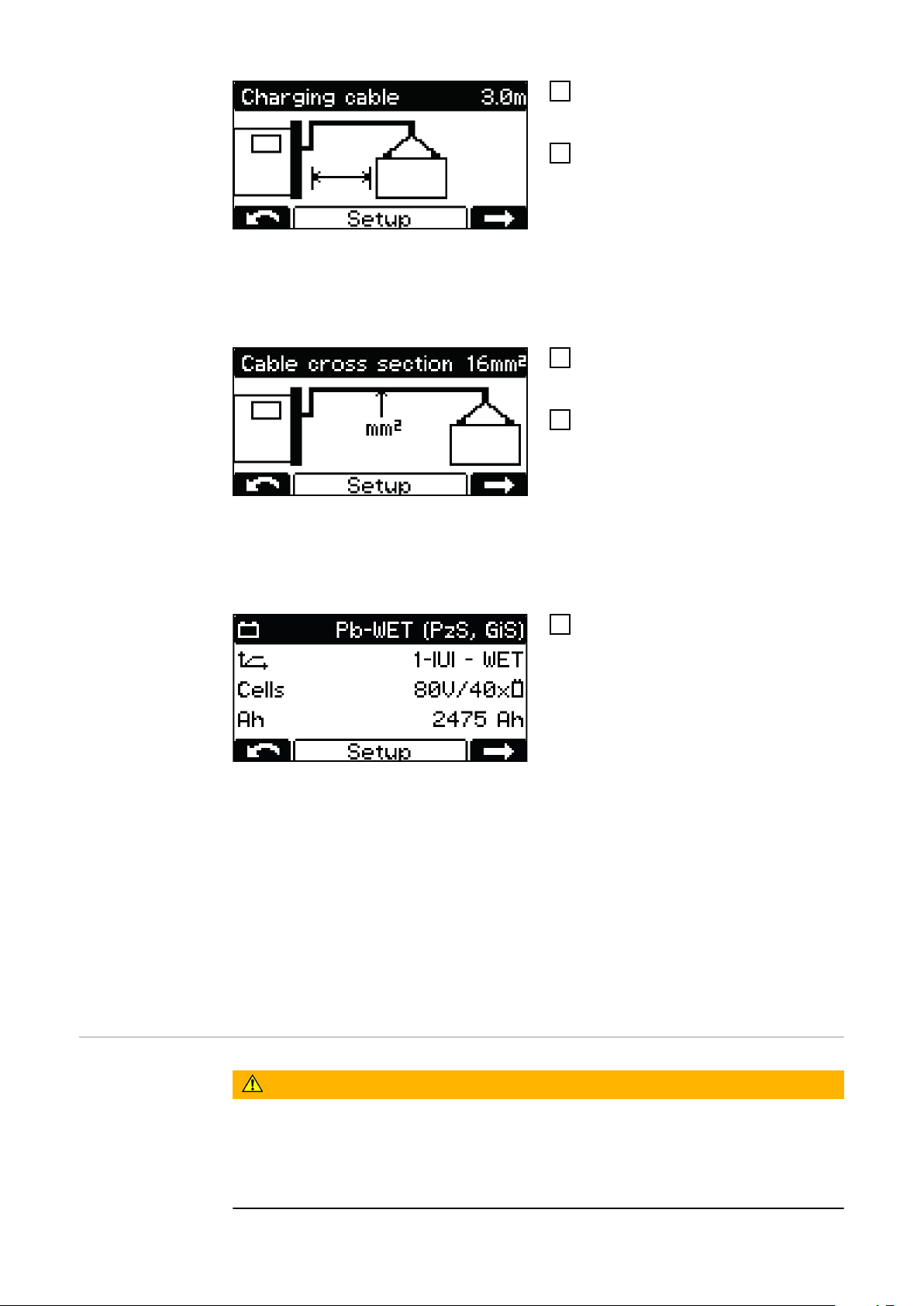

Use the "Up / Down" keys to set

the appropriate charging cable length.

Confirm with the "Pause / Start"

key.

The battery charger is configured with the correct charging cable length according to the order.

An incorrectly set charging cable length can have a negative effect on the charging process!

Use the "Up / Down" keys to set

the appropriate charging cable cross-section.

Confirm with the "Pause / Start"

key.

The battery charger is configured with the correct charging cable cross-section according to the order.

An incorrectly set charging cable cross-section can have a negative effect on the charging process!

If the displayed charging configur-

ation is correct, confirm the charging configuration with the "Pause/ Start" button.

The battery charger is pre-configured according to the order.

If the battery charger has been ordered without an additional configuration, the following settings are set as default:

Type of battery Pb-WET (for PzS, GiS)

Curve 1 - IUI - WET

Maximum number of cells intended for the battery charger

Maximum battery capacity intended for the battery charger

If the configuration does not match the battery used, the parameters must be adjusted accordingly.

Detailed information on the battery charger parameters can be found in the "Configuration mode" section of the "Display" chapter.

Charging process

WARNING!

Danger from leaking battery acid or explosion when charging defective batteries.

This can result in severe personal injury and damage to property.

Before starting the charging process, make sure that the battery to be

▶

charged is fully functional.

WARNING!

Danger due to incorrect type of battery and incorrect charging settings.

This can result in severe personal injury and damage to property.

Before starting the charging process, make sure that the correct type of bat-

▶

tery is set on the battery charger. The following settings must be made for the individual types of battery be-

▶

fore charging: Charging curve Nominal voltage (number of battery cells) Battery capacity (Ah) or charging time (h)

Detailed information on the battery charger parameters can be found in the "Configuration mode" section of the "Display" chapter.

NOTE!

Danger of damage to property due to heavy contamination of the charging plug contacts.

Due to the increased contact resistance, overheating and subsequent destruction of the charging plug can occur.

Keep the charging plug contacts free of contamination and clean if neces-

▶

sary.

Connect the mains plug of the battery charger to the electrical network.

EN-US

A prompt appears, asking whether the correct parameters have been set for the battery to be charged.

The display then appears in standard mode. The display shows the battery charger parameters:

Type of battery (e.g., Pb-WET)

Charging characteristic (e.g., IUI)

Nominal voltage (e.g., 48 V)

Capacity (e.g., 300 Ah)

Weekday, time, and date

The battery charger parameters are individually adjustable. Detailed information on the battery charger parameters can be found in the "Configuration mode" section of the "Display" chapter. Make sure that the battery to be charged corresponds to the battery charger configuration.

Plug in the charging plug.

The charger detects the connected battery and starts charging. If the start-up delay is activated, the charging process starts after the set delay time has elapsed. Detailed information can be found in the "Configuration mode" section of the "Display" chapter.

During the charging process, the display shows the following values:

Current charging current (A)

Current charging voltage (V)

Charge delivered (Ah)

Battery temperature with the "Temperature-controlled charging" option

Time (hh:mm) from start of charge

The battery symbol indicates the current state of charge. The more bars are displayed, the further the charging process has progressed. As soon as the battery is fully charged, a minute counter appears (figure on the right). This counts the minutes since the end of charging and makes it easier to judge which battery has cooled down the most when using several battery chargers.

If you still want the standard display to be shown instead of the minute counter:

Use the "Up/Down" buttons to switch between the minute counter and the

standard display.

When the battery is fully charged, all 4 bars of the battery symbol appear in black. As soon as the battery is fully charged, the green indicator lights up.

The battery is always ready for use.

The battery can remain connected

to the battery charger for any amount of time. The conservation charge counter-

acts self discharge of the battery.

Interrupting the charging process

Interrupt the charging process as follows:

Press the "Pause/Start" button.

Resume the charging process as follows:

Press the "Pause/Start" button again.

While the charging process is interrupted:

The "Charge" indicator ﬂashes (yel-

low).

As long as a battery is connected to the battery charger, the charging process can only be interrupted and resumed by pressing the "Pause/Start" button. It is only possible to change the display modes with the "Menu" button, as described in the "Display" chapter, after disconnecting the battery from the battery charger.

EN-US

Ending the charging process

WARNING!

Danger due to oxyhydrogen ignition caused by sparks when disconnecting the charging cables.

This can result in severe personal injury and damage to property.

Before disconnecting or unplugging the charging plug, end the charging pro-

▶

cess by pressing the "Pause/Start" button.

WARNING!

Danger if the plug connection is disconnected during the charging process

This can result in severe personal injury and damage to property.

Do not disconnect the plug connection while the charging process is running.

▶

Do not touch live contacts on the charging plug.

▶

NOTE!

Danger of battery damage when disconnecting the battery from the battery charger if the charging process is not yet fully completed.

This can result in damage to the battery.

Do not disconnect the battery from the battery charger until it is fully

▶

charged (green "Battery is charged" indicator lights up).

Once the battery is fully charged and cooled down, the following indicators light up:

"Battery is charged" indicator

(green) "Battery cold" indicator (blue)

For optimum battery life, do not disconnect the battery from the battery charger until the blue "Battery cold" indicator lights up in addition to the green indicator, as explained below. If several battery chargers are in use, remove the battery that has been fully charged (coolest) for the longest time first.

End the charging process as follows:

Press the "Pause / Start" key.

Disconnect the charging plug.

Charging process with InterLock option

WARNING!

Danger from leaking battery acid or explosion when charging defective batteries.

This can result in severe personal injury and damage to property.

Before starting the charging process, make sure that the battery to be

▶

charged is fully functional.

WARNING!

Danger due to incorrect type of battery and incorrect charging settings.

This can result in severe personal injury and damage to property.

Before starting the charging process, make sure that the correct type of bat-

▶

tery is set on the battery charger. The following settings must be made for the individual types of battery be-

▶

fore charging: Charging curve Nominal voltage (number of battery cells) Battery capacity (Ah) or charging time (h)

Detailed information on the battery charger parameters can be found in the "Configuration mode" section of the "Display" chapter.

EN-US

NOTE!

Danger of damage to property due to heavy contamination of the charging plug contacts.

Due to the increased contact resistance, overheating and subsequent destruction of the charging plug can occur.

Keep the charging plug contacts free of contamination and clean if neces-

▶

sary.

The InterLock option is described below and serves to supplement the information in the existing "Charging process", "Interrupting the charging process", and "Ending the charging process" sections.

Starting charging:

If the InterLock option has been executed, the battery charger will start the charging process in the InterLock provided that both batteries have been connected to both battery chargers.

If only one battery is connected, „InterLock: Connect Second Battery“ will appear on the display and the yellow indicator will start ﬂashing.

If the external start/stop is only closed on one battery, „Check other Charger“ will appear on the display of the battery charger with closed external start/stop.

Interrupting the charging process:

The charging process on both battery chargers is interrupted (Break Mode) if an error occurs or if the Pause / Start button is pressed on one of the two battery chargers.

The message "STOPPED" appears in the upper right-hand area of the display. The charging process is automatically continued after the fault has been rectified or after the Pause / Start (Stop) button on one of the two battery chargers has been pressed again.

Ending the charging process:

The battery symbol indicates the current state of charge. The more bars are displayed, the further the charging process has progressed. Once both batteries are fully charged, a minute counter will appear (figure on the right) and the green indicator will start to light up.

The battery is always ready for use.

The battery can remain connected

to the battery charger for any amount of time. The conservation charge counter-

acts self-discharge of the battery.

Display

EN-US

Overview of display modes

The device has the following display modes:

No. Function

Standard mode

In standard mode, the display shows the charging parameters.

Statistics mode

Visualizes the frequency of the operating states of the device and shows the total number of charges, as well as an overview of the absolute and average Ah delivered and energy consumed per charge.

History mode

Provides information regarding the parameters of all stored charging processes.

Configuration mode

Configuration mode enables all settings to be made for the device and the charging process.

USB mode

USB mode supports a device update, the backup and uploading of device configurations, as well as logging of charging parameters during the charging process via USB thumb drive.

As long as a battery is connected to the battery charger, the charging process can only be interrupted and resumed by pressing the "Pause/Start" button. It is only possible to change the display modes with the "Menu" button, as described in the following sections which explain the individual modes, after disconnecting the battery from the battery charger.

While charging has been paused, however, a limited menu selection is available. The display modes described in detail below are available in this case as follows:

Statistics mode and history mode remain unrestricted.

The following data can be called up in configuration mode:

Date and time

Device serial number

Hardware version and serial number

Software: Main software, secondary software, primary software and curve

block version

In USB mode, all functions except "Update" and "Load configuration" can be carried out.

Standard mode After connecting the mains plug to the electrical network, the display is automat-

ically in standard mode.

Menu selection

In standard mode, the display shows the battery charger parameters:

Type of battery (e.g., Pb-WET)

Charging characteristic (e.g., IUI)

Nominal voltage (e.g., 48 V)

Capacity (e.g., 300 Ah)

Weekday, date and time

The battery charger parameters are individually adjustable. Detailed information can be found in the "Configuration mode" section.

Switch to the menu selection from standard mode as follows:

Press and hold the "Menu" button for approx. 5 seconds.

Switch to the menu selection from the other modes as follows:

Press the "Menu" button brieﬂy.

Open the desired mode:

Use the "Up/Down" buttons to select the symbol for the desired mode.

e.g. the battery symbol for standard mode

Press the "Pause/Start" button to confirm the "check mark" symbol.

Statistics mode In statistics mode, horizontal bars

visualize the frequency of the following operating states of the device:

Idle

Charging

Floatingcharge

Cooldown

Error

Use the "Up/Down" buttons to switch between page 1/2 and page 2/2.

Page 2/2 shows the following values:

Total number of charges

("Charges"). Total Ah delivered.

Average Ah delivered per charge

("Charge"). Total energy consumed (kWh).

Average energy consumed (kWh)

per charge ("Charge").

The display of the consumed energy is intended as a guide value and may deviate

(1)

(2)

(3)

(4)

(5) (7)

(6)

from the actual amount of energy by up to 5% at the rated power. The deviation may be higher at lower power.

History mode History mode provides information regarding the parameters of all stored char-

ging processes. The display window is shown twice below in order to be able to show changing or different displays:

Use the "Up/Down" buttons to switch between the pages for each saved char-

ging process.

Contents of the display window

Start date of the charge, e.g.: Thursday, 19.06.14.

Start time of the charge, e.g.: 19:29 or charging period, e.g.: 8 h 28 min.

Voltage when charging starts: e.g.: 45.9 V.

Voltage after 5 minutes: e.g.: 47.9 V.

Voltage at end of charge: e.g.: 48.0 V.

Consumed Ah, e.g.: 397 Ah

Consumed kWh, e.g.: 19 kWh.

Charging characteristic, e.g.: 6 RI.

Set charging period, e.g.: 8 - 9 h or set Ah, e.g.: 400 Ah or set time of end of

charge (not shown).

EN-US

Displayed symbols

No. Function

(1) Full battery

Charge completed.

(2) Empty battery

Charge not completed.

(3) Exclamation mark with number

Warning issued, with code for the corresponding status code. Detailed information can be found in the "Status codes" section.

(4) Symbol with number

Error issued, with code for the corresponding status code. Detailed information can be found in the "Status codes" section.

(5) Button symbol with check mark

Charge was correctly ended with the "Pause/Start" button.

(6) Button symbol with cross

Charge was ended without pressing the "Pause/Start" button.

(7) Charge details

Display of certain battery data at the beginning and at the end of the charge: Number of cells Ah Curve Type of battery

Configuration mode

Configuration mode offers the following setting options:

Charging settings: Settings for the battery

Type of battery, e.g., "Wet".

Charging characteristic, e.g., "IU".

Capacity (Ah) or charging time (h), depending on the charging characteristic.

Cells: Voltage (V) and number of battery cells or automatic setting of the

number of cells.

CAUTION!

Risk of damage to the battery.

Damage to the battery may result.

Only use the automatic setting of the number of cells for batteries with

▶

the following nominal voltage values: 12 V and 24 V for 24 V devices, 24 V and 48 V for 48 V devices. Do not use the automatic setting of the number of cells on deeply dis-

▶

charged batteries.

Further settings:

For individual adjustment of the charging characteristic.

Additional functions: Additional functions

Blue LED

External start/stop

InterLock

Refill indicator

Option Section

At mains failure restart charging

General options: General settings

Language

Contrast

Time (hh:mm:ss)

Time zone Daylight saving time/standard time Date (dd:mm:yy)

Charging cable length (m)

Charging cable cross-section (mm2) AC current limitation

Unit for temperature values

Code for entering the configuration menu activated/deactivated.

Time interval for the parameters logged on the USB thumb drive (s).

Reset statistics

Reset history

Reset Settings

With confirmation prompt ("OK?") for further confirmation.

First the screen appears in the basic settings with display of date and time, as well as the software version.

EN-US

Use the "Up / Down" keys to call up the following information:

Device serial number as well as serial number and version of the config-

uration memory. PC board for control/power electronics: Hardware version and serial

number. Software: Main software, secondary software, primary software, and

curve block version.

Enter the configuration menu as follows:

Press the "Pause / Start" key.

A prompt for the code appears.

Enter the required code "1511" as follows:

Use the "Up / Down" keys to enter the first digit of the code.

Press the "Menu" key to move to the next digit of the code.

Continue as described above until the complete code is entered.

Confirm entry with the "Pause / Start" key.

The selection of the main menu items for configuration mode appears.

When selecting a menu item, you may be prompted to read the Operating Instructions. Confirm this prompt by pressing the "Pause / Start" key again.

Navigate through the configuration menu and its submenus as follows:

Use the "Up/Down" buttons to select the desired menu item.

Press the "Pause/Start" button to confirm the menu item and confirm any

confirmation prompts (e.g. "OK?") again.

If necessary, use the "Up/Down" buttons to make a selection, e.g. "Off/On" or

enter a value.

Press the "Pause / Start" key to confirm the entry.

If the cursor moves to the next setting or digit after confirming, proceed

again as described in points (3) and (4).

To exit the current menu:

Press the "Menu" key to return to the higher-level selection.

The charge settings are explained below by way of an example:

Use the "Up/Down" buttons to select the "Charging settings" menu item.

Press the "Pause/Start" button to confirm the menu item.

The selection of settings for the "Charging settings" menu item appears:

The display may vary depending on the selection made.

Both the start and end can be set for the charging time. If required, the start time can be deselected; then the charging time is based exclusively on the specified charge end following a manual charge start.

While making the settings, the user is guided through the menu in the same way as a wizard function.

Use the "Up/Down" buttons to select the desired parameter (e.g. "Cells").

Press the "Pause/Start" button to confirm the parameter.

Use the "Up/Down" buttons to set the desired value (e.g. "24" for the number

of battery cells).

Press the "Pause / Start" key to confirm the entry.

If one or more relevant settings for the charging process are changed in configuration mode, another prompt appears when exiting configuration mode, asking whether the setting in question should be applied.

The following settings must be confirmed when exiting configuration mode:

Curve

Battery capacity in Ah

Number of cells

Equalizing charge ON/OFF

CAN protocol

EN-US

Settings Below is a detailed explanation of the "Settings" menu item, selected under the

aforementioned "Charging settings" menu item. Navigation is carried out as described in the "Configuration mode" section.

A list appears with the following selection options:

The individual selection options are explained in detail below.

Electrolyte circulation

The sequential control of the electrolyte circulation takes place via the battery charger control unit. Several selection options are available for this purpose.

The following settings are available for the electrolyte circulation:

Off

Electrolyte circulation switched off.

Continuous

Program ON 1 OFF 1 Repeat ON 2 OFF 2

1 30 min 25 min 1 x 5 min 25 min

2 3 min 10 min 4 x 3 min 20 min

3 3 min 12 min 1 x 3 min 12 min

4 5 min 10 min 3 x 5 min 20 min

5 2,5 min 7,5 min 1 x 2,5 min 7,5 min

Electrolyte circulation constantly switched on.

Program 1 to 5

Factory-set programs for the electrolyte circulation and their relevant para-

meters can be found in the table in the "Settings" section of the "Display" chapter.

Automatic

Automatic adjustment of the ﬂow rate of the electrolyte circulation based on

the set battery parameters.

User "On"/"Off"

Individual setting for the electrolyte circulation.

The "On" and "Off" settings determine the pulse/pause ratio of the airﬂow in-

tervals.

Factory-set programs for the electrolyte circulation and the relevant parameters are shown in the table below:

In each of these programs, the solenoid valve picks up for an "ON 1" time and drops out for an "OFF 1" time. This process repeats as many times as specified for "Repeat". After this number of repetitions has elapsed, the "ON 2" and "OFF 2" times continue until the end of charging.

Temperaturecontrolled charging

Temperature-controlled charging:

The following settings are available for temperature-controlled charging:

automatic/OFF/required

automatic ... Temperature-dependent adjustment of the charging character-

istic. OFF ... The measured battery temperature is not taken into account.

required ...

Charging only starts when the temperature sensor is connected.

Error overtemperature ON/OFF

ON ... An error message is output in the event of a battery overtemperature.

The charging process stops and can only be continued after the battery has cooled down and been reconnected. OFF ... No error message in the event of a battery overtemperature.

Warning overtemperature ON/OFF

ON ... A warning is output in the event of a battery overtemperature.

OFF ... No warning in the event of a battery overtemperature.

For certain curves, an external temperature sensor is required. If such a curve is selected in configuration mode, a message is displayed indicating that an external temperature sensor is required.

EN-US

Equalizing charge

Equalising charge

OFF

No equalizing charge takes place.

delay

If the battery remains connected to the battery charger for the duration of

the set equalizing charge delay ("equalize charge delay"), a special form of charging takes place. This prevents acid stratification. The parameters for current (amperes/100 ampere hours), voltage (volts/cell)

and duration of the equalizing charge can be changed.

Weekday

Specification of the day of the week on which the equalizing charge is to take

place. The parameters for current (amperes/100 ampere hours), voltage (volts/cell)

and duration of the equalizing charge can be changed.

Manual

An equalizing charge can be activated manually by pressing a button on the

display. The equalizing charge starts after the set delay with the set parameters.

The parameters for current (amperes/100 ampere hours), voltage (volts/cell)

and duration of the equalizing charge can be changed. This function is only available for Pb-WET curves.

If a setting for the equalizing charge is activated, a symbol next to the set ampere hours/the set charging time in the home screen indicates whether the equalizing charge is being carried out or can be started.

Delay delay

charge start delay

charge end delay

at mains failure restart charging

at mains failure

If the "Restart charging" option is activated, the charging process is automatically restarted after a fault in the electrical network as soon as the electrical network is available again.

If the "Automatic/continue charging" option is activated, the charging process is automatically continued after a fault in the electrical network as soon as the electrical network is available again.

Delay time (minutes) between the activation time of the charge start and the actual charge start.

Delay time (minutes) between the signaled end of charge (e.g. green indicator) and the actual end of charge.

If this option is activated, the charging process is automatically restarted after a fault in the electrical network as soon as the electrical network is available again.

Restart charging Automatic/continue charging

Calendar calendar

The calendar function enables charging to be started automatically according to the following criteria:

Time window within which charging should not be started when a battery is

connected. Time window within which a defined curve 1 should be started when a bat-

tery is connected. Time window within which a defined curve 2 should be started when a battery

is connected.

To activate the calendar function,

select and confirm the "ON" setting.

"Charging settings" menu item:

Type of battery for all curves:

e.g. Pb-WET. Curve settings when the corres-

ponding curve is selected.

Further settings are possible within the calendar function:

"Day setting 1-5": The day settings allow up to 5 different charge start time profiles to be defined, with the following setting options:

Symbol for curve 1:

Time window within which curve 1 should be started (e.g.: 0:00-6:00) Stop:

Time window within which no charging should take place (e.g.: 6:00-20:00) Symbol for curve 1:

Time window within which curve 1 should be started (e.g.: 20:00-24:00)

NOTE!

Ongoing charges are not inﬂuenced by the set time windows.

If a battery is connected at 05:45 in the above example, charging is stopped

▶

when necessary and is not interrupted by the specified end time (6:00 in the example) of the set time window. If the battery is connected within the stop time window, charging will start

▶

automatically in the next time window. If a manual charge start is triggered during the stop time window, charging always takes place with curve 1.

EN-US

Additional setting options:

Change the assigned curve:

curve symbol. Remove the curve in question:

"remove".

"Week setting":

It is possible to configure 3 differ-

ent week settings.

Each day of the week can be assigned one of the previously created day settings.

Special charges Special Charges

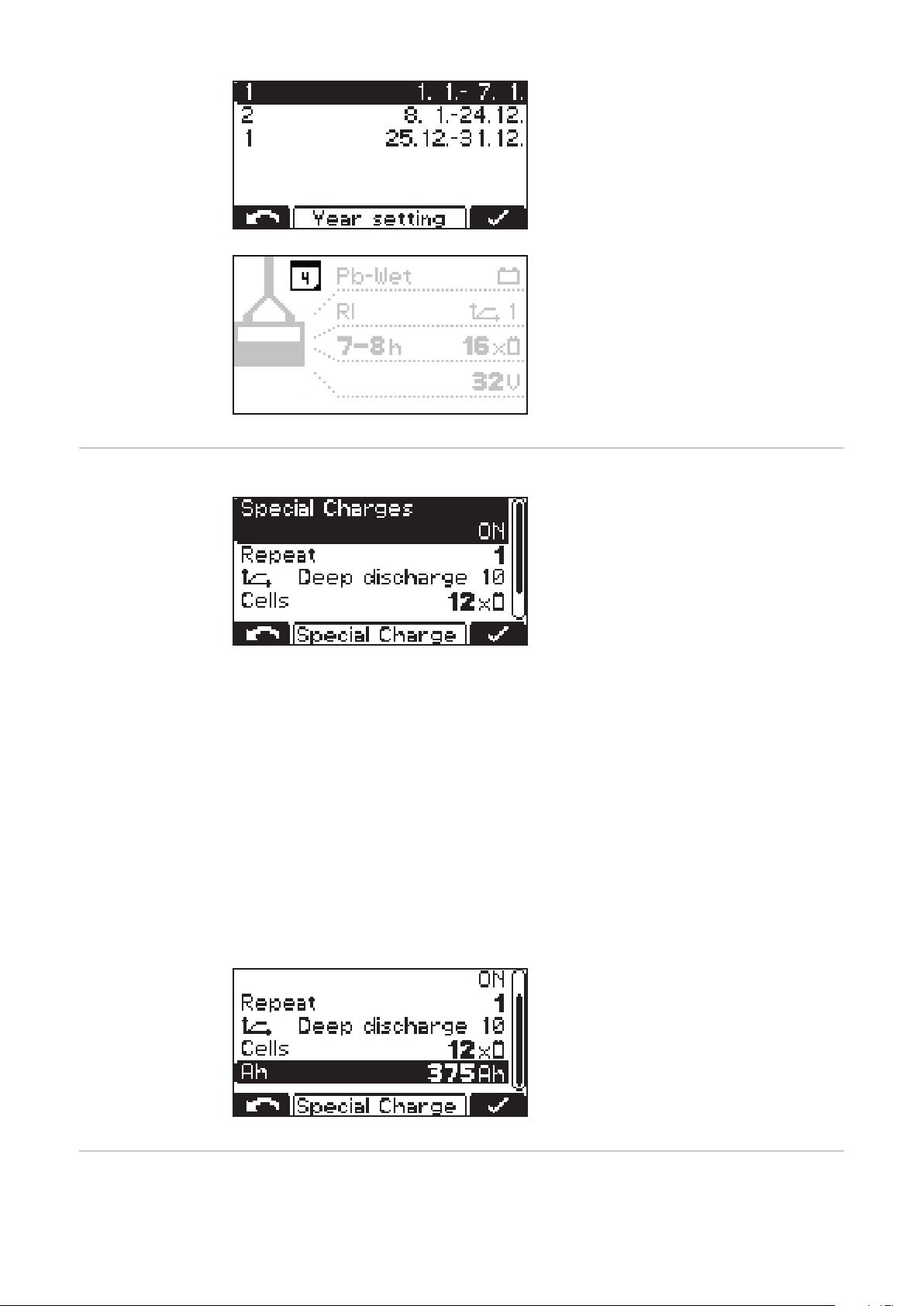

"Year setting":

It is possible to assign a week set-

ting to several calendar periods (e.g., 1.1. - 7.1.).

When the calendar function is activated, a calendar symbol (here with the number "4" as the current date) appears in the display.

The "Special Charges" selection allows you to temporarily carry out one or more charges that differ from the usual type of charge.

The "Repeat" setting defines how often the special charge is to be carried out until charging is permanently resumed with the original charge parameters:

Setting range

1 to 99 repetitions

Disable Start Button

It is not possible to start the charging process using the "Pause/Start" but-

ton, which prevents unauthorized access, for example.

OFF

It is possible to start the charging process using the "Pause/Start" button.

The following settings are also possible:

Curve:

e. g. "Deep discharge 10"

"Cells" - e.g. 12x Battery capacity in Ah:

e. g. 375 Ah

DC connection DC-Connection:

The Check DC-Connection setting is located in the DC Connection menu. If Check DC-connection is switched on ("ON"), the connection between the battery charger and the battery is checked during the charging process.

If problems occur with the DC connection during the charging process, status code 17 is set when Check DCConnection is active. A connection problem can occur, for example, if the charging contacts are worn or dirty.

EN-US

Additional functions

Detailed explanation of the "additional functions" menu item in configuration mode. Navigation is carried out as described in the "Configuration mode" section.

Select the "additional functions"

menu item.

A list appears with the following selection options:

The individual selection options are explained in detail below:

Blue LED

Setting for the time (minutes) after which the blue "battery cold" indicator should light up to indicate that the battery is sufficiently cooled down. The set value is the time from the end of charging.

In conjunction with the "Temperature-controlled charging" option, it is possible to set a temperature value below which the blue "battery cold" indicator should light up to indicate that the battery is sufficiently cooled down.

Refill indicator

The refill indicator is activated as soon as it is necessary to add distilled water to the battery. The time of the refill request can be defined as follows:

Every x-th week and weekday

e.g. refill water every 2nd week on Friday

When "OFF" is set, the refill request does not have to be confirmed.

Relays

Under Relays, one of the following functionalities can be set for each of the 4 terminals, viewed from left to right:

Aquamatic control

Signal, e.g., for actuating a solenoid valve

"Standard" program with settings pre-configured at the factory

"User" program with user-defined setting options

For more information on the Aquamatic control, see the "Aquamatic control"

section of the "Options" chapter.

Charging

Charge 50 %

Charge 80 %

Charge Finish

Main Charge Finished

Signal when main charging phase is finished

Charge not complete

Signal if the battery is prematurely disconnected from the battery charger

Can be set from 1 to 10 s

Charge OK

Battery is being charged or is already fully charged

Cumulative Error

Signal in the event of an error

A power failure can be displayed as an error ("ON" setting).

If the device is in an error state, a freely defined text can be displayed, which

can contain the contact details of the distributor, for example. Detailed information can be found in the "USB mode" section.

Cumulative error + warning

In the same way as the "Cumulative Error" function, the corresponding relay

picks up as soon as an error or warning is present.

Signal Lamp

It is possible to connect one or more suitable lamps to the relay board to in-

dicate the state of charge or the operating status of the battery charger. Detailed information can be found in the "Signal lamp" section of the "Op-

tions" chapter.

Immobiliser

The relay picks up continuously as soon as the battery charger is connected

to the grid.

Refill Indicator

Indicates that it is necessary to refill the battery with distilled water.

Detailed information can be found in the "Additional functions" section of

the "Display" chapter.

Battery Cold

External Air Pump

The settings are made as explained in section "-> Settings" for "Air Pump".

Detailed information on the relay board can be found in the "Options" chapter.

External lamp

According to the "Charging lights" section of the "Options" chapter, suitable external indicators can be connected in order to visualize the state of charge or the operating status of the battery charger. The following settings are available:

Normal (conventional external indicators)

RGB (LED strip)

EN-US

Remote control system

The contrast for the remote control system can be adjusted.

at mains failure restart charging

If this option is activated, the charging process is automatically restarted after a fault in the electrical network as soon as the electrical network is available again.

General options Detailed explanation of the "General options" menu item in configuration mode.

Select the "General options" menu

item.

A list appears with the following selection options:

Language

Display

Time and Date

Charging cable:

Simple length of the charging

cable (m)

Contrast LED brightness Show Ah at charge end ON/OFF

Daylight saving time/standard time Predefined time zones User-defined time zones

Cable cross section:

Cross section of the charging cable (mm²)

AC current consumption:

Adaptation of the maximum device

current to the electrical installation on site, or to the device plug which has been installed on the device.

The minimum and maximum values

differ for the different device classes. The minimum value is approx. 25% of the maximum nominal current of the device concerned.

Temperature:

Temperature in °C/°F

Code:

Code entry required/not required to enter configuration mode ("Code ON/

OFF")

USB Logging Time:

Time interval for the charging

parameters logged on the USB thumb drive (s) ("USB Logging Time")

Reset statistics

Reset history

Detailed information regarding statistics and history can be found in the "Statistics mode" and "History mode" sections.

EN-US

Reset settings The menu item below "General options" offers 2 possibilities to reset all settings:

Reset Factory Settings:

Reset the settings made to the

factory settings.

Reset Default Settings:

Resetting the settings made to the

manufacturer's default settings.

USB mode In USB mode, the display shows

whether a USB thumb drive is plugged in.

The USB thumb drive must meet the following specifications:

Formatting: FAT32

32 Gigabyte maximum

No multiple partitioning

The I-SPoT-VIEWER software (www.fronius.com/i-spot) supports the visualiza- tion and evaluation of the data on the USB thumb drive.

Only plug in the USB thumb drive when no charging process is taking place or the charging process has been interrupted.

If the charging process has only been interrupted and not completely ended, it is only possible to read data and not to perform an update or load a configuration.

Navigating in USB mode

Press the "Pause/Start" button to change to the settings listed below.

Use the "Up/Down" buttons to scroll between the settings.

Press the "Pause/Start" button to confirm the desired setting.

To start a data download, confirm this again with the "Pause/Start" button. If this repeated confirmation with the "Pause/Start" button is not carried out, the download starts automatically after one minute.

While a charging process is in progress, the USB thumb drive may be connected after pressing the "Pause/Start" button. It is only possible to read data and not to perform an update or load a configuration.

Safely remove

Safely remove the USB thumb drive once the desired action is complete.

Update

A list of suitable update files stored on the USB thumb drive opens.

The desired file is selected and confirmed in the same way as scrolling

through the settings. Do not rename the automatically assigned file name of the update file!

The latest firmware is available in the download area of the Fronius website.

Firmware installation instructions are included in the zip file of the down-

load.

Download

The data of the logged charging parameters stored in the data logger of the

device is saved for the I-SPoT VIEWER on the USB thumb drive. Events as well as device settings and user curves (configuration) are also

saved. The following time ranges can be selected for the data logger:

1 month 3 months All Since last time

Download optional

The following options are available:

I-SPoT VIEWER

The logged data is saved in the same way as for the "Download", but only with the data for the I-SPoT VIEWER. Save data logger

The logged data is saved in the same way as for the "Download", but as "csv" files rather than in the I-SPoT VIEWER format. (Automatically created folder structure for the ".csv" files: * Fronius\<Device serial number>\Charges\<yyyymmdd>\<hhmmss.csv>) Save events.

Events are saved on the USB thumb drive. Save configuration.

The device settings are saved on the USB thumb drive.

Load configuration

Loads a suitable device configuration stored on the USB thumb drive into the

device.

Load dealer text

Here a text file can be loaded from the USB thumb drive, which is displayed

as soon as the device is in an error state. The text file can contain the contact details of the dealer, for example.

The file must be saved on the USB thumb drive in the ".txt" format in "uni-

code". The file name must be "dealer.txt".

The number of characters is limited to 99.

Status codes

* If a USB thumb drive is plugged in during charging, the csv files are saved

directly on the USB thumb drive. The folder structure, which is also created automatically, contains the "Datalog" folder instead of the "Charges" folder.

If a fault occurs during operation, specific status codes may be displayed. This can be caused by the following:

Battery error

A battery with an unsuitable voltage has been connected.

The device has overheated.

A software or hardware error has occurred.

EN-US

Battery error: If the battery reports an error state, the battery charger will display this error as a battery error including the corresponding error number of the battery. The respective error explanation can be found in the Operating Instructions for the battery.

If an error message appears on the display and the error cannot be rectified independently

Note down the displayed status code: e.g., "Statecode (31)".

Note the configuration of the device.

Contact your authorized Service Partner.

If the device is in an error state, a freely defined text can be displayed, which can contain the contact details of the distributor, for example.

Status codes with an external cause

No. Cause/Remedy

(11) Check mains voltage

(12) Check grid (phase failure)

(13) External temperature sensor defective

(14) Electrolyte circulation defective (pressure switch does not switch)

(15) No control voltage detected

(16) External start/stop is not closed.

(17) Open circuit detection triggered several times during a charge (e.g.,: worn

charging contacts)

Status codes in the event of a battery fault

No. Cause/Remedy

(22) Battery undervoltage

(23) Battery overvoltage

(24) Battery too hot (only with external temperature sensor)

(25) Battery undertemperature (only with external temperature sensor)

(26) Cell defect detected

(27) Battery not supported

(28) Battery heavily discharged - safety charge in progress

(29) Incorrect battery polarity

(30) Thermal runaway

Status codes in the event of a charging error

No. Cause/Remedy

(31) Time exceeded in the I1 phase

(32) Time exceeded in the U1 phase

(33) Battery overvoltage in the I2 phase

(34) Ah exceeded

(35) Time exceeded in the I2 phase

(36) Target voltage in the I2 phase not reached (only with format curve)

(37) RI charge error

(38) Set charging time cannot be reached

(39) Time exceeded during RI charge

Status codes in the event of a CAN error (battery)

No. Cause/Remedy

(51) Battery not responding

(52) Battery data cannot be queried

(53) Battery voltage not supported

(54) Communication error

(55) Battery error

(56) Battery does not switch on

(57) Message time limit exceeded

(58) Login failed

Status codes in the event of a gateway error

No. Cause/Remedy

(101) CAN Connect setting is active and no CAN connection could be estab-

lished to the gateway for at least 2 minutes.

(102) Gateway has no connection to the back-end.

Status codes in the event of a TagID error

No. Cause/Remedy

(200) Set technology on the battery charger is not compatible with the connec-

ted battery.

(201) The nominal voltage of the battery is not supported by the battery char-

ger or is prevented by a battery charger setting

(202) The battery charger power is not high enough to charge the connected

battery

(203) CAN communication to TagID could not be established

(204) TagID data could not be read

EN-US

(205) TagID update could not be performed

(206) TagID temperature sensor is defective

(207) TagID voltage sensor is defective

(208) Battery master data of the TagID is invalid or not available

(209) Defective EEPROM memory

(210) Defective ﬂash memory

(211) Invalid device signature

(212) TagID data could not be written

(213) The charger power is not sufficient to charge the battery in the desired

charging time

(214) Too much power dissipation on the DC path

(215) TagID level sensor is mounted in the wrong cell or is defective

(216) TagID SoftwareCrash

Status codes in the event of an error in the primary circuit

No. Cause/Remedy

(500) Temperature sensor module 1 (top) defective

(501) Temperature sensor module 2 (bottom) defective

(502) Temperature sensor PCB defective

(503) Primary overtemperature

(504) Fan blocked/defective

(505) Over-/undervoltage in intermediate circuit

(506) Asymmetry in intermediate circuit

(507) Primary supply voltage out of tolerance

(508) Grid failure

(509) Incorrect device configuration

(510) Primary EEPROM faulty

(527) Phaseshifter overcurrent

(528) High charge relay switched off during load operation

(530) Communication problem

(532) Microcontroller error (e.g., division by 0)

(533) Reference voltage out of tolerance

(534) Startup problem

(535) PFC overcurrent

(536) Phaseshifter or PFC faulty

Status codes in the event of an error in the secondary circuit

No. Cause/Remedy

(520) Secondary temperature sensor defective

(521) Secondary overtemperature

(522) Output fuse defective

(523) Secondary supply voltage out of tolerance

(524) Secondary reference voltage out of tolerance

(525) Current offset

(526) Current offset out of tolerance

(527) Power module overcurrent (primary)

(529) No secondary communication

(530) No primary communication

(531) Secondary EEPROM defective

(532) Microcontroller error

(537) Voltage measurement faulty

(570) Secondary relay cannot be switched

(571) ADC/SPI problem

Status codes in the event of an error in the control system

No. Cause/Remedy

(540) Configuration memory block missing/defective

(541) No secondary communication

(542) Secondary Init failed

(543) Program/memory error in the curve control

(544) Program/memory error in the curve control

(545) Primary Init failed

(546) Update failed

(547) Load/save settings failed

(548) Load/save curve settings failed

(549) Charge could not be continued after a grid failure

(550) Time not set

(551) Hardware change detected

(552) Configuration memory block invalid

EN-US

(553) Primary update failed

(554) Communication faulty

(555) Incorrect device software

(557) Interruption of the InterLock communication

(558) The second device, which is connected via the InterLock, has an error

(559) The second device, which is connected via the InterLock option, is incom-

patible with this device

Options

Safety In order to connect optional components, it may be necessary to open the hous-

ing. Observe the following warnings:

WARNING!

Danger of electric shock.

This may result in serious injuries or death.

The housing must never be opened by anyone other than a service technician

▶

trained by the manufacturer. Before working with the housing open, the device must be disconnected from

▶

the grid. A suitable measuring device must be used to ensure that electrically charged

▶

components (e.g., capacitors) are completely discharged. With the aid of a clearly legible, understandable warning sign, ensure that

▶

the device remains disconnected from the grid until all work has been completed.

WARNING!

Danger due to work that is not carried out properly.

This can result in severe personal injury and damage to property.

All work involved with connecting optional components must only be carried

▶

out by qualified specialist technicians. If there are Installation Instructions or User Information for the optional

▶

component concerned, then all warning notices and instructions therein must be obeyed. For all options with electrical connections, a safety inspection must be car-

▶

ried out in accordance with the applicable national and international standards and guidelines after connection work has been carried out. You can obtain more information about the safety inspection from your au-

▶

thorized Service Partner. The Service Partner will provide the necessary documents upon request.

▶

WARNING!

Danger from devices falling or toppling over.

This can result in severe personal injury and damage to property.

Due to its weight, the device must be secured against falling down and top-

▶

pling over by means of suitable mounting accessories. The wall and ﬂoor brackets offered by the manufacturer must be used.

▶

Electrolyte circulation

NOTE!

Danger due to electrolyte penetrating from the battery or due to operation without backpressure.

Damage to the air pump may result.

Always position the battery charger so that it is at least 0.5 m (1 ft. 7.69 in.)

▶

above the battery to be charged. Always connect the compressed air output on the battery charger to the bat-

▶

tery via the hose connection provided, ensuring it is in perfect condition.

NOTE!

Danger due to non-compliance with the permissible mains voltage tolerance.

Malfunctions and damage to property may result.

For the electrolyte circulation option, a limited mains voltage tolerance of

▶

207 V to 250 V, phase-phase, applies compared to the battery charger: 360 V to 433 V.

The electrolyte circulation option has an air pump integrated into the battery charger. This delivers air into the battery via specially designed capillary tubes. This results in an intensive mixing of the electrolyte. The benefit is less battery heating, a longer battery life and less water loss during charging.

If an error is detected due to a pump defect - or due to leaks in the connection to the battery - the status code "Statecode 14" appears on the display. This defect can be indicated as a common error by means of an external signal lamp, for example.

The sequential control of the electrolyte circulation takes place via the battery charger control unit. Several selection options are available in the configuration menu for this purpose. Detailed information can be found in the "Additional functions" section of the "Display" chapter.

These selection options include the factory default programs 1 through 5. The relevant parameters for these programs are shown in the table below, followed by an explanation.

EN-US

Program ON 1 OFF 1 Repeat ON 2 OFF 2

1 30 min 25 min 1 x 5 min 25 min

2 3 min 10 min 4 x 3 min 20 min

3 3 min 12 min 1 x 3 min 12 min

4 5 min 10 min 3 x 5 min 20 min

5 2.5 min 7.5 min 1 x 2.5 min 7.5 min

Cleaning the air filter insert

Clean the air filter insert for the integrated air pump once a year. If there is a lot of dust, shorten the cleaning interval accordingly. It is necessary to remove the air filter insert (2) for cleaning purposes. Remove the air filter (1) by pulling it off and then reinstall it as follows:

(1)

(2)

(1)

Temperaturecontrolled charging

Relay board

The temperature-controlled charging option continuously regulates the charging voltage according to the current battery temperature. This significantly extends the battery-life, especially when used in cold rooms.

WARNING!

Danger when using the relay board for safety-critical functions.

This can result in severe personal injury and damage to property.

Do not use the relay board for safety-critical functions.

▶

NOTE!

Danger due to non-compliance with the permissible mains voltage tolerance.

Malfunctions and damage to property may result.

For the relay board option, the input voltage L-N is restricted to a maximum

▶

of 250 V compared to the battery charger.

Risk of Electric Shock! Do not operate at circuits more than 250 V to ground!

0... 30V DC/4A

0... 250V AC/4A

Use Copper Conductors Only!

C Common NC Normally Closed NO Normally Opened L Line N Neutral Wire

max. 1A

AC Output!

42,0409,0008

C NC NO C NC NO C NC NO

L/C NC NO N

WARNING!

   

The optional relay board enables the external evaluation of the battery charger's operating states and the state of charge of the connected battery. It is also possible to supply one or more external loads with input voltage L-N. This requires an existing neutral conductor in the electrical network. An explanation of the configuration for the outputs of the relay board can be found in the Operating Instructions for the battery charger: Chapter "Display", section "Additional functions".

Detailed information on the relay board can be found in the instructions supplied with the relay board option.

Enclosed is an overview of options directly related to the relay board. These relay board-specific options are controlled via the outputs of the relay board:

Aquamatic

Charging

Charge 50 %

Charge 80 %

Charge Finish

Main Charge Finished

Charge OK

Charge not complete

Signal if the battery is prematurely disconnected from the battery charger Cumulative Error

Cumulative error + warning

Signal Lamp

Immobiliser

Refill Indicator

Battery Cold

External air pump (electrolyte circulation)

EN-US

Aquamatic The Aquamatic control includes the control of a solenoid valve for automated

water refilling at the battery to be charged.

Standard setting

At the beginning of the recharging phase, the solenoid valve picks up for 12

seconds, then the solenoid valve drops out for 4 seconds. This cycle repeats 26 times.

USER setting

Adjustable "ON" time (solenoid valve picks up) after the end of the main charging phase.

Charging The "Charging" option is suitable for controlling a signal lamp, for example. While

charging is in progress, the corresponding relay automatically picks up.

Charge 50 % In the same way as the "Main Charge Finished" function, the corresponding relay

switches as soon as the battery is charged to 50%.

Charge 80 % In the same way as the "Main Charge Finished" function, the corresponding relay

switches as soon as the battery is charged to 80%.

Charge not complete

Charge Finish The "Charge Finish" option is suitable for controlling a signal lamp, for example.

Main Charge Finished

Cumulative Error

The "Charge not complete" option is suitable for controlling an acoustic signal generator, for example. If the battery is disconnected from the battery charger before the charging process is completed, the relay switches for an adjustable time of 1 to 10 seconds.

When the configured charging characteristic is complete, the corresponding relay automatically picks up.

The "Main Charge Finished" option is suitable for controlling a signal lamp, for example. At the end of the main charging phase, the corresponding relay automatically picks up.

The "Cumulative Error" option is suitable for controlling a signal lamp, for example. Every time an error is detected, the corresponding relay automatically picks up.

Cumulative error + warning

Signal Lamp Alternatively to the charging lights, it is possible to connect one or more suitable

Immobiliser If the battery charger is installed in a vehicle as an on-board solution, the option-

In the same way as the "Cumulative Error" function, the corresponding relay picks up as soon as an error or warning is present.

lamps to the relay board to indicate the state of charge or the operating status of the battery charger. The lamps can be designed for a voltage of up to 30 V DC or up to 250 V AC on a grid that is grounded at the neutral point.

If the lamps are ﬂoating, the switching current must not exceed 4 A. A lamp that is controlled via the 230 V supply relay may be operated at an output current of max. 1 A.

al immobilizer device prevents unintentional start-up of the vehicle during the

charging process. This protects the vehicle, the battery and the charging cables from damage.

As soon as the vehicle is connected to the grid, the corresponding relay picks up and blocks the ignition lock signal, for example. Another example is the control of a suitable signal lamp as a visual representation that charging is in progress.

Battery Cold After the time preset in the menu has elapsed, the corresponding relay automat-

ically switches.

External air pump (electrolyte circulation)

Wall and ﬂoor bracket

LED strip The LED strip serves as a status indicator and lights up in the corresponding col-

This option enables the control of an external air pump via relay contact, in the context of the "Air pump" option.

The robust wall and ﬂoor bracket ensures safe installation at the place of use. Detailed information can be found in the corresponding Installation Instructions.

ors in the same way as the display elements of the control panel. An LED strip including diffuser is installed in the gap between the front wall of the housing and the upper part of the housing.

EN-US

IP 23 The IP 23 option increases the IP protection of the device from IP 20 to IP 23.

Detailed information can be found in the corresponding User Information.

Air filter In dusty environments, the air filter prevents contamination of the inside of the

device. This prevents any reduction in performance or other impairment of the device. Detailed information can be found in the corresponding User Information. Cleaning interval as required (manufacturer's recommendation: monthly)

"Mobile" set A carrying strap in combination with a handle tube increases the mobility of the

device.

Remote control system

Gateway Link The Gateway Link enables the easy connection of the gateway to the battery

The remote control system allows full operation of the device from a distance of up to 30 m (98 ft., 5.1 in.). This option includes a complete control panel in an aluminum housing.

charger. The gateway can be connected without opening the battery charger.

Gateway The gateway is the link between the battery charger and Charge&Connect. De-

tailed information can be found in the corresponding User Information.

TagID Link The TagID Link enables the exchange of relevant battery data between the TagID

and the battery charger.

TagID The TagID is an electronic measurement and control system that exchanges bat-

tery data with the battery charger and optimizes charging.

InterLock The InterLock connects two battery chargers and synchronizes the start and end

of charging. As a result, the connected batteries are evenly and fully charged.

Technical data

EN-US

Selectiva 16 kW 96 V / 120 V

Mains voltage:

- 96 V (-10% / +30%)

- 120 V (-10% / +10%) Optional:

Mains fuse

3~ NPE 400 V / 50/60 Hz 3~ NPE 400 V / 50/60 Hz 3~ PE 400 V / 50/60 Hz

32 A

Minimum grid lead cross section 6 mm² (0.0093 in.²)

Duty cycle 100%

EMC emission class B

Standby consumption 12.9 W

Safety class I

Max. permitted grid impedance Z

PCC

Degree of protection

max

According to the "Device-specific data" table below

IP 20

Overvoltage category III

Operating temperature

-20 °C to +40 °C (-4 °F to 104 °F)

Storage temperature -25 °C to +80 °C

(-13 °F to 176 °F)

Relative humidity Max. 85%

Maximum altitude above sea level 2000 m (6561 ft)

Mark of conformity According to rating plate

Product standard EN 62477-1

Dimensions L x W x H 647 x 247 x 392 mm

(25.47 x 9.72 x 15.43 in)

Weight (with standard grid and charging

36.8 kg (81.13 lbs.)

lead)

Pollution degree 3

Housing E1

1) The device may be operated on grids that are grounded at the neutral point with a maximum outer conductor nominal voltage of 400 V. A mains voltage tolerance L-N of 207 V to 250 V applies to the electrolyte circulation and relay board options.

2) Only use a type B residual current circuit breaker for the grid connection of the device. The leakage current to ground is less than 3.5 mA.

3) Interface to a 230/400 V and 50 Hz public grid.

4) For indoor use only, must not be exposed to rain or snow.

5) At a high ambient temperature, a power reduction may occur (power derating).

Device-specific data

Max. char-

Device

Max. AC current

Max. AC power

Nominal voltage

ging current

9140 16 kW 30.3 A 18100 W 96 V 140 A 89

mOhm

9160 16 kW 30.6 A 18250 W 96 V 160 A 77

mOhm

max

12110 16

30 A 17850 W 120 V 110 A 90

12140 16

30.3 A 18080 W 120 V 140 A 74

Device-specific data

PF λ (for UAC nom, 50 Hz, UDC nom, IDC max)

THDi [%] (for UAC nom, 50 Hz, UDC nom, IDC max)

9140 16 kW 0.909 44.24

9160 16 kW 0.909 44.74

12110 16 kW 0.906 44.96

12140 16 kW 0.915 42.95

mOhm

EN-US

Fronius Selectiva 16 kW 4.0 96V/120V Operating Instruction [EN]

Specifications and Main Features

Frequently Asked Questions

User Manual
