Richtvorrichtung Robacta Pro
Robacta Pro adjusting device
Dispositif de réglage Robacta Pro
Bedienungsanleitung Ersatzteilliste
MIG/MAG Roboter-Schweißbren­ner
Operating Instructions Spare parts list
MIG/MAG robot welding torch
Instructions de service Liste des pièces de rechange
Torche de soudage pour robot MIG/ MAG
42,0410,1716 001-28032012
0
Allgemeines
DE
Sicherheit
Allgemeines Mit Hilfe der Richtvorrichtung Robacta Pro können Maßabweichungen an Robacta Robo-
ter-Schweißbrennern korrigiert werden.
WARNUNG! Fehlbedienung kann schwerwiegende Personen- und Sachschä­den verursachen. Beschriebene Funktionen erst anwenden, wenn folgende Do­kumente vollständig gelesen und verstanden wurden:
- diese Bedienungsanleitung
- sämtliche Bedienungsanleitungen der Systemkomponenten, insbesondere Sicherheitsvorschriften
HINWEIS! Bei Maßabweichungen > 5 mm den Rohrbogen nicht mehr selbst ein­richten! Rohrbogen zur Reperatur an Fronius einsenden.
1
Roboter-Schweißbrenner einrichten
1
2
Roboter­Schweißbrenner einrichten
Rohrbogen auf die Rohrbogen-Aufnahme der Prüfvorrichtung Robacta aufsetzen
Rohrbogen einrichten
2
General
Safety
General informa­tion
WARNING! Operating the equipment incorrectly can cause serious injury and
damage. Do not use the functions described until you have thoroughly read and understood the following documents:
- these operating instructions
- all the operating instructions for the system components, especially the safe­ty rules
The Robacta Pro adjusting device can be used to correct measurement discrepancies on Robacta robot welding torches.
NOTE! In the case of discrepancies of more than 5 mm, do not try to adjust the torch neck yourself. Send the torch neck to Fronius for repair.
EN
3
Adjusting the robot welding torch
1
2
Adjusting the ro­bot welding torch

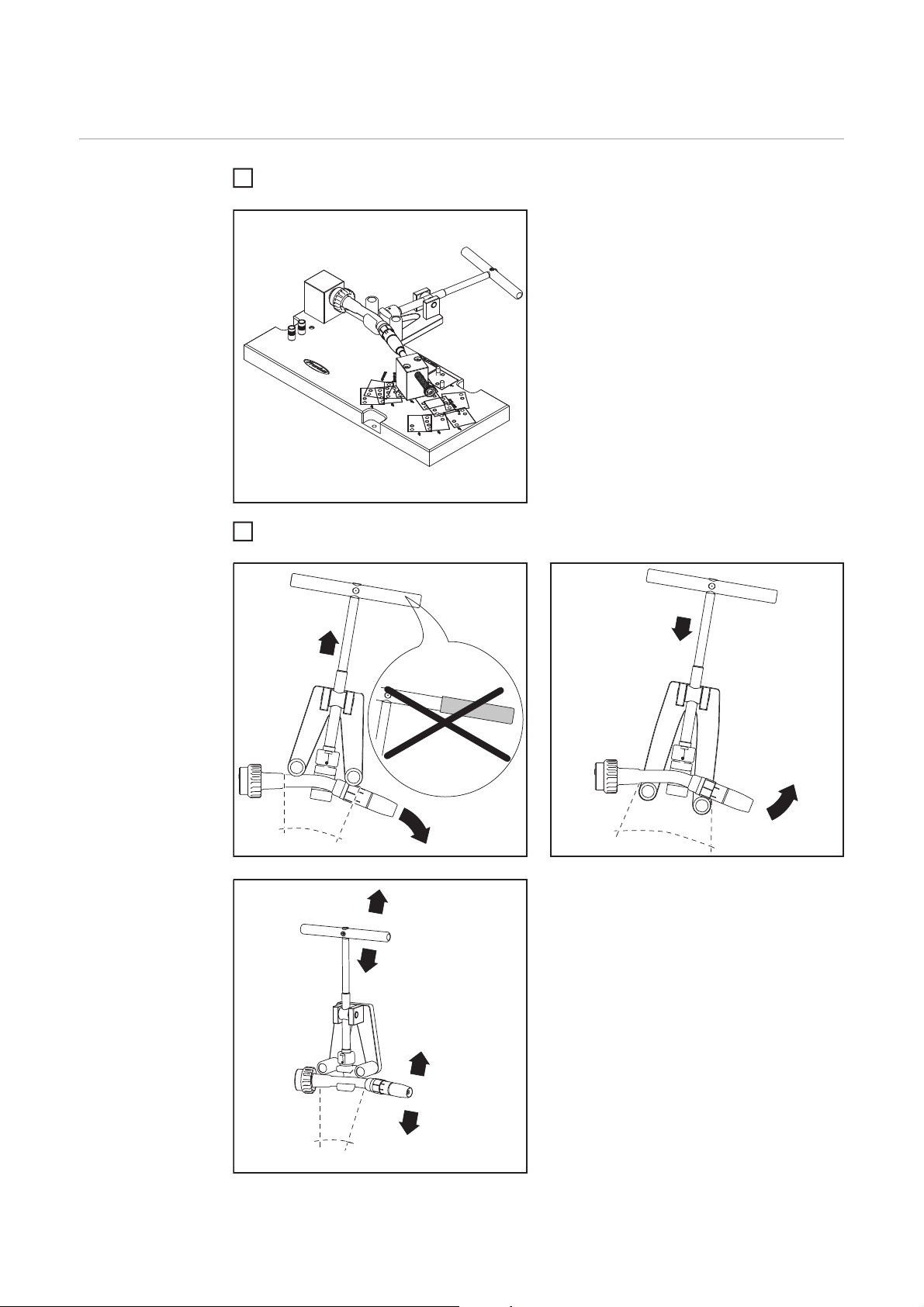

Place the torch neck onto the holder on the Robacta testing device
Adjust the torch neck
4
Généralités
Sécurité
Généralités Le dispositif de réglage Robacta Pro permet de corriger les écarts de dimensions des tor-
ches de soudage robots Robacta.
AVERTISSEMENT ! Les erreurs de manipulation peuvent entraîner des domma­ges corporels et matériels graves. N'utiliser les fonctions décrites qu'après avoir lu et compris l'intégralité des documents suivants :
- les présentes Instructions de service
- toutes les Instructions de service des composants du système, en particulier les consignes de sécurité
REMARQUE! Si les écarts de dimensions sont > 5 mm, le réglage ne doit plus être effectué par vos soins ! Envoyer les coudes en réparation à Fronius.
FR
5
Réglage des torches de soudage robot
1
2
Réglage des tor­ches de soudage robot
Placer le coude sur le logement pour coude du dispositif d'essai Robacta.
Réglage des coudes
6
Appendix
Spare parts list: Richtvorrichtung Robacta Pro
42,0001,5901
32,0001,5113
42,0001,5900
42,0201,0072
42,0001,5902
42,0408,0105
42,0001,6362
32,0201,0074
42,0401,0470
40,0001,0173
8
9
