Perfect Welding / Solar Energy / Perfect Charging

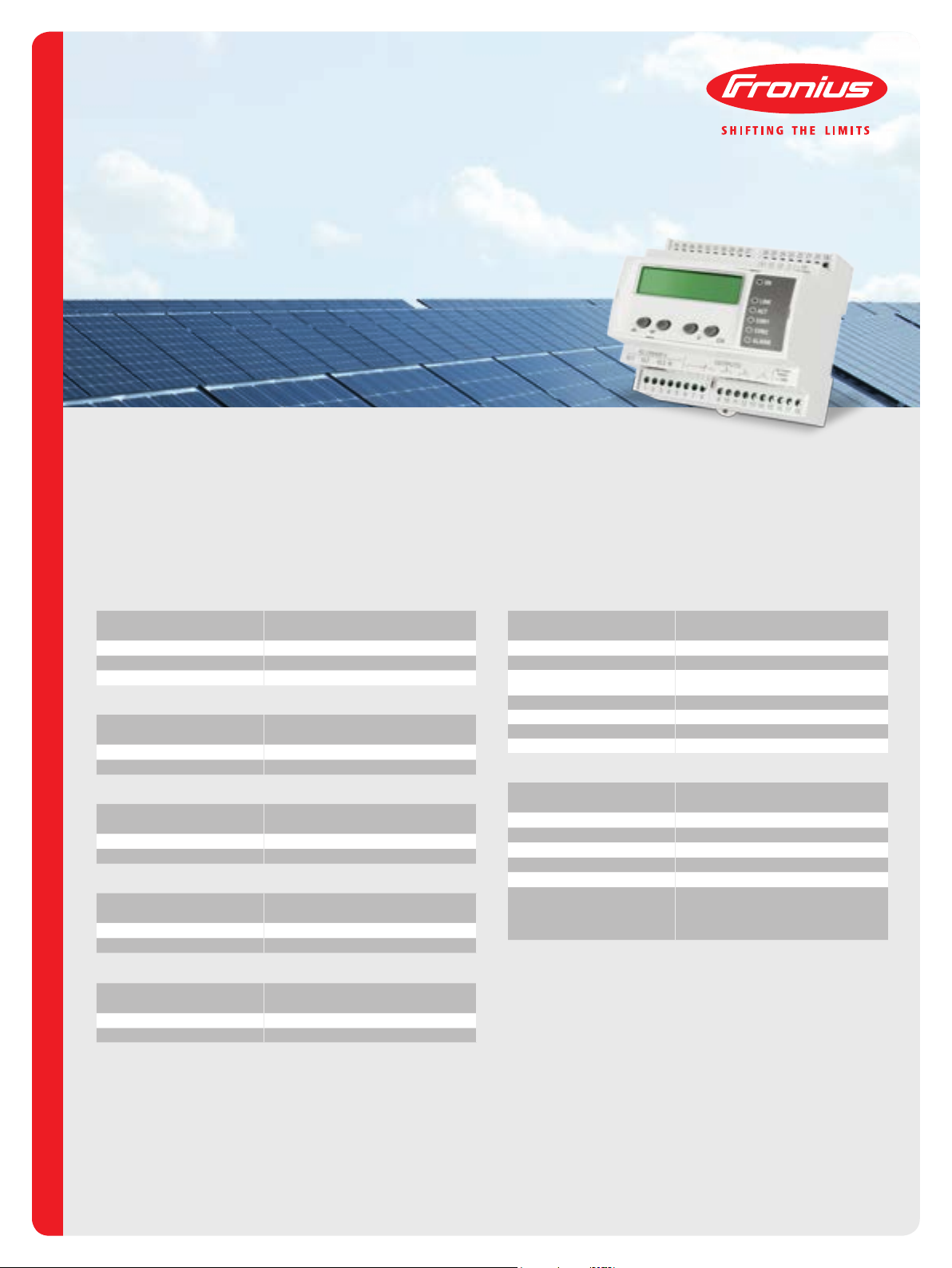

FRONIUS PV-SYSTEM CONTROLLER
AND ACCESSORIES
/ Save fuel with Fronius PV-Genset solutions
/ Integrating PV-plants into genset driven grids requires fast and reliable control of the entire system. The Fronius PV-
System Controller measures all power flows in the system and controls the PV-power in an optimal way. The PV-
System Controller can also be used to balance the self-consumption and limit the exchange with the main grid to a
defined value.
TECHNICAL DATA FRONIUS PV-SYSTEM CONTROLLER
AC POWER SUPPLY
AC voltage 230 VAC (80 % - 115 %)
Frequency 45 - 65 Hz
Consumption 6 VA
DC POWER SUPPLY
Rated voltage DC 12 V
Consumption 6 W
ACCURACY CLASS
Power measurement accuracy 0.5 %
Accuracy energy measurement 1.0 %
VOLTAGE MEASUREMENT
Measuring range 10 - 300 V
Frequency 45 - 65 Hz
CURRENT MEASUREMENT
Nominal current Secondary 250 mA
Maximum current Secondary 300 mA
INTERFACES
User interface Ethernet
Communications with the inverter RS232 / RS485 / RS422
Communications with other
equipment
Display 2 lines of 20 characters
Light indicators 6 LEDs
Keyboard 4 silicone keys
Control outputs 4 potential free relays, 6 A
GENERAL DATA
Dimensions (height x width x depth) 90 x 105 x 70 mm 6 modules DIN Rail
Weight 250 g
Working temperature -25 - +70 °C
Storage temperature -40 - +85 °C
Humidity Max. 95 % without condensation
Certicates and compliance with
standards
Electrical safety for measurement and control
devices IEC 61010-1:2010, electromagnetic
compatibility IEC 61000-6-2:2005,
RS485
IEC 61000-6-4:2011
ACCESSORIES
FRONIUS GENSET MEASUREMENT EXTENSION
/ To implement additional safety with rapid shut down in case of genset back-feed or in
systems with multiple gensets the Fronius Genset Measurement Extension is to be used.
POWER SUPPLY CIRCUIT
AC voltage 230 VAC (-15 % - +10%)
Consumption 3 VA
Frequency 45 - 65 Hz
CLASS / ACCURACY
Power rating 1 % ± 1 digit
GENERAL DATA
Dimensions (height x width x depth) 85.0 x 52.5 x 67.9 mm (3 modules)
Weight 210 g
Degree of protection
Operating temperature -10 - +50 °C
Relative humidity (non-condensing) 5 – 95 %
Max. altitude 2,000 m
METERING CIRCUIT
Nominal voltage 300 VAC (ph-n) / 520 VAC (ph-ph)
Frequency 45 - 65 Hz
Transformer 250 mA
FRONIUS CURRENT SENSORS
/ The right choice of current transducers for maximum accuracy suitable for the
Fronius PV-Genset solution.
Embedded equipment: IP 41
Terminals: IP 20
TECHNICAL DATA 3-PH (40 - 170 KVA 3-PH) 1-PH (150 – 1,000 KVA 3-PH) 1-PH (500 – 1,400 KVA 3-PH)
Nominal current 250 A 500 / 1,000 / 1,500 A 1,000 / 1,500 / 2,000 A
Class 0.5 burden < 0.25 VA
Internal diameter 26 mm 55 mm 80 mm
Secondary current Secondary 250 mA
