Fronius Smart Meter TS 100A-1
EN
Device description
The Fronius Smart Meter TS is a bidirectional electricity meter which optimises
self-consumption and records the household's load curve. In conjunction with
the Fronius inverter, Fronius Datamanager and Fronius data interface, the Fronius Smart Meter TS provides a clear overview of a user's own power consumption.
The meter measures the power flow to the loads or to the grid and forwards the
information via the Modbus RTU/RS485 communication to the Fronius inverter
and the Fronius Datamanager.
CAUTION!
Observe and follow safety instructions!
Failure to observe the safety instructions will result in damage to personnel and
equipment.
Switch off the power supply before establishing a mains connection.
▶
Observe the safety instructions.
▶
11
Information on
the device

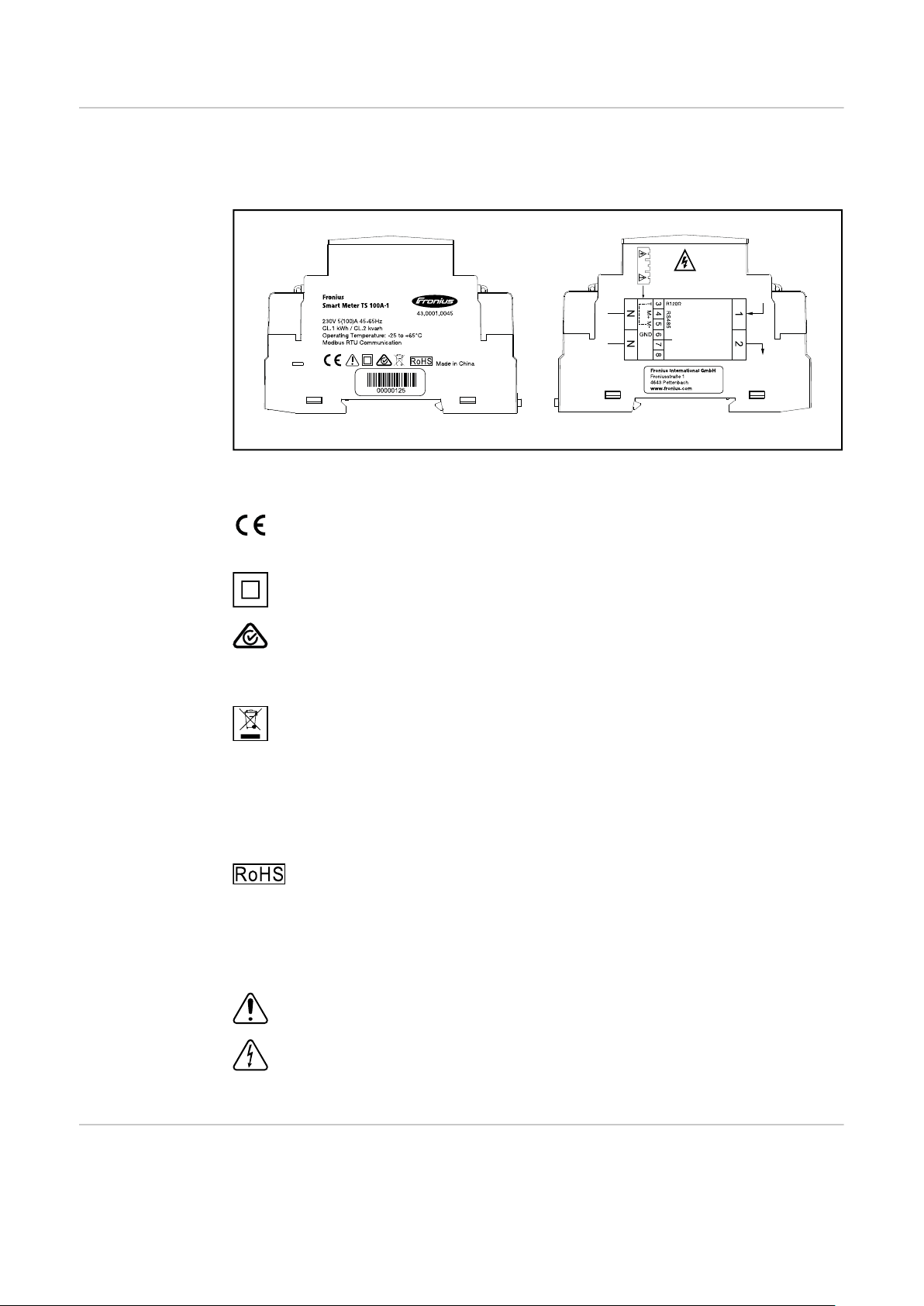

Technical data, markings and safety symbols are located on the Fronius Smart
Meter TS. These must NOT be removed or painted over. They warn against incorrect operation which can lead to serious injury and damage.
Markings:
The devices comply with all the requisite and relevant standards and
guidelines that form part of the relevant EU Directive, and are therefore
permitted to display the CE mark.
Insulated (protection class II)
Regulatory Compliance Mark (RCM)
Complies with all applicable regulatory requirements in Australia and
New Zealand regarding safety and electromagnetic compatibility, as
well as specific requirements for radio equipment.
To comply with European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment and its implementation as national law, electrical
equipment that has reached the end of its life must be collected separately and returned to an approved recycling facility. Any device that you
no longer require must be returned to your distributor or disposed of at
an approved collection and recycling facility in your area. Ignoring this
European Directive may have potentially adverse effects on the environment and your health!
RoHS (Restriction of Hazardous Substances)
The limited use of certain hazardous substances in electrical and electronic equipment has been complied with in accordance with EU Directive 2011/65/EU.
Safety symbols:
Danger of serious injury and property damage due to incorrect operation.
Dangerous electrical voltage.
Intended use The Fronius Smart Meter TS is a fixed piece of equipment for public grids of
TN/TT systems and records self-consumption and/or individual loads in the system. The Fronius Smart Meter TS is required for systems with a battery storage
12
system and/or a Fronius Ohmpilot installed for communication between the individual components. The installation is carried out on an indoor DIN rail with corresponding back-up fuses, which are adapted to the cable cross-sections of the
copper conductors and to the maximum current of the meter. The Fronius Smart
Meter TS must only be operated in accordance with the specifications in the enclosed documentation and in accordance with local laws, regulations, provisions,
standards and within the limits of technical possibilities. Any use of the product
other than as described in the intended use shall be deemed to be not in accordance with the intended purpose. The available documentation forms part of the
product and must be read, observed and kept in good condition. It must also be
accessible at all times at the place of installation. The available documents do
not replace regional, state, provincial or national laws, or regulations or standards that apply to the installation, electrical safety and use of the product. Fronius International GmbH assumes no responsibility for compliance with or noncompliance with these laws or regulations in connection with the installation of
the product.
Interventions on the Fronius Smart Meter TS, e.g. modifications and alterations,
are not permitted. Unauthorised interventions will void the warranty and warranty claims and, as a rule, void the user's authority to operate the equipment.
The manufacturer shall not be liable for any damage resulting from such use.
Reasonably foreseeable misuse:
The Fronius Smart Meter TS is not suitable for the supply of life-sustaining medical devices or for the billing of subtenants.
EN
Scope of supply
Positioning The Fronius Smart Meter TS can be installed in the following positions in the sys-
tem:
Positioning at the feed-in point:
(1) 2x seal wire
(2) 2x connection cover
(3) Fronius Smart Meter TS 65A-3
(4) 1x protective cover
(5) Quick Start guide
13
Positioning at consumption point:

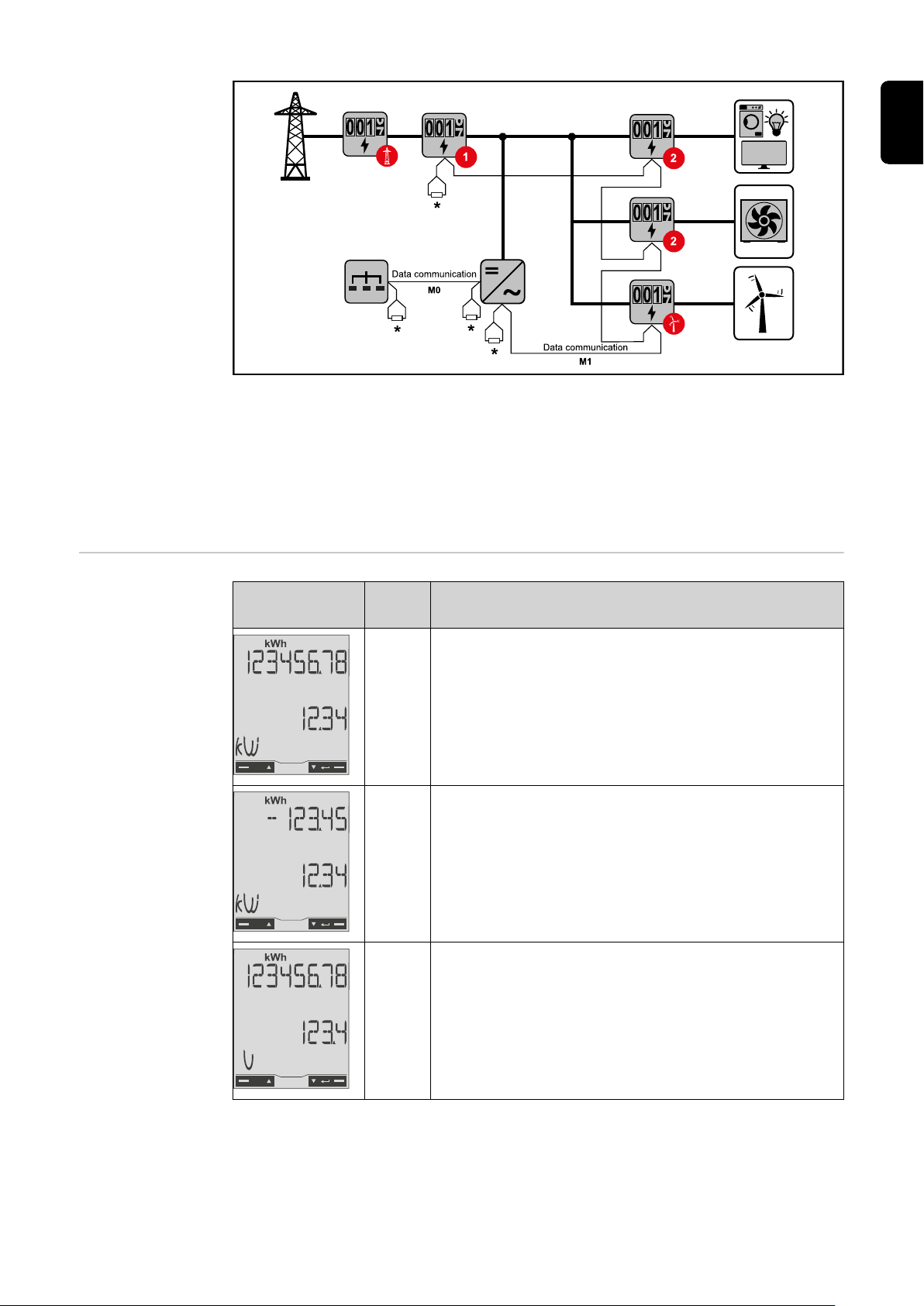

For use as a secondary meter to measure individual loads and producers, see
chapter Multi-meter system - Fronius SnapINverter on page 24.
14
Installation
15
16
Installation
EN
Checklist for installation
For installation information, see the following chapters:
Switch off the power supply before establishing a mains connection.
1
Mount the Fronius Smart Meter TS (see "Installation" on page 17).
2
Connect automatic circuit breakers or automatic circuit breakers and discon-
3
nectors (see"Protective circuit" on page 17).
Connect the mains cable to the Fronius Smart Meter TS (see "Cabling" on
4
page 18).
Fit the protective cover for the terminals (see "Fitting the protective cover
5
for the terminals" on page 19).
Connect the data communication connections of the Fronius Smart Meter
6
TS to the Fronius system monitoring using a suitable cable (see "Connecting
the data communication cable to the inverter" on page 19).

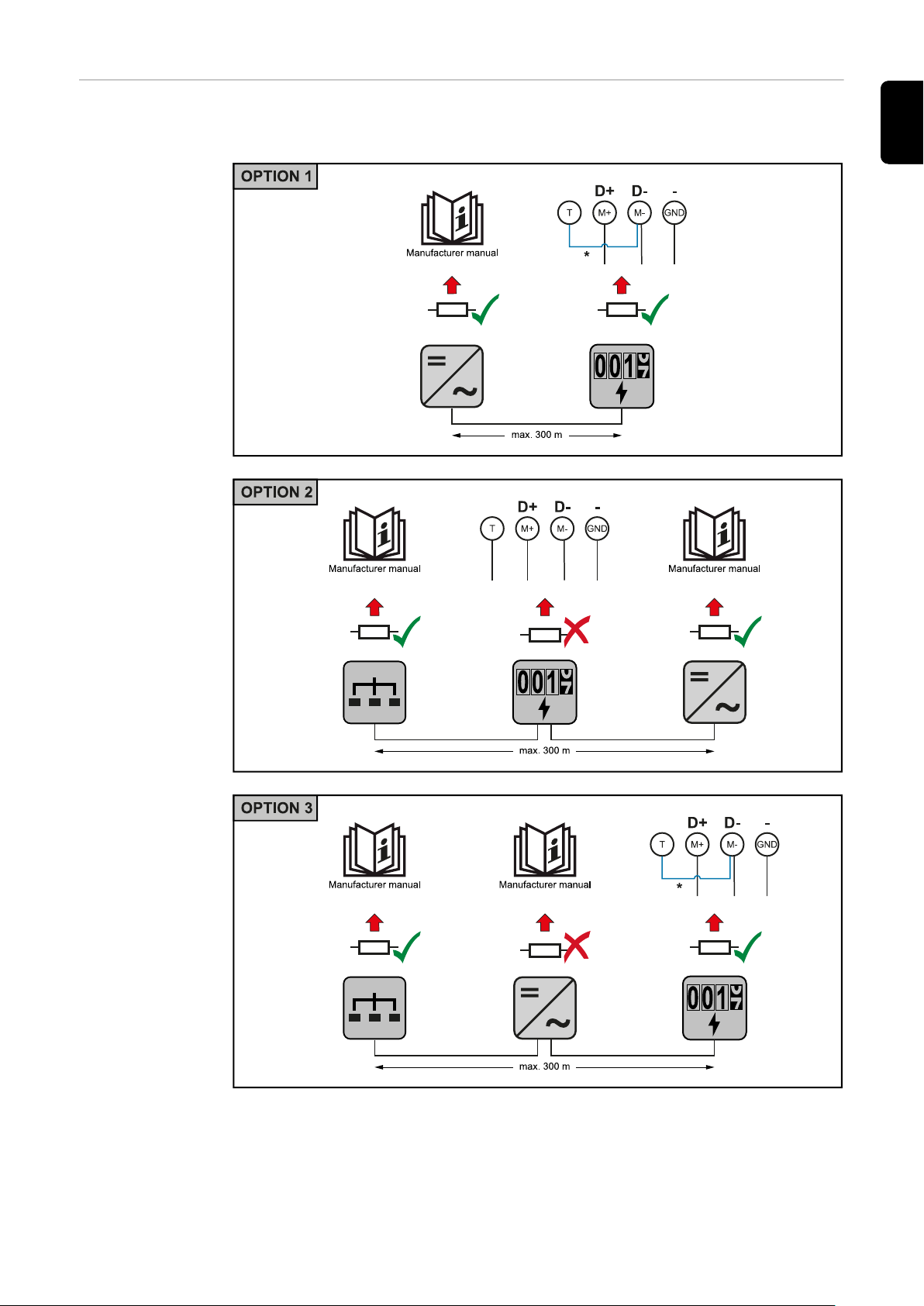

If necessary, set terminating resistors (see "Connecting the terminating res-
7
istor" on page 20).
Tug on each wire and plug to make sure that they are securely connected to
8
the terminal blocks.
Switch on the power supply to the Fronius Smart Meter TS.
9
Check the firmware version of the Fronius system monitoring. To ensure
10
compatibility between the inverter and the Fronius Smart Meter TS, the software must always be kept up to date. The update can be started via the inverter web page or using Solar.web.
If several Fronius Smart Meter TS are installed in the system, set the address
11
(see "Setting the address" under "Setting the address on the Fronius Smart
Meter TS" on page 30).
Configure and commission the meter (see Start-up on page 31).
12

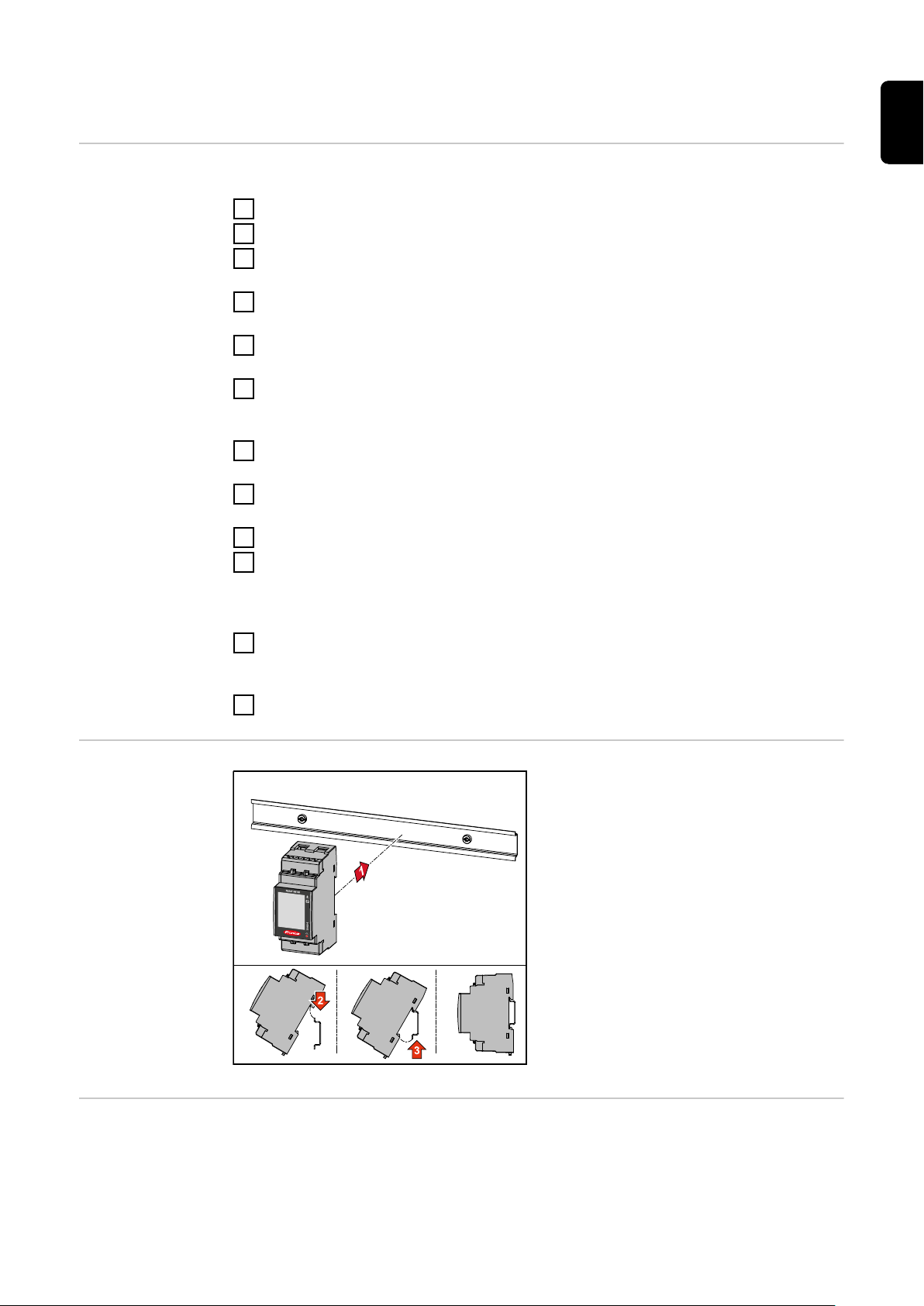

Installation The Fronius Smart Meter TS can be
mounted on a 35 mm DIN rail. The
housing comprises 2 modules according to DIN 43880.
Protective circuit
The Fronius Smart Meter TS is a hard-wired device and requires a disconnecting
device (circuit breaker, switch or disconnector) and overcurrent‑protection (automatic‑circuit breaker).
17
The Fronius Smart Meter TS consumes 10 - 30 mA, the nominal capacity of the
disconnecting devices and the overcurrent‑protection is determined by the wire
thickness, the mains voltage and the required breaking capacity.
Disconnecting devices must be mounted within sight and as close as possible
-
to the Fronius Smart Meter TS; they must also be easy to use.
The disconnecting devices must satisfy the requirements of IEC 60947-1
-
and IEC 60947-3, as well as all national and local regulations for electrical
systems.
Use overcurrent‑protection rated for max. 100 A.
-
To monitor more than one mains voltage, use connected‑automatic circuit
-
breakers.

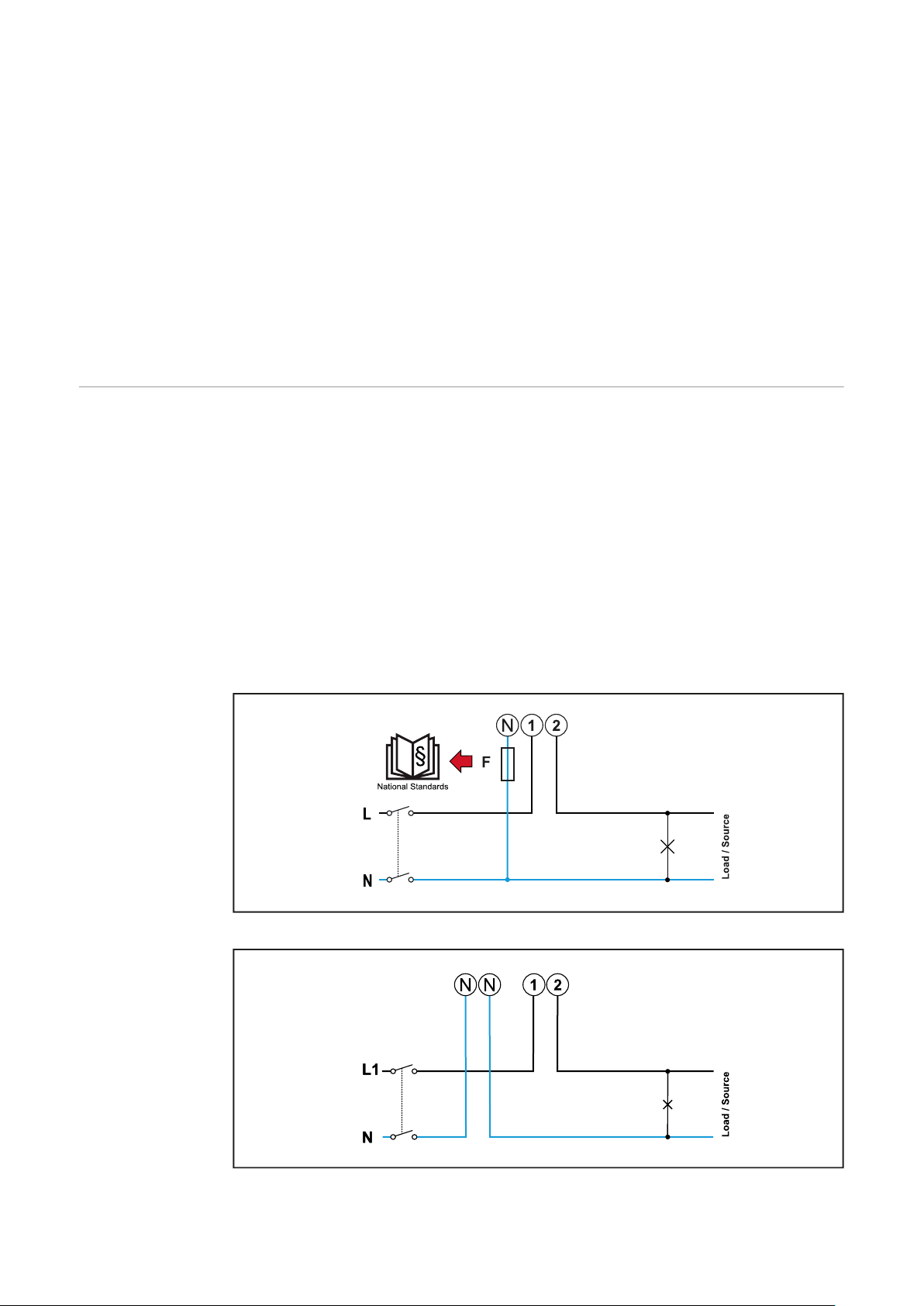

The overcurrent‑protection must protect the mains terminals with the desig-
-
nations L1. In rare cases, the neutral conductor has an overcurrent‑protection, which must interrupt both neutral and non-earthed cables concurrently.
Cabling IMPORTANT!
Always switch off the power supply before connecting the mains voltage inputs
to the Fronius Smart Meter TS.
Recommended thickness of stranded mains voltage cables for the terminals of
the measuring input and measuring output:
Wire: 1 - 25 mm²
-
Recommended torque: max. 2.8 Nm
-
Recommended thickness of stranded wires for data communication terminals:
Wire: min. 0.05 mm²
-
Recommended torque: max. 0.5 Nm
-
Connect each voltage cable to the terminal strip as shown in the graphics below.
1 phase, 2 conductors
18
1 phase, 2 conductors
Fitting the protective cover for
the terminals
1
Insert the protective cover into the
guide and press firmly.
WARNING!
Danger due to electrical voltage from
missing or improperly fitted protective cover.
An electric shock can be fatal and/or
cause serious damage to property.
Fit the protective cover immedi-
▶
ately after installing the live
cables.
Fit the protective cover properly
▶
and check that it is secure.
EN
Connecting the
data communication cable to
the inverter
Connect the data communication connections of the Fronius Smart Meter TS to
the Modbus interface of the Fronius inverter using a network cable (type CAT5
or higher).
Several Smart Meters can be installed in the system, see chapter Multi-meter
system - Fronius SnapINverter on page 24.
To avoid interference, the terminating
resistor must be used (see chapter
Connecting the terminating resistor
on page 20).
19
IMPORTANT!
More information on successful commissioning.
Note the following information about connecting the data communication cable
to the inverter.
Use network cables of type CAT5 or higher.
-
Use a mutual twisted cable pair for corresponding data lines (D+/D-, M1+/
-
M1-).
If the data lines are close to the mains cabling, use wires or cables that are
-
designed for 300 to 600 V (never less than the operating voltage).
Use double-insulated or sheathed data lines when they are close to bare con-
-
ductors.
Use shielded twisted pair cables to avoid faults.
-
Two wires can be installed in each terminal; the wires are twisted first, inser-
-
ted into the terminal and tightened.
Note: A loose wire can disable an entire area of the network.
The data communication connections of the Fronius Smart Meter TS are
-
electrically isolated from hazardous voltages.
Terminating resistors - Explanation of symbols
Connecting the
terminating resistor
Inverter in the system
e. g. Fronius Symo
Meter - Fronius Smart Meter TS
Terminating resistor R 120 Ohm is set with a wire jumper between
M- and T.
Modbus RTU slave
e. g. Fronius Ohmpilot, Fronius Solar Battery, etc.
Terminating resistor
R 120 Ohm
The terminating resistor is integrated
in the Fronius Smart Meter TS and is
manufactured with a bridge between
the M and T connections (T = termination).
20
Terminating resistors
Due to interference, it is recommended that terminating resistors are used as illustrated below to ensure proper functioning.
EN
21
* The terminating resistor is integrated in the Fronius Smart Meter TS and is
manufactured with a bridge between the M and T connections (T = termination).
Mounting the
connection cover
Multi-meter system - Explanation of symbols
1
Insert the connection covers into the
guides and press firmly.
IMPORTANT!
When fitting the connection covers,
ensure that the cables are not kinked,
pinched, crushed or otherwise damaged.
Grid
supplies the loads in the system if insufficient power is being generated by the PV modules or supplied by the battery.
22
Inverter in the system
e. g. Fronius Primo, Fronius Symo, etc.
Utility meter
Measures the measurement data relevant for billing amounts of
energy (in particular kilowatt hours of energy sourced from the
grid and energy fed into the grid). Based on the relevant billing
data, the electricity retailer will invoice the energy sourced from
the grid and the purchaser of the surplus energy will reimburse
the energy fed into the grid.
Primary meter
Records the system's load curve and provides measurement data
for energy profiling in Fronius Solar.web. The primary meter also
controls the dynamic feed-in control.
Secondary meter
Records the load curve of individual loads (e.g. washing machine,
lamps, TV, heat pump, etc.) in the consumption branch and
provides measurement data for energy profiling in Fronius Solar.web.
Producer meter
Records the load curve of individual producers (e.g. wind power
plant) in the consumption branch and provides measurement data
for energy profiling in Fronius Solar.web.
Modbus RTU slave
e. g. Fronius Ohmpilot, Fronius Solar Battery, etc.
EN
Modbus participants - Fronius
SnapInverter
Loads in the system
e. g. washing machine, lamps, TV, etc.
Additional loads in the system
e. g. heat pump
Additional producers in the system
e. g. wind power plant
Terminating resistor
R 120 Ohm
A maximum of 4 Modbus participants can be connected to the Modbus terminal.
IMPORTANT!
Only one primary meter, one battery and one Ohmpilot can be connected per inverter. Due to the high data transfer of the battery, the battery occupies 2 participants.
23
Example:
Multi-meter system - Fronius
SnapINverter
Input Battery
Fronius
Ohmpilot
Quantity
Primary
meter
Quantity
Secondary
meter
1 0
1 1
Modbus
1 2
1 3
If several Fronius Smart Meter TS are installed, a separate address must be set
for each (see Setting the address on the Fronius Smart Meter TS on page 30).
The primary meter is always assigned address 1. All the other meters are
numbered consecutively with the address range from 2 to 14. Different Fronius
Smart Meter power categories can be used in combination.
IMPORTANT!
Max. Use 3 secondary meters in the system. To avoid interference, it is recommended to install the terminating resistors according to chapter Connecting the
terminating resistor on page 20.
24
Location of the primary meter in the consumption branch. *Terminating resistor R 120 Ohm
Location of the primary meter at the feed-in point. *Terminating resistor R 120 Ohm
The following must be observed in a multi-meter system:
Only assign each Modbus address once.
-
Terminating resistors must be positioned individually for each channel.
-
EN
Modbus participants - Fronius
GEN24
The inputs M0 and M1 can be selected for this purpose. A maximum of 4 Modbus
participants can be connected to the Modbus terminal on inputs M0 and M1.
IMPORTANT!
Only one primary meter, one battery and one Ohmpilot can be connected per inverter. Due to the high data transfer of the battery, the battery occupies 2 participants.
Example 1:
Input Battery
Fronius
Ohmpilot
Quantity
Primary
meter
Quantity
Secondary
meter
0 4
0 2
Modbus 0 (M0)
0 1
1 3
Modbus 1 (M1)
25
Example 2:
Multi-meter system - Fronius
GEN24 inverter
Input Battery
Fronius
Ohmpilot
Quantity
Primary
meter
Quantity
Secondary
meter
1 3
Modbus 0 (M0)
0 4
0 2
Modbus 1 (M1)
0 1
If several Fronius Smart Meter TS are installed, a separate address must be set
for each (see Setting the address on the Fronius Smart Meter TS on page 30).
The primary meter is always assigned address 1. All the other meters are
numbered consecutively with the address range from 2 to 14. Different Fronius
Smart Meter power categories can be used in combination.
IMPORTANT!
Max. Use 7 secondary meters in the system. To avoid interference, it is recommended to install the terminating resistors according to chapter Connecting the
terminating resistor on page 20.
Location of the primary meter in the consumption branch. *Terminating resistor R 120 Ohm
26
Location of the primary meter at the feed-in point. *Terminating resistor R 120 Ohm
The following must be observed in a multi-meter system:
Connect the primary meter and the battery to different channels (recom-
-
mended).
The remaining Modbus participants must be distributed equally.
-
Only assign each Modbus address once.
-
Terminating resistors must be positioned individually for each channel.
-
EN
Menu - Measured
variables
Image ScreenDescription
00
01
02
Total active energy drawn*
1.
Effective power
2.
Total active energy supplied**
1.
Effective power
2.
Total active energy drawn*
1.
Voltage
2.
27
Image ScreenDescription
03
04
05
Total active energy drawn*
1.
Current
2.
Total active energy drawn*
1.
Power factor (L = inductive, C = capacitive)
2.
Total active energy drawn*
1.
Frequency
2.
06
07
08
Total reactive energy drawn*
1.
Reactive power
2.
Total reactive energy supplied**
1.
Reactive power
2.
Total active energy drawn*
1.
Average demanded power (dMd = demand), cal-
2.
culated for the set interval. The value remains
unchanged for the entire interval. It is "0" in the
first interval after the start.
Maximum demanded power (P = Peak demand),
3.
which has been reached since the last reset
28
Image ScreenDescription
09
10
* Displayed when easy connection mode is activated (measurement = A).
This value indicates the total energy without considering the direction.
** Factory setting - displayed when drawn and delivered energy are meas-
ured separately (measurement = b).
-
-
Not used
Not used
EN
Configuration
menu - structure
and parameters
Screen Code Description Values
PASS*** P1 Enter the current password 2633*
nPASS P2 Password change ** Four digits (0000-9999)
MEASurE P3 Measurement mode ** A: easy connection, meas-
ures all energy without taking the direction into account.
B*: measures imported and
exported energy separately.
P int P4 Average power calculation
interval (minutes)
MOdE P5 Display mode ** Full*: full display
tArIFF P6 Tariff management ** On: activated
HoME P7 Screen showing measured
variables displayed at startup and after 120 seconds
of inactivity **
1* - 30
Easy: reduced display. The
values that are not displayed are still transmitted
via the serial interface.
Off*: deactivated
For full display (Mode =
Full): 0-10*
AddrESS***
bAUd P11 Baud rate (kBit/s) ** 9.6* / 19.2 / 38.4 / 57.6 /
PArITY P12 Parity ** Even/No*
P10 Modbus address 1* - 247
115.2
29
Screen Code Description Values
STOP bit P12-2Only if parity = No. Stop bit.**1* / 2
Setting the address on the
Fronius Smart
Meter TS
rESET P13 Activation of the reset func-
tion for energy tariffs, maximum requested power and
part values of active and re-
No*: reset function deactivated.
Yes: reset function activ-
ated.
active energy (the latter are
only transmitted via the
serial interface) **
End P14 Returns to the measured
None
variables start screen
* Factory settings
** The settings can be protected by changing the default password (pass-
word cannot be reset).
*** Settings that need to be configured.
Sym-
Name Event Function
bol
Up
1x
Scroll one screen forward, increase the value
by 1
Scroll one screen back, decrease the value
by 1
Call up settings, confirm value
Down/
Enter
1x
2 seconds
Press and hold "Down/Enter" for 2
1
seconds.
Press "Up" or "Down/Enter" to ac-
2
cess the P1 screen.
Set password "2633" with "Up" and
3
"Down/Enter" and confirm each individual value with "Down/Enter".
Note down the password.
4
IMPORTANT!
The password cannot be reset.
Press "Up" or "Down/Enter" to ac-
1
cess the P10 screen.
Press and hold "Down/Enter" for 2
2
seconds.
Set the address with "Up" and
3
"Down/Enter" and confirm each individual value with "Down/Enter".
Press "Up" to access the P14
4
screen and press and hold "Enter"
for 2 seconds to exit the settings.
30
Start-up
31
32
Fronius SnapINverter
General IMPORTANT! Settings under the "Meter" menu item are only to be made by
trained and qualified personnel!
The service password must be entered in order to access the "Meter" menu item.
Three-phase or single-phase Fronius Smart Meter TS can be used. In both cases,
the selection is made under the "Fronius Smart Meter" item. The Fronius
Datamanager automatically identifies the meter type.
A primary meter and several secondary meters can be selected. The primary
meter needs to be configured first before a secondary meter can be selected.
EN
Connecting to
the Fronius
Datamanager
Configuring the
Fronius Smart
Meter TS as the
primary meter
Access point:
Select the "Setup" menu on the inverter display and enable the "Wi-Fi Access
1
Point".
Establish the connection to the inverter in the network settings (the inverter
2
is displayed with the name "Fronius_240.XXXXXX").
Password: Enter 12345678 and confirm.
3
In the browser address bar, enter and confirm the IP address http://
4
192.168.250.181 and confirm.
The Fronius Datamanager start page is displayed.
LAN:
Connect the Fronius Datamanager and computer to a LAN cable.
1
Place the Fronius Datamanager IP switch in the 'A' position.
2
In the browser address bar, enter and confirm the IP address http://
3
169.254.0.180 and confirm.
Go to the Fronius Datamanager website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the Fronius Datamanager and confirm.
The Fronius Datamanager website will be displayed.
-
Click the "Settings" button.
2
Log in to the login area with the "service" user and the service password.
3
Call up the "Meter" menu area.
4
Select the primary meter from the drop-down list.
5
Click the "Settings" button.
6
In the pop-up window, set the position of the meter (feed-in point or con-
7
sumption point). For more information on the position of the Fronius Smart
Meter TS, see Positioning on page 13.
Click the "Ok" button when the OK status is displayed. If the Timeout status
8
is displayed, try again.
33
9
Click the button to save the settings.
The Fronius Smart Meter TS is configured as a primary meter.
The "Current general view" menu area displays the power of the PV modules,
self-consumption, the energy fed into the grid and the battery charge (if available).
Configuring the
Fronius Smart
Meter TS as a
secondary meter
Go to the Fronius Datamanager website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the Fronius Datamanager and confirm.
The Fronius Datamanager website will be displayed.
-
Click the "Settings" button.
2
Log in to the login area with the "service" user and the service password.
3
Call up the "Meter" menu area.
4
Select the secondary meter from the drop-down list.
5
Click the "Add" button.
6
Enter the name of the secondary meter in the "Name" input field.
7
Enter the previously assigned address in the “Modbus address” input field.
8
Add meter description.
9
10
Click the button to save the settings.
The Fronius Smart Meter TS is configured as a secondary meter.
34
Fronius GEN24 inverter
General IMPORTANT! Settings under the "Device configuration" menu item are only to be
made by trained and qualified personnel!
The service password must be entered in order to access the "Device configuration" menu item.
Three-phase or single-phase Fronius Smart Meter TS can be used. In both cases,
the selection is made under the "Components" menu area. The meter type is determined automatically.
A primary meter and several secondary meters can be selected. The primary
meter needs to be configured first before a secondary meter can be selected.
EN
Installation using the web
browser
WLAN:
1
Open the access point by touching the sensor once → Communication LED:
flashes blue.
Establish the connection to the inverter in the network settings (the inverter
2
is displayed with the name "FRONIUS_PILOT" and the serial number of the
device).
Password: enter 12345678 and confirm.
3
IMPORTANT!
To enter the password on a Windows 10 operating system, the link "Connect
using a security key instead" must first be activated to establish a connection
with the password: 12345678.
In the browser address bar, enter and confirm the IP address
4
192.168.250.181. The installation wizard is opened.
Follow the installation wizard in the individual sections and complete the in-
5
stallation.
Add system components in Solar.web and start up the PV system.
6
The network wizard and the product setup can be carried out independently of
each other. A network connection is required for the Solar.web installation wizard.
Ethernet:
35
Establish a connection to the inverter (LAN1) with a network cable (CAT5
1
STP or higher).
2
Open the access point by touching the sensor once → Communication LED:
flashes blue.
In the browser address bar, enter and confirm IP address 169.254.0.180. The
3
installation wizard is opened.
Follow the installation wizard in the individual sections and complete the in-
4
stallation.
Add system components in Solar.web and start up the PV system.
5
The network wizard and the product setup can be carried out independently of
each other. A network connection is required for the Solar.web installation wizard.
Configuring the
Fronius Smart
Meter TS as the
primary meter
Configuring the
Fronius Smart
Meter TS as a
secondary meter
Access the inverter website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the inverter and confirm.
The inverter website is displayed.
-
Click the "Device configuration" button.
2
Log in to the login area with the "Technician" user and the technician pass-
3
word.
Access the "Components“ menu area.
4
Click the "Add component" button.
5
In the "Position" drop-down list, set the position of the meter (feed-in point
6
or consumption point). For more information on the position of the Fronius
Smart Meter TS, see Positioning on page 13.
Click the "Add" button.
7
Click the "Save" button to save the settings.
8
The Fronius Smart Meter TS is configured as a primary meter.
Access the inverter website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the inverter and confirm.
The inverter website is displayed.
-
Click the "Device configuration" button.
2
Log in to the login area with the "Technician" user and the technician pass-
3
word.
Access the "Components“ menu area.
4
Click the "Add component" button.
5
In the "Position" drop-down list, select the meter type (producer/load meter).
6
Enter the previously assigned address in the “Modbus address” input field.
7
Enter the name of the meter in the "Name" input field.
8
In the "Category" drop-down list, select the category (producer or load).
9
Click the "Add" button.
10
Click the "Save" button to save the settings.
11
36
The Fronius Smart Meter TS is configured as a secondary meter.
EN
37
Technical data
Technical data Modbus transmission speed: 9600 baud
Parity bit:none
Software version:
Fronius Datamanager 2.0 (from version 3.16.1 onwards)
-
Fronius Symo Hybrid (from version 1.16.1 onwards)
-
Measuring input
Nominal voltage (1-phase)
Operating range
Self-consumption - voltage path (max.
voltage)
Nominal frequency
Tolerance
Nominal current, l
Maximum current, I
Starting current 40 mA
Short-time overload
(EN IEC 62053-21, EN IEC 62053-23)
Self-consumption - current path (max.
current)
Power factor
Operating range
(EN IEC 62053-21, EN IEC 62053-23)
Current distortion factor In acc. with EN 62053-21
Data output
b
max
230 V
161 - 276 V
≤ 8 VA
50 - 60 Hz
45 - 65 Hz
5 A
100 A
30 l
≤ 1 W
cosφ 0.5 ind - 0.8 cap,
/ 0.001 s
max
RS485 communication
Electrically isolated from measuring input
Standard RS485 - 3 conductors
Transmission Serial, asynchronous
Protocol Compatible with Modbus RTU
Addresses 1 - 255
Number of bits 8
Stop bit 1
Parity bit None - odd - even
Baud rate 9600, 19200 bit/s
Response time ≤ 200 ms
Insulation (EN IEC 62052-11, EN IEC 62053-21)
Installation category III
Pollution degree 2
38
Insulation (EN IEC 62052-11, EN IEC 62053-21)
Insulation voltage 4000 VAC RMS (1 min)
Electromagnetic compatibility
Emission test In acc. with EN IEC 62052-11, EN
50470-3
Immunity test In acc. with EN IEC 62052-11, EN
50470-3
Operating conditions
Reference temperature 25 °C (±5 °C)
Operating range -25 - 65 °C
Temperature limit for storage and
transport
Mechanical environment
Electromechanical environment
Housing
Housing 2 modules according to DIN 43880
Sealable housing/terminal cover
-30 - 80 °C
M2
E2
EN
Connection Screw connection
Mounting Can be snapped onto 35 mm DIN rail
Housing material Noryl, self-extinguishing
Degree of protection (EN 60529) IP51 housing, IP20 connections
Weight 160 grams
Terminals
Measuring input
Wire max. 25 mm²
Recommended torque max. 2.8 Nm
Data output
Wire min 0.05 mm²
Recommended torque max. 0.5 Nm
Fronius manufacturer's warranty
Detailed, country-specific warranty terms are available on the internet:
www.fronius.com/solar/warranty
To obtain the full warranty period for your newly installed Fronius inverter or
storage system, please register at: www.solarweb.com.
39
-
-
Loading...
