Operating
Instructions
Fronius Smart Meter 50kA-3
Operating Instructions
EN
42,0426,0280,EN 009-28042023
Contents
Safety rules 4
Explanation of safety notices 4
General 4
Environmental conditions 5
Qualified personnel 5
Copyright 5
Data protection 5
General 6
Device description 6
Symbols on the device 6
Positioning 6
Installation 8
Checklist for installation 8
Installation 8
Protective circuit 8
Cabling 9
Selection criteria for current transformers 11
Connecting the current transformers 12
Suitable voltage transformers 12
Connecting the data communication cable to the inverter 13
Terminating resistors - Explanation of symbols 14
Terminating resistors 14
Setting the transformation ratio of the current and voltage transformers on the Fronius
Smart Meter
Multi-meter system - Explanation of symbols 16
Modbus participants - Fronius SnapINverter 17
Multi-meter system - Fronius SnapINverter 18
Modbus participants - Fronius GEN24 19
Multi-meter system - Fronius GEN24 inverter 20
Menu structure 21
Setting the address of the Fronius Smart Meter 21
Reading the Fronius Smart Meter operating parameters 22
EN
16
Start-up 25
Fronius SnapINverter 27
General 27
Connecting to the Fronius Datamanager 27
Configuring the Fronius Smart Meter as the primary meter 27
Configuring the Fronius Smart Meter as a secondary meter 28
Fronius GEN24 inverter 29
General 29
Installation using the web browser 29
Configuring the Fronius Smart Meter as the primary meter 30
Configuring the Fronius Smart Meter as a secondary meter 30
Technical data 32
Technical data 32
Fronius manufacturer's warranty 35
3
Safety rules
Explanation of
safety notices
DANGER!
Indicates immediate danger.
If not avoided, death or serious injury will result.
▶
WARNING!
Indicates a potentially hazardous situation.
If not avoided, death or serious injury may result.
▶
CAUTION!
Indicates a situation where damage or injury could occur.
If not avoided, minor injury and/or damage to property may result.
▶
NOTE!
Indicates a risk of flawed results and possible damage to the equipment.
General The device has been manufactured in line with the state of the art and according
to recognized safety standards. If used incorrectly or misused, however, it can
cause:
Injury or death to the operator or a third party
-
Damage to the device and other material assets belonging to the operating
-
company.
All personnel involved in commissioning, maintenance, and servicing of the
device must:
Be suitably qualified
-
Have knowledge of and experience in dealing with electrical installations and
-
Have fully read and precisely followed these Operating Instructions
-
The Operating Instructions must always be at hand wherever the device is being
used. In addition to the Operating Instructions, attention must also be paid to
any generally applicable and local regulations regarding accident prevention and
environmental protection.
All safety and danger notices on the device:
Must be kept in a legible state
-
Must not be damaged
-
Must not be removed
-
Must not be covered, pasted or painted over
-
The terminals can reach high temperatures.
Only operate the device when all protection devices are fully functional. If the
protection devices are not fully functional, there is a danger of:
Injury or death to the operator or a third party
-
Damage to the device and other material assets belonging to the operating
-
company
4
Any safety devices that are not fully functional must be repaired by an authorised specialist before the device is switched on.
Never bypass or disable protection devices.
For the location of the safety and danger notices on the device, refer to the section headed "General remarks" in the Operating Instructions for the device.
Any equipment malfunctions which might impair safety must be remedied before
the device is turned on.
This is for your personal safety!
EN
Environmental
conditions
Qualified personnel
Operation or storage of the device outside the stipulated area will be deemed as
not in accordance with the intended purpose. The manufacturer accepts no liability for any damage resulting from improper use.
The servicing information contained in these operating instructions is intended
only for the use of qualified service engineers. An electric shock can be fatal. Do
not carry out any actions other than those described in the documentation. This
also applies to qualified personnel.
All cables and leads must be secured, undamaged, insulated and adequately dimensioned. Loose connections, scorched, damaged or inadequately dimensioned
cables and leads must be immediately repaired by authorised personnel.
Maintenance and repair work must only be carried out by an authorised specialist.
It is impossible to guarantee that bought-in parts are designed and manufactured to meet the demands made on them, or that they satisfy safety requirements. Use only original spare parts (also applies to standard parts).
Do not carry out any alterations, installations, or modifications to the device
without first obtaining the manufacturer's permission.
Components that are not in perfect condition must be changed immediately.
Copyright Copyright of these operating instructions remains with the manufacturer.
The text and illustrations are all technically correct at the time of printing. We
reserve the right to make changes. The contents of the operating instructions
shall not provide the basis for any claims whatsoever on the part of the purchaser. If you have any suggestions for improvement, or can point out any mistakes that you have found in the instructions, we will be most grateful for your
comments.
Data protection The user is responsible for the safekeeping of any changes made to the factory
settings. The manufacturer accepts no liability for any deleted personal settings.
5
General
Device description
Symbols on the
device
The Fronius Smart Meter is a bidirectional electricity meter which optimises selfconsumption and records the household's load curve. In conjunction with the
Fronius inverter, Fronius Datamanager and Fronius data interface, the Fronius
Smart Meter provides a clear overview of a user's own power consumption.
The meter measures the power flow to the loads or to the grid and forwards the
information via the Modbus RTU/RS485 communication to the Fronius inverter.
CAUTION!
Observe and follow safety instructions!
Failure to observe the safety instructions will result in damage to personnel and
equipment.
Switch off the power supply before establishing a mains connection.
▶
Observe the safety instructions.
▶
Technical data, markings and safety symbols are located on the Fronius Smart
Meter. These must not be removed nor painted over. The notices and symbols
warn of incorrect operation that could result in serious injury and damage to
property.
Symbols on the rating plate:
CE mark
The devices conform to all the requisite and relevant standards and
guidelines that form part of the relevant EU directive, and are therefore
permitted to display the CE mark.
Regulatory Compliance Mark (RCM)
Complies with all applicable regulatory requirements in Australia and
New Zealand regarding safety and electromagnetic compatibility, as
well as specific requirements for radio equipment.
WEEE mark
In accordance with European Directive 2012/19/EU on waste electrical
and electronic equipment and its implementation in national law, used
electrical devices must be collected separately and recycled in an environmentally responsible manner. Ensure that you return your used
device to your dealer or obtain information regarding a local, authorised
collection and disposal system. Failure to comply with this EU Directive
may result in a negative impact on the environment and your health!

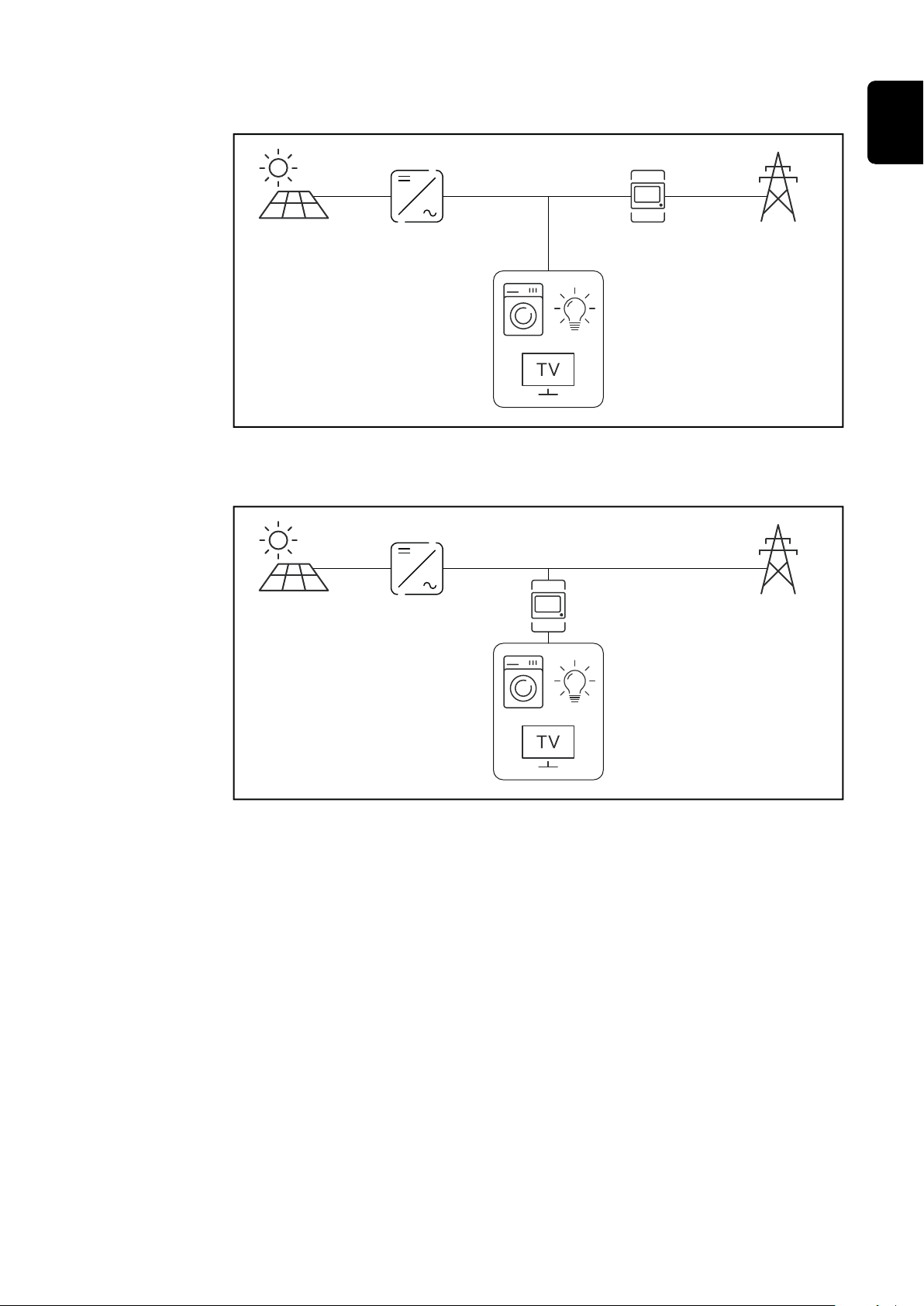

Positioning The Fronius Smart Meter can be installed at two possible locations in the system:
at the feed-in point and at the consumption point.
6
Placement at the feed-in point
Fronius Smart Meter located at the feed-in point.
Placement at the consumption point
Fronius Smart Meter located at the consumption load.
EN
7
Installation
Checklist for installation
For installation information, see the following chapters:
Switch off the power supply before establishing a mains connection.
1
Mount the Fronius Smart Meter (see Installation on page 8).
2
Connect automatic circuit breakers or automatic circuit breakers and discon-
3
nectors (see Protective circuit on page 8).
Connect the mains cable to the Fronius Smart Meter (see Cabling on page
4
9).
Mount the current transformers on the conductors. Make sure that the cur-
5
rent transformers are pointing in the correct direction. An arrow either points
to the load or the source (public grid) (see Connecting the current trans-
formers on page 12).
Connect the current transformer and Fronius Smart Meter (see Connecting
6
the current transformers on page 12).
Make sure that the current transformer phases match the mains voltage
7
phases (see Connecting the current transformers on page 12).
Note down the nominal current of the current transformer for each meter.
8
These values will be required during setup.
Connect the output terminals of the Fronius Smart Meter to the Fronius in-
9
verter (see Connecting the data communication cable to the inverter on
page 13).
If necessary, set terminating resistors (see Terminating resistors on page
10
14).
Tug on each wire and plug to make sure that they are securely connected to
11
the terminal blocks.
Switch on the power supply to the Fronius Smart Meter.
12
Check the firmware version of the Fronius inverter. To ensure compatibility
13
between the inverter and the Fronius Smart Meter, the software must always
be kept up to date. The update can be started via the inverter web page or
using Solar.web.
Set the transformation ratio of the current and voltage transformers (see
14
Setting the transformation ratio of the current and voltage transformers on
the Fronius Smart Meter on page 16).
If several Fronius Smart Meters are installed in the system, set the address
15
(see "Setting the address" under Setting the address of the Fronius Smart
Meter on page 21).
Configure and commission the meter (see Start-up on page 25).
16
Installation The Fronius Smart Meter can be mounted on a 35 mm DIN rail. The housing
comprises 4 DUs (division units, max. 72 mm).
Protective circuit
The Fronius Smart Meter is a hard-wired device and requires a disconnecting
device (circuit breaker, switch or disconnector) and overcurrent protection (automatic circuit breaker).
The Fronius Smart Meter consumes 10 - 30 mA. The nominal capacity of the disconnecting devices and the overcurrent protection is determined by the wire
thickness, the mains voltage and the required breaking capacity.
8
Disconnecting devices must be mounted within sight and as close as possible
-
to the Fronius Smart Meter; they must also be easy to use.
The disconnecting devices must satisfy the requirements of IEC 60947-1
-
and IEC 60947-3, as well as all national and local regulations for electrical
systems.
Use overcurrent protection rated for max. 63 A.
-
To monitor more than one mains voltage, use connected automatic circuit
-
breakers.
The overcurrent protection must protect the mains terminals marked L1, L2
-
and L3. In rare cases, the neutral conductor has an overcurrent protection
which must simultaneously interrupt neutral and unearthed lines.
EN
Cabling
WARNING!
Danger from mains voltage.
An electric shock can be fatal.
Switch off the power supply before connecting the mains voltage inputs to
▶
the Fronius Smart Meter.
IMPORTANT!
Do not install more than one cable per screw terminal. If necessary, use terminal
blocks. The measuring inputs of the current transformers must be earthed on
one side as shown in the circuit diagram.
Connection cross-section:
Wire (rigid): min. 0.05 mm² / max. 4 mm²
-
Wire (flexible): min. 0.05 mm² / max. 2.5 mm²
-
Recommended torque: 0.5 Nm / max. 0.8 Nm
-

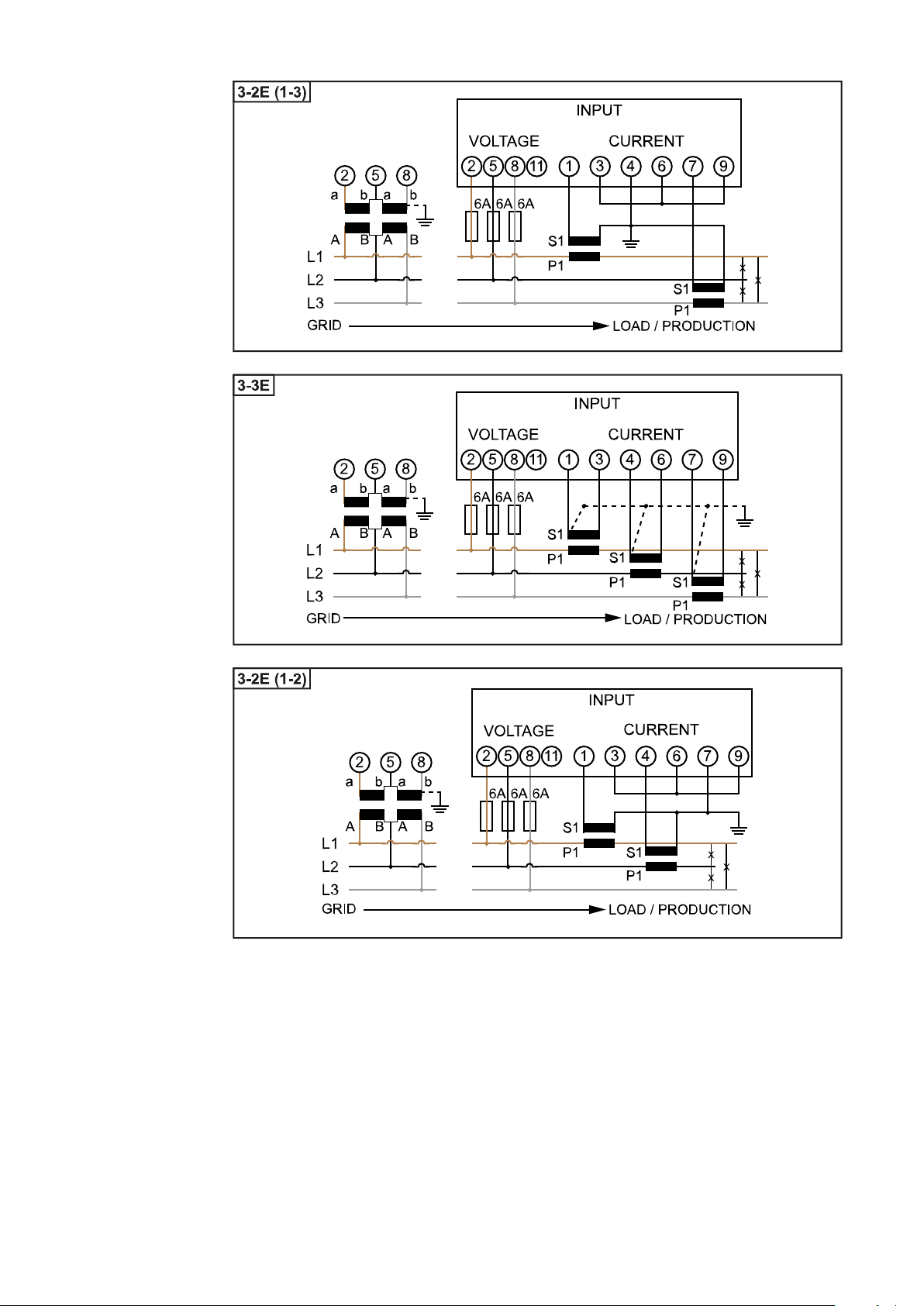

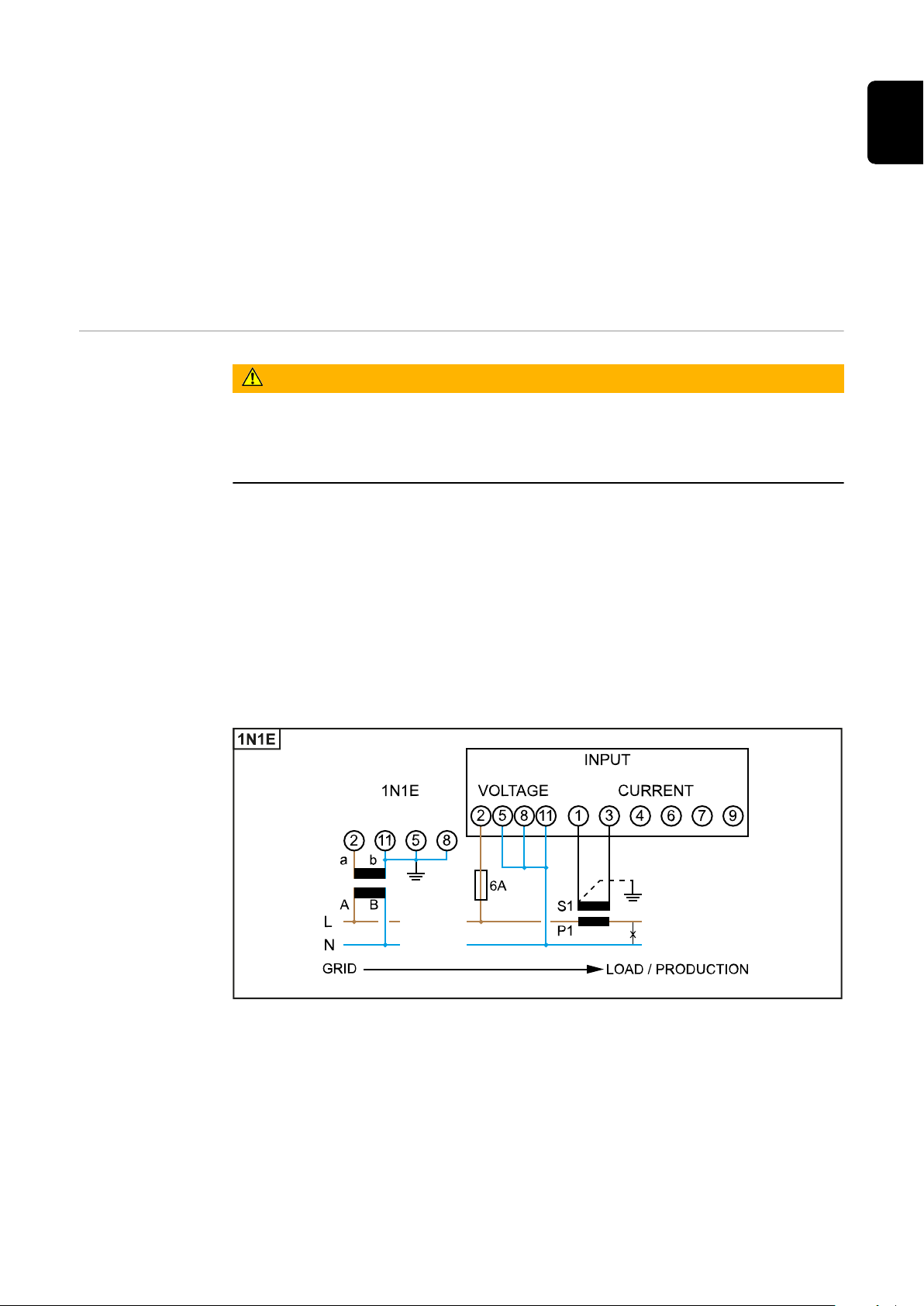

Connect each voltage cable to the terminal strip as shown in the graphics below.
9
10
EN
Selection criteria for current
transformers
General
Do not use current transformers with a voltage output.
Current transformers are directional. If they are mounted backwards or with
swapped wires, the measured power will be negative.
Primary current
Maximum current per phase. A current transformer with a primary current greater than the maximum expected current per phase should be selected. The closer
the expected current is to this value, the more precise the measurement will be.
Secondary current
The current transformer must supply alternating current at a nominal current of
1 or 5 A. The nominal values for the current transformer are listed in the current
transformer data sheet.
Power
The Fronius Smart Meter needs 0.3 VA to carry out its measurements. Losses
also occur on the outgoing and return leads. The power of the current transformer must be greater than the sum total of the power of the Fronius Smart
Meter and the leads. The higher the power, the better.
11
Line resistances at different cross-sections (copper wires)
Secondary cur-
rent
[A]
5 1.5 0.3 VA 0.6 VA 1.5 VA 2.9 VA 5.8 VA
5 2.5 0.2 VA 0.4VA0.9 VA 1.8 VA 3.6 VA
5 4 - - 0.6 VA 1.1 VA 2.2 VA
Example
The length of the outgoing and return lead (0.5 m each) between the Fronius
Smart Meter and the current transformer is a total of 1 m and has a copper cable
cross-section of 1.5 mm²; the line resistance is therefore 0.6 VA according to the
table above. The self-consumption of the Fronius Smart Meter is 0.3 VA.
Line resistance 0.6 VA + self-consumption 0.3 VA = 0.9 VA
→ A current transformer with a rating of 1 VA, 1.5 VA, 5 VA or higher is suitable
here.
Accuracy class
Use Class 1 or better (Class 0.5, 0.2, etc.). Class 1 is equivalent to a deviation of ±
1% of the secondary current at maximum power.
Mounting
Rigid or hinged.
"Rigid" is usually cheaper with better power and accuracy values. Hinged current
transformers can be opened for attachment to the conductor. To prevent it being
opened inadvertently, a plastic cable tie can be secured to the current transformer. Hinged current transformers can be installed in a system without interrupting the voltage.
Cross-section
[mm²]
Line resistances at different lead lengths
(outgoing and return lead)
0.5 m 1.0 m 2.5 m 5 m 10 m
Connecting the
current transformers
Suitable voltage
transformers
Make sure that the current transformers match the voltage phases.
-
Make sure that current transformer L1 measures the current on the same
phase that is monitored by voltage input L1. The same applies for phases L2
and L3.
Make sure that the current transformers are pointing in the correct direction.
-
Observe the data sheet for the current transformer.
Attach the current transformers to the conductor to be measured and connect
the current transformer cables to the Fronius Smart Meter. Always switch off the
power supply before disconnecting live conductors.
The current transformers are connected to connections 1 and 3; 4 and 6; 7 and 9.
If necessary, excessively long cables can be shortened accordingly. Observe the
sequence in which the phases are connected. Accurate power measurement is
only ensured if the mains voltage phases match the current phases.
Suitable voltage transformers: Only voltage transformers with a voltage range
from 210 to 440 V (phase - phase) may be used. The voltage transformers must
be connected to terminals 2, 5, 8 and 11 at the point of direct voltage measurement.
12
Connecting the
data communication cable to
the inverter
Fronius SnapINverter:
Connect the data communication connections of the Fronius Smart Meter to the
Fronius system monitoring in the inverter. Several Smart Meters can be installed
in the system, see chapter Multi-meter system - Fronius SnapINverter on page
18.
Connect 35 to -.
1
Connect 34 to D-.
2
Connect 33 to D+.
3
Fronius GEN24 inverter:
Connect the data communication connections of the Fronius Smart Meter to the
Modbus interface of the Fronius GEN24 inverter. Several Smart Meters can be
installed in the system, see chapter Multi-meter system - Fronius GEN24 invert-
er on page 20.
EN
Connect 35 to GND.
1
Connect 34 to M1-.
2
Connect 33 to M1+.
3
13
IMPORTANT!
More information on successful commissioning.
Note the following information about connecting the data communication cable
to the inverter.
Use cables of type CAT5 or higher.
▶
Use a mutual twisted cable pair for data lines that belong together (D+, D-
▶
and M1+, M1-).
If the output cables are close to the mains cabling, use wires or cables that
▶
are designed for 300 V to 600 V (never less than the operating voltage).
Use double-insulated or sheathed output cables when they are close to bare
▶
conductors.
Use shielded twisted pair cables to avoid faults.
▶
The outputs of the Fronius Smart Meter are electrically isolated from haz-
▶
ardous voltages.
Terminating resistors - Explanation of symbols
Terminating resistors
Inverter in the system
e. g. Fronius Symo
Meter - Fronius Smart Meter
Terminating resistor R 120 Ohm is included in the scope of supply.
Modbus RTU slave
e. g. Fronius Ohmpilot, Fronius Solar Battery, etc.
Terminating resistor
R 120 Ohm
Due to interference, it is recommended that terminating resistors are used as illustrated below to ensure proper functioning.
14
EN
* The terminating resistor on Fronius Smart Meters is installed between 33 and
34. The terminating resistor R 120 Ohm is included with the Fronius Smart
Meter.
15
Setting the
+
+
1)
+
1)
+
transformation
ratio of the current and voltage
transformers on
the Fronius
Smart Meter
Only the transformation ratio of the current and voltage transformers must be
set. All other parameters have already been set in advance.
Password (0001):
Transformation ratio of the current transformers1) (0001 - 99992)):
Transformation ratio of the voltage transformers
1), 3)
(001.0 - 500.02)):
Change password and write it down4):
1)
IMPORTANT! Changing the transformation ratios will reset the meter data in
the Fronius Smart Meter to 0.
2)
Transformation ratio in the current transformer x Transformation ratio of the
voltage transformers = max. 1,000,000.
3)
Changeover only when using voltage transformers (direct voltage measure-
ment Vt = 1).
4)
IMPORTANT! The password cannot be reset.
Multi-meter system - Explanation of symbols
Grid
supplies the loads in the system if insufficient power is being generated by the PV modules or supplied by the battery.
Inverter in the system
e. g. Fronius Primo, Fronius Symo, etc.
16
Utility meter
Measures the measurement data relevant for billing amounts of
energy (in particular kilowatt hours of energy sourced from the
grid and energy fed into the grid). Based on the relevant billing
data, the electricity retailer will invoice the energy sourced from
the grid and the purchaser of the surplus energy will reimburse
the energy fed into the grid.
Primary meter
Records the system's load curve and provides measurement data
for energy profiling in Fronius Solar.web. The primary meter also
controls the dynamic feed-in control.
Secondary meter
Records the load curve of individual loads (e.g. washing machine,
lamps, TV, heat pump, etc.) in the consumption branch and
provides measurement data for energy profiling in Fronius Solar.web.
Producer meter
Records the load curve of individual producers (e.g. wind power
plant) in the consumption branch and provides measurement data
for energy profiling in Fronius Solar.web.
Modbus RTU slave
e. g. Fronius Ohmpilot, Fronius Solar Battery, etc.
EN
Modbus participants - Fronius
SnapINverter
Loads in the system
e. g. washing machine, lamps, TV, etc.
Additional loads in the system
e. g. heat pump
Additional producers in the system
e. g. wind power plant
Terminating resistor
R 120 Ohm
A maximum of 4 Modbus participants can be connected to the Modbus terminal.
IMPORTANT!
Only one primary meter, one battery and one Ohmpilot can be connected per inverter. Due to the high data transfer of the battery, the battery occupies 2 participants.
17
Example:
Multi-meter system - Fronius
SnapINverter
Input Battery
Fronius
Ohmpilot
Quantity
Primary meter
Quantity
Secondary meter
1 0
1 1
Modbus
1 2
1 3
If several Fronius Smart Meters are installed, a separate address must be set for
each one (see Setting the address of the Fronius Smart Meter on page 21). The
primary meter is always assigned address 1. All the other meters are numbered
consecutively with the address range from 2 to 14. Different Fronius Smart
Meter power categories can be used in combination.
IMPORTANT!
Use max. 3 secondary meters in the system. To avoid interference, it is recommended to install the terminating resistors according to chapter Terminating
resistors on page 14.
18
Location of the primary meter in the consumption branch. *Terminating resistor R 120 Ohm
Location of the primary meter at the feed-in point. *Terminating resistor R 120 Ohm
The following must be observed in a multi-meter system:
Only assign each Modbus address once.
-
Terminating resistors must be positioned individually for each channel.
-
EN
Modbus participants - Fronius
GEN24
The inputs M0 and M1 can be selected for this purpose. A maximum of 4 Modbus
participants can be connected to the Modbus terminal on inputs M0 and M1.
IMPORTANT!
Only one primary meter, one battery and one Ohmpilot can be connected per inverter. Due to the high data transfer of the battery, the battery occupies 2 participants.
Example 1:
Input Battery
Fronius
Ohmpilot
Quantity
Primary meter
Quantity
Secondary meter
0 4
0 2
Modbus 0 (M0)
0 1
1 3
Modbus 1 (M1)
19
Example 2:
Multi-meter system - Fronius
GEN24 inverter
Input Battery
Fronius
Ohmpilot
Quantity
Primary meter
Quantity
Secondary meter
1 3
Modbus 0 (M0)
0 4
0 2
Modbus 1 (M1)
0 1
If several Fronius Smart Meters are installed, a separate address must be set for
each one (see Setting the address of the Fronius Smart Meter on page 21). The
primary meter is always assigned address 1. All the other meters are numbered
consecutively with the address range from 2 to 14. Different Fronius Smart
Meter power categories can be used in combination.
IMPORTANT!
Use max. 7 secondary meters in the system. To avoid interference, it is recommended to install the terminating resistors according to chapter Terminating
resistors on page 14.
Location of the primary meter in the consumption branch. *Terminating resistor R 120 Ohm
20
Location of the primary meter at the feed-in point. *Terminating resistor R 120 Ohm
+
The following must be observed in a multi-meter system:
Connect the primary meter and the battery to different channels (recom-
-
mended).
The remaining Modbus participants must be distributed equally.
-
Only assign each Modbus address once.
-
Terminating resistors must be positioned individually for each channel.
-
EN
Menu structure A graphic view of the menu structure can be found in the User Information that
is supplied as standard.
Setting the ad-
Symbol Name Event Function
dress of the
Fronius Smart
Prog
1 x
Increases the set value
Meter
Page
Enter
1 x
1 x
Moves the cursor
Confirms the entry
Press "Prog" and "Page" at the
1
same time to enter the code.
Enter the password "2633". In-
2
crease the value with "Prog" and
change to the next digit with
"Page".
Press "Prog" and "Page" at the
3
same time again to switch to the
menu item "Addr" (address).
Set the relevant address.
4
Permissible values: 1 - 14
-
21
IMPORTANT!
M T
M T
Only configure the menu items "Password" and "Address".
The parameter „Node A“ is preset and must not be changed.
▶
Reading the
Fronius Smart
Meter operating
parameters
Symbol Name Event Function
Page
Page
The following illustrations are symbolic representations. The values displayed
vary for each individual unit.
Display Description
1 x
5 seconds
Continue to the next screen
Reset value / change menu
Total active energy consumed
Total reactive energy
Total active energy produced
Press arrow key for 5 seconds
to reset the value
Partial reactive energy
Press arrow key for 5 seconds
to reset the value
Maximum effective power average value
Press arrow key for 5 seconds
to reset the value
Effective power average value
Voltage and current menu
Press the arrow key and wait 2
seconds until the next display
(current phase L1) appears.
22
Display Description
Current phase L1
Current phase L2
Current phase L3
Chained voltage phase L1-L2
Chained voltage phase L2-L3
Chained voltage phase L1-L3
EN
Effective power
Reactive power
Apparent power
23
24
Start-up
25
26
Fronius SnapINverter
General IMPORTANT! Settings under the "Meter" menu item are only to be made by
trained and qualified personnel!
The service password must be entered in order to access the "Meter" menu item.
Three-phase or single-phase Fronius Smart Meters can be used. In both cases,
the selection is made under the "Fronius Smart Meter" item. The Fronius
Datamanager automatically identifies the meter type.
A primary meter and several secondary meters can be selected. The primary
meter needs to be configured first before a secondary meter can be selected.
EN
Connecting to
the Fronius
Datamanager
Configuring the
Fronius Smart
Meter as the
primary meter
Access point:
Select the "Setup" menu on the inverter display and enable the "Wi-Fi Ac-
1
cess Point".
Establish the connection to the inverter in the network settings (the inverter
2
is displayed with the name "Fronius_240.XXXXXX").
Password: Enter 12345678 and confirm.
3
In the browser address bar, enter and confirm the IP address http://
4
192.168.250.181 and confirm.
The Fronius Datamanager start page is displayed.
LAN:
Connect the Fronius Datamanager and computer to a LAN cable.
1
Place the Fronius Datamanager IP switch in the 'A' position.
2
In the browser address bar, enter and confirm the IP address http://
3
169.254.0.180 and confirm.
Go to the Fronius Datamanager website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the Fronius Datamanager and confirm.
The Fronius Datamanager website will be displayed.
-
Click the "Settings" button.
2
Log in to the login area with the "service" user and the service password.
3
Call up the "Meter" menu area.
4
Select the primary meter from the drop-down list.
5
Click the "Settings" button.
6
In the pop-up window, set the position of the meter (feed-in point or con-
7
sumption point). For more information on the position of the Fronius Smart
Meter, see Positioning on page 6.
Click the "Ok" button when the OK status is displayed. If the Timeout status
8
is displayed, try again.
27
9
Click the button to save the settings.
The Fronius Smart Meter is configured as a primary meter.
The "Current general view" menu area displays the power of the PV modules,
self-consumption, the energy fed into the grid and the battery charge (if available).
Configuring the
Fronius Smart
Meter as a secondary meter
Go to the Fronius Datamanager website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the Fronius Datamanager and confirm.
The Fronius Datamanager website will be displayed.
-
Click the "Settings" button.
2
Log in to the login area with the "service" user and the service password.
3
Call up the "Meter" menu area.
4
Select the secondary meter from the drop-down list.
5
Click the "Add" button.
6
Enter the name of the secondary meter in the "Name" input field.
7
Enter the previously assigned address in the "Modbus address" input field.
8
Add meter description.
9
10
Click the button to save the settings.
The Fronius Smart Meter is configured as a secondary meter.
28
Fronius GEN24 inverter
open access point
1
FRONIUS_PILOTxxx
Secured
Password:
12345678
2
192.168.250.181
169.254.0.180
21
open access point
General IMPORTANT! Settings under the "Device configuration" menu item are only to be
made by trained and qualified personnel!
The technician password must be entered in order to access the "Device configuration" menu item.
Three-phase or single-phase Fronius Smart Meters can be used. In both cases,
the selection is made under the "Components" menu area. The meter type is determined automatically.
A primary meter and several secondary meters can be selected. The primary
meter needs to be configured first before a secondary meter can be selected.
EN
Installation using the web
browser
WLAN:
1
Open the access point by touching the sensor once → Communication LED:
flashes blue.
Establish the connection to the inverter in the network settings (the inverter
2
is displayed with the name "FRONIUS_PILOT" and the serial number of the
device).
Password: enter 12345678 and confirm.
3
IMPORTANT!
To enter the password on a Windows 10 operating system, the link "Connect
using a security key instead" must first be activated to establish a connection
with the password: 12345678.
In the browser address bar, enter and confirm the IP address
4
192.168.250.181. The installation wizard is opened.
Follow the installation wizard in the individual sections and complete the in-
5
stallation.
Add system components in Solar.web and start up the PV system.
6
The network wizard and the product setup can be carried out independently of
each other. A network connection is required for the Solar.web installation wizard.
Ethernet:
29
Establish a connection to the inverter (LAN1) with a network cable (CAT5
1
STP or higher).
2
Open the access point by touching the sensor once → Communication LED:
flashes blue.
In the browser address bar, enter and confirm IP address 169.254.0.180. The
3
installation wizard is opened.
Follow the installation wizard in the individual sections and complete the in-
4
stallation.
Add system components in Solar.web and start up the PV system.
5
The network wizard and the product setup can be carried out independently of
each other. A network connection is required for the Solar.web installation wizard.
Configuring the
Fronius Smart
Meter as the
primary meter
Configuring the
Fronius Smart
Meter as a secondary meter
Access the inverter website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the inverter and confirm.
The inverter website is displayed.
-
Click the "Device configuration" button.
2
Log in to the login area with the "Technician" user and the technician pass-
3
word.
Access the "Components" menu area.
4
Click the "Add component" button.
5
In the "Position" drop-down list, set the position of the meter (feed-in point
6
or consumption point). For more information on the position of the Fronius
Smart Meter, see Positioning on page 6.
Click the "Add" button.
7
Click the "Save" button to save the settings.
8
The Fronius Smart Meter is configured as a primary meter.
Access the inverter website.
1
Open the web browser.
-
In the address bar of the browser, enter the IP address (IP address for
-
WLAN: 192.168.250.181, IP address for LAN: 169.254.0.180) or the host
and domain name of the inverter and confirm.
The inverter website is displayed.
-
Click the "Device configuration" button.
2
Log in to the login area with the "Technician" user and the technician pass-
3
word.
Access the "Components" menu area.
4
Click the "Add component" button.
5
In the "Position" drop-down list, select the meter type (producer/load
6
meter).
Enter the previously assigned address in the "Modbus address" input field.
7
Enter the name of the meter in the "Name" input field.
8
In the "Category" drop-down list, select the category (producer or load).
9
Click the "Add" button.
10
30
Click the "Save" button to save the settings.
11
The Fronius Smart Meter is configured as a secondary meter.
EN
31
Technical data
Technical data Modbus transmission speed: 9600 baud
Parity bit: None
Software version: Datamanager 3.7.2 / Energypackage 1.3.3
Input
Three-phase nominal voltage
Operating range
Single-phase nominal voltage
Operating range
Voltage transformer ratio (kVT) 1...1500.0
Self-consumption - voltage path (max.
voltage)
Nominal frequency
Tolerance
Nominal current, lb 1 A + 5 A
Maximum current, Imax 6 A
Starting current 20 mA
Current transformer ratio (kCT) 1...9,999
Short-time overload (EN/IEC
62053-21, EN/IEC 62053-23)
Self-consumption - current path (max.
current)
400 - 415 V
363 to 457 V
230 - 240 V
210 to 264 V
e.g. VT 20000/400V kVT = 50
For direct connection: kVT = 1
4.5 VA (1.85 W) for 440 V
50 - 60 Hz
47 to 63 Hz
e.g. TC 800/5A kCT = 160
20 lmax / 0.5 s
0.3 W for phase
Maximum value kVT x kCT 5,000,000 (CT/1A) or 1,000,000
(CT/5A)
Current distortion factor In acc. with EN/IEC 62053-21
Power factor
Operating range (EN/IEC 62053-21,
EN/IEC 62053-23)
Energy
Max. display As per table
Resolution As per table
LED indicator 1 pulse / 0.1 Wh
Active energy accuracy
(EN/IEC 62053-21)
Reactive energy accuracy
(EN/IEC 62053-23)
Response time after switch-on
(EN/IEC 62053-21, EN/IEC 62053-23)
Active cosφ 0.5 ind to 0.8 cap,
Reactive sinφ 0.5 ind to 0.5 cap
Class 1
Class 2
< 5 s
32
kCT x kVT Maximum display Resolution
1 to 9.9 9 9 9 9 9 9 . 9 9 kWh / kvarh 10 Wh / varh
10 to 99.9 9 9 9 9 9 9 9 . 9 kWh / kvarh 100 Wh / varh
100 to 999.9 9 9 9 9 9 9 9 9 kWh / kvarh 1 kWh / varh
1000 to 9999.9 9 9 9 9 9 9 . 9 9 MWh / kvarh 10 kWh / varh
≥ 10000 9 9 9 9 9 9 9 . 9 MWh / kvarh 100 kWh / varh
Average power
Measured variable Effective power
Calculation Average value over set period of time
Integration time 5 / 8 / 10 / 15 / 20 / 30 / 60 minutes
Operating hours counter
Operating hours counter Hours and minutes
Resolution 7-digit (5 hours + 2 minutes)
Max. display 99,999 h 59 min
Counting start 3-phase effective power
Programmable values 0.10 to 50% Pn
EN
3-phase effective power In acc. with 400 V 5 A - 3464 W
Operating hours counter reset Accessible via keypad or locked
Output
Energy pulse
Pulse output compatible with S0 EN/IEC 62053-31
Optical relay with NO contact SPST-NO, floating
Contact load 110 V DC/AC - 50 mA
Assignable energy Active or reactive energy
Pulse value 10 Wh (Varh) - 100 Wh (Varh) - 1 kWh
(kVarh) - 10 kWh (kVarh) - 100 kWh
(kVarh) - 1000 kWh (kVarh)
Pulse duration 50 - 100 - 150 - 200 - 300 - 400 -
500 ms
RS485 communication
Electrically isolated from input and auxiliary voltage
Standard RS485 - 3 conductors
Transmission Serial, asynchronous
Protocol Modbus RTU
Addresses 1 to 255
Number of bits 8
Stop bit 1
Parity bit None - even - odd
Baud rate 4800 - 9600 - 19200 bit/s
Response time ≤ 200 ms
33
Insulation (EN/IEC 62052-11, 62053-21)
Installation category III
Pollution level 2
Insulation voltage 300 V phase-neutral
Impulse withstand voltage
Test circuit
Test voltage
Test circuit
Test voltage
Test circuit
Electromagnetic compatibility
Test in acc. with EN/IEC 62052-11
Operating conditions
Reference temperature 23 °C (±2 °C)
Operating range -5 to 55 °C
Temperature limit for storage and
transport
Tropical model
Max. power loss (for thermal dimensioning of the switch cabinet)
5 kV 1.2/60 µs
Voltage input, current input, pulse
output, communication
2.75 kV r.m.s. 50 Hz / 1 min
Voltage input, current input, pulse
output, communication
4 kV r.m.s. 50 Hz / 1 min
All circuits and earth
-25 to 70 °C
≤ 2.8 W
Housing
Housing 4 modules according to DIN 43880
Sealable front and terminal cover
Connection Screw connection
Mounting Can be snapped onto 35 mm DIN rail
Housing material Polycarbonate, self-extinguishing
Degree of protection (EN 60529) IP54 front, IP20 connections
Weight 260 grams
Screw terminals
Measuring input
Wire (rigid) Min. 0.05 mm² / max. 4 mm²
Wire (flexible) Min. 0.05 mm² / max. 2.5 mm²
Recommended torque 0.5 Nm / max. 0.8 Nm
Output
Wire (rigid) Min. 0.05 mm² / max. 4 mm²
Wire (flexible) Min. 0.05 mm² / max. 2.5 mm²
34
Recommended torque 0.5 Nm / max. 0.8 Nm
Fronius manufacturer's warranty
Detailed, country-specific warranty terms are available on the internet:
www.fronius.com/solar/warranty
To obtain the full warranty period for your newly installed Fronius inverter or
storage system, please register at: www.solarweb.com.
EN
35
-
-
Loading...
