Operating Instructions
Fronius Push Service
Fronius Push Service
Bedienungsanleitung
DE
Operating Instructions
EN
42,0410,2152 006-02082022
Bedienungsanleitung 4
Allgemeines 4 Übersicht 5
Details 7
Allgemeines 7 Protokolle 7 Formate 7 SunSpec Datalogger v1.0b - inverter float model 9 SunSpec Datalogger v1.2 - meter model 10 SolarAPI v1 - CurrentData - Inverter 11 SolarAPI v1 - CurrentData - SensorCard 13 SolarAPI v1 - CurrentData - StringControl 14 SolarAPI v1 - CurrentData - Meter 15 SolarAPI v1 - CurrentData - Storages 17 SolarAPI v1 - CurrentData - Powerflow 20 SolarAPI v1 - Logdata - Data 21 SolarAPI v1 - Logdata - Errors and Events 23 Datamanager IO States 25 Demo Content 27 Intervalle 28 Anwendungs-Schnittstelle 29
DE
3
Bedienungsanleitung
Allgemeines Mit Hilfe der Funktion Push Service können Aktuell- und Log-Daten des Wech-
selrichters in unterschiedlichen Formaten oder mit unterschiedlichen Protokol­len auf einen externen Server exportiert werden. Voraussetzung dafür ist ein Fro­nius Datamanager oder Fronius Datamanager 2.0.
Formate definieren, wie die Informationen gesendet werden.
Protokolle definieren die Art der Datenübertragung.
Werksseitig sind keine Jobs vorgegeben.
Mit dieser Funktion können max. 10 Jobs installiert werden. Für jeden einzelnen Job können unterschiedliche Protokolle, Formate oder externe Server verwendet werden.
Die Funktion Push Service ist auf der Website des Fronius Datamanagers im Menü Einstellungen zu finden:
4
Übersicht
(1) (2)
(3)
(4)(5)
(6)
(7)
(8)
(9)
DE
(1) Schaltfläche Übernehmen / Speichern
speichert die Konfiguration und startet einen sofortigen Testlauf aller in­stallierten und aktivierten Funktionen
(2) Schaltfläche Abbrechen / Eingaben verwerfen
verwirft sämtliche Änderungen und lädt die ursprüngliche Konfiguration
(3) Schaltfläche Hinzufügen
Klicken der Schaltfläche fügt einen neuen Push Service Job hinzu. Der neue Job wird durch Klicken der Schaltfläche ‘Übernehmen / Speichern‘ (1) gespeichert.
(4) Status
zeigt den aktuellen Stand des jeweiligen Push Service Jobs an; Bei einem Fehler können detaillierte Informationen angezeigt werden, in­dem der Mauszeiger über den Ursachen-Text gebracht wird. Die Detailin­formationen werden nur in Englisch angezeigt.
(5) Angezeigter Name des Push Service Jobs
Der Name identifiziert den Push Service Job und darf nur einmal vorkom­men.
(6) Bereich zur Eingabe der allgemeinen Daten:
Bezeichnung (Name des Push Service Jobs) Dateiformat Protokolltype (FTP upload / HTTP POST) Intervall Aktivierungsstatus
5
(7) Bereich zur Eingabe der Zieldaten:
Server Port Upload Dateiname Anmeldung (Benutzer / Passwort)
(8) Bereich zur Eingabe der Proxy-Daten:
Server Port Benutzer Passwort
(9) Schaltfläche Löschen
Klicken der Schaltfläche löscht den ausgewählten Push Service Job
Sind mehrere Push Service Jobs installiert, kann immer nur ein Job geöffnet und verändert werden:
Liste mit mehreren Push Service Jobs, ein Job ist geöffnet und kann verändert werden; bei einem an­deren Job wird eine Fehlerbeschreibung angezeigt, wenn der Mauszeiger über den Ursachen-Text ge­bracht wird.
6
Details
Allgemeines Die Kommunikation mit dem Fronius Push Service kann aktuell nur durch das Er-
stellen einer HTTP-Anfrage an eine bestimmte URL erfolgen.
DE
User Interface auf der Web-Seite des Fronius Datamanagers
Protokolle Aktuell werden die Protokolle HTTP-POST und FTP-Upload (passiv oder aktiv)
unterstützt.
Proxy
Die volle Proxy-Unterstützung (mit oder ohne Referenzen) wurde implementiert. Ausnahme: Verwendung von Zertifikaten
Login-Authentifizierung
Unterstützt werden folgende Authentifizierungen:
Basic
-
Digest
-
Das Fronius Push Service überprüft automatisch, welche Authentifikation aus­zuwählen ist.
Formate Aktuell werden folgende Formate unterstützt:
7
SunSpec Datalogger v1.0b - inverter float model
-
SunSpec Datalogger v1.2 - meter model
-
SolarAPI v1 - CurrentData - Inverter
-
SolarAPI v1 - CurrentData - SensorCard
-
SolarAPI v1 - CurrentData - StringControl
-
SolarAPI v1 - CurrentData - Meter
-
SolarAPI v1 - Logdata - Data
-
SolarAPI v1 - Logdata - Erors and Events
-
Datamanager IO States
-
Demo Content
-
8
SunSpec Data-
*
*
logger v1.0b - in­verter float mo­del
XML basierendes Datenpaket SunSpec Modelle 1 und (111, 112 oder 113) weitere Informationen unter: http://sunspec.org
Beispiel für exportierte Inhalte
DE
* Die Geräte-Seriennummern (SN) werden bei Fronius Symo, Primo und Galvo erst ab Seriennummer 2713xxxx angezeigt. Bei älteren Geräten wird der Produkt­matrix-Code (PMC) des Recerbo angezeigt.
9
SunSpec Data­logger v1.2 - me­ter model
XML basierendes Datenpaket SunSpec Modelle 1 und 213 weitere Informationen unter: http://sunspec.org
Beispiel für exportierte Inhalte
10
SolarAPI v1 ­CurrentData ­Inverter
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
DE
11
12
SolarAPI v1 ­CurrentData ­SensorCard
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
DE
13
SolarAPI v1 ­CurrentData ­StringControl
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
14
SolarAPI v1 ­CurrentData ­Meter
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
DE
15
16

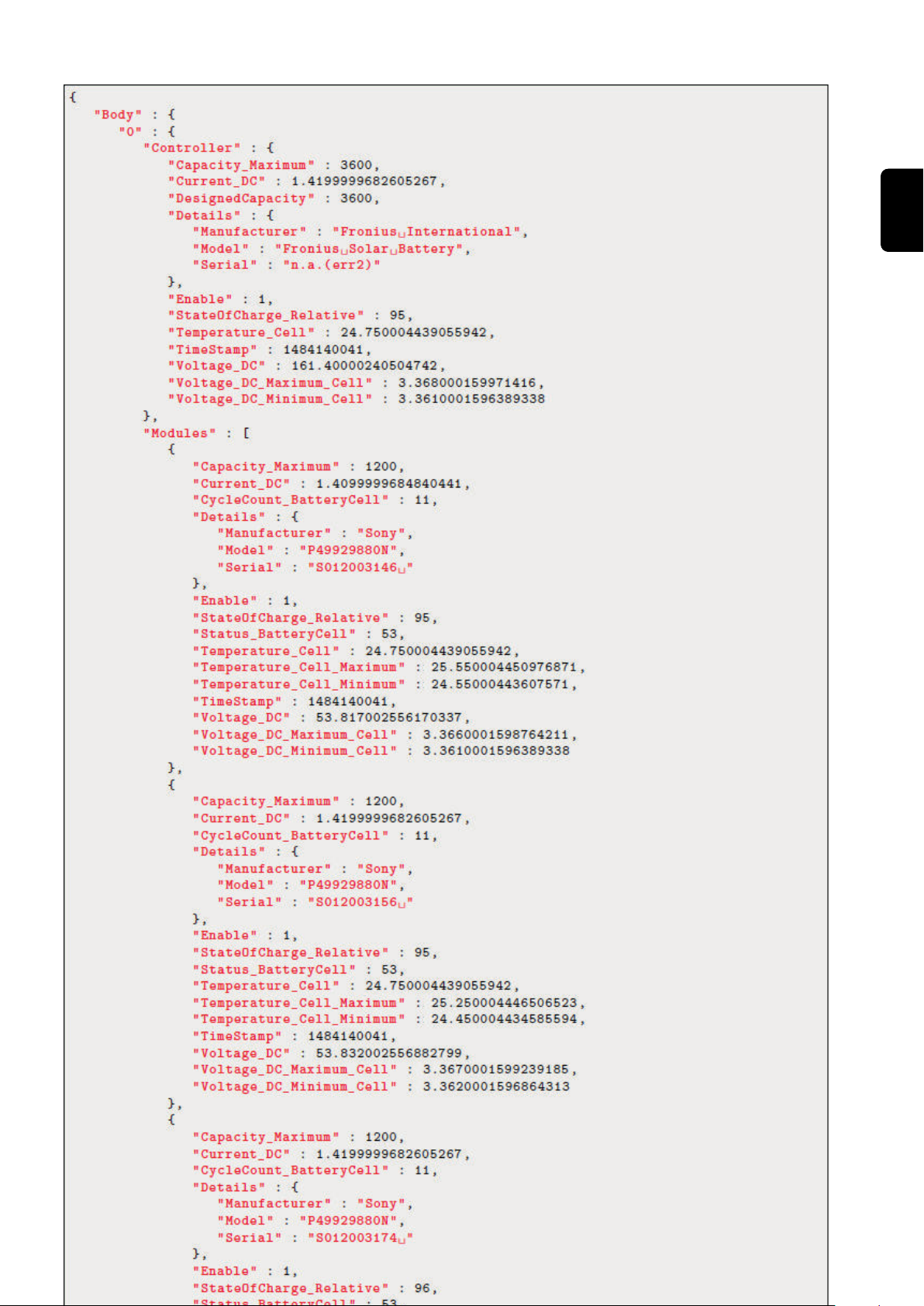

SolarAPI v1 ­CurrentData ­Storages
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
DE
17
18
DE
19
SolarAPI v1 ­CurrentData -
Powerflow
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
20
SolarAPI v1 ­Logdata - Data
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage Enthält alle gesammelten Daten für den aktuellen Tag. Wird dieses Format für weniger als tägliches Intervall verwendet, werden die Da­ten am externen Server verdoppelt. Wird das Intervall auf eine Woche einge­stellt, werden Log-Daten-Anfragen für eine Woche erzeugt. Das kleinstmögliche Intervall ist eine Stunde!
weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
DE
21
22
SolarAPI v1 ­Logdata - Errors and Events
JSON basierendes Datenpaket, ähnlich einer Web-Anfrage Enthält alle gesammelten Fehler und Ereignisse für den aktuellen Tag. Wird dieses Format für weniger als tägliches Intervall verwendet, werden die Da­ten am externen Server verdoppelt. Wird das Intervall auf eine Woche einge­stellt, werden Log-Daten-Anfragen für eine Woche erzeugt. Das kleinstmögliche Intervall sind 30 Minuten!
weitere Informationen unter: http://www.fronius.com/de/solarenergie/produkte Anlagen-Monitoring, Offene Schnittstellen, Fronius Solar API (JSON)
Beispiel für exportierte Inhalte
DE
23
24
Datamanager IO States
JSON basierendes Datenpaket
Aktuell sind Richtung, Type und Funktionen programmiert. Weitere Änderungen können innerhalb folgender Grenzen erfolgen:
Type: Digital, Analog
Richtung: in, out
get (erhalten): true, false
set (einstellen): true, false
Funktion: Digital_PowerControl_Feedback_Out_1
Digital_PowerManagementRelay_Out_1 Digital_PowerControl_In_1 - 8.
(unzählige, nicht vorausberechenbare Anwendungsfälle)
Beispiel für exportierte Inhalte
DE
25
26
Demo Content Dummy-Inhalt, wird zur Überprüfung von Verbindungseinstellungen verwendet,
ohne persönliche Inhalte wie Seriennummer oder Aktuelldaten zu übermitteln.
Beispiel für exportierte Inhalte
DE
27
Intervalle Bei werksseitiger Einstellung beginnt der Push Service um Mitternacht (00:00 h)
mit dem Datenexport und wiederholt dies entsprechend den festgelegten Ein­stellungen. Bei Anwender-spezifischen Konfigurationen führt der Push Service sofort alle in­stallierten und aktivierten Jobs einmal aus, um Richtigkeit und Funktionalität überprüfen zu können. Danach arbeitet der Push Service wieder mit dem werks­seitig eingestellten Export-Intervall.
Beispiel: Falls ein Job auf ein Ein-Stunden-Intervall eingestellt ist, wird dieser alle 60 Mi­nuten ausgeführt, beginnend um Mitternacht. Die Anwendung einer neuen Konfiguration um beispielsweise 06:45 h lässt das Push Service um 06:45 h einen Test durchführen. Danach arbeitet der Push Ser­vice wieder mit dem ursprünglichen Export-Intervall, folglich wird der nächste Job um 07:00 h ausgeführt.
Intervalle
10 Sekunden
-
1 Minute
-
5 Minuten
-
10 Minuten
-
15 Minuten
-
30 Minuten
-
1 Stunde
-
2 Stunden
-
4 Stunden
-
12 Stunden
-
1 Tag (jeden Tag um 23:50 h / 11:50 pm)
-
1 Woche (jeden Sonntag um 23:50 h / 11:50 pm)
-
WICHTIG! Für die letzten zwei Optionen muss der Nachtmodus des Wechsel­richters aktiviert sein, um eine Datenübertragung zu gewährleisten.
28
Anwendungs­Schnittstelle
Die Anwendungs-Schnittstelle des Fronius Push Service bietet Drittanbietern ei­ne Möglichkeit, Daten vom Fronius Push Service zu beziehen. Die Anwendungs-Schnittstelle ist nicht für Anwender-Interaktionen ausgelegt.
Aktueller Status
Der aktuelle Status kann durch das Ausführen einer HTTP-Get-Anfrage abge­fragt werden: http:// *** /status/pushservice/
*** Hostname oder IP-Adresse Ihres Fronius Datamanagers
Beispiel für Antworten
DE
Diese Anfrage enthält eine Liste aller installierten Push Service Jobs und deren Status. Jeder Status kann unterschiedliche optionale Attribute enthalten, die den Status im Detail beschreiben. Der Name eines jeden Jobs muss einmalig sein und dient zur Identifikation. Da der Name multilingual ist, wird dieser als HTML­Nummernstrang dargestellt.
Beispiel: Die HTML-Nummer ist kodiert zu html num ber
Status Beispiel eines JSON-Knotens innerhalb des
Service-Feldes
{
STR_PSHS_ERR_UNKNOWN
“Name“: “<???>“, “State“: “STR_PSHS_UNKNOWN“ }
29
Status Beispiel eines JSON-Knotens innerhalb des
Service-Feldes
{
STR_PSHS_UNKNOWN
STR_PSHS_DISABLED
STR_PSHS_FAILED
Reason ist ein nicht übersetzter Term
STR_PSHS_UNTESTED
STR_PSHS_OK
“Name“: “<???>“, “State“: “STR_PSHS_UNKNOWN“ }
{ “Name“: “<???>“, “State“: “STR_PSHS_DISABLED“ }
{ “Name“: “<???>“, “State“: “STR_PSHS_DISABLED“, “Reason“: “text“ }
{ “Name“: “<???>“, “State“: “STR_PSHS_UNTESTED“ }
{ “Name“: “<???>“, “State“: “STR_PSHS_OK“, “Span“: 26 }
Span ist die Zeit in Sekunden seit dem letz-
ten erfolgreichen Upload
30
Contents
Operating Instructions 32
General 32 Overview 33
Details 35
General 35 Protocols 35 Formats 35 SunSpec Datalogger v1.0b - inverter float model 37 SunSpec Datalogger v1.2 - meter model 38 SolarAPI v1 - CurrentData - Inverter 39 SolarAPI v1 - CurrentData - SensorCard 41 SolarAPI v1 - CurrentData - StringControl 42 SolarAPI v1 - CurrentData - Meter 43 SolarAPI v1 - CurrentData - Storages 45 SolarAPI v1 - CurrentData - Powerflow 48 SolarAPI v1 - Logdata - Data 49 SolarAPI v1 - Logdata - Errors and Events 51 Datamanager IO States 53 Demo Content 55 Intervals 56 Application interface 57
EN
31
Operating Instructions
General Using the push service, current and log data of the inverter can be exported to an
external server in different formats or using different protocols.The prerequisite for this is a Fronius Datamanager or Fronius Datamanager 2.0.
Formats define how the information is sent.
Protocols define the type of data transfer.
There are no pre-installed jobs.
Up to 10 jobs can be installed using this function. Each job may use different protocols, formats or external servers.
The Push Service function can be found on the Fronius Datamanager website in the Settings menu:
32
Overview
(1) (2)
(3)
(4)(5)
(6)
(7)
(8)
(9)
EN
(1) "Apply/Save" button
Saves the configuration and starts an immediate test run of all the instal­led and enabled services
(2) "Cancel/Discard entry" button
Discards any changes and reloads the original configuration
(3) "Add" button
Click this button to add a new push service job. The new job is saved by clicking the "Apply/Save" button (1).
(4) State
Displays the current status of the respective push service job. In the event of an error, detailed information can be displayed by hovering the cursor above the cause text. The detailed information is only displayed in English.
(5) Displayed name of the push service job
The name identifies the push service job and must be unique.
(6) Area for entering general data:
Name (name of the push service job) Data format Protocol type (FTP upload/HTTP POST) Interval Activation status
33
(7) Area for entering destination data:
Server port Upload file name Login (user/password)
(8) Area for entering proxy data:
Server port User Password
(9) "Delete" button
Click this button to delete the selected push service job
Only one job can be opened and edited at any given time, regardless of how many push service jobs have been installed:
34
List of multiple push service jobs. One job has been opened and can be edited; for all other jobs, an error message will be displayed if the cursor is hovered over the cause text.
Details
General At present the only way to communicate with the Fronius push service is to make
an HTTP request to a specific URL.
EN
User interface on the Fronius Datamanager web page
Protocols The HTTP POST and FTP upload (passive or active) protocols are currently sup-
ported.
Proxy
Full proxy support (with or without references) has been implemented. Exception: use of certificates
Login authentication
The following authentications are supported:
Basic
-
Digest
-
The Fronius push service automatically checks which authentication should be selected.
Formats The following formats are currently supported:
35
SunSpec Datalogger v1.0b - inverter float model
-
SunSpec Datalogger v1.2 - meter model
-
SolarAPI v1 - CurrentData - Inverter
-
SolarAPI v1 - CurrentData - SensorCard
-
SolarAPI v1 - CurrentData - StringControl
-
SolarAPI v1 - CurrentData - Meter
-
SolarAPI v1 - Logdata - Data
-
SolarAPI v1 - Logdata - Errors and Events
-
Datamanager IO States
-
Demo Content
-
36
SunSpec Data-
*
*
logger v1.0b - in­verter float mo­del
XML-based data package SunSpec Models 1 and (111, 112 or 113) For more information see: http://sunspec.org
Example of pushed content
EN
* The device serial numbers (SN) are only displayed for Fronius Symo, Primo and Galvo from serial number 2713xxxx. For older devices, the product matrix code (PMC) of the Recerbo is displayed.
37
SunSpec Data­logger v1.2 - me­ter model
XML-based data package SunSpec Models 1 and 213 For more information see: http://sunspec.org
Example of pushed content
38
SolarAPI v1 ­CurrentData ­Inverter
JSON-based data package, similar to a web request For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
EN
39
40
SolarAPI v1 ­CurrentData ­SensorCard
JSON-based data package, similar to a web request For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
EN
41
SolarAPI v1 ­CurrentData ­StringControl
JSON-based data package, similar to a web request For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
42
SolarAPI v1 ­CurrentData ­Meter
JSON-based data package, similar to a web request For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
EN
43
44
SolarAPI v1 ­CurrentData ­Storages
JSON-based data package, similar to a web request For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
EN
45
46
EN
47
SolarAPI v1 ­CurrentData -
Powerflow
JSON-based data package, similar to a web request For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
48
SolarAPI v1 ­Logdata - Data
JSON-based data package, similar to a web request Contains all the collated data for the current day. Data will be duplicated on the external server if this format is used for an interval more frequent than daily. If the interval is set to one week, log data requests for one week are generated. The smallest possible interval is one hour.
For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
EN
49
50
SolarAPI v1 ­Logdata - Errors and Events
JSON-based data package, similar to a web request Contains all the collated errors and events for the current day. Data will be duplicated on the external server if this format is used for an interval more frequent than daily. If the interval is set to one week, log data requests for one week are generated. The smallest possible interval is 30 minutes.
For more information go to: http://www.fronius.com/en/photovoltaics/products System Monitoring, Open Interfaces, Fronius Solar API (JSON)
Example of pushed content
EN
51
52
Datamanager IO States
JSON-based data package
The direction, type and functions are currently programmed. Other changes can be made within the following limits:
Type: Digital, Analog
Direction: in, out
get: true, false
set: true, false
Function: Digital_PowerControl_Feedback_Out_1
Digital_PowerManagementRelay_Out_1 Digital_PowerControl_In_1 - 8.
(countless, unpredictable use cases)
Example of pushed content
EN
53
54
Demo Content Dummy content is used to check the connection settings without having to send
private data such as serial numbers or current data.
Example of pushed content
EN
55
Intervals According to the default configuration, the push service will start the data ex-
port at midnight (00:00 am) and repeat it as per the defined settings. Where user-specific configurations are applied, the push service immediately executes all installed and enabled jobs in order to check accuracy and functiona­lity. The push service will then revert to operating at the default export interval.
Example: If a job is set to a one hour interval, then this will performed every 60 minutes starting at midnight. If a new configuration is applied at 6:45 am, the push service will carry out a test run at 6:45 am. From this point on the push service will return to its original ex­port interval; the next job will thus be carried out at 7:00 am.
Intervals
10 seconds
-
1 minute
-
5 minutes
-
10 minutes
-
15 minutes
-
30 minutes
-
1 hour
-
2 hours
-
4 hours
-
12 hours
-
1 day (every day at 23:50 / 11:50 pm)
-
1 week (every Sunday at 23:50 / 11:50 pm)
-
IMPORTANT! Night mode must be enabled on the inverter to ensure a reliable data transfer for the last two options.
56
Application in­terface
The Fronius push service application interface is a means for third parties to ob­tain data from the Fronius push service. It is not designed for user interaction.
Current state
EN
The current state can be requested be performing an HTTP get request: http:// *** /status/pushservice/
*** host name or IP address of your Fronius Datamanager
Example responses
This request contains a list of all the installed push service jobs and their respec­tive states. Each state can have different attributes that describe the state in de­tail. The name of each job must be unique for identification purposes. As the na­me is multilingual, it is written as an HTML number string.
Example: The HTML number is encoded to html num ber
State Example of a JSON node within a service
field
{
STR_PSHS_ERR_UNKNOWN
"Name": "<???>", "State": "STR_PSHS_UNKNOWN" }
57
State Example of a JSON node within a service
field
{
STR_PSHS_UNKNOWN
STR_PSHS_DISABLED
STR_PSHS_FAILED
Reason is a non-localised term
STR_PSHS_UNTESTED
STR_PSHS_OK
"Name": "<???>", "State": "STR_PSHS_UNKNOWN" }
{ "Name": "<???>", "State": "STR_PSHS_DISABLED" }
{ "Name": "<???>", "State": "STR_PSHS_DISABLED", "Reason": "text" }
{ "Name": "<???>", "State": "STR_PSHS_UNTESTED" }
{ "Name": "<???>", "State": "STR_PSHS_OK", "Span": 26 }
Span is the time in seconds since the last
successful upload
58
EN
59
-
-
Loading...
