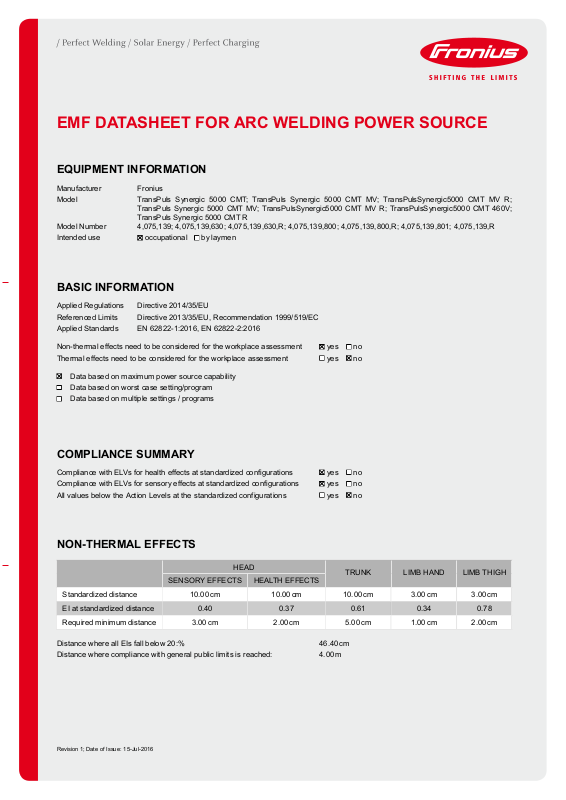

EMF DATASHEET FOR ARC WELDING POWER SOURCE

EQUIPMENT INFORMATION

Manufacturer Fronius

Model TransPuls Synergic 5000 CMT; TransPuls Synergic 5000 CMT MV; TransPulsSynergic5000 CMT MV R;

Model Number 4,075,139; 4,075,139,630; 4,075,139,630,R; 4,075,139,800; 4,075,139,800,R; 4,075,139,801; 4,075,139,R

Intended use occupational by laymen

BASIC INFORMATION

Applied Regulations Directive 2014/35/EU

Referenced Limits Directive 2013/35/EU, Recommendation 1999/519/EC

Applied Standards EN 62822-1:2016, EN 62822-2:2016

Non-thermal effects need to be considered for the workplace assessment yes no

Thermal effects need to be considered for the workplace assessment yes no

Data based on maximum power source capability

Data based on worst case setting/program

Data based on multiple settings / programs

TransPuls Synergic 5000 CMT MV; TransPulsSynergic5000 CMT MV R; TransPulsSynergic5000 CMT 460V;
TransPuls Synergic 5000 CMT R

COMPLIANCE SUMMARY

Compliance with ELVs for health effects at standardized configurations yes no

Compliance with ELVs for sensory effects at standardized configurations yes no

All values below the Action Levels at the standardized configurations yes no

NON-THERMAL EFFECTS

HEAD

SENSORY EFFECTS HEALTH EFFECTS

Standardized distance 10.00 cm 10.00 cm 10.00 cm 3.00 cm 3.00 cm

EI at standardized distance 0.40 0.37 0.61 0.34 0.78

Required minimum distance 3.00 cm 2.00 cm 5.00 cm 1.00 cm 2.00 cm

Distance where all EIs fall below 20:% 46.40 cm

Distance where compliance with general public limits is reached: 4.00 m

TRUNK LIMB HAND LIMB THIGH

Revision 1; Date of Issue: 15-Jul-2016
