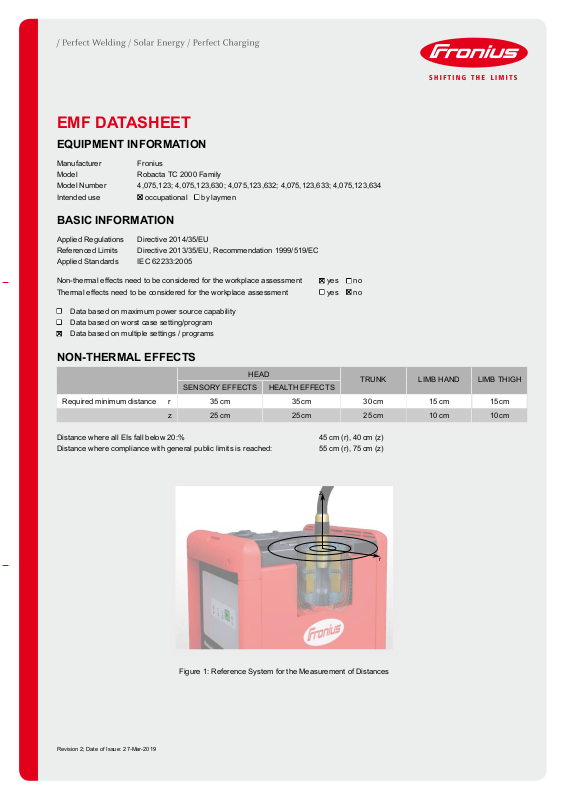

EMF DATASHEET
r
z
EQUIPMENT INFORMATION
Manufacturer Fronius
Model Robacta TC 2000 Family
Model Number 4,075,123; 4,075,123,630; 4,075,123,632; 4,075,123,633; 4,075,123,634
Intended use occupational by laymen
BASIC INFORMATION
Applied Regulations Directive 2014/35/EU
Referenced Limits Directive 2013/35/EU, Recommendation 1999/519/EC
Applied Standards IEC 62233:2005
Non-thermal effects need to be considered for the workplace assessment yes no
Thermal effects need to be considered for the workplace assessment yes no
Data based on maximum power source capability
Data based on worst case setting/program
Data based on multiple settings / programs
NON-THERMAL EFFECTS
HEAD
SENSORY EFFECTS HEALTH EFFECTS
Required minimum distance r 35 cm 35 cm 30 cm 15 cm 15 cm
z 25 cm 25 cm 25 cm 10 cm 10 cm
TRUNK LIMB HAND LIMB THIGH
Distance where all EIs fall below 20:% 45 cm (r), 40 cm (z)
Distance where compliance with general public limits is reached: 55 cm (r), 75 cm (z)
Figure 1: Reference System for the Measurement of Distances
Revision 2; Date of Issue: 27-Mar-2019
