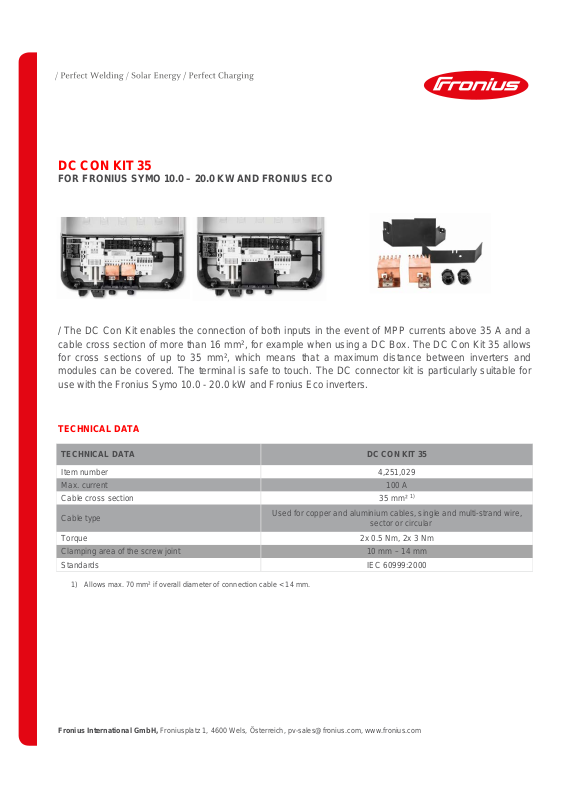

DC CON KIT 35
FOR FRONIUS SYMO 10.0 – 20.0 KW AND FRONIUS ECO
/ The DC Con Kit enables the connection o f both inputs in the event of MPP currents above 35 A and a
cable cross section of more than 16 mm², for ex ample when using a DC Box. The DC Con Kit 35 allows
for cross sections of up to 35 mm², which means that a maximum distance between inverters and
modules can be covered. The terminal is s afe to touch. The DC connector kit is particularly sui table for
use with the Fronius Symo 10.0 - 20.0 kW and Fronius Eco inverters.
TECHNICAL DATA
TECHNICAL DATA DC CON KIT 35
Item number 4,251,029
Max. current 100 A
Cable cross section 35 mm² 1)
Cable type
Torque 2x 0.5 Nm, 2x 3 Nm
Clamping area of the screw joint 10 mm – 14 mm
Standards IEC 60999:2000
1) Allows max. 70 mm² if overall diameter of connection cable < 14 mm.
Used for copper and aluminium cables, single and multi-strand wire,
sector or circular
