Kennlinien | Characteristics

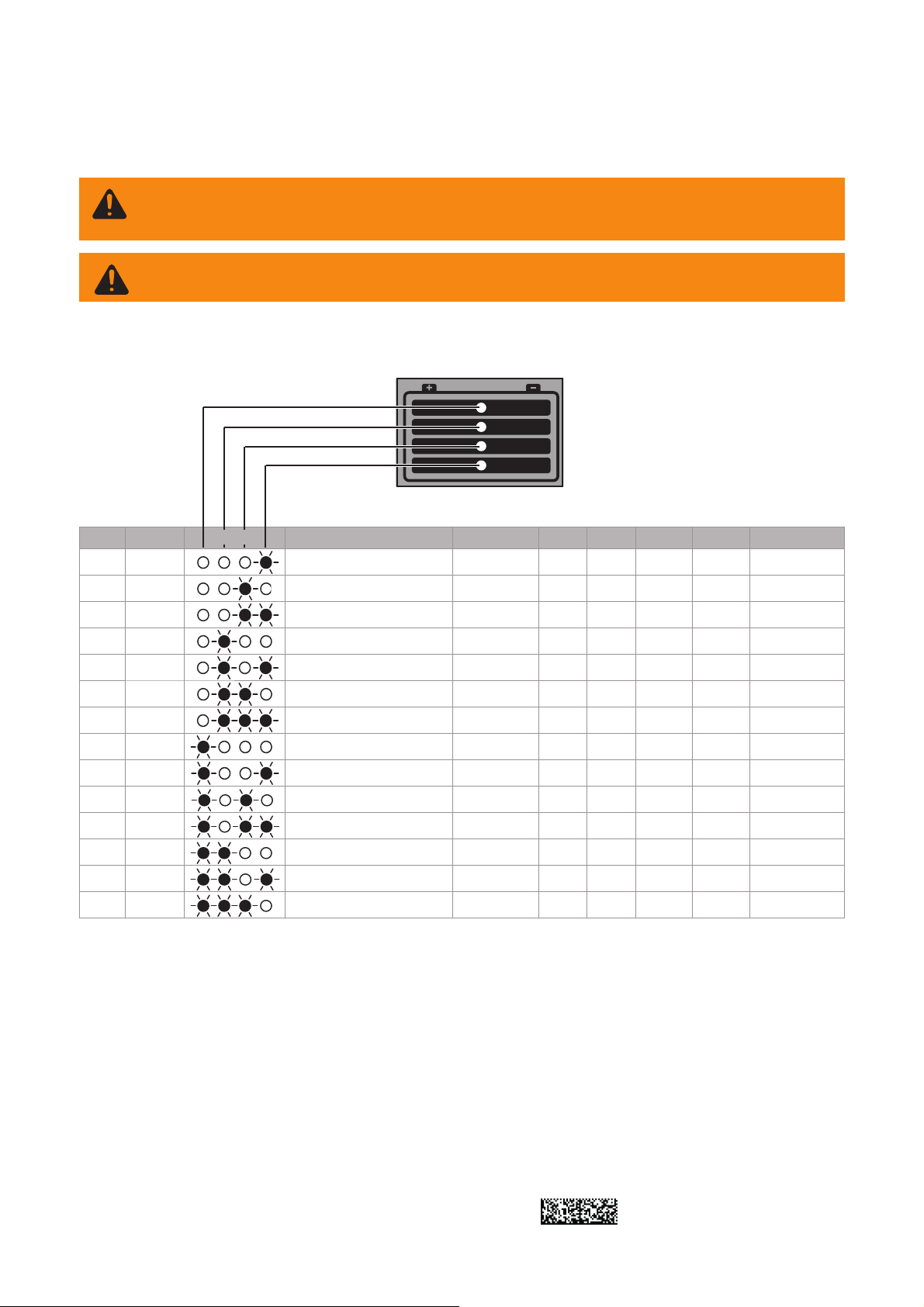

WARNUNG! Fehlbedienung kann schwerwiegende Personen- und Sachschäden verursachen. Beachten Sie
die Angaben des Batterieherstellers. Während der Parametereinstellung keine Batterie an das Ladegerät anschließen.
WARNING! Incorrect operation can cause serious injury and damage. Observe battery manufacturer’s instructions. When parameteres are being set, make sure battery is disconnected from charger.
Serial Number:
Charact. Code Battery Capacity
No.
1 IUIa Standard nass / wet 360 - 440 35 17,6 2,40 x IU-Puls
2 IUIa Standard nass / wet 290 - 360 35 14,4 2,40 x IU-Puls
3 IUIa Standard nass / wet 240 - 290 35 11,6 2,40 x IU-Puls
4 IUIa Standard nass / wet 200 - 240 35 9,6 2,40 x IU-Puls
5 IUIa GiS / PzS, EpzS / ECSM 270 - 330 35 13,2 2,40 x I-Puls
6 IUIa GiS / PzS, EpzS / ECSM 220 - 270 35 10,8 2,40 x I-Puls
7 IUIoU PzV / EpzV / EpzV-BS 240 - 280 35 3,1 2,35 2,30 Uconst
8 IUIoU PzV / EpzV / EpzV-BS 220 - 240 33 2,9 2,35 2,30 Uconst
9 IUIoU GiV / GF-V, GF-Y 200 - 290 35 3,6 2,35 2,30 Uconst
10 IUIoU GiV / GF-V, GF-Y 180 - 240 32,4 2,7 2,35 2,30 Uconst
11 IUoU Puff erladung / Block batteries x 35 x 2,40 2,25 Uconst
12 IUIa Standard nass / wet 440 - 525 35 21,5 2,40 x IU-Puls
13 IUoU AGM 175 - 350 35 x 2,45 2,27 Uconst
14 IUIoU AGM 175 - 350 35 7 2,40 2,27 Uconst
[Ah]
I
1 [A]
I
2 [A]
U
1 [V/Cell]U2 [V/Cell]
Trickle Charge
42,0426,0045,AL 007-06022020
I
1
I
1
I
1
U
1
U
2
I
2
U
1
I
2
U
1
U
2

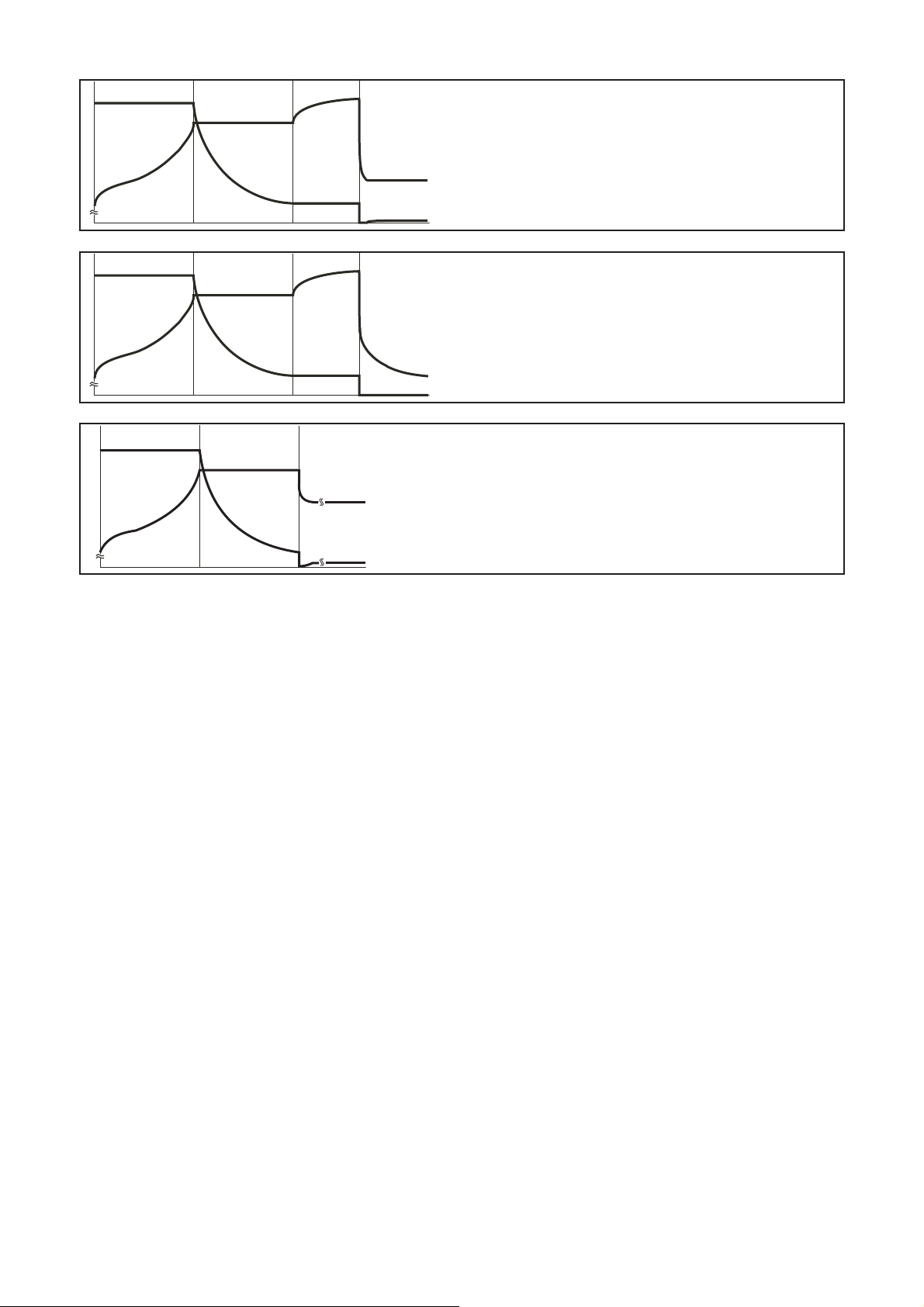

IUIoU
I1 .... Hauptladestrom
... Ladeschluss-Spannung
U
1
I2 .... Nachladestrom
U2 ... Erhaltungs-Ladespannung
IUIa
I1 .... Hauptladestrom
U1 ... Ladeschluss-Spannung
I2 .... Nachladestrom
IUoU
I1 .... Hauptladestrom
U1 ... Ladeschluss-Spannung
U2 ... Erhaltungs-Ladespannung
.... Main charging current
I
1
... Final charging voltage
U
1
I2 .... Additional charging current
U2 ... Trickle charging voltage
I1 .... Main charging current
U1 ... Final charging voltage
I2 .... Additional charging current
I1 .... Main charging current
U1 ... Final charging voltage
U2 ... Trickle charging voltage
