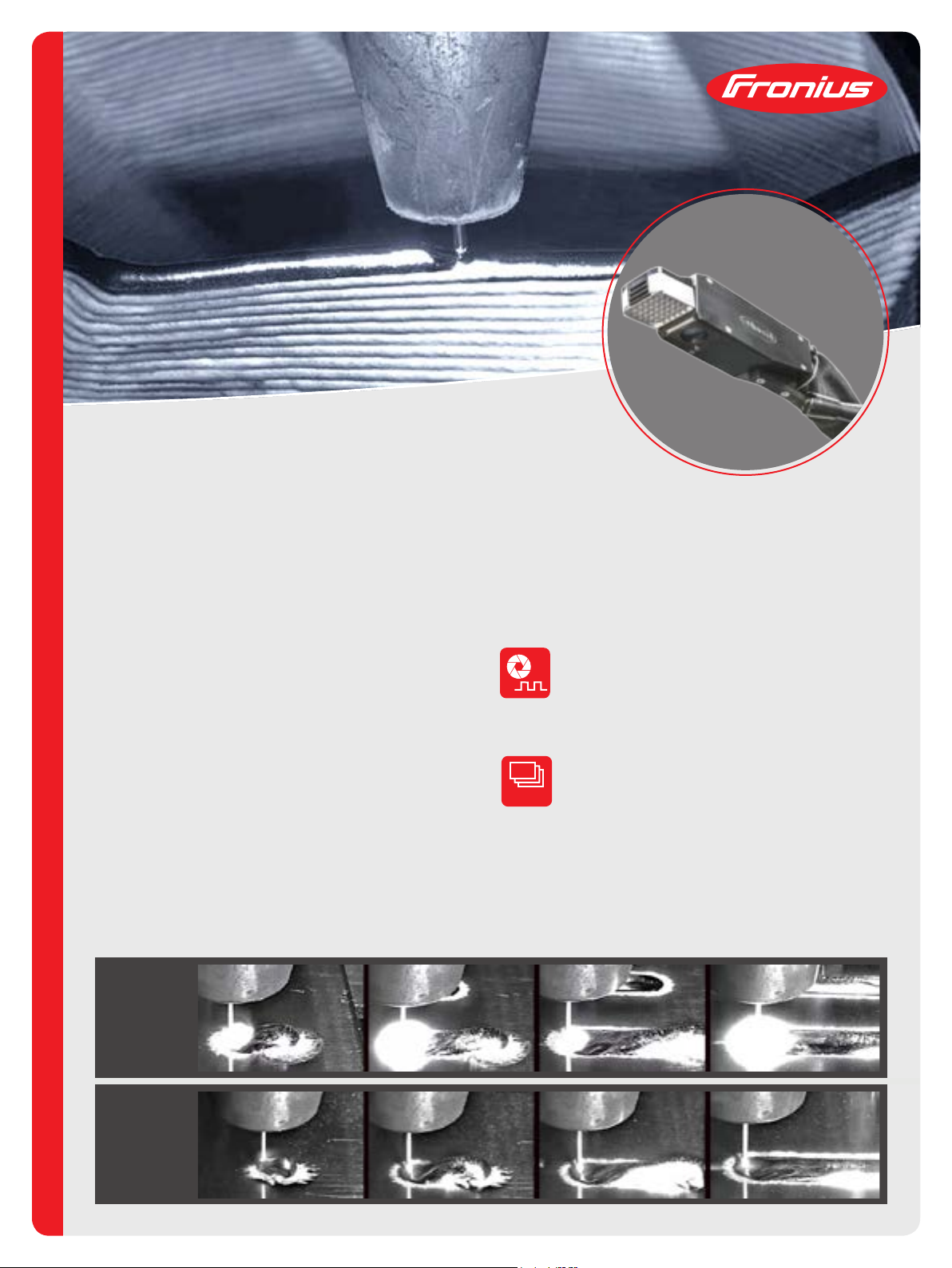

ARCVIEW 2

/ Digital camera system for visual welding process monitoring, as well as for recording and archiving video data.

The visualization and operation occurs via a graphic PC user interface.

FEATURES

/ Camera module available as 0° and 90° version

/ Compact and robust design

/ Rare protection glass change due to air flushing

/ Prepared for water cooling at high ambient tempera-

tures

/ Integrated LED light

/ Optionally with high-power LED block, synchronized

to the camera shutter

/ Motorized optical filters

/ Network access via browser for live monitoring and

control of the camera system

/ Recording function

WITHOUT
PROCESS­TRIGGER

HDR

HIGHLIGHTS

/ PROCESS-TRIGGER: Best possible recording

of the welding process through pulsecontrolled

image generation exactly in the dark phases of

the arc (TPSi).

/ HDR IMAGE PROCESSING: Optimum image

quality under difficult lighting conditions by

merging different exposures into one detailed

image.

WITH
PROZESS­TRIGGER

Text and images c orrespond to t he current state of techn ology at the t ime of printing. Subject to mo dificat ions.

All info rmation is w ithout gua rantee in spite of carefu l editing - liabilit y excluded. C opyright © 2011 Fronius™. All rights re served .

Fronius Middle East FZE

P.O. Box: 263241
Jebel Ali / JAFZA ONE BUILDING
Dubai / U.A.E
Telephone [phone]
[e-mail]
www.fronius.ae/pw

Fronius (Thailand) Ltd.

Pinthong Industrial Estate I
789/193 Moo 1, Sriracha,
Chonburi 20230
Building: P17/B1
Thailand
Telephone [phone]
[e-mail]
www.fronius.co.th

Fronius India Private Limited

Plot no BG-71/2/B,
Pimpri Industrial Area,
MIDC- Bhosari,
Pune- 411026
India
Telephone + 91 98 20 60 52 07
[e-mail]
www.fronius.in

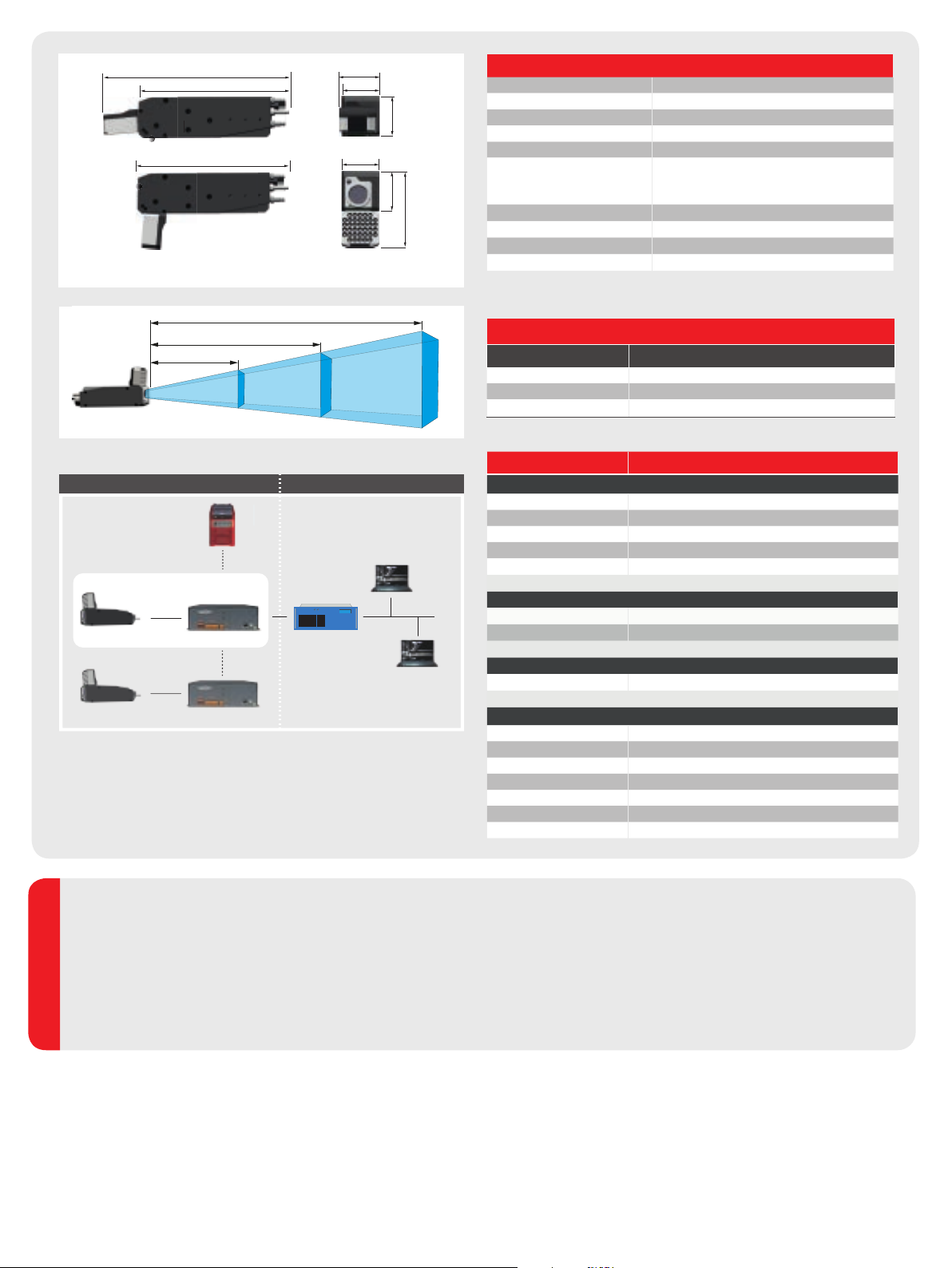

205,6 mm

165,5 mm

168,8 mm

45 mm

41 mm

41 mm

43,7 mm

43,7 mm

83,8 mm

TECHNICAL DATA

Sensor CMOS Monochrom
Resolution 1024 x 768 @ 40fps (1280 x 960 max.)
Working distance 5 - 50 cm
Filter Motorized ON / OFF
Protective glass cleaning Air / gas ushing

Max. temperature without cooling: 40 °C

Camera cooling

40 - 60 °C: Air / gas cooling

60 - 150 °C: Water cooling
Built-in LED light 7 lumen
LED-block (optional) 3000 lumen, pulsed
Interface GigE
Weight 975 g

BASIC EQUIPMENT

CAMERA MODULE

ArcView 2

FRONIUS

2nd camera

(optional)

10 cm

TPSi

(optional)

15 cm

E-BOX

ArcView 2

20 cm

(with / without screen)

BY CUSTOMER

IPC

PC / Notebook

PC / Notebook

LAN

FIELD OF VIEW / DISTANCE (BY RESOLUTION 1024 X 768)

Working distance Field of view

10 cm 62 mm x 47 mm
15 cm 85 mm x 64 mm
20 cm 108 mm x 81 mm

ARTICLE NUMBER DESCRIPTION

CAMERA MODULE

8,040,107 Camera module ArcView 2 90° LED
8,040,116 Camera module ArcView 2 90°
8,040,108 Camera module ArcView 2 0° LED
8,040,115 Camera module ArcView 2 0°
48,0007,2225 Hinge bracket 400/11

E-BOX ARCVIEW 2

8,040,112 E-Box/i ArcView 2
8,040,109 E-Box ArcView 2

SOFTWARE

4,080,002 ArcView basic license

ARCVIEW 2 HOSE PACKS

38,0100,0483 Hose pack ArcView 2, l=5 m
38,0100,0484 Hose pack ArcView 2, l=10 m
38,0100,0485 Hose pack ArcView 2, l=15 m
38,0100,0486 Hose pack ArcView 2, l=20 m
38,0100,0487 Hose pack ArcView 2, l=30 m
38,0100,0488 Hose pack ArcView 2, l=40 m
38,0100,0489 Hose pack ArcView 2, l=50 m
