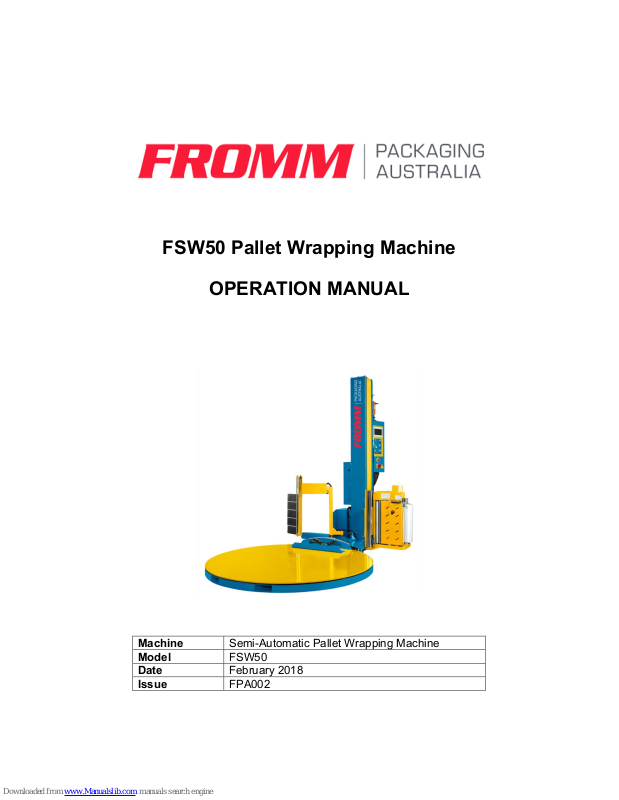

Page 1
FSW50 Pallet Wrapping Machine
OPERATION MANUAL
Machine Semi-Automatic Pallet Wrapping Machine
Model FSW50
Date February 2018
Issue FPA002
Page 2
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 2
CONTENTS
1. General Information 3
1.1 Note of installation 3
1.2 Notice of Operation 3
2. Specification 4
2.1 Machine Dimensions 5
3. Safety Precautions 6
4. Operation of the Control Panel 7
4.1 Control Button Explanations 8
4.2 User Panel 10
5. Film Loading and Threading 11
5.1 Pre Stretch Percentage Change 12
6. Suggested Maintenance and Trouble Shooting 13
6.1 Suggested Maintenance 13
6.2 Warranty Periods 13
6.3 Fromm Service Solutions 13
6.4 Possible troubleshooting causes and remedies 14
7. Contact Fromm Packaging 15
Page 3
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 3
1. GENERAL INFORMATION
Congratulations on the purchase of your Fromm Pallet Wrapping Machine. We trust you
will have many years of packaging efficiency.
Before proceeding with the operation or installation of your new machine please read this
manual thoroughly and gain a full understanding of the requirements, features and
operation of your new machine.
1.1 Note of Installation
To ensure your machine operates in a safe manner please review the following
requirements:
1. Machine standard power is 240V (+- 10%).
2. Machine standard power Hertz is 50Hz. (+- 2%).
3. Machine can operate in temperatures between OԨ - 45Ԩ.
4. The position were you place the machine must be flat and have no vibrating
machines around the wrapping machine.
5. Please ensure you download and read our Install Guide before attempting it yourself.
1.2 Notice of Operation
Before you start using the wrapping machine, please review the following conditions:
1. Before operating, please read the machine operational manual carefully.
2. Make sure there is no object put on the power cable.
3. Make sure there is no object put on the upper elevator unit.
4. Avoid any damp object or water around the electric parts.
5. Do not stand on or across from the machine during operation.
6. When a problem does occur, please check the troubleshooting section for more
information and advice.
Page 4
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 4
2. SPECIFICATION
Maximum Machine Size
Dimension: 2973 mm (L) x 1880 mm (W)
Mast Height: 2345mm
Turntable Height from Floor: 87mm
Shipping weight: 664 Kgs.
Electrical Data
240Volt, 50Hz, 1 Phase
Power Consumption: 1.2 KW
Production Capacity
Spiral: 30 – 40 loads per hour
Turntable Maximum Speed: 12 RPM
Maximum Load: 1.2 M (wide) x 1.2 M (long) x 2M (height)
1.8M Maximum Wrap Diagonal
Max. Load Weight: 2000 kg
Page 5
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 5
2.1 Machine Dimensions
Page 6
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 6
3. SAFETY PRECATIONS
1. Read the Operation Manual before operating the machine.
2. Do NOT attempt to service the machine unless you are qualified.
3. Loose clothing must NOT be worn while the machine is in operation.
4. Stay clear of moving parts while the machine is in operation.
5. Push in the EMERGENCY STOP bottom when replacing each roll of stretch film,
threading the Pre-Stretch System, performing maintenance, cleaning up, and when the
machine is not in use.
6. Do NOT attempt to wrap product that the machine is not designed to wrap.
7. Do NOT stand on the Film Carriage.
8. Do NOT remove or modify the fixed lower and upper limit switch stops. This may
cause personal injury and/or damage to the machine.
Page 7
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 7

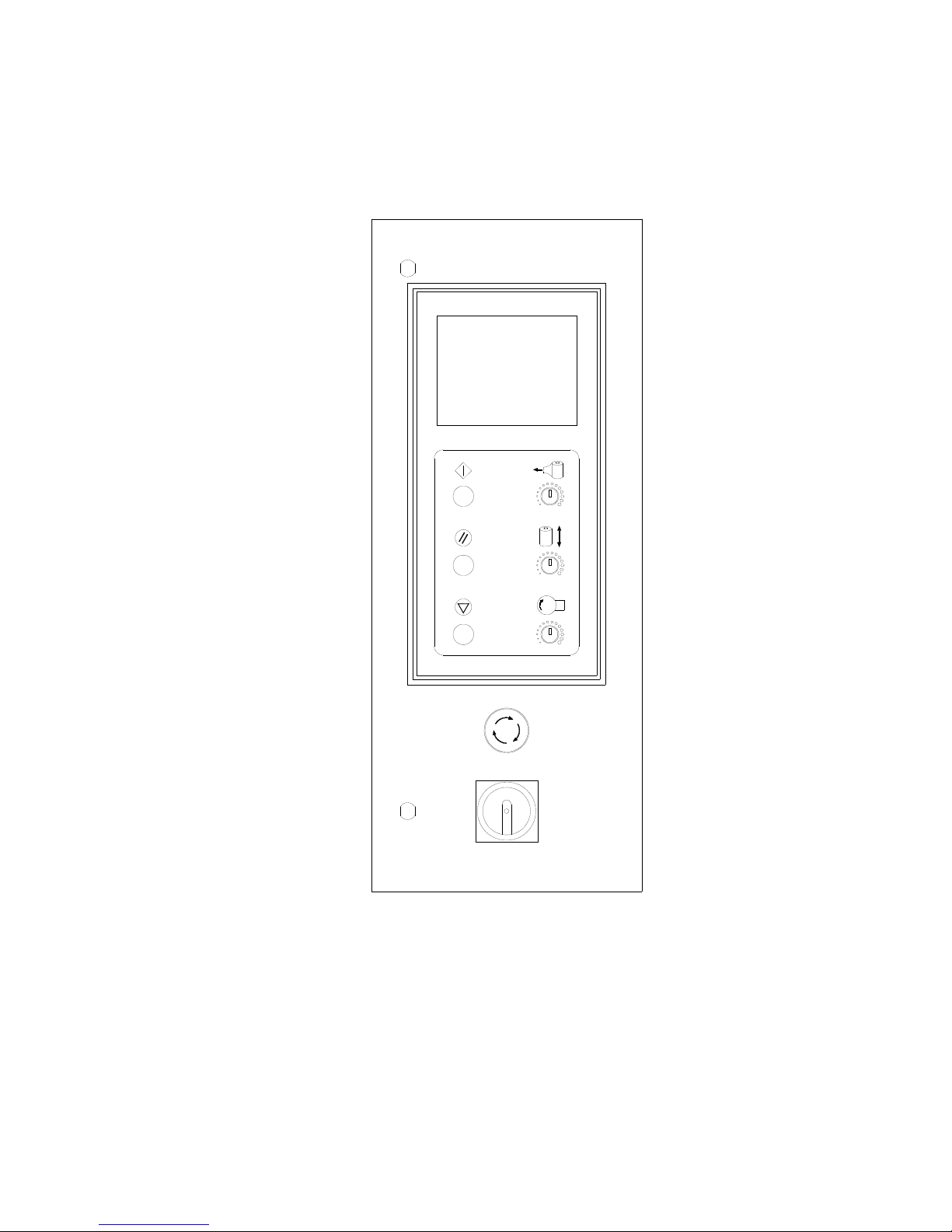

4. OPERATION OF THE CONTROL PANEL
Page 8
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 8

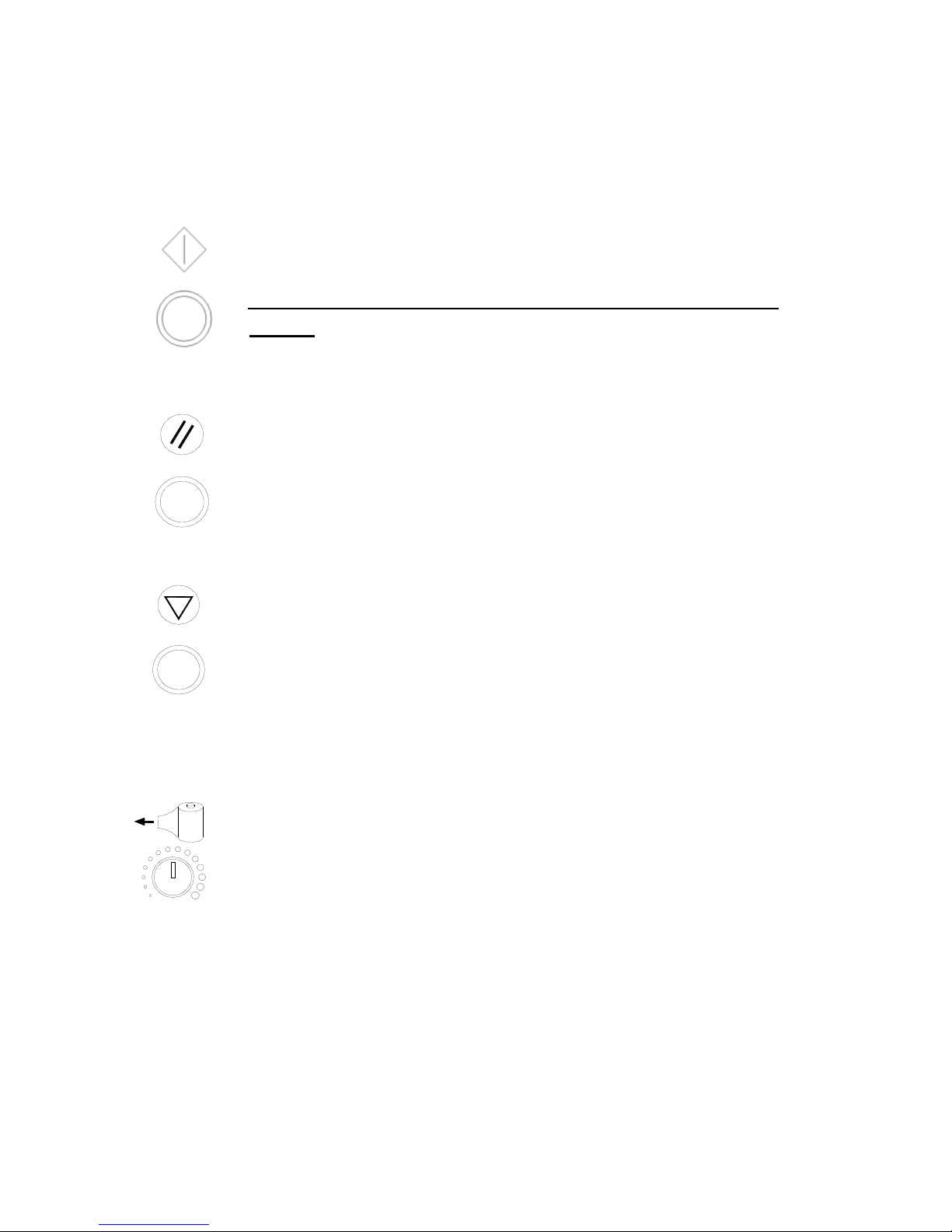

4.1 Control Button Explanations
START BUTTON
Press this button to start operation.
Note: After all functions have been reset press this button to start the
program
RESET BUTTON
Pressing the button, all operation is released and the machine returns to
natural status.
PAUSE BUTTON
Press the button; the machine will be stop whether it is under automatic or
manual mode. Press the START button to complete the rest program.
FILM TENSION ADJUSTMENT
It is the control knob for wrapping tension.
Turn the knob clockwise to increase the tension.
Turn the knob counter-clockwise to decrease the tension.
NOTE: 1. Turntable speed and wrap tension can be adjusted individually.
2. Wrapping tension on the package edge and side are the same.
3. After setting the wrapping tension, it is suitable for most packages
and no need to make adjustments.
Page 9
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 9

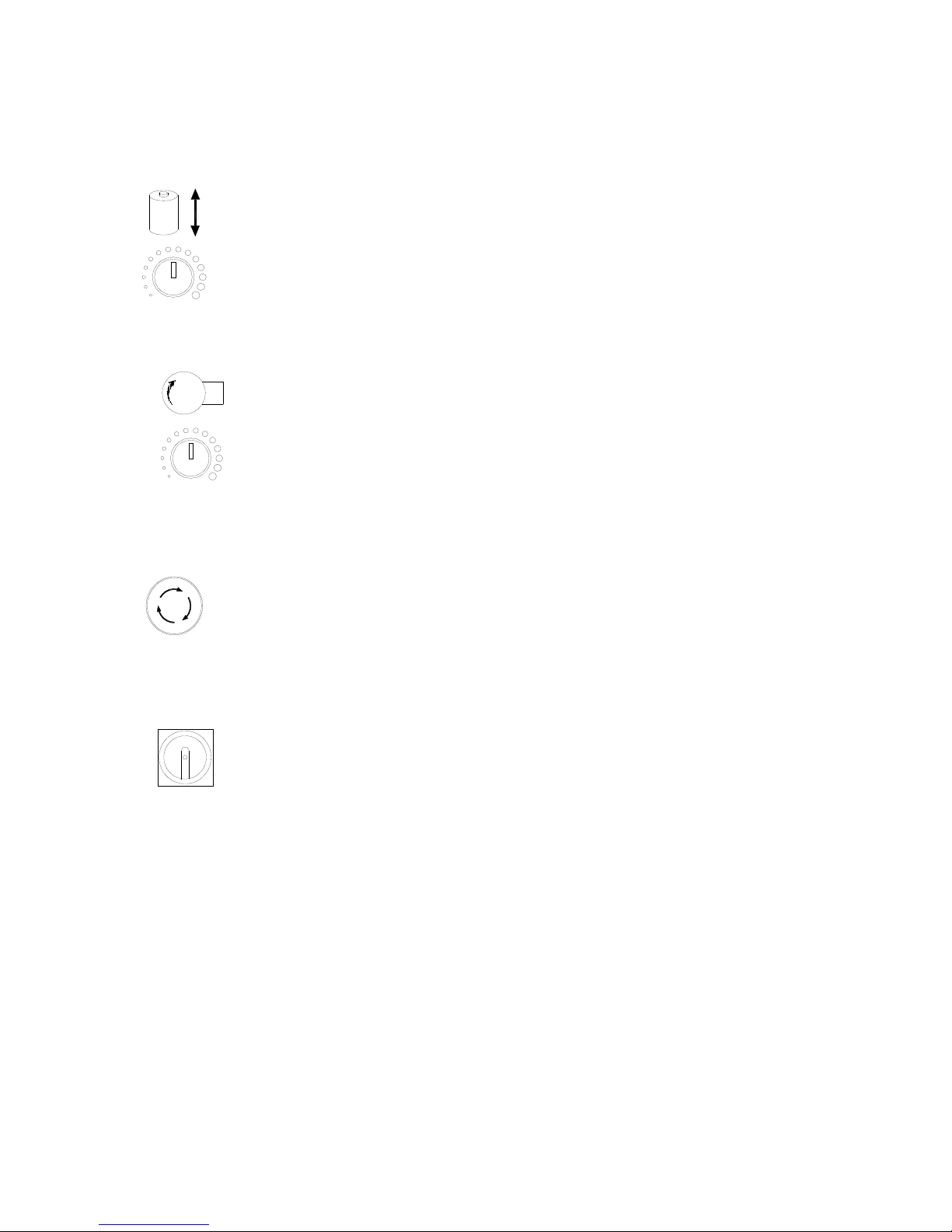

ELEVATOR SPEED ADJUSTMENT
Turn the knob clockwise to increase the speed of elevator.
Turn the knob counter-clockwise to decrease the speed of elevator.
The speed adjust knob is available for both “AUTO” and “MANU” program.
TURNTABLE SPEED ADJUSTMENT
Turn the knob clockwise to increase the speed of turntable.
Turn the knob counter-clockwise to decrease the speed of turntable.
The speed adjust knob is available for both “AUTO” and “MANU” program.
If there is no particular requirement, please set the knob on standard position.
The turntable speed is 12 RPM.
EMGERGENCY STOP
Press this button for any emergency situation.
MAIN POWER
This turns power OFF or ON.
Page 10
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 10

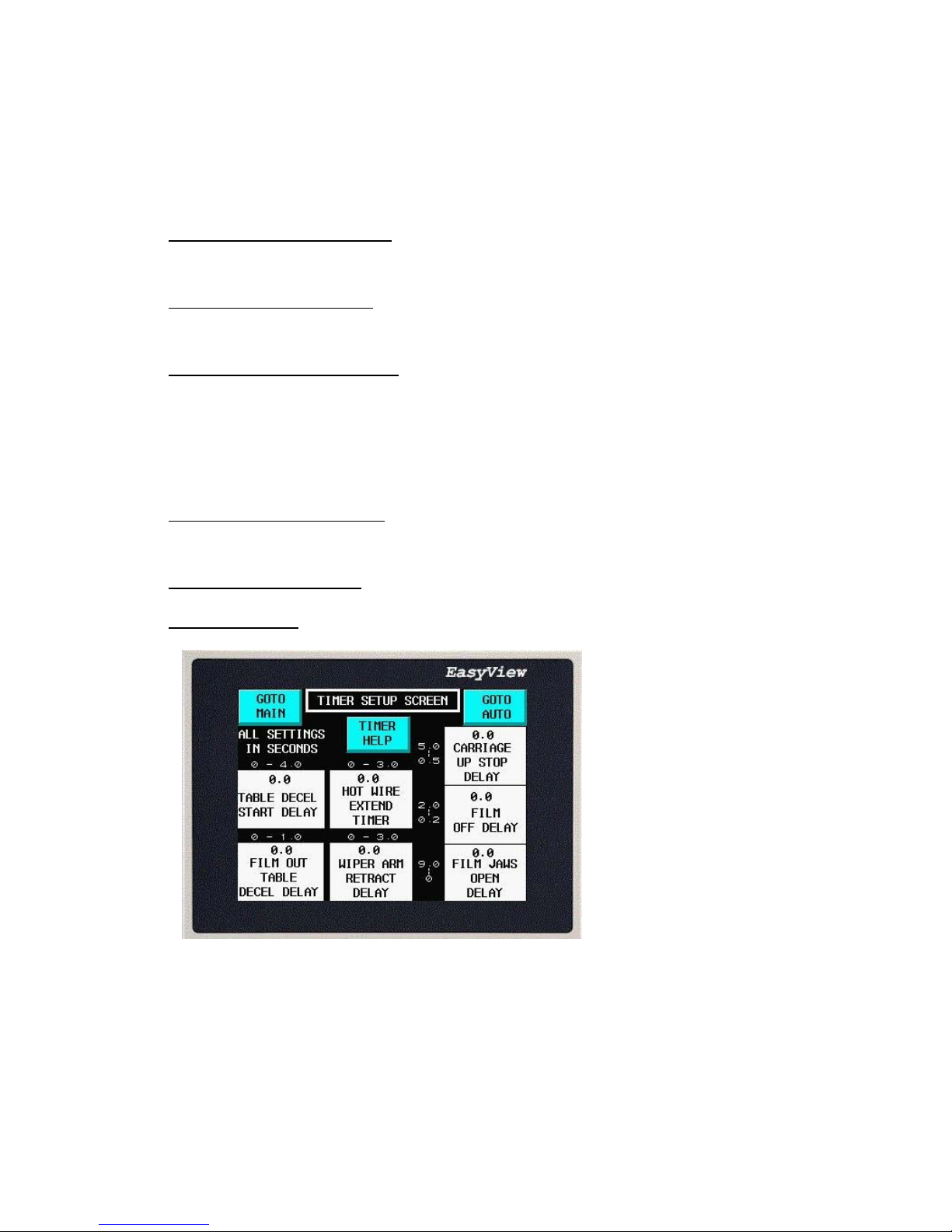

4.2 User Panel
TIMER HELP SCREEN 1
TABLE DECEL START DELAY - Sets the point where the rotation (turntable) changes
from fast to slow speed.
HOT WIRE EXTEND TIMER - Sets the time duration for the hot wire when cutting the
film.
WIPER ARM RETRACT DELAY - Sets the time delay after the package clears the pack
detection sensor. The wiper arm will retract to home position.
TIMER HELP SCREEN 2
CARRIAGE UP STOP DELAY – Sets the time delay to stop the carriage at top of product
height.
FILM JAWS OPEN DELAY – Sets the delay for the clamps to release the film after wrap.
FILM OFF DELAY – Sets the time delay for film stop out from the carriage.
Page 11
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 11

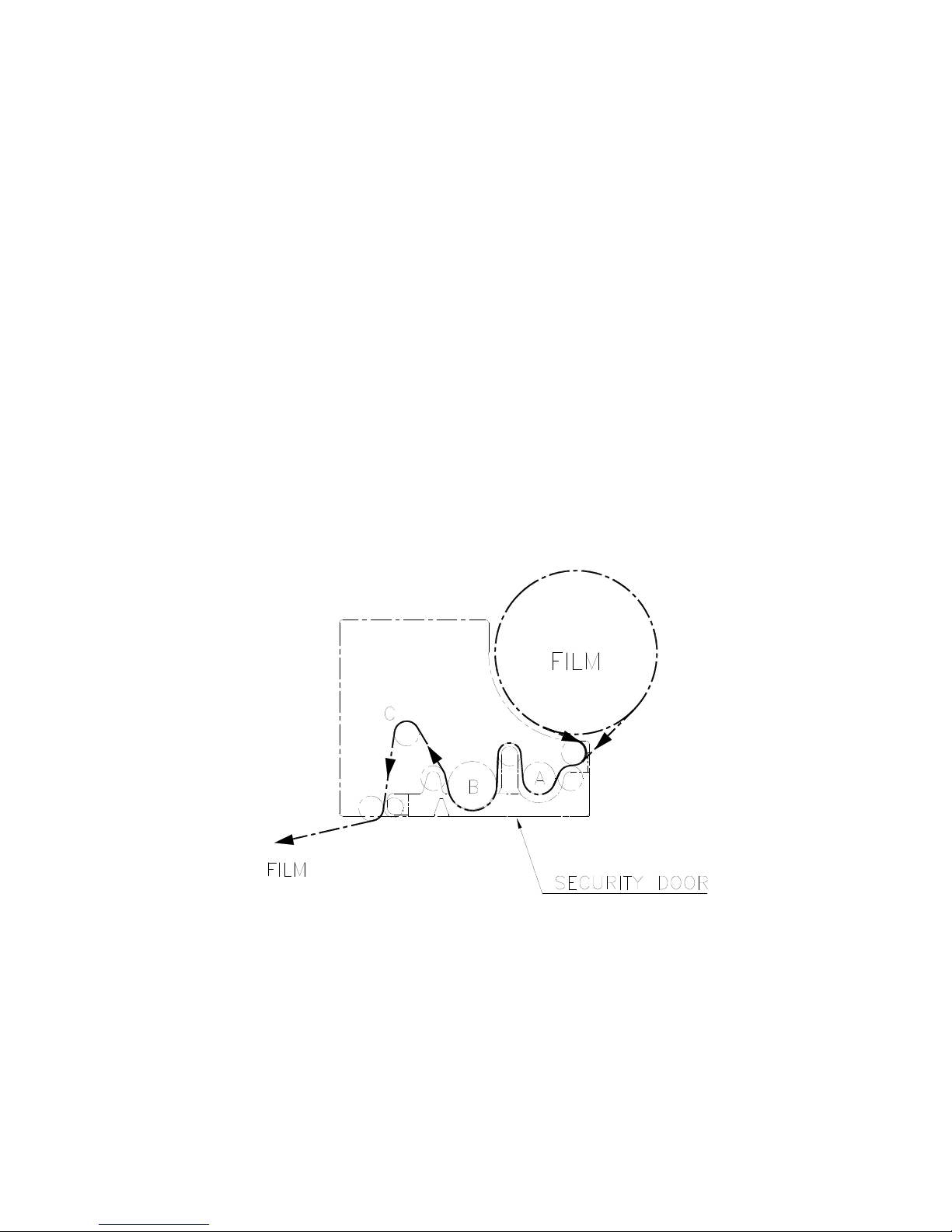

5. FILM LOADING AND THREADING
1. Open access door.
2. Load the film roll onto the film roll holder, and make sure the roll is securely
in place.
3. Pull out the film manually, and thread it through dancing bar “C”; ensure enough
length to reach the film clamp device when it’s closed.
4. Place film loosely between door and pre-stretch rollers, then close the door and
ensure that the door is correctly locked.
See Figure 1. Film Loading
Page 12
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 12

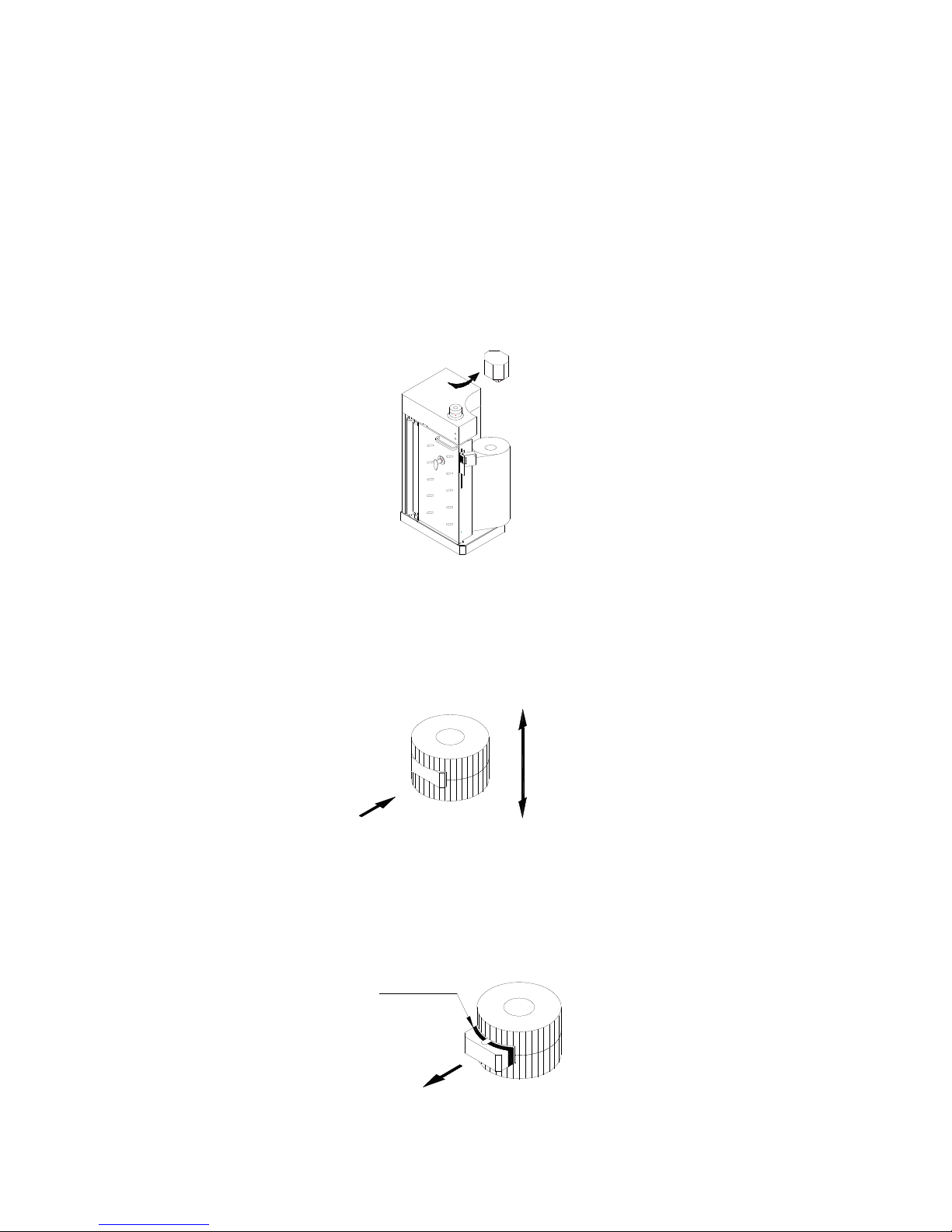

5.1 Pre-Stretch Percentage change
The standard gears on the FSW50 is set to perform 230% or 300% pre-stretch ratio.
To change different ratio, please follow the instructions below.
200% & 250% pre-stretch ratio is also available, please consult your supplier for
details.
1. Switch the power off and remove the handle cover
2. Press the safety lock inward, and use the handle to adjust the pre-stretch ratio.
3. Pull up the handle for High Pre-Stretch ratio or push down to get Low Pre-Stretch
ratio.
SAFETY LOCK
LOW-RATIO
HIGH-RATIO
4. Before the machine is switched on, please ensure the SAFETY LINE is back to its
home position, and the indicator lamp is shown correctly. Re-fit handle cover.
SAFETY LINE
SAFETY LOCK
Page 13
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 13
6. SUGGESTED MAINTENANCE & TROUBLE SHOOTING
6.1 Suggested Maintenance
Fromm Packaging Australia recommends servicing every six months as a minimum, but
many machines have different service intervals depending on condition and throughput.
It’s best to discuss your servicing requirements with Fromm Packaging.
6.2 Warranty Periods
To provide you with peace of mind all Fromm stretch wrapping, strapping and carton
taping equipment includes a two year warranty from the date of delivery to your site. The
warranty includes all deficiencies clearly resulting from poor manufacturing or faulty
materials. Damage claims as a result of production shutdowns and claims for damage to
persons and to property resulting from warranty deficiencies covering structural
components and non-wearing parts effective from the date of delivery to your site.
The warranty excludes:
Wearing parts (rollers, motors and belts),
Deficiencies resulting from improper installing, incorrect handling and maintain the
equipment,
Disregard of directions in the operation manual,
Unauthorized repair work to the equipment,
Use of consumable products not recommended by the supplier of the equipment.
We reserve the right to modify the product any time in order to improve the quality.
6.3 Fromm Service Solutions
Fromm service technicians are trained to service all stretch wrapping, strapping and
carton taping machines which we sell and are your on-site expert support to optimise the
performance and reliability of your packaging equipment.
With technical offices in Sydney, Brisbane and Melbourne metro areas we are on hand to
ensure your equipment is running smoothly. Customers located outside metropolitan
areas we offer phone support and can organise onsite technical support when required.
Page 14
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 14
6.4 Possible Troubleshooting Causes and Remedies

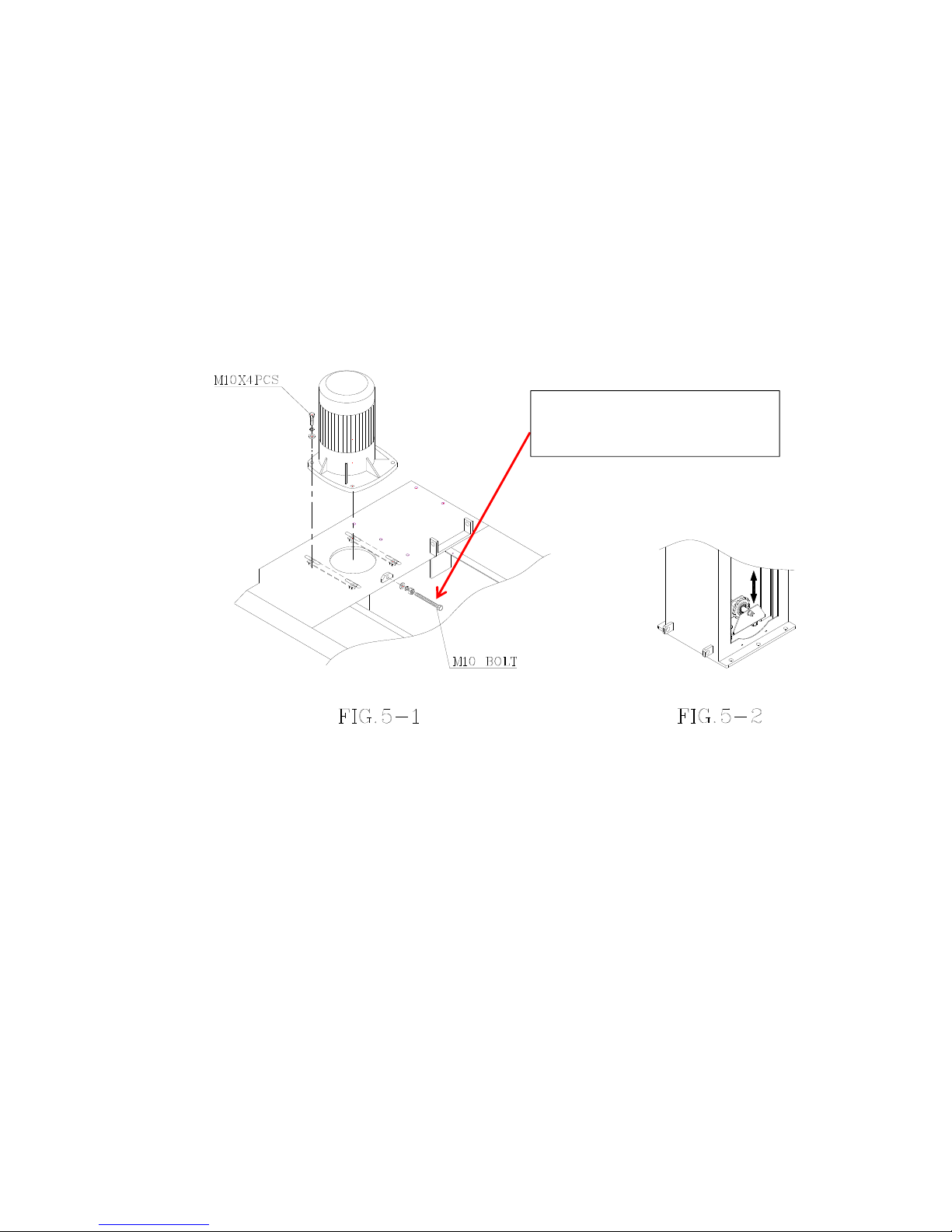

Turntable belt adjustment
Please refer to illustration 5-1, and then loosen the motor seat M10 screw 4 pcs.
Turn the (M10) on the seat until get enough tension. Turn and tight the motor seat
screw 4 pcs again.
Elevator unit driving chain adjustment
Please refer to illustration 5-2, remove mast covers and check for proper tension to the
drive chain. Adjust if necessary.
Adjust the M10 screw clockwise
or counter-clockwise for proper
tension.
Page 15
FSW50 Semi-Automatic Pallet Wrapping Machine Operation Manual | FPA001 | Oct 2017 | Page 15
7. CONTACT FROMM PACKAGING AUSTRALIA
For any questions please contact Fromm Packaging Australia
Phone: 1800 023 890
Email: [email protected]
Postal Address: PO Box 4016, Mt Ommaney QLD 4074
